Lumi C510C - Kettle Eldom - Free user manual and instructions

Brand	Eldom
Model	Lumi C510C
Product type	Cordless electric kettle
Power	1800-2200 W
Voltage	220-240 V, 50/60 Hz
Capacity	1.7 L
Body material	Transparent plastic
Heating element	Concealed (stainless steel)
Functions	Boiling, temperature setting (40°C, 70°C, 80°C, 90°C), keep warm
Keep warm	Up to 2 hours (between 85°C and 100°C)
Auto shut-off	Yes, at boiling
Backlight	Yes, according to temperature (green, blue, yellow, purple)
Anti-scale filter	Yes, removable
Water level indicator	Yes, markings from 0.5 L to 1.7 L
Swivel base	Yes, 360°
Safety	Overheat protection, auto shut-off, do not immerse
Maintenance	Exterior cleaning with damp cloth, descaling with vinegar
Filter cleaning	Rinse or gently brush
Spare parts	Filter, power base (original)
Warranty	Manufacturer for domestic use
Use	Household use only

Frequently Asked Questions - Lumi C510C Eldom

How to set the water temperature on the Eldom Lumi C510C kettle?

Press button B to select the desired temperature (40°C, 70°C, 80°C or 90°C). The corresponding indicator lights up on the panel. When the temperature is reached, the kettle switches off automatically.

What do the different backlight colors mean?

The backlight changes according to temperature: green for 40°C, blue for 70°C, yellow for 80°C, purple for 90°C. It lights up during operation.

How to activate the keep warm function?

After boiling water at 100°C (default temperature), press and hold button A until a second beep is heard. The indicator flashes and the backlight turns on. The function keeps water between 85°C and 100°C for 2 hours.

How to clean the Eldom Lumi C510C kettle?

Unplug and let cool. Clean the exterior with a damp cloth and dish soap. Never immerse the kettle in water. For the interior, use a cloth soaked in vinegar, then rinse with clean water.

How to descale the kettle?

Boil 0.5 L of water, turn off and unplug. Add 0.1 L of vinegar and let sit for several hours. Empty, rinse, then boil 1 L of water and empty again. Regular descaling prevents wear of the heating element.

How to clean the anti-scale filter?

The removable filter can be taken out and rinsed under water, or cleaned with a soft brush. Regular cleaning is necessary, especially in hard water areas.

What to do if the kettle does not turn on?

Check that the kettle is properly placed on its base and that the base is plugged in. Make sure there is enough water (at least 0.5 L). If the problem persists, contact an authorized service.

Can I heat something other than water in the kettle?

No. The kettle is designed only for boiling water. Any other use may damage the appliance and void the warranty.

Can the kettle be used without the base?

No. The kettle must always be used with the original base provided. The base ensures power supply and stability.

What to do if the power cord is damaged?

Do not use the kettle. The cord must be replaced by the manufacturer or an authorized service to avoid any danger.

USER MANUAL Lumi C510C Eldom

/EN/ The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batte ries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

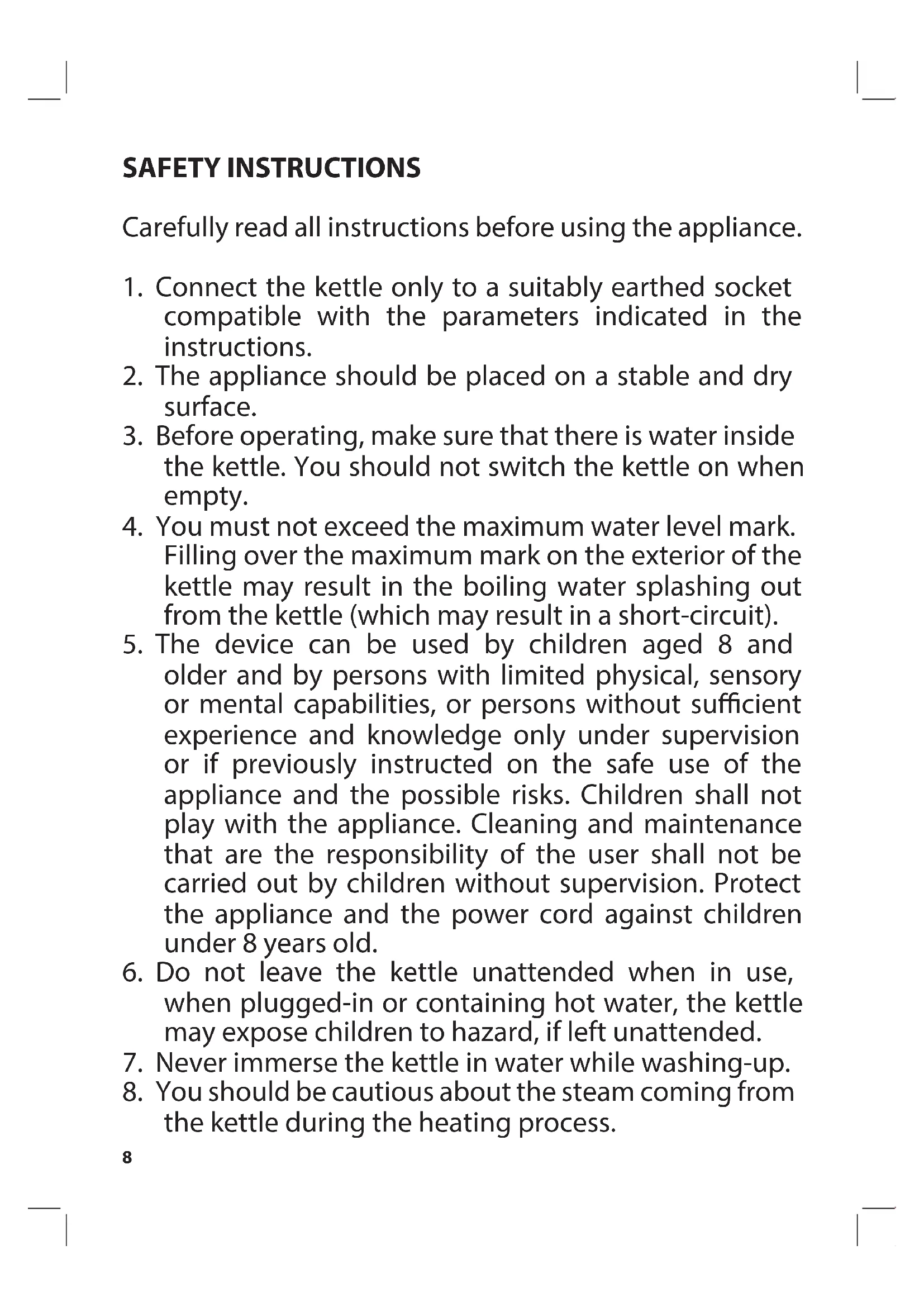

Carefully read all instructions before using the appliance.

1. Connect the kettle only to a suitably earthed socket compatible with the parameters indicated in the instructions.
2. The appliance should be placed on a stable and dry surface.
3. Before operating, make sure that there is water inside the kettle. You should not switch the kettle on when empty.
4. You must not exceed the maximum water level mark. Filling over the maximum mark on the exterior of the kettle may result in the boiling water splashing out from the kettle (which may result in a short-circuit).
5. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
6. Do not leave the kettle unattended when in use, when plugged-in or containing hot water, the kettle may expose children to hazard, if left unattended.
7. Never immerse the kettle in water while washing-up.

8. You should be cautious about the steam coming from the kettle during the heating process.

9. This appliance is designed for domestic use only; when used for industrial purposes outside the product's specifications, or used not in accordance with the instructions, no liability is assumed and the warranty is nullified.

10. Don't use the appliance, if the power cord is damaged or if the appliance fell down or was otherwise damaged. The appliance should be repaired by an authorized Service Centre; a list of Service Centres can be found in the attachment and on the website www.eldom.eu
11. The appliance can be repaired only in an authorised Service Centre. Any modernisation or application of spare parts or elements other than the original ones is forbidden and dangerous for the user.
12. The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.
13. This kettle must be used with the power base supplied.

WARNING: Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be recycled.
• It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.

EN

INSTRUCTION MANUAL

CORDLESS KETTLE C510B / C510C

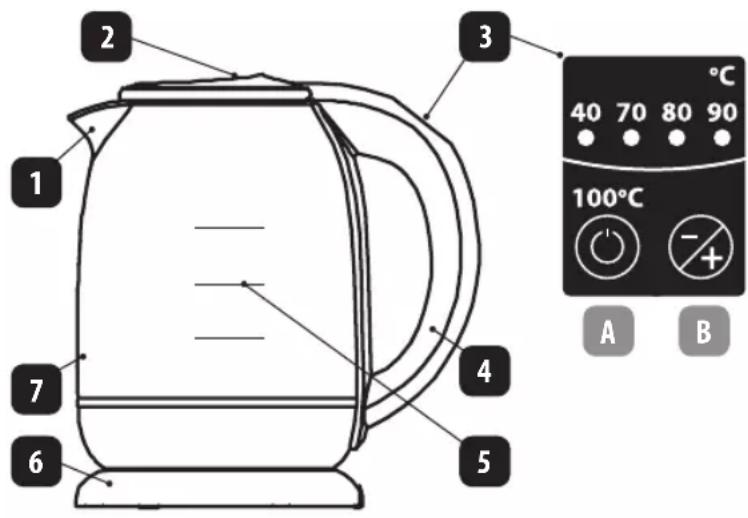

GENERAL DESCRIPTION

1. Spout + net filter
2. Opening lid + lid release button
3. Control panel
4. Handle
5. Water level indicator
6. Base
7. Illuminated jug

TECHNICAL DATA

power:1850-2200W

mains voltage:

220-240V, 50Hz

capacity: 1.7 litre

INTENDED USE

The C510 wireless kettle is intended for boiling water. It is fitted with the function of temperature control and hold (85 - 100^) . The capacity of the kettle allows to boil 0.5 - 1.7l of water. The maximum and minimum level of water is marked with the indicator (5).

OPERATION

All changes of settings are confirmed with audible signal.

Place the base of the appliance (6) on flat, stable and dry surface.

Excess cord may be kept inside the base. Make sure that the cord protrudes from the base (6) through the special groove to have the appliance stable.

Boil water 2-3 times and discard before the first use of the kettle.

Fill in the appliance after opening the cover (2).

Do not fill in the kettle while on the base.

The kettle will be activated after pressing the button (A).

Operation of the appliance is signaled with illumination of the jug (7).

The kettle will be automatically turned off when the water is boiled.

The appliance may be turned off at any time with the button (A).

TEMPERATURE CONTROL

The kettle allows to warm up water to the pre-set temperature.

To select the required temperature of water (40^, 70^, 80^ or 90^) , press the button (B) to cause illumination of the relevant indicator on the panel (3).

Operation of the appliance is signaled with illumination of the jug (7). Illumination color depends on the selected temperature.

When the preset temperature is reached, the kettle will turn off.

Note. Taking the kettle off the base cancels the settings.

The appliance may be turned off at any time with the button (A).

ILLUMINATION

40^ : green light.

70^ : blue light.

80^ yellow light.

90^ :purple light.

TEMPERATURE HOLD - 85-100°C

Press the button (A) and hold it for 3 seconds.

Activation of the function will be signalled with flashing indicator and illumination of the jug (7). The kettle will hold the temperature (85 - 100^) for 2 hours, and then it will automatically turn off. Taking the kettle off the base cancels the settings.

CLEANING AND MAINTENANCE

• allow the unit to cool down completely before cleaning,
• do not immerse the kettle in water while washing up,
• the outside of the kettle may be wiped over with a damp cloth and washing-up liquid,
• water stains inside the kettle can be removed by rubbing with a cloth moisten with white vinegar; rinse the inside with water afterwards,
• limescale should be removed in the following way:
• fill the kettle with 0.75 litre of water and bring it to boil,
• switch the kettle off and disconnect the kettle from the power supply,
• pour 0.1 litre of white vinegar into the kettle,
• allow to stand overnight,
• discard the solution and rinse the inside with water,
• fill the kettle with 1 litre of water and bring to boil,
• discard the water and rinse the inside with water,
• no timely removal of the scale from the heating element results in the heating element's quicker wear,
• any damage resulting from applying harsh descending products available in the market are not covered by the producer's warranty,
• if the power cord is damaged, it can be replaced only by an especially constructed one (with appropriate plugs and endings).

SICHERHEITSHINWEISE

BbI6paHHoTEmpeaTpybl.

IocneIOCTnHexHna3aHaHHoTEmnepaTpybI，aHnHKBbIKNIOUHTcA.

BHHMaHHe! ChrTne yaiHnka c noDCTaBKn npuBoDNT K c6pocy HAcTpoeK.

Pa60ty yctpoiCTBa MoXHO npepbatb B IIO6O MOpEHT, BBIKIIOUaY yctpoiCTBO npn NOMOuN KhoNk (A).

IODcBETKA

40°C: 3eJeha noCDBeTka.
70^ ：roIy6aI noDCBeTka.
80^ ：JeJI TaNoCBeTka.
90°C: ΦηοJETOBaЯ NOДСВЕТka.

IOIePxAHNE TEMNEPATyPbI - 85-100°C

HaxmTe uyepeKuBaIe KhoNky (A) B TeueHne 3 ckyH.

BkHueHne yHKcun cnpoBoXdaetcMraHnem yCTaHOBJeHHoro 3NaueHnHa naHei MeHIO nOndCBETKn EMKOCtN (7).

YaHnK 6yIeT nOJIepXINBaTb Tempeatpy (85-100°C) B TeueHne 2 YacOB, a 3aTeM aBTOMaTnueCKN BbIKIOUHTCA.

ChTne yaiHnka c noCTaBKn npNBODNT K c6pocy ycTaHOJIeHHbIX paHee HAcTpoEK.

CHNTKA UYXOJ

• YICTNTb TOJbKO XOJIOHbIy QaIHNK
• He norpykaite yctpoiCTBO B Ody
• NOBepxHOCTb YaHnKa npOTnpaTb BnaXHoN caJIΦeTKoN C Do6aBHeHnEM CpeIcTBa DnA MblbY NocyDbI
  B Cnyuae NOBHeHnHaKunn, IJy NcTKn IcNoJIb3yIe BnaXHyIO caΦeTKy C do6aBHeHem YKCyca, 3aTeM npONoNockaTb BODOIN
  B Cnyae NOBHeHn KaMHa HArpeBaTebHOM 3IeMeHTe, Heo6xOIMo peryrApHO ydaTb HAKINb B CneDyUoUs nCnoc6:
  3aknTntb YaHnke 0.75 nBodbl
• BbIKIIOHTb YaHnK N BbITAYHyTb BNJKy IhHypa n3 PO3eTKI NITAHN
  BInTb YaHnK 0.1ynykcyca
  OCTaBtB XnDkoCTb B YaHnKe Ha HeCKoJIbKO YaCOB
• BbIINb JxNkOCTb, npONoNCKaTb BOIO
  -3aKINPTuTb1N BODbyB YaHnKe
  BbIINb 3aKnPaeHHyBOy, npoONoCKaTb HcToB ODo

SEGURIDAD
