CS9 Cerro - Kettle Eldom - Free user manual and instructions

Product Type	Electric Kettle
Brand	Eldom
Model	CS9 Cerro
Capacity	1.7 L
Power	2200 W
Voltage	220-240 V
Frequency	50/60 Hz
Material	Stainless steel body
Color	Stainless steel / Black
Dimensions (HxWxD)	22 x 15 x 22 cm
Weight	0.8 kg
Cord Length	0.7 m
Base Type	360° rotational base
Auto Shut-off	Yes
Boil-dry Protection	Yes
Removable Filter	Yes (in spout)
Water Level Indicator	Yes
Illuminated On/Off Switch	Yes
Cleaning	Descale regularly with vinegar or citric acid
Warranty	2 years

Frequently Asked Questions - CS9 Cerro Eldom

What is the capacity of the Eldom CS9 Cerro kettle?

The kettle has a capacity of 1.7 liters, ideal for making multiple cups of hot beverages.

How do I clean the kettle?

Unplug and let cool. Wipe exterior with a damp cloth. For descaling, fill with a mixture of water and vinegar or use a descaling agent, boil, then rinse thoroughly.

Does the kettle have auto shut-off?

Yes, it features automatic shut-off once the water reaches boiling point for safety.

What safety features does it have?

It includes boil-dry protection and auto shut-off to prevent accidents.

Can I use the kettle on a 360-degree base?

Yes, the kettle sits on a 360° rotational base, allowing easy lifting and placement.

What material is the kettle made of?

The body is made of stainless steel with a plastic handle and lid.

How often should I descale the kettle?

Descale every 1-2 months, depending on water hardness, to maintain performance.

Is the filter removable?

Yes, the removable filter in the spout can be taken out for cleaning.

What is the power cord length?

The power cord is approximately 0.7 meters long.

Does the kettle have a warranty?

Yes, it comes with a 2-year warranty against manufacturing defects.

USER MANUAL CS9 Cerro Eldom

Exterior view of a modern stainless steel water heater with black handle and brand logo (no text or symbols on body)

Please read all these instructions carefully before using this appliance.

1. Carefully read all instructions before using the appliance.
2. Connect the kettle only to a suitably earthed socket compatible with the parameters indicated in the instructions.
3. The appliance should be placed on a stable and dry surface.
4. Before operating, make sure that there is water inside the kettle. You should not switch the kettle on when empty.
5. You must not exceed the maximum water level mark. Filling over the maximum mark on the exterior of the kettle may result in the boiling water splashing out from the kettle (which may result in a short-circuit).
6. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect

the appliance and the power cord against children under 8 years old.

1. Do not leave the kettle unattended when in use, when plugged-in or containing hot water, the kettle may expose children to hazard, if left unattended.

2. Never immerse the kettle in water while washing-up.

3. You should be cautious about the steam coming from the kettle during the heating process.

4. The appliance is made of materials which can be recycled.

5. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

6. This appliance is designed for domestic use only; when used for industrial purposes outside the product's specifications, or used not in accordance with the instructions, no liability is assumed and the warranty is nullified.

7. Never use the kettle if the supply cord is damaged. If found damaged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.

EN

INSTRUCTION MANUAL

CORDLESS KETTLE CS9

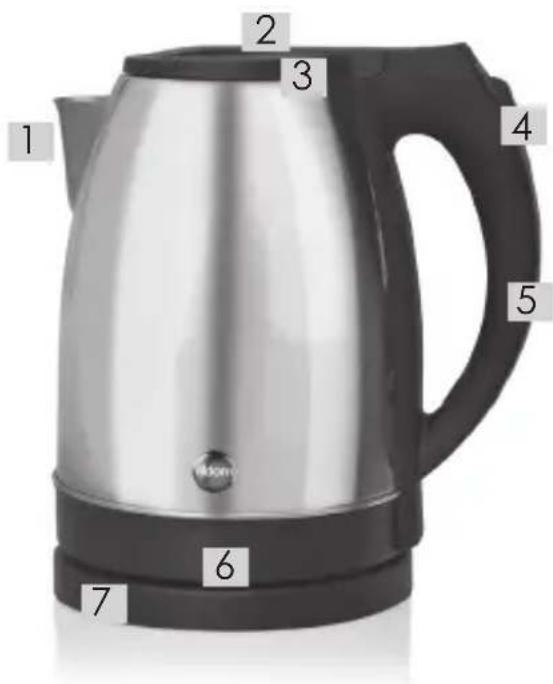

GENERAL DESCRIPTION

1. Spout
2. Lid release button
3. Opening lid
4. On/off switch
5. Handle
6. Control lamp
7. Rotating base

TECHNICAL DATA

• power: 1500 W
• mains voltage: 230V \~ 50Hz
  • 1.8 litre capacity

OPERATION

Cordless kettle CS9 is for boiling water.

It is possible to boil 0.5 - 1.8 litre of water in the kettle.

The kettle base (7) must be put on a flat and dry surface.

In the base there is some space for an excess cord. It is important for the cord to be led from the base (7) through a special groove so that the appliance could be stable.

Before using the kettle for the first time fill it up (2-3 times) with water, boil the water and thenempty the kettle.

The kettle can be filled with water directly through the spout (1) or after opening the lid (3).

In order to open the lid (3) you must press the button (2).

The kettle must not be filled up when on the base.

The highest (max) and lowest (min) permissible water level is shown inside the kettle

The kettle starts working after putting the switch (4).

The kettle working is signalled by the control lamp (6).

The kettle switches off automatically after the water has boiled.

You can stop heating water at any time by putting the switch (4).

10 EN

CLEANING AND MAINTENANCE

• allow the unit to cool down completely before cleaning,
• do not immerse the kettle in water while washing up,
• the outside of the kettle may be wiped over with a damp cloth and washing-up liquid,
• water stains inside the kettle can be removed by rubbing with a cloth moisten with white vinegar; rinse the inside with water afterwards,
• limescale should be removed in the following way:
• Fill the kettle with 0.75 litre of water and bring it to boil,
• switch the kettle off and disconnect the kettle from the power supply,
  • pour 0.1 litre of white vinegar into the kettle,
• allow to stand overnight,
• discard the solution and rinse the inside with water,
• fill the kettle with 1 litre of water and bring to boil,
• discard the water and rinse the inside with water.
• no timely removal of the scale from the heating element results in the heating element's quicker wear,
• any damage resulting from applying harsh descalling products available in the market are not covered by the producer's warranty,
• if the power cord is damaged, it can be replaced only by an especially constructed one (with appropriate plugs and endings).

FILTER

The filter does not remove the scale, but it prevents any deposits from getting inside the kettle while the water is being poured in.

The filter should be cleaned regularly.

Hard water may block the filter after boiling water a couple of times.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

WARRANTY

• this appliance is designed for domestic use only,
• it cannot be used for professional purposes or for other than the intended use,
• improper use will nullify the guarantee. Warranty details in the appendix
