ASZ 1010 - Vacuum Cleaner QLIMA - Free user manual and instructions

Product type	Ash vacuum cleaner
Brand	Qlima
Model	ASZ 1010
Intended use	Suction of dry and cold ashes (≤40°C) only
Power	600 W
Power supply	220-240 V~, 50 Hz, single-phase
Tank capacity	12 liters
Vacuum pressure	≥14 kPa
Sound pressure	76 dB(A)
Weight	2.8 kg
Protection rating	IPx0
Filter	Ash filter (element C) – washable with clean water
Ventilation function	Yes (air outlet for blowing)
Hose length	Approximately 1.5 m (estimate)
Tank material	Painted steel (estimate)
Safety	Automatic shut-off in case of low battery (battery-free model); mandatory filter; do not vacuum hot ashes or liquids
Maintenance	Clean filter and tank with clean water; do not use detergent
Spare parts	Filters available at the distributor
Warranty	24 months

Frequently Asked Questions - ASZ 1010 QLIMA

What types of ashes can I vacuum with the ASZ 1010?

You can only vacuum dry and cold ashes (temperature below 40 °C) from fireplaces, coal or wood stoves, ashtrays, grills or barbecues. Never vacuum hot ashes or liquids.

How to install the filter on the vacuum cleaner?

After removing the lid, attach the filter (element C) to the bottom of the lid by pushing and turning it clockwise. Make sure it is securely in place before closing.

Can I use the vacuum cleaner without the filter?

No, never use the appliance without the filter. This could damage the motor and cause a fire.

How to clean the filter?

Remove the filter and wash it with clean water only. Do not use detergent. Let it air dry completely before reassembling.

What to do if suction power decreases?

This may be due to a clogged filter or hose. Clean the filter and check that the hose is not blocked. Gently tap the lid or container to dislodge blockages.

Can I use an extension cord?

No, it is not recommended to use an extension cord or multi-plug adapter to avoid any risk of fire.

How to use the ventilation function?

Connect the end of the hose to the ventilation outlet (mark 13 on the appliance). Air will blow out from the other end. Caution: this function can blow ashes uncontrollably.

The appliance does not start, what to check?

Check that the cord is properly plugged in, that the fuse has not blown, and that the switch is in the on position. If nothing works, contact customer service.

How to maintain the vacuum cleaner after use?

Turn off the appliance, unplug it, empty the tank, clean it with a damp cloth (no detergent), clean the filter and let it dry before storing.

Where can I buy spare parts like the filter?

You can obtain filters from your distributor or on the website www.qlima.com. Use only original parts.

USER MANUAL ASZ 1010 QLIMA

guarantee

2

YEARS

D	BEDIENUNGSANLEITUNG	4
DK	BRUGERVEJLEDNING	15
E	MANUAL DE FUNCIONAMIENTO	26
F	MODE D'EMPLOI	36
GB	OPERATING MANUAL	46
I	MANUALE DI ISTRUZIONI PER L'USO	56
NL	GEBRUIKSHANDLEIDING	66
P	MANUAL DE INSTRUÇÕES	76
SLO	NAVODILA ZA UPORABO	86

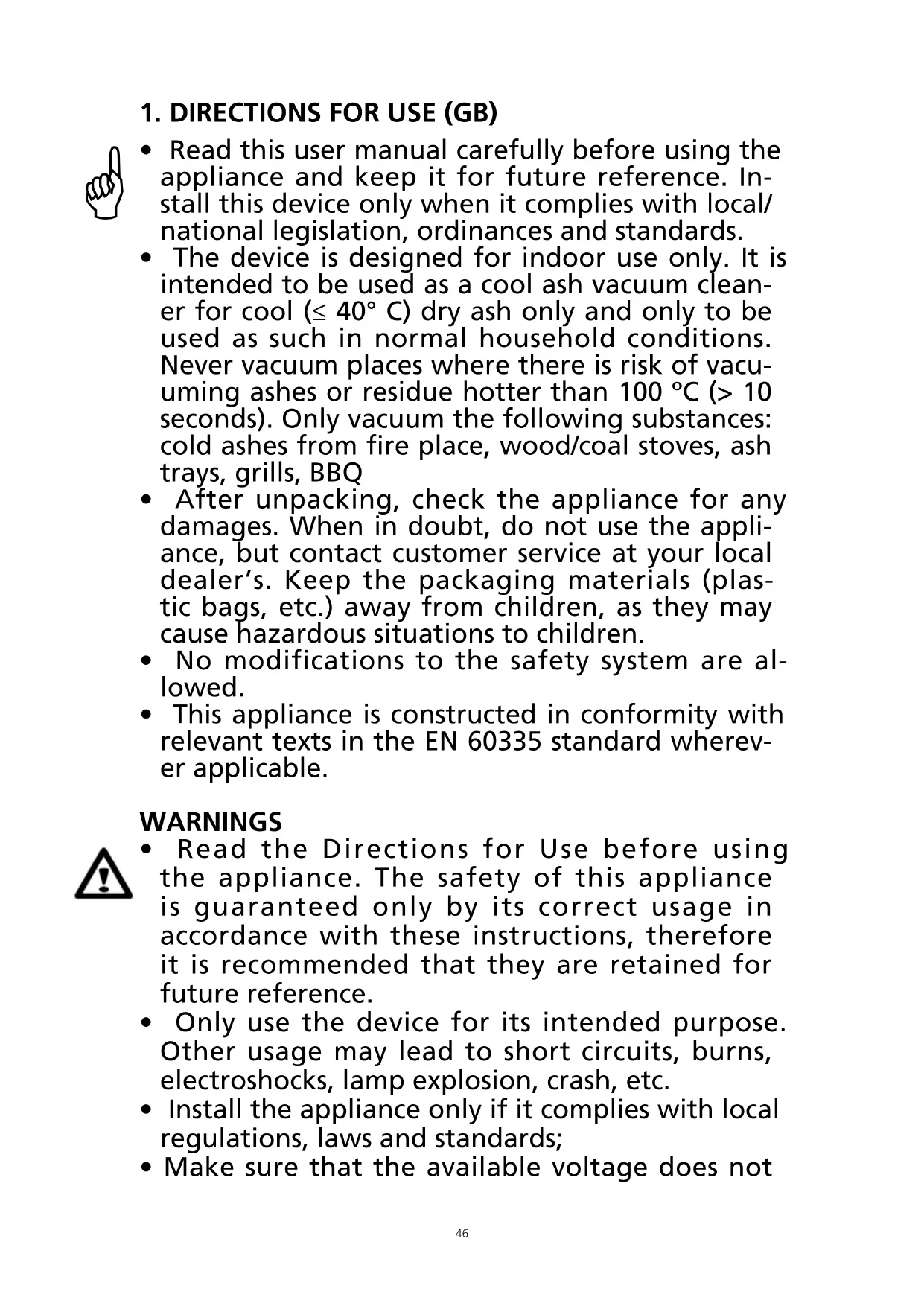

1. INSTRUCTIONS FOR USE (EN)
2. INSTALLATION
3. USE
4. AFTER USE
5. MAINTENANCE
6. WEAR PARTS AND SPARE PARTS
7. TROUBLESHOOTING
8. STORAGE INSTRUCTIONS
9. WARRANTY TERMS
10. ENVIRONMENTAL PROTECTION
11. USER MANUAL (DK)
12. INSTALLATION
13. USE
14. AFTER USE
15. MAINTENANCE
16. CONSUMABLES AND SPARE PARTS
17. TROUBLESHOOTING
18. STORAGE INSTRUCTIONS
19. WARRANTY TERMS
20. ENVIRONMENTAL PROTECTION
21. INSTRUCCIONES DE UTILIZACIÓN (E)
22. INSTALLATION
23. USE
24. AFTER USE
25. MAINTENANCE
26. CONSUMABLES AND SPARE PARTS
27. TROUBLESHOOTING
28. STORAGE INSTRUCTIONS
29. WARRANTY CONDITIONS
30. ENVIRONMENTAL PROTECTION
31. INSTRUCTIONS FOR USE (F)
32. INSTALLATION
33. USE
34. AFTER USE
35. MAINTENANCE
36. CONSUMABLES AND SPARE PARTS
37. TROUBLESHOOTING
38. INSTRUCTION MANUAL
39. WARRANTY CONDITIONS
40. ENVIRONMENTAL PROTECTION
41. DIRECTIONS FOR USE (GB)
42. INSTALLATION
43. USAGE
44. AFTER USAGE
45. MAINTENANCE
46. CONSUMABLES AND SPARE PARTS
47. TROUBLESHOOTING
48. STORAGE INSTRUCTIONS
49. GUARANTEE CONDITIONS
50. ENVIRONMENTAL PROTECTION
51. INSTRUCTIONS FOR USE (I)
52. INSTALLATION
53. USE
54. AFTER USE
55. MAINTENANCE
56. CONSUMABLES AND SPARE PARTS
57. TROUBLESHOOTING:
58. STORAGE INSTRUCTIONS
59. WARRANTY CONDITIONS
60. ENVIRONMENTAL PROTECTION
61. INSTRUCTIONS FOR USE (NL)
62. INSTALLATION
63. USE
64. AFTER USE
65. MAINTENANCE
66. CONSUMABLES AND SPARE PARTS
67. TROUBLESHOOTING
68. STORAGE INSTRUCTIONS
69. WARRANTY TERMS
70. ENVIRONMENTAL PROTECTION
71. INSTRUCTIONS FOR USE (PT)
72. INSTALLATION
73. USE
74. AFTER USE
75. MAINTENANCE
76. CONSUMABLES AND SPARE PARTS
77. TROUBLESHOOTING
78. STORAGE INSTRUCTIONS
79. WARRANTY CONDITIONS
80. ENVIRONMENTAL PROTECTION
81. INSTRUCTIONS FOR USE (SL)
82. INSTALLATION
83. USE
84. AFTER USE
85. MAINTENANCE
86. WEAR AND SPARE PARTS
87. TROUBLESHOOTING
88. STORAGE INSTRUCTIONS
89. WARRANTY CONDITIONS
90. ENVIRONMENTAL PROTECTION

GB The features described in this manual are published with reservation to modifications.

Pic 3: ASE1020 + ASZ1010

Pic 6

Pic 7 Pic 8

Vacuum cool ash and dry residue only

8. INSTRUCTION MANUAL

• Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards.
• The device is designed for indoor use only. It is intended to be used as a cool ash vacuum cleaner for cool (≤ 40°C) dry ash only and only to be used as such in normal household conditions. Never vacuum places where there is risk of vacuuming ashes or residue hotter than 100 °C (> 10 seconds). Only vacuum the following substances: cold ashes from fire place, wood/coal stoves, ash trays, grills, BBQ
• After unpacking, check the appliance for any damages. When in doubt, do not use the appliance, but contact customer service at your local dealer's. Keep the packaging materials (plastic bags, etc.) away from children, as they may cause hazardous situations to children.
• No modifications to the safety system are allowed.
• This appliance is constructed in conformity with relevant texts in the EN 60335 standard wherever applicable.

WARNINGS

- Read the Directions for Use before using the appliance. The safety of this appliance is guaranteed only by its correct usage in accordance with these instructions, therefore it is recommended that they are retained for future reference.

• Only use the device for its intended purpose. Other usage may lead to short circuits, burns, electroshocks, lamp explosion, crash, etc. • Install the appliance only if it complies with local regulations, laws and standards;
• Make sure that the available voltage does not

exceed the voltage stated in the specifications of this manual.

• Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the appliance.
• The appliance is suitable for mains voltages ranging from \~230 V.
• Always make sure that you actually see the appliance when you want to switch it on. Never use things like a timer, programmer or any other device (including Internet apps) that switches on the appliance automatically as this may cause fire!

- Use the appliance according to the instructions as described in this manual.

- This appliance is manufactured according to CE safety standards. Nevertheless, as with any other electrical device, care must be taken;

- RISK OF FIRE Never use the appliance in places where inflammable and/or harmful Gases, products or fumes may be present (e.g. exhaust Gases, paint fumes, curtains, paper, clothes);

- Do not use any extension cords or multi-socket adapters.

- For safety reasons take care when children or animals are in the proximity of the appliance, as with any other electrical device.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- If the supply cord is damaged, it shall be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Children should be supervised to ensure that they do not play with the appliance. - In order to avoid overheating, do not cover the device. - Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. - Make sure that the power cable can never touch the heater. - Do not insert objects into the openings of the device. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Cleaning and user maintenance shall not be made by children without supervision. • Children of less than 3 years should be kept away unless continuously supervised. - Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

Disconnect from mains during installation, maintenance and cleaning, and/or filter replacement.

• Do not remove the plug from the socket by pulling the power cord.
• Only have the appliance repaired by the manufacturer or its authorized service agent.
• Only use filters supplied by the manufacturer or its authorized service agent.
• Do not vacuum soot.

- Do not use the appliance to vacuum: liquids, inflammable and/or explosive materials, corrosive materials, hot and/or burning ash, matches, cigarettes.

- Do not open the motor compartment of the appliance. DANGER! Live electrical parts!

- NEVER use the appliance without the filter!

- Empty and clean the appliance before vacuuming to avoid the collection of materials that could pose a fire hazard inside the vacuum cleaner;

- Recharge the battery only with the charger as supplied by the manufacturer.

- Use the appliance only with the specifically designed and designated battery package as supplied by the factory with the appliance.

- Make sure that metal materials such as coins, tools, keys, nails etc. will never come into contact with the metal terminals on the battery, as this will cause short circuit and will damage the battery and can even be dangerous.

- When not used according to these instructions the battery can be damaged.

- NEVER OPEN THE BATTERY. Danger of short circuiting and/or leakage of battery liquids.

- In some occasions, for example caused by misuse, liquids or vapors may be ejected from the battery. AVOID CONTACT AND VENTILATE THE AREA. If contact does occur: flush with lots

of water and soap. If liquids or vapors contact eyes, nose or mouth: IMMEDIATELY CONTACT A DOCTOR AND SEEK MEDICAL ASSISTANCE.

• NEVER try to repair a broken battery or battery charger.
• NEVER try to open the battery package or battery charger.
• NEVER use dirty or wet battery package.
• If battery pack or the charger is damaged: IMMEDIATELY stop using it – do NOT recharge it.
• Protect the battery and the battery charger against:

o heat > 45°C

o avoid continuous direct sunlight

o heat sources and fire: the battery might explode!

o moisture and water.

• Use the battery only with QLIMA ash vacuum cleaners.
• Only charge the battery indoors
• Do not place anything on top of the charger – never cover the charger.
• Do not charge the battery for more than 24 hours

If you fail to consult and/or follow the rules, instructions and explanation, the warranty will no longer be valid, and the manufacturer will no longer deal with any damage to the appliance and/or your environment under the warranty.

2. INSTALLATION

(refer to picture 1 and 2 page 3):

• When the battery is stored and/or not used for a long time: it will discharge. Recharging will be required.
• The battery provided with the ASZB1018 is partly charged by the factory. To ensure full capacity of the battery: make sure to fully charge the battery prior to first usage.
• To ensure longest battery life: always charge at temperature between 15-25°C.
• IMPORTANT: never charge the battery at temperatures below 5°C or above 40°C
• Take out the appliance and accessories from the packing box, check the accessories and whether the appliance enclosure is well-found or not. (picture 1 and 2)
• Loose the lock 2 and take the head part from the container 1.
• Attach the filter (ASE 1020: item B / ASZ 1010 item C / ASZ 1020 item C+D) ASZB1018 item G set to the bottom of lid 3
• Put the lid 3 on the container 1 and use the lock 2 to fixate.
• Insert the nozzle 8 into the hose 7. Insert the other end of hose 7 into air inlet connection 6.
• (ASZ1020 only): click the wheels 11 firmly to the bottom of the container body 1. Make sure that wheels 11 are evenly spread (see picture 2)
• The nozzle 8 end rectangular nozzle 10 (picture 1 & 2): are used to vacuum ash in the fireplace (picture 5)
• Type ASZ only: Insert the power cord plug in the wall socket.
• Type ASE only: connect the hose of your normal home dust vacuum cleaner to suction connector 5 (picture 1). Connect your vacuum cleaner to mains and switch it on.
• ASZB only: slide-push the battery into the slot

NOTE:

* the normal directions for use of your home dust vacuum cleaner remain applicable, the supplier of your ASE ash vacuum cleaner is not responsible in any way for your home dust vacuum cleaner. No claims can be made whatsoever.

* always make sure the ash vacuum cleaner filter is properly installed. As otherwise your home dust vacuum cleaner might be damaged.

The Ash Vacuum cleaner is now ready to use.

BLOWING FUNCTION: ASZB 1018, ASZ 1010 AND ASZ 1020 ARE FEATURED WITH A BLOWING FUNCTION:

- Put hose end 7 into the blower outlet connection 14. The air will now blow through the nozzle.

NOTE

Take care when using blower function. Ashes and other residue are blown away in an uncontrollable way!

3. USAGE:

Vacuum cool ash and dry residue only

• Always make sure the filter is installed!
• When the container is full or it feels difficult to vacuum more dust, the filter needs to be taken out and cleaned.
• While vacuuming fireplace ash, the ash temperature must be below 40°C. Do not vacuum hot ashes for longer than 10 seconds if the fire is not extinguished! (Fig. 5).

TIP:

When suction power is reduced: carefully tap on the lid or carefully tap the container on the floor to possibly remove the blockage.

4. AFTER USAGE:

• Press the switch 13 to turn off the vacuum cleaner.
• Pull out the plug.
• Roll up the power cable.
• Disassemble the hose 7 from the appliance. • Take the lid 3 from the appliance.
• Empty the container body 1 and wash it.

- Use a rag to dry container body 1.

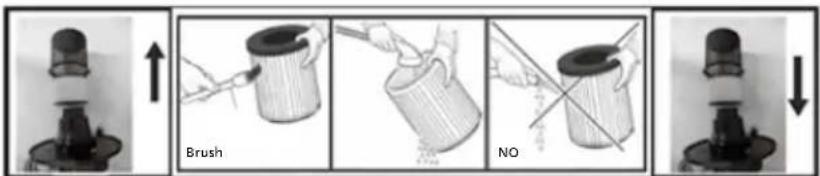

- Take out the filter B / C / G and (if applicable) the metal mesh cover D, and clean and wash it carefully (picture 6), and dry it in air before installing it on the vacuum cleaner. The filter and metal mesh cover can be removed using the 'turn anti-clockwise and pull' method. For the metal mesh cover, it might be necessary to loosen the metal screws just a little bit.

- Reinstall B / C / G and D (if applicable) following the 'push and turn clockwise' method. Make sure that the metal mesh filter is fixated by tightening the relative screws.

- Replace the lid 3 and fixate the locks 2.

5. MAINTENANCE

The container body 1 and outer shell of lid 3 need to be cleaned frequently.

• Never use a detergent and/or cleaning agent as this might result in damages.
• The dirty container should be washed with clear water only.

ASZ TYPE ONLY:

Make sure that water never comes in contact with the lid, as this can cause significant damage and/or risk with respect to the electrical parts!

• Wash the filter with clear water only.
• If the appliance is working unsatisfactorily, it is usually the result of a jam in hose 7 or in the conjunction of pipes, filters, or accessories. In that case, please clean the parts concerned.

ASZB ONLY: CHARGING PROCEDURE:

• Connect the cable plug of the charger to the battery charging inlet (see pic 7).
• Plug the charger into a suitable wall socket.
• The charger has an indication light: o When red: battery is charging o When green: battery is full.

NOTE:

To ensure the longest life time for the battery:

1. Following every intense use of the appliance, wait at least 20 minutes before recharging the battery.
2. Prior to using the appliance following a period of disuse of more than 1 month: recharge the battery completely.

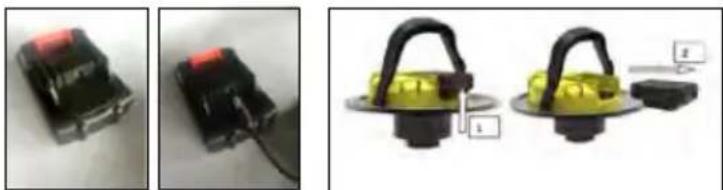

To take out the battery - see pic. 8: Press the red color switch key ("1") and slide out the battery ("2")

NOTE: the ASZB is provided with a low voltage cut out. When the charge of the battery is below a certain voltage the appliance will stop working. This all to ensure the longest possible life time of the battery.

6. CONSUMABLES AND SPARE PARTS:

• New filters can be obtained through your dealer. Check www.qlima.com for more information.
• Only use spare parts and/or consumables supplied by the manufacturer or its authorised service agent

7. TROUBLESHOOTING:

Review these tips first and you may not need to call for service.

DEVICE WILL NOT START
POSSIBLE CAUSE	WHAT TO DO
Cord is not plugged into an electrical outlet.A fuse may be blown or the circuit may be breaker tripped.Not switched on.ASZB 1018: battery is empty	Make sure plug is fully inserted into the wall outlet.Replace fuse or reset circuit breaker.Switch on.recharge the battery
VACUUMING NOT AS STRONG AS NORMAL
POSSIBLE CAUSE	WHAT TO DO
Full ash bucketFull filter	Empty ash bucketClean the filter (see relevant paragraph)Exchange the filter (filter is a consumable)

TECHNICAL DATA AND PRODUCT FICHE

	QLIMA ASE1020	QLIMA ASZ1010	QLIMA ASZ 1020	QLIMA ASZB1018
Power input (Watt) n/a 600 1200 120
Power supply 220-240 V~ / 50 Hz / 1 Ph 220-240V~/50Hz/1 ph
IP Rating n/a IPx0 IPx0
Sound pressure (dB(A)) (*) n/a 76 80 80
Tank volume (liter) 20	12 20 18
Weight (kg)	2.8	2.8 3.6	3.5
Vacuum (kPa) (*) for voltage range, in h

(*) for reference only

8. STORAGE INSTRUCTIONS

Storage in a cool and dry place away from direct sunlight and excess heat or cold. If children play with the appliance, make sure that dangerous parts are removed. Never dispose of non-biodegradable products in the environment, but dispose of them in accordance with current national legislation.

9. GUARANTEE CONDITIONS

The appliance is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply:

1. We expressly refuse all further damage claims, including claims for collateral and/or consequential damage.
2. Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee.
3. The guarantee is invalidated if any modifications have been made, non-genuine parts are fitted or repairs are carried out by third parties.
4. Components subject to normal wear, such as filters, batteries, lamps and heating elements are not covered by the guarantee.
5. The guarantee is valid only when you present the original, dated purchase invoice and if no modifications have been made to it.
6. The guarantee is invalid for damage caused by neglect and/or by actions that deviate from those in this instruction booklet.
7. Transportation costs and the risks involved during the transportation of the appliance or components of the appliance shall always be for the account of the purchaser
8. Damage caused by not using suitable spare parts is not covered by the guarantee.

To prevent unnecessary expense, we recommend that you always first carefully consult the instructions for use. Take the appliance to your dealer for repairs if these instructions do not provide a solution.

10. ENVIRONMENTAL PROTECTION

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.

1. MODALITÀ D'USO (I)

Distributed in Europe by PVG Holding B.V.

If you need more information or encounter any problems, please visit our website at www.qlima.com or contact our customer service (phone number available on www.qlima.com). For all additional information or in case of any issues with the appliance, please refer to www.qlima.com or your local customer center (phone numbers can be found at www.qlima.com). (ES) Si necesita información o si tiene algún problema, visite nuestra página Web www.qlima.com, o póngase en contacto con el servicio de atención al cliente (encontrará el número de teléfono en www.qlima.com). Si vous souhaitez obtenir des informations supplémentaires ou si vous rencontrez un problème, rendez-vous sur notre site Web (www.qlima.com) ou contactez notre service client (vous trouverez l'adresse et le numéro de téléphone sur www.qlima.com). FHN Jos haluat huoltoapua, lisätietoja tai laitteen kanssa tulee ongelmia, tutustu verkkosivustoon osoitteessa www.qlima.com tai kysy neuvoa PVG kuluttajapalvelukeskuksesta (www.qlima.com). (68) If you need information or if you have a problem, please visit our website (www.qlima.com) or contact our sales support (you will find its phone number on www.qlima.com). For information and in case of problems, please visit the website www.qlima.com or contact the Customer Assistance Center (to find out the phone number, see www.qlima.com). Hvis du trenger informasjon, eller hvis du har et problem med produktet, kan du gå til nettsidene www.qlima.com. Alternativt kan du kontakte PVG forbrukertjeneste (telefonnummeret finnes på www.qlima.com). Als u informatie nodig hebt of als u een probleem hebt, bezoek dan onze website (www.qlima.com) of neem contact op met de afdeling sales support (adres en telefoon op www.qlima.com). Se necessitar de informações ou se tiver problemas, visite o site www.qlima.com ou contacte o Centro de Assistência (número de telefone em www.qlima.com). PL W przypadku problemów i w celu uzyskania szczegółowych informacji odwiedź stronę internetową Qlima dostępną pod adresem www.qlima.com lub skontaktuj się z Centrum kontaktów Qlima (www.qlima.com). Om du behöver service eller information eller har problem med apparaten kan du besöka www.qlima.com eller kontakta Qlima kundtjänst (du hittar telefonnumret på www.qlima.com). Če želite dodatne informacije, obiščite spletno mesto podjetja na naslovu www.qlima.com ali pokličite na telefonsko številko (www.qlima.com). TH Daha fazla bilgiye ihtiyaç duyarsanız veya bir sorunla karşılaşırsanız, www.qlima.com adresindeki Qlima Internet sitesini ziyaret edin veya ülkenizde bulunan Qlima müşteri merkeziyle iletişim kurun (telefon numarasını: www.qlima.com).
