180X - Shredder Genie - Free user manual and instructions

Product type	Paper shredder
Brand	Genie
Model	180X
Cut type	Cross-cut (fragments)
Cut size	5 x 45 mm (paper)
Sheet capacity	8 sheets DIN A4 (80 g/m²)
Feed opening width	Approx. 220 mm
Power supply	220–240 V AC, 50 Hz, 1.0 A
Dimensions (W x D x H)	Approx. 300 x 142 x 363 mm
Waste bin capacity	13 litres
Noise level	Approx. 72 dB
Maximum run time	2 minutes continuous, then 60 minutes pause
Overheat protection	Yes, automatic motor shut-off
Functions	Auto (automatic start), Reverse (reverse), Off
Intended use	Domestic, indoor, paper only
Accepted materials	Dry and clean paper (no paper clips, staples, plastic cards)
Safety	Automatic stop when bin is removed; finger protection
Warranty	24 months
Estimated weight	Approx. 4 kg
Supplied accessories	Waste bin, instruction manual
Cleaning	Unplug, clean with a damp cloth and mild detergent

Frequently Asked Questions - 180X Genie

How to use the Genie 180X shredder?

Set the switch to AUTO. Insert the paper straight into the opening. Shredding starts automatically. The device stops after the paper has passed through.

How many sheets can I shred at once?

The shredder can cut up to 8 sheets of DIN A4 paper (80 g/m²) in one pass.

What to do in case of paper jam?

Set the switch to REV (reverse) to remove stuck paper. If the jam persists, unplug the device and gently remove the residue.

How to clean the shredder?

Unplug the device. Clean the exterior with a slightly damp cloth and mild detergent. Do not use flammable products. Do not touch the blades.

Why does the device suddenly stop?

This is likely due to overheating of the motor after a 2-minute continuous cycle. Let the device cool down for 60 minutes before using it again.

Can I shred staples or paper clips?

No, remove all paper clips and staples before inserting the paper to avoid damaging the blades.

What is the warranty period?

The warranty is 24 months from the date of purchase, for proper use. Keep the proof of purchase.

Can I use the shredder for professional use?

No, the device is designed only for domestic indoor use. Do not run it continuously for more than 2 minutes.

How to empty the waste bin?

Turn off the device (position OFF) and unplug it. Remove the bin, empty it, then replace it correctly. Empty it regularly to avoid jams.

What to do if the device does not start?

Check the power outlet and power cord. Ensure the bin is properly in place. If the problem persists, let it cool down for 60 minutes (thermal protection) or contact customer service.

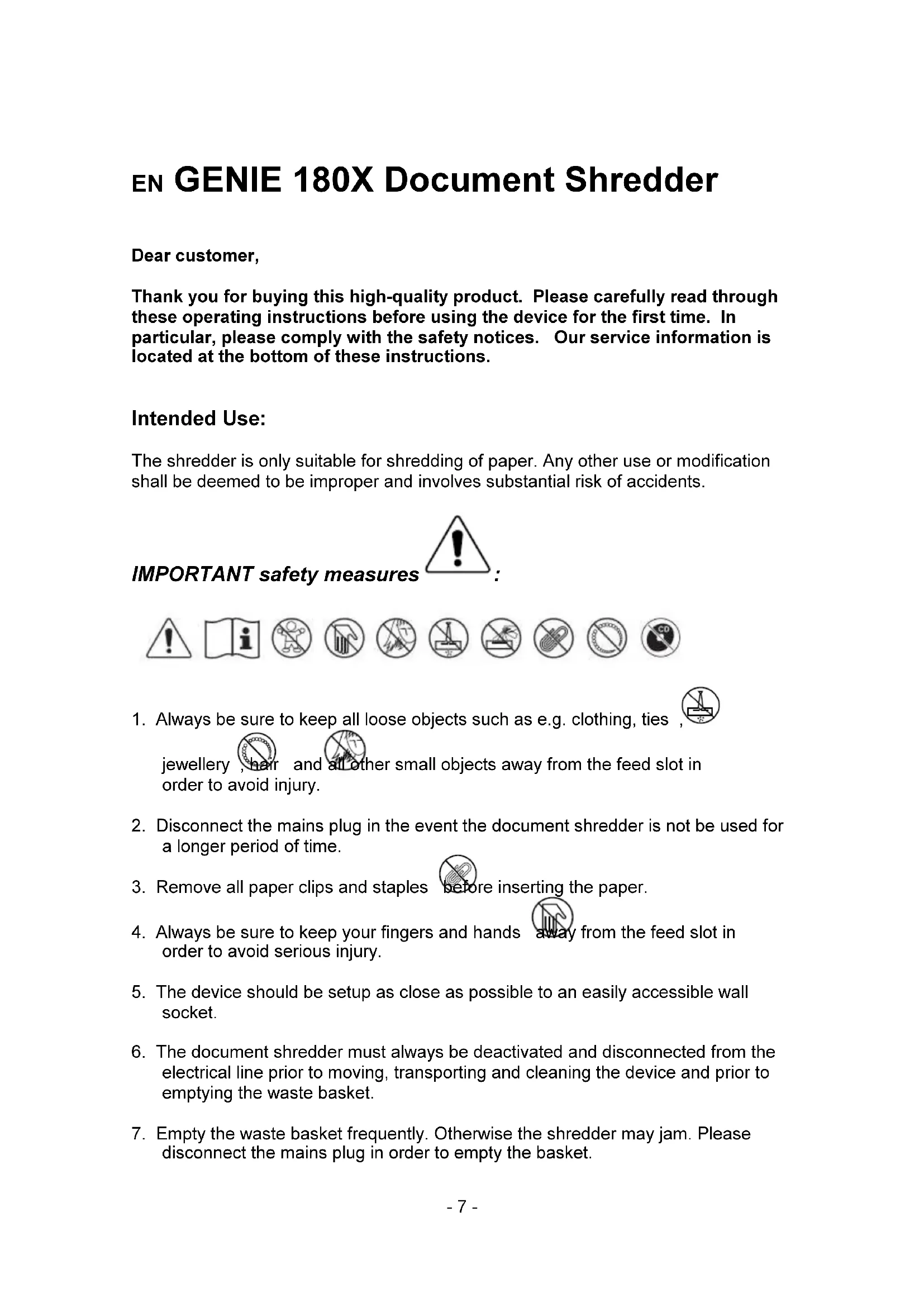

USER MANUAL 180X Genie

EN Instruction manual 7-11

Thank you for buying this high-quality product. Please carefully read through these operating instructions before using the device for the first time. In particular, please comply with the safety notices. Our service information is located at the bottom of these instructions.

Intended Use:

The shredder is only suitable for shredding of paper. Any other use or modification shall be deemed to be improper and involves substantial risk of accidents.

IMPORTANT safety measures

1. Always be sure to keep all loose objects such as e.g. clothing, ties

jewellery , hair and all other small objects away from the feed slot in order to avoid injury.

1. Disconnect the mains plug in the event the document shredder is not be used for a longer period of time.

2. Remove all paper clips and staples before inserting the paper.

3. Always be sure to keep your fingers and hands away from the feed slot in order to avoid serious injury.

4. The device should be setup as close as possible to an easily accessible wall socket.

5. The document shredder must always be deactivated and disconnected from the electrical line prior to moving, transporting and cleaning the device and prior to emptying the waste basket.

6. Empty the waste basket frequently. Otherwise the shredder may jam. Please disconnect the mains plug in order to empty the basket.

8 Attention: The document shredder is not suitable for CDs/DVDs, shredding cassettes resp. diskettes.
9. Please do not leave the document shredder unattended e.g. in the event children

or pets are nearby.

1. The document shredder is only suitable for shredding paper, please do not insert any other materials, the paper must be dry and clean.
2. Never open the casing. In the event of problems with the device, please contact our hotline.
3. The device may not be operated with a damaged power cord.
4. Please read the manual before operating the machine
5. For indoor use only.
6. Please do not spray any flammable gas or oil cause fire.

Remark: For optimum results and to protect the machine, we suggest the user to operate it for 2 minutes and then rest 60 minutes.

ELECTRICAL SAFETY GUIDELINES

• Please disconnect the mains plug before not using the unit for a prolonged period of time!
• In the event of damage to the mains cord, the mains plug or the device itself, please cease operating the device (risk of injury)!
• Please do not attempt to repair the unit yourself!
• Please do not overload the capacity of the socket!
• The mains connection of the device must be freely accessible!
• Do not modify the mains cord as it complies with the prescribed grid voltage!

Delivery

Shredder GENIE 180X

Paper waste basket

Manual

Setting up the document shredder:

1. Securely mount the document shredder on a waste basket. In the process, ensure that you do not catch your fingers between the top edge of the waste basket and the shredder.

2. Connect the main plug to a standard 230-240 volt AC socket.

Starting the document shredder:

Important note:

This device is designed solely for private use in enclosed quarters and for brief operation not exceeding 2 minutes. Do not use the document shredder for commercial applications nor outdoors. Improper use poses risk of accidents.

The main switch has 3 positions. To start the device set the button into position "AUTO".

1. AUTO (automatic start): The shredding operation will start automatically once the document to be shredded is inserted in the feed slot. The document shredder is set to normal operation. Please only insert the paper EVENLY into the feed slot otherwise a paper jam may result. After the paper has been fed into the shredding slot, the document shredder will deactivate automatically.

Only insert paper into the designated feed slots!

1. REVERSE << (reverse operation): "REV" make the cutting unit turn backward. With these function paper jams can be removed (please refer to chapter "Protection against paper jams and overloading").

2. OFF position is recommended when emptying the wastebasket or when the shredder is not in use for a prolonged period of time.

Capacity of the document shredder:

The 180X shreds up to 8 sheets of paper (DIN A4, 80g). The paper width may comprise up to 21.8cm . When shredding small paper sizes such as letters or credit card receipts, please insert them into the middle of the shredding slot. Please ensure that never more than the above-mentioned maximum quantity is inserted in the shredder. Otherwise the device may sustain damage.

Protection against paper jams and overloading:

The 180X is equipped with a motor overload guard. To protect the machine well, we suggest the user to operate it in this way: work 2 minutes then rest 60 minutes. Under the following conditions, the current feed to the unit's motor is interrupted:

1. Continual operation of the document shredder with maximum capacity for a prolonged period of time, e.g. longer than 2 minutes without interruption.
2. Overrunning the shredding capacity e.g. adding more than 6 sheets of paper (80g) in one operation or in the event the paper is not inserted length-wise into the feed slot.

Under the above-mentioned conditions, the automatic overload guard of the motor is triggered, whereupon the current feed to the device is interrupted. In such a case, please take the following steps:

1. Disconnect the main plug from the AC socket in order to avoid the risk of serious injuries and wait at least 60 minutes until the overload guard has reset. Now tear off excess paper from the top of the shredder or remove it.
2. Reconnect the main plug to the AC socket and press the REVERSE button. Pull the remaining paper away from the shredding blades. If necessary, repeat this step.
3. With pressing the FORWARD button and the open feed slot, you may now continue the normal shredding process.

Technical data:

Shredding type: Cross-cut

Size of cut: 5 × 45 mm (paper)

Shredding capacity: 8 pages DIN A4 (80g)

Feed width: approx. 220 mm

Input voltage: 220~240 VAC, 50 Hz, 1,0 A

Dimensions: approx. 300 × 142 × 363 mm

Waste basket: ca. 13 l capacity

Noise level: approx. 72 dB

Cleaning:

Danger! Unplug the power cord before cleaning. There is a risk of electric shock!

Warning! The blades of the device are very sharp! Danger of injury!

1. Empty the drip trays regularly.
2. Clean the drip trays and paper cutter with a slightly dampened cloth and possibly with a mild detergent.
3. Remove any residue in the cutting holes with a suitable object. Make sure that while cleaning the plug is pulled in order to avoid injuries.

HANDLING THE GUARANTEE

Thank you very much for purchasing this GENIE product. Please note the following advice whenever this machine does not function faultlessly, contrary to expectations.

The guarantee period amounts to 24 months from the date of purchase, provided that the machine has been used appropriately. Please keep the proof-of-purchase voucher and original packaging in a safe place. The warranty is only valid for defects in materials or fabrication. However, it is invalid for damage that has occurred to breakable parts, e.g., on the casing. Machines that have been damaged by inappropriate use externally, are excluded from being exchanged. A guarantee will expire whenever any repairs have been carried out without the express consent of our customer service department.

Repairs under the guarantee can only be made when the proof-of-purchase voucher is enclosed with the defective machine - please notify us about the return by telephone! Please give your name, address, post code, town and telephone number with the dialing code. Please state the reason for your complaint too.

We regret any inconvenience caused!

Our service hot line

Tel. [phone] Fax [phone]

E-mail: [e-mail]

Address: GENIE GmbH & Co. KG, -Service-, Berta-Cramer-Ring 22, D-65205

Wiesbaden. Deutschland/Germany

Disposal:

Guideline 2012/19/EC concerning the handling, collection, recycling and disposal of electrical and electronic equipment and their components ('waste electrical and electronic equipment', known as WEEE).

The crossed symbol on a rubbish container indicates that the machine or device is not allowed to be disposed of but it must be handed over to a suitably equipped collection centre for proper recycling or disposal.

Directives:

We declare that this device has been manufactured in accordance with the applicable rules and regulations.

Importer:

GENIE GmbH & Co. KG

Berta-Cramer-Ring 22

65205 Wiesbaden, Germany

Notre Hotline service clients:

Tel.: [phone] • Fax [phone] •Email: [e-mail]

Adresse: GENIE GmbH & Co. KG, -Service-, Berta-Cramer-Ring 22, D-65205

Wiesbaden. Deutschland/Germany
