USER MANUAL 18415 UNOLD

Black UNOLD water heater with handle and lid, no visible text or symbols on body

BLITZKOCHER Edelstahl Digital

Bedienungsanleitung

Instructions for use | Notice d'utilisation Gebruiksaanwijzing | Istruzioni per l'uso Instrucciones de uso | Instrukcja obsługi

Modell 18415

INHALTSVERZEICHNIS

Instructions for use Model 18415

Technical data....18

Explanation of symbols......18

For your safety....18

Functions.... 21

Display and parts....22

Before first use....23

Operation....24

Cleaning and care....26

Descaling....27

Troubleshooting 27

Error codes on the display 28

Guarantee Conditions....29

Waste Disposal/Environmental Protection.29

Service 17

Power: 1,500–1,800 W, 220–240 V\~, 50/60 Hz

Volume: 1.5 litres

Kettle: Thermally insulated, double-walled, inside: stainless steel, outside: plastic

Lid: Plastic safety lid with lock

Base: Plastic with power cord and plug, cord storage, 360° rotating connection

Dimensions: approx. 20 x 16.5 x 25 cm L/W/H

Cord length: approx. 80 cm

Weight: approx. 1.3 kg

Features: Four temperature settings: 40 °C, 80 °C, 90 °C, 100 °C, temperature holding function, display in housing with real-time temperature indicator, boil stop with automatic switch-off, boil dry protection, interior water level indicator

Features, technology, colours and design are subject to change without notice; errors excepted.

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

FOR YOUR SAFETY

Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance must not be performed by children, unless they are older than 8 years and are supervised.

4. Keep the appliance and the power cord out of the reach of children under 8 years.
5. Connect appliance only to an AC power supply with voltage corresponding to the voltage on the rating plate.
6. Do not operate this appliance with an external timer or remote control system.
7. Never immerse the appliance or the power cord in water or other liquids.
8. The base should never come into contact with water or other liquids. In case this ever happens, it must be completely dry before operating the appliance again.
9. Do not clean the electric kettle in a dishwasher.
10. Never touch the appliance or power cord with wet hands.
11. This appliance is intended to be used in household only.
12. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.
13. Do not place the appliance or power cord near open flames during operation.
14. Always use the electric kettle on a level, uncluttered and heat-resistant surface.
15. Make sure that the power cord does not hang over the edge of the countertop or table, since this can cause accidents, for example if small children pull on the cord.

16. Route the power cord so that there is no possibility of the cord being pulled or tripped over.

17. Never wrap the power cord around the appliance; instead, use the power cord storage compartment on the bottom of the base.

18. Use the electric kettle only indoors.
19. Use the appliance only for heating water. Do not use it to heat milk or other liquids, since they will boil over when heated.
20. Never heat objects such as cans or bottles in the electric kettle.
21. Make sure that the lid of the appliance is always completely closed, to prevent injuries from hot splashing water.
22. Do not open the lid as long as the water is boiling, to prevent injuries from hot splashing water.
23. Never switch on the appliance if there is no water in the kettle.
24. Make sure that all users, especially children, are aware of the danger of injury from emerging steam or hot splashing water – danger of burns!
25. Never fill the appliance with more than 1.5 liters of water, to prevent the water from boiling over.
26. Do not move the appliance as long as it is in operation, to prevent burns from splashing water.
27. The electric kettle features boil dry protection, which means the appliance shuts off automatically if the heating element becomes too hot. Allow the appliance to cool about 15 minutes. Then fill the electric kettle with cold water. The boil dry protection is deactivated and the appliance is ready for operation again.

28. Do not use the appliance with accessories of other manufacturers or brands, to prevent damage.

29. Unplug the appliance from the power supply after use and prior to cleaning. Never leave the appliance unattended when it is plugged in to the power supply.

30. Check the appliance, the plug and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance or the base for inspection and repair to our after sales service. Unauthorized repairs can result in serious risks to the user and void the warranty.
31. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Caution!

Do not open the lid while the water is boiling. If the kettle is overfilled, boiling water can splash out. The appliance becomes very hot during operation!

Never open the housing or the base of the appliance. There is danger of electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

FUNCTIONS

The electric kettle serves two functions:

Heating or boiling water

The water is heated to the pre-set temperature. You can thus choose to prepare hot water or bring the water to a roiling boil. You can set the temperature to 40 °C, 80 °C, 90 °C or 100 °C. The temperature set at the factory is 100 °C.

Keeping the water warm

The water is kept warm after it has been heated to the desired temperature. You can set the holding temperature to 40 °C , 80 °C or 90 °C .

No holding temperature has been set at the factory. The temperature holding function is disabled automatically when the kettle is taken off the base. This feature allows you to ensure that your water retains the desired temperature even if you do not use the water right away.

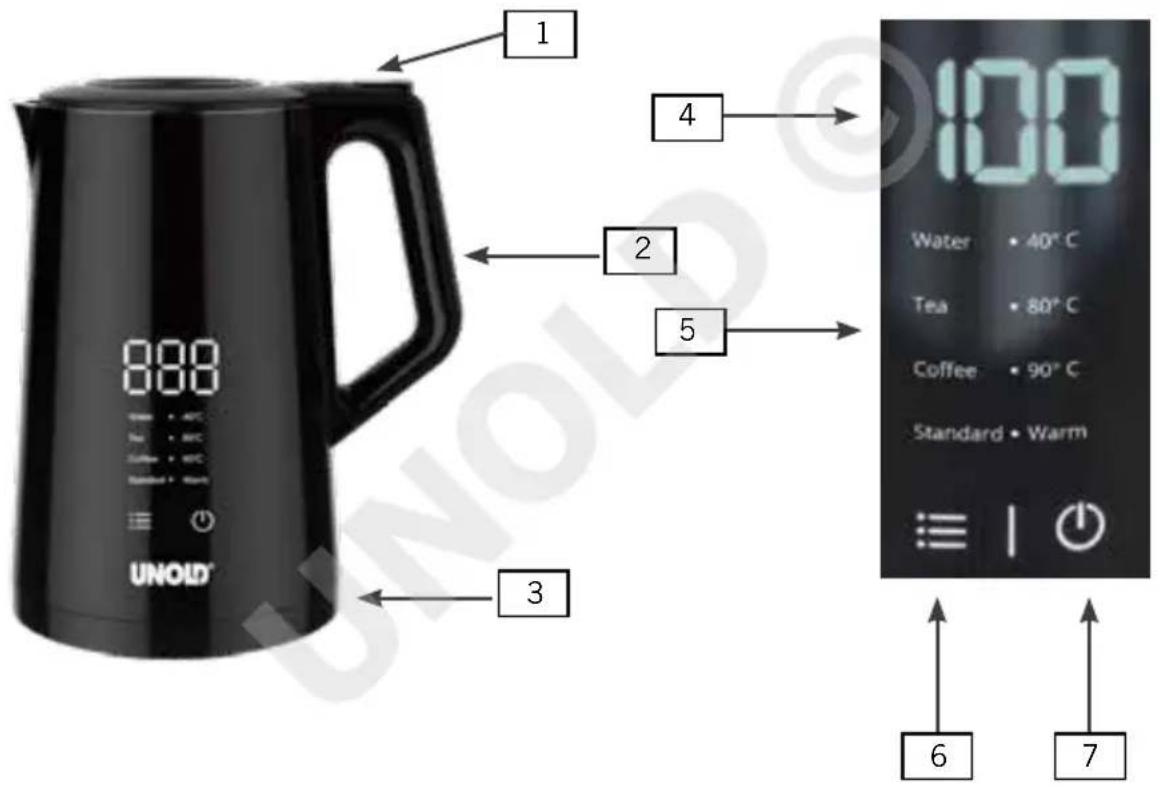

DISPLAY AND PARTS

1 2 3 4 5 UNOLD® 888 Water • 40°C Tea • 80°C Coffee • 90°C Standard • Warm 6 7

1	Open button For opening the lid
2	Handle
3	Base

4	DisplayIndicates the current temperature and mode. After 5 minutes with no input, the display will switch to stand-by mode and can be re-activated by pressing any button.
5	Display of the currently selected mode
6	“Mode” buttonFor setting the temperature and the corresponding mode.
7	“ON/OFF” buttonFor switching the appliance on/off.

BEFORE FIRST USE

1. Remove all packaging and transport safety devices. Keep the packaging material away from children. Choke hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations.
2. Inspect the appliance for damage. If there is visible damage, do not operate the appliance; instead, contact our customer service department.
3. Wipe off all parts with a moist cloth.
4. Check to make sure the base is stable.
5. Remove the kettle from the base.
6. Press the opening button on top of the appliance.
7. Add 1.5 l of clear and cold water (up to the "Max" mark).
8. Close the lid by pressing lightly until it clicks into place.
9. Connect the base via the power cord to the power supply (220–240 V\~, 50/60 Hz).
10. Place the kettle on the base.
11. Press the "ON/OFF" button to switch the appliance on.
12. When the water boils, the boil stop shuts off the appliance automatically.
13. For hygienic reasons, discard the water from the first boiling.

OPERATION

1. Before using the appliance, prepare it as described in the chapter “Before first use”.
2. Press the opening button on top of the appliance.
3. Add the desired amount of clear and cold water. You need to add at least 0.5 litres of water, but no more than the maximum capacity of 1.5 litres of water. For easier orientation, you can use the scale found on the inside of the appliance. Caution: Never fill water past the „Max.“ mark. If you heat too much water in the appliance, boiling water may be ejected and cause scalding.
4. Close the lid by pressing lightly until it clicks into place.
5. Connect the base via the power cord to the power supply (220–240 V\~, 50/60 Hz).
6. The display lights up and reads "888", and all function indicators flash briefly.
7. Next, select one of the following options:

Boil water to 100 °C

1. Press the "ON/OFF" button to switch the appliance on.

2. The display shows “Standard” and “100 °C”, an acoustic signal sounds, and the appliance starts heating up the water - with no temperature holding phase. The water is boiled to 100 °C. You can cancel the process at any time with a press of the “ON/OFF” button

or

Heat water to 40 °C

1. Press the "Mode" button three times in a row.
2. An acoustic signal sounds, and the appliance starts heating the water to 40 °C - with no temperature holding phase.
3. To turn on the temperature holding phase, press the “Mode” button three times in a row and hold the button down briefly for another 3 seconds. The water is heated to 40 °C and then kept at this temperature for a period of 90 minutes

or

Heat water to 80 °C for tea

1. Press the "Mode" button once.
2. An acoustic signal sounds, and the appliance starts heating the water to 80 °C - with no temperature holding phase.
3. To turn on the temperature holding phase, press the “Mode” button three times in a row and hold the button down briefly for another 3 seconds. The water is heated to 80 °C and then kept at this temperature for a period of 90 minutes.

or

Heat water to 90 °C for coffee

1. Press the "Mode" button twice.
2. An acoustic signal sounds, and the appliance starts heating the water to 90 °C - with no temperature holding phase.
3. To turn on the temperature holding phase, press the “Mode” button three times in a row and hold the button down briefly for another 3 seconds. The water is heated to 90 °C and then kept at this temperature for a period of 90 minutes.

After making your selection, observe the following additional information:

1. You can read the current temperature of the water on the display.
2. You can interrupt the boiling process at any time with a press of the “ON/OFF” button.
3. A brief pause of the heating process before the desired temperature is reached does not constitute an error. Short measuring intervals make it possible to better control the heating of the water.
4. As soon as the water has reached the desired temperature, an acoustic signal sounds, and the appliance switches off.
5. Before using the kettle again to heat water, allow the appliance to cool down for a few minutes.

6. Boiling water can cause scalding. Therefore, always handle the appliance with caution when it contains hot water.

7. The appliance features boil dry protection. If running without water or has excessive limescale build-up, the appliance will be switched off by the boil dry protection feature. Allow the appliance to cool down afterwards before refilling it with water or descale the appliance as described in the chapter "Descaling".

8. Press the “ON/OFF” button to switch off the appliance completely and disconnect the power plug. Only then can you be sure the appliance is safely switched off.

Boiling water can cause scalding. Therefore, always handle the appliance with caution when it contains hot water.

CLEANING AND CARE

Before cleaning the appliance, switch it off and disconnect the plug from the power socket. Let the appliance cool down before cleaning it.

1. Do not immerse the base, power cord or kettle in water or other liquids or wash them in the dishwasher.
2. Wipe off the base and the kettle with a damp cloth and a little dish washing detergent. Do not use scratching sponges, abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants, since they can cause damage to the appliance.
3. Clean the kettle from the inside using a soft, damp sponge before rinsing the kettle out with clear water.
4. The appliance must be completely dry on the outside before you may use it again.
5. Should water have penetrated into the display, dry the housing well and do not use the appliance again for another 12 hours for reasons of electrical safety. If in doubt, contact our customer service department.
6. Store the appliance in a dry place and protected against dust.

DESCALING

Let the appliance cool down before descaling it.

1. To keep the appliance operating efficiently and to prolong its service life, it should be descaled regularly, depending on the hardness of your water.
2. Use off-the-shelf descaling products for electric kettles and comply with the manufacturer's instructions. To descale, fill the kettle to no more than half full, as the liquid may otherwise boil over and cause severe injuries.
3. Heat the liquid to no more than 80 °C (do not boil!) and allow it to sit in the kettle for some time.
4. Pour the descaling solution out of the kettle.
5. Next, fill the kettle with fresh water and bring the water to a boil. Pour this water out as well. Finish by rinsing the kettle with fresh water at least two times.

TROUBLESHOOTING

Problem Cause Remedy
The display remains dark	Plug not inserted correctly	Connect the plug correctly to the power socket
	Electronics in the appliance defective	Contact our customer service department
Water not heating up	Heating element defective; Fault in electronics Thermostat defective	Contact our customer service department
Water boiling, but appliance fails to switch off	Limescale in the appliance	Descale the kettle. If the fault persists, contact customer service
Appliance switches off before the water is hot	Limescale in the appliance	Descale the kettle. If the fault persists, contact customer service

ERROR CODES ON THE DISPLAY

Error code Cause Remedy
E1 Thermostat open		Cancel mode selection with “ON/OFF” button and contact customer service
E2 Short circuit		Cancel mode selection with “ON/OFF” button and contact customer service
E3 Electric kettle overheated		Cancel mode selection with “ON/OFF” button and allow the appliance to cool down before next use
E4 Electrical fault		Cancel mode selection with “ON/OFF” button and contact customer service
E7 Fault at the sensor		Cancel mode selection with “ON/OFF” button and contact customer service

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODÈLE 18415

CARACTÉRISTIQUES TECHNIQUES

Puissance : 1 500–1 800 W, 220–240 V\~, 50/60 Hz

Volume : 1,5 litres

CONDITIONS DE GARANTIE

Stand: November 2021/nr
