2 Safety instructions

• Please read these instructions thoroughly before you use the device and keep them for future reference.
• Only for indoor use.
• Do not use the product in a damp environment or near water.
• Do not expose the product to extremely high or low temperatures, strong light sources or direct sunlight.
• This product is not a toy. Keep out of reach of children.
• Do not open the product (battery panel is an exception): the device may contain live parts.
• Keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion.
• Connect the adapter to the mains only after you have verified that the line voltage corresponds to the value specified on the type plates.
• Never connect a power adapter if it's damaged. In such cases, please contact your supplier.
  • Repairs or service should only be performed by qualified personnel.
• Disconnect the AC/DC power adapter from the mains when this device is not in use for prolonged time.
• Improper use, self-installed modifications or repairs will void any and all warranties.
• Marmitek does not accept any product responsibility for incorrect use of the product or use other than for which the product is intended.
• Marmitek does not accept liability for any consequential damage other than the legal product responsibility.

3 Your product

3.1 Introduction

Congratulations on your purchase of the Marmitek Connect 621 UHD 2.0™!

It allows you to use 1 cable to connect 4 HDMI sources to your TV, without any loss of signal or encryption. It's ideal when your TV doesn't have enough HDMI inputs, or if you want to connect the devices to your TV using just one cable. Examples of HDMI sources are game consoles such as a PlayStation or Xbox, Blu-ray players, digital TV decoders and all other HDMI devices. The Connect 621 UHD 2.0™ supports Ultra HD (4k), Full HD (1080p) and all 3D formats, making it suitable for all your existing and future equipment. The digital audio output can be used to transmit the sound from all your connected HDMI devices to your AV amplifier, using a single cable.

All our products are designed and manufactured to the highest quality requirements.

Please read this manual first and follow the instructions in order to fully enjoy the possibilities of this product.

3.2 Benefits

• Suitable for simultaneously connecting 4 HDMI devices to your TV
- Enjoy the latest Ultra HD content and watch Netflix or a Blu-ray movie in 4K, while maintaining ultimate contrast and beautiful colours.
- Includes additional digital audio output, to connect your AV Receiver with one cable, with the option to select your desired audio format (2.0 / 5.1 / 7.1).
• Supports Audio Return Channel (ARC) to prevent lip sync issues.
- Includes built-in repeater and equalizer for correcting any signal loss.
- Switches automatically and/or with remote control.
- Includes separate IR receiver for operating the switcher when it is positioned out of sight.
• Supports HDCP 2.2 for playing protected 4K Ultra HD content

3.3 HDMI properties

• The maximum throughput speed is 18 Gbit/s (gigabits per second). This allows HDMI 2.0 to display Ultra HD 4K images at 60 fps (frames per second).
• Suitable for the latest Ultra HD 4K60 resolution (3840 x 2160 / 60Hz), High Dynamic Range (HDR), Deep Color and 4:4:4 chroma colours.
  • Supports all 3D formats (suitable for use with your own 3D equipment)
• Deep Color 36-bit (billions instead of millions of colours, better reproduction of subtle differences in gradation and a higher contrast ratio).
• ARC (Audio Return Channel, synchronises your TV's audio and video and sends it back to your AV amplifier, using the digital audio output.
  • Supports Dolby Atmos and DTS:X and all other common audio formats.

3.4 Package contents

A. 1 x HDMI Switcher
B. 1 x Remote Control (battery included)
C. 1 x IR Receiver
D. 1 x HDMI Cable
E. 1 x Toslink mini adapter
F. 1 x Power Adapter
G. 1 x User Manual

4 Getting started

4.1 Installation tips

• Turn off all devices (TV and HDMI sources) before connecting them to the Connect 621 UHD 2.0 ^TM . If a device cannot be turned off, please remove the plug from the socket.
• Only use High Speed HDMI® certified cables for the best picture and sound quality. Using too much force to connect or disconnect the HDMI cables may damage them.
• Please be careful when connecting your HDMI cables. These damage easily.

4.2 Installation

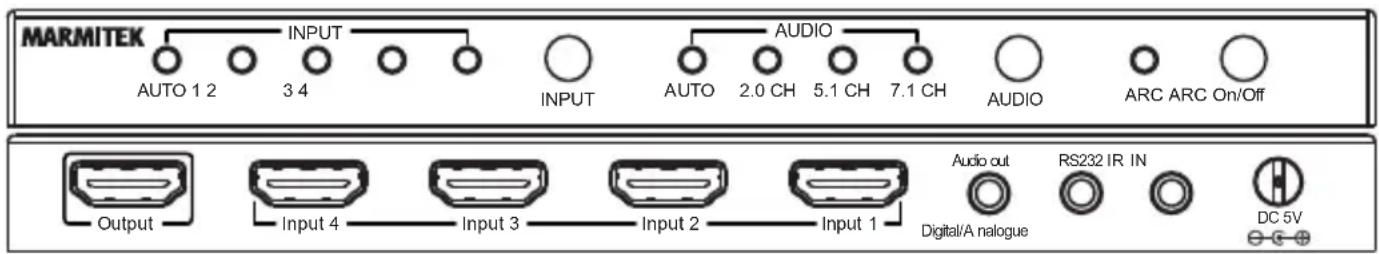

MARMITEK AUTO 1 2 INPUT 3 4 INPUT AUDIO AUTO 2.0 CH 5.1 CH 7.1 CH AUDIO ARC ARC On/Off Output Input 4 Input 3 Input 2 Input 1 Audio cut RS232 IR IN Digital/A dialogue DC 5V

1. Use an HDMI cable to connect the HDMI sources (such as game consoles, Blu-ray players and Digital TV Decoders) to the HDMI ports marked "HDMI input".
2. Use an HDMI cable to connect the TV to the HDMI port marked "HDMI output". To use the ARC function, your TV should support it. Please refer to your TV's manual to check which HDMI port supports ARC.

3. Connect the AV receiver to the combined digital/analogue output marked "Audio out".

4. Use an optical cable along with the included Toslink adapter for "Digital Audio". This output supports the audio formats DTS 5.1, Dolby Digital/AC-3 and PCM stereo.

5. Use a 3.5 mm stereo mini-jack cable for "Analogue audio". This output supports analogue stereo audio formats.

6. Connect the power adapter to the "DC 5V" and insert the plug into the socket.

7. Pull the plastic strip from the remote control's battery compartment to activate the battery and remove the protective film from the top.

5 Use

5.1 Manual or automatic switching

The Connect 621 UHD 2.0 ^™ allows you to choose which HDMI source is displayed on the TV. If you turn on one of the HDMI sources, it will automatically switch to the correct input. If multiple HDMI sources are turned on, the Connect 621 UHD 2.0 ^™ will automatically switch to the HDMI source that was activated last. To activate or deactivate the AUTO feature, press and hold the AUTO button on either the remote control or the front panel, until the corresponding light switches on or off respectively. If you want to manually select another HDMI source, please use the corresponding button on the remote control or the "Input" button at the front.

Note: Automatic switching must be supported by the HDMI source. If it is not supported, you should manually select the appropriate HDMI source.

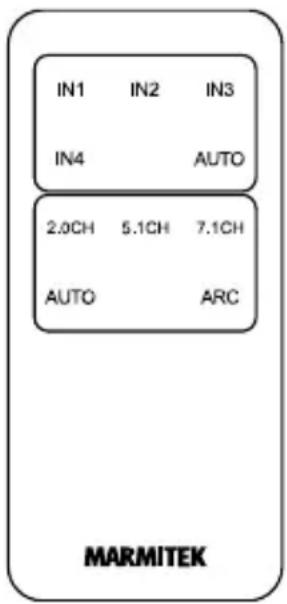

IN1 IN2 IN3 IN4 AUTO 2.0CH 5.1CH 7.1CH AUTO ARC MARMITEK

5.2 Audio settings

Select the desired audio settings by using either the remote control or the front buttons of the Connect 621 UHD 2.0 ^TM .

5.2.1 Audio Return Channel

If your AV amplifier is connected via the "Audio out", there may be a slight lag between your TV's image and the sound coming from the AV amplifier. This is caused by image processing on your TV and is sometimes referred to as lip sync problem. The Connect 621 UHD 2.0™ supports ARC (Audio Return Channel). This involves the sound first being sent to the TV, and then returned by your TV at exactly the right moment, using the same HDMI cable. This allows you, without the use of additional wiring or settings, to synchronise images and sound. The "ARC" switch allows you to enable or disable this feature.

ARC must be supported by your TV to be able to use this feature. If your TV does not support ARC, you can either turn off image processing on your TV, or delay the audio coming from your AV amplifier or HDMI source. Please refer to your device's manual for the correct settings.

5.2.2 Audio formats

Select the AUTO feature in standard situations; should you experience any problems, please manually select a different audio format.

• AUTO, the HDMI equipment automatically detects the best audio format that is supported by your equipment.
  • 7.1CH, supports all HD audio formats (only through the HDMI output).
  • 5.1CH, supports DTS and Dolby Digital audio
  • 2.0CH, supports 2-channel audio

6 Product details

6.1 Technical specifications

Connections

HDMI input 4 x HDMI (19-pin female)

HDMI output 1 x HDMI (19-pin female)

HDMI cable length max. 15 metres

Digital audio output 1 x Toslink 3.5 mm (optical)

Analogue audio output 1 x Stereo 3.5mm

RS-232 connector 1 x 3.5 mm (enabling control through pc or control panel)

Video

Supported resolutions 4K (4096x2160)@24/30/50/60Hz,

480i\~1080p@50/60Hz,1080p@120Hz and

3D@1080p/60Hz.

Supported PC resolutions max. QSXGA (2560x2048@60Hz).

HDMI standards HDMI 2.0b, HDR, CEC, EDID, DVI, all 3D formats

and Deep Color 36-bit.

HDCP standards HDCP 2.2 and HDCP 1.4

Colour formats RGB and YCbCr 4:4:4, 4:2:0 or 4:2:2.

Colour depth max. 36-bit.

Throughput speed max.18 Gbit/s.

Clock frequency max. 600 MHz.

Audio

HDMI audio formats DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/ AC3, DTS 5.1 and PCM stereo.

Housing

Dimensions (H x W x D) 182 x 85 x 21 mm

Weight 366 g

Environment

Ambient temperature +0 to +40°C

Ambient humidity 20% to 90%

Power

External power adapter 100-240VAC @50-60Hz, 5VDC @ 1A

Specifications may change without prior notice.

7 Frequently asked questions (FAQs)

No (or poor) image and sound

If you experience poor or no picture after connecting the HDMI switcher, please try to identify the problem by connecting the devices to your screen (TV, monitor or projector) one by one. This allows you to determine whether the problem is with the HDMI sources, the HDMI cables, the HDMI switcher or the screen.

• Make sure the power adapter is connected and plugged in.
• For the best picture and sound quality, only use High Speed HDMI® certified cables.

- Do not use HDMI cables longer than those specified in the technical data.

- Check the HDMI cables and/or connectors for damage.

• Both the HDMI source and your screen should fully support HDMI.

- Check that your HDMI sources and screen support HDCP 2.2 (High Bandwidth Digital Content Protection) copy protection.

Incorrect 3D display

• Please check whether the HDMI source is set to display 3D and/or it is set to automatic.
  • Both the HDMI source and your HD screen should support the same 3D formats.
• Please check that 3D is displayed correctly by connecting the HDMI source directly to the HD display with an HDMI cable.

Do you have any other questions that have not been resolved by the above information? Please go to www.marmitek.com

8 Notification

8.1 Declaration of Conformity

CE Hereby, Marmitek BV declares that this Connect 621 UHD 2.0 ^™ is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast)

Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits.

Directive (EU) 2017/2102 of the European Parliament and of the Council of 15 November 2017 amending Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Commission Regulation (EU) 2019/1782 of 1 October 2019 laying down Ecodesign requirements for external power supplies pursuant to Directive 2009/125/EC of the European Parliament and of the Council and repealing Commission Regulation (EC) No 278/2009.

You can read the Declaration of Conformity at http://www.marmitek.com

8.2 Recycling

Environmental Information for Customers in the European Union and other European countries with separate collection systems.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

8.3 Copyrights

Marmitek is a trademark of Germatron B.V. Connect 621 UHD 2.0 ^™ is a trademark of Marmitek B.V. All rights reserved. Every effort has been made to ensure that the information in this manual is accurate. Marmitek is not responsible for printing or clerical errors. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions. Other company and product names mentioned herein may be trademarks of their respective companies. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Marmitek assumes no responsibility with regard to the performance or use of these products.

Marmitek BV - PO Box 4257 - 5604 EG Eindhoven The Netherlands
