XF 1300 - Speaker Trevi - Free user manual and instructions

Product type	Portable amplified speaker with wheels and telescopic handle
Brand	Trevi
Model	XF 1300
Power supply	Mains 100-230V 50/60Hz and internal rechargeable battery 12V 4.5Ah
Maximum audio power	80W
Speakers	Woofer 10" + Tweeter 3"
Frequency response	55Hz - 18KHz
Input sensitivity	96±2dB 1W/1M
Protection rating	IPX4 (splash resistant)
Bluetooth	Yes, class 2, max transmission power 2.5mW, 2.4GHz band
Inputs	2 x MIC (6.35mm jack), AUX IN (3.5mm jack), USB (MP3 playback)
FM radio	Yes, with search and presets
Equalizer	6 DSP presets: Normal, Pop, Rock, Classical, Country, Jazz
Effects	Echo on microphones, disco LED lighting
Remote control	Yes, with CR2025 battery
Microphone	2 wired microphones included
Maintenance and cleaning	Soft cloth slightly damp, avoid solvents and abrasives
Safety	Do not expose to water, heat, dust or vibrations; maintain minimum distance of 5 cm for ventilation
Repairability	Contact Trevi authorized service center
General information	Non-professional domestic use; characteristics subject to change without notice

Frequently Asked Questions - XF 1300 Trevi

How to turn on the device?

Set the rear POWER ON/OFF switch to the ON position. The device can operate on internal battery or mains power.

How to connect a device via Bluetooth?

Press the SOURCE button on the device or MODE on the remote control to select Bluetooth mode. Activate Bluetooth on your external device, search for 'XF 1300 BEACH' and press II to start playback. The password is '0000' if required.

How to use the FM radio?

Select the RADIO source using the SOURCE button. Press the II (15) button to start automatic station search. Use the < and > buttons to navigate between presets.

How to adjust the echo effect on the microphone?

Turn the ECHO knob (6) to increase or decrease the echo effect. Echo only works on MIC1 and MIC2 inputs.

What to do if no sound comes out?

Check that the audio source is properly connected (AUX, USB, Bluetooth, etc.). Make sure the main volume (VOLUME knob) is not at zero. If using a microphone, check that it is turned on and the microphone volume is sufficient.

How to charge the internal battery?

Set the POWER ON/OFF switch to OFF. Plug the power cord into the device's socket (19) and then into a mains outlet. The battery icon segments flash during charging and become solid once charging is complete (about 5-6 hours).

How to use a microphone with the device?

Connect the microphone to the MIC1 or MIC2 jack. Turn on the microphone via its switch. Adjust the microphone volume with the MIC1 VOL or MIC2 VOL knobs and the echo effect with ECHO.

How to use the remote control?

Remove the plastic protection from the CR2025 battery (located in the compartment). Use the keys: MODE to change source, navigation keys for tracks, EQ for equalizer, and the +/- keys for volume.

How to clean the device?

Use a soft cloth slightly damp to clean the casing. Never use solvents or abrasive products that could damage the surface.

Where to find the full manual?

The manual in French is available for free download in PDF format on notice-facile.com. You can also request a translation into another language via the form provided.

USER MANUAL XF 1300 Trevi

Connection and Operation Manual

HAUT-PARLEUR PORTABLE AMPLIFIE

WARNING: DO NOT OPEN THE SET. NEITHER CONTROLS OR SPARE PARTS TO BE USED BY THE USER ARE TO BE FOUND INSIDE IT. APPLY TO AUTHORISED TREVI CENTERS FOR SERVICE OPERATIONS.

To avoid possible hearing damage, limit the listening time to high volumes

Listening at high volume for a long time may damage your hearing.

This is a precision electronic appliance; avoid using it in the following cases:

Near magnetic fields.
- Near heat sources such as heaters and heaters.
- In very humid places like bathrooms, swimming pools, etc...
- In very dusty places.
- In places subject to strong vibrations.
- Do not place your ear near the loudspeaker during the set-up and volume adjustment phases, and in particular keep the volume at minimum during the ignition phase.
Position the appliance so that there is always enough space on its sides for the free circulation of air (at least 5cm
If liquids enter the appliance, immediately disconnect the plug from the socket and take the appliance to the nearest authorized TREVI service center.
- Always check before recharging the appliance, that the power and connection cables are installed correctly.
- No naked flame sources, such as lighted candles, should be placed on the appliance.
The appliance must not be exposed to dripping or splashing water and no objects filled with liquids, such as vases, must be placed on the appliance.
- Instruct children and people with poor knowledge of the product to use correctly.
- Keep this manual for future reference.

CARE AND MAINTENANCE

Use a slightly damp soft cloth for cleaning. Do not use solvents and abrasive substances.

IMPORTANT

This device is designed for non-professional home use. The good construction of this device guarantees its perfect functioning for a long time. If, however, a problem should arise, it is advisable to consult the nearest TREVI Authorized Service Center. TREVI follows a policy of ongoing research and development. Therefore products may have different features from those described.

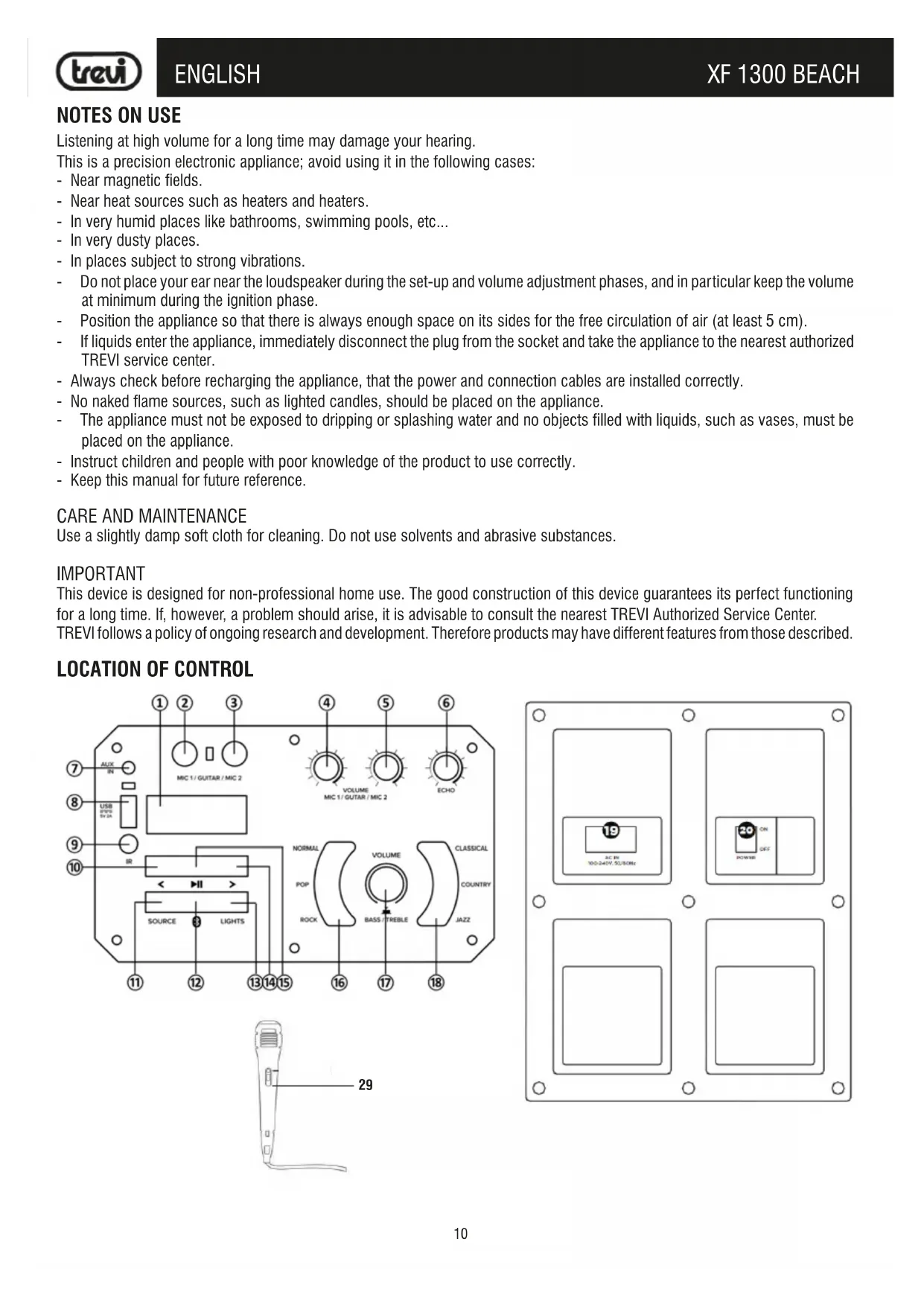

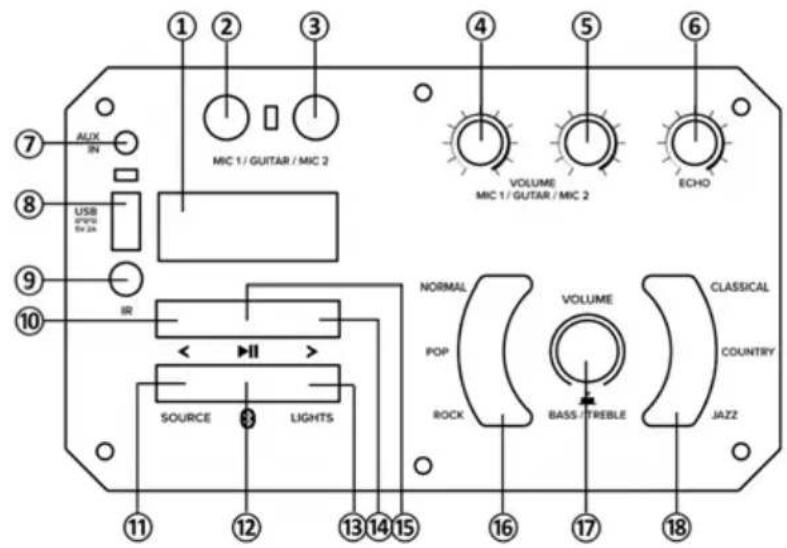

LOCATION OF CONTROL

1. LED Display
2. Connector for Microphone 1 or Guittar
3. Connector for Microphone 2 or Guittar
4. Volume knob for Mic 1 input
5. Volume knob for Mic 2 input
6. Echo knob: Effect adjustment for Mic and Guitar input
7. AUX Input
8. USB Port
9. Receiver for Remote Control
10. <Button: Short press: Switch Previous Song, Long press Voice DOWN
11. Press switch between USB/RADIO/BLUETOOTH/Line Input

12. Bluetooth mode

13. LED light power switch

14. Button: Short press: Switch next Song, Long press Voice UP

15. Short press: Play/Pause, Long press for FOLDER tracking
16. Music Style with preset modes: NORMAL/POP/ROCK
17. Turn around for Volume control of amplifier, Press down for DSP-Digital signal processing
18. Music Style with preset modes: CLASSICAL/COUNTRY/JAZZ

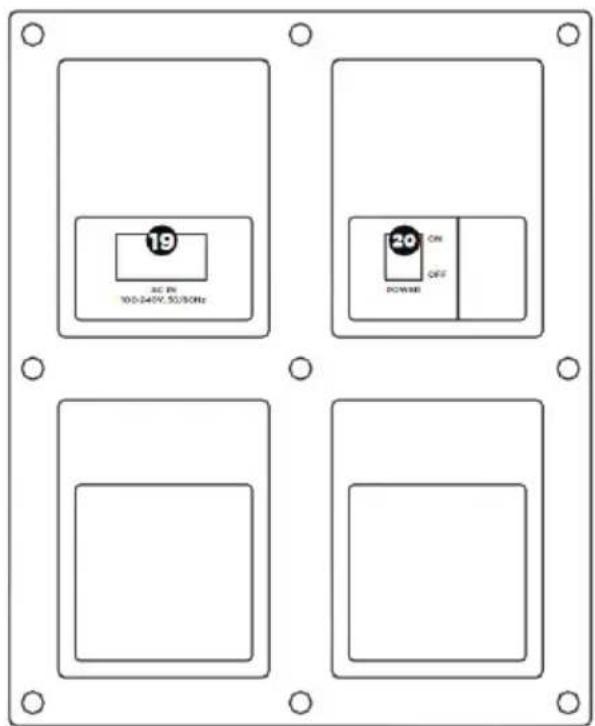

19. AC Power Socket input
20. Power button
21. Microphone

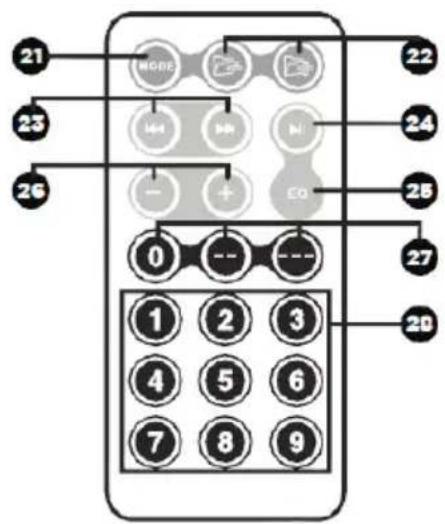

REMOTE CONTROL

1. MODE Button: Select Audio Source (USB/Bluetooth)
2. BACK/FWD Folder Buttons Navigate to Previous or Next Folder
3. Track Buttons: Play Previous or Next Track
4. II,Play or Pause the current Track
5. EQ mode key
6. - / + Volume Buttons: Increase or Decrease Volume
7. 0/---/---- Direct Entry Buttons: To enter tens and hundreds
8. Number Buttons: For Numeric Entry

ACTIVATION AND REPLACEMENT REMOTE CONTROL'S BATTERY

The remote control is equipped with a CR2025 battery.

To activate the battery of the remote control (included), remove the plastic protection tab.

For battery replacement:

1. Push the battery's plastic holder compartment to the right;
2. Remove the battery compartment;
3. Insert a new battery, taking care to respect the polarities;
4. Close the battery compartment.

TRANSPORTATION

Press the button on the handle of the trolley, lift the handle up to the block (you will hear a metallic click). For transport, by acting on the handle of the trolley, slightly bend the appliance and take advantage of the two side wheels.

To unlock and close the trolley, press the button on the handle again and lower the handle completely.

POWER

This unit works with internal rechargeable lead battery 12V - 4.5Ah or 230V 50Hz mains power supply.

When the battery is not charge or the unit does not turn on, turn the main POWER ON/OFF switch(20) to the "OFF" position, insert the power cord into the socket(19) of the device and plug it into a power outlet to recharge the internal battery; the segments of the battery icon on the display(1) will start to flash.

Once the charge is complete, the segments of the battery icon will remain fixed.

Note: Do not connect the appliance to an outlet with a voltage other than that indicated.

BASIC FUNCTIONS

POWER ON/OFF

Set the main switch POWER ON/OFF(20) to "ON" to turn on and use the device with its internal battery.

Set the main switch POWER ON/OFF(20) to "OFF" to completely switch off the device or charge the battery.

DOUBLE FUNCTION KEYS

The following keys on the unit have a double function depending on how long they are pressed:

• < (10) key: a short press plays the last track played or the previous track. Long press to lower the volume.

• (14) key: a short press plays the next following track. Long press to increase the volume.

• II, (15) Play/Pause key: a short press activates the pause of the current track or the start of playback. A long press puts the unit in "Folder mode", allowing you to navigate in and out any folders in the USB memory, using the < (10) and >(14) keys
• General Volume knob(17): a long press puts the unit in "Mute" mode, press it again to restore the sound.

MODE FUNCTION

To change the operating mode, press several times the SOURCE button(11) on the unit or press the MODE button(21) on the remote control to select: BLUETOOTH ("BLUE" appears on the display), RADIO (the frequency appears on the display), USB (only if on the USB socket (8) a memory is connected, a small "USB" message appears on the display), AUX-IN ("LINE" appears on the display).

ADJUSTING THE VOLUME

1. Turn the VOLUME knob(17) to increase or decrease the general playback volume or use the -/+ keys(26) on the remote control:
2. Turn the MIC VOL1(4) or MIC VOL2(5) knob to adjust the volume of the signal at the MIC1(2) or MIC 2(3) input.

PRE-EQUALIZER

This unit has a pre-set audio equalization system. Press several times EQ button(5) on the remote control to select one of the 6 available audio equalizers or select it directly using the corresponding button among those indicated on the unit (16 and 18) and which is best suited to the current sound reproduction.

SETTING TONE TREBLE AND BASS

To separately adjust the bass and treble sound:

1. Press the VOLUME knob(17) on the unit once to adjust the bass tones, a "b" will appear on the display. Turn the knob to make the adjustment;
2. Press the VOLUME knob(17) on the unit a second time to adjust the high tones, a "t" will appear on the display. Turn the knob to make the adjustment;
3. Press the VOLUME knob(17) on the unit a third time to return to volume control (shown on the display with a "v").

ECHO EFFECT

Turn the ECHO knob(6) to increase or decrease the echo effect on the input MIC1/2.

Note: the echo only works on microphone input.

DISCO-LIGHT EFFECTS

Press the LIGHTS button(13) on the unit to activate the Disco-Light effect.

To deactivate the Disco-Light effect, press the LIGHTS button(13) on the unit again.

USB CHARGE OUTPUT

The USB socket(8) can be used to charge external devices, like smartphones or tablets.

• Connect your external device to the USB socket(8) using the appropriate cable (not supplied);
• The charge indicator on the external device will indicate the charging status in progress.

FM RADIO MODE

To use FM mode, you will first need to scan for strong stations in your area. To begin the scan, press the (15) button on unit. This will begin scanning, and any strong signals will be saved as presets.

Once scanning is complete, you will be able to use the < (10) and > (14) buttons to jump to the saved station presets. Presets will be numbered, and the FM frequency will be displayed.

BLUETOOTH FUNCTION

1. Switch on the appliance and press the button (12) on the unit or press the MODE button (21) on the remote control and select the bluetooth function; the word "BLUE" will appear on the display;
2. In the Bluetooth mode, the word "BLUE" on the display will start to flash and the system will automatically go into search mode:
3. Activate the Bluetooth feature on the external device to be coupled;
4. Initiate a search for devices. After select the "XF 1300 BEACH":
5. Enter the password "0000" if required:
6. Press the button(15) on the unit or on the remote control to start playback and use the < (10) or >(14) buttons on the unit, or the / buttons(23) on the remote control to select the tracks.

PLAY ON INPUT USB

1. Switch the appliance on:
2. Insert a USB memory into the socket(8). Playback starts automatically:
3. To pause playback, press the button(15) on the unit or the button(24) on the remote control; the word "PAUS" will appear on the display;
4. To resume playback, press the II (15) on the unit or on the remote control:
5. Use the buttons (22) on the remote control to select a specific folder in the USB memory:
6. Press the > (14) button on the unit or the button (23) on the remote control, while listening, to go to the next track. Press the < (10) button on the unit or the (23) button on the remote control to skip to the previous tracks:
7. Using the numeric keypad(28) on the remote control, you can directly enter the number of the music track you want to play.

Note:

• The player may not support some USB devices, this is due to the incompatibility of some processors.
• To avoid harmful interference, always connect USB devices directly to the unit, do not use extension cords.
• From the computer to format the USB memory FAT (16 or 32).

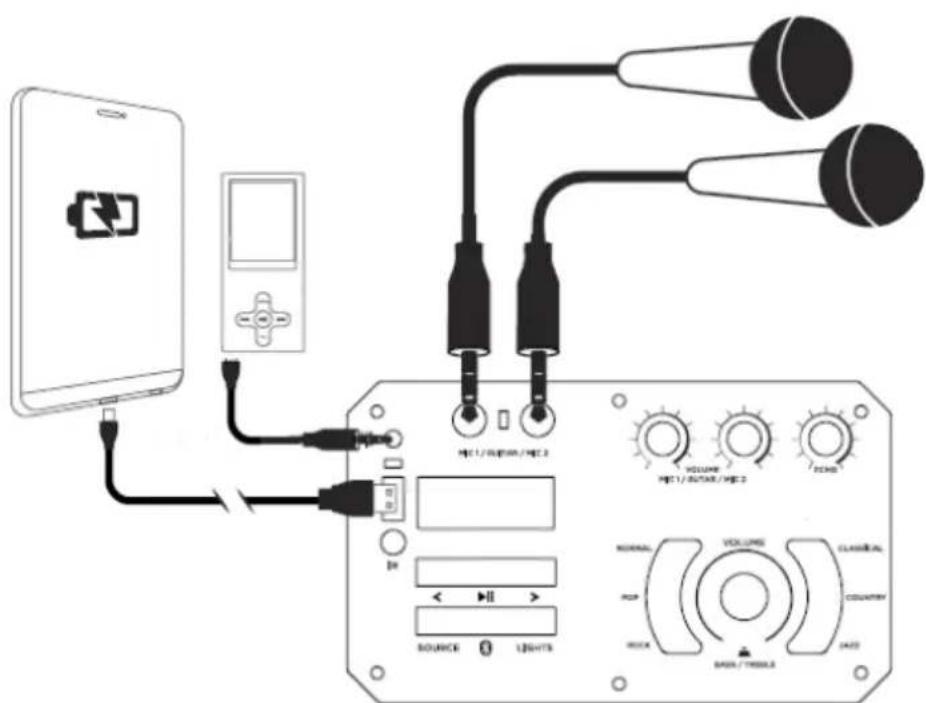

AUX-IN

1. Press the SOURCE button(11) on the unit or press the MODE button(21) on the remote control and select the "LINE IN" function:
2. Connect any unit with audio output through the appropriate 3.5mm jack cable (not supplied) to the AUX IN input(7):
3. Adjust the external device from your commands.

1. Connect the supplied microphone to the MIC1(2) or MIC2(3) input;
2. Turn on the microphone by turning the switch on the microphone handle to the ON position;
3. Adjust the microphone input volume and the echo effect as desired using the appropriate commands (4/5/6).

TROUBLESHOOTING

If a problem occurs, follow the steps in the table below.

If the problem still can't be solved, please contact your retailer.

Problem Possib|e cause Solution
No sound when power is turned ON	1. No input sound source comes2. Volume knob in the lowest position3. Voice switch off4. USB card not plugged
Distorted sound 1. Volume	1. Turn the volume down2. Audio file error
No sound from the microphone	1. Microphone socket may not be plugged properly.2. Microphone switch may not be on.3. Microphone volume is on lowest mode.
No sound comes after inserting USB	1. Incorrect file format2. USB may not be plugged properly
Unable to charge or the battery works only for short duration	1. Connect with power cord to charge2. Battery not fully charged3. Battery life may have ended
Speaker makes loud noises	1. Microphone switched on but may too close to the speaker2. Microphone switched on but is not being used3. Microphone volume may be too loud4. Mobile phone is being used too close to the speaker5. Other wireless equipment may be placed very close to the speaker

INFORMATION NOTE ON THE REMOVAL BATTERY

Warning: Only high-qualified personnel should perform this operation!

BATTERY REMOVAL

The appliance should not be plugged to the mains socket when performing this operation!

1. Remove the screws that tighten the rear plastic panel;
2. Remove it and locate the battery;
3. Disconnect the battery and remove it.

INFORMATION ON DISPOSAL BATTERY

Used batteries should not be disposed of with household waste or thrown into fire or water. Used batteries should be recycled or disposed of in separate waste collection centres.

INFORMATION TO USERS

pursuant to Legislative Decree No. 49 of March 14, 2014

"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)"

This wheeled bin symbol on the product indicates that at the end of its life must be collected separately from other waste. The user must, therefore, take the remote control integrates the essential components that got to its life to the appropriate differentiated collection centers for electronic and electro-technical waste, or return it to the dealer when purchasing a new appliance of equivalent type, in terms of one to one, or one to zero for equipment having longer side of less than 25cm . Appropriate separate collection for the decommissioned equipment for recycling, processing and environmentally compatible disposal helps prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. Illegal dumping of the product by the user entails the application of administrative sanctions stated in Legislative Decree n. Legislative Decree No. 49 of March 14, 2014.

TECHNICAL SPECIFICATIONS

Power Supply:	100-230V 50/60Hz
internal lead acid rechargeable battery 12V 4,5Ah
Power consumption:	Max 80W
IPX:	4 (Splash proof)
Output Audio power:	80W
Woofer:	10"
Tweeter:	3"
Frequency response:	55Hz - 18KHz
Input sensitivity:	96±2db 1W/1M
Class Bluetooth:	2
Bluetooth peak transmission power:	2,5mW
Bluetooth max power transmission:	1,9mW
Band transmission Bluetooth:	2,4GHz
Dimensions:	520x365x258mm
Weight:	9,5 kg

NOTES D'EMPLOI

battery interne plomb-acide rechargeable 12V,4,5Ah

Consommation: Max 80W

Dimensions: 520x365x258mm

Poids: 9.5 Kg

GEBRAUCHSHINWEISE

Simplified EU Declaration Of Conformity

Hereby TREVI S.p.a declares that equipment type "Power portable speaker with trolley" model XF 1300 BEACH is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address www.trevi.it
