USER MANUAL RDFM5000BG NEDIS

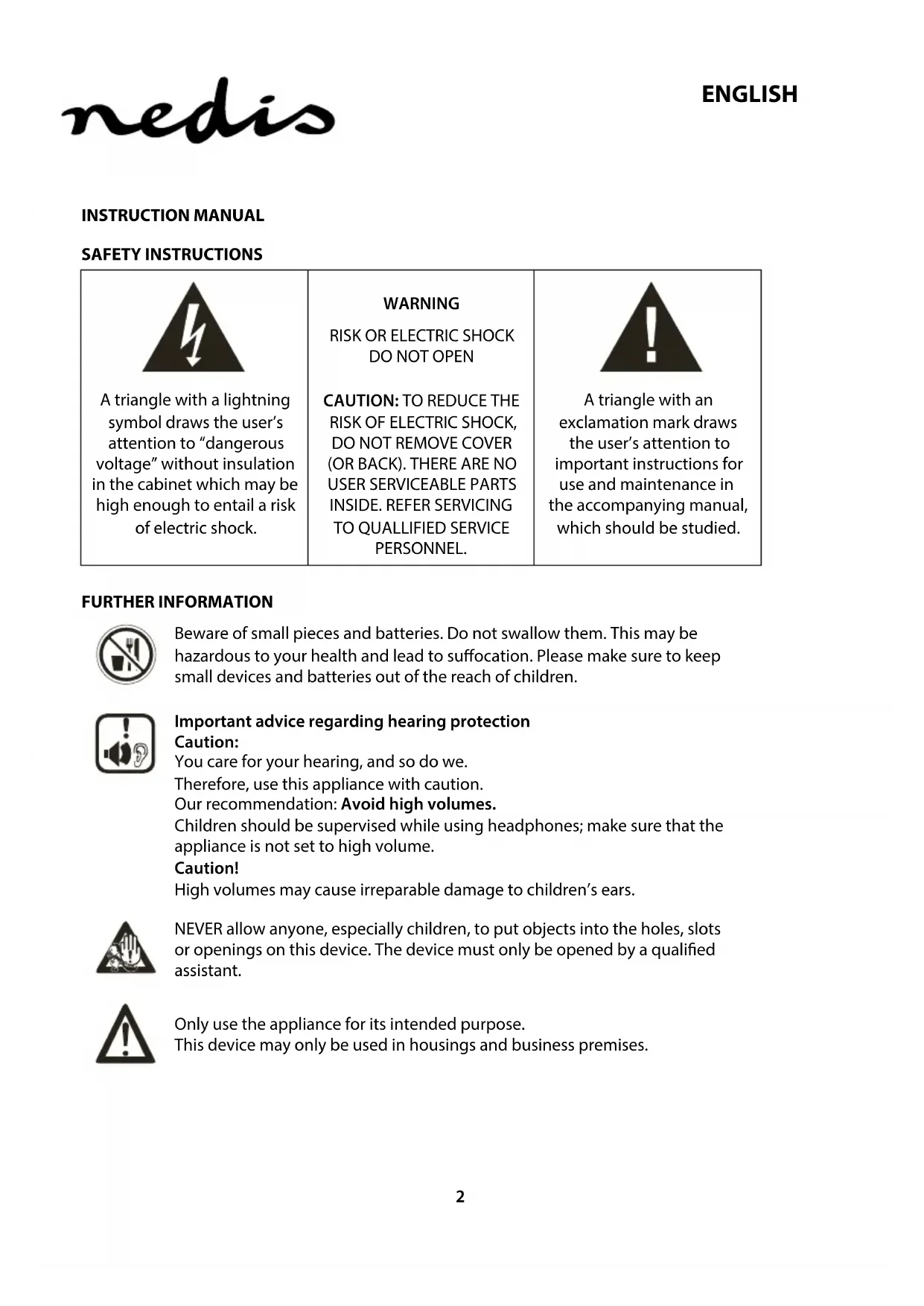

A triangle with a lightning symbol draws the user’s attention to “dangerous voltage” without insulation in the cabinet which may be high enough to entail a risk of electric shock.

CAUTION: TO REDUCE THE

PERSONNEL. A triangle with an exclamation mark draws the user’s attention to important instructions for use and maintenance in the accompanying manual, which should be studied. FURTHER INFORMATION Beware of small pieces and batteries. Do not swallow them. This may be hazardous to your health and lead to suocation. Please make sure to keep small devices and batteries out of the reach of children. Important advice regarding hearing protection Caution: You care for your hearing, and so do we. Therefore, use this appliance with caution. Our recommendation: Avoid high volumes. Children should be supervised while using headphones; make sure that the appliance is not set to high volume. Caution! High volumes may cause irreparable damage to children’s ears. NEVER allow anyone, especially children, to put objects into the holes, slots or openings on this device. The device must only be opened by a qualied assistant. Only use the appliance for its intended purpose. This device may only be used in housings and business premises.3 ENGLISH Please keep this instruction manual for further reference. Instructions on environment protection Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal. The materials are recyclable as mentioned in its marking. By recycling, material recycling or other forms of re-utilisation of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorised disposal location. Do not obstruct the ventilation of the device. Make sure, that no curtains, newspapers, furniture or any other type of objects are blocking the ventilation system of the apparatus. The ventilation system must be clear of objects at all times! Overheating may lead into serious damage of the device and reduce its performance and lifespan. Heat and warmth Do not expose the appliance to direct sunlight. Make sure that the appliance is not subject to direct heat sources such as heaters or open re. Make sure that the ventilation slots of the appliance are not covered. Moisture and cleaning This appliance is not waterproof! Do not immerse player in water. Do not allow player to come in contact with water. If water gets inside the player it may cause serious damage. Do not use cleaning agents that contain alcohol, ammoniac, benzene or abrasives as these could damage the player. For cleaning, use a soft, moistened cloth. Professional recycling Batteries and packaging should not be disposed of in the trash. Batteries must be handed over to a collection centre for used batteries. Separating disposable packaging materials is ecologically friendly.

IMPORTANT SAFETY INSTRUCTIONS

For best achievement please read carefully the operating instructions before the rst start-up, in order that a problem-free operation are guaranteed for many years.

1. READ INSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated.

2. RETAIN INSTRUCTIONS

The safety and operating instruction should be retained for future reference.4 ENGLISH

All warnings on the unit and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS

All operating instructions should be followed.

5. WATER AND MOISTURE

The appliance should not be used near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.

Openings in the device serve its proper ventilation, are necessary for the operation and prevent overheating. The unit should be situated so that its location or position does not interfere with its proper ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, or in a conning installation, such as a bookcase or cabinet that may impede the ow of air through the ventilation openings.

The unit should be situated away from heat sources such as radiators, stoves, or other appliances (including ampliers) that produce heat.

The unit should be connected to power supply only of the type described in the operating instructions or as marked on the unit.

9. POWER CORD PROTECTION

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.

During longer periods of non-use please disconnect from mains power supply and antenna.

11. OBJECT and LIQUID ENTRY

Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

12. DAMAGE REQUIRING SERVICE

The unit should be serviced by qualied service personnel when: a. The power-supply cord or plug has been damaged. b. Objects have fallen into, or liquid has been spilled into the unit enclosure. c. The unit has been exposed to rain or moisture. d. The appliance has been dropped, or the enclosure damaged. Only use controls and adjustments as specied in the manual. e. The unit does not appear to operate normally. f. The device displays serious changes in its performance.

The user should not attempt to service the unit beyond that described in the user operating instructions. All other servicing should be referred to qualied service personnel.

Disconnect from mains power supply before cleaning. Do not use liquid or spray cleaners, only use a damp cloth. Follow the care and maintenance instructions in this manual.5 ENGLISH

During lightning and longer periods of non-use please disconnect from mains power supply and antenna.

After servicing the unit ask the customer service for a safety check.

To avoid re and electric shock do not overload wall outlets and convenience receptacles.

18. ELECTROSTATIC DISCHARGE

Disconnect from mains power supply and remove batteries if unit malfunctions. Reconnect after a short time.

19. DISCONNECT THE POWER

Disconnect the power plug and appliance coupler when the device is not used. It’s easy to connect when you need to use them again.

NOTES ABOUT THIS INSTRUCTION MANUAL

1. This instruction manual is published by the manufacturer without any warranty.

Corrections and changes of this instruction manual for the removal of typographic mistakes and editorial inaccuracies as well as due to (technical) improvements (changes) of the devices can be done by the manufacturer at any time without announcement. Changes of this kind are considered in future versions of this user manual. All rights reserved.

2. All gures are only for illustration and do not always show the exact representation of the

3. This unit is not intended for use by persons (including children) with reduced physical,

sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit.

FURTHER NOTES ABOUT THE DEVICE

Setting a safe volume level

• If you continually listen to loud music, your hearing gradually adapts to it and gives you the impression that the volume is lower.

• What seems normal to you can be already for long time too loud and unhealthy.

• To protect yourself from this, set the volume to a low level.

• Increase the volume slowly.

• Damage to your hearing can be extensive and cannot be reversed.

• If you notice a hearing problem, please consult a doctor. Condensation

• Condensation may occur when moving the device from a cold to a warm environment. If there is moisture inside the player, it may not operate properly.

• Don’t turn on the device and wait about one hour for the moisture to evaporate.6 ENGLISH Saving energy

• During nonuse of the unit it is advisable to turn o the player with the power switch.

• If the unit is not used for a long period of time, it should be unplugged from the AC socket. Unpacking

• Take out the unit from the packing carefully. Please keep the packing for further use.

• Carefully remove possible protection cardboards and slipcovers.

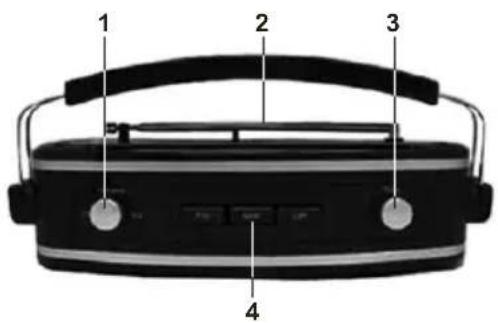

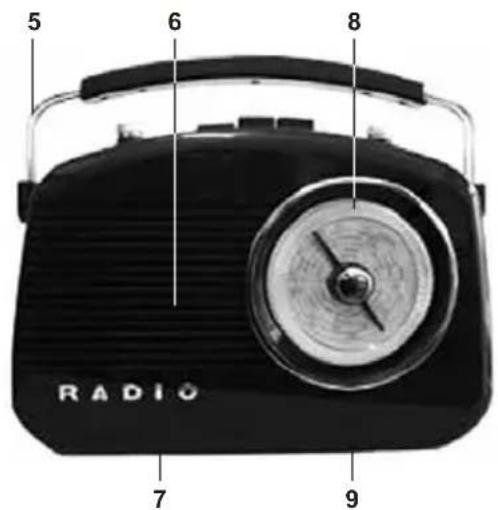

On/O switch and volume control

2. Telescopic antenna

3. Tone: Tone control

Frequency band, select FM, MW

7. OPEN: Battery compartment

8. Frequency dial and tuning knob

1. Open the battery compartment lid by pressing the two brackets at the same time.

Remove the lid and insert 6 batteries (C/UM-2). Please observe correct polarities when inserting the batteries.

2. Close the battery compartment by pushing in the two tabs of the lid into the

corresponding recesses and ap it towards the device until the brackets audibly snap in.7 ENGLISH Important

• If the device is operated exclusively with AC power or during non-use of more than one month, please remove the batteries in order to avoid any damage by leaking batteries.

• Replace the batteries if the volume of the device becomes lower or the sound becomes distorted. Battery Safety Precautions

• Follow the battery manufacturer’s safety, usage and disposal instructions.

• Only use batteries of the same type and size.

• Insert the batteries observing the polarity (+/–). Failure to properly align the battery polarity can cause personal injury and/or property damage.

• Do not mix battery types (e.g. alkaline, zinc/carbon, rechargeable batteries) or exhausted and new batteries.

• To avoid re and explosion do not recharge normal batteries. Keep batteries away from children and pets.

• We recommend the use of alkaline batteries for a longer lifetime of the batteries. Mains operation The device is designed for mains power supply AC 230 V~50 Hz. Do not connect the device to any other power supply to avoid damage that is not covered by your warranty.

1. Connect the smaller plug to the AC socket at the rear of the device. Make sure that the

plug is completely inserted.

2. Insert the mains plug to a wall outlet.

3. Disconnect the Power cord from the mains when the device is not used.

GENERAL OPERATING INSTRUCTIONS

On/O Switch on the device by turning the volume control Volume clockwise, until you overcome the point of resistance. Switch of the device by turning the volume control Volume anti-clockwise, until you overcome the point of resistance. Volume control Increase or decrease the volume by rotating the volume control Volume to the left or right. RADIO OPERATION Select with the FM, MW buttons to choose your desired frequency band. Advice for better reception

• FM: Fully extend the telescopic antenna and turn it for better reception.

• MW: The device has a built-in antenna. Change the position of the device if reception is poor. Frequency adjustment

• Tune in the desired station by rotating the frequency scale. Rotating clockwise increases and rotating counter clockwise decreases the frequency.

• The current adjusted frequency for selected band can be read on the frequency scale.8 ENGLISH Tone control Adjust the tone by rotating the knob Tone. By rotating to the left the bass is intensied, rotating to the right intensies the treble.

CLEANING AND MAINTENANCE

• Please observe also the safety advices.

• Before cleaning always pull the power plug.

• Clean the housing with a soft and moist cloth and a mild detergent.

• Never use abrasive detergents or sharp utensils. TROUBLESHOOTING If a fault occurs, rst check the points listed below before taking the unit for repair. If you are unable to solve a problem by following these tips, consult your dealer or authorized service center.

WARNING: Never open the device. Always refer service or maintenance to authorized

customer service personnel.

PROBLEM POSSIBLE CAUSE SOLUTION

GENERAL No sound Power cord not connected or no batteries inserted. Connect the power cord correctly or insert batteries. Volume is set too low. Adjust the volume. Batteries are exhausted. Replace the batteries. Batteries inserted incorrectly. Change to the correct polarity. RADIO Poor reception Weak signal. Adjust antenna: FM: telescopic antenna. AM: adjust unit. Interferences by other appliances (TV sets, VCRs, computers, etc.) Keep distance to other electric appliances. TECHNICAL SPECIFICATIONS General Power supply AC 230 V~50 Hz Battery operation DC 9 V (6 batteries C/UM-2 1.5 V) (Batteries not included) Power consumption 5.5 Watt Dimensions 30 (L) x 8 (W) x 21 (H) cm Weight approx. 1.8 kg (without batteries)9 ENGLISH Radio Frequency band FM: 87.5–108 MHz MW: 525–1615 kHz Antenna FM: telescopic antenna MW: built-in ferrite antenna Subject to changes without prior notice. CAUTION

Safety precautions: To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose the product to water or moisture. Maintenance: Clean only with a dry cloth. Do not use cleaning solvents or abrasives. Warranty: No guarantee or liability can be accepted for any changes and modications of the product or damage caused due to incorrect use of this product. General: Designs and specications are subject to change without notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such. Keep this manual and packaging for future reference. Attention: This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products. This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies to all applicable specications and regulations in the country of sales. Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet, product test report. Please contact our customer service desk for support: via website: http://www.nedis.com/en-us/contact/contact-form.htm via e-mail: [e-mail] via telephone: [phone] (during oce hours) NEDIS B.V., De Tweeling 28, 5215 MC ’s-Hertogenbosch, THE NETHERLANDS10 DEUTSCH BEDIENUNGSANLEITUNG SICHERHEITSANWEISUNGEN WARNUNG GEFAHR EINES STROMSCHLAGS NICHT ÖFFNEN Der Blitz im gleichseitigen Dreieck weist auf gefährliche Hochspannung im Gerät hin, die zu Stromschlag führen kann. VORSICHT: ZUR VERMEIDUNG VON STROMSCHLAG
