Thank you for purchasing TS-990CD: Multimedia tower with Bluetooth, Digital FM tuner, CD MP3, USB, SD/TF card compatible.

This is your assurance of quality, performance and value. Our engineers have included many useful and convenient features in this product. Please be sure to read this instruction Manual completely to make sure you are getting the maximum benefit from each feature.

This product was manufactured using the highest quality components and standards of workmanship. It was tested by inspectors and found to be in perfect working order before it left our factory.

Model: TS-990CD

TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

LIGHTNING FLASH WITH ARROWHEAD SYMBOL

The lightning flash with the arrowhead symbol within an equilateral triangle, is intended to alert the user of the presence of uninsulated dangerous voltage within the products' enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

EXCLAMATION POINT

The exclamation point within an equilateral triangle, is used to indicate that a specific component should be replaced only by the component specified in the literature for safety reasons.

The following label has been affixed to the unit, listing the proper procedure for working with the laser beam:

CLASS 1 LASER PRODUCT LABEL

You will find a label similar to the one in the image indicating that the boombox has a laser component.

Notes:

• The images appearing in this manual are for reference only.
• Due to continual revision and improvement of our products designs and specifications are subject to change without prior notice.

SAFETY PRECAUTIONS

1. READ INSTRUCTIONS:

All the safety and operating instructions should be read before the product is operated.

2. RETAIN INSTRUCTIONS:

The safety and operating instructions should be retained for future reference.

3. HEED WARNINGS:

All warnings on the product and in the operating instructions should be adhered.

4. FOLLOW INSTRUCTIONS:

All operating and use instructions should be followed.

5. CLEANING:

• Turn Off the unit if It's On before cleaning.
• Unplug the unit from the wall outlet before cleaning.
• Do not use liquid cleaners or aerosol cleaners.
• Use a damp cloth for cleaning

6. WATER AND MOISTURE:

Do not use this product near water.

For example:

Near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and similar.

7. ACCESSORIES:

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult and serious damage to the product.

Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. When moving the product in a cart, it should be done with care - quick stops, excessive force and uneven surfaces may turn over the cart with the product causing damage.

8. VENTILATION:

Slots and openings in the unit are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation, such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions have been adhered.

9. POWER SOURCES:

This product should be operated only with the type of power source indicated on the marking label. If you are not sure of the type of power supply of your home, consult your product dealer or local power company. For products intended to operate with battery power, or other sources, refer to the operating instructions.

10. POWER-CORD PROTECTION:

Power-supply cords should be rooted so that they are not likely to be walked on or pinched by items placed upon or against them, paying special attention to the cords at the power plug socket and the jack plug socket. During movement, please take care of the power cord. For example: Tie the power cord with a cable tie.

11. NON-USE PERIODS:

The power cord of the product should be unplugged from the outlet when left unused for long periods of time.

If the speaker has to be left unused for a long time, please leave the battery fully charged, otherwise it will cause damage to the battery.

12. LIGHTNING:

For added protection of this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

13. POWER LINES:

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuit. When installing an outside antenna system, extreme care should be taken to keep it from touching such power lines or circuits as contact with them might be fatal.

14. OVERLOADING:

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

15. OBJECT AND LIQUID ENTRY:

Never push objects of any kind into this product through the openings as they may touch dangerous voltage points or shoot-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

16. SERVICING:

Do not attempt to repair this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all to qualified service personnel.

17. DAMAGES REQUIRING SERVICE:

Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions.

a) When the power-supply cord, battery or plug are damaged.

b) If the product has been exposed to rain or water.

c) If liquid has been spilled, or objects have fallen into the product.

d) If the product does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions, as adjustments of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e) When the product exhibits a distinct change in performance it indicates a need for service.

18. REPLACE PARTS:

When parts require to be replaced, be sure the service technician has used official parts specified by the manufacturer or they have the same characteristics as the original parts, unauthorized substitutions may result in fire, electric shock and other hazards.

19. HEAT:

The product should be situated away from heat sources such as radiators, heat registers, stoves or other products that produce heat.

FN 6

PREPARATION FOR USE

Carefully take out all the components from the carton and remove all packaging materials from the components. Make sure that nothing is accidentally discarded with the packing materials.

If possible, save the carton and packaging materials for the unlikely event that the product ever needs to be sent for service. Using the original carton and packing materials is the only proper way to protect the unit from shipping damage.

Multifunction tower speaker x1

Remote control x1

Auxiliary cable x1

Detachable stand x1

Protective dust cover x1

Quick start guide x1 Warranty sheet x1

FEATURES OF THE TOWER

• 2.1 Channel Multimedia Tower Speaker System
• High Performance Audio output: 120W RMS.
• Full Dynamic Range with 4x4" Speaker Drivers.
- Compressed Wood Cabinet with Active Subwoofer for Deeper Bass.
• CD Player with CD-Audio and CD-MP3 playback.
- Bluetooth 5.0 Audio Receiver works with all mobile devices.
• USB-Port and SD-Slot for MP3 playback.
• High Speed/Capacity USB charging port (5V/2.1A output).
- AUX in jack for external device playback.
• FM-PLL radio tuner with 30 stations preset memory.
• Digital EQUALISER with 5 presets (ROCK,JAZZ,POP,CLASSIC,FLAT).
- Soft White LED display with Clock and Alarm functions.
• LED Brightness control adjustable system.
• Metal rotary Volume Knob with tactile feedback.
• Metal mobile Device Back Support Stand.

DESCRIPTION OF UNIT AND CONTROLS

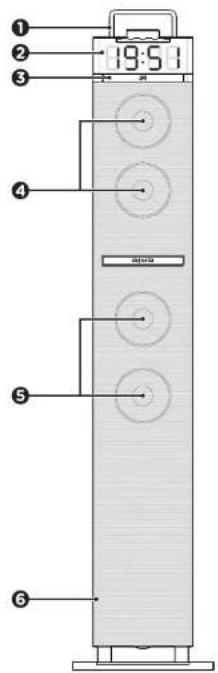

1 2 3 19:51 4 5 6

1 MOBILE BACKREST
② LED DISPLAY
③ CD DOOR
4 L SPEAKERS
5 R SPEAKERS
6 SUBWOOFER SPEAKER

REAR VIEWFRONT VIEW

Technical diagram of a vertical cylindrical device with numbered components and a curved arrow indicating motion or flow.

7 FM ANTENNA
8 POWER SWITCH
9 AC LINE
10 AIR HOLE
10 AMBIENT LAMP

FN 8

DESCRIPTION OF UNIT AND CONTROLS

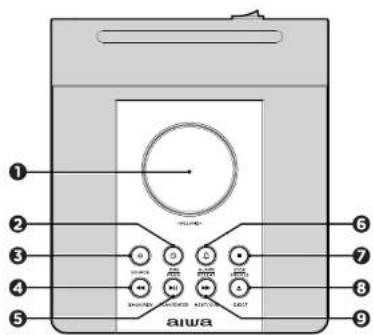

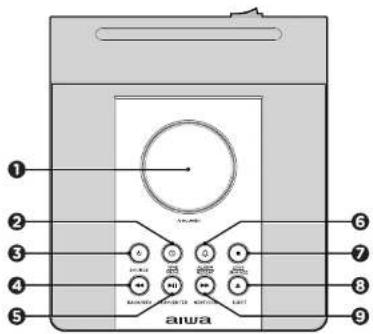

TOP VIEW

1 2 3 4 5 6 7 8 aiwa 0 O M A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

① VOLUME KNOB
② TIME/PROG
3 POWER/ SOURCE
4 BACK/REV
⑤ PLAY/ ENTER
6 ALARM/REPEAT
7 STOP/ SNOOZE
8 CD DOOR EJECT
⑨ NEXT/CUE

SIDE VIEW

10 USB CHARGE EV=21A 11 USB PLAYER LINE IN (4/4) 12 13 2D PLAYER

10 USB CHARGE PORT
USB PORT
12 LINE IN (AUX)
13 SD CARD PORT

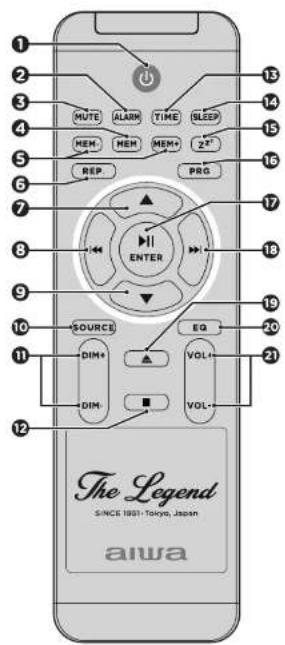

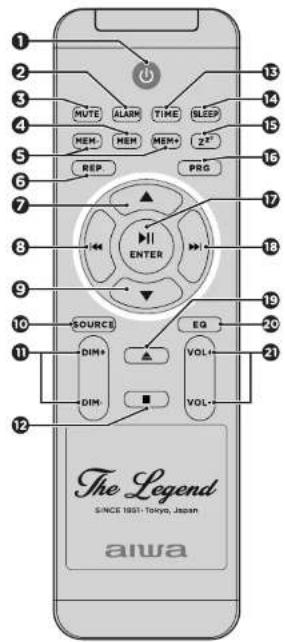

MOTE CONTROL

1 2 3 4 5 6 7 8 9 10 11 12 MUTE ALARK TIME BLEEP MEM+ MEM+ 2" REG. PRG ENTER SOURCE EQ DIM+ VOL+ DIM- VOL- The Legend S/NCE 1991- Tokyo, Japan aiwa

1 POWER ON/ OFF
2ALARM
③MUTE
4MEM (MEMORY)
5MEM-/MEM+(MEMORY+/-)
GREP. (REPEAT FUNCTION)
7 UP
8PREVIOUS
9DOWN
10SOURCE
11DIM+/DIM-(DIMMER+/-)
12STOP
13TIME
14 SLEEP
15ZZZ (SNOOZE)
16PRG (PROGRAM)
17PLAY/PAUSE/ENTER
18NEXT
19CD DOOR OPEN/CLOSE
20EQ (EQUALIZER)
②VOL+/VOL-(VOLUME+/-)

IR REMOTE SENSOR:

• Even if the remote control is operated within the effective range, it's operation may be impossible if there are any obstacles between the appliance and the remote control.
- If the remote control is operated near other appliances which generate infrared rays, or if other remote controlled devices using infrared rays are used near the speaker, it may operate incorrectly.

BATTERY INSTALLATION

Battery must be inserted correctly to avoid damaging to the remote control. Always remove the battery when the remote control will not be used for a long period of time, as this may cause leakage of the battery and subsequently damage the remote.

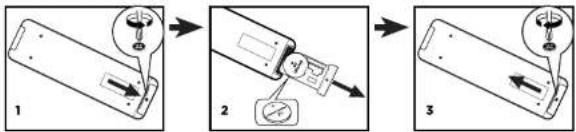

BATTERY INSTALLATION

Unscrew the battery cover and remove the battery holder. Insert a CR-2025 TYPE battery (included) with polarities as shown, then push the battery holder back into the remote and screw the cover back on.

Diagram showing three-step battery disassembly process with labeled components and directional arrows

Notes:

• If the distance required between the remote control and the appliance decreases, the batteries are exhausted. In this case replace the batteries with new ones.
• The main power button on the back of the main unit must be 'ON' for the remote control to operate.

STAND INSTALLATION

DETACHABLE STAND INSTALLATION

1. Attach the base to the body aligning the four holes in the base and pillars with the four holes in the tower.
2. Screw the base into the body.
3. Attach the four pads to the base to protect the ground (Ipc for spare parts).
4. Lift the tower upright on the floor. The Tower Speaker is now ready for use.

CONNECTIONS

MAINS CONNECTION

1. Check if the power voltage shown on the rating label located on the back of the set, corresponds to your local AC power supply.
2. Connect the power cord to the wall outlet.

Notes:

• Unplug the power cord from the wall outlet to protect your set during heavy thunderstorms.
• The power cord is used to disconnect the device, the power cord should remain easily accessible.

USB CHARGING PORT

Connect an external device (e.g. smartphone, mp3 player) via a USB cable (not provided) to the USB CHARGING port.

Note:

• The tower speaker cannot access the contents in the connected external device.

POWER ON & STAND BY MODE

1. Once the tower speaker has been connected to a wall outlet, turn on the main power ON/OFF button located at the back of the unit, then the LED display will flash showing the hour 00:00.
2. Press the ⬇/SOURCE button on the top panel of the unit, or ⬇on the remote control to initiate the function modes.
3. To put the tower speaker in stand by mode, just press the SOURCE button on the top panel of the unit, or On the remote control and the display will show the time again.

Note:

- When the display shows the hour it means that the tower speaker is on standby mode.

POWER OFF

1. To turn the tower speaker off completely it has to be done from a standby position, then press the main power ON/OFF switch located at the back of the unit, and the LED display will switch off.
2. Finally, you can unplug the device from the wall outlet safely.

MUTE

(On remote control only)

You can also press the MUTE button on the remote control to turn off the sound.
Press the MUTE button again to cancel the mute function and restore the sound.
The mute function will also be cancelled automatically by pressing the VOL ♦ or
VOL - buttons or by turning the volume ENCODER of the top panel of the speaker.

SOURCE

Press the SOURCE button repeatedly to switch among BT (Bluetooth) / rAD (Radio)
/ LINE (Line in) / Cd (CD) / USB (USB) / CArD (SD card) modes.

VOLUME LEVEL

Turn the volume KNOB on the top panel or press the VOL + or VOL - buttons on the remote control to adjust the volume level.

DIMMER ADJUSTMENT

(On remote control only)

Press repeatedly the DIM+ or DIM- buttons on the remote control to adjust the brightness of the display and ambient lamp.

EQ (EQUALIZER)

(On remote control only)

Press the EQ button on the remote control during any play mode to scroll through the following equalizer settings: Rock-Pop-Jazz-Classic-Flat.

REPEAT

Press repeatedly the ALARM/REPEAT button on the top panel of the unit, or REP on the remote control to scroll through the following repeating settings: One-All-OFF.

SLEEP

(On remote control only)

Press repeatedly the SLEEP button on the remote control to scroll through the following sleep mode settings: 90-80-70-60-50-40-30-20-10-OFF

TIME SETTINGS

SETTING THE CURRENT TIME

1. While the speaker is in standby mode, press the TIME/PROG. button. The hour digits on the display will blink.
2. Press the ▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶>
3. Press the ▶r ▶tons to set the hour and press ▶b confirm. The minutes digits on the display will blink.
4. Press ◀ or ▶ to set the minutes, press ▶ to confirm.

SETTING THE ALARM

This unit may be used as an alarm clock. The CD/USB/card or FM radio are activated to play at a preset time.

1. Press ☐ to switch the unit to standby mode.
2. Make sure that you have set the clock correctly.
3. Press the ALARM button in shutdown state.
4. Press ◀ or ▶ repeatedly to set the hour. Press ▶ confirm.
5. Press ◀ or ▶ to set the minutes. Press ▶ to confirm.
6. Press ◀ or ▶ to select the alarm volume from 0 to 30. Press ▶b confirm.
7. Press▶ or▶ to scroll through OFF-CD-USB-CARD-RADIO status. Press▶ save the alarm.
8. The display will show the current time.

SNOOZE PERIOD

1. Whenever the alarm rings, it can be temporarily suspended for a short period of approximately 9 minutes, by pressing once the ZZZ key on the remote control, or the button on the top panel.
2. The alarm will then automatically begin to ring again after approximately 9 minutes.
3. To deactivate the snooze, press and release the ⬤ button once.

You can store up to 30 of your favourite stations in the tuner memory for easy recall at any time.

AUTO SCAN

1. Press the SOURCE key to select "RAD" radio mode.
2. Long press the ▶ button, and your speaker will scan and stop automatically when it finds a station with sufficient signal strength.
3. After a few seconds, the display will update. The display will show the station frequency.
4. Press MEM+ or MEM- on the remote control, or briefly press ◆◆◆ the top panel to view and listen to the preset radio stations.
5. To find other stations, press and hold for 2 seconds the ▶ button.
6. To scan the FM band in the opposite direction (high frequencies to low frequencies), press the Hutton and hold for 2 seconds.

MANUAL SCAN

1. Press the SOURCE key to select "RAD" radio mode.
2. Press◀◀ or◀◀ to tune to a station. Each press on the tuning button will change the frequency up or down by 100 kHz.
3. Once you find a station you want to save, press and hold the MEM button on the remote control or TIME/PROG on the top panel. "S OT" will be shown on the display; press MEM+ or MEM- until the desired memory position number appears on the display. Press the MEM or TIME/PROG again to confirm and save the current station.
4. Briefly press MEM on the remote control; or press TIME/PROG on the top panel, "S 01" will be shown on the display; then press MEM+ or MEM-, in order to view or listen to the stored radio stations.

You can play in your tower speaker your audio CD/CD-R/CD-RW/MP3.

1. Press the ⏻ button to turn on the unit

2. Press the SOURCE button repeatedly to select the CD function.

3. Press the ▲ button to open the disc tray.

4. Insert a CD with the printing side facing up and close gently the disc tray by pressing again. The disc will start the playback automatically.
5. To temporarily stop playback, press the ▶|| button, and to resume playback, press it again.
6. Press the ■ button to stop playback.

SEARCHING FOR A SECTION WITHIN A TRACK

During playback, press and hold 🐘 buttons to find a specific passage within the track and release it at the point you want to listen to.

SELECT ANOTHER TRACK OR FILE

Press 📄️ buttons to skip to a different track number.
Press hence to hear the beginning of the current track, and press it two or more times to hear the previous track.

LISTENING TO YOUR TRACKS REPEATEDLY

Press the ALARM/REPEAT on the top panel of the unit, or REP on the remote control repeatedly to activate the repeat function in following manner:

1. ONE (repeat the current track)
2. ALL (repeat all the available tracks)
3. OFF (cancel the repeat function)

CREATING A CD PLAYLIST

The Program feature may be used to program up to 33 tracks for CD and 99 tracks for CD-MP3 to play in a selected order.

1. While in stop mode only (CD is not playing), press and hold TIME/PROG on the top panel of the unit, or the PRG button on the remote control for 2 seconds, and the LED display will show the wording "P 01" and "T 01" starts to flash.

2. Press the kind tons to allocate the desired track,

3. Press TIME/PROG or PRG to select and store the track into the memory.
4. Repeat steps 2 and 3 to select up to 33/99 tracks.
5. To play the selected tracks (in the program mode), press the ▶ button.
6. Press the button to hear the previous programmed track or press the button to hear the next programmed track.
7. To clear the programmed tracks from the memory press the button twice.

ABOUT MP3 DISC COMPATIBILITY

With this unit is limited as follows:

Sampling Frequency: 32-48 (MP3)

Bit rate: 32-320kbps (MP3)

Do not use special letters such as:

7.4.2.5

Even if the total number of files on the disc is more than 1000, it will only show up to 999.

Note:

- Because MP3 discs have a large capacity, disc access times are a little longer.

BLUETOOTH MODE

BLUETOOTH PAIRING

To use the Bluetooth function, your speaker should first be paired with your Bluetooth device. ("Pairing" means establish connection between Bluetooth devices such as mobile phone, tablets, pc, etc).

1. Press the SOURCE button to switch to "BT" Bluetooth mode. (fig. 1)
2. In Bluetooth mode, a voice prompt will announce Bluetooth pairing mode and the word "BT" will flash on the display. The speaker will search automatically for Bluetooth devices.
3. Turn on the Bluetooth function on your device and make it visible (see your devices instructions to add or setup a Bluetooth device).
4. Search for Bluetooth devices and select AIWA TS-990CD Enter the code "0000" if needed. (fig. 2)

If the devices are paired successfully, the word "BT" on the display will keep bright. Having successfully paired, the device will be automatically connected next time.

1. Press and hold▶Ibr 2 seconds to disconnect the Bluetooth. (fig. 3)

Diagram showing a hand interacting with a device with labeled buttons and a speech bubble containing a Bluetooth symbol.

(fig. 1)

DNA 10.2352 Bluetooth 2023

(fig. 2)

PLAY FROM A BLUETOOTH DEVICE

1. Press the ▶|| button to play.
2. To pause or resume play, press the ▶ II button again.
3. Press the◀◀ or▶◀ buttons to skip to a different track number.

Notes:

• Compatibility with all Bluetooth devices is not guaranteed.
• Bluetooth playback can be controlled from the external device, the top panel of the tower, or the remote control.

aiwa (5th 7)

(fig. 3)

LINE-IN MODE

PLAYING MUSIC VIA USB OR SD CARD

This speaker has been developed using the latest technical advances in the USB or SD field. However, given the wide range of USB/SD storage device types that are currently in the market, we unfortunately cannot guarantee full compatibility with all of them. For this reason, in rare cases, there may be problems in playing files from USB/SD storage devices. This is not due to the devices malfunction.

1. Press the button to turn on the unit.

2. Press the SOURCE button repeatedly until the "USB" or "CARD" function appears on the display.

3. Connect a USB/SD storage device directly to the USB or SD CARD ports. The display briefly shows the number of folders and then the total number of tracks. Playback will automatically start after a few seconds.
4. To temporarily stop playback, press the ▶|| button, and to resume playback, press it again.
5. Press the ◀ or ▶ buttons to jump to a different track number.
6. Press the ▲ or ▼ buttons on the remote to scroll between the playable music folders of the device.
7. Press the button to stop play.

SEARCHING FOR A SECTION WITHIN AN AUDIO FILE

During playback, press and hold the or buttons to find a specific passage within the track and release it at the point you want to listen to.

Notes:

• Because some storage devices have a large capacity, USB or SD access times are a little longer.
• Switch the device to a different operating mode before you remove the USB or SD storage device.
  • To avoid malfunctions never connect a USB storage medium to the USB charging port.

AUXILIARY INPUT FUNCTION MODE

This unit can be used as an active speaker for laptop computers, MP3 and other small audio players following the steps below.

1. Press the button to turn on the unit.
2. Press the SOURCE button repeatedly until the "LINE" function appears on the display.
3. Connect an auxiliary cable ended in 3.5mm jack to the AUX IN socket.
4. Start playback on the external audio device. Adjust the volume on the audio device (do not set the volume to a high level in order to avoid distortion). You may also adjust the volume on the apparatus. To control playback function, use the controls on the external audio device.

Note:

- The auxiliary input mode only allows the user to control the volume from the unit.

CARE AND MAINTENANCE

COMPACT DISCS CARE

1. Treat the disc carefully. Handle the disc only by the edges. Never allow your fingers to touch the shiny, unpainted side of the disc.

2. Do not attach adhesive tape, stickers, etc. to the disc label.

3. Clean the discs periodically with a soft, lint-free, dry cloth. Never use detergents or abrasive cleaners to clean the disc. If necessary, use a CD cleaning kit. If a disc skips or gets stuck on a section of the disc, it is probably dirty or damaged (scratched). When cleaning the disc, wipe in straight lines from the centre of the disc to the outer edge of the disc. Never wipe in circular motions.

4. This unit is designed to play discs bearing the identification logo as shown here or MP3 format Disc.

Other discs may not conform to the CD standard and may not play properly.

1. Discs should be stored in their cases after each use to avoid damage.

2. Do not expose discs to direct sunlight, high humidity, high temperatures, or dust, etc. Prolonged exposure or extreme temperatures can warp the disc.

3. Do not stick or write anything on either side of the disc. Sharp writing instruments or the ink may damage the surface.

CARE OF THE SPEAKER

1. To prevent fire or shock hazard, disconnect your unit from the AC power source when cleaning.
2. The speaker may be cleaned on the outside with a dust cloth and cared for as any other furniture. Use caution when cleaning and wiping the plastic parts.
3. A mild soap and a damp cloth may be used on the top panel.
4. If the unit is not going to be used for an extended period of time, it is advisable to cover it with the dust cover (included) to prevent intrusions.

TROUBLE SHOOTING GUIDE

If a fault occurs, first check the points listed below before taking the speaker to repair.

Do not open the tower speaker as there is a risk of electric shock.

SYMPTOM CAUSE CORRECTION
General
No power.	The power cord is not plugged.	Plug in the power cord.
	Check whether electricity failed.	Check the condition by operation of other electronic devices.
	Mains power button is not "on".	Press the mains power button.
No sound. Check whether you've selected the right function.		Press SOURCE and check the selected function.
CD
The unit does not start playback.	An unplayable disc is inserted.	Insert a playable disc.
	The disc is dirty. Clean the disc
Radio
Radio stations cannot be tuned in.	The antenna is positioned poorly.	Extend the antenna cord at it's full length.
		Relocate the speaker in another place.
Remote control
The remote control does not work properly.	The remote control is too far from the unit.	Operate the remote control within about 23ft (7m).
	There is an obstacle in the path of the remote control and the unit.	Remove the obstacle.
	The batteries in the remote control are exhausted.	Replace the batteries with new ones.
USB/SD CARD
The USB does not start the playback.	USB storage device plugged to USB charging port.	Connect the USB to the USB port.
	Incompatible or damaged audio files.	Insert another device with compatible audio files.
The SD Card does not start the playback.	Incompatible or damaged audio files.	Insert another device with compatible audio files.

WARNING!

Under no circumstances should you try to repair the set yourself, as this will invalidate the warranty.

FN 18

TECHNICAL SPECIFICATION

MODEL:	TS-990CD
Rated voltage:	AC 230V- 50Hz 1.1A
Power consumption:	130W
Remote control power source:	3V (CR2025) battery, x1
Bluetooth version:	5.0
Audio output power (L+R):	30Wx2 + 60W (120W RMS)

RADIO SECTION
Frequency range	Sensitivity Selectivity
FM 87.5-108MHz	(S/N=30dB) < 3 V > 60dB (+/-150kHz)
FM Stereo crosstalk:	< 35 dB
Number of preset radio stations:	30

USB/SD SECTION
SD/TF card:	MMC/SD/SDHC
Maximum storage allowed	64GB (FAT/ExFAT)
USB charge port output:	5V =2.1A

CD PLAYER
Disc compatibility:	CD/CD-R/CD-RW/MP3 DISC
Frequency response:	20Hz-20 KHz (+/-3dB)
AMPLIFIER
Impedance:	4 ohms
Input sensitivity:	310mV
Frequency response:	300Hz-4kHz
Audio S/N:	50dB

ACCESSORIES

Remote control x1

Auxiliary cable x1

Protective dust cover x1

User manual x1

DIMENSIONS & STUFFING
Dimensions of the speaker drivers:	x4 (O/ 101.6mm, 15W/4 Ohm)x1 (O/ 165mm, 60W/4 Ohm)
Dimensions of the tower:	W 260* D 300* H 1250* mmW 185* D 233* H 1233*mm (without stand)
Net weight:	12Kgs

END OF LIFE DISPOSAL

WARNING!

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream.

Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

ESPAÑOL

Technical diagram of a vertical cylindrical device with numbered components and a curved arrow indicating motion or flow.

Notas:

Diagram showing a hand interacting with a device with labeled buttons and a speech bubble containing a Bluetooth symbol.

(fig. 1)

BMW 15-20002 Microsoft BMW 15-20003

(fig. 2)

aiwa (5th 7)

(fig. 3)

MODO AUX-IN

ATTENTION RISQUE D'ÉLECTROCUTION NE PAS OUVRIR

LA FOUDRE EN POINTE DE FLÈCHE

Technical diagram of a vertical cylindrical device with numbered components and a curved arrow indicating motion or flow.

7 FM ANTENNA (FM ANTENNA)
8 INTERRUPTEUR D'ALIMENTATION
9 CÂBLE D'ALIMENTATION ÉLECTRIQUE
10 AGUJERO DE VENTILACIÓN
LUMIÈRE AMBIANTE

FR 44

DESCRIPTION DE L'APPAREIL ET COMMANDES

VUE DE DESSUS

1 2 3 4 5 aiwa 6 7 8 9

① CADRAN DE VOLUME (VOLUME)
② HEURE/PROGRAMME (TIME/PROG.)
3 ALLUMER ET ÉTEINDRE/ SOURCE (SOURCE)
4 PRÉCÉDENT/ REV (BACK/REV)
⑤ REPRODUIRE/CONFIRMER (PLAY/ENTER)
⑥ ALARME/RÉPÉTER (ALARM/REPEAT)
7 ARRÊTER/REPOS (STOP/SNOOZE)
⑧ ÉJECTEUR DE PLATEAU DE CD (EJECT)
⑨ SUIVANT/ INDICATEUR (NEXT/CUE)

VUE DE CÔTÉ

10 11 12 13 USB CHARGE SW=218 USB PLAYER LINE IN (400) 3D PLAYER

10 PORT DE CHARGEMENT USB (USB CHARGE)
11 PORT USB (USB PLAYER)
12 ENTRÉE AUXILIAIRE (LINE IN "AUX")
13 PORT DE CARTE SD (SD PLAYER)

DE LA TELECOMANDE

1 2 3 4 5 6 7 8 9 10 11 12 MUTE ALARM TIME SLEEP MEM+ MEM+ 2" REP PRG ENTER SOURCE EQ DIM+ VOL+ DIM- VOL- 13 14 15 16 17 18 19 20 21 The Legend S/NCE 1991 Tokyo, Japan aiwa

1 BOUTON D'ALIMENTATION
2ALARME (ALARM)
③MUET (MUTE)
4MÉMOIRE (MEM)
SMÉMOIRE +/- (MEM- / MEM+)
6RÉPÉTER (REP.)
7 HAUT
8PRÉCÉDENT
9BAS
10SOURCE
11 LUMINOSITÉ +/- (DIM+/DIM-)
12ARRÊTER
13TEMPS (TIME)
14 DORMIR (SLEEP)
15REPOS (ZZZ)
16PROGRAMME (PRG)
⑰ REPRODUIRE/PAUSER/ACCEPTER (ENTER)
18SUIVANT
19ÉJECTEUR DE PLATEAU DE CD
20ÉGALISATEUR (EQ)
21VOLUME +/- (VOL+/VOL-)

CAPTEUR IR DE LA COMMANDE:

Notes:

Diagram showing a hand interacting with a device with a Bluetooth symbol and labeled buttons, likely illustrating a wireless or smart device interface.

(fig. 1)

DNA 15-4002 Microsoft GAPDH2003

(fig. 2)

aiwa

(fig. 3)

LECTURE VIA USB OU CARTE SD

The safety and operating instructions should be retained for future reference.

Technical diagram of a vertical cylindrical device with numbered components and a curved arrow indicating motion or flow.

7 FM-ANTENNE
8 NETZSCHALTER
9 AC-LINIE
10 LUFTLOCH
11 UMGEBUNGSLAMPE

DF 62

1 2 3 4 5 6 7 8 aiwa O O M M A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

① LAUTSTÄRKEREGLER (VOLUME)
② ZEIT / PROG (TIME/PROG)
③ EINSCHALTEN / QUELLE (POWER/SOURCE)
4 ZURÜCK / REV (BACK/REV)
⑤ ABSPIELEN / EINGABE (PLAY/ENTER)
6 ALARM / WIEDERHOLUNG (ALARM/REPEAT)
⑦ ANHALTEN / SCHLAFEN (STOP/SNOOZE)
⑧ CD-TÜRAUSWURF (EJECT)
9 NÄCHSTER / INDIKATOR (NEXT/CUE)

SEITENANSICHT

10 USB CHARGE SP=214 11 USB PLAYER LINK IN (Ax20) 12 13 2D PLAYER

WÄHLEN SIE EINE ANDERE SPUR ODER DATEI

WIEDERHOLTES ANHÖREN IHRER TRACKS

Bit rate: 32-320kbps (MP3)

Diagram showing a hand interacting with a device with a Bluetooth symbol and labeled buttons, likely illustrating a wireless or smart device interface.

(Abb.1)

SMA-12-SR202 Bluetooth 5.0.1.13

(Abb. 2)

aiwa (4th-7)

(Abb. 3)

USB/SD-KARTEN-MODUS

Technical diagram of a vertical cylindrical device with numbered components and a curved arrow indicating motion or flow.

Note:

• Si la distancia requerida entre el mando a distancia y el aparato disminuye, las pilas se han agotado. En este caso, cambie las pilas por otras nuevas.
  Il pulsante di accensione sul retro dell'unità principale deve essere "ON" affinché il telecomando funzioni.

MONTAGGIO DELLA STAFFA

MONTAGGIO DELLA STAFFA RIMOVIBILE

ACCENSIONE E STANDBY

Diagram showing a hand interacting with a device with labeled buttons and a speech bubble containing a Bluetooth symbol.

(fig. 1)

DATA 15-20002 Microsoft DATA 15-20002

(6g.2)

aiwa (5th 7)

(fig. 3)

MODALITÀ AUX-IN

RIPRODUZIONE VIA USB O SD CARD

Technical diagram of a vertical cylindrical device with numbered components and a curved arrow indicating motion or flow.

Notas:

Diagram showing a hand interacting with a device with labeled buttons and a speech bubble containing a Bluetooth symbol.

(fig. 1)

DNA 10.0002 Bluetooth 3.0000

(fig. 2)

aiwa (5th 7)

(fig. 3)

REPRODUZIR VIA USB OU SD CARD

Row of five black-and-white social media platform icons: Facebook, Twitter, Instagram, Pinterest, and YouTube

www.eu-aiwa.com

AIWA CO., LTD.

Shinagawa-Ku
