Product type	Freezer
Brand	Candy
Model	CNF 170 FW
Capacity	170 L
Height	1700 mm
Width	544 mm
Depth	641 mm
Approximate weight	50 kg
Power supply	220-240 V, 50 Hz
Climate class	SN, N, ST, T
Refrigerant	R600a (flammable)
No Frost function	Yes
Fast freeze	Yes (automatic stop after 26 h)
Door open alarm	Yes (after 3 min)
Power failure memory	Yes
Defrost	Automatic and manual
Control panel	Touch with SET button and LED display
Warranty (EU)	2 years
Maintenance	Clean with warm water and mild soap every 4 weeks
Safety	Child lock not mentioned; do not use sharp objects for defrosting
Spare parts	Available for 7 years (thermostats, sensors, LED); door gaskets for 10 years

Frequently Asked Questions - CNF 170 FW CANDY

How to set the freezer temperature?

The temperature is set by pressing the SET button. Each press cycles through modes: -16°C, -18°C, -20°C, -22°C, -24°C and fast freeze. The setting is confirmed after 5 seconds of inactivity.

What to do in case of a power outage?

Do not open the door to keep the cold inside. Check the duration indicated on the rating plate (temperature rise time). If the outage lasts longer, check the food; consume or cook it before refreezing.

How to defrost the freezer?

You can activate automatic defrost by holding the SET button for 15 seconds. To stop manually, hold SET for 3 seconds. Never use sharp objects or electric heaters.

Why does the alarm sound?

The alarm triggers if the door stays open for more than 3 minutes. Press any button to silence it for 3 minutes, or close the door to stop it permanently.

How to reverse the door opening direction?

Unplug the appliance. Remove the top and bottom hinges, move the door stop, then reinstall the hinges on the opposite side. Ensure the gaskets seal properly before tightening the screws.

What is the best temperature for storing food?

For the freezer, set to -18°C. This temperature allows long-term storage of frozen food. For the refrigerator compartment (if present), 4°C is recommended.

How to clean the inside of the freezer?

Unplug the appliance. Use warm water and mild soap. Do not use abrasive detergents. Rinse and dry with a soft cloth. Wait 5 minutes before plugging back in.

What does the flashing LED lights mean?

Continuous flashing of the alarm indicator (along with one of the -16, -20, -24 or fast freeze indicators) indicates a malfunction. Contact customer service.

Can you freeze hot food?

No, hot food must first cool to room temperature. Otherwise, the internal temperature rises, the compressor runs longer, and food quality deteriorates.

Where to find spare parts?

Parts such as thermostats, sensors, LED are available for 7 years after the end of marketing. Door gaskets are available for 10 years. Contact customer service via Candy's website.

USER MANUAL CNF 170 FW CANDY

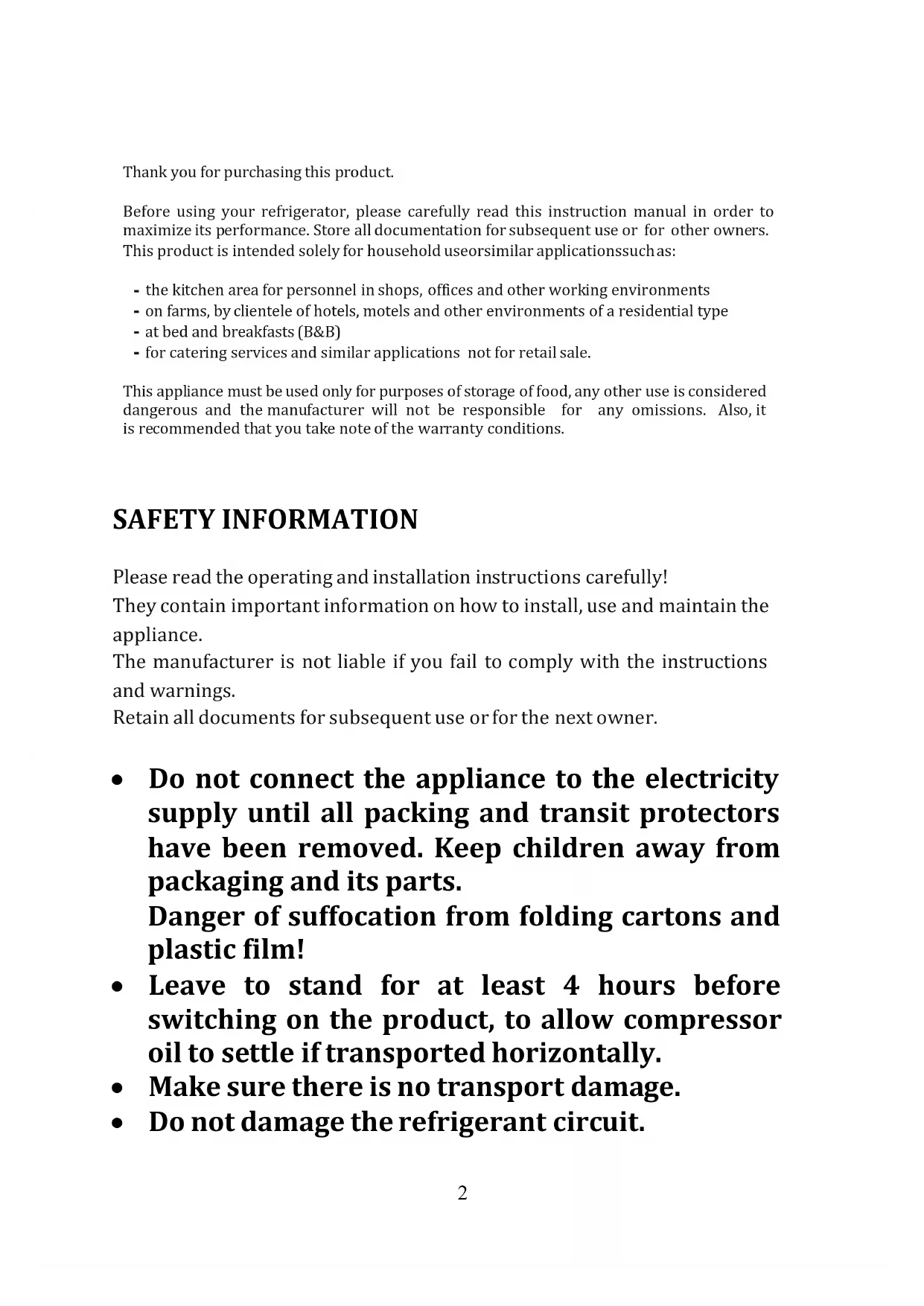

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners.

This product is intended solely for household useorsimilar applicationssuch as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clientele of hotels, motels and other environments of a residential type
• at bed and breakfasts (B&B)
• for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

Please read the operating and installation instructions carefully!

They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings.

Retain all documents for subsequent use or for the next owner.

- Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts.

Danger of suffocation from folding cartons and plastic film!

- Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported horizontally.

• Make sure there is no transport damage.

- Do not damage the refrigerant circuit.

• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
• Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.
• Handle the appliance always with at least two persons because it is heavy.
  • Install and level the appliance in an area suitable for its size and use.
• Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
• The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
• Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
  • Make sure that mains cable is not caught under the appliance during and after

carrying/moving the appliance, to avoid the mains cable becoming cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

- Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.

- Do not install the appliance near heaters or inflammable materials.

- FOR appliances with a freezer compartment: if there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (Temperature rise time). If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

- If you find that the lid of the appliance is difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.

- Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance, it is not recommended to store materials that require strict temperatures.

- Do not excessively pull or fold the power cord

or touch the plug with wet hands.

- Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the appliance. Risk of explosion!

- Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.

- Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

- Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.

- At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.

- Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children aged 8 years and above may use the appliance.

• Children should not play with the appliance.

• Children aged from 3 to 8 years are allowed to load and unload this appliance.
• FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!
• FOR appliances with a freezer compartment: never put frozen food straight from the freezer compartment in your mouth. Risk of low-temperature burns!
• Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous.
• Before performing any operation, unplug the power cord from the power socket.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.
• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.
• It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.
• Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact always our customer service.

- Supervise children while the appliance is being cleaned or maintained.

- Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

- WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.

- If the refrigerant circuit should be damaged:

• Switch off the appliance and pull out the mains plug,
• Keep naked flames and/or ignition sources away from the appliance,
• Thoroughly ventilate the room for several minutes,
• Inform customer service.

- WARNING: Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.

- WARNING: Do not use multiple portable socket-outlets or portable power supplies. We do not recommend the use of extension leads and multi-way adapters.

- Do not attempt to sit or stand on the top of the

appliance. You could injure yourself or damage it. This appliance is not designed for stacking with any other ones.

- The product is designed and built for domestic household use only.

- Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

-Clean regularly surfaces that can come in contact with food and accessible drainage systems.

-Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

-Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments(if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

-One-, two- and three -star compartments, if present in the appliance, are not suitable for the freezing of fresh food.

- If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.

• FOR Wine Coolers: this appliance is intended to be used exclusively for the storage of wine
- FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance
- FOR appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs.

Scrapping old appliances

Warning sign depicting a flame symbol in a triangular frame

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the CE mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Guarantee

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

Energy Saving

For better energy saving we suggest :

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated room.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuos functionaliting of the compressor.
  • Do not excessively stuff foods so as to ensure proper air circulation.
  • Defrost the appliance in case there is ice to facilitate the transfer of cold.
• In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible
• Avoid adjusting the setting to temperatures too cold.
• Remove dust present on the rear of the appliance

I. Product Features

Empty rectangular frame with a small rectangular cutout on the left side (no text or symbols)

Dear users, this manual contains the product's basic knowledge, to use it, fault diagnosis and basic troubleshooting methods. In o to better understand and use this product, please take good car this manual and read it carefully.

Technical diagram of a refrigerator with numbered parts and decorative patterns, likely for assembly or labeling purposes.

No	Description
1	Control panel
2	Freezer Glass Shelves
3	Freezer drawers
4	Adjustable Feet
5	Bottle racks

Due to technological innovations, the product descriptions in this manual may not be completely consistent with your refrigerator. Detailed information is in accordance with the final product.

* The most energy-saving configuration requires drawers and door bins to be positioned in the product and the fan running, please refer to the above pictures.

** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

II. Preparations for use

Installation location:

1. Ventilation condition

The position you select for the refrigerator installation should be

well-ventilated and has less hot air. Do not locate the refrigerator near a heat source such as cooker, and avoid it from direct sunlight, thus guaranteeing the refrigeration effect while saving energy consumption. Do not locate the refrigerator in the damp place, so as to prevent the refrigerator from rusting and leaking electricity. The result of the total space of the room in which the refrigerator is installed being divided by the refrigerant charge amount of the refrigerator shall not be less than 8 ~g / M^3 .

Note: The amount of refrigerant charged for the refrigerator can be found on the nameplate.

2. Heat dissipation space

When working, the refrigerator gives off heat to surroundings. Therefore, at least 30mm of free space should be spared at the top side, more than 100mm on both sides, and above 50mm at the back side of the refrigerator. Dimensions in mm:

	D	H	A	B	C(°)	E	F
544	641	1700	890	1096	125	50	100

W H

Fig. 1

E F D F B C A

Fig. 2

Note: Figure 1, Figure 2 only illustrate the space demand of the product.

3. Level ground

Place the refrigerator on the solid and flat ground (floor) to keep it stable, or else, it will give rise to vibration and noise. When the refrigerator is placed on such flooring materials as carpet, straw mat, polyvinyl chloride, the solid backing plates should be applied underneath the refrigerator, so as to prevent color change due to heat dissipation.

III. Functions

When the refrigerator system is connected to power supply for the first time, all icons on the display panel gets illuminated for 2s, and the system runs at -18^ by default.

1 Functions

1.1 Temperature setting

No Frost

Temperature can be adjusted by pressing the 'SET' key. Every time when the "SET" key is pressed, the current mode indicator lights off while the next mode indicator lights up, with the said mode setting validated if no key operation within 5s (or else, the mode setting will be invalid). After the setting takes effect, temperature will be immediately controlled as per the mode setting.

The temperature modes cycle as following: “-16°C→-18°C→-20°C→-22°C→-24°C→(fast freezing)→-16°C”

1.2 Fast freezing

When the fast freezing function is enabled, the compartment temperature can be cooled down in a rapid manner, which is beneficial to the prevention of food nutrition against lost and the preservation of freshness.

After a cumulative running period of 26 hours, the fast freezing function will exit automatically, with the temperature mode restored to that set before the fast freezing function is enabled.

1.3 Door open alarm

When the refrigerator door keeps open for more than 3 minutes, the buzzer starts issuing alarms, which can be suspended for 3 minutes by pressing any key, but they will not be stopped until the said door gets closed.

1.4 Power-cut memory

In case of power failure, the refrigerator will maintain the operating state before power failure when power supply is restored.

1.5 Power-on delay

In order to protect the refrigerator compressor from being damaged in the case of short-time power failure (i.e., less than 5 minutes), the compressor will not be started immediately after it is powered on.

1.6 Defrosting

The refrigerator can defrost automatically or manually.

When the refrigerator is not defrosting, the automatic defrosting program can be enabled by holding down the SET key for 15s, with all the mode indicator lights illuminated, refrigeration stopped, and defrost heating started. During the defrosting process, you can hold down the SET key for 3s to stop defrosting manually, or wait until the defrosting program gets exited automatically.

In order to avoid frequent defrosting actions of the refrigerator, do not access to the defrost function during the defrosting process; and make sure not to enable the defrost function again within 10 minutes after it is manually disabled.

1.7 Fault alarm

When the alarm indicator keeps flashing (with the corresponding indicator light of “-16, -20, -24, or fast freezing” flickering simultaneously), it indicates fault with the refrigerator. Please contact the aftersales person for visiting

INSTALLATION

WARNING! The appliance is heavy. Always handle with at least two persons.

Before first use

Remove all packaging materials.
Clean the appliance with water and a mild detergent and dry it with soft cloth.
➢ Check if power supply, socket and fusing are appropriate to the rating plate.
➢ Check if the power socket is earthed and no multi-plug or extension is present.
➢ Check if the power plug is accessible after the appliance has been positioned.
➢ Refrigerator and freezer temperature are automatically set at 4^ C and -18^ C respectively. These are the recommended settings. If desired, you can change these temperature manually. See Adjust the temperature.

Environmental conditions

This appliance should be installed in a room that is dry and well ventilated.
Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation or exposed to direct sunlight.
If this appliance is situated in a cold environment (such as a shed, outhouse or garage), the performance will be affected and this may damage the food.

Install this product in a position where the ambient temperature is not lower or higher than the operating temperature: in this case the appliance does not work properly.

• Extended temperate (SN): 'this refrigerating appliance is intended to be used at ambienttemperatures ranging from 10 °C to 32 °C'.
• Temperate (N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C'.
• Subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C'.
• Tropical(T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C'.

Levelling the appliance

The appliance should be placed on a flat and solid surface

1. Tilt the appliance slightly backwards.
2. Turn the feet clockwise to raise the refrigerator.
3. Turn the feet counter clockwise to lower the refrigerator.

Two hand-drawn diagrams showing a checkmark and a cross symbol inside water-filled containers, likely indicating inspection or verification.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and in the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45^ to avoid damaging the refrigerating system.

TIPS FOR FOOD STORAGE

Position different food in different compartments according to be below table:

Refrigerator compartment	Type of food
Door or balconies of fridge compartment	Foods with natural preservatives, such as jams, juices, drinks, condimentsDo not store perishable foods
Crisper drawers (salad drawer)	Fruits, herbs and vegetables should be placed separately in the crisper binDo not store bananas, onions, potatoes, garlic in the refrigerator
Fridge shelf – middle	Dairy products, eggs
Fridge shelf – top	Foods that do not need cocking, such as ready-to-eat foods, deli meats, leftovers
Freezer drawer(s)/tray	Foods for long-term storageBottom drawer for raw meat, poultry, fishMiddle drawer for frozen vegetables, chipsTop tray for ice cream, frozen fruit, frozen baked goods

It's suggested to set the temperature at 4^ in the fridge compartment, and, whether possible, at -18^ in the freezer compartment.
For most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat.
For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star-6°C, two stars -12°C, three stars -18°C)

Tips for freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time
Place the fresh food to be frozen in the freezer compartment
The maximum amount of food that can be frozen in 24 hours is specified on the rating plate
The freezing process lasts 24 hours: during this period do not add other food to be frozen

Tips for storing food in the freezer

Keep the freezer temperature at -18°C
Hot foot must be cooled to room temperature before storing in the freezer compartment
➢ Food cut into small portions will freeze faster and will be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg
It is better to pack the food before putting it into the freezer.
Defrosted food cannot be re-frozen unless it is first cooked
Do not load excessive quantities of fresh food in the freezer compartment
Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g. meat: 3-12 months, vegetables 6-12 months). Do not exceed the food storage time recommended by the manufacturers.

CARE AND CLEANING

WARNING! Disconnect the appliance from the power supply before cleaning

General

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

Clean the inside and housing of the appliance with lukewarm water and some neutral soap.
➢ Rinse and dry with soft cloth.
Clean the accessories only with lukewarm water and neutral detergent. Make sure that all soap is rinsed off and all parts are dry before replacing them inside the appliance.
Do not clean any of the parts of the appliance in a dishwasher.
Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Reversing the Door Swing

1. Make sure that your refrigerator is unplugged.

2. Pry the hinge cover up and off, remove the three screws that secure the upper hinge to the door, then remove the hinge.

Hinge cover Screws Upper hinge

1. Remove the freezer compartment door from the cabinet.

2. Remove the screws that secure the lower hinge to the right side of the cabinet, then remove the hinge.

Lower hinge Screws

1. Remove the washer and nut that secure the pin shaft to the right hole on the lower hinge, then remove the shaft

Pin shaft

1. Insert the pin shaft into the left hole on the lower hinge, then secure the shaft with the washer and nut

Pin shaft

1. Install the lower hinge on the left side of the cabinet.

2. Remove the screw that secures the door stop from the bottom right of the freezer compartment door, then remove the door stop and install to the bottom left side.

Freezer door Door stop

1. Install the freezer compartment door.

2. Move the door bushing from the top right side of the freezer door to the top left side of the door. And move the left hole cover to the right side.

Door bushing Hole cover

1. Remove the hole cover from the top left side of the cabinet and secures the cover on the top right side of the cabinet.

Hinge screw hole cover—

1. Secure the upper hinge to the top left side of the cabinet with the three screws you removed previously. Before you tighten the upper hinge screws, make sure that the top of the door is level with the cabinet and that the rubber gasket makes a good seal.

2. Install the hinge cover over the hinge on the top left side of the cabinet.

Hinge cover Screws Upper hinge

1. Remove the left hole plugs, screw off the bolts, and remove the right hole plugs.

Pure diagram of a rectangular block with curved arrows indicating direction, no text or symbols present

1. Install the right hole plugs on the left side of the door, and install the handle on the right side of the door.

Pure diagram of a rectangular frame with directional arrows and a small U-shaped component, no text or symbols present.

Note: Ensure the rubber gaskets are making a good seal with the cabinet all the way around the doors before tightening the hinge screws.

Replacing the LED-lamps

The internal light is a LED type. To replace the lamp, please contact the customer service. See Troubleshooting.

Door opening alarm

When the appliance door is left open for more than 3 minutes, the door opening alarm will sound. The alarm can be silenced by closing the door or by pressing the SET key (this will not affect the temperature setting, it will just mute the alarm).

Non-use for long periods

If the appliance is not used for an extended period of time:

1. Take out the food and unplug the power cord.
2. Clean the appliance as described in the "Care and cleaning -General" section.
3. Keep the door and freezer drawers/door open to prevent the creation of bad odors inside.

Power interruption

In the event of power cut, food should remain safely cold for see rating plate. Follow these tips during a prolonged power interruption, especially in summer:

• Open the door/drawer as few times as possible.
  Do not put additional food into the appliance during a power interruption.
  If prior notice of a power interruption is given and the interruption duration is longer than the amount of hours indicated on the rating plate, make some ice and put it in the top of the refrigerator compartment.
  The storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) in order to prevent health risks.

Availability of spare parts

➢ Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of 7 years after placing the last unit of the model on the market.
➢ Door handles, door hinges, trays and baskets for a minimum period of 7 years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

TROUBLESHOOTING

In case of a problem please check all shown possibilities and follow below instructions before contacting an after sales service.

Problem	Possible cause	Possible solution
The appliance does not work	The appliance is turned off	Press the ON/OFF key to turn on the appliance
	Mains plug is not connected in the mains socket	Connect the mains plug
	Fuse has blown or is defective	Check the fuse and replace it if necessary
	Socket is defective	Mains malfunctions should be corrected by an electrician
The appliance runs frequently or runs for a too long period of time	The indoor or outdoor temperature is too high	It is normal for the appliance to run longer
	The appliance has been off power for a period of time	Normally, it takes 8 to 12 hours for the appliance to cool down completely
	A door/drawer of the appliance is not tightly closed	Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door
The inside of the refrigerator is dirty and/or smells	The inside of the refrigerator needs cleaning	Clean the inside of the refrigerator
	Food of strong odour is stored in the refrigerator	Wrap the food thoroughly
Moisture formation on the inside of the refrigerator	The climate is too warm and too damp	Increase the temperature
	A door/drawer of the appliance is not tightly closed.	Close the door/drawer
	Food containers or liquids are left open	Let hot foods cool to room temperature and cover foods and liquids
Moisture accumulates on the refrigerators outside the surface or between the doors/door and drawer	The climate is too warm and too damp	This is normal in damp climate and will change when the humidity decreases
	The door/drawer is not closed tightly	Ensure that the door/drawer is tightly shut
Strong ice and frost in the freezer compartment	The goods were not adequately packaged	Always pack the goods well
	A door/drawer of the appliance is not tightly closed	Close the door/drawer
Unusual noises	The appliance is not at level	Re-adjust the feet
	The appliance is touching the wall or other objects	Slightly move the appliance
UI Led's are flashing	One of the sensors is out of range	Contact the assistance
An alarm is beeping	The fridge storage compartment door is open	Close the door or silence the alarm manually
The interior lighting or cooling system does not work	The LED-lamp is out of order	Please call the service for changing the lamp

During operation, the side walls and perimeter of the freezer compartment may be hot: this is normal and is due to the normal working cycle of the product.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section “website”, choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance

Warning sign depicting a flame symbol in a triangular hazard triangle

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Technical diagram of a refrigerator with numbered parts and decorative patterns, labeled in Chinese.

Не	Описание
1	Панел за управление
2	Стъклени рафтове на фризера
3	Чекмеджета на фризера
4	Регулируеми крачета
5	Поставки за бутилки

Two labeled diagrams showing a checkmark inside a container and a cross inside, likely indicating selection or confirmation.

Pure diagram of a rectangular block with curved arrow indicating rotation or force direction (no text or symbols)

Pure electrical circuit lines without any symbols

Warning sign depicting a flame symbol in a triangular shape

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

① ② ③ ④ ⑤

Two labeled diagrams showing checkmark and cross symbols inside water-filled containers, likely indicating inspection or status indicators.

Pure diagram of a rectangular block with curved arrows indicating direction, no text or symbols present

Simple line diagram with arrows pointing to a rectangular frame and a right-angle L-shaped extension (no text or symbols)

Warning sign depicting a flame symbol in a triangular frame

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Technical diagram of a refrigerator with numbered components and decorative patterns

Nr.	Beskrivelse
1	Betjeningspanel
2	Glashylder til fryser
3	Fryseskuffer
4	Justerbare fødder
5	Flaskeholdere

Two labeled diagrams showing a checkmark and a cross symbol inside vertical containers, likely indicating selection or confirmation.

Pure diagram of a rectangular block with curved arrows indicating direction, no text or symbols present

Simple line diagram with arrows pointing to a rectangular frame and a right-angle L-shaped extension (no text or symbols)

Warning sign depicting a flame symbol in a triangular shape

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Technical diagram of a refrigerator with numbered parts and decorative patterns, labeled in Chinese.

Two labeled diagrams showing a checkmark and a cross symbol inside water-filled containers, likely indicating inspection or verification.

Pure diagram of a rectangular block with curved arrow indicating rotation or force direction (no text or symbols)

Pure electrical circuit lines without any symbols

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

① ② ③ ④ ⑤

Two labeled diagrams showing a checkmark and a cross inside water-filled containers, likely indicating inspection or status.

Pure diagram of a rectangular block with curved arrow indicating rotation or force direction (no text or symbols)

Pure electrical circuit lines without any symbols

Warning sign depicting a flame symbol in a triangular shape

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

① ② ③ ④ ⑤

Two labeled diagrams showing a checkmark and a cross symbol inside water-filled containers, likely indicating inspection or verification steps.

Pure diagram of a rectangular block with curved arrow indicating rotation or force direction (no text or symbols)

Pure electrical circuit lines without any symbols

Warning sign depicting a flame symbol in a triangular shape

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Technical diagram of a refrigerator with numbered components and decorative patterns

Two labeled diagrams showing a checkmark and a cross symbol inside liquid-filled containers, likely indicating inspection or validation.

Pure diagram of a rectangular block with curved arrows indicating direction, no text or symbols present

Simple line diagram with arrows pointing to a rectangular frame and a right-angle L-shaped extension (no text or symbols)

Warning sign depicting a flame symbol in a triangular warning triangle

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Technical diagram of a refrigerator with numbered parts and decorative patterns, labeled in Chinese.

Two labeled diagrams showing a checkmark and a cross symbol in liquid, likely indicating inspection or verification steps.

Pure diagram of a rectangular frame with curved arrows indicating direction, no text or symbols present

Pure diagram of a rectangular frame with directional arrows and a small L-shaped structure, no text or symbols present.

Warning sign depicting a flame symbol in a triangular shape

Ovaj uređaj označen je sukladno Direktivi 2012/19/EZ o otpadnoj električnoj i elektroničkoj opremi (WEEE).

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Poštovani korisnici, ovaj priručnik sadrži osnovne informacije o proizvodu, kako se njime koristiti, dijagnostiku kvarove i osnovne postupke za uklanjanje problema. Kako biste bolje razumjeli i znali se koristiti ovim proizvodom, sačuvajte priručnik i pažlvo ga pročitajte.

① ② ③ ④ ⑤

Two labeled diagrams showing a checkmark and a cross symbol inside water-filled containers, likely indicating inspection or verification.

Pure diagram of a rectangular block with curved arrows indicating direction, no text or symbols present

Simple line diagram with arrows pointing to a rectangular frame and a right-angle L-shaped extension (no text or symbols)

Napomena: Provjerite jesu li gumene brtve dobro zabrtvljene uz ormarić skroz oko vrata prije nego što zategnete vijke šarke.

Zamjena LED žarulja

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Two labeled diagrams showing a checkmark and a cross symbol inside liquid-filled containers, likely indicating inspection or verification.

Pure diagram of a rectangular block with curved arrow indicating rotation or force direction (no text or symbols)

Pure electrical circuit lines without any symbols

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Technical diagram of a refrigerator with numbered parts and decorative patterns, labeled in Chinese.

Two labeled diagrams showing a checkmark and a cross inside a container, likely indicating selection or confirmation steps.

Pure diagram of a rectangular block with curved arrows indicating direction, no text or symbols present

Pure diagram of a rectangular frame with directional arrows and a right-angle symbol, no text or labels present.

Warning sign depicting a flame symbol in a triangular shape

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Two labeled diagrams showing checkmark and cross symbols inside water-filled containers, likely indicating inspection or verification steps.

Pure diagram of a rectangular block with curved arrow indicating rotation or force direction (no text or symbols)

Pure electrical circuit lines without any symbols

Warning symbol of a flame inside a triangle (no text or numbers)

Dette apparatet er merket i henhold til det europeiske direktivet 2012/19/EU om elektrisk og elektronisk utstyr (WEEE).

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Two labeled diagrams showing a checkmark and a cross symbol inside liquid-filled containers, likely indicating inspection or verification.

Flytte apparatet

Pure diagram of a rectangular block with curved arrows indicating direction, no text or symbols present

Simple line diagram with arrows pointing to a rectangular frame and a right-angle L-shaped extension (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Technical diagram of a refrigerator with numbered parts and decorative patterns, labeled ① to ⑤.

Two labeled diagrams showing a checkmark and a cross symbol inside liquid-filled containers, likely indicating inspection or testing conditions.

Pure diagram of a rectangular block with curved arrows indicating direction, no text or symbols present

Pure electrical circuit lines without any symbols

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Technical diagram of a refrigerator with numbered parts and decorative patterns, labeled in Chinese.

Two labeled diagrams showing checkmark and cross symbols inside water-filled containers, likely indicating inspection or testing conditions.

Mover o aparelho

Pure diagram of a rectangular block with curved arrow indicating rotation or force direction (no text or symbols)

Pure electrical circuit lines without any symbols

Substituir as lâmpadas LED

Warning sign depicting a flame symbol in a triangular shape

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

① ② ③ ④ ⑤

Two labeled diagrams showing a checkmark and a cross symbol inside liquid-filled containers, likely indicating inspection or verification status.

Mutarea aparatului

Pure diagram of a rectangular block with curved arrow indicating rotation or force direction (no text or symbols)

Pure electrical circuit lines without any symbols

Warning sign depicting a flame symbol in a triangular hazard triangle

Simple line drawing of a rectangular enclosure or enclosure with a vertical handle and base (no text or symbols)

Technical diagram of a refrigerator with numbered parts and decorative patterns, labeled in Chinese.

Two labeled diagrams showing a checkmark and a cross symbol inside water-filled containers, likely indicating inspection or verification.

Перемещение прибора

Pure diagram of a rectangular block with curved arrow indicating rotation or force direction (no text or symbols)

Pure electrical circuit lines without any symbols

Warning sign depicting a flame symbol in a triangular shape

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

① ② ③ ④ ⑤

Two labeled diagrams showing a checkmark and a cross symbol inside liquid containers, likely indicating inspection or testing conditions.

Presúvanie spotrebiča

Pure diagram of a rectangular frame with curved arrows indicating direction, no text or symbols present

Pure diagram of a rectangular structure with directional arrows and a small connected component (no text or symbols)

Warning sign depicting a flame symbol with hazard symbol inside a triangle

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Two labeled diagrams showing a checkmark and a cross symbol inside water-filled containers, likely indicating inspection or verification.

Premikanje aparata

Pure diagram of a rectangular block with curved arrow indicating rotation or force direction (no text or symbols)

1. Namestite prekrivne čepke desne odprtine na levo stran vrat in nato namestite ročaj na desno stran vrat.

Pure electrical circuit lines without any symbols

Opomba: Pred privijete vijake tečaja se prepričajte, da gumijasta tesnila dobro tesnijo po celotnemu obodu vrat.

Menjava LED-lučk

Warning sign depicting a flame symbol in a triangular hazard triangle

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Poštovani korisnici, ovo uputstvo sadrži osnovne informacije o proizvodu, uputstva za njegovo korišćenje, dijagnostiku kvarova i osnovne metode za rešavanje problema. Da biste bolje razumei i koristili ovaj proizvod, čuvajte ovaj priručnik i pažljivo ga pročitajte.

① A REBEING 6 ② ③ ④ ⑤

Ne	Opis
1	Kontrolna tabla
2	Unutrašnje staklene police
3	Fioke zamrzivača
4	Podesive stopice
5	Pregrade za flaše

Zbog tehnoloških inovacija, opisi proizvoda u ovom uputstvu možda nisu u potpunosti u skladu sa vašim frižiderom. Detaljne informacije su u skladu sa krajnjim proizvodom.

* Konfiguracija koja najviše štedi energiju zahteva da u proizvodu budu postavljene fioke i police na vratima, kao i da ventilator radi, pogledajte slike prikazane iznad.

** Gore navedene slike služe samo za referencu. Stvarna konfiguracija će zavisiti od fizičkog proizvoda ili izjave distributera.

II. Pripreme za upotrebu

Mesto montaže:

Two labeled containers with checkmarks and a cross symbol, likely indicating inspection or rejection status.

Pomeranje uređaja

1. Izvadite svu hranu i isključite uređaj iz napajanja.
2. Lepljivom trakom učvrstite police i druge pokretne delove u frižideru i u zamrzivaču.
3. Nemojte naginjati frižider više od 45° kako biste izbegli oštećenje rashladnog sistema.

SAVETI ZA ČUVANJE HRANE

Različite vrste hrane stavljajte u različite pregrade u skladu sa sledećom tabelom:

Pregrada u frižideru Vrsta	hrane
Pregrade u vratima frižidera	Hrana s prirodnim konzervansima kao što su džemovi, sokovi, pića, začiniNemojte čuvati kvarljivu hranu
Providne fioke (fioka za salatu)	Voće, začinske biljke i povrće treba stavljati zasebno u providnu pregraduU frižideru nemojte čuvati banane, luk, krompir, beli luk
Polica u frižideru – srednja	Mlečni proizvodi, jaja
Polica u frižideru – gornja	Hrana koja se ne kuva, kao što su gotova jela, delikatesno meso, ostaci hrane
Fioke/tacne u zamrzivaču	Hrana koja se dugo čuvaDonja fioka za sirovo meso, živinsko meso, ribuSrednja fioka za smrznuto povrće, krompirGornja fioka za sladoled, smrznuto voće, smrznuta peciva

Preporučuje se da se temperatura frižidera podesi na 4 °C, a temperatura zamrzivača na -18 °C kad god je to moguće.
Za većinu kategorija hrane koju je potrebno duže držati u pregradi frižidera, najbolje je čuvati je na nižim temperaturama. S obzirom da neki proizvodi (kao što su sveže voće i povrće) mogu biti oštećeni na nižim temperaturama, preporučuje se čuvanje u providnim fiokama ako postoje. Ako ne postoje, održavajte prosečna podešavanja termostata.
Kada je reč o smrznutoj hrani, na pakovanju treba videti koje je vreme čuvanja. To vreme čuvanja važi kada se poštuju referentne temperature pregrade (jedna zvezdica -6°C, dve zvezdice -12°C, tri zvezdice -18°C)

Osovinica

1. Umetnite osovinicu u levi otvor na donjoj šarki, a zatim pričvrstite osovinicu podloškom i maticom

Osovinica

1. Postavite donju šarku na levu stranu ormarića.

2. Uklonite zavrtanj koji pričvršćuje graničnik sa donje desne strane vrata odeljka zamrzivača, a zatim uklonite graničnik vrata i ugradite ga sa donje leve strane.

Vrata zamrzivača Graničnik vrata

1. Montirajte vrata odeljka zamrzivača.

2. Pomerite čauru vrata sa gornje desne strane vrata zamrzivača na gornju levu stranu vrata. Pomerite poklopac leve rupe na desnu stranu.

Čaura vrata Poklopac otvora

Pure diagram of a rectangular block with curved arrows indicating direction, no text or symbols present

1. Montirajte desne čepove na levu stranu vrata i postavite ručku na desnu stranu vrata.

Simple line diagram with arrows pointing to a rectangular frame and a right-angle L-shaped extension (no text or symbols)

Napomena: Uverite se da gumene zaptivke dobro zaptivaju ormarić skroz oko vrata pre nego što zategnete zavrtnje šarke.

Zamena LED lampica

U unutrašnjosti se nalazi LED osvetljenje. Za zamenu lampice, obratite se korisničkom centru. Videti „Otklanjanje problema“.

Alarm za otvorena vrata

Ako vrata uređaja ostanu otvorena duže od 3 minuta, oglasiće se alarm za otvorena vrata. Taj alarm se može isključiti zatvaranjem vrata ili pritiskom na dugme „SET“ (to neće uticati na podešavanje temperature već će samo isključiti zvuk alarma).

Kada se uređaj duže ne koristi

Ako se uređaj ne koristi duži vremenski period:

1. Izvadite hranu i isključite napojni kabl.
2. Očistite uređaj kao što je opisano u delu „Održavanje i čišćenje – uopšteno“.
3. Držite vrata frižidera i fioke/vrata zamrzivača otvorenima kako biste sprečili stvaranje loših mirisa u unutrašnjosti.

Prekid napajanja

Warning sign depicting a flame symbol in a triangular shape

Simple line drawing of a rectangular enclosure or cabinet (no text or symbols)

Two labeled diagrams showing a checkmark and a cross symbol inside liquid containers, likely indicating inspection or validation steps.

Flytta apparaten

Pure diagram of a rectangular block with curved arrow indicating rotation or force direction (no text or symbols)

Pure electrical circuit lines without any symbols

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of a rectangular enclosure or enclosure with a vertical handle and base (no text or symbols)

Technical diagram of a refrigerator with numbered parts and decorative patterns, labeled in Chinese.

Two labeled diagrams showing a checkmark and a cross symbol inside liquid containers, likely indicating inspection or validation steps.

Пересування приладу

Technical line drawing of a mechanical bracket component (no text or symbols)

Штирковий фіксатор

Technical line drawing of a mechanical component with mounting holes and a cylindrical pin (no text or symbols)

Штирковий фіксатор

Pure diagram of a rectangular block with curved arrow indicating rotation or force direction (no text or symbols)

Pure electrical circuit lines without any symbols
