| Brand | Hoover |
| Model | HI642CTT |
| Product type | Built-in induction hob |
| Number of cooking zones | 4 induction zones |
| Dimensions (W x D x H) | 590 x 520 x 60 mm |
| Built-in dimensions (W x D) | 560 x 490 mm |
| Power supply | 220-240 V ~ 50/60 Hz |
| Total configurable power | 2.5 kW / 3.0 kW / 4.5 kW / 6.5 kW / 7.4 kW |
| Cooking zone power (standard/Boost) | Front left: 2000 W / 2600 W Rear left: 1500 W / 2000 W Front right: 1500 W / 2000 W Rear right: 2000 W / 2600 W |
| Cooking zone diameter | 18 cm (all zones) |
| Main functions | Boost, Programmable timer, Key lock, Pause, Power management, Auto shut-off |
| Safety | Auto shut-off, overheat protection, pan detection, child lock, overflow protection |
| Cleaning and maintenance | Ceramic glass surface: specific cleaner and suitable scraper for stubborn residues |
| Energy consumption (EN 60350-2) | 194.7 Wh/kg |
| Installation | Built-in, minimal ventilation required, 5 cm space around the cutout |
Frequently Asked Questions - HI642CTT HOOVER
User questions about HI642CTT HOOVER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cooker in PDF format for free! Find your manual HI642CTT - HOOVER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HI642CTT by HOOVER.
USER MANUAL HI642CTT HOOVER


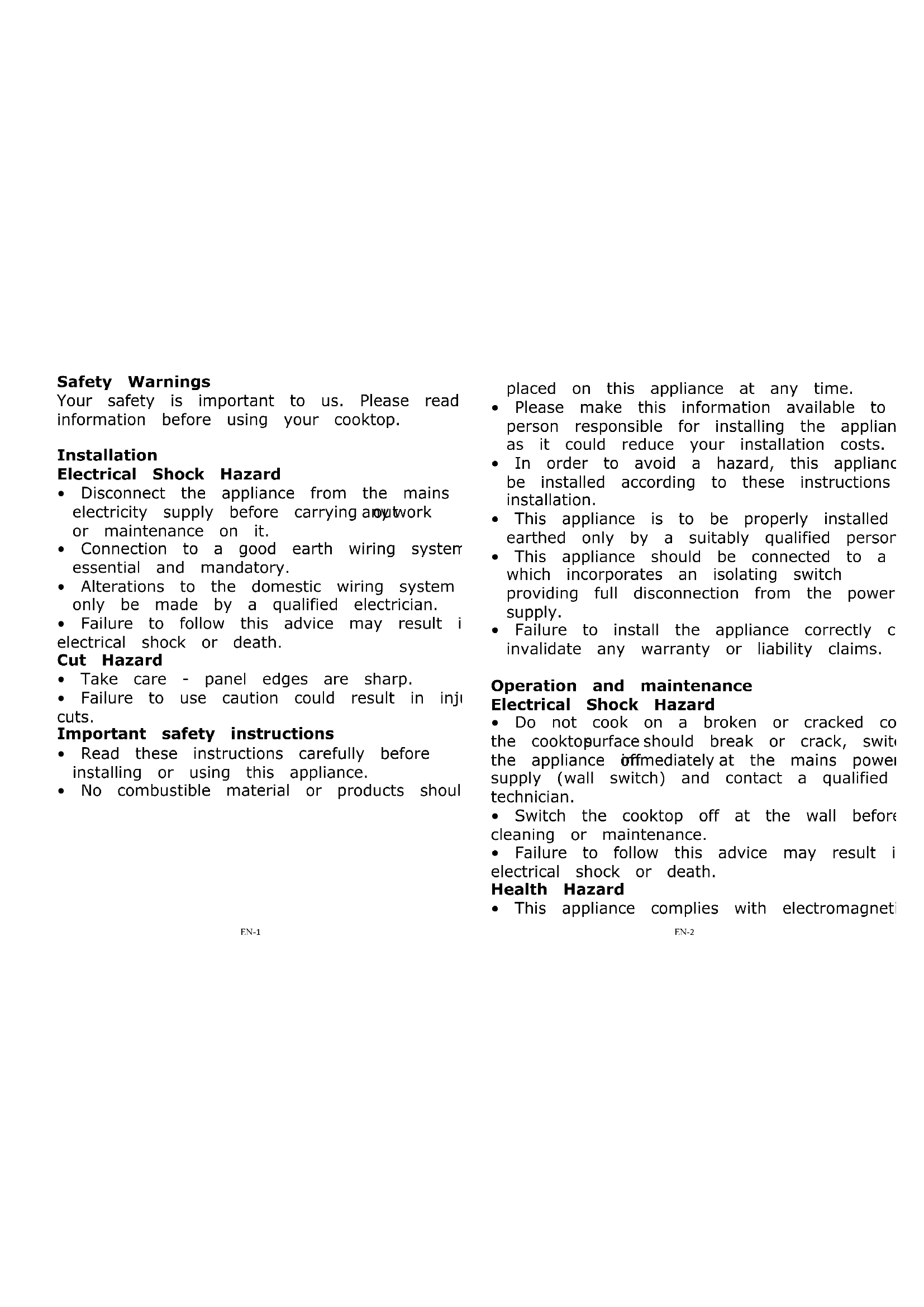

Safety Warnings
Your safety is important to us. Please read information before using your cooktop.
Installation
Electrical Shock Hazard
- Disconnect the appliance from the mains electricity supply before carrying any work or maintenance on it.
- Connection to a good earth wiring system essential and mandatory.
• Alterations to the domestic wiring system only be made by a qualified electrician. - Failure to follow this advice may result in electrical shock or death.
Cut Hazard
• Take care - panel edges are sharp.
- Failure to use caution could result in injicuts.
Important safety instructions
- Read these instructions carefully before installing or using this appliance.
- No combustible material or products shoul
placed on this appliance at any time.
- Please make this information available to person responsible for installing the appliance as it could reduce your installation costs.
- In order to avoid a hazard, this appliance be installed according to these instructions installation.
- This appliance is to be properly installed earthed only by a suitably qualified person
- This appliance should be connected to a which incorporates an isolating switch providing full disconnection from the power supply.
- Failure to install the appliance correctly c invalidate any warranty or liability claims.
Operation and maintenance
Electrical Shock Hazard
- Do not cook on a broken or cracked co the cooktopurface should break or crack, switch the appliance offmediately at the mains power supply (wall switch) and contact a qualified technician.
- Switch the cooktop off at the wall before cleaning or maintenance.
- Failure to follow this advice may result in electrical shock or death.
Health Hazard
• This appliance complies with electromagnet
safety standards.
- However, persons with cardiac pacemakers other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that implants will not be affected by the electromagnetic fiel
- Failure to follow this advice may result i
Hot Surface Hazard
- During use, accessible parts of this appliance will become hot enough to cause burns.
- Do not let your body, clothing or any if than suitable cookware contact the Inductic glass until the surface is cool.
- Metallic objects such as knives, forks, spots and lids should not be placed hot surface since they can get hot
- Keep children away.
- Handles of saucepans may be hot to touch. Check saucepan handles do overhang other cooking zones that are on. Keep handles of reach of children.
- Failure to follow this advice could result burns and scalds.
Cut Hazard
- The razor-sharp blade of a cooktop scrap exposed when the safety cover is retracted. with extreme care and always store safely out of reach of children.
- Failure to use caution could result in inju cuts.
Important safety instructions
- Never leave the appliance unattended when use. Boilover causes smoking and greasy spillovers that may ignite.
- Never use your appliance as a work or surface.
- Never leave any objects or utensils on t appliance.
- Do not place or leave any magnetisable (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near appliance, as they may be affected by its electromagnetic field.
- Never use your appliance for warming or heating the room.
- After use, always turn off the cooking zo and the cooktop as described in this manual by using the touch controls). Do not rely on pan detection feature to turn off the cooking zones when you remove the pans.
- Do not allow children to play with the a or sit, stand, or climb on it.
- Do not store items of interest to children cabinets above the appliance. Children climb on the cooktop could be seriously injured.
- Do not leave children alone or unattended the area where the appliance is in use.
• Children or persons with a disability which limits their ability to use the appliance show
have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use appliance without danger to themselves or their surroundings.
- Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done qualified technician.
- Do not use a steam cleaner to clean your cooktop.
- Do not place or drop heavy objects on cooktop.
- Do not stand on your cooktop.
- Do not use pans with jagged edges or across the Induction glass surface as this scratch the glass.
- Do not use scourers or any other harsh abrasive cleaning agents to clean your coc as these can scratch the Induction glass.
- If the supply cord is damaged, it must replaced by the manufacturer, its service ag or similarly qualified persons in order to av hazard.
- This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and working environments; -farm houses; -by clients in hotels, motels and other resident type environments; -bed and breakfast type environments.
- WARNING: The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching head elements.
Children less than 8 years of age shall be away unless continuously supervised.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they been given supervision instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- WARNING: Unattended cooking on a Hob w fat or oil can be dangerous and may result NEVER try to extinguish a fire with water, switch off the appliance and then cover flar with a lid or a fire blanket.
- WARNING: Danger of fire: do not store it the cooking surfaces.
- Warning: If the surface is cracked, switch the appliance to avoid the possibility of ele shock, for hob surfaces of glass-ceramic or similar material which protect live parts
- A steam cleaner is not to be used.
- The appliance is not intended to be operational means of an external timer or separate remote-control system.
CAUTION: The cooking process has to be supervised. A short term cooking process has be supervised continuously.
WARNING: In order to prevent tipping of the appliance, this stabilizing means must be installed. Refer to the instructions for installation.
WARNING: Use only hob guards designed manufacturer of the cooking appliance or indicated by the manufacture of the appliance the instruction for use as suitable or hob incorporated in the appliance. The use of inappropriate guards can cause accidents.
This appliance incorporates an earth connection for functional purposes only.
Product Overview
Top View
We recommend that you spend some time to read this Instruction / Ins Manual in order to fully understand how to install correctly and operate For installation, please read the installation section.
Read all the safety instructions carefully before use and keep this Instru Installation Manual for future reference.
A Word on Induction Cooking
Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass hot only because the pan eventually warms it up.
magnetic circuit ceramic glass plate induction coil induced currents
Before using your New Induction Hob
- Read this guide, taking special note of the 'Safety Warnings' section.
- Remove any protective film that may still be on your Induction hob.
Using the Touch Controls
- The controls respond to touch, so you don't need to apply any press
- Use the ball of your finger, not its tip.
- You will hear a beep each time a touch is registered.
- Make sure the controls are always clean, dry, and that there is no utensil or a cloth) covering them. Even a thin film of water may make controls difficult to operate.

- Only use cookware with a base suitable for induction
cooking. Look for the induction symbol on the packaging or on the bottom of the pan.
- You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it
is attracted, the pan is suitable for induction.
- If you do not have a magnet:
-
Put some water in the pan you want to check.
-
If does not flash in the display and the water is heating, the pan is suitable.
- Cookware made from the following materials is not suitable: pure stainless steel, alum copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.
Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the same size as the cooking zone. Use pans whose diameter is as large graphic of the zone selected. Using a pot a slightly wider energy will be maximum efficiency. If you use smaller pot efficiency could be less than Always centre your pan on the cooking zone.

Pan dimensions
The cooking zones are up to a limit, automatically adapted to the diampan. However the bottom of this pan must have a minimum of diameter to the corresponding cooking zone. To obtain the best efficiency of your E:N-10
please place the pan in the centre of the cooking zone.
The base diameter of induction cookware
| Cooking zone | Minimum (mm) |
| 1, 2, 3, 4 (180mm) | 120 |
The above may vary according to the quality of the pan used.
Using your Induction Hob
To start cooking
- Touch the ON/OFF control.
After power on, the buzzer beeps once, all displays show " - " or " - - ", indicating that the induction hob has entered the state of standby mode.
- Place a suitable pan on the cooking zone that you wish to use.
- Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.
Touching the heating zone selection control, and a indicator next to the key will flash.
-
Set a power level by touching the control. "+"

a. If you don't select a heat zone within 1 minute, the induction hob will automatically switch off. You will need to start again at step 1.
b. You can modify the heat setting at any time during cooking.
If the display flashes alternately with the heat setting
This means that:
- you have not placed a pan on the correct cooking zone or,
- the pan you're using is not suitable for induction cooking or,
- the pan is too small or not properly centred on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking. The display automatically turn off after 1 minutes if no suitable pan is on it.
When you have finished cooking
- Touching the heating zone selection control that you wish to switch off.

- Turn the cooking zone off by touching the "-" and scrolling down to holding the "+" and "-" button at the same time for 1 second, it will directly.
Make sure the power display shows "0", then shows "H".
0_and then H
- Turn the whole cooktop off by touching the ON/OFF control.

- Beware of hot surfaces
'H' will show which cooking zone is hot to touch. It will disappear v surface has cooled down to a safe temperature. It can also be used energy saving function if you want to heat further pans, use the hot that is still hot.
H
In case of a power interruption while "H" is on, please pay attention touch the cooking surface even if "H" is no longer shown when the p back.
Using the Power Management
Using power management you can set the total power to 2.5kW/ 3.0kW, 6.5kW and 7.4kW. The default total power setting is the maximum power
Setting the total power level to fit your requirem
- Make sure the cooktop is turned off.
Note: you can only set power management when the cooktop is turned
-
Touch the button "Pause function" and hold for 5 seconds. You can hear the buzzer beeps one time.
-
After you hear better touch "+" and "-" button at the same time and 3 second, the timer indicator will show flashing previous total power level '2.5'. Touch and hold "+" and "-" again to lose with other power level, for example 3.0. When the power that you want is flashing, touch the "Pause function" and hold for 5 seconds. The buzzer will beep 10 times you have finished the setting.

Note:
- After step 2, you must touch the "+" and "-" within 3 seconds a the beep. Otherwise you will need to start again from step 2.
- Once finish setting, wait till the end of 10 beeps. Do not touch any this period. Otherwise the setting will be invalid.
Power management Rules
If total power exceeds the limitation of 2.5kw, 3.0kw, 4.5kw, 5.5kw 6.5kw 7.4kw (depending on which level you've set), you are not able to increase stage of any zone. If you increase it by touching '+', the cooktop will times and indicator will show a flashing 'Pn'. Thus you need to decrease stage of other zones before increasing the power of objective zone.
Using the Boost
Boost is the function that one zone rising to a larger power in one se lasting for 5 minutes. Thus you can get a more powerful and faster cc
Using the Boost to get larger power
- Touch the heating zone selection button that you wish to boost, an indicator next to the key will flash.
- Touch the Boost button, the heating zone will begin to work at Boost mode.
The power display will show "P" to indicate that the zone is boostin

- The Boost power will last for 5 minutes and then the zone will go
79
power stage 9.
- If you want to cancel the Boost during this 5 minutes, touch the h selection button, an indicator next to the key will flash. And then to Boost button, the heating zone will go back to the power stage 9.

Restrictions when using
The three or four zones were divided into two groups. In one group, if one zone, first make sure that the other zone is working on a level pow
Pause function can be used at any time during cooking. It allows to stop induction cooktop and come back to it.
-
Make sure the cook zone is working.
-
Touch the button Pause function, the cooking zone indicator will show "And then the operation of the inductionoktop will be activate within the scope of all cooking zones, except the Pause function, on/off and lock keys.
$$ \begin{array}{c c} \text { } & \ \text { } & \ \text { } & \end{array} \quad \begin{array}{c c} \text { } & \ \text { } & \ \text { } & \end{array} \Rightarrow \begin{array}{c c} \text { } & \ \text { } & \ \text { } & \end{array} \Rightarrow \begin{array}{c c} \text { } & \ \text { } & \ \text { } & \end{array} $$
- To cancel the pause status, touch the button Pause function, then the zone will go back to the power stage which you set before.
$$ \begin{array}{c c c} \text { Ⅱ } & \text { Ⅲ } \ \text { Ⅳ } & \text { Ⅴ } \end{array} \Rightarrow \begin{array}{c c c} ⓞ & \text { Ⅵ } & \text { Ⅵ } \ \text { Ⅶ } & \text { Ⅷ } & \text { Ⅸ } \end{array} $$
Locking the Controls
- You can lock the controls to prevent unintended use (for example chi accidentally turning the cooking zones on). - When the controls are locked, all the controls except the ON/OFF con disabled.
To lock the controls
Touch the keylock control. The timer indicator will show "Lo"
To unlock the controls
- Make sure the Induction hob is turned on.
- Touch and hold the keylock control for 3 seconds.
- You can now start using your Induction hob.
When the hob is in the lock mode, all the controls are disable except if you can always turn the induction hob off with the ON/OFF control in a but you shall unlock the hob first in the next operation.
Over-Temperature Protectin
A temperature sensor equipped can monitemperature inside the Induction hob. When an excessive temperature is monitored, the Induction hob will operation automatically.
Over-spillage Protection
Over-spillage protection is a safety protection function. It switch off the automatically within 10s if the water flow to the control panel, while but beep 1 second.
Detection of Small Articles
When an unsuitable size or non-magnetic pan (e.g. aluminium), or some cooking item (e.g. knife, fork, key) has been left on the hob, the hob a go on to standby in 1 minute. The fan will keep cooking down the in a further 1 minute.
Auto Shutdown Protection
Auto shut down is a safety protection function for your induction hob. I automatically if ever you forget to turn offokyourThe default working times for various power levels are shown in the below table:
| Power level | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | II | |||
| Default working timer (hour) | 8 | 8 | 8 | 4 | 4 | 4 | 2 | 2 | 2 | 2 |
When the pot is removed, the induction hob can stop heating immediately and the
hob automatically switch off after 2 minutes.

People with a heart pace maker should consult with their doctor before Indicator shows "-" when the setting time using this unit. finished.
- When the time is set, it will begin to count down
immediately. The display will show the remaining
time and the timer indicator will flash for 5 se


- Buzzer will bips for 30 seconds and the ti
e Indicator shows " - - " when the setting time finished.

Setting the timer to turn one cooking zone off
Using the Timer
You can use the timer in two different ways:
- You can use it as a minute minder. In this case, the timer will not be cooking zone off when the set time is up.
- You can set it to turn one cooking zone off after the set time is up.
- You can set the timer up to 99 minutes.
Using the Timer as a Minute Minder
If you are not selecting any cooking zone
- Make sure the cooktop is turned on.
Note: you can use the minute minder even if you're not selecting any cooking
zone.
- Touch timer control, The minder indicator will start flashing and "00" will show in the timer display.

- Set the time by touching the "-" or I"+" contro
Cooking zones set for this feature will:

n1. touching the heating zone selection control
(e.g. zone 1#)
that you want to set the timer for. (e.g. zone 1#)
- Touch timer control, The minder indicator will start flashing and "00" will show in the timer display.

- Set the time by touching the "-" or ."+" control
Hint: Touch the "-" or "+" control once will decrease or increase by Touch and hold the "-" or "+" control, the timer will decrease by 10 minutes.
If the setting time exceeds 99 minutes, the timer will automatica return to 0 minute.
Hint: Touch the "-" or "+"control once to decrease or increase by 1 minute. When the time is set, it will begin to count down
Hold the "-" or "+" control of the timer to decrease or increase by 10 immediately. The display will show the remaining

minutes. time and the timer indicator flash for 5 seconds.
- Cancel the time by touching the timer control and the "00" will show in the NOTE: The red dot next to power level indicator
minute display.


EN-17
will illuminate indicating that zone is selected.
- To cancel the timer, touch the heating zone selection control, and the timer control, the timer is cancelled, and the "00" will show in display, and then."
EN-18

- When cooking timer expires, the corresponding
cooking zone will be automatically switch off and show "H".
H

Other cooking zone will keep operating if they are turned on pre
Setting the timer to turn more than one cooking off
- If use this function to more than one heating zone, the timer indicates the shortest time.
(e.g. zone 1# setting time of 3 minutes, zone 2# setting time of (the timer indicator shows "3".)
NOTE: The flashing red dot next to power level indicator means the indicator is showing time of the heating zone.
If you want to check the set time of other heating zone, touch the zone selection control. The timer will indicate its set time.
6.
73.
(set to 6 minutes)
03
(set to 3 minutes)
- When cooking timer expires, the corresponding heating zone will be automatically switch off and show "H".
H
NOTE: If you want to change the time after the timer is set, you h from step 1
Care and Cleaning
| What? | How? | Important! |
| Everyday soiling on glass (fingerprints, marks, stains left food or non-sugary spillovers on the glass) | 1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still w (but not hot!)3. Rinse and wipe dry with clean cloth or paper tow4. Switch the power to the cooktop back on. | ·When the power to the cookt switched off, there will be no surface' indication but the cookl zone may still be hot! Take e care.·Heavy-duty scourers, some nyls scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scoure suitable.·Never leave cleaning residue o cooktop: the glass may become stained. |
| Bollovers, melts, and hot sugary spills o the glass | Remove these immediately with a fish slice, palette k razor blade scraper suitable Induction glass cooktops, bu beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utene 30° angle and scrape th soiling or spill to a cool of the cooktop.3. Clean the soiling or spill with a dish cloth or paper towel.4. Follow steps 2 to 4 for 'Everyday soiling on glass' above. | ·Remove stains left by melts a sugary food or spillovers as so as possible. If left to cool on glass, they may be difficult to remove or even permanently damage the glass surface.·Cut hazard: when the safety is retracted, the blade in a sc is razor-sharp. Use with extrem care and always store safely a out of reach of children. |
| Spillovers on the touch controls | 1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control with a clean damp spong cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on. | ·The cooktop may beep and tu itself off, and the touch control may not function while there is liquid on them. Make sure you the touch control area dry before turning the cooktop back on. |
Hints and Tips
| Problem | Possible causes | What to do |
| The induction hob cannot be turned or | No power. | Make sure the induction hob is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. I you've checked everything and the problem persists, call a qualified technician. |
| The touch controls unresponsive. | The controls are locked. | Unlock the controls. See section 'Using your induction cooktop' for instructions. |
| The touch controls difficult to operate. | There may be a slight film water over the controls or may be using the tip of y finger when touching the controls. | Make sure the touch control are dry and use the ball of your f when touching the controls. |
| The glass is being scratched. | Rough-edged cookware.Unsuitable, abrasive scourer cleaning products being used. | Use cookware with flat and smo bases. See 'Choosing the right cookware'.See 'Care and cleaning'. |
| Some pans make cracking or clicking noises. | This may be caused by the construction of your cookware (layers of different metals vibrating differently). | This is normal for cookware and does not indicate a fault. |
| The induction hob makes a low humm noise when used on a high heat setting. | This is caused by the techn of induction cooking. | This is normal, but the noise si quieten down or disappear completely when you decrease th heat setting. |
| Fan noise coming fr the induction hob. | A cooling fan built into you induction hob has come on prevent the electronics from overheating. It may continue run even after you've turned induction hob off. | This is normal and needs no ad Do not switch the power to the induction hob off at the wall w fan is running. |
| Pans do not become hot and appears in display. | The induction hob cannot detect the pan because it is suitable for induction cooking.The induction hob cannot de the pan because it is too for the cooking zone or not properly centred on it. | Use cookware suitable for inducti cooking. See section 'Choosing th right cookware'.Centre the pan and make sure base matches the size of the c zone. |
| The induction hob or cooking zone has turned itself off unexpectedly, a tone sounds and an error code is displayed (typically alternating with one or two die in the cooking timer display). | Technical fault. Please note | down the error letters and numbers, switch the power to the induction hob off at the wall, and contact a qualified technician. |
Failure Display and Inspection
If an abnormality comes up, the induction hob will enter the protective automatically and display corresponding protective codes:
| Problem | Possible causes | What to do |
| F3/F4 | Temperature sensor of the induction coil failure | Please contact the supplier |
| F9/FA | Temperature sensor of the IG failure. | Please contact the supplier |
| E1/E2 | Abnormal supply voltage | Please Inspect whether power supply is normal.Power on after the power supply is normal. |
| E3 | High temperature of the induced coil temperature sensor | Please contact the supplier |
| E5 | High temperature of the IGBT temperature sensor | Please restart after the hcools down. |
The above are the judgment and inspection of common failures. Please do not assemble the unit by yourself to avoid any dangers and da to the induction hob.
Technical Specification
| Cooking Hob | HI642CTT/1 |
| Cooking Zone | 4 Zones |
| Supply Voltage | 220-240V~, 50-60Hz |
| Installed Electric Power 2.5kw | 2250-2750W or3.0 kw:2700-3300W or4.5kw:4050-4950W or6.5kw:5850-7150W or7.4kw:6600-7400W |
| Product SizeL×W×H(mm) | 590X520X60 |
| Building-in Dimensions A×B (mm) | 560X490 |
Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.
Installation
Selection of installation equipment
Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.
Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:
| 590 | 520 | 560 | 1 | 560 | 50 min4 | |||

Under any circumstances, make sure the Induction cooker hob is well ve and the air inlet and outlet are not blocked. Ensure the Induction cooker good work state. As shown below

Note: The safety distance between the hotplate and the cupboard, the hotplate should be at least 760mm.
- the work surface is square and level, and no structural members into space requirements
- the work surface is made of a heat-resistant material
- if the hob is installed above an oven, the oven has a built-in coolin
-
the installation will comply with all clearance requirements and applicab standards and regulations
-
a suitable isolating switch providing full disconnection from the mains supply is incorporated in the permanent wiring, mounted and positioned comply with the local wiring rules and regulations.
The isolating switch must be of an approved type and provide a 3 m contact separation in all poles (or in all active [phase] conductors if t wiring rules allow for this variation of the requirements) - the Isolating switch will be easily accessible to the customer with the installed
- you consult local building authorities and by-laws if in doubt regarding installation
- you use heat-resistant and easy-to-clean finishes (such as ceramic tiles, wall surfaces surrounding the hob.
When you have installed the hob, make sure that
- the power supply cable is not accessible through cupboard doors or d
- there is adequate flow of fresh air from outside the cabinetry to the hob
- if the hob is installed above a drawer or cupboard space, a thermal barrier is installed below the base of the hob
- the isolating switch is easily accessible by the customer
Before locating the fixing brackets
The unit should be placed on amostab surface (use the packaging). Do no apply force onto the controls protruding from the hob.

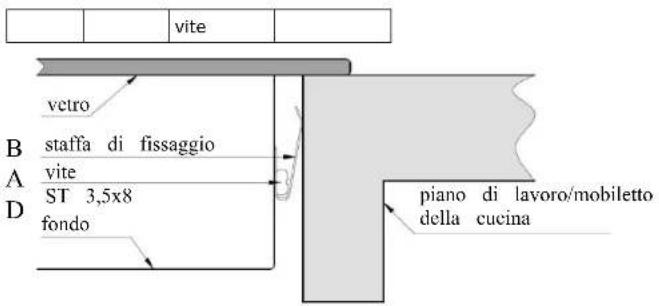

Adjusting the bracket position
Fix the hob on the work surface by screw 4 brackets on the bottom (see picture) after installation.
| Screw | Bracket | Screw hole | Bottom case |
EN-25
- The induction hotplate must be installed by qualified personnel or tecl We have professionals at your service. Please never conduct the opera yourself.
- The hob will not be installed directly above a dishwasher, fridge, free washing machine or clothes dryer, as the humidity may damage the electronics
- The induction hotplate shall be installed such that better heat radiation ensured to enhance its reliability.
- The wall and induced heating zone above the table surface shall with
- To avoid any damage, the sandwich layer and adhesive must be resi heat.
Connecting the hob to the mains power supply

This hob must be connected to the mains power supply only by a suitably quali. Before connecting the hob to the mains power supply, check that:
1. the domestic wiring system is suitable for the power drawn by the hob.
2. the voltage corresponds to the value given in the rating plate
3. the power supply cable sections can withstand the load specified on the rating connect the hob to the mains power supply, do not use adapters, reducers, or I devices, as they can cause overheating and fire.
The power supply cable must not touch any hot parts and must be positioned at temperature will not exceed 75^ C at any point.

Check with an electrician whether the domestic wiring system is suitable without all alterations must only be made by a qualified electrician.
EN-26
The power supply should be connected in compliance with the relevant standa or a single-pole circuit breaker. The method of connection is shown below.
- If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
- The installer must ensure that the correct electrical connection has been m and that it is compliant with safety regulations.
• The cable must not be bent or compressed. - The cable must be checked regularly and replaced by authorised technicians only.

This appliance is labelled in accordance with European 2004/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:
-the WEEE should not be treated as domestic waste; -the WEEE should be taken dedicated collection areas managed by the town council or a registered company.
In many countries, domestic collections may be available for large WEEEs. When you buy new appliance, the old one can be returned to the vendor who must accept it free of cl a one-off, as long as the appliance is of an equivalent type and has the same functions purchased appliance.
| rd Product Information for Domestic Electric Hobs Compliant to Commission Regulation (EU)66/2014 | |||||
| Position | Symbol Value Unit | ||||
| Model Identification | HI542CTT/L | ||||
| Type of hob Electric Hob | |||||
| Number of cooking zones and/or areas | zones | 4 | |||
| areas | |||||
| Heating technology (Induction cooking zones and cooking areas, radiant cooking zones, solid plates)ade | Induction cooking zones | X | |||
| Induction cooking cooking areas | |||||
| radiant cooking zones | |||||
| solid plates | |||||
| For circular cooking zones or diameter of useful surface area central electric heated cooking zone, rounded to the nearest 5mm Central right | Rear left | ∅ | 18,0 | cm | |
| Rear central | ∅ | - | cm | ||
| Rear right | ∅ | 18,0 | cm | ||
| Central left areas: | ∅ | - | cm | ||
| ∅ | - | cm | |||
| Front left | ∅ | 18,0 | cm | ||
| Front central | ∅ | - | cm | ||
| Front right | ∅ | 18,0 | cm | ||
| arge as for non-circular cooking zones areas: length and width of used central surface area per electric heated cooking zone or area, rounded the nearest 5mm | Rear left | LW | - | cm | |
| Rear | LW | - | cm | ||
| LW | - | cm | |||
| Central left | LW | - | cm | ||
| Central central | L W | - | cm | ||
| Central right | L W | - | cm | ||
| Front left | L W | - | cm | ||
| Front central | L W | - | cm | ||
| Front right | L W | - | cm | ||
| Energy consumption for cooki zone or area calculated per | Rear left | ECElectric cooking | 193,5 | Wh/kg | |
| Rear central | ECElectric cooking | - | Wh/kg | ||
| Rear right | ECElectric cooking | 197,2 | Wh/kg | ||
| Central left | ECElectric cooking | - | Wh/kg | ||
| Central central | ECElectric cooking | - | Wh/kg | ||
| Central right | ECElectric cooking | - | Wh/kg | ||
| Front left | ECElectric cooking | 192,3 | Wh/kg | ||
| Front central | ECElectric cooking | - | Wh/kg | ||
| Front right | ECElectric cooking | 195,6 | Wh/kg | ||
| Energy consumption for the calculated per kg | ECElectric hob | 194,7 | Wh/kg | ||
| Standard applied : EN 60350-2 Household electric cooking appliances - Part 2: H measuring performance | |||||
| Suggestions for Energy Saving:To obtain the best efficiency of your hob, please place the pan in the centrUsing a lid will reduce cooking times and save energy by retaining the heat.Minimise the amount of liquid or fat to reduce cooking times.Start cooking on a high setting and reduce the setting when the food has HUse pans whose diameter is as large as the graphic of the zone selected. | |||||
circuito magnetico
Four identical cooking pots with crossed-out X symbols, no text or labels presenttext_image
Technical diagram of a mechanical device with labeled components and cross-sectional views| A (mm) | B (mm) | C (mm) | D | E |
| 760 | minimo 50 | minimo 20 | Entrata arla | Uscita aria 5 mm |
| Vite | Staffa | Foro per | Fondo |
Hand-drawn chemical reaction diagram showing electron movement and charge formationHinweis:
٢١١ ٢١١ ٢١١ ٢١١ → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → 76 76 64Bedientastensperre
| 560 520 | 51 | 560 | _15 | 490 _15 | 50 mlh |
Diagram of a steam machine with cooling fans and heat dissipation lines (no text or symbols)casserole en fer
circuit magnétique
Four identical cooking pots with crossed-out X marks, no text or symbols presentchemical
Hand-drawn chemical reaction diagram showing electron movement and charge statesRemarque :
| 760 | 50 min. | 20 min. | Entrée d'air | Sortie de l'air 5 mm |
| Vis | Support | trou de vis | Face inférieure |
٢١١ ٢١١ ٢١١ ٢١١ → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → 76text_image
L W H C X B X A X X B X A S E D1 USC23ELKA| dl. (mm) | szer. (mm) | wys. (mm) | gl. (mm) | A (mm) | B (mm) | X ( | |
| 590 | 520 | 560 | 1 | 560 | -5 | 490 | 50 min |
Technical diagram showing a rectangular object with a scroll and a magnified inset of its internal components labeled A, B, C, D.natural_image
Simple line drawing of a steam machine with cooling fans and heat dissipation lines (no text or symbols)Železný hrniec
Four identical cooking pots with crossed X marks, no text or symbols presenttext_image
L W H X B X A X TESNENIE| D (mm) | S (mm) | V | (mm) | H (mm) | A (mm) | B (mm) | X (mm) | |
| 590 520 | 560 | 1 560 | min. 5490 |
Simple line drawing of a steaming machine with heat dissipation, no text or symbols presentσιδερένιο σκεύος
L W H X B X X A X TESKCY KA| L(mm) | W(mm) | H(mm) | D(mm) | A (mm) | B(mm) | X(mm) | |
| 590 | 520 | 560 1 | 560 | 50 ελάχ490 |
Diagram showing a steaming machine with heat dissipation, connected to two control panels with icons and arrows indicating flow or operation.Železný hrnec
L W H,0° X B X X A X TESNENÍ| D (mm) | Š (mm) | V (mm) | H (mm) | A (mm) | B (mm) | X (mm) | ||
| 6590 | 520 | 51 | 560 | 490 | 50 mith | |||
| 760 | min. 50 | min. 20 | Vstup vzduchu | Odvod vzduchu 5 mm |
