463660021 - Barbecue CHAR BROIL - Free user manual and instructions
Find the device manual for free 463660021 CHAR BROIL in PDF.
📄
Document temporarily unavailable
The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Liquid propane gas barbecue (LPG) |
| Brand | CHAR BROIL |
| Model | 463660021 |
| Number of main burners | 2 |
| Ignition | Electronic (AA 1.5V battery) and backup match |
| Power source | LPG tank (20 lb / 9 kg max) |
| Cooking surface | Porcelain-coated steel grates |
| Temperature gauge | Integrated in lid |
| Main material | Painted steel, stainless steel, porcelain |
| Dimensions (approx.) | Width 122 cm, Depth 58 cm, Height 112 cm (estimate) |
| Weight (approx.) | 35-40 kg (estimate) |
| Wheels | 2 fixed wheels + 2 swivel wheels with brakes |
| Side tables | 2 foldable |
| Door | 1 storage door |
| Functions | Direct, indirect cooking, rotisserie (accessory) |
| Maintenance | Regular cleaning of grates, burners, grease tray |
| Safety | OPD safety valve on tank, regulator with flow limiter |
| Warranty | Stainless steel burner 5 years, body/lid 2 years, other 1 year |
| Included accessories | Locking device for casters, match holder |
| Certifications | Certified for the United States and Canada |
Frequently Asked Questions - 463660021 CHAR BROIL
How to assemble the CHAR BROIL 463660021 barbecue?
Follow the assembly instructions in the manual. Use the recommended tools (adjustable wrench, screwdriver). Do not overtighten screws on porcelain surfaces to avoid cracking. Refer to the parts diagram and parts list.
What type of gas to use and how to connect the tank?

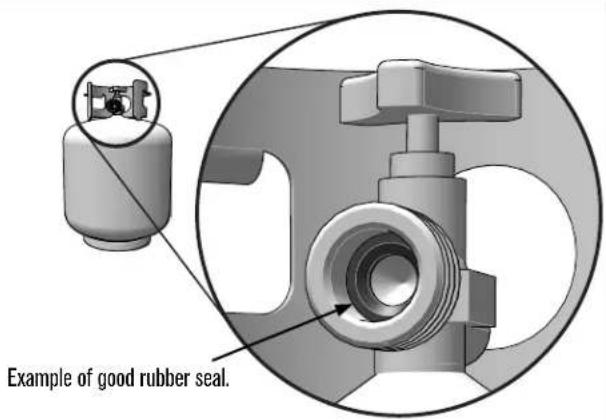

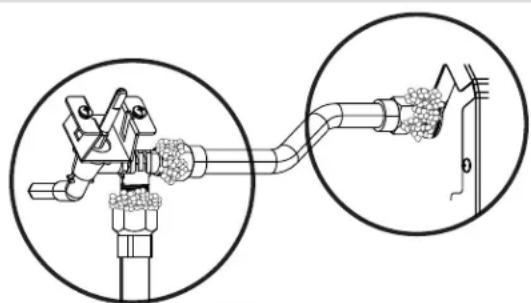

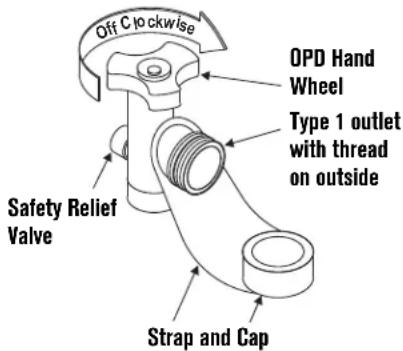

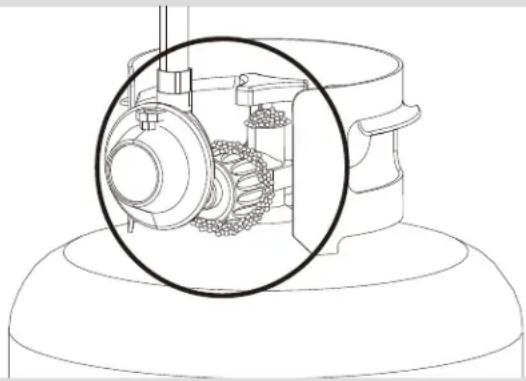

Use exclusively liquid propane gas (LPG). The tank must have a Type 1 valve with OPD. Connect the regulator by tightening the nut by hand (do not use tools). Perform a leak test with soapy water before each use.
What to do if the barbecue does not light?

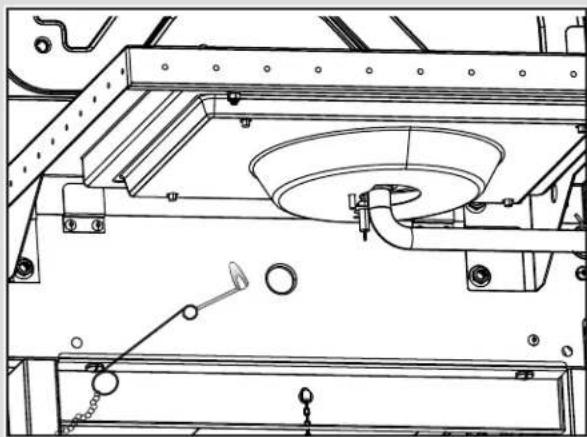

Check the battery (AA 1.5V) in the ignition module. Make sure the gas is on and the tank is not empty. Clean the electrode and burners. If the electronic ignition does not work, use a long match with the manual ignition procedure.

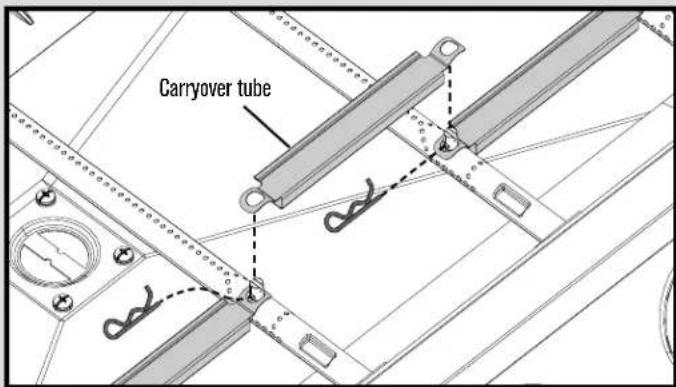

How to clean the burners and venturi tubes?
Close the gas and disconnect the tank. Remove the grates and burner covers. Clean the tubes with a stiff wire (coat hanger) or a long-bristle brush. Blow compressed air into the orifices. Check for spider nests.
Why are the flames low or the barbecue heating poorly?
This may be due to a nearly empty tank, or the regulator's flow limiter triggering. To reset: close all knobs, close the tank valve, wait 30 seconds, then slowly reopen the gas. If the problem persists, check the burners for obstruction.
How to store the barbecue in winter?
Clean the grates. Disconnect the LPG tank and store it outdoors, upright, in a ventilated area. Store the barbecue indoors only if the tank is removed. Use a protective cover recommended by the manufacturer.
What to do in case of a gas leak?
If you smell gas, immediately shut off the supply at the tank. Extinguish any open flames, open the lid and move away. If the smell persists, call the fire department. Never attempt to repair the hose or regulator yourself.
How to prevent grease fires?
Clean the grease tray and bottom of the barbecue regularly after each use. Do not cover the grates with aluminum foil. In case of a grease fire, turn off the gas and leave the lid open. Do not use water.
Can I use briquettes or lava rocks?
No, this barbecue is designed to be used without stones or briquettes. Adding them can reduce combustion, increase fire risk and void the warranty. Use only the provided heat plates.
Where to find replacement parts?
Order parts from the CHAR BROIL service center, providing the serial number, model (463660021) and part name. Refer to the parts list in the manual. Genuine parts ensure safety and proper operation.
