USER MANUAL DF10A9500CG SAMSUNG

Clothing Care System

(AIRDRESSER)

User manual

DF109***G

Contents

Safety information 4

What you need to know about the safety instructions 4

Important safety symbols 4

CALIFORNIA PROPOSITION 65 WARNING 5

Important safety precautions 5

General warnings 8

Electrical warnings 9

Installation warnings 10

Cleaning warnings 11

Before you start 12

Installation 12

Turning on Wi-Fi (for network models only) 14

Product overview 15

Control panel 17

Cycle overview 19

Fabric care guide 21

Fabric care chart 23

Smart Control 24

Product and accessory use 28

Using a cycle 28

Using the accessories 30

Cleaning and maintenance 39

Exterior 39

Water tanks 40

Water tray 41

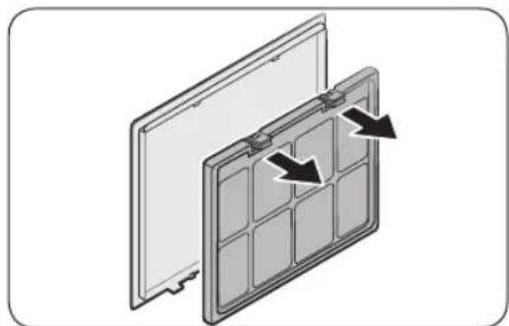

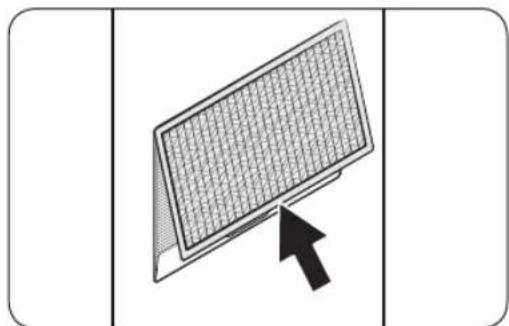

Air filter 42

Lint filter 43

44

Moving the product to another location 45

Troubleshooting 46

46

Checkpoint 47

English2

Specifications 49

Specification sheet 49

Safety information

Congratulations on your new Samsung product. This manual contains important information on the installation, use and care of your product. Please take some time to read this manual to take full advantage of your product's many benefits and features.

What you need to know about the safety instructions

Please read this manual thoroughly to ensure that you know how to safely and efficiently operate the extensive features and functions of your new product. Please store the manual in a safe location close to the product for future reference. Use this product only for its intended purpose as described in this instruction manual.Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution and care when installing, maintaining and operating your product. Because the following operating instructions cover various models, the characteristics of your product may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or find help and information online at www.samsung.com.

Important safety symbols

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury, death and/or property damage.

CAUTION

Hazards or unsafe practices that may result in personal injury and/or property damage.

CAUTION

Hot surface

NOTE

Indicates that a risk of personal injury or material damage exists.

These warning signs are here to prevent injury to yourself and others.

Please follow them explicitly.

After reading this manual, store it in a safe place for future reference.

Read all instructions before using the product.

As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate this product, familiarize yourself with its operation and exercise care when using it.

SAVE THESE INSTRUCTIONS

English4

CALIFORNIA PROPOSITION 65 WARNING

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

WARNING

Risk of Fire

• Appliance installation must be performed by a qualified installer.
• Install the appliance according to the manufacturer's instructions and local codes.
• To reduce the risk of severe injury or death, follow all installation instructions.
• Save these instructions.

Important safety precautions

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. Read all instructions before using this appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
3. Do not use the appliance to dry clothes which have traces of any flammable substance, such as vegetable oil, cooking oil, machine oil, flammable chemicals, paint thinner, etc., or anything containing wax or chemicals, such as mops and cleaning cloths. Flammable substances may cause the fabric to catch fire by itself.

SAVE THESE INSTRUCTIONS

Safety information

1. Do not store or use gasoline or other flammable vapors and liquids near this or any other appliance.
2. Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
3. Before the appliance is removed from service or discarded, remove the door to the drying compartment.
4. Do not install or store this appliance where it will be exposed to the weather.
5. Do not tamper with internal controls.
6. Do not repair or replace any part of the appliance or attempt any service unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.
7. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
8. Clean the lint screen before or after each load.
9. Do not use heat to dry articles containing foam rubber or similarly textured rubberlike materials.

SAVE THESE INSTRUCTIONS

English6

1. Do not place items exposed to cooking oils in your appliance. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire. To reduce the risk of fire due to contaminated loads, the final part of a appliance cycle occurs without heat (cool down period). Avoid stopping a appliance before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
2. Do not insert your hand under the appliance.

-This may result in injury.

1. Take care that children's fingers are not caught in the door when closing it.
   -This may result in injury.
2. Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.

SAVE THESE INSTRUCTIONS

Safety information

General warnings

WARNING

• To avoid electric shock, fire, and/or death, make sure the product is properly installed and grounded as described in this manual before using the product.
• Only use the product for its intended purposes. Damage incurred from using the product for purposes other than those specified in this manual are not covered by the warranty.
• To avoid physical injury and/or product damage, do not climb, stand, or hang on the product.
• Do not disassemble or modify the product in any way.
• Do not allow children to play in, on, or around the product. Close supervision of children is necessary at all times.
• To avoid fire, physical injury, and/or death, keep all packaging material away from children and properly remove and dispose all packaging material.
• Do not touch or operate the product with wet hands.
• To avoid electric shock and/or fire, keep all animals or other foreign objects out of the product.
• If you hear strange noises, smell strange odors, and/or detect smoke from the product, immediately unplug the product.
• Do not place heavy or dangerous objects in, on, or around the product.
• To avoid electric shock, fire, and/or death, do not repair or replace any part of the product or attempt any servicing unless specifically recommended in the user manual or in published user-repair instructions that you understand and have the skills to carry out.
  Take out all personal belongings (electric devices, lighters, matchboxes, and so on) from pockets.
• To avoid fire and/or explosions, do not dry items that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, cooking oils, or other flammable or explosive substances.
• The product is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person responsible for their safety.
• Before disposing of the product, remove the door to the drying compartment, and cut off the power plug to prevent reuse.
• Do not touch or disassemble the electrical outlet of the product. In the event of a gas leak, make sure to ventilate the location and immediately contact a Samsung service center.
• To avoid damaging the glass panel, make sure to protect the front at all times.
• To avoid physical injury and/or product damage, do not step on the tank doors.
• Do not put hands, feet, other body parts, or metal objects under the product.
• Do not use other products to dry the interior. Do not use candles to remove interior odors.
• Do not open the door while the product is operating. Opening the door while the product is operating will affect product performance and may cause condensation to damage flooring.
• Do not drink the water from the Refill or Drain tanks.
• Clean the lint filter before or after each load.

SAVE THESE INSTRUCTIONS

English8

• Do not use fabric softeners or other products to eliminate static unless recommended by the manufacturer of the fabric softeners or products.
• Keep fingers out of pinch point areas. Use caution when closing the door when children are nearby.
• Do not use the product to dry items containing foam rubber or other rubber-textured items.
• To avoid product damage, excessive noise, or fire, do not insert objects into the steam nozzle.
• Do not place your hands or body near the steam nozzle during operation. The hot steam can cause an injury.
• Do not open the door during operation. The high internal temperature can cause an injury.
• If a problem occurs during steam process, stop the product immediately and remove all items from the product. If items are not removed immediately, they will stay damp, causing damage to the fabric or smell.
• Before placing the clothing into the product, make sure to empty all pockets.
• Contains fluorinated greenhouse gases. Hermetically sealed equipment.

Do not vent gases into the atmosphere.

• Refrigerant (Type): R-134a (GWP = 1430)

• Refrigerant (Charging): 0.15 kg, 0.214 tCO2e

Electrical warnings

WARNING

• Regularly remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth.
• Unplug the power plug and clean it with a dry cloth.
• To avoid risk of electric shock, always unplug the product before disassembly or repair.
• Do not pull the power cord when unplugging the power plug. To unplug the power plug, firmly pull the power plug straight out.
• To avoid electric shock, do not use an extension cord.
• Do not use a damaged power cord or power plug. Do not attempt to repair, disassemble, or modify the power cord or power plug. For any repairs, contact your nearest Samsung service center.
• Plug the power cord into a wall socket that meets local electrical specifications. Use the socket for this appliance only, and do not use an extension cord.
• When moving the product, make sure to keep the power cord protected at all times.
• To avoid electric shock, fire, serious injury, product damage, and/or death, the product must be plugged into a properly grounded outlet. Make sure the wall outlet and circuit are checked by a qualified electrician.
• The product must be equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

SAVE THESE INSTRUCTIONS

Safety information

• The product must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
• Before using, make sure there is dedicated, grounded electrical-outlet rated for use with this product. It is the owner's responsibility to replace a standard 2-prong wall outlet with a standard 3-prong outlet.
• To avoid electric shock, properly ground the product that conforms to all governing codes and ordinances. Follow the instructions in the user manual.
• The product must be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.
• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload. Improper power circuits can melt, creating electric shock or fire.
• Do not, under any circumstances, cut or remove the ground prong from the power cord. To prevent personal injury or product damage, the electrical power cord must be plugged into a properly grounded outlet.
• Do not use a multi socket outlet which is not properly grounded (portable). Upon using a properly-grounded multi socket outlet (portable), use a product with the current capacity of 15 A or higher alone. Failure to do so may result in electric shock or fire due to the heat of multi socket outlet. The power may be shut off when the circuit breaker is operated.
• The product must be connected to a grounded metal, permanent wiring system or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance. Electric shock can result if the product is not properly grounded.
• Improper connection of the equipment grounding conductor can result in electric shock. Check with a qualified electrician or service person if you are in doubt that the product is properly grounded.

Installation warnings

WARNING

• Only install the product in a stable, well-floored location. Do not install the product in locations prone to vibrations or where the product may tip over, such as ships or airplanes. Contact a Samsung service center if you are unsure of the installation location.
• Do not install the product in locations exposed to the weather or temperatures below freezing. If the product was shipped in or at temperatures below freezing, allow the product to warm before installing.
• To avoid electric shock, fire, serious injury, product damage, and/or death, do not install the product in humid locations (such as a bathroom or sauna).
• To avoid fire, smoke, and/or product damage, do not install the product near other heat sources (such as a stove or heater).
• To avoid fire or smoke and/or product damage, do not place candles or other flammable on, in, or around the product.

SAVE THESE INSTRUCTIONS

English10

• To avoid physical injury and/or product damage, contact a Samsung service center before moving the product.
• Install the product where the power plug is easily accessible. To avoid electric shock and/or fire, unplug the product when not in use.
• If the installation location has been flooded, do not go near the product and immediately contact a Samsung service center.
• To avoid fire, smoke, and/or product damage, remove all protective film from the product.
• To prevent product damage and/or physical injury, have at least two people move the product.

Cleaning warnings

WARNING

• To avoid electric shock, do not use sharp objects to operate or clean the product.
• Do not spray water directly onto the product when cleaning it.
• Do not use bleaching agents on the exterior of the product. Bleaching agents may discolor the exterior.

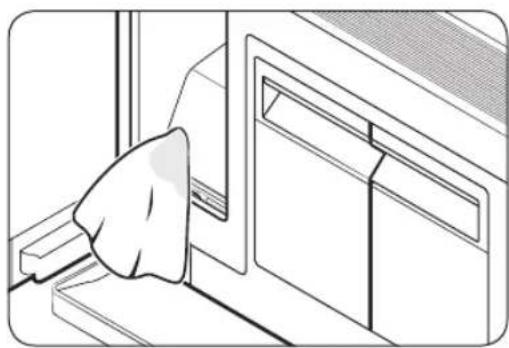

• Wipe the interior with a dry cloth after use.
• After using the product, wipe its inner side with a dry cloth.

The product could be stained by contamination such as long hair or due to dust and water drops that may form inside.

• If contamination (detergent, dirt, food residue, etc.) has accumulated in the product or any accessories, unplug the power cable and then wipe the contaminated area with a soft, wet cloth.

Do not expose the product or the accessory to cleaning or bleaching agents or apply these to the product or accessory.
- Otherwise, this may result in discoloration, deformation, damage, or rust.

SAVE THESE INSTRUCTIONS

English

Before you start

Installation

Install the product according to the instructions in this manual and local codes.

Installing the product

1. Select a solid, level location with adequate space for the following clearances.

Top 25 mm
Sides 14 mm
Rear 15 mm

If the minimum clearances are not met, performance will decrease due to poor ventilation and condensation may occur on the product exterior.
- Do not install the product in direct sunlight or in an area that is too hot or too cold. The ambient temperature must be between 10^ - 35^ . If the ambient temperature is too high or too low, the product may not operate normally, or performance may decrease.

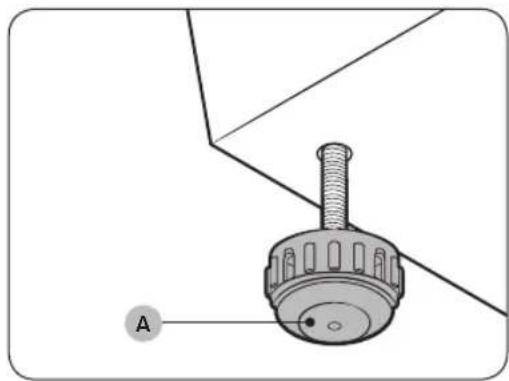

1. Turn the levelling feet (A) clockwise or counterclockwise to adjust the height until the product is level.

NOTE

If the product wobbles or if you want to raise the height of the rear side, assemble the provided rear levelling feet (B) on the bottom-rear sides of the product.

English12

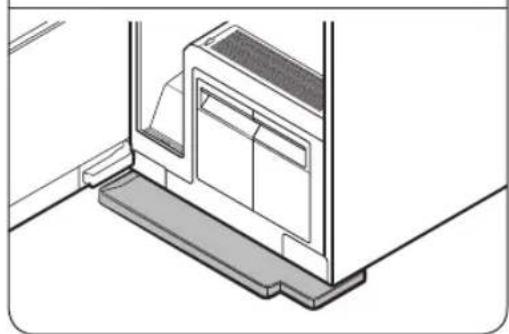

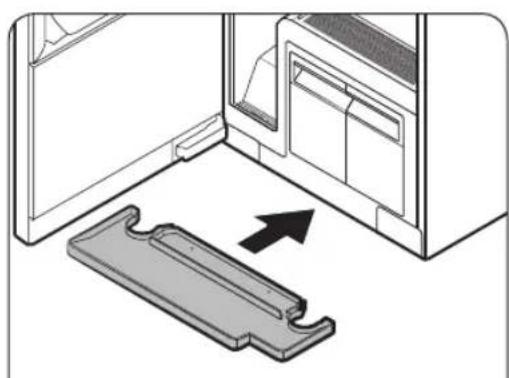

1. Insert the water tray as shown in the figures.
   -Make sure the side marked 'TOP' is facing upward.

NOTE

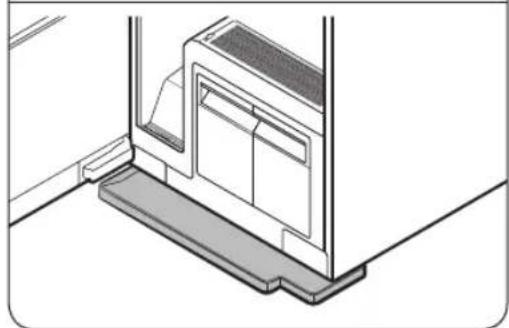

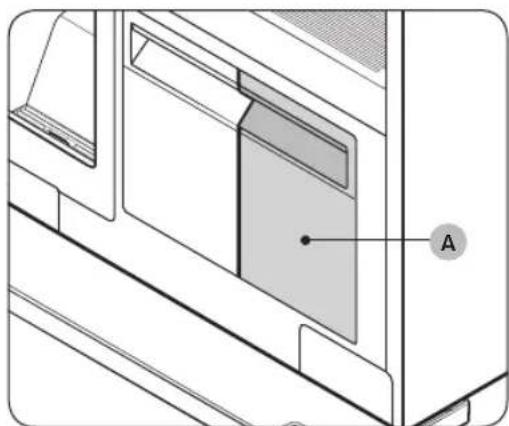

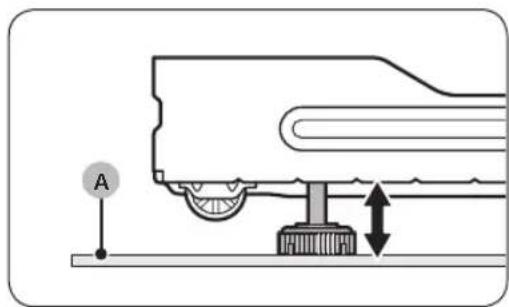

If the AIRDRESSER is placed on a carpet (A), you may not be able to insert the tray. In this case, assemble the provided rear levelling feet on the bottom-rear side of AIRDRESSER to raise it from the carpet (A), and then insert the tray.

1. Plug in the product to a 120V / 60Hz grounded outlet. If you do not have grounded outlets, contact a Samsung service center for alternative methods to ground the product.

NOTE

• After installing the product, you must wait at least 2 hours before using it.
• The product consumes more water the first time the product is used. You may have to fill the Refill Tank more than one time.
• Connecting the power cord to a multi socket outlet causes voltage drop which may lead to abnormal operations.

Before you start

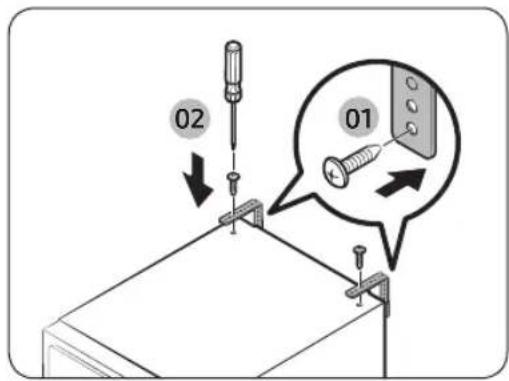

Securing AIRDRESSER with the anti-tip strap (optional)

AIRDRESSER can tip over if it is bumped or knocked by an external force. If necessary, use the anti-tip strap to secure AIRDRESSER and prevent tip-over. (Refer to the figure.)

CAUTION

You must unplug the product before securing AIRDRESSER with the anti-tip strap.

NOTE

• Use the provided screw to fasten the anti-strap to a wall.
• Use the screws fastened on top of AIRDRESSER to fasten the anti-strap to AIRDRESSER.

Setting the language

When you turn on the product for the first time after the installation, the language selection screen appears on the control panel display. Follow the instructions to select the language.

1. Tap < or > to select a language.
2. Tap and hold save the selected language.

NOTE

• Language setting may not be applicable in some countries.
• To change the language afterward, tap and hold and for 3 seconds, and then follow the above instructions.

Turning on Wi-Fi (for network models only)

Turning on Wi-Fi consumes more energy. Under an environment where Wi-Fi is frequently turned on, actual energy consumption can be greater than the values in the specification sheet section.

1. Tap to turn on AIRDRESSER.
2. Tap and hold Smart Control.

a. AIRDRESSER enters AP mode and connects to your smartphone.
b. Tap Smart Control to authenticate your AIRDRESSER.
c. Once the authentication process is complete, your AIRDRESSER is successfully connected to the app.

NOTE

You can tap and hold Sanitize and Smart Control simultaneously for 3 seconds to enter the Wi-Fi screen, and then tap disconnect or re-connect to the Wi-Fi.

English14

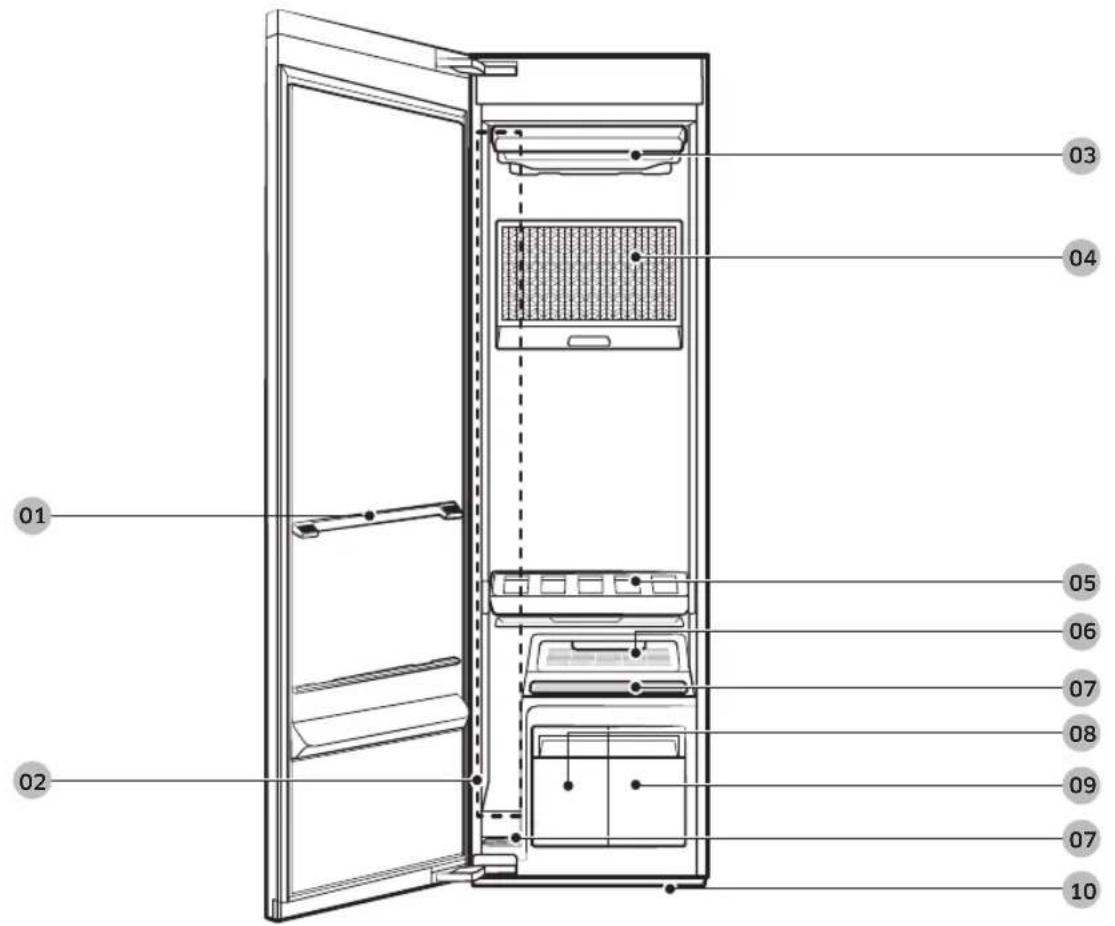

Product overview

English

01 Shelf holder

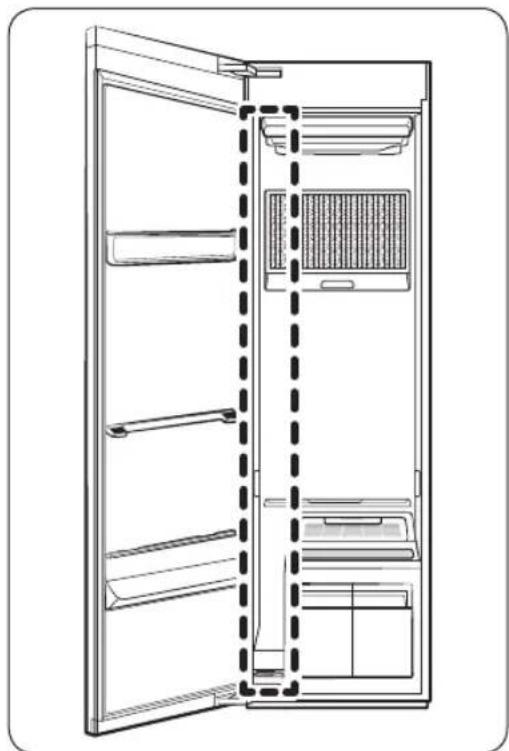

02 Long clothing care zone

03 Air hole

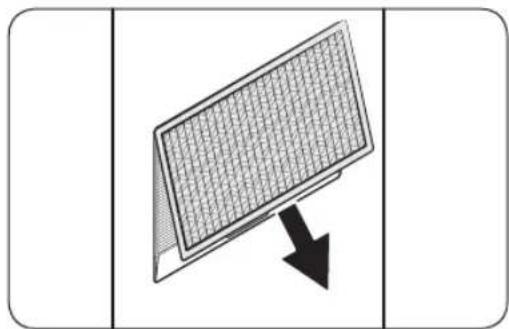

04 Air filter

05 Shelf

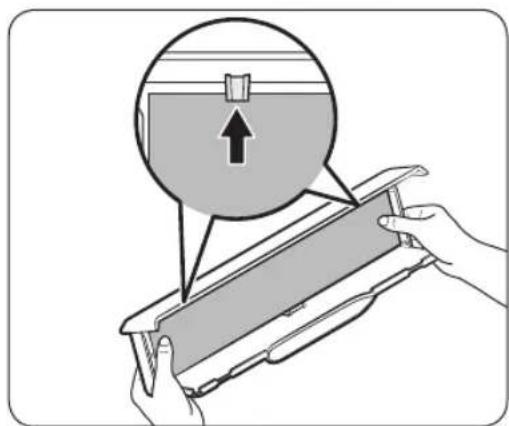

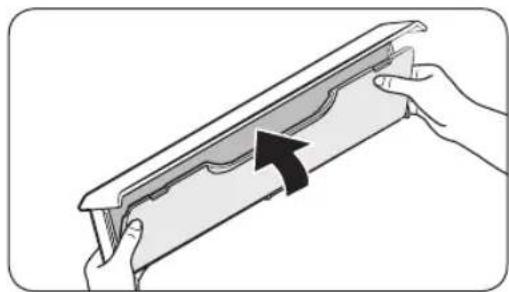

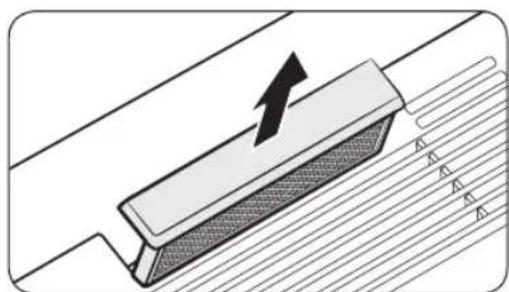

06 Fresh FinishTM

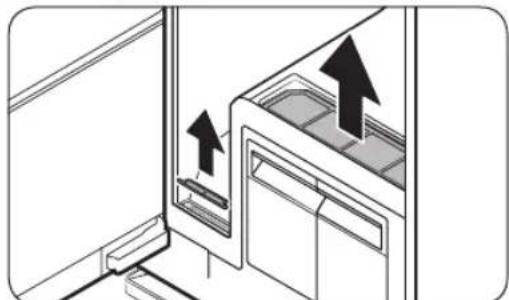

07 Lint filter

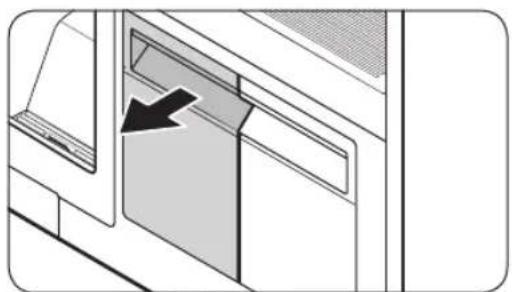

08 Drain tank

09 Refill tank

10 Water tray

Before you start

Accessories

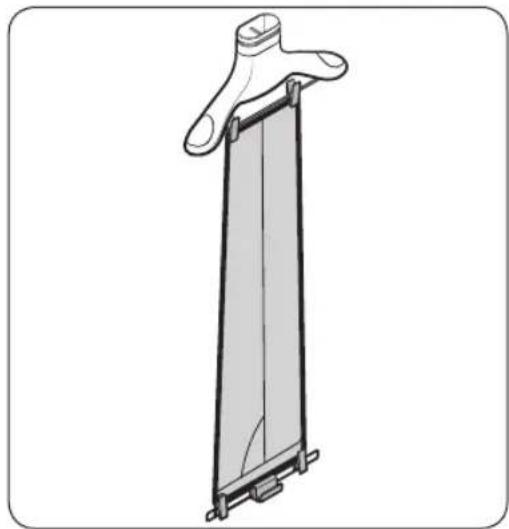

Shelf Water tray Air hanger

Weight kit (applicable models only)

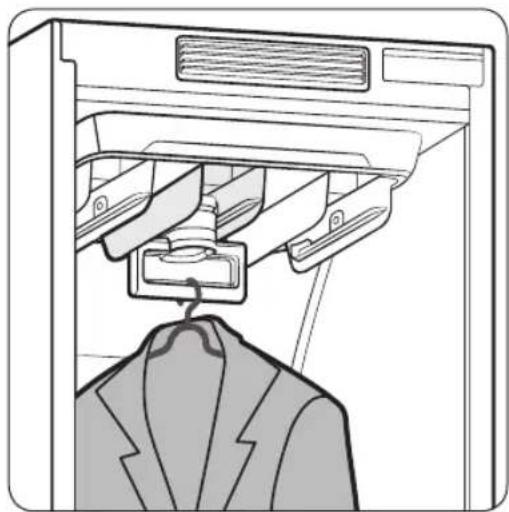

Regular hanger kit (applicable models only)

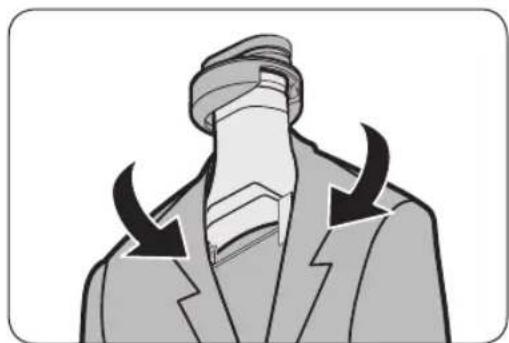

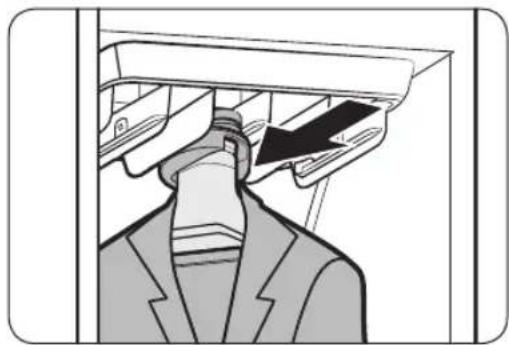

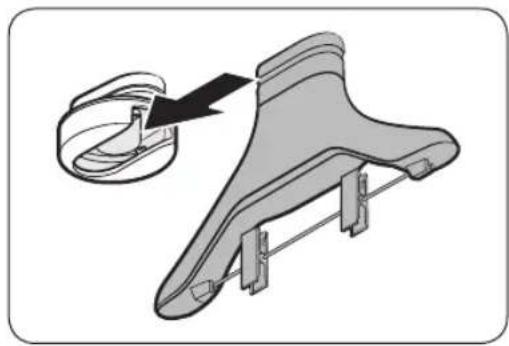

Rotating Hanger Kit (applicable models only)

User manual Anti-tip strap Screw (for anti-tip strap)

Screw anchor (for anti-tip strap) Rear levelling feet

English16

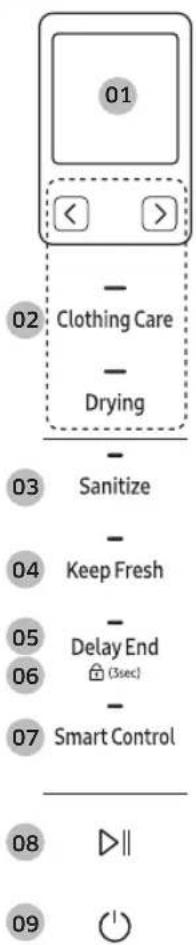

Control panel

01 Display

• Displays the selected cycle and estimated time remaining.
• The Abn appears on the top-left corner of the display for the top three recommended cycles.

Before you start

us6u

02 Cycles	Clothing Care	You can select a desired Clothing Care cycle. Tap this button, and then tap or to select the specific cycle you want to use.
	Drying	You can select a desired Drying cycle. Tap this button, and then tap or to select a desired Drying cycle.
	NOTE For more information about the cycles, see page 19.
03 Sanitize	·Use this function to sanitize items more thoroughly. ·This option is available for the School Wear, Denim, Babywear, Bedding, Toys, Daily Care cycles.
04 Keep Fresh	Tap to turn Keep Fresh on or off. You can keep items fresh if you will not be able to immediately take items out after a cycle has finished. ●NOTE ·Keep Fresh stays on up to 24 hours after a cycle has finished. ·Turning off the power or opening the door turns Keep Fresh off.
05 Delay End	Tap to turn Delay End on, and then tap or to increase the end time (from 1-24 hours). ●NOTE ·Some end times may not be available depending on the selected cycle. ·Depending on the items and environment, the actual end time may be different than the set time.
06 Child Lock (3sec)	Tap and hold for 3 seconds to turn Child Lock on or off. Child Lock deactivates all buttons except▲ ●NOTE When Child Lock is on, it will remain on until you turn it off.
07 Smart Control	Tap to turn Smart Control on or off. For more information about Smart Control, see page 24.
08 Start/Pause▼	Tap to start or pause the product.
09 Power ▁	Tap to turn the power on or off.

English18

Cycle overview

Clothing Care cycles

Cycle Description
Daily Care For refreshing your everyday wear.
School Wear For school uniforms that cannot be washed or dried daily.
Denim For refreshing denim items without any concerns about dye bleeding.
Babywear For refreshing and sanitizing baby clothes.
Bedding For refreshing and sanitizing lightweight beddings.
Toys For refreshing and sanitizing toys that cannot be washed in a washing machine.
Winter Coat	For coats made of wool blended fabrics. • Follow all item care labels. • For best results, use with only one item per cycle.
Wool/Knit	For woollen or knit items. • To avoid deforming items, neatly fold items and lay on the shelf.
Suit	For refreshing woollen suits. • Put the jacket in the middle air hole and trousers on the right air hole. For best results, use with the weight kit.
Down Jackets	To fluff heavy, down-filled jackets that have been stored for a long time. • To prevent blocking air circulation, hang only one item in the middle air hole.
Outdoor For outdoor or active wear.
Delicates	For delicate fabric items such as chiffon, lace, and items with decorations. • For rayon, you must use this cycle.
Quick To quickly refresh items with light odors and wrinkles.
Blouses/Dress	For refreshing blouses or summer dress (such as sleeveless dress, short sleeve dress with thin fabric).
Fur/Leather	Eliminates moisture and dust from fur and leather items. • Operating noise may be louder during this cycle. • Follow all item care labels. • For best results, use for only one item. • Make sure fur items are dry before using this cycle.
Accessories For accessories such as hats and gloves, etc.
Mask Sanitize For refreshing and sanitizing disposable face masks.

Before you start

Cycle Description
Self Clean	Automatically clean the inside of the product. ·Make sure the product is empty. ·For best results and optimal cleaning, do not stop the cycle or open the door before Self Clean is complete. ·This cycle does not eliminate mold.

Drying cycles

CAUTION

Do not use any of the following items for Drying cycles.

• Leather, fur, feather, velvet, silk.
• Any items containing rubber or sponge.
• Items made of wool blended fabrics, water-repellent fabrics, silk-blended, or hemp-blended fabric.
• Fur blankets with fur length exceeding 1cm , wool blankets, carpets, mattresses.
• Lingerie with laces, pantyhose, stockings.

NOTE

Drying results may vary depending on thickness of the items.

Cycle Description
Al Dry	AIRDRESSER automatically sets the time to dry items. • Using Al Dry causes the Drain Tank to fill quickly. • Al Dry may not dry excessively wet items and large or bulky items well. If items are not dry, run the cycle again.
Quick For quickly drying lightweight items such as a shirt.
Blouses	For delicate items such as chiffon, lace, and items with decorations. You must use this cycle for the items made of rayon.
Down Jackets	For drying and fluffing heavy, down-filled jackets. • To prevent blocking air circulation, hang only one item in the middle air hole.
Time Dry (1/2/3)	You can set the desired time to dry items. • Time Dry may not dry excessively wet items and large or bulky items well. If items are not dry, run the cycle again.
Room Care (2/4)	For dehumidifying the surrounding area. You can select 2 or 4 hours. • Make sure the product is empty when using Room Care. • The indoor temperature may increase.

English20

Fabric care guide

• Fabrics have different care management depending on how they were processed and finished. This fabric care guide does not cover all materials and therefore use it for just a reference. Make sure to check the care label on your clothing before using with AIRDRESSER to prevent any damage.
• Do not put items that are not colorfast, are heat-sensitive, or are not suitable for washing with water in the Clothing Care or Sanitize cycles. Do a water blot test on a small, inconspicuous spot (an inside seam) to determine if the fabric is colorfast. For further assistance, consult the clothing manufacturer, a dry-cleaning professional, or a more detailed fabric care guide.

Cycle category

Refer to the following table to check specific cycles included in each category stated in the Fabric care guide table.

Category Cycles
Clothing Care cycle	Daily Care, Quick, Wool/Knit, Down Jackets, Winter Coat, Blouses/Dress, Fur/Leather
Sanitize cycles School Wear, Denim, Babywear, Bedding, Toys, Mask Sanitize
Drying cycles	AI Dry, Quick, Delicates, Blouses, Down Jackets, Time Dry (1/2/3), Room Care (2/4)

Fabric care guide table

Natural fibers - vegetable fibers

Fabric	Cycles				Clothes / Remarks
	Clothing Care		Sanitize Drying
	Reducing wrinkles	Deodorising
Cotton	● ●				Towels, socks, underwear, jeans, sportswear, t-shirts, blankets Wrinkles on 100% cotton fabrics may remain. Iron after cycle if desired.
Linen, hemp, ramie		● ●			Summer clothes, tablecloths Some wrinkles may remain. Make sure fabrics are washable/hand washable before using the Clothing Care or Sanitize cycles. Lay delicate clothes on shelf. Do not use starched clothes.
Rayon	● ● Suit lining, blouses, neckties, pyjamas

= Possible / × = Check care label

Before you start

Natural fibers - animal fibers

Fabric	Cycles				Clothes / Remarks
	Clothing Care		Sanitize Drying
	Reducing wrinkles	Deodorising
Alpaca, camel hair, cashmere	×	×			Coats, suits Lay knitwears on the shelf. Alpaca and camel hair shrink in hot water.
		×			Scarves, knitwear Lay knitwears on the shelf. Alpaca and camel hair shrink in hot water.
Fur, leather					Coats, scarves * Only use Fur/Leather cycle. Leather must be 100% natural leather (No artificial leather)
Silk					Silk neckties, ribbons, scarves, blouses Silk fabrics are not suitable for AIRDRESSER.
Wool		×		●	Sweaters, knitwear Lay knitwears on the shelf. Some wool shrinks when washed in hot water. Make sure fabrics are washable/hand washable before using the Clothing Care cycle. * Wool/Knit cycle is recommended.
	●	●	●		Winter coat, suits Lay knitwears on the shelf. Some wool shrinks when washed in hot water. Make sure fabrics are washable/hand washable before using the Clothing Care or Sanitize cycles. * Winter Coat or Suit cycle is recommended.

=Possible/ 喜 = Checkcare label

Artificial fibers

Fabric	Cycles				Clothes / Remarks
	Clothing Care		Sanitize Drying
	Reducing wrinkles	Deodorising
Acetate ●	● ● Suit	ining, blouses, neckties, pyjamas
Acrylic ●	● ●				Thermal underwear, knitwear Lay clothes on shelf.
Nylon					Stockings, lingerie Lay clothes on shelf.
Polyurethane ●	● ●				Stretchable clothing (containing less than 5 %) If the item contains more then 5% polyurethane (ex. Swimwear), check the care label.
Polyester					Outdoor wear, sports wear, T-shirts, shirts, blouses

=Possible/×=Checkcare label

English22

Fabric care chart

The following table contains some of the symbols that may help you choose appropriate items for AIRDRESSER. The use of symbols ensures consistency among garment manufacturers of domestic and imported items.

Follow care label directions to maximize garment life and reduce laundering problems.

NOTE

• : Some clothing that does not recommend washing (such as fur or leather fabrics) can be used with AIRDRESSER. Please refer to the fabric care guide.
  **: Use the rack for items with this symbol on the fabric care label.

Washing

Symbol Meaning Use with AIRDRESSER
	Machine wash cycles	Normal O
		Permanent press O
		Delicate O
	Do not wash O*
	Hand wash O

Tumble drying

Symbol Meaning Use with AIRDRESSER
	Tumble dry heat setting	No heat X
		Low O
		Medium O
		High O
	Tumble dry cycles	Normal O
		Permanent press O
		Delicate O
	Do not tumble dry O

NOTE

The dots indicate the drying level of the dryer.
- The lines indicate the type and place of the drying.

English

Before you start

Drying

Symbol Meaning Use with AIRDRESSER
	Hang dry O
	Drip dry O
	Dry Flat O**
	Dry in shade O
	Do not dry X

Smart Control

Wi-Fi connection

• Recommended encryption methods are WPA/TKIP and WPA2/AES. Newly developed Wi-Fi protocols or unapproved Wi-Fi protocols are not supported.
• The reception sensitivity of a wireless network may be affected by surrounding wireless environments.
• If your Internet provider has registered the MAC address of your PC or the modem module for permanent use, your Samsung AIRDRESSER may fail to connect to the Internet. If this is the case, contact your Internet provider
• The Internet firewall may interrupt your Internet connection. If this happens, contact your Internet provider.
  If Internet failure continues after following the measurement of your Internet provider, contact a local Samsung retailer or service center.

Downloading the app

On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), search for the SmartThings app, and then download and install the app on your device.

NOTE

• SmartThings may not be compatible on some tablets or smartphones.

The recommended Android OS is 6.0 or higher (with minimum 2 GB or RAM).
The supported display resolutions for Android are 1280 x 720 (HD), 1920 x 1080 (FHD), 2560 x 1440 (WQHD).
The recommended iOS is 10.0 or higher (iPhones must be iPhone 6 or higher).
The supported display resolutions for apple devices are 1334 x 750, 1920 x 1080.

• The app is subject to change without notice for improved performance.

English24

Log in

You must first log into SmartThings with your Samsung account. To create a new Samsung account, follow the instructions on the app. You don't need a separate app to create your account.

NOTE

If you have a Samsung account, use the account to log in. A registered Samsung smartphone user automatically logs in.

Registering your appliance to SmartThings

1. Make sure your smartphone is connected to a wireless network. If not, go to Settings, turn on the wireless connection, and then select an AP (Access Point).
2. Open SmartThings on your smartphone.
3. If you see the message "A new device is found," select Add.
4. If no message appears, select + and select your appliance in a list of devices available. If your appliance is not listed, select Device Type > Specific Device Model, and then add your appliance manually.
5. Follow the onscreen instructions to complete registration.

If you're moving out, we recommend you completely wipe the appliance and do a network reset on it before you leave it behind. If you're moving in, the easiest way to take control and remove the previous user's access is to add it to SmartThings yourself. But if you don't plan on using SmartThings, a network reset should be performed to protect your privacy. In rental properties, there's a regular change of ownership. To ensure resident privacy, Wi-Fi and/or other connectivity settings should be reset at each change of resident. Please refer to factory reset instructions in this manual.

SmartThings overview

Category Function Description
Monitoring	Cycle Status	You can check the current cycle and options, and the remaining cycle time.
	Smart Control	The Smart Control status is shown for AIRDRESSER.
	Energy Monitoring	You can monitor the energy consumption status.
Control Start / Pause / Cancel		Select a cycle and necessary options, and then select Start / Pause / Cancel to start an operation, to stop temporarily, or to cancel the current operation.
Notification Cycle Completed		Notifies you the current cycle is complete.

Before you start

Category Function Description
AIRDRESSER functions	Care Recipe	Select the fabric type and options and get recommendations for the most suitable cycle.
	My Closet	By inputting clothing information (such as fabric material), you can add your clothes to the app and get recommended cycles and a care history.
	Special Cycle Management	You can save up to 9 cycles and you can delete or change the order of the cycles.
	HomeCare Manager	Get advice to help you keep your AIRDRESSER in perfect condition. Check your cycle usage patterns, energy consumption, and get alerts for product maintenance.

English26

Open Source Announcement

The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:[e-mail].

It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.

The following URL http://opensource.samsung.com/opensource/SMART_AT_051/seq/0 leads to the download page of the source code made available and open source license information as related to this product. This offer is valid to anyone in receipt of this information.

NOTE

Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements in the UK. The full text of the EU declaration of conformity and the UK declaration of conformity is available at the following internet address: The official Declaration of conformity may be found at http://www.samsung.com, go to Support > Support Home and enter the model name.

Wi-Fi max transmitter power : 20 dBm at 2.412 GHz - 2.472 GHz

Product and accessory use

Using a cycle

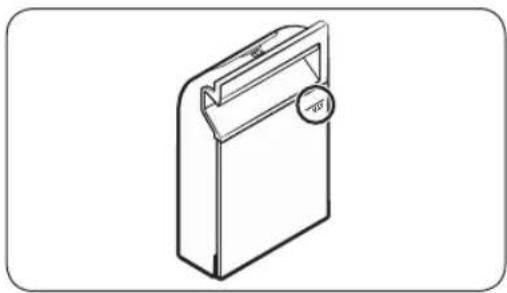

1. Make sure the Refill Tank (A) is filled with water.

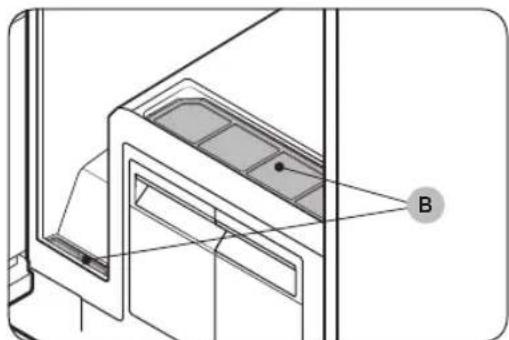

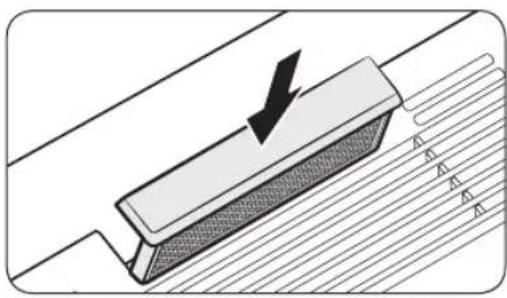

1. Make sure the lint filter (B) is clean.
2. Input clothes as instructed in the Using the accessories section.
3. Tap

4. Select a cycle.

5. Tap Clothing Care or Drying, and then tap < or > to select the desired cycle.

6. Select options if necessary.

-Sanitize, Keep Fresh, Delay end

1. Tap and hold 3 seconds.

English28

Usage guidelines

Before use

• This product cannot be used to clean items. For best results, wash and dry all items before using the product.
• Before using the product, we recommend washing items with strong odors or items that have been stored for a long time.
• Separate items by odor strength.
• Check all clothing or item labels before using the product.
• Before placing the clothing into the product, make sure to empty all pockets.
• Do not use the product as a storage closet.
• The product may not remove pet hair.

During use

• Make sure items are not touching the bottom of the product. If necessary, use the shelf to stop items that are hung from touching the bottom of the product.
• Hissing noises may occur during a steam process.
• If you need to stop a cycle before it will finish, make sure to run the Drying cycle.
• Operating time depends on the environment and type of items.
• If used consecutively, the product may display a different operating time than what will occur.
• Do not open the door while the product is operating.

After use

• The amount of wrinkles removed may vary depending on the fabric type.
• Remove items immediately after a cycle has finished. If you cannot remove items immediately, use Delay end or Keep Fresh.
• When removing items, hold both the items and the hanger.

Product and accessory use

Using the accessories

Air hangers

Use the provided Air hangers for items such as jackets, sportscoats, and blazers.

NOTE

• Make sure the interior and exterior of the hangers are clean and free of foreign matter.
• Do not use hangers for knits, wools, lingerie.

• The maximum lengths of items must be 110 cm for tops and 100 cm for bottoms.

• For the items that exceeds the maximum lengths, you can use the Long clothing care zone. The maximum lengths for the Long clothing care zone are 140cm for tops and 130cm for bottoms.
  Depending on the type or size of the fabric, unwanted wrinkles may form on the neck of your clothing.

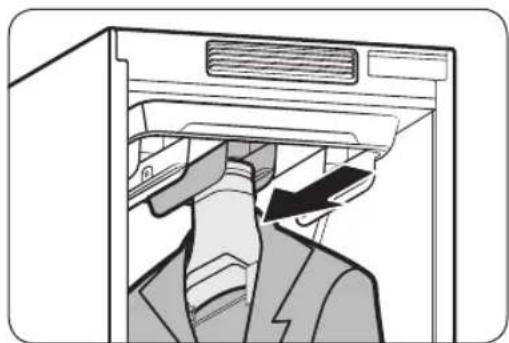

To use the Air hangers

1. Hang items on hangers in the same direction.

2. To prevent items from falling off the hangers, make sure to button all buttons and zip all zippers.
   -Make sure all items are hung flatly. Make sure the hanger clips do not protrude outward.

3. Slide the hangers into the air holes until you hear a clicking sound.

-Make sure hangers are facing the same direction.
If the Air hangers are not properly inserted into the air hole, vibrations and noises may occur.

NOTE

For best results, avoid hanging longer items from the middle hole.

English30

Regular hanger kit (applicable models only)

You can use the regular hanger kit to use regular hangers to hang your items. However, for best results, we recommend using the Air hangers.

NOTE

• Use hangers that will not be deformed by heat.
• Make sure the interior and exterior of the hangers are clean and free of foreign matter.
• Do not use plastic/silicone/wooden hanger and hangers with adhesive.
• Do not use hangers from laundry that may become rusty.

To use the regular hanger kit

1. Hang items on hangers in the same direction.

-To prevent items from falling off the hangers, make sure to button all buttons and zip all zippers.
-Make sure all items are hung flatly. Make sure the hanger clips do not protrude outward.

1. Slide the regular-hanger kit into the air holes until you hear a clicking sound, and then hang the hangers on the regular-hanger kit.

Make sure hangers are facing the same direction.
-If the regular-hanger kit is not properly inserted into the air hole, vibrations and noises may occur.

NOTE

For best results, avoid hanging longer items from the middle hole.

Product and accessory use

Long clothing care zone

You can use the Long clothing care zone on the leftmost side for longer items.

• The maximum lengths for the Long clothing care zone are 140cm for tops and 130cm for bottoms.

NOTE

Regularly clean the Long clothing care zone with a damp cloth to maintain it clean and free of foreign matter.

English32

Rotating Hanger Kit (applicable models only)

Use the provided Rotating Hanger Kit to hang items that may be wider than the depth of AIRDRESSER.

1. Slide the Air hanger into the Rotating Hanger Kit, and then hang an item.

1. Slide the Rotating Hanger Kit into the middle air hole.

NOTE

• The Rotating Hanger Kit takes up more space than the regular air hangers. Make sure to vacate the air holes on the left and right sides.
• Use a damp cloth to clean dust or any foreign matters inside the Rotating Hanger Kit.
• You can purchase extra accessories if necessary.

Product and accessory use

Weight kit (applicable models only)

NOTE

• Make sure the trousers or weight kit does not touch the bottom of the product.
• The maximum length of trousers must be 100cm .

To use the weight kit

1. Clip the bottom of the trousers to the Air hanger.
2. Clip the other end of the trousers to the weight kit.
3. Slide the Air hanger into the air holes until you hear a clicking sound.

For sharper creases, spread out the trousers by moving the clips outward.

Shelf

Use the provided shelf for items that cannot be used with hangers.

NOTE

• Only place clothes or clothing accessories. Do not put heavy items or use the shelf to store any other objects
• Make sure children do not sit or climb on the shelf.
• Make sure items do not hang off the front, back, or sides of the shelf, or hang through the shelf grates.
• Do not stack items on top of other items.

To use the shelf

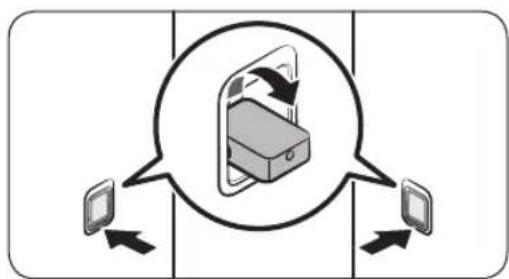

1. On the side walls, press the bottom part of the shelf holders to turn them out.

English34

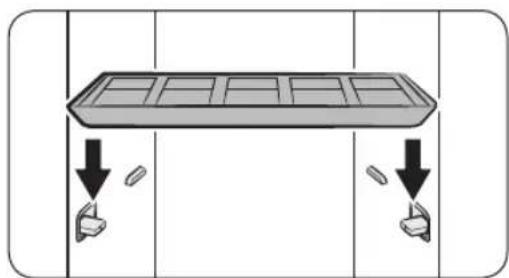

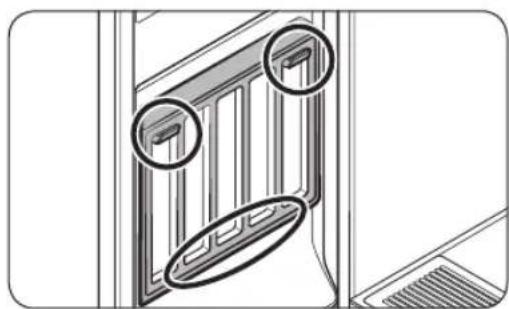

1. Place the shelf on the shelf holders. Make sure the grooves on the shelf are firmly sitting on the holder.

NOTE

A gap between the sides of shelf and the side walls is normal.

Store the shelf on the door when not in use. Place the shelf on the bottom holder, and then hang it on the top holders.

Refill Tank

NOTE

• Before using the product, make sure there is water in the Refill Tank.
• The product consumes more water the first time the product is used.
  It is recommended to use filtered water.
• If you are not going to use the product for a long time, empty the Refill Tank.
• A full Refill Tank lasts approximately 4 cycles.
• Fill the Refill Tank with water only. Putting any other liquids, such as detergent or fabric softener, may cause a problem.
• Do not use the water in the Drain Tank to fill the Refill Tank.

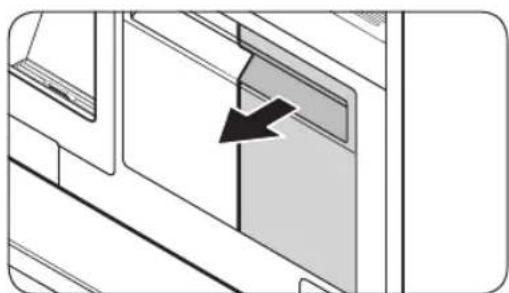

1. Pull out the Refill Tank.

Product and accessory use

us6u

1. Open the back cover, fill to the MAX line.
2. Reinsert the Refill Tank.

Drain Tank

Before using the product or if you are not going to use the product for a long time, make sure to empty the Drain Tank.

To empty the Drain Tank

1. Pull out the Drain Tank.
2. Empty the tank.
3. Reinsert the Drain Tank.

English36

Fresh FinishTM

Use the Fresh Finish™ compartment to give your clothes a laundry fresh smell.

NOTE

• Insert a dryer sheet into the Fresh Finish™ compartment or spray your desired perfume 4-5 times on a cotton pad and insert into the Fresh Finish™ compartment. The strength of the scent diffused will differ depending on what is inserted and the scent may remain inside the AIRDRESSER after the cycle is complete.
• After the cycle is complete, remove the dryer sheet or cotton pad and dispose of it.

How to use Fresh FinishTM

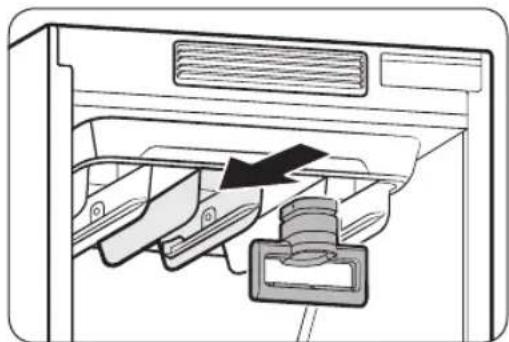

1. Slide out the Fresh Finish™ compartment from the inside of the AIRDRESSER.

1. Insert a dryer sheet or perfumed cotton pad into the Fresh Finish™ compartment.

1. Close the cover until you hear it click into place.

Product and accessory use

us6u

1. Insert back into the AIRDRESSER and run chosen cycle.

NOTE

• If you use a dryer sheet or perfumed cotton pad, the scent may remain inside the AIRDRESSER after the cycle is complete.
• Dryer sheets and cotton pads are not provided with the AIRDRESSER.
• The effectiveness of Fresh Finish™ cannot be guaranteed since it depends on what is inserted into the Fresh Finish™ compartment.

English38

Cleaning and maintenance

CAUTION

• Unplug the product before cleaning it.
• Do not use abrasive or flammable cleaners.
• Do not spray water directly onto the product when cleaning it.

Exterior

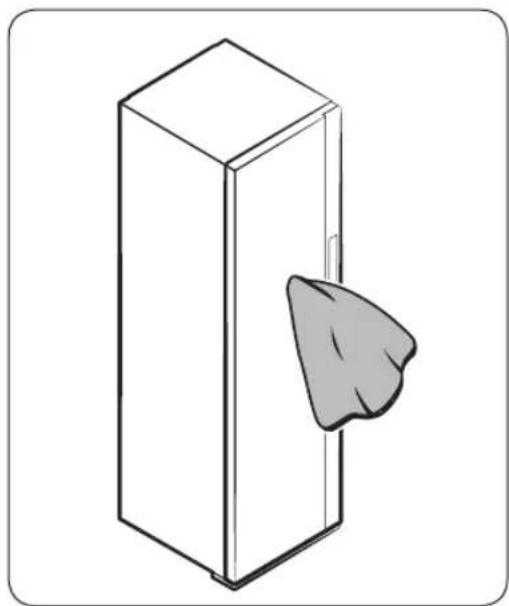

Use a smooth cloth to clean the exterior. For stubborn stains, use a damp cloth and then wipe dry.

Cleaning and maintenance

us6u

Water tanks

Clean both tanks on a regular basis. Completely dry before reinserting.

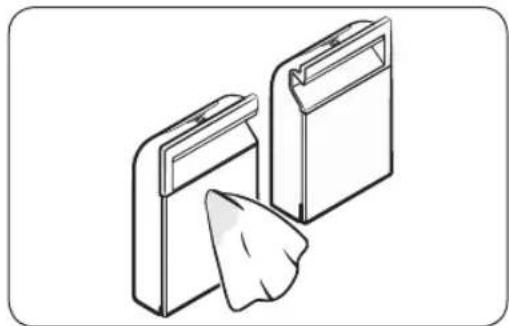

Use a damp cloth to clean the exterior.

Use a soft brush to clean the interior.

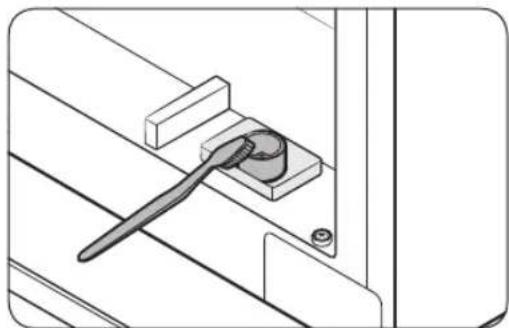

Use a soft brush to clean the tanks' inlet and outlet.

English40

Water tray

NOTE

• Empty the water tray on a regular basis.
• Make sure to reinsert the water tray after emptying the water.

Correctly insert the water tray as shown in the figures.

Make sure the side with 'TOP' is facing up.

Cleaning and maintenance

us6u3

Air filter

If you frequently use the product for heavy items or items that accumulate a large amount of dust, we recommend cleaning the Air Filter frequently.

To clean the Air filter

1. Hold the bottom of the cover and pull out.

1. While pressing the two hooks on the upper part of the filter, pull to remove.

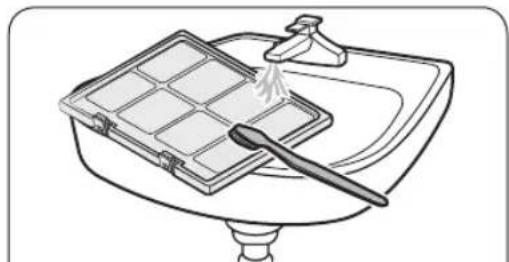

1. Use a brush and running water to clean the filter.

1. Completely dry the filter in a shaded area and reinsert the filter.

English42

1. Insert the top of the cover into the product, and then push the cover.

Lint filter

• For best results, clean the lint filters before or after using the product.
• Replace a damaged lint filter with a new lint filter.

To clean the lint filter

1. Open the covers.

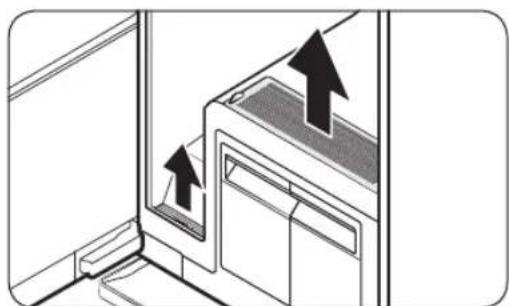

1. Remove the lint filters.

Cleaning and maintenance

us6u

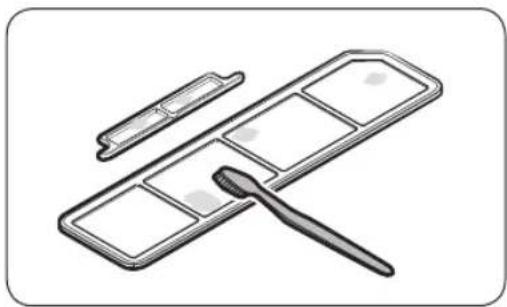

1. Use a brush to clean the lint filters and the covers in running water. Completely dry them in a shaded area.
2. Reinsert the lint filters, and then close the covers.

Dscaling

Using the steam function causes limestone accumulation and deposition throughout the internal water circulation system due to calcium contents of water. To prevent this, perform descending regularly to increase the performance and lengthen the lifespan of the product. If you do not perform descending immediately after getting the notification message, some functions may be restricted for use and may cause performance decrease or even shortens the lifespan of the product.

1. When the Descaling Required. Check the manual message appears on the display, remove all items from the product and then tap and hold Drying and Delay End for 3 seconds.
2. Empty the Refill Tank and the Drain Tank.
3. Dilute a descending agent with water as recommended by the manufacturer of a descending agent.

4. Fill the Refill Tank with the diluted descending agent up to the MAX line.

5. The maximum capacity of the Refill Tank is 1.4 liters.

6. Tap and hold start descending.

If the Empty the Drain tank message appears on the display during descaling, empty the Drain Tank.

1. When the Check the Refill & Drain tanks message appears on the display, empty both the Refill Tank and the Drain Tank, and then rinse them thoroughly.
2. Fill the Refill Tank with clean water up to the MAX line, and then insert the Refill Tank and the Drain Tank. Tap

3. When descending is complete, empty the Drain Tank and fill the Refill Tank with water.

4. You can use AIRDRESSER once you finish all these steps.

NOTE

Vibration and noise may occur during the descending process; this is normal, and there is no problem with the product.
- You may see the Add water to Refill tank message when you use the product the first time after descaling. This is normal. Fill the Refill Tank with water and tap to resume.
- Bubbles may form if the descending agent is not rinsed thoroughly. Make sure to rinse the Refill Tank and the Drain Tank thoroughly after descending.
- Use a descending agent dedicated for coffee machines.
- Do not use a descending agent for other machines such as washing machine.
- Do not use laundry detergent or fabric softener for descaling.

English44

Moving the product to another location

• There are two wheels underneath the product to assist moving it.
• To prevent the product from tipping over when moving the product, we recommend pushing the middle of the product. Do not push the top or the bottom.
• Empty the Refill Tank and the Drain Tank before moving the product to another location. If the tanks are not emptied, water can spill while moving the product.

Troubleshooting

Notification messages

Message Action
Add water to Refill tank	·Check if the Refill Tank has enough water. ·Fill the water up to the MAX line, reinsert the Refill Tank, and then tap □start. ·Check if the Refill Tank is properly inserted. ·Properly insert the Refill Tank, and then tap □start.
Empty the Drain tank	·Check if the Drain Tank is full. ·Empty the Drain Tank, reinsert the Drain Tank, and then tap □to start. ·Check if the Drain Tank is properly inserted. ·Properly insert the Drain Tank, and then tap □start.
Close door & start again	·Check if the door is open. ·Make sure the door is closed, and then tap □start.
Open the door & check inside	·Check if the door is open and if Child Lock is□on. ·Make sure the door is closed, and then tap □to start. Make sure children or pets are not in the product. ·The control panel is locked when Child Lock is on. ·Tap and hold Delay End for 3 seconds to turn off the Child Lock.
Connect to Wi-Fi network or check your router	·Check if the router is off. ·Turn the router on, and then connect to the Internet.

NOTE

If a problem persists, contact a local Samsung service center.

English46

Checkpoint

Problem Action
The product does not turn on.	• Tap ⑥turn the product on. • Make sure the power cord is properly plugged in. • Make sure the circuit breaker is on. • Make sure the power cord is plugged into a power outlet rated for this product.
The product does not operate.	• Make sure the door is closed, and then tap ⑦ • If you hear water flowing or boiling sounds, the product is preparing for a steam process. This is normal. • Make sure Child Lock is off. • The product may not operate if you have used any liquid other than water. Please contact a Samsung service center.
The product makes sounds.	• The product may generate sounds when the compressor operates. This is normal. • The product may generate sounds when it circulates air. This is normal. • The product may generate sounds before and during a steam process. This is normal. • The product may generate sounds to pump out and drain the water. This is normal. • When opening the door, sounds may come from the Refill Tank when the water is flowing through the pipe. This is normal. • If noises become louder, contact a Samsung service center.
The control panel does not work.	• After plugging in the product, wait for a moment and try again. The control panel will respond 10 seconds after the power cord has been plugged in. • Clean the control panel and try again. If the problem continues, contact a Samsung service center.
The product vibrates.	• Make sure the product is installed on a solid, level surface. • Make sure the product is level.
The Refill Tank is empty after one use.	• The product consumes more water the first time the product is used. This is normal.
Steam or air is coming out from the door.	• Make sure there are no items caught in the door. • Make sure the door is properly closed.
Operation time continues to increase.	• Wet items may take longer to dry. Operation time can increase depending on the quantity and moisture level of the items.

Troubleshooting

Problem Action
Items are wet after a cycle.	·Make sure the lint filter is clean and properly inserted. ·Make sure the door gasket is not damaged or items are not caught on the door. If the door gasket is damaged, unplug the power cord and contact a Samsung service center.
Items are not deodorised.	·Wash items with strong odors or items that have been stored for a long time. ·Wash items contaminated by oils. ·Large items such as down-filled jackets may not be deodorised well. Put large items by themselves and run an additional cycle if necessary. ·Do not put items with strong odor with other items. Separate items by odor strength. ·Make sure the lint filter and both tanks are clean.
Wrinkles are not removed.	·Iron items that have been stored for a long time.
Smoke comes out from the product when the door is opened.	·Some cycles generate steam that may appear to be smoke. This is normal.

English48

Specifications

Specification sheet

*Asterisk(s) means variant model and can be varied (0-9) or (A-Z).

Type		Clothing Care System (AIRDRESSER)
		DF10A9500*G

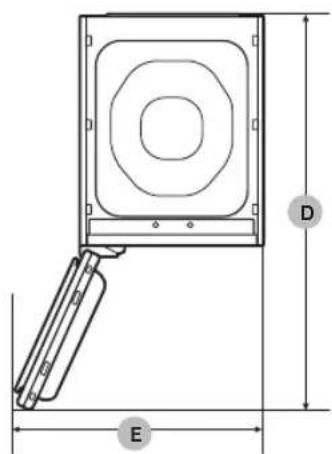

Dimensions(mm)	A. Height 1960
	B. Width 595
	C. Depth 632
	D. Depth with door open 1159
	E. Width with door open 828
Rated current 120 V / 60 Hz / 12 A
Fuse (Fixed fuse in main PBA)	Tube type	250 V / 15 A
	High breaking capacity type
Weight (kg) 105.0

LIMITED WARRANTY (U.S.A.)

SAMSUNG AIRDRESSER

LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF PURCHASE

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for the limited warranty period of:

One (1) Year Parts and Labor

This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone numbers provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center to receive warranty service.

SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability. To receive in-home service, product must be unobstructed and accessible to the service agent.

If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service.

During the applicable warranty period, a defective product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a defective product, or replace the defective product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product's warranty or ninety (90) days, whichever is longer. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modification or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product's finishes; damage caused by abuse, misuse, pest infestations, accident, fire, floods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, fluctuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product; and service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses). The cost of repair or replacement under these excluded circumstances shall be the customer's responsibility.

English50

EXCLUSION OF IMPLIED WARRANTYES

IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

LIMITATION OF REMEDIES

YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG'S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, firm, or corporation with respect to this product shall be binding on SAMSUNG.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics America, Inc.

85 Challenger Road

Ridgefield Park, NJ 07660

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) year part and labor

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the Canada.

To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures.

Warranty service can only be performed by a SAMSUNG authorized service center.

The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center.

SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the Canada.

In-home service is not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service agent.

If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above.

All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.

Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations.

This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors.

SAMSUNG does not warrant uninterrupted or error-free operation of the product.

English52

EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTYES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTYES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTYES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE.

NO WARRANTY OR GUARantee GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG.

SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLED DAMAGE.

WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT.

THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

This warranty gives you specific rights, and you may also have other rights, which vary from province to province.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics Canada Inc.

2050 Derry Road West,

Mississauga, Ontario L5N 0B9 Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

Visits by a Service Engineer to explain functions, maintenance, or installation is not covered by warranty. Please contact the Samsung call center at the number above for help with any of these issues.

Memo

Memo

QUESTIONS OR COMMENTS?

COUNTRY CALL	OR VISIT US ONLINE AT
U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com/us/support
CANADA 1-800-SAMSUNG(726-7864)		www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French)

Compartment Fresh FinishTM

Ridgefield Park, NJ 07660

Samsung Electronics Canada Inc.

2050 Derry Road West,

Mississauga, Ontario L5N 0B9 Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

DES QUESTIONS OU DES COMMENTAIRES?

PAYS APPELEZ LE OU RENDEZ-VOUS SUR LE SITE
U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com/us/support	www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French)
CANADA 1-800-SAMSUNG(726-7864)

Ridgefield Park, NJ 07660

Samsung Electronics Canada Inc.

2050 Derry Road West,

Mississauga, Ontario L5N 0B9 Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)
