101c Xenon - Graphic tablet ARCHOS - Free user manual and instructions

Product Type	Graphics Tablet
Brand	ARCHOS
Model	101c Xenon
Operating System	Android 7.0
Screen	10.1 inches
Processor	Quad-core 1.3 GHz
RAM Memory	1 GB
Internal Storage	16 GB
Expandable Storage	MicroSD
Connectivity	WiFi, Micro-USB, 3.5 mm headphone jack
Front Camera	Yes
Rear Camera	Yes
Speaker	Built-in
Battery	Lithium-ion 5000 mAh
Weight	580 g
Dimensions	240 x 170 x 10 mm
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture or excessive heat. Use only the provided charger.
Spare Parts and Repairability	Contact ARCHOS after-sales service for any repairs.
General Information	Manual available in multiple languages. Software updates via Settings.

Frequently Asked Questions - 101c Xenon ARCHOS

How to turn on the ARCHOS 101c Xenon tablet?

Press and hold the ON/OFF button until the screen lights up. Follow the on-screen instructions.

What to do if the tablet does not turn on?

Fully charge the battery, then press and hold the ON/OFF button for 10 seconds.

How to insert a SIM card or memory card?

Turn off the tablet, remove the back cover, slide the SIM or microSD card into its slot, then replace the cover.

How to reset the tablet to factory settings?

Go to Settings > Backup & reset > Reset device.

Why is WiFi weak?

Move away from obstacles and closer to the WiFi source. Update your device software.

How to lock the screen?

Go to Settings > Security and choose a lock type (pattern, PIN code, etc.).

How to move or delete icons?

Press and hold the icon until positioning lines appear, then drag it to the desired location or to the Delete icon.

How to take a screenshot?

Simultaneously press the Power button and the Volume Down button.

Where to find the serial number?

It is usually located under the device or in Settings > About tablet.

How to update the system?

Go to Settings > About tablet > System update to check for available updates.

USER MANUAL 101c Xenon ARCHOS

Congratulations for the purchase of an ARCHOS device! This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device, visit us at:

twitter.com/archos

www.facebook.com/archos

https://blog.archos.com/

http://faq.archos.com/

www.archos.com, click Support > After-sales support

Declaration of conformity can be downloaded here: https://www.archos.com/fr/products/conformity.html

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this quick start guide.

Unboxing

Blank tablet device with no visible text, labels, or symbols on the screen area

ARCHOS 101c Xenon

Quick start guide

Warranty, legal and safety notice

Charger adapter

Charging cable

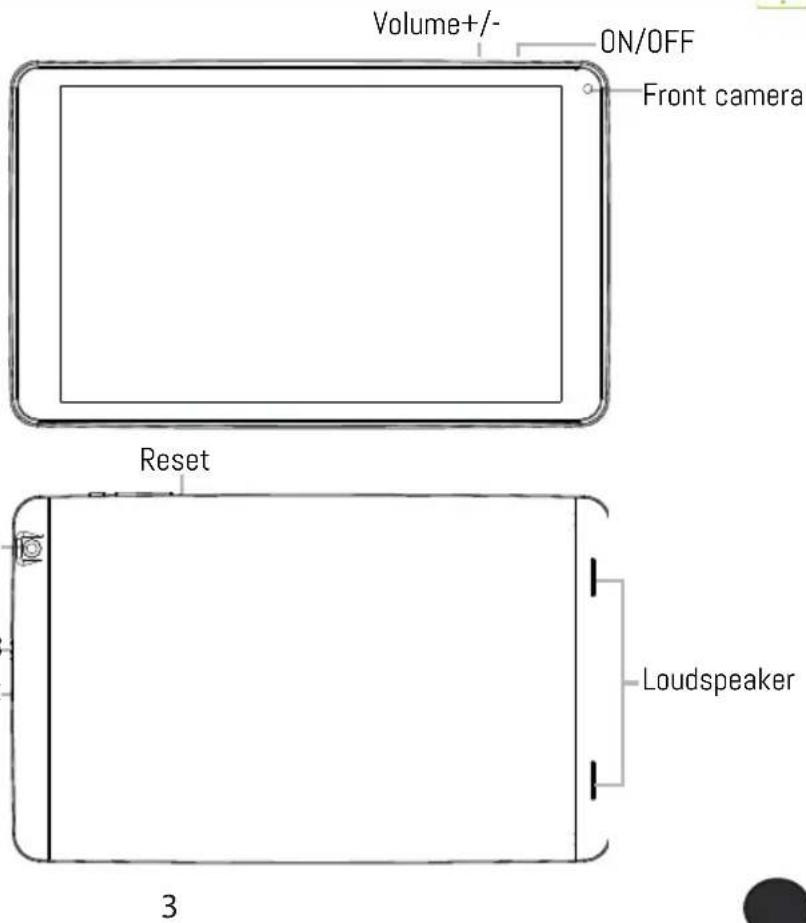

Describing your device

Your device is running Android 7.0 operating system. Updates could be offered to improve the device's performance. To check if any update is available, go to: Settings > About tablet > Check for update.

Starting up

Charging your battery completely

Plug the charging cable in the Micro-USB port and the adapter in a power outlet. Leave the device until the battery is fully charged.

Turning ON

1. Press and hold the ON/OFF button to turn on the device.
2. Follow the instructions to set up your device: language, WiFi, copy your data, enter your name, set up email, protect your phone, notifications to be shown, Google services, third party apps.
   NOTE: You can skip some steps and define them later from the Settings app.

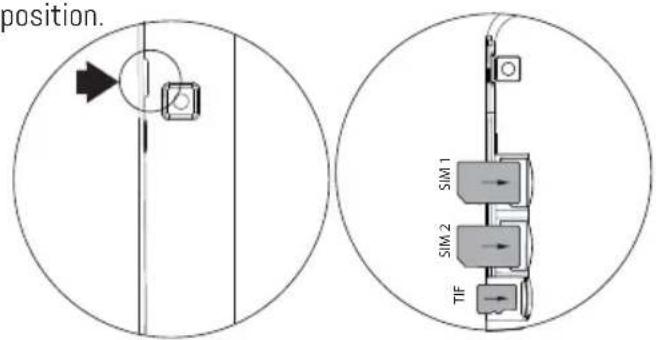

Inserting SIM & Micro-SD cards

WARNING: Make sure to turn off your device before inserting the SIM & memory cards.

Opening: Use the notch to remove the back cover.

Do not bend or twist the back cover excessively. Doing so may damage the cover.

Inserting a SIM card: For your SIM card, slide it facing downwards in the slot.

Inserting a Memory card: Slide it facing downwards in the slot micro-SD

Closing: Replace the back cover clicking it back into position.

Hints & tips

Moving a home screen item: Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item: Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item: From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders: Drop one app icon over another on a home screen and the two icons will be combined.

Changing your wallpaper: Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Widgets: Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Securing your device: Define a lock screen to protect your privacy. Select the Settings app, then Security.

Choose a screen lock.

Android device manager: When your device is lost, you can use the android device manager page (https://www.google.com/android/devicemanager) to erase all your contents, to lock the device, to locate the device or to make it ring.

Scheduled power on&off: Schedule power on & off to set when the device turns off and turn on. For example, you can set it for sleep time.

Troubleshooting

-If your device is frozen:

Press the ON/OFF button for 10 seconds.

-If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds.

-If your device functioning is too slow:

Close all apps which are not currently used.

-If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

-If your device has dysfunctions:

Reinitialize your device. Go to Settings > Backup & reset > Factory data reset. If you can't have access to the settings for any reason, consult our FAQs about the reinitialization process.

For more answers about your technical difficulties, do not hesitate to visit: faq.archos.com

EN

Contactez-nous

www.archos.com, click Support > After-sales support

https://www.archos.com/fr/products/conformity.html

Blank tablet device with no visible text, labels, or symbols on the screen area

ARCHOS 101c Xenon

Blank tablet device with no visible text, labels, or symbols on the screen area

ARCHOS 101c Xenon

Benutzerhandbuch

Blank tablet device with no visible text, labels, or symbols on the screen area

ARCHOS 101c Xenon

Guía de usuario

Blank tablet device with no visible text, labels, or symbols on the screen area

ARCHOS 101c Xenon

Guida dell'utente

Blank rectangular frame with rounded corners and a small logo at the bottom (no text or symbols)

ARCHOS 101c Xenon

Tips

Blank tablet device with no visible text, labels, or symbols on the screen area

ARCHOS 101c Xenon

Guia do usuário

Truques e dicas

Blank tablet device with rounded corners and a small logo at the bottom (no text or symbols on the device itself)

ARCHOS 101c Xenon

Краткое руководство

Simple circular diagram with a vertical line and two small geometric shapes inside, no text or symbols present.

Blank rectangular frame with rounded corners and a small logo at the bottom (no text or symbols)

ARCHOS 101c Xenon

Wskazówki i porady

Blank rectangular frame with rounded corners and a small logo at the bottom (no text or symbols)

ARCHOS 101c Xenon

Ötletek és tippek

Blank tablet device outline with no text or symbols

ARCHOS 101c Xenon

Quick start guide

Підказки та поради

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction Reason/

remark

Bulgaria None General authorization required for outdoor use and public

service

France Outdoor use limited to

10 mW e.i.r.p. within

the band 2454-2483.5

MHz

Military Radiolocation use. Refarming of the 2.4 GHz band

has been ongoing in recent years to allow current relaxed

regulation. Full implementation planned 2012

Italy None If used outside of own premises, general authorization is

required.

Luxembourg None General authorization required for network and service supply

(not for spectrum)

Norway Implemented This subsection does not apply for the geographical aera within

a radius of 20 km from the centre of Ny-Alesund

Russian None Only for indoor applications

Federation

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Archos company (Contact address : ARCHOS SA 12 Rue Ampère 91430 Igny France) declares that this tablet ARCHOS 101c Xenon is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity can be downloaded here: https://www.archos.com/fr/products/conformity.html

Sar - After the laboratory measurements, the SAR values for this device are:

WMAN
Frequency band Maximum	Output Power (dBm)
GSM B2 /B3 /B5 /B8
UMTS B1 /B8
WLAN
Standard Frequency Avg. Power (dBm)
802.11b/g 2412 ~ 2472 MHz
802.11n - HT20 2412 ~ 2472 MHz
802.11n - HT40 2422 ~ 2462 MHz
Bluetooth
Bluetooth Version Frequency Range Avg. Power (dBm)
EDR 2402 ~ 2480 MHz
BLE 2402 ~ 2480 MHz
