Digital BBQ meal thermometer

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use. We shall not be liable for any damage occurring as a result of non following of these instructions.
  Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
  Please take particular note of the safety advice. Please keep this information manual safe for future
• Please keep this instruction manual sale for future reference.

2. Delivery contents

Digital BBQ meat thermometer
Stainless steel probe with approx. 100 cm cable
- Instruction manual

1. Range of application and all the benefits of your new instrument at a glance

With coloured display, backlight and sensor buttons
For checking the internal temperature
For the optimal preparation of meat and poultry
Can be used for the oven or grill, also ideal for cooking at low temperatures

GB

T

13/14

Digital BBQ meat thermometer

Individual temperature requirements can be programmed
- Alarm warning when the target temperature is not below 25^ C ,or
Stainless steel probe with approx. 100~cm cable With metal and table stand (half out).

4. For your safety

This product is exclusively intended for the range of application described above. It should only be used as described
within these instructions. Unauthorized repairs, alter
- This product is not be used for medical purposes.

Caution!

Risk of Injury:

• Wear heat-resistant protective gloves when touching the probe during or after cooking. Risk of burning!
• Do not use the instrument in the microwave.
• Be careful when handling the sharp probe. Store the probe with its protective cap.
• Keep this device and the batteries out of reach of children.

Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.

Digital BBQ meal thermometer

Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
Low batteries should be changed as soon as possible to prevent damage caused by leaking. Navar use a combination of old and new batteries together, nor batteries of different types.
- Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

Do not expose the device to extreme temperatures, vibrations or shocks. Only the probe is heat resistant up to 300^
the cable up to 250 C . Never hold the probe directly over a line .Do not immersion the display unit , the probe and the cable in air
be not immune to display unit, the photo and the color in water. Water can penetrate and cause malformation. Not sure able for dishwasher.
- Be careful with sharp-edged frames and hinges. Do not pull or bend the cable.

5. Elements

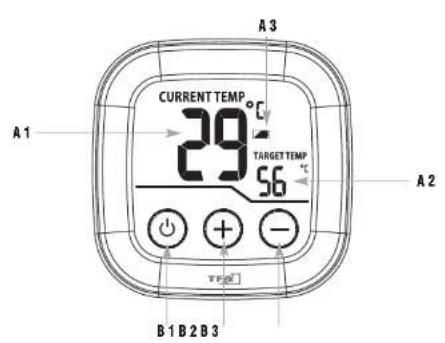

A:Display(Fig.2):

A1:Actual temperature A2:Target temperature
A3: Battery symbol

B: Sensor buttons (Fig. 1+2):

B1:ON/OFF button B2:+button
B3:-button

14

1

m - 1 0 ;

1. 实验原理

m - 1 0 ;

Digital BBQ meat thermometer

C: Housing (Fig. 3):
C1: Battery compartment C2: Stand (fold out)
C3:Magnet

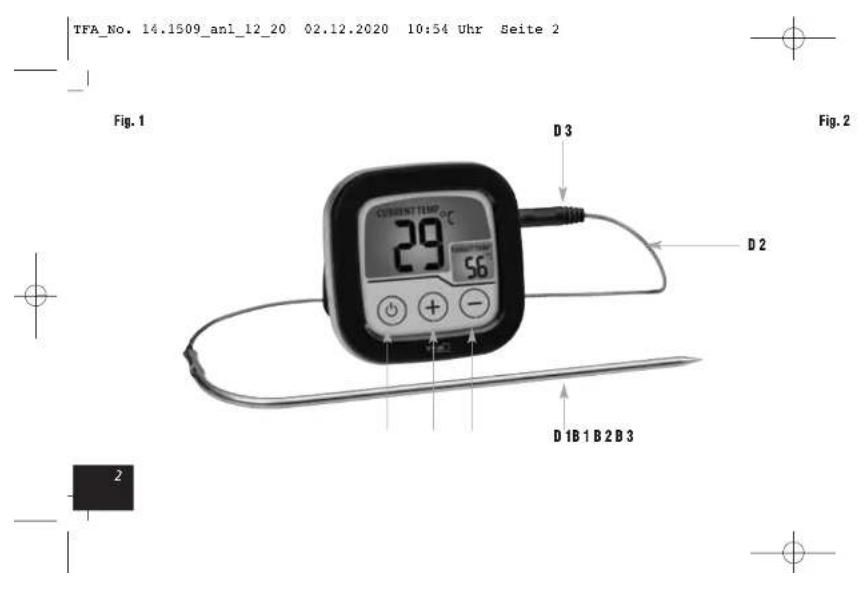

D:Probe Fig.1
01:Probe 2:Caie
3:Probe connector
6. Getting started
- Remove the protective film from the display
- Pull the rubber protection from the stainless steel probe.
- Plug the connector for the sensor cable into the socket.
- Open the battery compartment and insert two new AAA 1,3 V batteries. Make sure the polarity is correct. All segments will be displayed briefly.
- Close the battery compartment again.
The current temperature and the target temperature (r^ default) appear on the display.
The device is ready for use.

1. Operation

2. Press the ON/OFF button to switch on the device.

3. If no button is pressed within 10 seconds, the backlight switches off automatically.

GB

Digital BBQ meal thermometer

GB

• Press the ON/OFF button briefly to activate the backlight again.
  Each button operation is acknowledged with a beep.
• Press and hold the + or - button for last mode.

7.1 Measuring procedure

• Plunge the probe at least 2.5 ~cm into the middle of the thickest part of the meat, for poultry between the torso and the thigh. It should not touch bones or cartilage and it should not protrude from the meat. Put the meat into the oven and set the relevant oven temperature.
• Simply run the cable to the outside. The cable adapts to the oven seal. Be careful with sharp-edged frames and hinges.
• Use the magnet to fasten the thermometer. In position near the oven (cable length 100cm ) or fold out the stand and place the device onto a flat surface.
• Press the + or - button to set the desired internal temperature.
• When the target temperature is reached, an alarm tone will sound.
  The backlight turns on.

• Remove the probe and turn off the instrument to stop the alarm
  The alarm tone continues sounding until the temperature drops below the selected alarm value.

• Care and maintenance

• Clean the instrument and the probe with a soft damp cloth. Do not use solvents or scouring agents. Protect it from moisture.

Digital BBQ meat thermometer

Should water or steam enter the device's jack, it could affect the contact with the probe. Dry the probe connector with a
cloth before you connect it to yoofturn off the instrument after use .
- Fill on the instrument after use. - Remove the batteries if the device will not be used for an extended period of time.
- Keep the device in a dry place.

8.1 Battery replacement

• Change the batteries when the battery symbol appears on the display.
  Open the battery compartment and insert two new AAA 1.5 V batteries, polarity as illustrated.

9. Troubleshooting

Problem Solution

No display Switch on the device with the ON/OFF button
- Ensure the batteries' polarity are correct.
Change the batteries

Incorrect indication Change the batteries

Check the contact of the plug to the socket, optionally dry

Digital BBQ meal thermometer

Indication LLL Check the contact of the plug to the socket

Plug in the sensor cable

Temperature display is too high Check the position of the sensor in the meat

If your device fails to work despite these measures contact the retailer where you purchased the product.

10. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries with ordinary household waste. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the contained heavy metals are: Cd-cadmium, Hg-mercury, Pb-lead

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Digital BBQ meat thermometer

1. Specifications

Measuring range -30°C...300°C

HHH/LLL Temperature is outside measuring range.

Power consumption 2 x AAA 1.5 V batteries (not Included) - Use alkaline batteries

Housing dimension 76 x 25 x 76 mm

Weight: 66.6 g (device only)

No part of this manual may be reproduced without written consent of FDA Designation. The technical data are correct at the time of going to print and may change without prior notice.

The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

www.lfa-dostmann.de
