Brand	TriStar
Model	PD8899
Product type	Monoblock mobile air conditioner
Refrigerant	R290 (propane)
Refrigerant quantity	0.16 kg
Power supply	220-240 V ~ 50 Hz
Operating modes	Cooling, Dehumidification, Ventilation
Timer	24 hours (on/off)
Remote control	Yes, with batteries included
Air filter	Washable, recommended cleaning every 2 weeks
Drainage	Manual via drain plug
Safety	Auto shut-off when tank full, overheat protection
Minimum room area	4 m² (depending on capacity)
Display	LED with mode, temperature, timer indicators
Fan speed	Multiple adjustable speeds
Temperature range	16 °C to 31 °C
Error codes	E0 (defective sensor), E2 (tank full)

Frequently Asked Questions - PD8899 TRISTAR

What to do if the appliance does not start?

Check that the water tank is not full (the indicator flashes). Empty it. Check the set temperature and make sure the outlet works.

Why is the appliance not cooling enough?

Check that doors and windows are closed, that the exhaust hose is properly connected and not blocked, and that the air intake is not obstructed. Clean the air filter.

How to set the timer?

To turn on: appliance off, press Timer, set the time with the temperature buttons. To turn off: appliance on, press Timer, set the time. Range from 0 to 24 hours.

What does the E0 code on the screen mean?

The E0 code indicates a defective ambient temperature sensor. Contact an authorized technician for replacement.

What does the E2 code mean?

The E2 code means the water tank is full. Drain the water via the drain plug at the bottom of the appliance.

How to clean the air filter?

Turn off and unplug the appliance. Open the grille, remove the filter. Wash it with lukewarm water (max 40°C) with a neutral detergent. Dry it away from sunlight before reinstalling.

Why is the appliance making noise?

Make sure it is placed on a flat and stable surface. The noise may also come from refrigerant flow, which is normal.

How to drain the water from the tank?

Place a container under the drainage hole at the back. Remove the rubber plug. The water will flow out. Replace the plug after draining.

Can I use an extension cord?

It is not recommended to use an extension cord. Plug directly into a grounded wall outlet of 220-240V.

What refrigerant is used?

The refrigerant is R290 (propane), a flammable gas. The appliance contains 0.16 kg. Only a qualified technician can work on the circuit.

USER MANUAL PD8899 TRISTAR

White portable air conditioner unit with ventilation grille and wheels (no visible text or symbols)

EN | Instruction manual

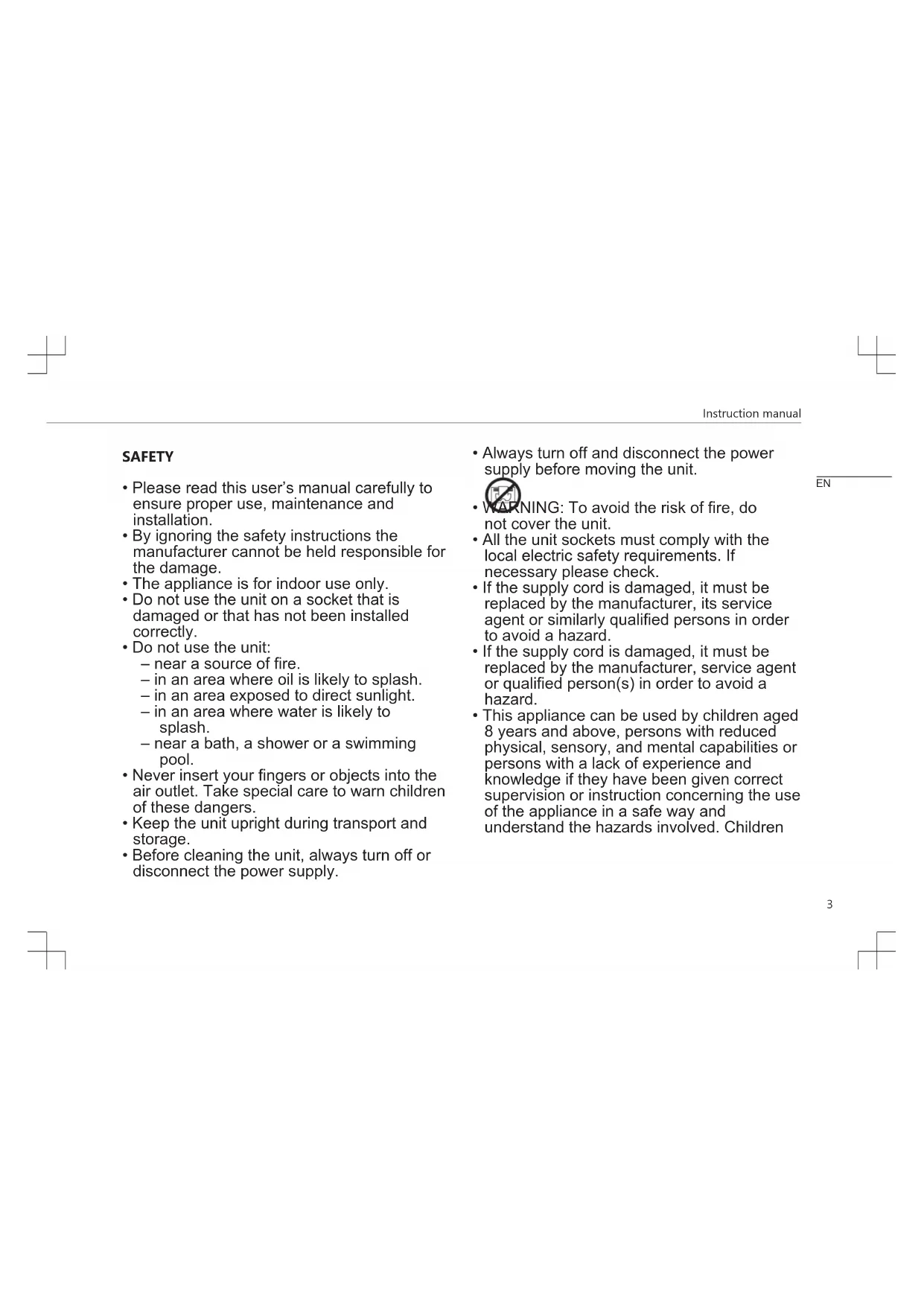

• Please read this user's manual carefully to ensure proper use, maintenance and installation.
• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
  • The appliance is for indoor use only.
• Do not use the unit on a socket that is damaged or that has not been installed correctly.
• Do not use the unit:
• near a source of fire.
  – in an area where oil is likely to splash.
  – in an area exposed to direct sunlight.
  – in an area where water is likely to splash.
  – near a bath, a shower or a swimming pool.
• Never insert your fingers or objects into the air outlet. Take special care to warn children of these dangers.
• Keep the unit upright during transport and storage.
• Before cleaning the unit, always turn off or disconnect the power supply.

• Always turn off and disconnect the power supply before moving the unit.
- WARNING: To avoid the risk of fire, do not cover the unit.
- All the unit sockets must comply with the local electric safety requirements. If necessary please check.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- If the supply cord is damaged, it must be replaced by the manufacturer, service agent or qualified person(s) in order to avoid a hazard.
- This appliance can be used by children aged 8 years and above, persons with reduced physical, sensory, and mental capabilities or persons with a lack of experience and knowledge if they have been given correct supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children

\*\*\* TRISTAR Instruction manual

should not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision.

• This appliance is only to be used for household purposes and only for the purpose it is made for.
• Notes:

- In the case of any damage, please disconnect the power supply and contact the dealer or a designated repair shop.

– In any case, the power cord shall be firmly grounded.
- To avoid the possibility of danger, if the power cord is damaged, please disconnect the power supply. It must be replaced by the dealer or a designated repair shop.

Warning

• Please use the recommended defrosting and cleaning process from the manufacturer only. Do not accelerate the defrosting or cleaning process in any other way.

• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).

• Do not pierce or burn.

• Be aware that refrigerants may not contain an odor.
• The appliance should be installed, operated and stored in a room with a floor area larger than X m2. (X=4 for 5000Btu/h, 7000Btu/h, 8000Btu/h; X=7.7 for 9000Btu/h. 10000Btu/h, 10500Btu/h)
• Only contact an authorized service technician for repair or maintenance of this unit.
• Do not pull, deform or modify the power supply cord or immerse in water. Pulling or misuse of the power supply cord could result in damage to the unit and cause an electrical shock.
  • Compliance with national gas regulations should be observed.
• Keep ventilation openings clear of obstructions.
• Any person who is involved with working on or opening a refrigerant circuit should hold a current valid certificate from an industry accredited assessment authority which authorizes their competence to handle

refrigerants safely in accordance with an industry recognized assessment specification.

• Servicing should only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel should be carried out under the supervision of a person(s) competent in the use of flammable refrigerants.
• Do not stop the unit by pulling out the power plug whilst in operation as this may cause an electric shock or fire due to heat generation unless strange sounds are heard or if strange smells or smoke appear from the unit.

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or electrical hazard.

Specific information regarding appliances with R 290 refrigerant gas.

• Thoroughly read all of the warnings.
- When defrosting and cleaning the appliance, do not use any tools other than those recommended by the manufacturing company.

• The appliance should not be stored in a room with continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not puncture and do not burn.
• Appliance shall be installed, operated and stored in a room with a floor area larger than X m2. (X=4 for 5000Btu/h, 7000Btu/h, 8000Btu/h; X=7.7 for 9000Btu/h. 10000Btu/h, 10500Btu/h)
• This appliance contains Y g (see rating label back of unit) of R290 refrigerant gas.
• R290 is a refrigerant gas that complies with the European directives on the environment. Do not puncture any part of the refrigerant circuit.
• If the appliance is installed, operated or stored in a non-ventilated area, the room must be designed to prevent to the accumulation of refrigerant leaks that could result in a fire risk or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sources of ignition.
• The appliance must be stored in such a way as to prevent mechanical failure.

STAR

Instruction manual

- Individuals who operate or work on the refrigerant circuit must have the appropriate certification issued by an accredited organization that ensures competence in handling refrigerants according to a specific evaluation recognized by associations in the industry.

- Repairs must be performed based on the recommendation from the manufacturing company. Maintenance and repairs that require the assistance of other qualified personnel must be performed under the supervision of an individual specified in the use of flammable refrigerants.

Batteries

- Do not expose the battery to high temperatures or direct sunlight. Never throw batteries into the fire. There is a danger of explosion!

- Keep batteries away from children. Batteries are not a toy!

- Do not open the batteries by force.

- Avoid contact with metallic objects.(Rings, nails, screws et cetera) there is a danger of short-circuiting!

- As a result of a short-circuit batteries may heat up considerably or even catch fire. this may result in burns.

- For your safety the battery poles should be covered with adhesive strips during transport.

- Do not touch a ruptured and/or leaking battery. If the liquid from the battery gets into your eyes, rinse your eyes as soon as possible with clean water, without rubbing your eyes. Immediately go to the hospital. If it is not treated properly, it can cause eye problems.

Refrigerant

(CE) N 842/2006: This unit contains the refrigerant R290. The amount of refrigerant is less than 1kg, and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Your appliance does not have be refilled with refrigerant if used properly and has an undamaged coolant circuit. GWP: R290: 3

PARTS DESCRIPTION

1. Air inlet 7. Drainage hole
2. Air filter 8. Hose connector (window end)
3. Control panel 9. Hot air exhaust	hose
4. Power cord 10. Hoes connector	(air conditioner end)
5. Air outlet 11. Remote control
6. Castor 12. Batteries

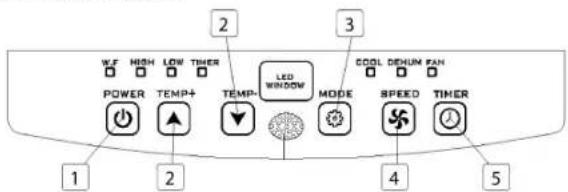

FUNCTION OF CONTROL PANEL

1. Power (on/off) button
2. Temperature buttons
3. Mode button
4. Fan speed adjustment button
5. Timer (on/off) button

W.F HIGH LOW THER POWER TEMP+ TEMP- LED WINDOW MODE COOL DEHUM PAN SPEED TIMER 1 2 3 4 5

REMOTE CONTROL

1. Temperature up button
2. Mode button
3. Fan speed adjustment button
4. Timer (on/off) button

5. Temperature down button

6. Power (on/off) button

1 2 3 SPEED TEMP+ MUDR 4 TEMP- TIMER 6 POWER 5

BEFORE THE FIRST USE

Before starting operations in this section:

• Find a place where there is power supply nearby.
• Install the exhaust hose and adjust the window position well.
- Insert the power cord into a grounded AC220-240V\~/50Hz socket.
- Press the power button to turn on the air-conditioner.
- Set the temperature range: 16^ - 31^ .

\*\*\* TRISTAR Instruction manual

• Check whether the exhaust hose has been mounted properly.
• When using functions on cooling and dehumidifying, allow at least 3 minutes between powering off and powering on.

USE

Cooling operation

- Press the "Mode" button till the "Cool" icon appears.

- Press the or button to select a desired room temperature.

- Allow around 5 minutes for the cooling to start.

- Press the "fan speed" button to adjust airflow.

Dehumidifying operation

- Press the "Mode" button until the "dehumidify indicator lamp" blinks.

- The temperature will automatically be selected.

• The fan speed will automatically be selected.

Timer operation

Timer ON setting

- When the air-conditioner is OFF, press the "Timer" button and select a desired ON time and adjust using the temperature buttons.

• The ON time can be adjusted to anytime in 0-24 hours.

Timer OFF setting

- When the air-conditioner ON, press "Timer" button and select a desired OFF time through the temperature buttons.

• The OFF time can be adjusted to anytime in 0-24 hours.

Drainage

• After a lengthy operation and before storage, you will need to drain the water that has been collected. Please prepare a suitable location or tray to collect the water and remove the rubber stop from the drainage hole at the bottom of the unit. The water will then begin to drain. After this has stopped, you can insert the drain stop.

Internal Tank Water Full Alarm Function

- The inner water tank in the air-conditioner has one water level safety switch that controls the water level. When the water level reaches an anticipated height, the water full indicator lamp lights up. Follow above steps to drain the water.

INSTALLATION

- The air-conditioner should be installed on a flat and stable surface. Do not block the air outlet and allow at least 30cm around the unit.

- Socket wiring should be in accordance with the local electric safety requirements.

30cm 12 inch 30cm 12 inch

Exhaust Hose Installation

• Twist both ends of the hot-air exhaust hose into the hose connector window end and the hose connector air conditioner end.
• Insert the hose connector air conditioned end into the openings at the back of the air conditioner.
• Fix the hose connector window end to the nearest windowsill.

Diagram showing three different household air ducts: ventilation, insulation, and drying unit with labeled parts.

Technical diagram showing airflow or ventilation system with labeled components and directional arrows

CLEANING MAINTENANCE

• Before cleaning, disconnect the unit from any electric supply outlet.
• First clean the surface with a neutral detergent and wet cloth, and then wipe it with a dry cloth.
• Do not use gasoline or other chemicals to clean the unit.

EN

TRISTAR

Instruction manual

- Do not wash the unit directly.

Air filter

• The air filter should be cleaned once every two weeks.
• Open the air inlet grille and take off air filter.
• Clean the air filter with neutral detergent in lukewarm 40°C water and allow to dry (not in direct sunlight).
• Re-install the air filter into the inlet grille.

TROUBLESHOOTING

Troubles	Possible Causes Suggested	Remedies
The unit does not start when pressing power button.	Water full indicator lamp blinks and water tank is full.Room temperature is higher than the setting temperature.(Electric heating mode)Room temperature is lower that the setting temperature.(Cooling mode)	Drain the water out of the water tank.Adjust the temperature.

The unit doesn't cool enough.	The doors or windows are not closed.There are heat sources inside the room.Hot air exhaust hose is not connected or blocked.Temperature setting is too high.Air inlet in blocked.	Make sure all the windows and doors are closed.Remove the heat sources if possible.Connect or clean the hot air exhaust hose.Reset the temperature.Clean the air inlet.
Auto Power-Off in heating mode.	Heating protection, when the temperature at the air outlet exceeds 70 degrees, the unit will power off automatically.	Allow room temperature to cool before re-starting the unit.
Noisy. • The ground is not level or not flat enough.The sound comes from the flowing of the refrigerant inside the air conditioner.		Place unit on a flat, level ground if possible.
E0 Code.	Room temperature sensor failed.	Replace room temperature sensor.
E2 Code.	Water tank full • Please empty the water tank.

THE PRODUCT OR EQUIPMENT CONTAINS FLUORINATED GREENHOUSE GAS.

Art.nr.	PD-8899
Coolant: R290
Quantity in kg: 0,16
Global Warming Potential: 3

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

The European directive for batteries (2006/66/EC) states that it is not permitted to throw batteries away with the household waste. They may contain substances which are harmful to the environment. Empty batteries can be handed over to a local, public collection point or a local recycling centre. To avoid overheating as a result of a short

circuit, lithium batteries must be removed from the product and the poles must be protected using insulation tape or some other means against short-circuiting.

You can find all available information and spare parts at www.tristar.eu!

TABLE ERP PD-8899

Information requirements for single and double duct air conditioners			P
Information to identify the model(s) to which the information relates to:
Description Symbol Value Unit
Rated capacity for cooling Prated 2,645 kW
Rated capacity for heating Prated N/A kW
Rated power input for cooling Peer 1.017 kW
Rated power input for heating Pcop N/A kW
Standby mode power consumption EERd 0.5		W
OFF mode power consumption	Poff	N/A	W
Crankcase heater mode power consumption	Pck	N/A	W
Information to indentify the model(s) to which the information relate to:
Description Symbol Value Unit

TRISTAR

Instruction manual

Rated Energy efficiency ratio EERrated 2,6
Rated Coefficient of performance COPrated N/A
Electricity consumption of single/ double duct appliances (indicate for cooling and heating separately)	Qsd SD: 1.017 (Cooling)	kWh/ h
Electricity consumption of double ducts appliance	Qdd N/A kWh/	h
Sound power level Lwa 65 dB(A		)

VEILIGHEID

Two symbolic icons: an open book and a triangular warning sign with flames (no text or labels)

30cm 12 inch 30cm 12 inch

Diagram of a refrigerant system with a coiled hose and adjacent door (no text or symbols)

②

Diagram of a pipe with a grid-patterned panel and directional arrows indicating flow or movement (no text or symbols)

SCHOONMAAKONDERHOUD

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazard or caution.

30cm 12 inch 30cm 12 inch

Diagram illustrating three stages of air conditioning system: winding expansion, ventilation unit installation, and grid cooling.

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazard or caution.

30cm 12 inch 30cm 12 inch

Diagram illustrating airflow and ventilation system with labeled components and directional arrows

Technical diagram showing a pipe installation with a grid panel and directional arrows indicating flow or movement.

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazardous materials or hazard zones.

30cm 12 inch 30cm 12 inch

Diagram illustrating three stages of air conditioning system: winding expansion, ventilation unit installation, and grid cooling.

KLIMATYZATOR STOŁOWY

Warning sign depicting a flame symbol in a triangular shape

30cm 12 inch 30cm 12 inch

Diagram of an air conditioner unit connected to a door, showing airflow path (no text or symbols)

Technical diagram showing installation of a duct with a grid panel and directional arrows indicating process flow

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazard or caution.

30cm 12 inch 30cm 12 inch

Diagram illustrating three different airflow or ventilation system configurations with labeled components and directional arrows.

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

30cm 12 inch 30cm 12 inch

Diagram showing three different air conditioning or ventilation system configurations with labeled components and directional arrows.

Technical diagram showing a pipe installation with directional arrows and a grid-patterned panel below, labeled with number ②.

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazard or caution.

30cm 12 inch 30cm 12 inch

Diagram illustrating three stages of air conditioning system: winding expansion, ventilation unit installation, and heat exchanger placement.

Warning sign depicting a flame symbol in a triangular shape, indicating hazardous or hazardous hazard.

1. Power (on/off)-knap (tænd/sluk)
2. Temperaturknapper
3. Mode-knap (tilstand)
4. Speed-knap (regulering af ventilatorhastighed)
5. Timer (on/off)-knap

WLF HIGH LOW THER POWER TEMP+ TEMP- LED WINDOW MODE SPEED TIMER 1 2 3 COOL DEHUM FAN 4 5

FJERNBETJENING

1. Temperatur op-knap
2. Mode-knap (tilstand)
3. Speed-knap (regulering af ventilatorhastighed)
4. Timer (on/off)-knap
5. Temperatur ned-knap
6. Power (on/off)-knap (tænd/sluk)

1 2 3 SPEED TEMP+ MODE 4 TEMP- TIMER 6 POWER 5

F∅R APPARATET BRUGES F∅RSTE GANG

30cm 12 inch 30cm 12 inch

Diagram showing three different airflow or ventilation system configurations: a pipe with internal flow, a cabinet with ductwork, and a fan-shaped device.

Technical diagram showing airflow or ventilation system with labeled components and directional arrows
