USER MANUAL SG 180 R Güde
Translation of the original instructions Backpack spraying device
GÜDE GmbH & Co. KG
Birkichstrasse 6
74549 Wolpertshausen
Deutschland
CE
ENGLISH Please read the instructions carefully before starting the machine.
58469
EN Assembly
FR Assemblage
IT Montaggio
NL Montage
CZ Montáž
SK Montáž
PL Montaż
HU Szerelés
1
2-3

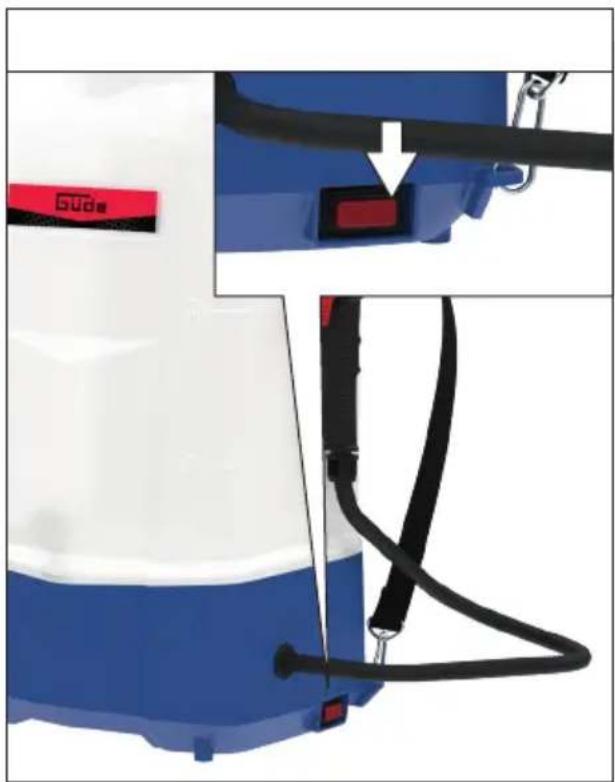

DE Inbetriebnahme
EN Starting-up the device
FR Mise en service
EN Assembly
FR Assemblage
IT Montaggio
NL Montage
CZ Montáž
SK Montáž
PL Montaż
HU Szerelés
1

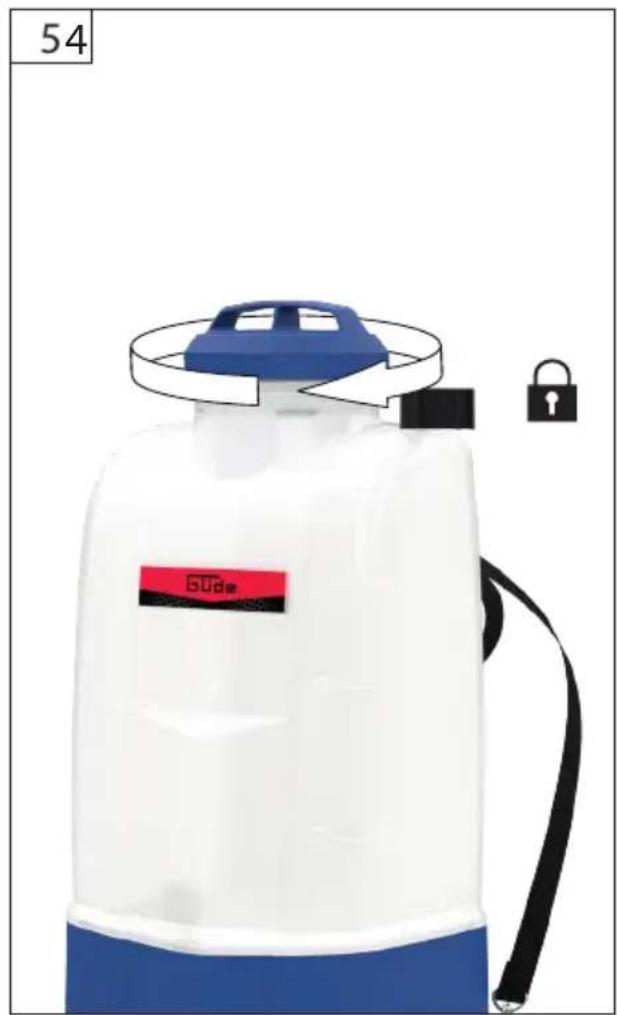

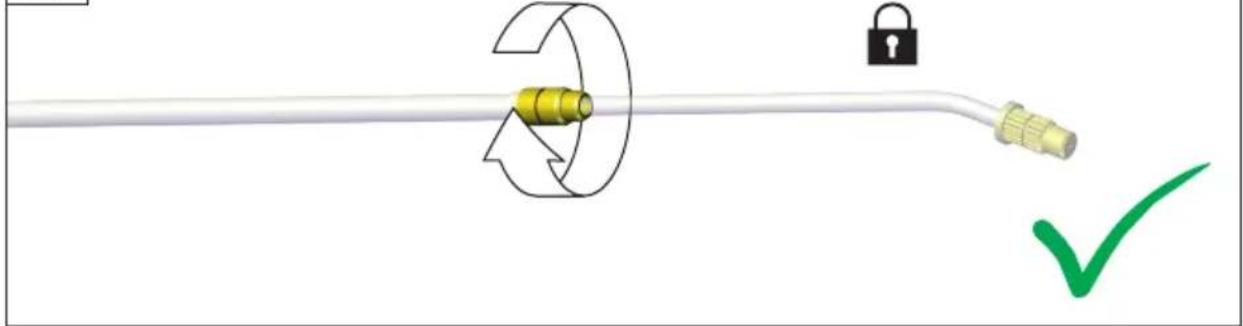

EN Starting-up the device
FR Mise en service
IT Messa in funzione
NL Inbedrijfstelling
CZ Uvedení do provozu
SK Uvedenie do prevádzky
PL Uruchomienie
HU Üzembe helyezés

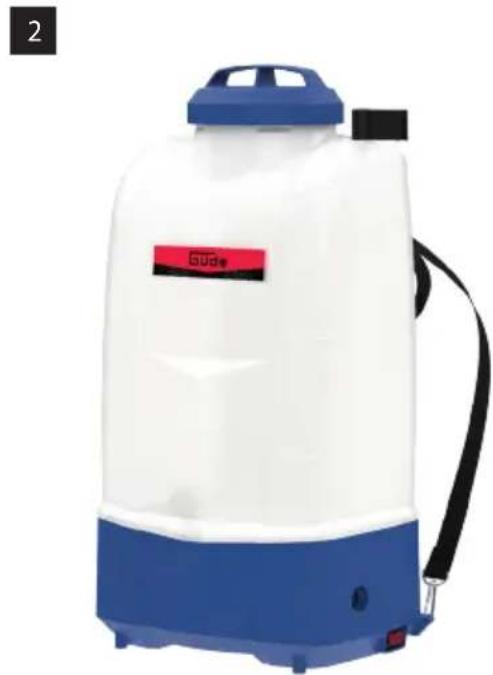

2
3


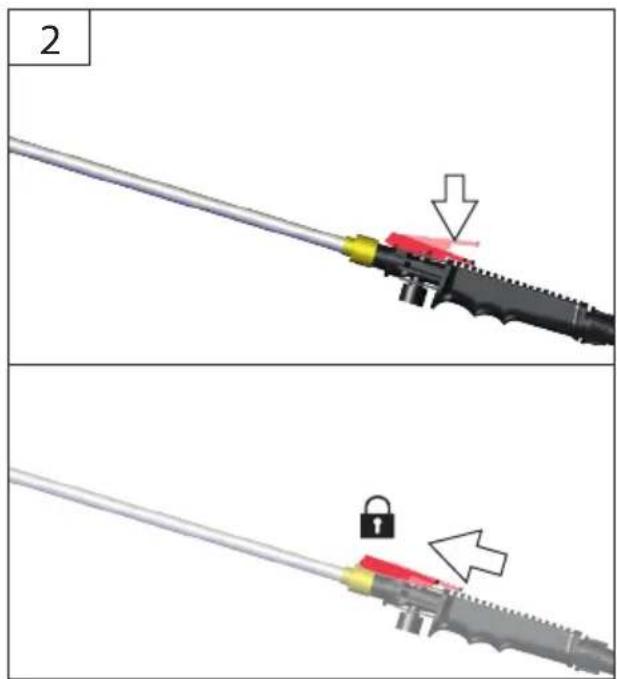

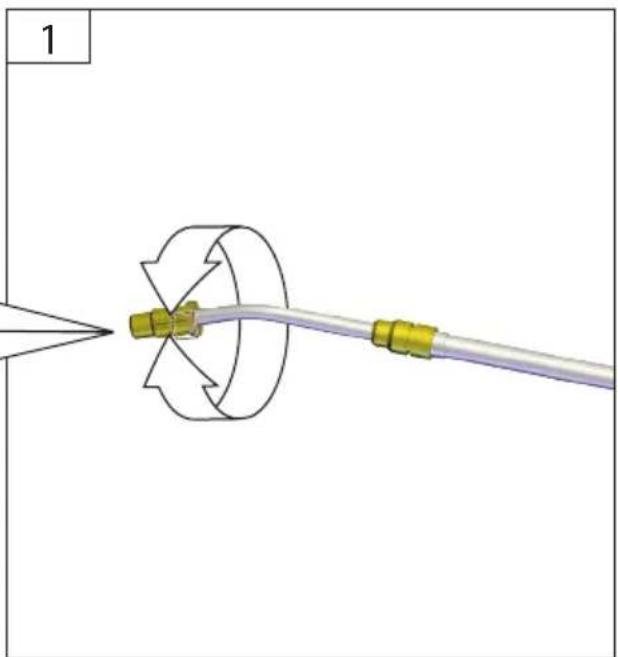

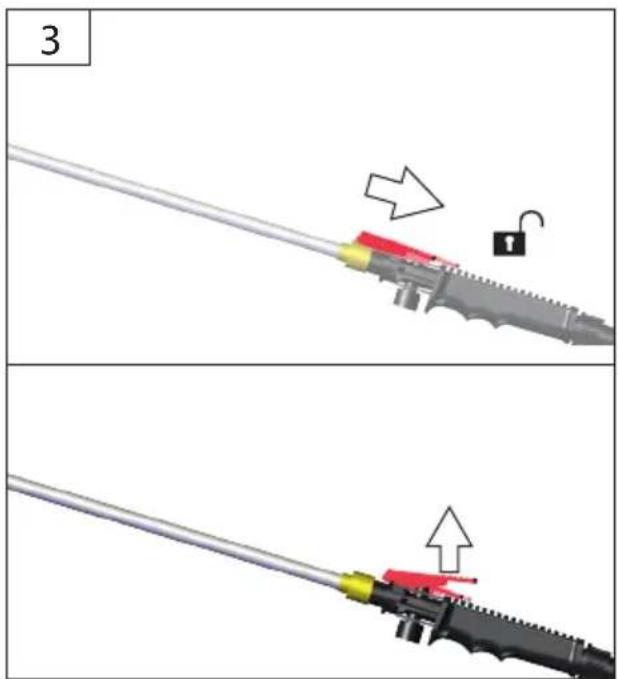

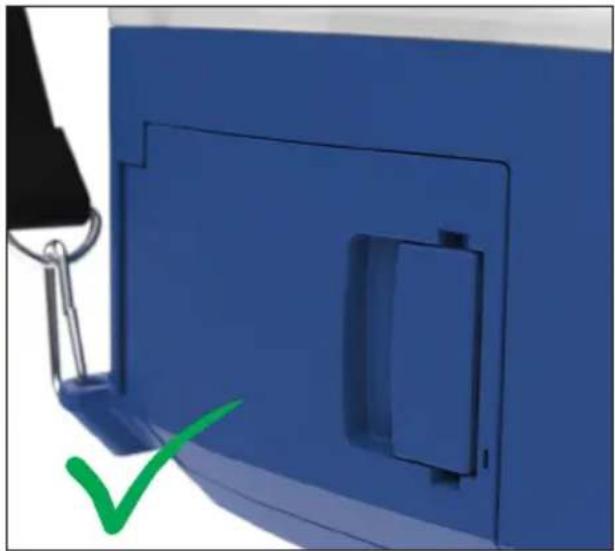

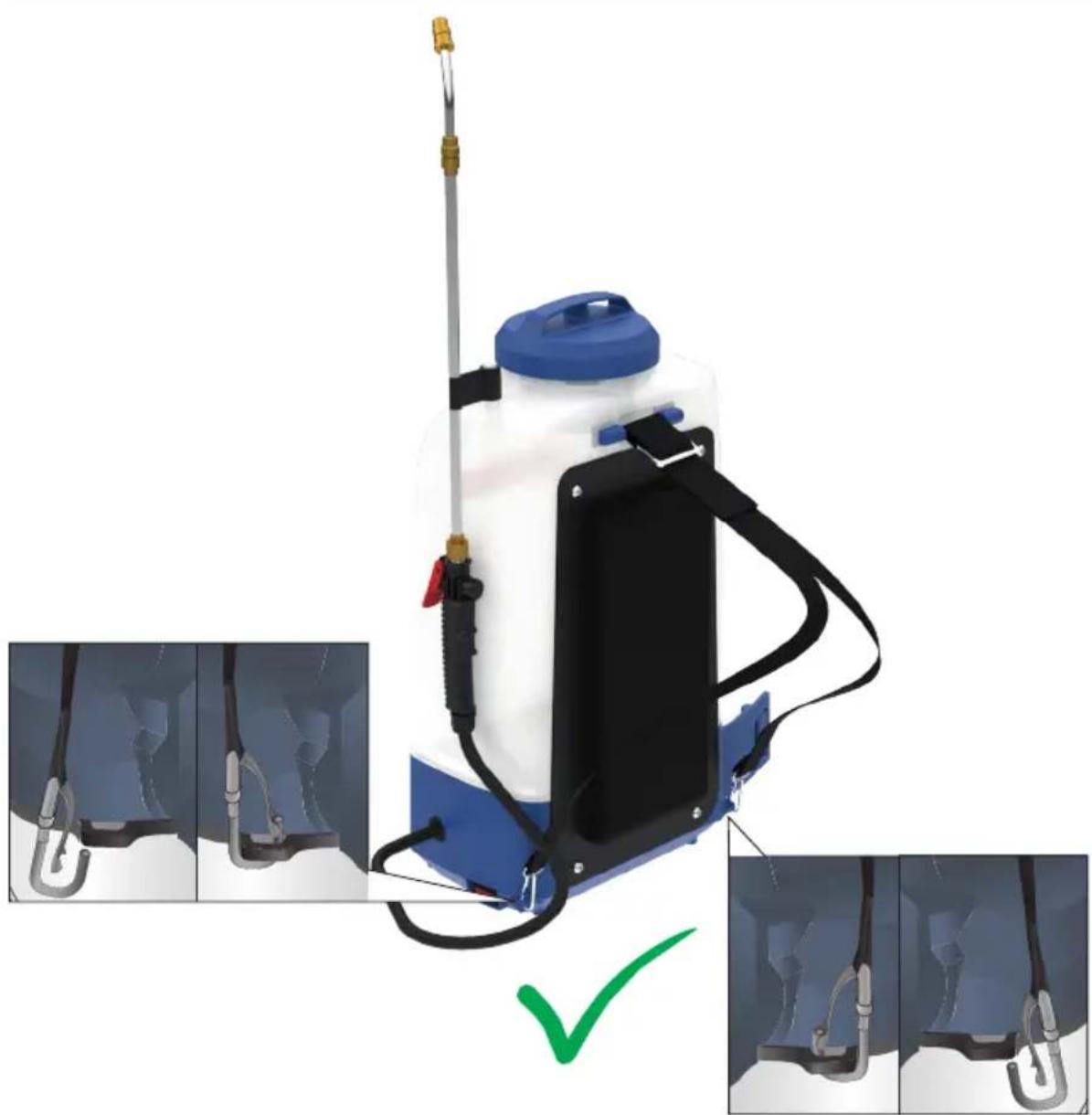

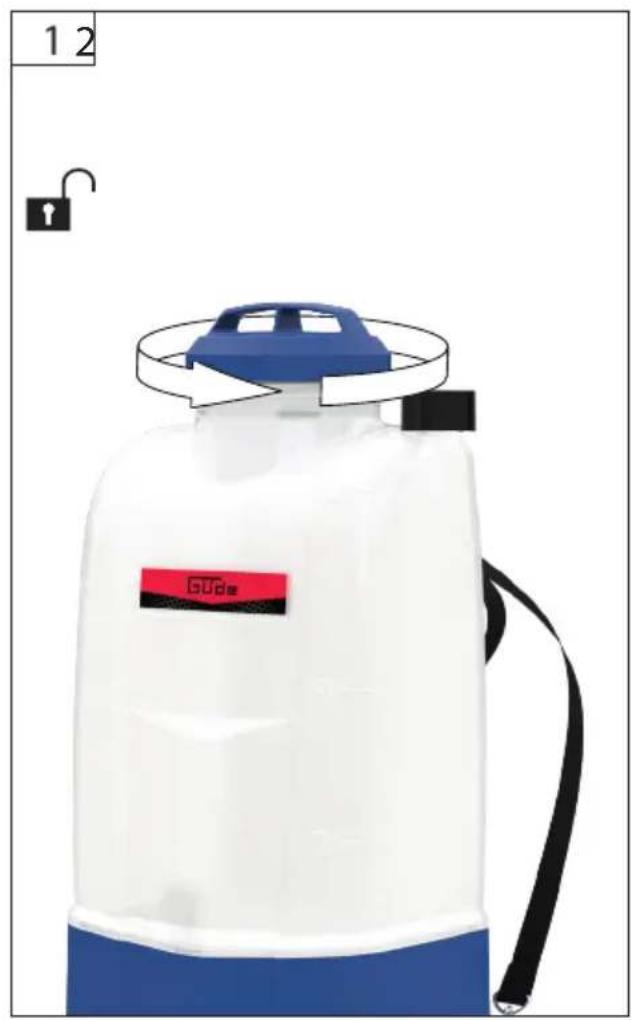

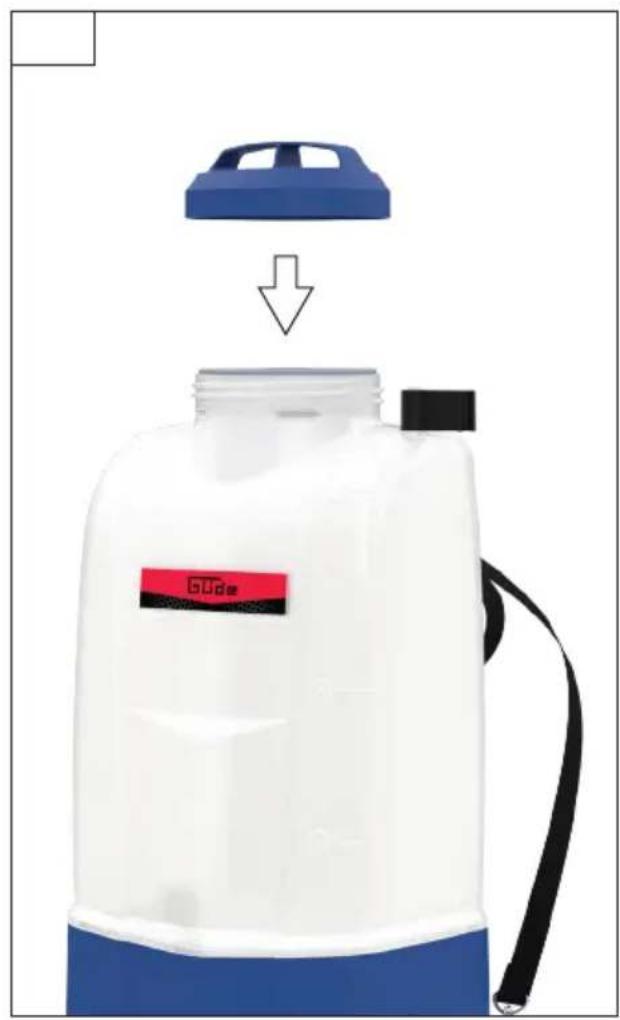

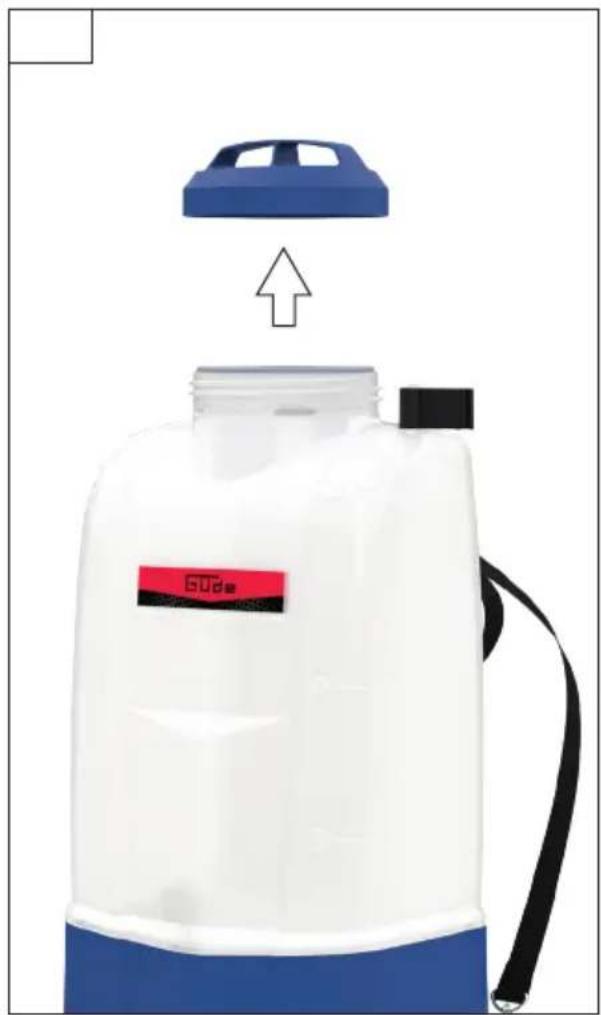

EN Starting-up the device
FR Mise en service
3
DE Betrieb
EN Operation
FR Fonctionnement
IT Esercizio
NL Gebruik
CZ Provoz
SK Prevádzka
PL Operacja
HU Üzemeltetés


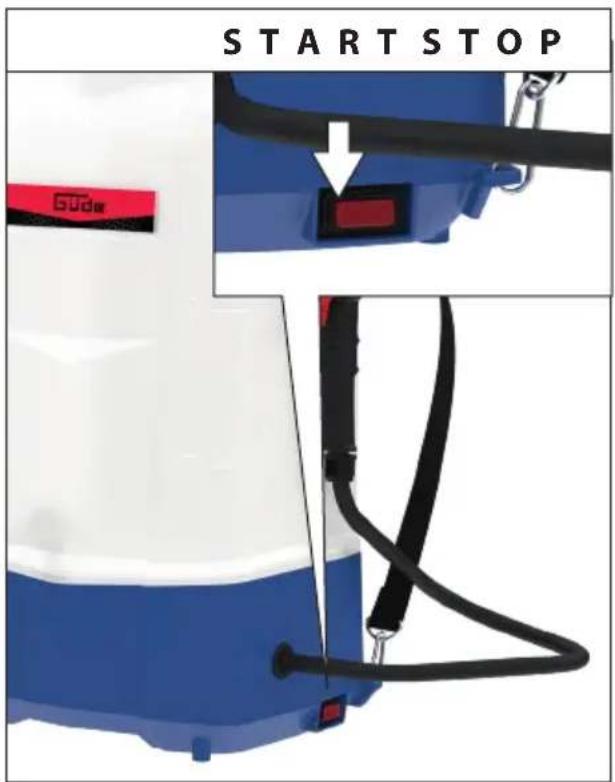

START STOP Sude

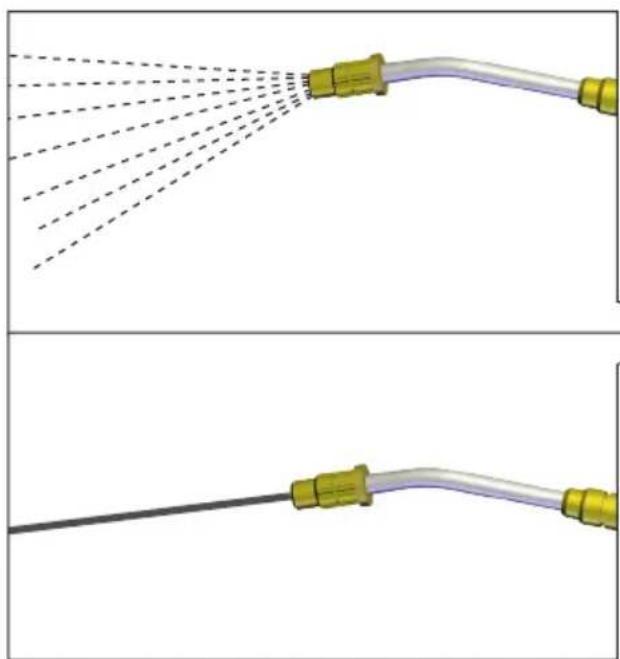

EN Operation
FR Fonctionnement
IT Esercizio
NL Gebruik
CZ Provoz
SK Prevádzka
PL Operacja
HU Üzemeltetés
3
DE Betrieb
EN Operation
FR Fonctionnement
IT Esercizio
NL Gebruik
CZ Provoz
SK Prevádzka
PL Operacja
HU Üzemeltetés


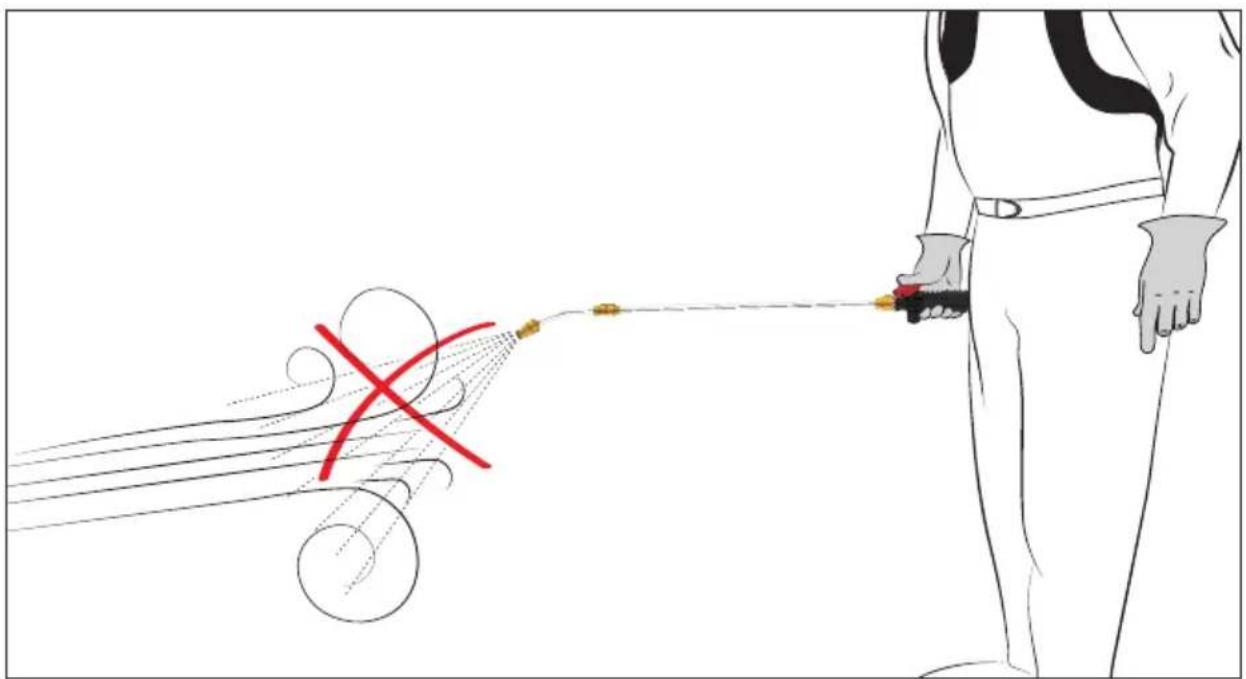

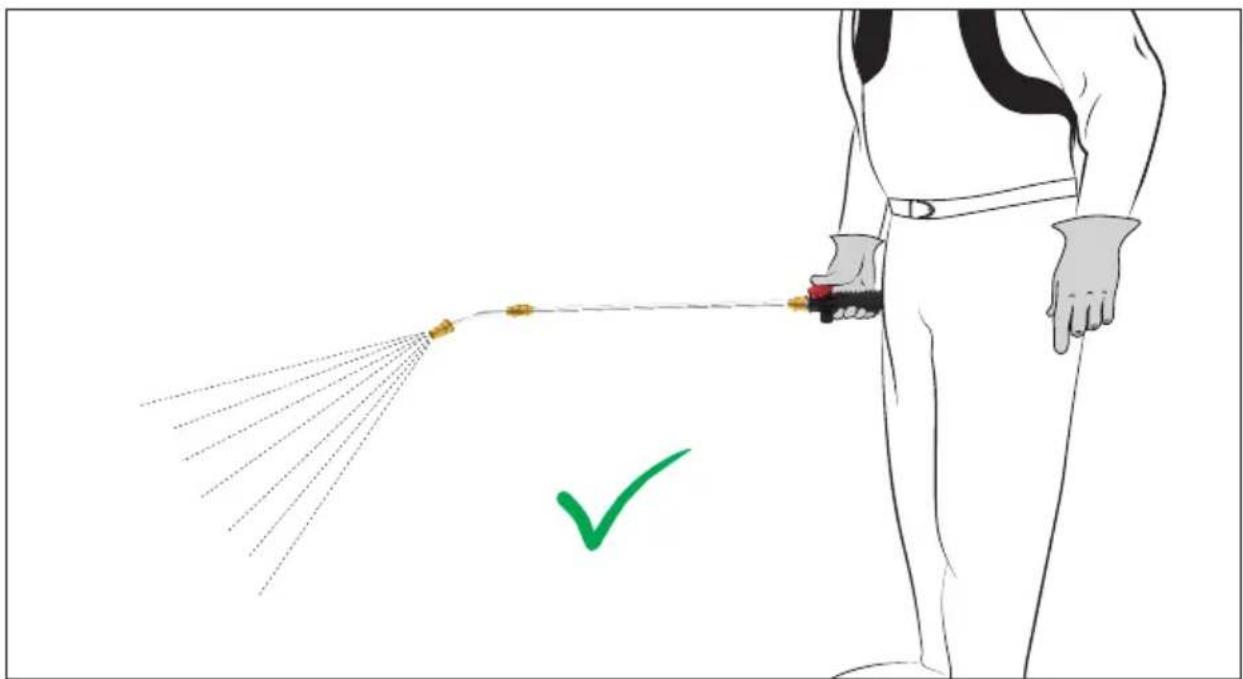

Illustration of a person spraying disinfectant with a red X mark, no text or symbols present
Diagram illustrating a spray gun system with labeled components and a green checkmark indicating inspection.
Technische Daten
WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.
The vibration emission level may be used to compare one tool with another.
It may be used for a preliminary assessment of exposure.
An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
Read and understand the operating instructions before using the appliance. Familiarise with the
control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.
The operator is responsible for accidents or risks to third parties.
Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.
In case of any doubts about connection and operation refer please to our customer center.
Specified Conditions of Use
This device is intended for spraying home and garden chemicals for domestic use, such as insecticides, fungicides, weed killers and fertilisers, and may only be used outdoors and in well-ventilated areas.
The device may also be used for watering plants. Any other use or usage that goes beyond this scope is considered to be improper use. The device may only be used when it has been assembled fully.
Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.
Requirements for operating staff
The operating staff must carefully read the Operating Instructions before using the appliance.
Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.
Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.
Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.
Emergency procedure
Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site
- Accident type
- Number of injured persons
- Injury type(s)
Symbols
Warning! / Caution!
Class III tool.
To reduce the risk of injury, user must read instruction manual
Take the replaceable battery from the appliance before any extension, cleaning and servicing works.
Wear goggles.
Wear protective shoes.
Wear dust mask.
Wear protective gloves.
Wear ear protectors.
Keep dry at all times.
CE marking
Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.
Voltage
Direct Current
Battery / Battery Charger
Protect the battery against heat and fire.
Protect the battery against water and moisture.
Protect the battery against temperatures above 40°C.
Class II tool.
Do not throw the batteries in household waste.
Li-Ion
Deliver the batteries to a collection centre of old batteries where they will be recycled in an environmentally friendly way.
General Power Tool Safety Warnings
WARNING
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool and battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
Sprayer safety instructions
a) In order to reduce the risk of fire or explosion, do not spray flammable liquids, such as petrol.
b) Only use water-based lawn and garden chemicals.
c) Do not use chemicals for commercial or industrial purposes.
d) Risk of electric shock. Do not spray in the direction of electrical sockets.
e) The spray area must be well ventilated.
f) Do not spray near sparks, flames or other sources of ignition.
g) Ensure that you are aware of all the possible risks associated with the respective spray material, the individual chemicals and possible combinations.
h) Do not use any of the following liquids with the device, as they may damage metal parts, the tank or the hose::
- Caustic (alkaline)
- Corrosive
- Self-heating
i) Always follow the chemical manufacturer's instructions for use, cleaning and storage that are printed on the product label. Chemicals must be kept out of the reach of children.
j) Do not spray any material of which the possible dangers are unknown.
k) Wear appropriate protective equipment, such as a face mask intended for spraying, gloves and other appropriate protective equipment to reduce exposure to spray materials.
I) Avoid all skin and eye contact with chemicals or the finished spray solution, as well as inhaling vapours and the spray mist. In case of contact, take the following measures immediately::
- Wash the skin thoroughly with soap and water.
- Wash the eyes thoroughly with water.
- If irritation occurs, consult a doctor immediately.
m) Do not pour hot or boiling liquids into the tank. These may weaken or damage the hose or tank.
n) Do not smoke, eat or drink while using the device.
o) Take precautions to ensure that no persons or animals are in the area in which you are spraying.
Operation
WARNING
Dangers due to incomplete assembly! Operating a device that has not been assembled fully may lead to serious injuries.
- Only operate the device when it is fully assembled!
- Do not insert the battery into the device until it has been fully assembled!
- Before switching on, check all safety and protective devices to ensure that these are present and functional!
Mixing the spray solution
WARNING Risk of injury!
Mix the chemicals strictly in accordance with the manufacturer's instructions. Incorrect mixtures may create toxic fumes or explosive solutions.
Only prepare the spray solution outdoors or in well-ventilated areas.
The spray solution must be as fluid as water.
Only use the amount of spray solution that is sufficient for the work that is to be carried out.
Do not mix different chemicals.
Device safety
Only use the device under the following conditions:
• The device is not contaminated.
• The device is not damaged.
- All the controls are working.
Do not overload the device. It is intended for light work in a domestic context. Overloading may damage the device.
Never operate the device with worn or defective parts. Always replace defective parts with original spare parts from the manufacturer.
If the device is operated with worn or defective parts, no warranty claims can be made against the manufacturer.
Maintenance
⚠️ Take the replaceable battery from the appliance before any extension, cleaning and servicing works.
Repairs and works specified in these Instructions may only be performed by qualified authorised staff.
Use only original accessories and original spare parts. Keep the device, in particular the air vents, clean at all times. Never spray water on the device body! Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.
WARNING Risk of injury!
Contact with hazardous spray materials may cause injury. Always wear suitable protective equipment during service, maintenance and cleaning work!
Do not expose the device to moisture or humidity. Do not hose down with water.

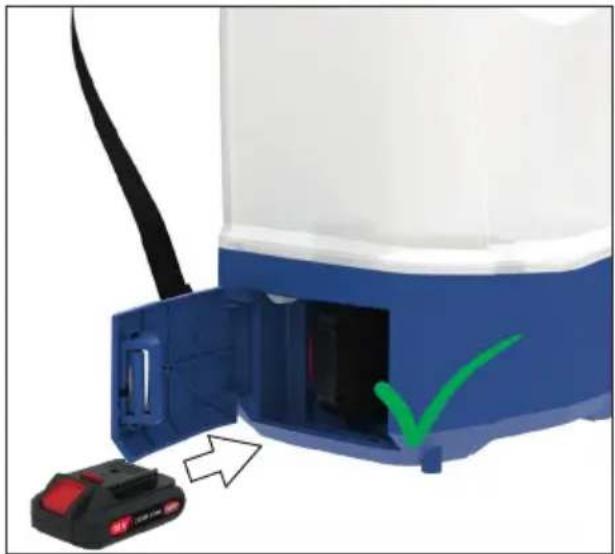

Remove the battery after each use and store in a dry place.
Check the inside and outside of the device and all components before and after each use::
- Leakage
- Cracked or worn hoses
- Clogged nozzles
- Missing or damaged parts
Do not use any flammable solvents or abrasive cleaning agents to clean the device.
Have the device repaired before the next use.
Check the device at regular intervals to ensure that it is in proper condition.
Check the electrical contacts of the device for corrosion, clean with a fine wire brush if necessary and then spray with a contact spray.

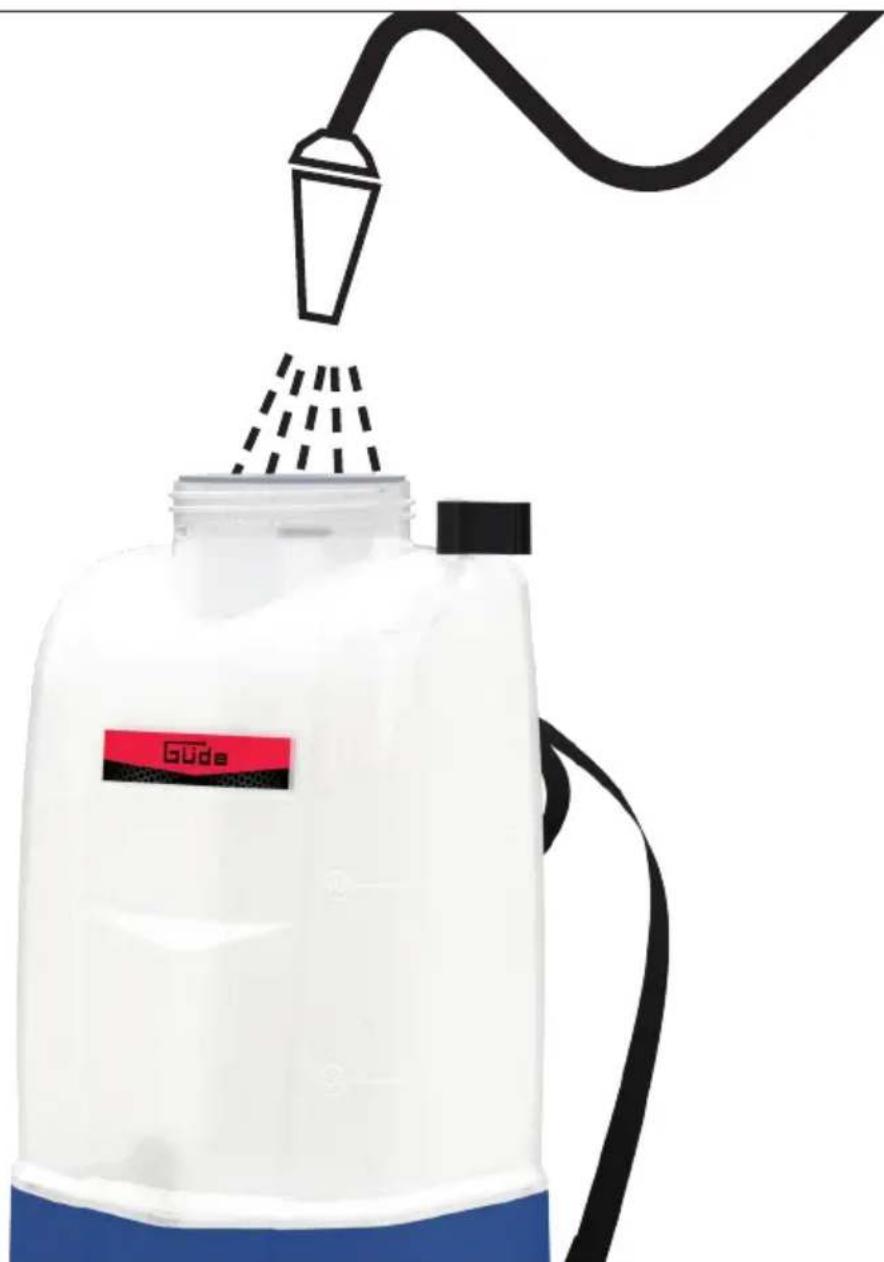

Empty the tank through the filler neck before cleaning.
Clean the device with clean water after each use.
Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.
If necessary, a list of spare parts can be found at www.guede.com.
Storage

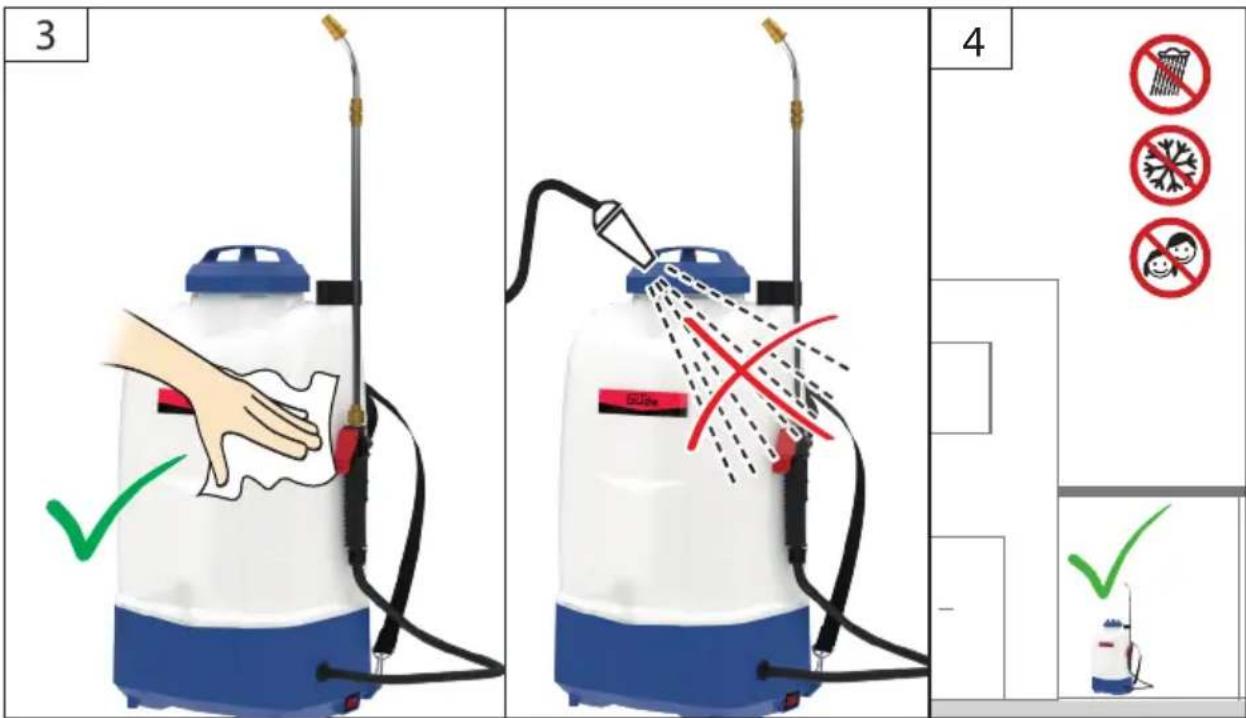

Store the device and its accessories in a dark, dry and frost free place, which cannot be accessed by children.
After each use, clean the device thoroughly and attach all protective covers, if any. Store the device in a dry, lockable place out of the reach of children.
- Do not store chemicals in the tank.
- Check all parts for leaks after each use.

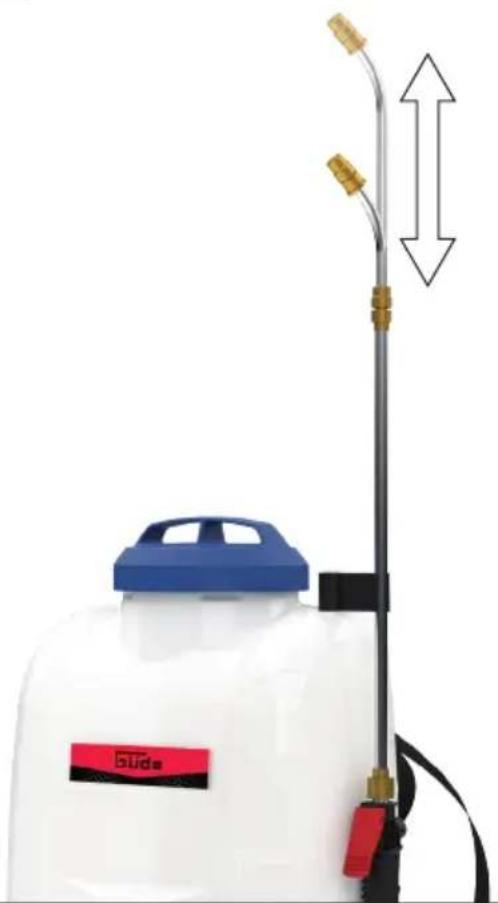

- The spray wand may be stored in the holder.
Disposal
The disposal instructions are based on the icons placed on the appliance or its package.
Any damaged or disposed devices must be delivered to appropriate collection centres.
Guarantee
Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.
The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.
The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.
Important information for the customer
Please note that returns within or outside the warranty period should always be in the original packaging. This measure effectively avoids un - necessary transport damage and any associated disputed ruling. Your equipment is optimally protected only in the original box, and keeping it in that box will ensure smooth processing.
Service
Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.
Tel.: +49 (0) 79 04 / 700-360
Fax: +49 (0) 79 04 / 700-51999
E-Mail: support@ts.guede.com
Translation of the EC-Declaration of Conformity
We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.
In case of any change to the appliance not discussed with us the Declaration expires.
