USER MANUAL WS 6832 TECHNOLINE

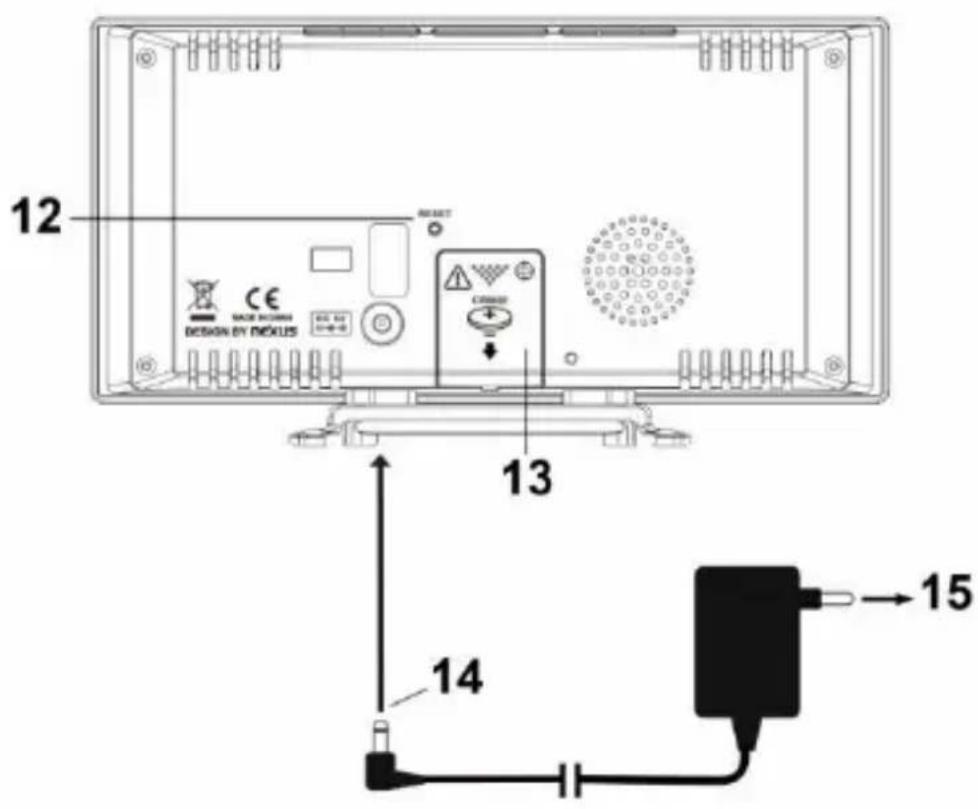

12-RESET button
13 - Battery compartment
14 - DC adapter plug (for station socket)
15 - AC adapter plug (for household socket)

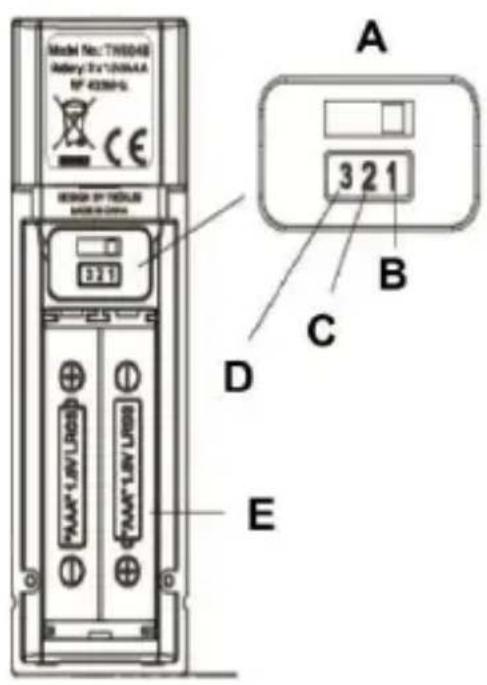

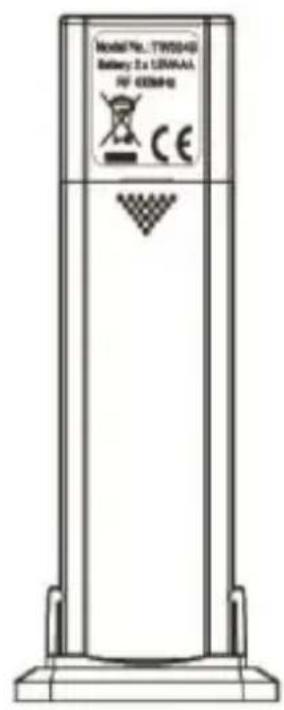

Outdoor transmitter
A-Fix at Channel 1
B-Channel 1
C-Channel 2
D-Channel 3
E-Insert 2× AAA batteries

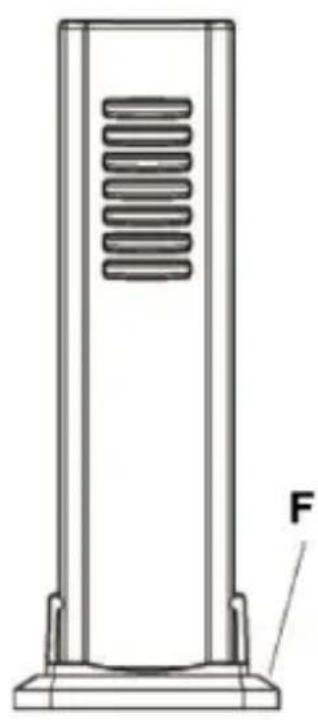

F - Holder

ENVIRONMENTAL RECEPTION EFFECTS

Your radio controlled clock obtains the accurate time with wireless technology. Same as all wireless devices, the receiving ability maybe affected by, but not limited to, the following circumstances:

• Long transmitting distance
• Nearby mountains and valleys
• Among tall buildings
• Near railway, high voltage cable etc.
• Near freeway, airport, etc
  Near construction site
• Inside concrete buildings
  Near electrical appliances
  Near computers and TV's
• Inside moving vehicles
  Near metallic structures

Place your clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only button cell batteries, not rechargeable batteries.
• Install batteries correctly by matching the polarities (+/-) .
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices.

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.

QUICK SETUP

1) Place your unit face down on a flat and soft surface. Use a screw driver to open the battery cover located on the back of the unit.
Slide open the battery cover at the back of your clock, then insert 1 x CR2032 Lithium battery (not included) to the battery compartment. Make sure +ve polarity of the battery is facing up. Then replace the battery cover and tighten the battery cover screw.
2) Insert the AC/DC adaptor to any AC household outlet. Then insert the DC jack to the back case of your unit.
3) Keep your alarm clock and wireless sensor next to each other. Slide open the battery cover at the back of your wireless outdoor sensor, make sure the channel selector is set at position 1 (top position), then insert 2 × AAA batteries (not included) into the outdoor sensor by observing the correct +/ - polarity signs inside the battery compartment. Replace the battery door.

Your alarm clock will receive data signal from the outdoor sensor in few seconds. Then place your outdoor sensor in a dry and shaded area outdoor.

4) Peel off the protective label on the front. Your alarm clock is ready to work for you.
5) After your alarm clock receives the outdoor temperature, it will start to search for the DCF signal.

Remarks:

1. Keep in mind that your outdoor sensor has a 100 feet (30m) open-air transmission with no obstructions. Actual transmission range will vary depending on what is in the path of the signal. Each obstruction (roof, walls, floors, ceilings, thick trees, etc.) will effectively cut signal range in half.

Insert the holder to the bottom of the outdoor transmitter for desktop or insert it to the back of the transmitter for wall mount purpose.

Battery Back Up

When the power supply is not in use, the clock will be powered by the back-up batteries. The LED display is turned off, but time and alarm time remain stored (also in the event of a power failure).

DCF SIGNAL RECEPTION AND SIGNAL INDICATOR

After your clock is powered up, it starts to receive DCF signal. The

on flashes.

Receiving DCF signal (icon flashing)

Successful Reception (non becomes static)

Failed Reception (icon disappear)

During reception, press / WAVE once will display reception mode and signal strength Indication:-

When strong DCF signal is detected, display shows with 3 bars

When weak or no DCF signal is detected, display shows

During reception, the signal strength may move from 1 bar to 2 bars to 3 bars. This is normal since the clock is detecting DCF signal and other signals in the air at the same time.

Press SET will return to the time display with icon flashing.

Successful reception or failed reception

icon becomes static on (stop blinking) when reception is successful icon disappears when reception is failed

Automatic reception and Manual Reception

Your clock starts automatic reception everyday at 1:00, 2:00, and 3:00. If it fails to receive the DCF time signal at 3:00, it will start reception at 4:00. If it fails again, it will start reception at 5:00. If it fails again, it will start automatic reception at 1:00 again in the next day.

Manual reception: simply press and hold / WAVE, your clock will gives a short beep and starts manual reception. Press and hold / WAVE to stop DCF reception.

When your weather station is receiving the radio controlled time signal, the display will turn dimmer. It will resume to the brightness level which you originally selected after the radio controlled time reception is completed.

During RCC reception, all buttons do not function and it does not take temperature measurement. The temperature readings will get stable and become more accurate after your weather station clock is powered up for around 30 minutes.

To cancel DCF_reception permanently

Press and hold / W A V E and at the same time for 2 seconds, your clock will give 2 short beep and the radio controlled function is permanently disabled.

To resume the radio controlled function, press and hold / W A V E and at the same time for 2 seconds, your clock will give 2 short beep and will start DCF immediately.

TO SET TIME

1. Press and hold SET, 00 flash, press / to set the time zone: -01 or 00 or 01.

^ 00^ = GMT +1 hour (e.g. Germany)

"01" = GMT +2 hours (e.g. Finland)

"-01" = GMT 00 hour (e.g. U.K.)

1. Press SET again, hour digits flash. Press / to set the current hour. Press and hold or to accelerate setting at high speed.

2. Press SET again, the minute digits flash. Press / to set minutes. Press and hold or to accelerate setting at high speed.

3. Press SET again, display shows:05 and flash. Press / button to set snooze duration from 5 to 60 minutes

4. Press SET to return to normal mode or it will return to normal mode in around 8 seconds if no further press of any other buttons.

Your clock is in 24-hour display format.

TO SET ALARM (Default alarm setting is 6:00 AM)

1. Press and hold AL ON.OFF, the hour digits flash with "AL" icon appears. Press / ▲ to set your desired alarm hours. Press and hold or ▲ to accelerate setting at high speed.
2. Press AL ON.OFF again, the minute digits flash. Press / to set your desired alarm minutes. Press and hold or to accelerate setting at high speed.
3. Press AL ON.OFF again or if no further press of any other buttons in around 10 seconds to exit alarm setting mode.

TO TURNOF OR OFF YOUR ALARM

Single press AL ON.OFF to turn on or off the alarm. When the alarm function is turned on, the AL icon appears on top of the time digits.

TO USE SNOOZE ALARM (Default snooze duration is 5 minutes)

When time reaches your set alarm time, your clock will sound to wake you up. The AL icon will flash.

Press once to stop the alarm temporarily, AL icon keeps flashing. The alarm will beep again in 5 minutes or after your set snooze duration.

TO STOP AND RESET THE ALARM TO COME ON THE NEXT DAY

To stop the daily alarm, press any button EXCEPT the when alarm is beeping. The alarm will stop and AL icon becomes static; alarm will beep again same time next day.

TO USE THE DIMMER FUNCTION

Press Zace to adjust the High / Low brightness of the display.

TO USE THE WEATHER FORECASTER

There are four types of weather display in your weather station:

	SUNNY
	SUNNY AND CLOUDY
	CLOUDY
	RAINY

Remarks: Moving your weather station around your house or your building will affect its accuracy because the sudden change of attitude will affect the accuracy of your weather station. After your weather station is powered up, it will take around 24 hours to get stable. The weather icons on the display give a reference to the next 6-12 hours weather conditions. It may not match with the current weather condition outside.

If You Lose the Outdoor Temperature

When the outdoor temperature digits show "---", the wireless transmission is either interrupted or lost.

Press & hold button of the weather station then take out and re-install batteries to your outdoor transmitter. If you continue to lose the outdoor temperature display, try placing the transmitter in a different location until you have smooth transmission of temperature data.

TROUBLE SHOOTING

In case your clock shows irrelevant information or digits, it may be affected by electrostatic discharge or interferences from other devices. Press the RESET button on the back of your clock. Your clock will be reset to default setting of time and calendar and it will start to receive radio controlled time signal again.

SPECIFICATIONS

Operation Temperature: 0^ to +45^

Temperature Range

Indoor 0^ to +50^ (display shows HH.H / LL.L if out of this range)

Outdoor -40^ to +70^ (display shows HH.H / LL.L if out of this range)

Temperature Resolution 1°C

Alarm Duration 2 minutes

Snoopze Duration 5 - 60 minutes
