Brand	Livarno Lux
Model	HG06099A
Product type	Outdoor solar decoration (decorative bird)
Power supply	Rechargeable Ni-MH battery 1.2 V / 300 mAh (2/3 AAA)
Light source	1 LED, max power 0.025 W
Protection rating	IP44 (protected against water splashes)
Lighting duration	Approximately 8 hours (fully charged battery)
Operating temperature	Down to -21 °C
Automatic operation	Automatic on at dusk, off at dawn
Package contents	1 solar decorative bird, 1 stand, 2 ground stakes, 1 locking screw, 3 hexagon head screws, 1 hex key, 1 tail, 1 manual
Installation	Ground fixation via ground stakes; solar panel orientation recommended facing south
Routine maintenance	Clean the solar panel with a dry cloth; avoid snow and ice
Battery replacement	Every 12 months; use a Ni-MH battery 1.2 V / 2/3 AAA
Minimum age of use	14 years (product not suitable for children)
Warranty	3 years from date of purchase
After-sales service France	Phone [phone], email [e-mail]
Repairability	LED not replaceable; entire product must be replaced if LED defective

Frequently Asked Questions - HG06099A Livarno Lux

How to turn on the solar decoration for the first time?

Set the ON/OFF switch to ON. Expose the solar panel to daylight to charge the battery. The light will turn on automatically at dusk.

Why doesn't the light turn on in the evening?

Check that the switch is set to ON. Make sure the solar panel was exposed to direct sunlight during the day. Avoid artificial light sources (streetlights) that can prevent the light from turning on. Clean the solar panel if necessary.

What type of rechargeable battery should I use to replace the original one?

Use a Ni-MH rechargeable battery of type 2/3 AAA, voltage 1.2 V, capacity 300 mAh. Observe the polarity indicated in the compartment.

How often should I replace the battery?

It is recommended to replace the battery every 12 months to ensure optimal power.

Can I use the solar decoration indoors?

No, this product is designed for outdoor use only. It may not work properly indoors due to insufficient sunlight.

What should I do if the light turns off shortly after dusk?

The battery may be damaged or the charge was insufficient. Replace the battery or install the product in a sunnier location.

How to clean and maintain the product?

Clean the solar panel regularly with a dry, lint-free cloth. For stubborn dirt, use a slightly damp cloth. In winter, remove snow and ice from the panel.

Can the LED be replaced?

No, the LED is not replaceable. If it reaches the end of its life, the entire product must be replaced.

What is the warranty period of this product?

The warranty is 3 years from the date of purchase. Keep the receipt as proof. The warranty covers material and manufacturing defects, but not normal wear (batteries) or damage due to improper use.

How to contact after-sales service in France?

You can contact after-sales service by phone at 0800904879 or by email at [e-mail].

USER MANUAL HG06099A Livarno Lux

Black-and-white collage of three ornamental bird sculptures: a large crane with wings, a small crane with wings, and a ferox, set against a garden background (no text or symbols)

SOLAR-DEKOVOGEL/ SOLAR DECORATIVE BIRD / OISEAU DÉCORATIF SOLAIRE

DE AT CH

SOLAR-DEKOVOGEL

DEKORACJA SOLARNA PTAK

Assembly, operating and safety instructions

NL BE

SOLAR-DECORATIEVOGEL

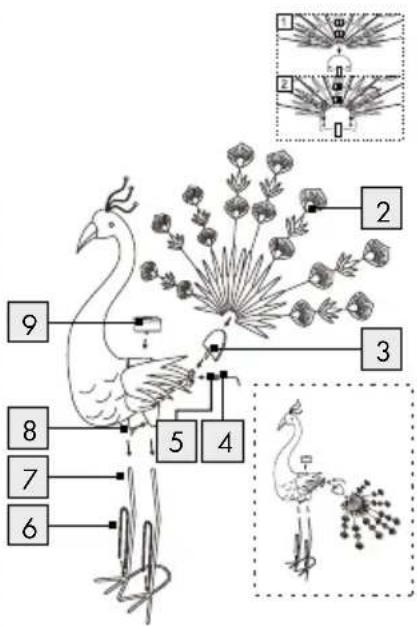

Diagram of a peacock with numbered parts and labeled parts, including an inset showing its structural components.

1 2 3 4 5 6 7 8 9 2

9 8 7 6 2

9 8 7 6

C

OFF ON 10 11

15 14 13 12

EXPLOSIONSGEFAHR! Laden

Description of parts and features......Page 13

Scope of delivery....Page 13

Technical data......Page 13

Safety instructions....Page 14

Product-specific safety instructions Page 14

Safety instructions for batteries / rechargeable batteries ......Page 14

Functioning......Page 15

Operation Page 15

Setting up the product....Page 15

Replacing the rechargeable battery Page 15

Charging the rechargeable battery....Page 16

Maintenance and care....Page 16

Troubleshooting Page 16

Disposal Page 16

Warranty Page 17

Warranty claim procedure......Page 17

Service Page 17

List of pictograms used
	Direct current/voltage
	Splash proof
	Suitable for outdoor use.
	1 x LED
	Not suitable for children under 14 years.
	Suitable for extreme temperatures up to -21 °C.

Solar decorative bird

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

• Proper use

The product is intended for outdoor use. The product is suitable for private household use. The product is not intended for commercial use or for use in other applications.

Not suitable for household room illumination.

This product is suitable for extreme temperatures up to -21 °C.

• Description of parts and features

1 Decoration figure
2 Tail (for model A, B and C)
3 Connector (for model A and B)
4 Hexagon key (for model A and B)
5 Hexagon screw (for model A and B)
6 Ground spike
7 Stand
8 Secure screw
9 Solar panel
10 Fastening screw
11 Battery compartment cover
12 LED
13 Battery compartment
14 Rechargeable battery
15 ON/OFF button

- Scope of delivery

1 LED Solar lamp with rechargeable battery
1 Connector (for model A and B)
1 Stand
2 Ground spikes
1 Secure screw
3 Hexagon screws (for model A and B)
1 Hexagon key (for model A and B)
1 Tail (for model A, B and C)
1 Assembly instruction

- Technical data

Operating voltage: 1.2V === Rechargeable battery: 1 x Ni-MH rechargeable battery / 2/3 AAA/ 1.2 V=== / 300 mAh

LED: 1 × LED

Power: max. 0.025 W

Degree of Protection: IP44 (splash proof)

Lighting time

(with full charge): approx. 8 hours

Safety instructions

PLEASE READ THE INSTRUCTIONS FOR USE PRIOR TO USE! PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE! IF PASSING THIS PRODUCT ON TO A THIRD PARTY ALSO INCLUDE ALL DOCUMENTS.

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children alone and unsupervised with the packaging material. There is always a risk of suffocation if children play with the packaging material. Children often underestimate risks. Always keep children away from the packaging material. This product is not a toy.

This product may be used by children age 14 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Children should not be allowed to play with the product. Cleaning and user maintenance should not be performed by children without supervision.
This product is not suitable for children under 14 years. This product is a decorative item, not a toy. The product must be set up outside the reach of children.
Do not use the product if you detect any kind of damage.
Always switch off the product, when storing it in dark environment, in order not to discharge the rechargeable battery.
The illuminant is not replaceable.
If the illuminant fails at the end of its life, the entire product must be replaced.

Product-specific safety instructions

Make sure that the solar panel is free of dirt and free of snow and ice in winter. Otherwise the performance of the solar cell will diminish.

Safety instructions for batteries/rechargeable batteries

■ DANGER TO LIFE! Keep batteries/re-chargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

■ Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit batter-

ies/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
  If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries / rechargeable batteries can cause

burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries / recharge able batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries / recharge-2. able batteries. Do not mix used and new batteries/rechargeable batteries.
■ Remove batteries / rechargeable batteries if the3. product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery / rechargeable battery!
Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Use a dry lint-free cloth or cotton swab to clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries/rechargeable batteries from the product immediately.

Functioning

The solar cell installed in the product converts sunlight into electrical energy and stores it in one rechargeable battery. Switch on the product with the ON/OFF button 15. The product will automatically light on as it begins to get dark. The in-built light-emitting diodes are a very long-life and energy-saving light source. The light duration depends on the amount of sunlight, the angle of light on the solar cell and the temperature (the battery capacity is temperature-dependent). A vertical angle of light at temperatures above the freezing point is ideal. The battery does not achieve maximum capacity until after several charge and discharge cycles. In summer a completely drained rechargeable battery takes about 2 to 4 days to fully recharge in constant sunlight.

Operation

1. Take out the solar panel compartment.

Switch the ON / OFF button 15 to ON position, the product will automatically switch on at dusk (see Fig. C).

Put the solar panel compartment back into decoration figure 1. Insert the tail 2 and stand 7 to the main body (see Fig. B).

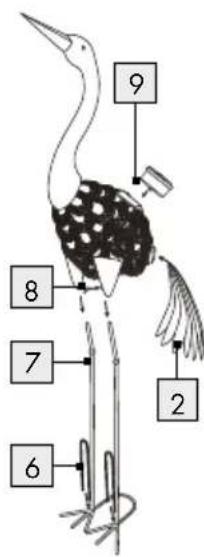

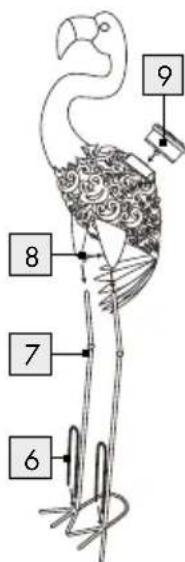

- Setting up the product (see Fig. B)

☐ Insert the stand to the Decoration figure 1 then use the secure screw 8 to fix it. Place the ground spike 6 over the top of the stand 7 then anchor ground spike 6 to the ground to fix it.

Model C:

☐ Insert the ☐ to the decoration figure 1.

Model A and B:

● Replacing the rechargeable battery (see Fig. C)

☐ Insert the ☐ to the connector 3, then use hexagon screws 5 by hexagon key 4 to fix it. After that, insert the connector 3 to the decoration figure 1 upward or downward and fix it with hexagon screw 5 too.
In order to achieve the best result, set the product up in a place where the solar panel 9 will get direct sunlight for as long as possible.
☐ Make sure that the solar panel is not influenced by any other source of light such as yard or street lighting as otherwise the light will not come on in twilight.
☐ The light automatically switches on in twilight conditions and off again when normal outdoor lighting conditions return.

The battery should be replaced every

12 months to ensure optimum performance.

1. Take out the solar panel compartment. If necessary, take a tool to help. Switch the ON / OFF button 15 to OFF position to switch off the product. Loosen the fastening screws 10 by using a small cross head screwdriver and then lever out the battery compartment cover 11 with the help of a slot screwdriver.
2. Exchange the old rechargeable battery ^14 to a new one. Take care to the correct polarity, when inserting the new rechargeable battery. The polarity is indicated in the battery compartment ^13 . The new rechargeable battery has to have the same technical data like the old one (see "Technical data").

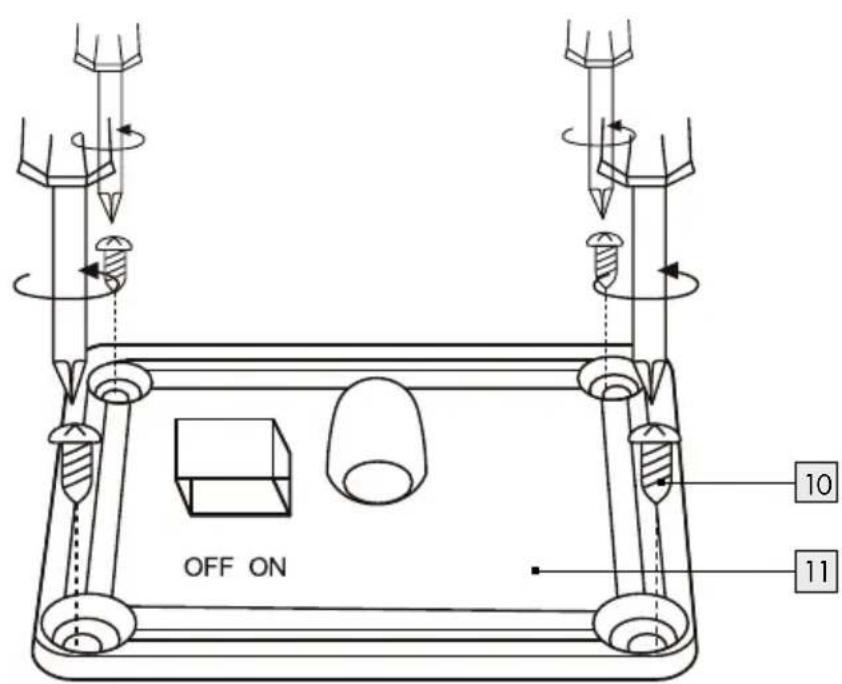

3. Now again fasten the battery compartment cover 11. Pay attention to the seal, otherwise the IP protection is not guaranteed. Fasten the fastening screws 10 by using a small cross head screwdriver. Switch the ON / OFF button 15 to ON position to enable the product switching on during darkness.

● Charging the rechargeable battery

Note that the product must be switched on when the rechargeable battery is charging. The charging time of the rechargeable battery when the solar cell is used depends on the intensity

of the sunlight and the angle of incidence of the light on the solar panel 9. Place the solar panel 9 as perpendicular as possible to the angle of incidence of the light. In this way you will receive the highest light levels.

● Maintenance and care

The LED 12 cannot be replaced. The product is maintenance-free, except for any necessary change of rechargeable battery.

☐ Clean the product regularly with a dry, lint-free cloth. Use a slightly dampened cloth to remove more stubborn dirt.

- Troubleshooting

Note: This product has delicate electronic components. This means that if it is placed near an object that transmits radio signals, it could cause interference. If you notice that the product is malfunctioning, remove any sources of interference from the area of the product.

Note: Electrostatic discharges may cause product to malfunction. In the event of such malfunctions, remove the rechargeable battery briefly and reinsert them.

Error Cause Solution
The light will not switch on even though the sun shone on the product all day.	Artificial sources of light, e.g. street lighting, are interfering with the product.	Set up the product in a place where it cannot be disturbed by other sources of light.
The light does not come on or comes on only briefly.	The rechargeable battery is broken or there was not enough daylight.	Replace the rechargeable battery or set up the product in a place where it can receive more sunlight.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Defective or exhausted rechargeable batteries must be recycled in accordance with Directive 2006 / 66 / EC and its amendments. Return the battery and / or the product through the appropriate collection facilities.

Improper disposal of rechargeable batteries can damage the environment!

Rechargeable batteries must not be disposed of with the household refuse. They may contain toxic heavy metals and require to be handled as special waste. The chemical symbols of heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

CE IP 44

Akumulator: 1 x akumulator

$$ \mathrm{Ni-MH} / 2 / 3 \mathrm{AAA} / $$

$$ 1, 2 \mathrm{V} = - / 3 0 0 \mathrm{mAh} $$

Diody LED: 1 x dioda LED

Moc: maks. 0,025 W

NOSTE OCHRANNÉ RUKA-

NOSTE OCHRANNÉ RUKA-

VICE! Vytečené alebo poškodené batérie/akumulátorové batérie

Model-No.: HG06099A, HG06099B,

HG06099C, HG06099D

Version: 04/2021
