TD 18001 - Stopwatch ADE - Free user manual and instructions

Product type	Digital kitchen timer / stopwatch
Brand	ADE
Model	TD 18001
Dimensions	Approx. 80 x 80 x 20 mm (estimated)
Weight	Approx. 100 g (with battery, estimated)
Power supply	1 CR2032 button cell battery, 3 V
Battery life	Several months depending on usage (auto-off after 1 minute of inactivity)
Main functions	Timer with programmable countdown up to 99 min 50 s, stopwatch, 1-minute audible alarm, touch start/stop, touch reset
Display	Digital screen with minutes and seconds
Adjustment	Rotary adjustment dial (clockwise and counterclockwise)
Mounting	Magnet on the back for attachment to metal surfaces (e.g., refrigerator)
Material	Plastic (estimated)
Available colors	White (TD 1800-1) and black (TD 1800-2)
Care and cleaning	Wipe with a soft, dry cloth; do not immerse, do not use harsh cleaners
Safety	Do not expose to moisture or shocks; keep batteries out of reach of children; do not open or modify the device
Spare parts / Repairability	No spare parts supplied; repairs only by a specialized workshop
Warranty	2 years (material or manufacturing defects) - handled by the retailer
Distributor	Waagen-Schmitt GmbH, Hammer Steindamm 27–29, 22089 Hamburg, Germany
Package contents	Timer, CR2032 battery (pre-installed with insulation), instruction manual

Frequently Asked Questions - TD 18001 ADE

How to set the timer on the TD 18001?

Make sure the display shows 00 (press reset if necessary). Turn the adjustment dial clockwise or counterclockwise to select the desired time (maximum 99 minutes and 50 seconds). Then press the touch start/stop field to start the countdown.

How to use the stopwatch function?

From the 00 display, press start/stop to start the stopwatch. Press again to stop or resume. To reset, first stop the stopwatch then briefly press reset.

What to do if the device does not turn on?

Check that the battery is correctly inserted (respect polarity +/-) and that it is not discharged. If necessary, remove the battery compartment cover and inspect the battery. Replace it with a new CR2032 (3 V) battery if needed.

How to change the battery of the ADE TD 18001 timer?

Remove the battery compartment cover on the back of the device. Remove the old battery by releasing it from the contact spring. Insert a new CR2032 (3 V) battery with the + pole facing up, pressing firmly. Replace the cover.

The beep does not stop after the timer, what to do?

After the time has elapsed, the beep sounds for one minute. You can stop it immediately by pressing start/stop or reset. If you do nothing, the beep stops automatically after one minute.

Is the timer waterproof?

No, the timer is not waterproof. Do not immerse it in water or any other liquid. Clean it only with a soft, dry or slightly damp cloth.

Can I attach the timer to the refrigerator?

Yes, the timer is equipped with magnets on the back that allow it to be attached to any metal surface, such as a refrigerator door. Be careful not to scratch the surface when sliding it.

What is the battery life?

The CR2032 battery lasts several months under normal use. The device turns off automatically after about one minute of inactivity to save energy. Replace the battery as soon as the device no longer turns on.

Is the ADE TD 18001 timer guaranteed?

Yes, the warranty is 2 years from the date of purchase, covering material and manufacturing defects. To activate it, keep the proof of purchase and contact your retailer.

What are the exact dimensions of the timer?

The exact dimensions are not specified in the manual. Based on photos and battery size, the timer is estimated to be about 80 mm in diameter and 20 mm thick.

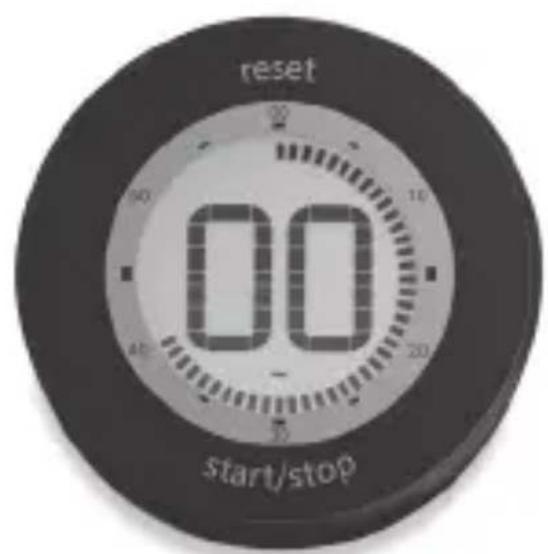

USER MANUAL TD 18001 ADE

reset 00 start/stop

reset 00 start/stop

Bedienungsanleitung

TD 1800-1 | TD 1800-2

Operating Manual | Manual de instrucciones | Mode d'emploi | Istruzioni per l'uso | Instrukcja obsługi

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Simple black lowercase 'i' inside a circle, no text or symbols present

22089 Hamburg, Germany

Recycling symbol composed of five arrows forming a triangle (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

You have chosen to purchase a high-quality product from the ADE brand, which combines intelligent functions with an exceptional design. This timer is a practical companion for the kitchen, bathroom, household, or hobby. The many years of experience of the ADE brand ensure a high technical standard and proven quality.

We wish you a lot of success with perfect time management!

Your ADE Team

General information

About this manual

Simple icon of a person using a laptop (no text or symbols)

This operating manual describes how to safely use and care for your products.

Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well. Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Pull the protective film off the display.

Explanation of symbols

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol, combined with the word DANGER, warns against serious injury.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol, combined with the word NOTE, warns against material damage.

Simple black information icon inside a circle (no text or symbols)

This symbol signifies additional information and general advice.

Table of Contents

General information ......23

Intended Use 26

Safety....26

Overview....30

Scope of Delivery 31

Start-up 31

Using the timer 33

Using the stopwatch function ....35

Switching off the timer 36

Cleaning....36

Fault and remedy 37

Technical Data....37

Declaration of Conformity....38

Warranty 39

Disposal 40

Intended Use

The digital timer is designed as a timer for private use.

Safety

- This item can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the item and understand the dangers that may arise.

- Children must not play with the item.

• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
• Batteries can be life-threatening. Therefore, keep batteries out of reach of small

children. If a battery has been swallowed or has entered the body in any other way, seek medical help immediately. Failure to do so within 2 hours may result in severe internal burns that could cause death.

DANGER for Children

- Keep children away from packaging material. Risk of choking if swallowed.

RISK of fire/burning and/or explosion

• There is a risk of explosion if batteries are replaced incorrectly. Replace batteries only with the same or equivalent battery type. Observe the “Technical Data”.
• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise there is an increased risk of explosion and leakage; furthermore, gases may escape!

- Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, rinse the affected areas right away with plenty of clean water and consult a doctor immediately.

BEWARE of material damage

• Protect the timer from strong shocks, vibrations, and moisture.
• Remove the battery from the unit when it is exhausted or when the alarm clock will not be used for a longer period of time. This prevents damage that may be caused by leakage.
• When inserting and changing batteries, pay attention to the correct polarity (+/-).

• Do not expose batteries to extreme conditions, for example, by storing them on radiators or under direct sunlight. Increased risk of leakage!

• Clean the battery and device contacts, as needed, before inserting the battery.

• Use only batteries of the same type.
• Do not make any changes to the item. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.

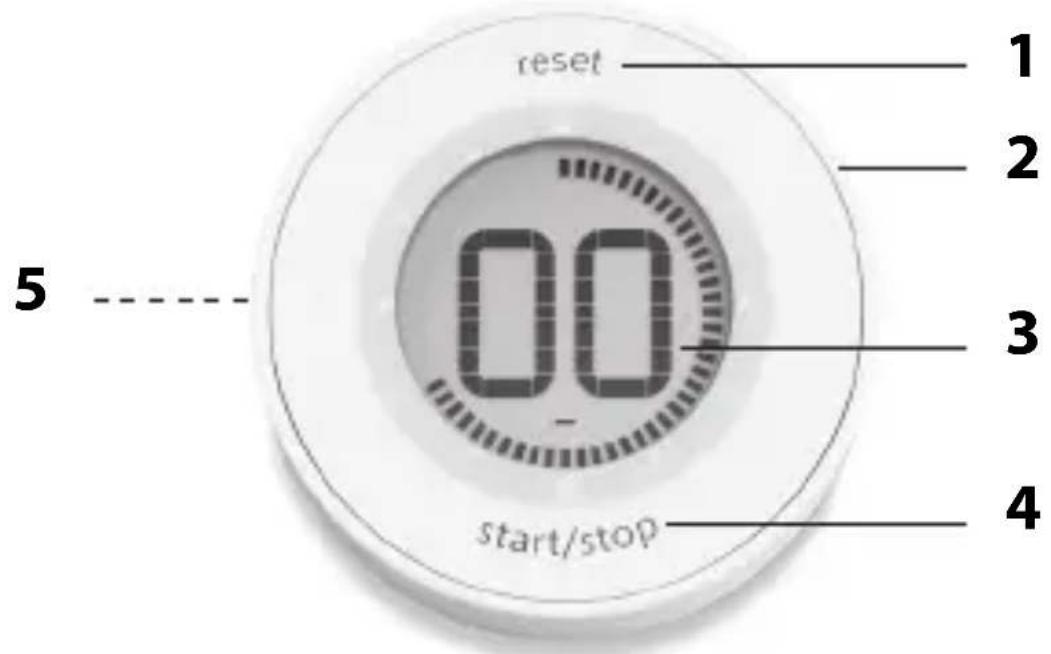

Overview

reset 1 2 3 4 start/stop 5

1 Sensor field reset
2 Setting ring
3 Display showing minutes and seconds
4 Sensor field start/stop
5 Battery compartment (reverse side)

Scope of Delivery

Timer
- Battery type CR2032, 3 V
- Operating Manual

Start-up

Removing iso-strips

When the scales are delivered, the battery is already inserted and fitted with iso-strips to prevent it from discharging ahead of time. In order to make the timer operational, you have to remove the iso-strip.

1. Remove the battery compartment cover and then remove the iso-strip.
2. Replace the battery compartment cover. As soon as the timer has been supplied with current, a bleep can be heard and "00" appears on the display.

Inserting/changing batteries

For use, you need a CR2032, 3V battery.

1. Remove the battery compartment cover and then remove the old battery.

2. Slide the new battery against the contact spring under the square retaining tabs and press them down.

Observe the correct polarity (+/-). The plus pole (+) must point upwards.

1. Replace the battery compartment cover. Notes on changing the battery:

- Be sure to change the battery if the display shows nothing after pressing start/stop.

- Only use the battery type specified in the "Technical Data".

- Dispose of old batteries in an environmentally friendly manner, see "Disposal".

Securing the timer

NOTE on material damage

Do not slide the timer over the surface as this could cause scratches.

- Attach the timer with the magnets on its back to a metallic surface, for example, a fridge door.

Using the timer

When timing, you start a countdown.

1. Press reset, if necessary, to set the display indication to "00".

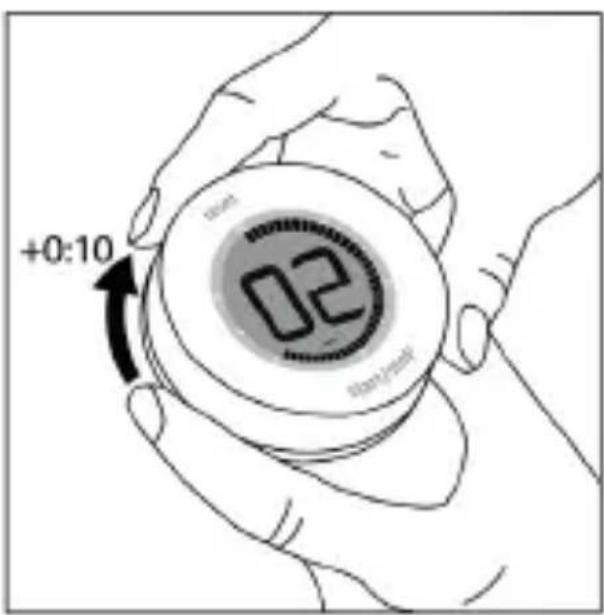

2. Use the setting ring to set the desired time. (max. settable time: 99 minutes and 50 seconds).

+0:10 02

-0:10

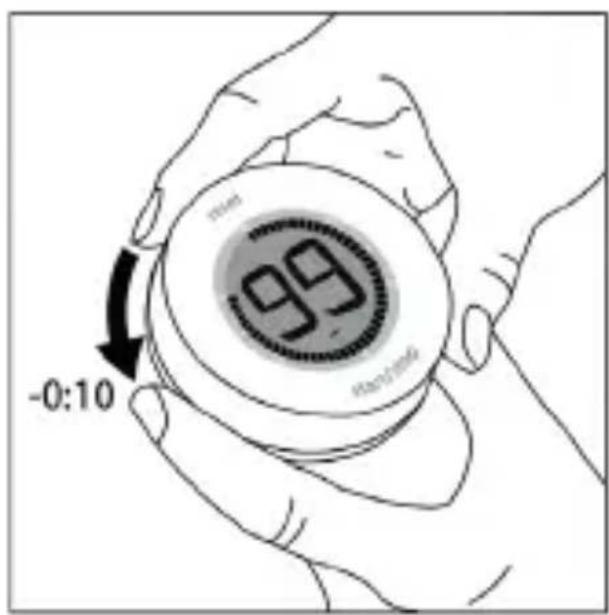

The setting ring can be turned counterclockwise or clockwise.

1. Press start/stop to start the countdown. When the set time has elapsed, beeps will sound for one minute.

2. Press start/stop or reset to interrupt beeps, or wait one minute for the beeps to stop automatically. When beeping auto stop is enabled, timing will not stop and will appear as + time on the display.

- The countdown can be interrupted and resumed using start/stop.

- Press reset briefly to reset the display to "00". In this case, the countdown must be stopped.

Using the stopwatch function

1. Press start/stop or reset to switch on the timer, if necessary (display indication is "00").
2. Press start/stop to start, interrupt, and resume the measurement.
3. Press start/stop and then press reset briefly to stop the measurement. The display will show "00" again.

Switching off the timer

1. Use start/stop to interrupt the current measurement, if necessary.
2. Press and hold down reset for approx. three seconds.

If the timer is not used for approx. one minute, it will switch off automatically to save the battery.

Cleaning

NOTE on material damage

Do not immerse the timer in water or other liquids. Do not use rough, scratching or abrasive cleaning agents.

-If necessary, remove dust with a soft, dry cloth, or wipe with a slightly damp cloth.

Fault and remedy

No function.

- Battery empty or inserted the wrong way around?

Technical Data

Model: Digital kitchen timer

TD 1800-1 (white)

TD 1800-2 (black)

Battery: 1x CR2032, 3 V

Rated current: 20 μA

Distributor (no service address):

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved. For this reason, design and technical modifications are possible at any time.

Declaration of Conformity

Waagen-Schmitt GmbH hereby declares that the digital kitchen timer TD 1800-1/1800-2 complies with EU directives 2014/53/EU and 2011/65/EU. The full text of the EU conformity declaration is available via the following Internet address: www.ade-germany.de/doc The declaration loses its validity if modifications have been made to the device without our approval.

Hamburg, March 2018

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Warranty

The company Waagen-Schmitt GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange. In the event of a warranty claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposing of the packaging

Recycling symbol composed of five arrows forming a triangle (no text or labels)

Dispose of the packaging with similar materials. Put cardboard with waste paper, foil with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Devices must not be disposed of in normal household waste.

At the end of its life, the product must be disposed of in an appropriate way.

In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Simple line drawing of a trash bin with crossed x-bracing (no text or symbols)

Recyclable and disposable batteries do not belong in household waste

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.

Simple icon of a person reading a document inside a circle (no text or symbols)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Simple black lowercase 'i' inside a circle, no text or symbols present

Recycling symbol composed of five arrows forming a triangle (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Simple line drawing of a trash bin with crossed x-bracing (no text or symbols)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

reset 1 2 3 4 5 00 start/stop

Recycling symbol composed of four chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Simple black lowercase 'i' inside a circle, no text or symbols present

reset 1 2 3 4 5 00 start/stop

Recycling symbol composed of five arrows forming a triangle (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Simple black lowercase 'i' inside a circle, no text or symbols present

Recycling symbol composed of five arrows forming a triangle (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)
