Product type	Microwave oven with grill
Brand	AEG
Model	KMK525860M
Dimensions (H × W × D) front	455 × 595 × 567 mm
Built-in dimensions (H × W × D)	444 (460) × 560 × 546 mm
Turntable capacity	Up to 4 kg
Microwave power	100 to 1000 W
Cooking functions	Microwave, Grill, High/low grill intensity, Assisted cooking, Defrost, Reheat, Popcorn, Melt
Installation type	Built-in
Power supply	230 V, 50 Hz
Cavity material	Enamel
Control type	Retractable knobs and touch buttons
Display	Digital with indicators
Interior light	Yes (class G bulb)
Child safety	Key lock (Lock keys)
Automatic shut-off	Yes, depending on temperature
Included accessories	Glass turntable, wire rack, roller ring
Maintenance and cleaning	Regular cleaning with a soft cloth and mild detergent; do not use steam cleaners or abrasives
Spare parts	Use only original spare parts; contact authorized after-sales service
Warranty	Refer to the warranty conditions provided

Frequently Asked Questions - KMK525860M AEG

How to set the time on the AEG KMK525860M oven?

To set the time, access the menu (key ≡), select Settings then Current time. Turn the knob to adjust the time and press OK to confirm.

How to use the microwave function?

Turn the cooking modes knob to select Microwave. Press OK to start with default settings. You can adjust the duration and power (WATT key) during cooking. Maximum duration depends on power: 59 min 55 s for 100-600 W, 7 min for over 600 W.

How to clean the oven?

Clean the cavity after each use with a soft damp cloth and mild detergent. Do not use steam cleaners or abrasive products. Accessories (turntable, wire rack) wash by hand with warm water and mild detergent; do not put them in the dishwasher. Dry the cavity well after cleaning.

What to do if the oven does not heat?

Check that the oven is properly turned on and that automatic shut-off is not activated. Ensure the fuse has not tripped and that the key lock is disabled. If the problem persists, contact an authorized service center.

Can I use metal containers in this oven?

No, never heat food or drinks in metal containers with the microwave function, unless the manufacturer explicitly states they are suitable. For the grill, metal dishes can be used with caution.

How to activate child lock?

Hold down the Lock key until a beep sounds. The icon flashes 3 times to confirm. To deactivate, hold down the same key again.

What is the maximum microwave cooking time?

The maximum duration depends on selected power: for power 100 to 600 W, it is 59 minutes and 55 seconds; for power over 600 W, it is 7 minutes.

How to defrost food?

Use the Defrost mode (power 100-200 W). Place unpackaged frozen food on an inverted plate or a rack so that water drains. Turn or stir halfway through. Do not defrost in metal containers.

What to do in case of an error code on the display?

If an error code appears, try resetting the oven by turning off and then on the house fuse. If the code persists, contact an authorized service center. Common codes are listed in the manual.

How to use assisted cooking?

Press the ≡ key to access the menu, select Assisted cooking then the desired dish (e.g., P1 for chicken). Place food in the oven and confirm with OK. The oven automatically applies the recommended settings.

USER MANUAL KMK525860M AEG

KME525860M KMK525860M

Simple line drawing of a cabinet or oven with no text or symbols

VOOR PERFECTE RESULTATEN

1. PROBLEEMOPLOSSING......25

Line drawing of a circular metal tray with four legs and a central grille (no text or symbols)

4. HET IN- EN UITSCHAKELEN VAN DE OVEN

88:88:8888° h:min:s watt DEMO STOP START STOP

12. PROBLEEMOPLOSSING

WAARSCHUWING!

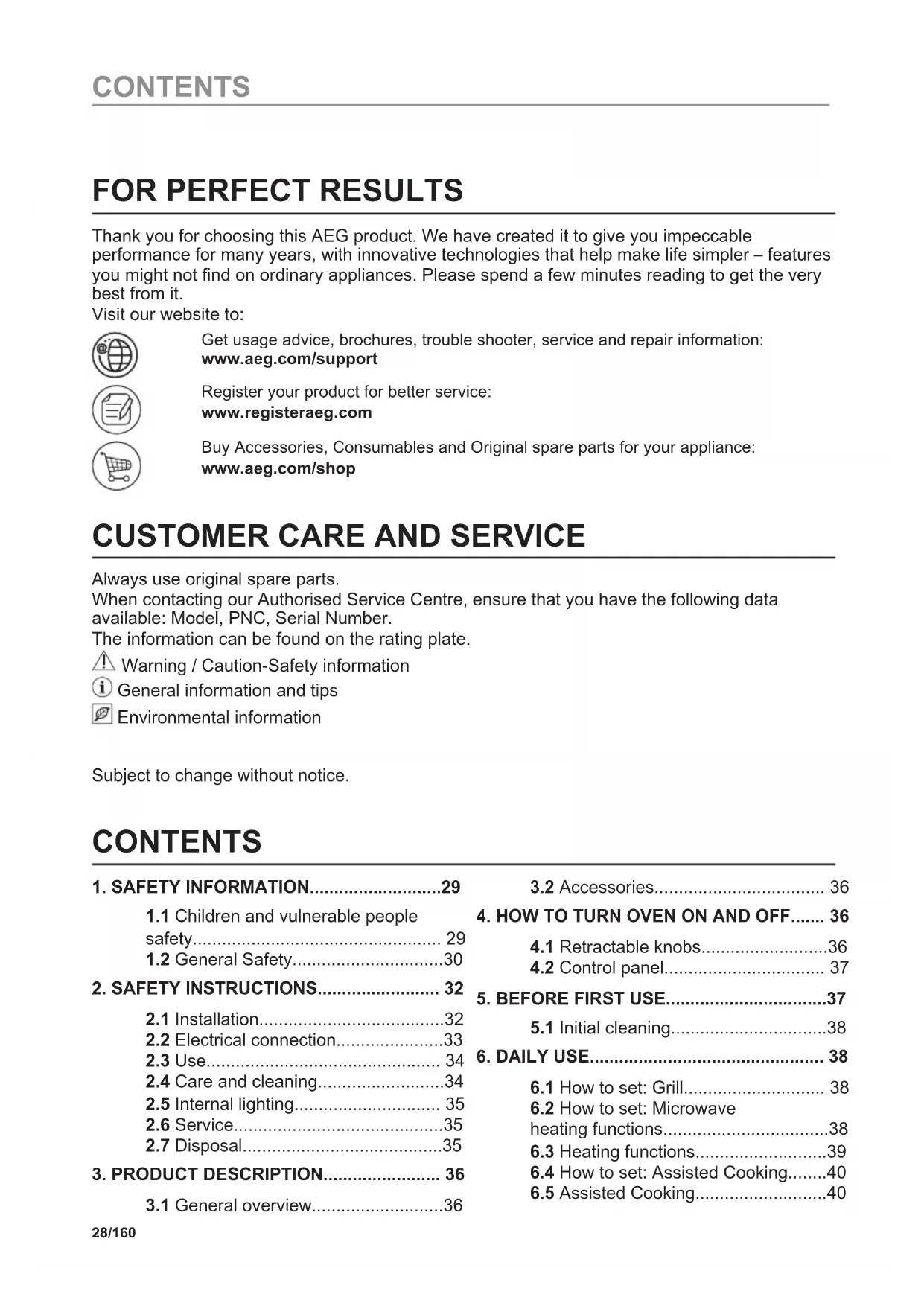

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......29

1.1 Children and vulnerable people safety.... 29

1.2 General Safety......30

2. SAFETY INSTRUCTIONS.... 32

2.1 Installation....32

2.2 Electrical connection....33

2.3 Use.... 34

2.4 Care and cleaning....34

2.5 Internal lighting.... 35

2.6 Service....35

2.7 Disposal....35

3. PRODUCT DESCRIPTION...... 36

3.1 General overview......36

3.2 Accessories.... 36

4. HOW TO TURN OVEN ON AND OFF...... 36

4.1 Retractable knobs....36

4.2 Control panel.... 37

5. BEFORE FIRST USE......37

5.1 Initial cleaning....38

6. DAILY USE...... 38

6.1 How to set: Grill.... 38

6.2 How to set: Microwave heating functions....38

6.3 Heating functions....39

6.4 How to set: Assisted Cooking.....40

6.5 Assisted Cooking.....40

1. CLOCK FUNCTIONS......42

7.1 Clock functions...... 42

7.2 How to set: Clock functions...... 42

1. HOW TO USE: ACCESSORIES......44

8.1 Inserting accessories......44

1. ADDITIONAL FUNCTIONS...... 45

9.1 Lock.... 45

9.2 Automatic switch-off.....45

9.3 Cooling fan....45

1. HINTS AND TIPS......45

10.1 Microwave recommendations .....45

10.2 Microwave suitable cookware and materials 46

10.3 Recommended power settings for different kinds of food.... 47

10.4 Cooking tables for test institutes..48

1. CARE AND CLEANING....49

11.1 Notes on cleaning....49

1. TROUBLESHOOTING....50

12.1 What to do if....50

12.2 Service data....51

1. ENERGY EFFICIENCY....51

13.1 Energy saving....51

1. MENU STRUCTURE....52

14.1 Menu....52

1. ENVIRONMENTAL CONCERNS......52

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

- Children should be supervised to ensure that they do not play with the appliance.

- Keep all packaging away from children and dispose of it appropriately.

• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

- This appliance is for cooking purposes only.

- This appliance is designed for single household domestic use in an indoor environment.

- This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

- Only a qualified person must install this appliance and replace the cable.

- Do not use the appliance before installing it in the built-in structure.

- Disconnect the appliance from the power supply before carrying out any maintenance.

- If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

- WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• Always use oven gloves to remove or insert accessories or ovenware.

- Use only the turntable and the turntable support designed for this appliance.

- Do not activate the microwave function when the appliance is empty. Metal parts inside the cavity can create electric arcing.

- Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.

- WARNING: If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a qualified person.

- WARNING: Only a qualified person can carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- WARNING: Do not heat liquids and other foods in sealed containers. They are liable to explode.

- Use only utensils that are suitable for use in microwave ovens.

- When heating food in plastic or paper containers, observe the appliance due to the possibility of ignition.

- The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

- If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

- Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handling the container.

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

- Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended.

• The appliance should be cleaned regularly and any food deposits removed.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
  • Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the oven door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.
• The built-in unit must meet the stability requirements of DIN 68930.

Cabinet minimum height (Cabinet under the work-top minimum height)	444 (460) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the appliance 455 mm
Height of the back of the appliance 440 mm
Width of the front of the appliance 595 mm
Width of the back of the appliance 559 mm
Depth of the appliance 567 mm
Built in depth of the appliance 546 mm
Depth with open door 882 mm
Ventilation opening minimum size. Opening placed on the bottom rear side	560x20 mm
Mains supply cable length. Cable is placed in the right corner of the back side	1500 mm
Mounting screws 3.5x25 mm

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• This appliance is supplied with a main plug and a main cable.

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not use microwave function to preheat the oven.

WARNING!

Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:
  – do not put aluminium foil directly on the bottom of cavity of the appliance.
  – do not put water directly into the hot appliance.
  – do not keep moist dishes and food in the appliance after you finish the cooking.
  – be careful when you remove or install the accessories.
• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.
  • Always cook with the appliance door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.

• Be careful when you remove the door from the appliance. The door is heavy!

• Make sure the cavity, the turntable and the door are wiped dry after each use. Steam produced during the operation of the appliance condensates on cavity walls and can cause corrosion.

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Fat and food remaining in the appliance can cause fire and electric arcing when the microwave function operates.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instructions on its packaging.

2.5 Internal lighting

WARNING!

Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
• This product contains a light source of energy efficiency class G.
• Use only lamps with the same specifications.

2.6 Service

• To repair the appliance contact the Authorised Service Centre.
- Use original spare parts only.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance.

3. PRODUCT DESCRIPTION

3.1 General overview

1 43 5 6 7 8

Control panel
Knob for the heating functions
Display
Control knob
Heating element
Microwave generator
Lamp
Turntable shaft

3.2 Accessories

Turntable set

To prepare food.

Grill rack set

To grill.

≤ 4 kg

Line drawing of a circular metal table with four legs and a central oval opening (no text or symbols)

4. HOW TO TURN OVEN ON AND OFF

4.1 Retractable knobs

To use the appliance press the knob. The knob comes out.

4.2 Control panel

Control panel sensor fields Press Turn the knob
			WATT	OK
Timer Lock Light			Microwave power	Confirm setting
Select a heating function to turn on the oven.
Turn the knob for the heating functions to the off position to turn the oven off.

12:34

88:88:8800 h: min:s watt g STOP START STOP DEMO

Display indicators:	Lock	Assisted Cooking	[25W6]Settings
Timer indicators:		STOP		#

Progress bar - for temperature or time. The bar is fully red when the oven reaches the set temperature.

5. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

5.1 Initial cleaning

Before first use clean the empty oven and set the time:
			00:00Set the time. Press OK

6. DAILY USE

WARNING!

Refer to Safety chapters.

6.1 How to set: Grill

Start cooking
Step 1 Step 2
Select the function: Grill.	Press OK

6.2 How to set: Microwave heating functions

Step 1	Select a microwave heating function and press: OK to start with default settings. The display shows: duration and microwave power.
Step 2 Turn	the knob for the heating functions to the off position to turn off the oven.
You can adjust settings while cooking.Turn the control knob to adjust duration. Press: OKPress WATT and turn the control knob to adjust microwave power. Press: OK

The maximum time of microwave functions depends on microwave power you set:

MICROWAVE POWER MAXIMUM TIME
100 - 600 W 59:55 minutes
More than 600 W 7 minutes

If you open the door, the microwave function stops. To start it again, close the door. Press OK

6.3 Heating functions

Standard heating functions

Heating function Application
Liquid	Heating up drinks and soups, power range: 800 - 1000 W
Reheat	Heating up pre-prepared meals and delicate food, power range: 300 - 700 W
Defrost	Defrosting meat, fish, cakes, power range: 100 - 200 W
Melting	Melting chocolate and butter, power range: 100 - 400 W
Popcorn	Preparing popcorn, power range: 700 - 1000 W
Grill	To grill thin pieces of food and to toast bread.
Grill High	To cook food in short time and brown it with high grill intensity. Power range: 100 - 500 W.
Grill Low	To cook food in short time and brown it with low grill intensity. For casser-oles such as potato gratin, lasagne. Power range: 100 - 500 W.
Microwave	Heating up, cooking, power range: 100 - 1000 W
Menu	To enter the Menu: Assisted Cooking, Settings.

6.4 How to set: Assisted Cooking

Every dish in this submenu has a recommended function. You can adjust the time during cooking.

Assisted Cooking - use it to prepare a dish quickly with default settings:
Step 1 Step 2 Step 3 Step 4
≡	✕	P1 - P12	OK
Enter the menu. Select Assisted Cooking. Press OK		Select the dish. Press OK.	Insert the dish to the oven. Confirm setting.

6.5 Assisted Cooking

Legend
[032K]	Function with microwave power. Use microwave safe accessory.
	Shelf level.

Dish	Weight Shelf level	/ Accessory Duration		time
Poultry [TW04]
P1 Whole chick-en		1,1 kg	[IMAGE]ow wire rack; ceramic or glasscasserole dishUse your favourite spices.	35 min
P2 Chicken, two halves		0,6 - 0,7 kg per half
Fish [4335]
P3 Whole fish 0,6 kg			[IMAGE]turntable glass plate; ceramic orglass casserole dishCover the food with a microwave safe lidwith some holes.	7 min
P4 Fish fillet 0,5 kg; 150		g per fillet	[IMAGE]turntable glass plate; ceramic orglass casserole dishCover the food with a microwave safe lidwith some holes.	4 min
Vegetable / Side dishes
P5 Broccoli 0,5 kg			[IMAGE]turntable glass plate; ceramic orglass casserole dishAdd 50 ml of water. Cover the food with amicrowave safe lid with some holes.	8 min
P6 Cauliflower 0,5 kg 8 min
P7 Cauliflower,frozen		0,5 kg 12 min
P8 Peas, frozen 0,5 kg 10 min
P9 Potatoes intheir jacket		0,5 kg 10 min
P10 Rice 0,2 kg			[IMAGE]turntable glass plate; ceramic orglass casserole dishAdd 400 ml of water. Cover the food witha microwave safe lid with some holes.	12 min
Gratins [IMAGE]
P11	Potato gratin (raw potatoes)	1,1 kg		37 min
P12	Lasagna with dry noodle plates	1 - 1,5 kg 35

7. CLOCK FUNCTIONS

7.1 Clock functions

Clock Function Application
	Minute minder. When the timer ends, the signal sounds.
[59:40]	Cooking time. When the timer ends, the signal sounds and the heating function stops.
	Time Delay. To postpone the start and / or end of cooking.
	Uptimer. Maximum is 23 h 59 min. This function has no effect on the operation of the oven.To turn on and off the Uptimer select: Menu, Settings.

7.2 How to set: Clock functions

How to set: Time of day
Step 1 Step 2 Step 3
To change the time of day enter the menu and select Settings, Time of day.	Set the clock.	Press: OK

How to set: Minute minder
Step 1	The display shows: 0:00	Step 2 Step 3
Press: ☑		Set the Minute minder	Press: OK
i Timer starts counting down immediately.
This function is available only for: Grill, Grill Low, Grill High.

How to set: Cooking time
Step 1 Step 2		The display shows:0:00STOP	Step 3 Step 4
Choose a heating function and set the temperature.	Press repeated-ly: [IMAGE]		Set the cooking time.	Press: OK
i Timer starts counting down immediately.
This function is available only for: Grill, Grill Low, Grill High.
How to set: Time Delay
Step 1 Step 2		The display shows: the time of day START	Step 3 Step 4		The display shows: STOP	Step 5 Step 6
Select the heating function.	Press repeatedly: ☑.		Set the start time.	Press: OK.		Set the end time.	Press: OK.
i Timer starts counting down at a set start time.
This function is available only for: Grill.

8. HOW TO USE: ACCESSORIES

8.1 Inserting accessories

Use only suitable cookware and material. Refer to "Hints and tips" chapter, Microwave suitable cookware and materials.

Turntable set:

Always cook food on the turntable set.

Place the roller guide around the turntable shaft. Place the turntable glass on the roller guide.

Use only the turntable set supplied with the oven.

Concentric circular lines diagram with a small central symbol, no text or labels present

Simple line drawing of a coiled pipe with two ends and a central dashed line (no text or symbols)

Grill rack set:

Place the grill rack with the silicon caps down on the turntable set.

Line drawing of a circular outdoor stall with a metal grate and wheels (no text or symbols)

9. ADDITIONAL FUNCTIONS

9.1 Lock

This function prevents an accidental change of the oven function.
Turn it on when the oven works - the set cooking continues, the control panel is locked.Turn it on when the oven is off - the oven cannot be turned on, the control panel is locked.
	- press and hold to turn on the function.A signal sounds.	- press and hold to turn it off.
i 3 xflashes when the lock is turned on.

9.2 Automatic switch-off

For safety reasons the oven turns off after some time, if a heating function works and you do not change any settings.

(°C) (h)
30 - 115 12.5
120 - 195 8.5
200 - 230 5.5

The Automatic switch-off does not work with the functions: Light, Time Delay.

9.3 Cooling fan

When the oven operates, the cooling fan turns on automatically to keep the surfaces of the oven cool. If you turn off the oven, the cooling fan can continue to operate until the oven cools down.

10. HINTS AND TIPS

10.1 Microwave recommendations

i Let's cook!

Do not place the food directly on the turntable. Always use the microwave suitable cookware.

Place the cookware in the middle of the turntable.

Contact with too hot or too cold items can break the turntable.

Turn or stir the food halfway through the defrosting and cooking time.

Stir liquid dishes from time to time.

Stir the food before serving.

Cover the food for cooking and reheating.

Put the spoon to the bottle or glass when heating drinks to ensure better heat distribution.

Put the food into the oven without packaging. The packaged ready meals can be put into the oven only when the packaging is microwave safe (check information on the packaging).

Microwave cooking

Cook food covered. If you want to keep a crust cook food without a cover.

Do not overcook the dishes by setting the power and time too high. The food can dry out, burn or cause fire.

Do not use the oven to cook eggs or snails in their shells, because they can burst. Pierce the yolk of fried egg before reheating it.

Pierce food with skin or peel several times before cooking.

Cut vegetables into similar-sized pieces.

After you turn off the oven, take the food out and let it stand for a few minutes to allow the heat distribute evenly.

Microwave defrosting

Put the frozen, unwrapped food on a small upturned plate with a container below it, or on a defrosting rack or plastic sieve so that the defrosting liquid can leak out.

Remove defrosted pieces subsequently.

To cook fruit and vegetables without defrosting them first, you can use a higher microwave power.

10.2 Microwave suitable cookware and materials

For the microwave use only suitable cookware and materials. Use below table as a reference. Check the cookware / material specification before use.

Cookware / Material
Ovenproof glass and porcelain with no metal components, e.g. heat-proof glass	√	√	√	√
Non-ovenproof glass and porcelain without any silver, gold, platinum or other metal decorations	√	XXX
Glass and glass ceramic made of ovenproof / frost-proof material	√	√	√	√
Ceramic and earthenware without any quartz or metal components and glazes which contain metal	✓	✓	X	X
Ceramic, porcelain and earth-enware with unglazed bottom or with small holes, e.g. on handles	XXXX
Heat-resistant plastic up to 200 °C	✓	✓	X	X
Cardboard, paper XXX	✓
Microwave clingfilm XXX	✓
Roasting film with microwave safe closure	✓	✓	X	X
Roasting dishes made of metal, e.g. enamel, cast iron	XXX		✓
Baking tins, black lacquer or silicon-coated	XXX		✓
Cookware for microwave use, e.g. crisp pan	XXX	✓
Grill rack set XX			✓	✓

10.3 Recommended power settings for different kinds of food

The data in the table is for guidance only.

800 - 1000 W
Searing at the start of the cooking process Heating liquids

500 - 700 W
Cooking vegeta-bles	Cooking egg dishes	Simmering stews	Heating one-plate meals	Defrosting and heating frozen meals

300 - 400 W
Melting cheese,chocolate, butter	Simmering rice	Heating babyfood	Cooking / Heatingdelicate food	Continuingcooking

100 - 200 W
Defrosting bread	Defrosting fruit and cakes	Defrosting cheese, cream, butter	Defrosting meat, fish

10.4 Cooking tables for test institutes

Information for test institutes

Tests according to IEC 60705.

MICROWAVE FUNCTION	(W)	(kg)		(min)
Sponge cake 600 0.475 Turntable			set	5 - 7 -
Meatloaf 500 0.9 Turntable			set	18 - 20 -
Egg custard 500 1 Turntable			set	15 - 17 -
Meat defrosting 200 0.5 Turntable			set	8 - 9 -

Use the function: Microwave grilling.Use the low grill rack.
MICROWAVE COMBI FUNCTION	(W) Grill intensity level		(min)
Potato gratin, 1.1 kg 300 low 30 - 35 -
Chicken, 1.1 kg 300 high 30 - 35 Put the meat in				round glass con-tainer.

11. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

11.1 Notes on cleaning

Cleaning Agents

Clean the front of the oven with a soft cloth with warm water and a mild detergent.

Use a cleaning solution to clean metal surfaces.

Clean stains with a mild detergent.

Everyday Use

Clean the cavity after each use. Fat accumulation or other residue may cause fire.

Clean the oven ceiling carefully from residue and fat.

Do not store the food in the oven for longer than 20 minutes. Dry the cavity with a soft cloth after each use.

Accessories

Clean all accessories after each use and let them dry. Before cleaning, wait until the turntable is cold. There is a risk that the turntable can break. Use a soft cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.

Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

12. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

12.1 What to do if...

In any cases not included in this table please contact with an Authorised Service Centre.

The oven does not turn on or does not heat up

Problem Check if...
You cannot activate or operate the oven. The oven is correctly connected to an electrical supply.
The oven does not heat up. The automatic switch-off is deactivated.
The oven does not heat up. The fuse is not blown.
The oven does not heat up. The Lock is off.

Components

Problem Check if...
Components
The lamp does not work. The lamp is burnt out.	Contact an Authorised Service Centre.
The turntable set makes noise. There is food residue below the turntable set.

Error codes
The display shows... Check if...
00:00 There was a power cut. Set the time of day.
If the display shows an error code that is not in this table turn the house fuse off and on to restart the oven. If the error code recurs contact an Authorised Service Centre.

12.2 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the oven cavity. Do not remove the rating plate from the oven cavity.

We recommend that you write the data here:
Model (MOD.)
Product number (PNC)
Serial number (S.N.)

13. ENERGY EFFICIENCY

13.1 Energy saving

Make sure that the oven door is closed when the oven operates. Do not open the oven door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

When possible, do not preheat the oven before cooking.

Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with the lamp off

Turn off the lamp during cooking. Turn it on only when you need it.

14. MENU STRUCTURE

14.1 Menu

三 - select to enter the Menu.

Menu structure
Assisted Cooking ✗	Settings 🔊

Step 1 Step 2	Step 3 Step 4 Step 5
Select the Menu, Settings.	Confirm setting.	Select the setting.	Confirm setting.

Settings
O1 Time of day Change O2 Display brightness 1 - 5
O3 Key tones 1 - Beep	2 - Click3 - Sound off	O4 Buzzer volume 1 - 4
O5 Uptimer On / Off O6 Light On / Off
O7 Demo mode Activation	code: 2468	O8 S	Software version Check
O9 Reset all settings Yes / No

15. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic

appliances. Do not dispose of appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

POUR DES RÉSULTATS PARFAITS

2.1 Installation....58

Ensemble Plateau tournant

Line drawing of a circular metal tray with four legs and a central slot, no text or symbols present

4. COMMENT ALLUMER ET ÉTEINDRE LE FOUR

88:88°:8888° h:min:s watt STOP START STOP DEMO

Ensemble Plateau tournant:

Concentric circular diagram with a small curved symbol at the center (no text or labels)

Simple line drawing of a coiled tube or pipe with two ends and a central dashed line (no text or symbols)

Ensemble gril:

Line drawing of a circular metal grate with a central water level and wheels (no text or symbols)

9. FONCTIONS SUPPLÉMENTAIRES

9.1 Touches Verrouil.

Line drawing of a circular metal tray with four legs and a central oval opening, no text or symbols present.

88:00:0000 h:min:s watt DEMO STOP START STOP

Line drawing of a circular metal tray with four legs and a central slot, no text or symbols present

4. COME ACCENDERE E SPEGNERE IL FORNO

4.1 Manopola incassabile

88:88:8888° h:min:s watt STOP START STOP ≡ ≡ DEMO

Line drawing of a circular metal tray with four legs and a central handle, no text or symbols present

4. CÓMO ENCENDER Y APAGAR EL HORNO

4.1 Mandos escamoteables

88:88°:8800° h:min:s watt g DEMO STOP START STOP = 0.5mm STOP START STOP = 0.5mm W=0.5mm

Concentric circular lines diagram with a small central symbol, no text or labels present

Line drawing of a circular outdoor stall with a metal grate and wheels (no text or symbols)

Rejilla para grill:
