Product Type	Sonic Electric Toothbrush
Brand	Philips
Model	Sonicare HX7553
Brushing Technology	Sonic (vibratory movements)
Battery Life	Approximately 2 weeks (2 minutes twice a day)
Initial Charge Time	24 hours minimum
Power Supply	Rechargeable Ni-Cd batteries, corded mains charger
Easy-start Function	Gradual power increase over 14 uses
Smartimer	Automatic shut-off after 2 minutes of brushing
Quadpacer	30-second interval timer (programmable: 2 min, 2.5 min, or off)
Two-Speed Control	Normal (optimal) and Reduced (gentle)
Charge Indicator	Green (level) and flashing yellow (low, less than 3 cycles left)
Brush Head	Replaceable, recommended every 6 months
Tightening Ring	Removable for cleaning
Travel Cap	Included
Handle Cleaning	Washable with soapy water or dishwasher (top rack, without head or charger)
Charger Cleaning	Unplug, clean with damp cloth, dry completely
Medical Precautions	Consult a dentist after recent oral surgery or if bleeding persists
Warranty	International Philips warranty (see leaflet)
Consumer Service (North America)	1 800 682-7664, www.sonicare.com
Battery Recycling	Ni-Cd batteries recyclable (follow removal instructions)

Frequently Asked Questions - Sonicare HX7553 PHILIPS

How to charge the Sonicare HX7553 toothbrush?

Place the handle on the plugged-in charger. The first charge must last at least 24 hours. Then, keep the handle on the charger for continuous charging.

What is the Easy-start function and how to disable it?

Easy-start gradually increases power over the first 14 uses. To disable it, place the handle on the plugged-in charger and hold the power button for 5 seconds until you hear a beep.

How to program the Quadpacer timer?

Place the handle on the charger, briefly press the two-speed control button, then hold it down. Release when the indicator corresponding to the desired duration (2 min, 2.5 min, or off) lights up.

Why does the brush head click?

The clicking may be due to a loose tightening ring. Tighten the ring by turning it clockwise. If the noise persists, replace the brush head.

What does the flashing yellow indicator mean?

The flashing yellow indicator means the battery is low and there are less than 3 brushing cycles (2 minutes each) left. Recharge immediately for at least 24 hours.

How to clean the Sonicare HX7553 toothbrush?

Rinse the brush head after each use. Clean the head and tightening ring weekly. The handle can be washed in the dishwasher (top rack, without head or charger). The charger must be unplugged and cleaned with a damp cloth.

When should I replace the brush head?

It is recommended to replace the brush head every 6 months, or sooner if the bristles are crushed or bent.

Can I use the toothbrush after dental surgery?

Consult your dentist before using this product if you have had oral or gum surgery within the last 2 months.

What to do if the toothbrush does not work?

Check that the battery is charged (at least 24 hours). Ensure the power outlet works and the handle is properly seated on the charger. If the problem persists, tighten the tightening ring or replace the brush head.

How to change the brushing speed?

During brushing, press the two-speed control button. A double beep indicates the change. The normal speed is recommended for optimal results; the reduced speed provides gentler brushing.

USER MANUAL Sonicare HX7553 PHILIPS

the sonic toothbrush

PHILIPS

ENGLISH 4

FRANÇAIS 17

ESPAÑOL 31

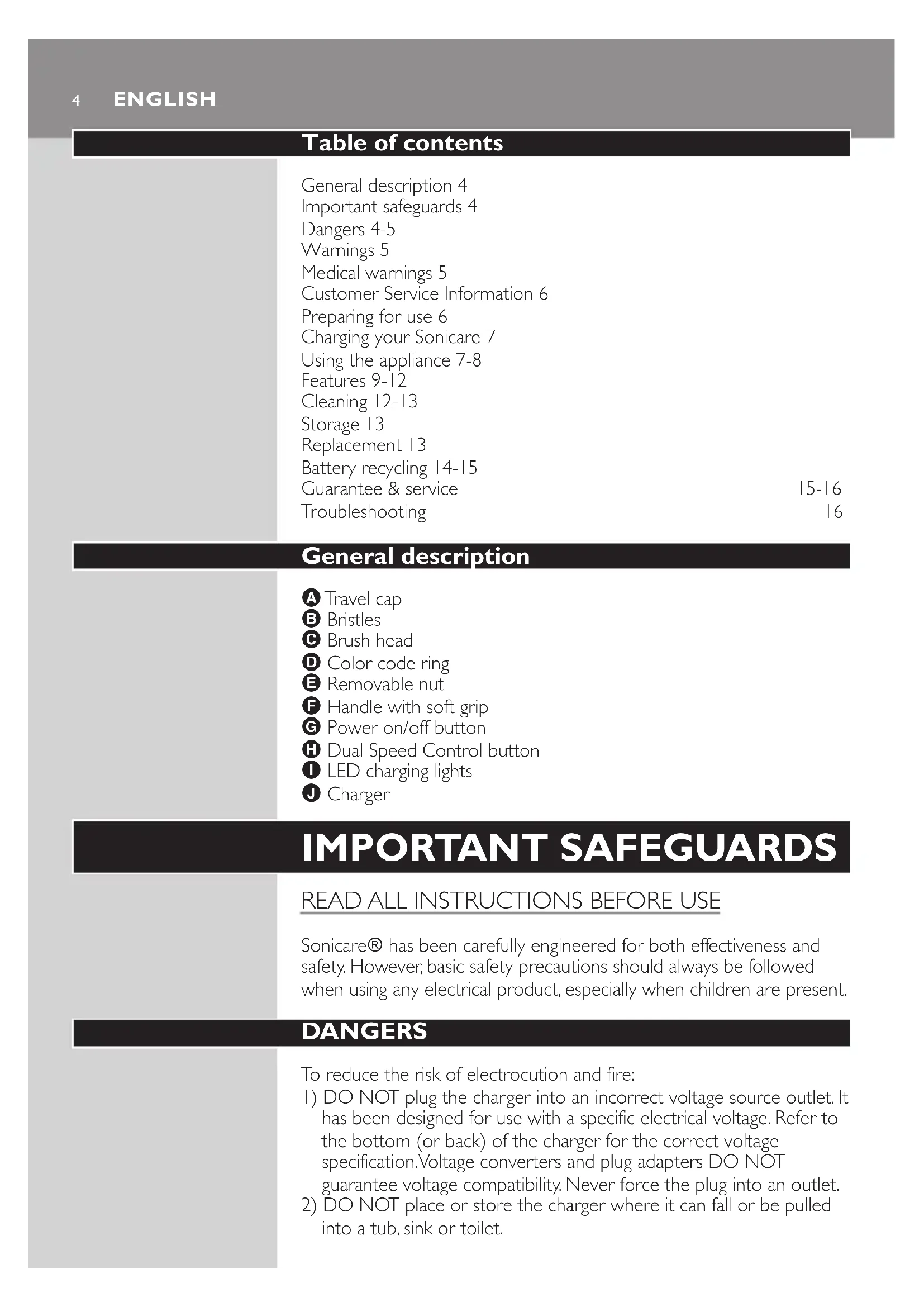

Table of contents

General description 4

Important safeguards 4

Dangers 4-5

Warnings 5

Medical warnings 5

Customer Service Information 6

Preparing for use 6

Charging your Sonicare 7

Using the appliance 7-8

Features 9-12

Cleaning 12-13

Storage 13

Replacement 13

Battery recycling 14-15

Guarantee & service

Troubleshooting

15-16

16

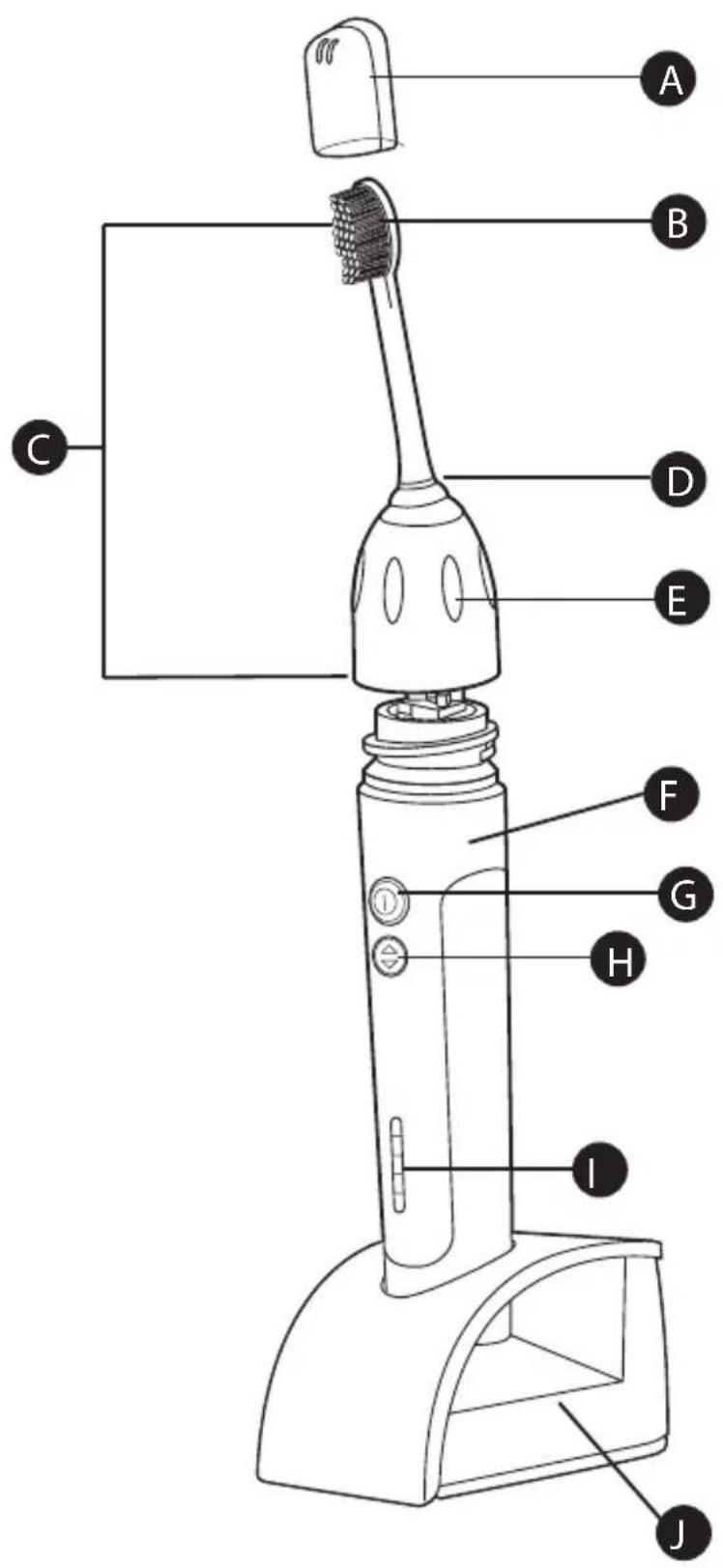

General description

A Travel cap
B Bristles
© Brush head
D Color code ring
E Removable nut
F Handle with soft grip
G Power on/off button
H Dual Speed Control button
① LED charging lights
J Charger

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE

Sonicare® has been carefully engineered for both effectiveness and safety. However, basic safety precautions should always be followed when using any electrical product, especially when children are present.

DANGERS

To reduce the risk of electrocution and fire:

I) DO NOT plug the charger into an incorrect voltage source outlet. It has been designed for use with a specific electrical voltage. Refer to the bottom (or back) of the charger for the correct voltage specification. Voltage converters and plug adapters DO NOT guarantee voltage compatibility. Never force the plug into an outlet.
2) DO NOT place or store the charger where it can fall or be pulled into a tub, sink or toilet.

3) DO NOT place or drop the charger into water or other liquid.
4) DO NOT reach for a charger that has fallen into water. Unplug immediately.
5) DO NOT use while taking a bath.

WARNINGS

To reduce the risk of burns, electrocution, fire or injury:

1) Close supervision is necessary when this product is used by or on children or the disabled.
2) If you are unable to handle this product properly, discontinue use.
3) Use this product only for its intended use as described in this booklet. Do not use attachments other than those recommended by the manufacturer. See voltage information above.
4) Never operate the charger if it has a damaged cord or plug, if it has been dropped or if the toothbrush handle has been damaged in any way. This product contains no serviceable parts. If repair is needed please refer to the Customer Service Information section of this manual and contact one of our representatives.
5) Keep the cord away from heated surfaces.
6) If your favorite toothpaste includes peroxide, baking soda or other bicarbonate (common in whitening toothpastes), it is important that you thoroughly clean your brush head with soap and water after each use.
7) Do not use charger base outdoors.
8) Unplug the charger base before cleaning and assure that it is dry before plugging it into an electrical outlet.
9) Brush heads and charger base should never be placed in a dishwasher for cleaning.

MEDICAL WARNINGS

1) Consult your dental professional before using this product if you have had oral or gum surgery in the previous 2 months.
2) Contact your dental professional if excessive bleeding occurs after using this product or bleeding continues to occur after 1 week of use.
3) If you have any questions concerning usage with a pacemaker or other implanted device, consult your physician or the implanted device manufacturer prior to use. Sonicare has been tested and is compliant with safety standards for electromagnetic devices.
4) Avoid using a brush head with crushed or bent bristles. Damaged bristles may break off while brushing. In order to prevent this, replace the brush head with a new one every 6 months or sooner if signs of wear appear.
5) The Sonicare toothbrush is a personal care device and is not intended for use on multiple patients in a dental office or institution.
6) This product is designed for cleaning teeth, gums and tongue only. Do not use for any other purpose.

Customer Service Information

If you have any questions after reading this manual, feel free to contact our Customer Service Center or visit our website.

- Customer Service Center

1-800-682-7664 (North America), outside North America contact your local Philips Customer Care Center.

- Internet Information

www.sonicare.com (North America) www.philips.com (outside North America)

SAVE THESE INSTRUCTIONS

Preparing for use

To attach the Sonicare brush head:

Technical line drawing of a mechanical connector or fitting with threaded ends and internal components (no text or symbols)

1 Align the front of the brush head with the front of the toothbrush handle. Match the bars on the brush head with the notches inside the top of the handle and slide the brush head onto the handle.

2 Screw the brush head nut clockwise until it is firmly tightened. If the brush head rattles during use, tighten the nut further.

3 Remove the travel cap from your brush head when you are ready to brush.

Technical line drawing of a mechanical component with three blades and a central hub (no text or symbols)

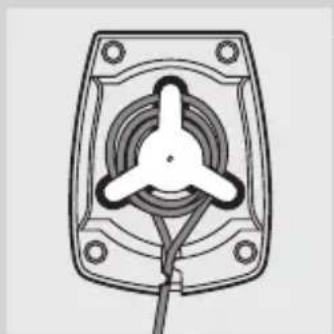

4 Use the cord wrap in the bottom of the charger to store excess cord.

Charging your Sonicare®

Simple line drawing of a curved mechanical component or bracket (no text or symbols)

Sonicare comes with the batteries completely discharged and should be charged for at least 24 hours during the first few days of use.

- It is recommended that you keep your Sonicare in the charger when not in use to maintain a full battery charge. It takes at least 24 hours to fully charge Sonicare's battery.

I Be sure the bottom of the handle sits back securely in the charger, making complete contact.

- Handles of other Sonicare models do not fit in this charger and will therefore not charge effectively. Do not attempt to force a handle into this charger as this will cause damage.

Using the appliance

Useful tips

• The brush head comes with a convenient travel cap. Remove the travel cap from the brush head before turning on your Sonicare.
• Place the brush head in your mouth before turning on your Sonicare, and be sure it is turned off before removing it from your mouth, otherwise toothpaste may splatter.
• Rinse the brush head and bristles after each use.
• Clean the brush head weekly, including under the nut.
• A fully charged Sonicare will provide approximately 2 weeks of typical use (2 minutes of brushing twice a day), making it easy to travel without the charger.

Remember: voltage converters and plug adapters DO NOT guarantee voltage compatibility. Always check for voltage compatibility.

Brushing technique

Follow these simple steps to maximize your brushing experience:

Before turning the Sonicare on, place the bristles of the brush head on your gumline at a 45-degree angle.
2 Hold the handle with a light grip, turn the Sonicare on, and gently move the bristles in a small circular motion so the longer bristles reach between your teeth. After a few seconds glide the bristles to the next section. Continue this routine throughout your 2-minute brushing cycle.
3 To maximize Sonicare's effectiveness apply only light pressure and let the Sonicare toothbrush do the brushing for you. Do not scrub.

ENGLISH8


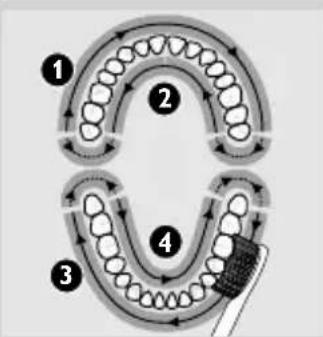

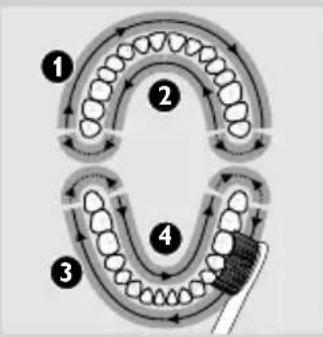

4 To make sure you brush evenly throughout the mouth, divide your mouth into 4 sections: outside top, inside top, outside bottom and inside bottom teeth. Begin brushing in section I (outside top teeth) and brush for 30 seconds before moving to section 2 (inside top teeth). Continue brushing for 30 seconds in each section progressing through all 4 sections until you've brushed for 2 minutes.

5 After having completed the 2-minute brushing cycle, additional time should be spent brushing the chewing surfaces of your teeth.

6 Press the power button to turn the brush on and off as needed.

- You may also brush your tongue, with the toothbrush turned on or off, as you prefer.

Tips for specific oral care needs

- Stain removal

In areas where staining occurs, spend extra brushing time to assist with stain removal.

- Braces

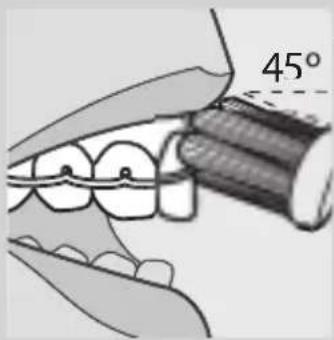

The brush should be placed at a 45-degree angle between your brackets and gumline. Using light pressure, gently move the bristles in a small circular motion so that the long bristles reach between your teeth for 2 seconds. Then gently turn (roll) the brush handle so the bristles clean the bracket and the rest of the tooth before you move the bristles to the next tooth. Continue this until you have brushed all of your teeth. Please note that brush heads will wear out sooner when used on braces.

▶ Dental restorations (dental work)

Use Sonicare on dental restorations (such as implants, caps, crowns, bridges and fillings) as you would on your normal tooth surfaces to reduce plaque build-up and improve gum health. Work the bristles around all areas of the restoration for thorough cleaning.

- Periodontal pockets

Your dental professional may have indicated that you have periodontal pockets, deep pockets where plaque bacteria collect. If this is the case, after brushing for a full 2 minutes, spend extra time gently brushing these areas to improve your gum health.

Features

Easy-start®brushing power ramp-up

• All Sonicare models come with the Easy-start feature activated, which helps you get used to brushing with Sonicare.
• Brushing power will gently increase to full power over the first 14 brushings.
  The Easy-start feature is active if you hear 2 beeps immediately after turning on your Sonicare. Once the appliance has reached optimal brushing power (after the 14th brushing), you will no longer hear the double beep at the beginning of your brushing routine.
  ▶ Note: Each of the first 14 brushings must be at least 1 minute in length to properly advance through the Easy-start ramp-up cycle.

To deactivate or activate the Easy-start feature:

I Attach your brush head to the handle.
2 Place the handle in the plugged-in charger.
3 To deactivate Easy-start feature: while handle is still in the charger, press and hold the power button for 5 seconds. You will hear I beep to indicate that the Easy-start feature has been deactivated.
4 To reactivate Easy-start: while handle is still in the charger, press and hold the power button for 5 seconds. You will hear 2 beeps to indicate that the Easy-start feature has been activated.

Using the Easy-start feature beyond the initial ramp-up period is not recommended and reduces Sonicare's effectiveness in removing plaque.

The Easy-start feature should be deactivated when Sonicare is used in clinical trials.

Smartimer®2-minute timer

• All Sonicare models come with the Smartimer feature, which automatically sets the brushing time to the 2 minutes recommended by dental professionals.
• After 2 minutes, your Sonicare will automatically turn off the toothbrush.
• If you wish to pause or stop brushing during your 2-minute cycle, press the power button. Press the power button again and the Smartimer will pick up where you left off.

• The Smartimer will automatically reset to the beginning of a 2-minute cycle if:
• brushing is paused for 30 seconds or longer;
• the handle is returned to the charger.

Quadpacer®30-second interval timer

- Quadpacer makes sure that you brush all sections of your mouth evenly and thoroughly. When using a two-minute brushing cycle, you will hear a short beep and a pause in brushing action at 30, 60 and 90 second intervals.

Programmable Quadpacer timer (select models only)

The Programmable Quadpacer timer offers you the option of customizing the Quadpacer performance in 1 of 3 ways:

• You may opt to keep the factory default setting of a 2-minute brushing time with Quadpacer feature activated.
• You may choose to extend your brushing time to 2 1/2 minutes by adding an additional timing interval of 30 seconds with Quadpacer feature active.
• You may choose a 2-minute brushing time, but with the Quadpacer feature turned off.

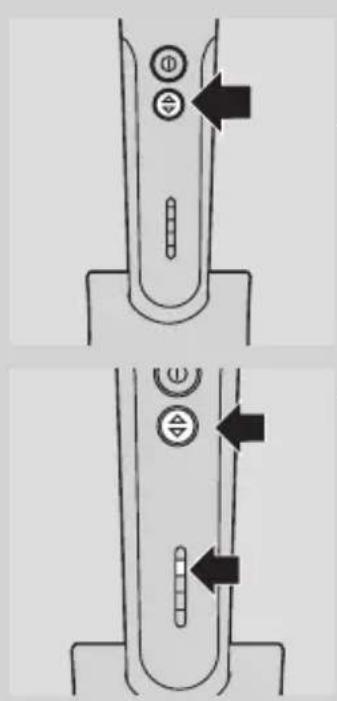

To change the Quadpacer settings:

1 Place the handle in the charger that is plugged into a live electrical outlet.
2 Press the Dual Speed Control button briefly and note which LED lights up.
3 Press and hold the Dual Speed Control button. Continue to hold the button while the LEDs slowly cycle through the timing interval setting options:

- Green LED in position 4: Quadpacer active (factory default setting).

Pure diagram of a vertical device with control buttons and arrows indicating movement or positioning (no text or symbols)

- Green LED in top (5th) position: 2 1/2 minute setting - Quadpacer active with additional timing interval of 30 seconds.

Pure diagram of a vertical device with control buttons and arrows indicating direction (no text or symbols)

- Yellow LED in bottom (1st) position: no timing intervals set - Quadpacer not active.

4 To program the desired setting, release the button when the LED corresponding to your choice lights up.

▶ Note: Selecting 2 1/2 minutes brushing time reduces the number of brushings available from a fully charged battery.

Dual Speed Control

The Dual Speed Control feature allows you to choose between 2 speed settings: Normal speed for optimum brushing performance, or Reduced speed when an even more gentle action is desired.

Each time you turn your Sonicare on, it will begin brushing at the Normal speed setting. To change the speed setting:

1 From Normal to Reduced speed: press the Dual Speed Control button once during brushing.

2 From Reduced to Normal speed: press the Dual Speed Control button a second time during brushing.

A distinctive two-tone beep indicates that the speed setting has been changed.

It is recommended that you brush at the Normal speed setting to maintain optimal results.

The Normal setting should be selected when Sonicare is used in clinical trials.

Battery Charge Indicator

- If the battery charge of your Sonicare is low, you will hear 3 beeps after you have brushed your teeth for 2 minutes and the charge indicator LED will blink yellow for 30 seconds.

A low charge indication signifies that 3 or fewer 2-minute brushings remain.

When not in use, keep your Sonicare in the charger to maintain a full battery charge.

Multiple-LED charge indicator

- When the handle is placed in the charger, the green charge indicator LEDs will blink in a rising pattern as the battery charges. The number of blinking LEDs indicates the level to which the battery has been charged.

When the battery reaches full charge, the LEDs stop blinking and illuminates continuously. About once a minute, the charge indicator LEDs go out momentarily and then come back on. This indicates that the battery is being maintained at full charge. The full charge indication will persist until the handle is removed from the charger.

The blinking yellow LED indicates that fewer than 3 brushings remain.

Cleaning

Illustration of a hand holding a spoon with liquid flowing from a bottle (no text or symbols)

By following these simple steps, you should get years of worry-free brushing:

1 Rinse the brush head and bristles after each use, and air dry only.

Line drawing of two hands holding a small object with a tool, no text or symbols present

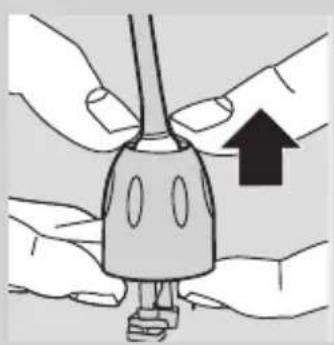

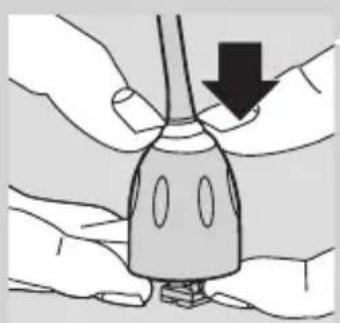

2 Clean the brush head at least once a week, including under the nut.

Illustration of hands assembling a mechanical component with a downward arrow indicating assembly (no text or symbols present)

3 To remove the nut:

Press down gently on the white area.

Pull the nut over the top of the brush head.

Avoid using sharp objects to push on the seal as this may cause damage.

Illustration of hands holding a plug with an upward arrow indicating force (no text or symbols)

4 To replace the nut, slip the nut over the brush head shaft and pull until it clicks back on.

Illustration of hands using a tool to cut a circular component (no text or symbols visible)

5 Clean the handle weekly.

6 Clean the charger periodically.

UNPLUG the charger before cleaning. After cleaning the charger completely dry the charger before plugging it into an electrical outlet.

Mild soap, water and a moist cloth are recommended for cleaning your Sonicare handle and charger.

Additional Cleaning Tip:

- The Sonicare handle is dishwasher safe. Remove the brush head and charger before placing the handle only in the top rack of dishwasher.

NOTE: Brush heads and charger base should never be placed in the dishwasher.

Storage

If the product is not to be used for an extended period of time it should be unplugged from the electrical outlet, cleaned, stored in a cool and dry area away from direct sunlight. The cord wrap can be used to store power cord in an organized manner.

Replacement

Brush head

Replacing your brush head every 6 months is clinically proven to remove more plaque.

Use only Sonicare replacement brush heads for this model.

Battery recycling

HANDLE CONTAINS A NICKEL CADMIUM BATTERY. BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY.

- The battery inside your Sonicare cannot be replaced, but is easily removed for recycling. At the end of product life and prior to disposal, please remove the battery from the handle by following the instructions below.

Please note that this process is NOT reversible.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

- Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment.

Removing the batteries

- Please note that this process is NOT reversible.

To remove the batteries yourself, you will need a flat-head (standard) screwdriver. Basic safety precautions should be observed when following the procedure outlined below. Be sure to protect your eyes, hands, fingers and the surface on which you are working.

CAUTION

Caution should be exercised when using any household tools (such as a screwdriver) to remove the battery.

Line drawing of a tool applying material to a curved surface (no text or symbols)

Deplete the battery of any charge by removing the handle from the charger, turning the Sonicare on and allowing it to run until it stops. Repeat this step until the product will no longer operate.
2 Remove the soft-touch rib by inserting a screwdriver under it and breaking it out.
3 Remove the nut from the brush head and place it onto the handle. Tighten the nut onto the handle (A) until the housing comes loose and then pull the nut forward (B).

The handle internals will come out of the housing along with the nut.

Cross-sectional diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

4 Insert a screwdriver between the electronic circuit board and the plastic part close to each end of the battery; twist and break the connection between the battery and the electronic circuit board in 2 locations.

Mechanical assembly diagram showing a piston and shaft assembly (no text or labels)

5 Separate the rechargeable battery from the appliance by means of a screwdriver.

Please note that this process is NOT reversible.

US and Canada

For information on proper battery recycling, please visit the Rechargeable Battery Recycling Corporation website at www.rbrc.org or call [phone]. (Philips Oral Healthcare. Inc. is not affiliated with the RBRC.)

GUARANTEES AND SERVICE

SEE SEPARATE PHILIPS WORLDWIDE GUARANTEE LEAFLET FOR STANDARD GUARANTEE.

GUARANTEE RESTRICTIONS

WHAT IS NOT COVERED UNDER WARRANTY:

• BRUSH HEADS
• DAMAGE CAUSED BY MISUSE, ABUSE, NEGLECT OR ALTERATIONS
• NORMAL WEAR AND TEAR, INCLUDING CHIPS, SCRATCHES, ABRASIONS, DISCOLORATION OR FADING

IMPLIED WARRANTIES

ANY IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THE EXPRESS WARRANTIES SET FORTH IN THIS LIMITED WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

LIMITATION OF REMEDIES

IN NO EVENT SHALL PHILIPS ORAL HEALTHCARE, INC. OR ANY OF ITS AFFILIATED OR SUBSIDIARY COMPANIES BE LIABLE FOR

ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE,TORT, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE,WITHOUT LIMITATION, LOSS OF SAVINGS OR REVENUE; LOSS OF PROFIT; LOSS OF USE;THE CLAIMS OF THIRD PARTIES INCLUDING,WITHOUT LIMITATION, DENTISTS AND DENTAL HYGIENISTS; AND COST OF ANY SUBSTITUTE EQUIPMENT OR SERVICES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

Troubleshooting Guide

If you are unable to solve your problem by means of the troubleshooting guide below, in North America contact 1-800-682-7664 or contact us online at www.sonicare.com. Outside North America, contact the Philips Customer Care Center or contact us online at www.philips.com.

Problem	Solution
The Sonicare toothbrush does not work	Recharge your Sonicare for at least 24 hours.
	Verify your Sonicare is plugged into a live electrical outlet and not into an outlet controlled by a light switch.
	You may need to re-attach or replace the brush head.
I feel a tickling sensation when I use Sonicare.	You may experience a slight tickling/tingling sensation when using Sonicare for the first time. As you become accustomed to brushing with Sonicare, this sensation will diminish.
The brush head rattles when I use Sonicare.	Sonicare should produce a gentle hum during operation.Tightening the brush head nut can eliminate excessive rattling. If rattling does not stop, you may need to replace the brush head.
	Make sure you have removed your travel cap before switching the appliance on.
The brush head chatters against my teeth.	This can be avoided by keeping the brush head properly oriented, with the brush head placed on the gumline at an angle of 45 degrees.
Brushing seems less powerful.	The handle may need recharging.
	The Easy-start feature may be on and needs to be deactivated (see 'Features').
	You may need to clean your brush head.
	You may need to replace your brush head.
	The Dual speed button may be set to reduced speed.
Unpleasant odor	Clean the handle, brush head and charger thoroughly (see 'Cleaning').
	Replace the brush head with a new one.
The LED blinks yellow.What does this mean?	The blinking yellow LED indicates that fewer than 3 brushings remain. Recharge your Sonicare for at least 24 hours.
The appliance has an extra 30 seconds of brushing time.What is this for?	This function provides additional time for brushing troublesome areas where plaque collects and gum disease starts. It is recommended you use the extra 30 seconds of brushing time to re-brush troublesome areas, massage your gums, or brush your tongue (see 'Features').

Table des matières

Technical line drawing of a mechanical connector or fitting with threaded end and internal components (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a curved mechanical component or bracket (no text or symbols)

Illustration of a toothbrush cleaning a tooth with a magnified view of the tooth (no text or symbols)

Line drawing of hands holding a tool or device with a handle (no text or symbols)

Illustration of hands assembling a mechanical component with a downward arrow indicating assembly (no text or symbols present)

Illustration of hands using a tool to adjust a plug, with an upward arrow indicating the process (no text or symbols present)

Illustration of two hands holding a tool with a circular component, no text or symbols present

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Line drawing of a tool applying material to a cylindrical object (no text or symbols)

Mechanical assembly diagram showing a piston and crank mechanism with an upward arrow (no text or symbols)

Mechanical component diagram showing a lever mechanism with an arrow indicating direction (no text or symbols present)

Discriccion general 31

Technical line drawing of a mechanical connector or fitting with internal components (no text or symbols)

Technical line drawing of a mechanical component with three blades and a central hub (no text or symbols)

Simple line drawing of a curved mechanical component or bracket (no text or symbols)

Illustration of a toothbrush cleaning a tooth with a magnified view of the tooth (no text or symbols)

Line drawing of two hands holding a small object with a tool, no text or symbols present

Illustration of hands assembling a mechanical component with a downward arrow indicating assembly (no text or symbols present)

Illustration of hands holding a mechanical component with an upward arrow indicating motion (no text or symbols)

Illustration of hands using a tool to cut a cylindrical object (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Line drawing of a tool applying material to a curved surface (no text or symbols)

Mechanical assembly diagram showing a piston and crank mechanism with an upward arrow (no text or labels)

Mechanical component diagram showing a lever mechanism with an arrow indicating left motion (no text or symbols present)

ADVERTENCIA

GARANTÍAS IMPLÍCITAS

Philips Oral Healthcare, Inc.

35301 SE Center Street

Snoqualmie WA 98065

U.S.A.

Outside North America:

[phone]

www.philips.com

Printed in U.S.A.

Printed on 100% recycled paper

Protected by U.S. and international patents. Other patents pending.
