USER MANUAL L 321AH HUSQVARNA

Two simple line icons: a triangular warning triangle with an exclamation mark and an open book with blank pages (no text or symbols)

Husqvarna®

Silhouette of a lawn mower (no text or symbols)

L 321AH

EN Operator's manual 2-20

Safe Practices for Pedestrian-Controlled and Ride-On Mowers

WARNING! This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

General information

• Read, understand, and follow instructions and warnings in this document, the operator's manual and on the machine, engine and attachments.
• Only allow operators, who are responsible, trained, familiar with the instructions, and physically capable to operate the machine.
• Do not carry passengers and keep bystanders away.
• Do not operate the machine while under the influence of alcohol or drugs.
• Follow the manufacturer's recommendation for wheel weights or counterweights.

Preparation before operating

• Clear the operating area of any objects which could be thrown by or interfere with operation of the machine.
• Keep the area of operation clear of all bystanders, particularly small children. Stop the machine and attachment(s) if anyone enters the area.
• Do not operate the machine without the entire grass catcher, discharge chute, or other safety devices in place and functioning properly. Check frequently for signs of wear or deterioration and replace as needed.
• Wear appropriate personal protective equipment such as safety glasses, hearing protection, and footwear.

Operating

• Only operate the engine in well ventilated areas. Exhaust gases contain carbon monoxide, a deadly poison.
• Only operate the machine in daylight or good artificial light.
• Avoid holes, ruts, bumps, rocks, or other hidden hazards. Uneven terrain could overturn the machine, or cause operator to lose their balance or footing.
• Do not put hands or feet near rotating parts or under the machine. Keep clear of the discharge opening at all times.
• Do not direct discharge material toward anyone. Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Stop the blade(s) when crossing gravel surfaces.
• Do not leave a running machine unattended. Always park on level ground, disengage the attachment, set parking brake, and stop engine.
• Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.

Children specific

- Tragic accidents can occur if the operator is not alert to the presence of children. Children are often

attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.

• Keep children out of the operating area and under the watchful care of a responsible adult other than the operator.
• Do not carry children, even with the blade(s) shut off. Children could fall off and be seriously injured or interfere with safe machine operation. Children who have been given rides in the past could suddenly appear in the mowing area for another ride and be run over or backed over by the machine.*

Slope specific

• Slopes are a major factor related to accidents. Operation on slopes requires extra caution.
• Travel in the manufacturer recommended direction on slopes. Use caution while operating near dropoffs.
• Avoid mowing wet grass. (Poor footing could cause a slip and fall accident.**)
• Do not operate machine under any condition where traction, steering, or stability is in question. Tires could slide even if the wheels are stopped.
• Always keep the machine in gear when going down slopes. Do not coast downhill.
• Avoid starting and stopping on slopes. Avoid making sudden changes in speed or direction. Make turns slowly and gradually.
• Use extra care while operating machine with a grass catcher or other attachment(s). They can affect the stability of the machine.

Fire and fuel specific

• Extinguish all cigarettes, cigars, pipes and other sources of ignition.
• Use only an approved fuel container.
• Do not remove fuel cap or add fuel with the engine running or while hot.
• Do not refuel indoors or in enclosed spaces.
• Do not store the machine or fuel container, or refuel, where there is an open flame, spark, or pilot light such as on a water heater or other appliance.
• If fuel is spilled, do not attempt to start the engine and avoid creating any source of ignition until fuel vapors have dissipated.
• To help prevent fires: keep machine free of grass, leaves, or other debris build up; clean up oil or fuel spillage and remove any fuel soaked debris; allow machine to cool before storing.
• Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosive.

Hauling

- Use full width ramps for loading and unloading a machine for transport.

Towing\*

- Follow the manufacturer's recommendation for weight limits for towed equipment and towing on slopes.*

ROPS\*

- The ROPS is an integral and effective safety device. Do not remove or alter the ROPS.*

• Keep a folding ROPS in the raised and locked position and use the seat belt when operating the machine.*
• Lower a folding ROPS temporarily only when absolutely necessary. Do not wear the seat belt when folded down. There is no rollover protection when a folding ROPS is in the down position.*

- Replace a damaged ROPS. Do not repair or alter.*

Service

- Keep machine in good working order. Replace worn or damaged parts.

- Use caution when servicing blades. Wrap the blade(s) or wear gloves. Replace damaged blades. Do not repair or alter blade(s).

- Machines with hydraulic pumps, hoses, or motors; and/or diesel injection systems:

WARNING: Fluid escaping under pressure may have sufficient force to penetrate skin and cause serious injury. If fluid is injected into the skin, seek immediate medical attention. Keep body and hands away from pin holes or nozzles that eject fluid under high pressure. If a leak occurs, have the machine immediately serviced by a trained technician.

• If equipped, disconnect spark plug wire(s) and the negative battery cable before making any repairs.
  * Applicable to ONLY Ride-on Mowers.
  ** Applicable to ONLY Pedestrian-Controlled Mowers.

IMPORTANT

Transportation, storage and disposal.... 18

Technical data.... 19

Introduction

Product description

The product is a combustion engine-powered pedestrian-controlled lawn mower. The grass is collected in a grass catcher. Remove the grass catcher to get rear discharge of the grass. Attach a mulch kit to cut the grass into fertilizer.

Intended use

Use the product to cut grass in private gardens. Do not use the product for other tasks.

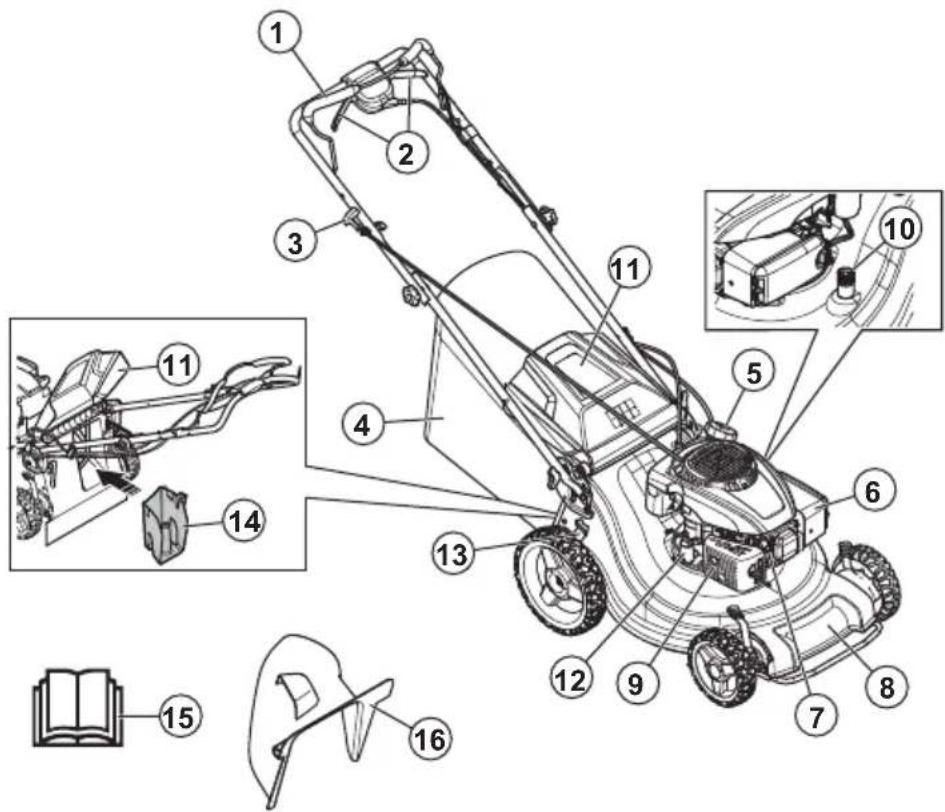

Product overview

Technical diagram of a lawn mower with numbered parts and exploded view, including labeled parts 1 through 16.

1. Engine brake handle

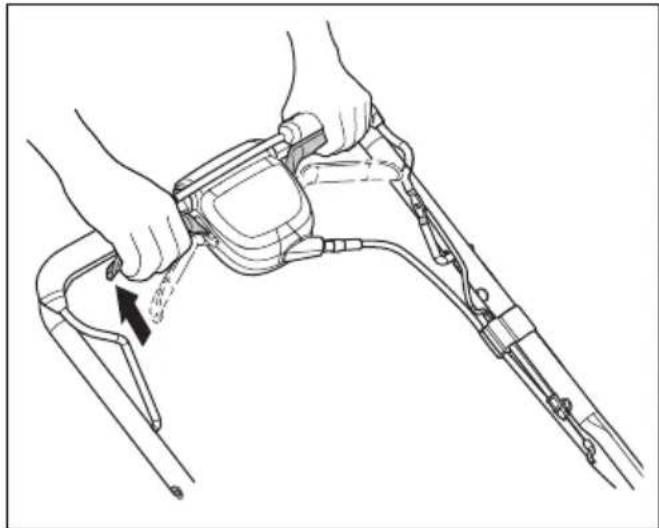

2. Drive levers
3. Starter rope handle

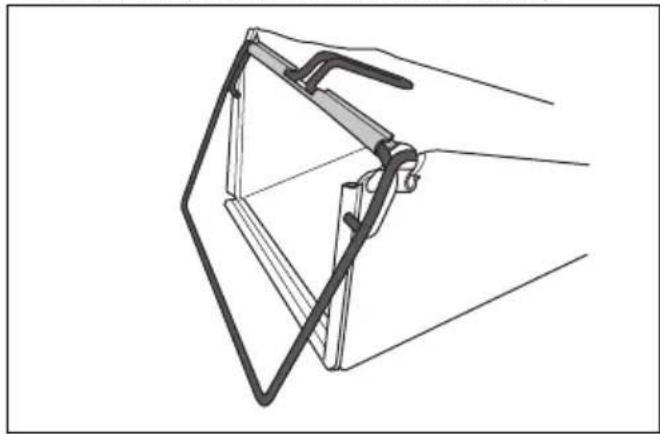

4. Grass catcher
5. Fuel tank cap
6. Air filter
7. Spark plug

8. Drive cover

9. Muffler

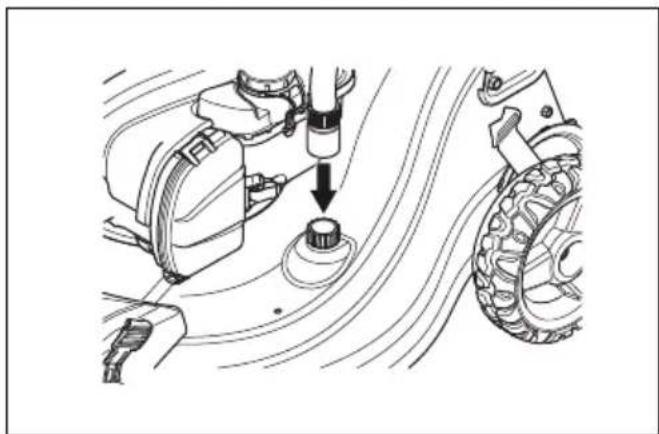

10. Water hose connection
11. Rear deflector
12. Dipstick / oil tank
13. Cutting height control
14. Mulch plug
15. Operator's manual
16. Discharge chute

Symbols on the product

WARNING: This product can be dangerous and cause serious injury or death to the operator or others. Be careful and use the product correctly.

Read the operator's manual carefully and make sure that you understand the instructions before you use the product.

Fast

Slow

Keep hands and feet away from the rotating part.

Keep persons and animals at safe distance from the work area.

Be careful when you operate the product rearward. Look behind and down for small children, animals or other risks that can cause you to fall.

- To operate the product on a slope can be dangerous.

Keep hands and feet away from the rotating blade.

California Proposition 65

Look out for thrown objects and ricochets.

Use approved hearing protection.

Note: Other symbols/decals on the product refer to certification requirements for other commercial areas.

Label on the product

DANGER KEEP HANDS AND FEET AWAY GARDEZ LES MAINS ET LES PIEDS À DISTANCE MANTENGA LAS MANOS Y LOS PIES A DISTANCIA

Keep hands and feet away from the rotating blade.

WARNING

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Product liability

As referred to in the product liability laws, we are not liable for damages that our product causes if:

• the product is incorrectly repaired.
- the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.

• the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service center or by an approved authority.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

• This product is dangerous if used incorrectly or if you are not careful. Injury or death can occur if you do not obey the safety instructions.
• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.
  • Always be careful and use your common sense. If you are not sure how to operate the product in a special situation, stop and speak to your Husqvarna dealer before you continue.
• Keep in mind that the operator will be held responsible for accidents that involve other persons or their property.
• Keep the product clean. Make sure that you can clearly read signs and decals.
• Do not let a person use the product unless you make sure that they read and understand the contents of the operator's manual.

• Do not let a child operate the product.

• Keep children away from the work area. A responsible adult must be there at all times.

• Do not let a person, without knowledge of the instructions, operate the product.
  • Always monitor a person, with decreased physical capacity or mental capacity, that uses the product. A responsible adult must be there at all times.
• Do not use the product if you are tired, ill, or under the influence of alcohol, drugs or medicine. This has a negative effect on your vision, alertness, coordination and judgment.
• Do not use the product if it is defective.
• Do not change this product or use it if it is possible that it has been changed by others.

Work area safety

WARNING: Read the warning instructions that follow before you use the product.

• Remove objects such as branches, twigs and stones from the work area before you use the product.
• Objects that hit against the cutting equipment can eject and cause damage to persons and objects. Keep bystanders and animals at a safe distance from the product.
• Never use the product in bad weather such as fog, rain, strong winds, intense cold and risk of lightning. To use the product in bad weather or in moist or wet locations is tiring. Bad weather can cause dangerous conditions, such as slippery surfaces.
• Look out for persons, objects and situations that can prevent safe operation of the product.
• Look out for obstacles, such as roots, stones, twigs, pits and ditches. Long grass can hide obstacles.
• To cut grass on slopes can be dangerous. Do not use the product on ground that slopes more than 15^ .
• Operate the product across the face of slopes. Do not move up and down.
• Be careful when you go near hidden corners and objects that prevent a clear view.

WARNING: Read the warning instructions that follow before you use the product.

• Use this product to cut grass lawns only. It is not permitted to use it for other tasks.
• Use personal protective equipment. Refer to Personal protective equipment on page 5.
• Make sure that you know how to stop the engine quickly in an emergency.
• Never start the engine in a closed space or near flammable material. The exhaust fumes from the engine are hot and can contain sparks which can start a fire.
• Do not operate the product unless the blade and all covers are attached correctly. An incorrectly attached blade can come loose and cause personal injury.
• Make sure that the blade does not hit objects such as stones and roots. This can do damage to the blade and bend the engine shaft. A bent axle causes heavy vibration and a very high risk that the blade becomes loose.
• If the blade hits an object or if vibrations occur, stop the product immediately. Disconnect the ignition cable from the spark plug. Examine the product for damages. Repair damages or let an authorised service agent do the repair.
• Never attach the engine brake handle permanently to the handle when the engine is started.
• Put the product on a stable, flat surface and start it. Make sure that the blade does not hit the ground or other objects.
  • Always stay behind the product when you operate it.
• Let all the wheels stay on the ground and keep 2 hands on the handle when you operate the product. Keep your hands and feet away from the rotating blades.
• Do not tilt the product when the engine is started.
• Be careful when you pull the product rearward.
• Never lift up the product when the engine is started. If you must lift the product, first stop the engine and disconnect the ignition cable from the spark plug.
• Do not walk rearward when you operate the product.
• Stop the engine when you move across areas without grass, for example paths made of gravel, stone and asphalt.
• Do not run with the product when the engine is started. Always walk when you operate the product.
• Stop the engine before you change the cutting height. Never make adjustments with the engine started.
• Never let the product stay out of view with the engine started. Stop the engine and make sure that the cutting equipment does not rotate.

Safety instructions for operation

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

• Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.
• Use hearing protection if the noise level is higher than 85 dB.
• Use heavy-duty slip-resistant boots or shoes. Do not use open shoes or go with bare feet.
• Use heavy, long pants.
• Use protective gloves when necessary, for example when you attach, examine or clean the cutting equipment.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

• Do not use a product with defective safety devices.
• Do a check of the safety devices regularly. If the safety devices are defective, speak to your Husqvarna service agent.

To do a check of the cutting cover

The cutting cover decreases vibrations in the product and decreases the risk of injury from the blade.

- Examine the cutting cover to make sure that there are no damages such as cracks.

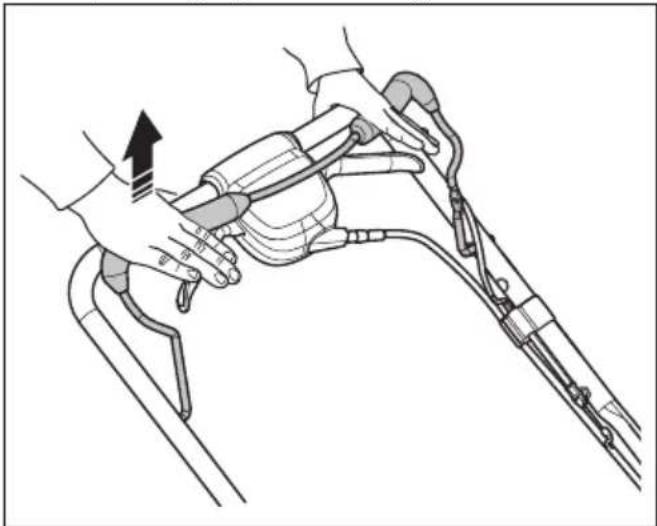

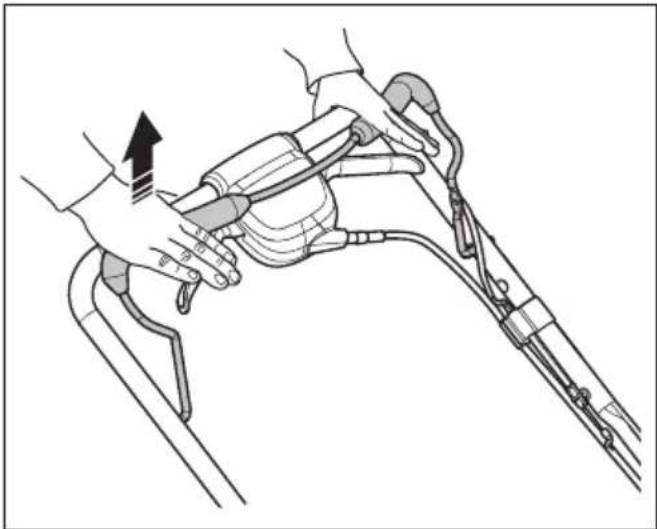

To do a check of the engine brake handle

The engine brake handle stops the engine. When the engine brake handle is released, the engine stops.

- Start the engine and then release the engine brake handle. If the engine does not stop in 3 seconds, let an approved Husqvarna service agent adjust the engine brake.

Illustration of a person using a handheld device to interact with another person (no text or symbols present)

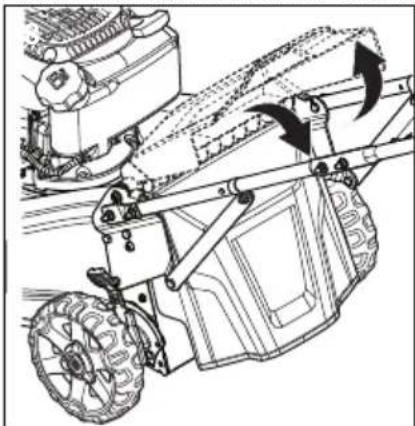

To do a check of the rear deflector

The rear deflector decreases the risk that objects eject in the direction of the operator.

- Make sure that the rear deflector is not damaged.

Technical line drawing of a mechanical lawn mower with visible wheel and guide rails (no text or symbols)

- Make sure that the springs that close the rear deflector are not broken.

- Replace broken springs and damaged parts.

- Make sure that the rear deflector can move smoothly on the hinges.

Muffler

The muffler keeps the noise levels to a minimum and sends the exhaust fumes away from the operator.

Do not use the product if the muffler is missing or defective. A defective muffler increases the noise level and the risk of fire.

WARNING: The muffler becomes very hot during and after use and when the engine operates at idle speed. Be careful near flammable materials and/or fumes to prevent fire.

To do a check of the muffler

- Examine the muffler regularly to make sure that it is attached correctly and not damaged.

To do a check of the oil level

CAUTION: A too low oil level can do damage to the engine. Do a check of the oil level before you start the product.

1. Put the product on level ground.
2. Remove the oil tank cap with the attached dipstick.
3. Clean the oil from the dipstick.
4. Put the dipstick fully into the oil tank to give a correct picture of the oil level.
5. Remove the dipstick.
6. Examine the oil level on the dipstick.
7. If the oil level is low, fill with engine oil and do a check of the oil level again.

Fuel safety

WARNING: Read the warning instructions that follow before you use the product.

• Do not start the product if there is fuel or engine oil on the product. Remove the unwanted fuel/oil and let the product dry.
• If you spill fuel on your clothing, change clothing immediately.
• Do not get fuel on your body, it can cause injury. If you get fuel on your body, use soap and water to remove the fuel.
• Do not start the product if the engine has a leak. Examine the engine for leaks regularly.
• Be careful with fuel. Fuel is flammable and the fumes are explosive and can cause injuries or death.
• Do not breathe in the fuel fumes, it can cause injury. Make sure that there is a sufficient airflow.
• Do not smoke near the fuel or the engine.
• Do not put warm objects near the fuel or the engine.
• Do not add the fuel when the engine is on.
  • Make sure that the engine is cool before you refuel.
• Before you refuel, open the fuel tank cap slowly and release the pressure carefully.
• Do not add fuel to the engine in an indoor area. Not sufficient airflow can cause injury or death because of asphyxiation or carbon monoxide.
• Tighten the fuel tank cap fully. If the fuel tank cap is not tightened, there is a risk of fire.
• Move the product a minimum of 3 m / 10 ft from the position where you filled the tank before a start.
• Do not fill the fuel tank fully. Heat causes the fuel to expand. Keep a space at the top of the fuel tank.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you use the product.

• The exhaust fumes from the engine contain carbon monoxide, an odourless, poisonous and very dangerous gas. Do not start the engine indoors or in closed spaces.
- Before you do the maintenance on the product, stop the engine and remove the ignition cable from the spark plug.
- Use protective gloves when you do maintenance on the cutting equipment. The blade is very sharp and cuts can easily occur.

• Accessories and changes to the product that are not approved by the manufacturer, can cause serious injury or death. Do not change the product. Always use accessories that are approved by the manufacturer.
- If the maintenance is not done correctly and regularly, the risk of injury and damage to the product increases.
- Only do the maintenance as given in this owner's manual. All other servicing must be done by an approved Husqvarna service agent.
- Let an approved Husqvarna service agent do servicing on the product regularly.
- Replace damaged, worn or broken parts.

Assembly

Introduction

WARNING: Before you assemble the product, you must read and understand the safety chapter.

WARNING: Remove the spark plug cable from the spark plug before you assemble the product.

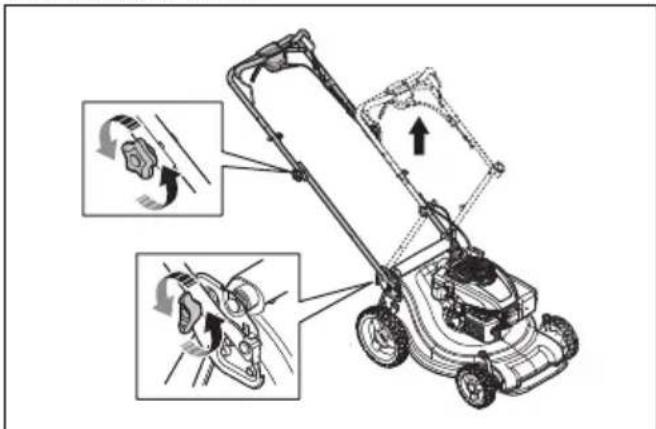

To assemble the handle

1. Lift the lower handle.

Diagram of a lawn mower with labeled parts and directional arrows indicating motion or assembly steps

1. Align the holes at the bottom of the lower handle with the holes in the handle brackets.

Note: Select the holes that give the best operation position.

1. Tighten the lower handle knobs.
2. Lift the upper handle and align it with the lower handle.
3. Tighten the upper handle knobs fully.

To install the starter rope handle

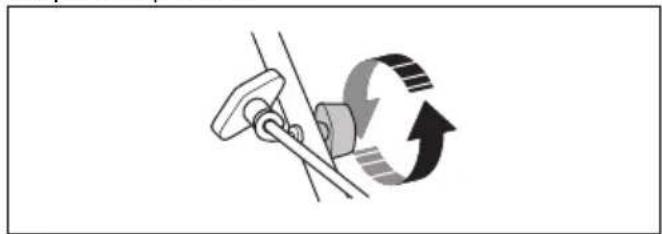

1. Attach the loop for the starter rope and the T-knob. Do not tighten fully.

Diagram showing a mechanical linkage with a circular arrow indicating rotational motion (no text or symbols)

1. Hold the engine brake handle against the handlebar.
2. Slowly pull out the starter rope and put it into the loop for the starter rope.

Diagram of a mechanical lever system with directional arrows indicating motion (no text or labels)

1. Tighten the T-knob.

Diagram showing a mechanical assembly with a rotating arrow and motion arrows (no text or symbols)

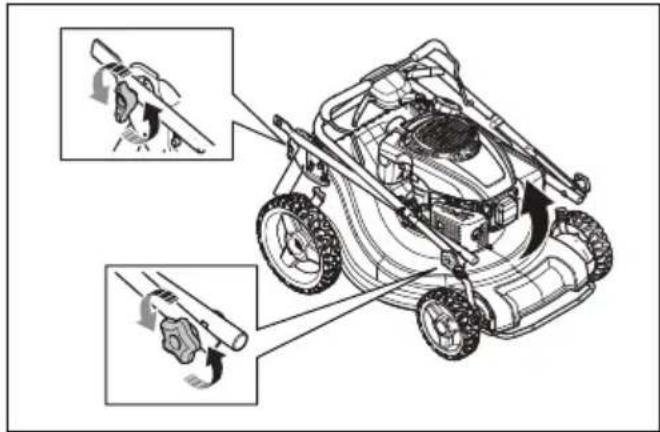

To set the product in transport position

1. Remove the grass catcher.

2. Loosen the lower handle knobs to unlock the handle.

Technical diagram of a lawn mower with labeled parts and zoomed-in detail views

1. Fold the handle down rearward.
2. Remove the knobs and the pins on the lower handle.
3. Fold the handle forward.

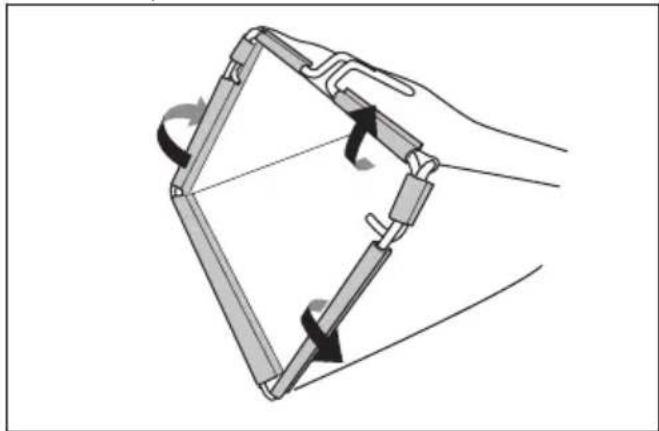

To assemble the grass catcher

1. Attach the grass catcher frame to the grass bag with the rigid part of the bag on the bottom. Keep the handle of the frame out of the top of the bag.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Attach the grass bag to the frame with the quick-action clips.

Diagram of a hand holding a rectangular device with internal components and directional arrows indicating rotation (no text or symbols)

Operation

Introduction

WARNING: Before you operate the product, you must read and understand the safety chapter.

Before you operate the product

1. Read the operator's manual carefully and make sure that you understand the instructions.
2. Examine the cutting equipment to make sure that it is correctly attached and adjusted. See To examine the cutting equipment on page 13.
3. Fill the fuel tank. See To fill fuel on page 8.
4. Fill the oil tank and do a check of the oil level. See To do a check of the oil level on page 6.

To fill fuel

If available, use low-emission/alkylate gasoline. If low-emission/alkylate gasoline is not available, use good quality unleaded gasoline or leaded gasoline with octane number not less than 90.

CAUTION: Do not use gasoline with an octane number less than 90 RON (87 AKI). This can cause damage to the product.

1. Open the fuel tank cap slowly to release the pressure.
2. Fill slowly with a fuel can. If you spill fuel, remove it with a cloth and let remaining fuel dry off.
3. Clean the area around the fuel tank cap.

4. Tighten the fuel tank cap fully. If the fuel tank cap is not tightened, there is a risk of fire.

5. Move the product a minimum of 3 m (10 ft) from the position where you filled the tank before a start.

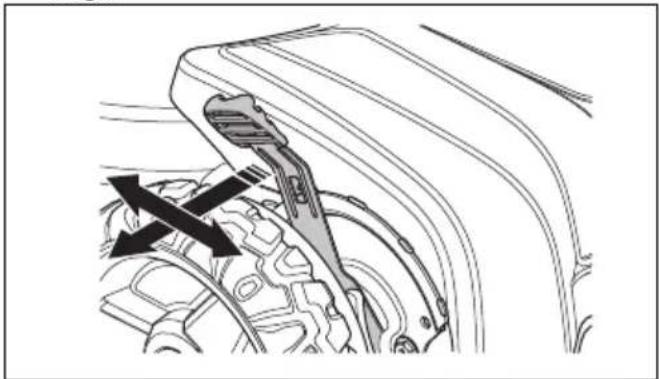

To set the cutting height

The cutting height can be adjusted in 9 levels.

1. Push the cutting height control in the direction of the wheel and then rearward to increase the cutting height.
2. Push the cutting height control in the direction of the wheel and then forward to decrease the cutting height.

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

CAUTION: Do not set the cutting height too low. The blades can hit the ground if the surface of the lawn is not level.

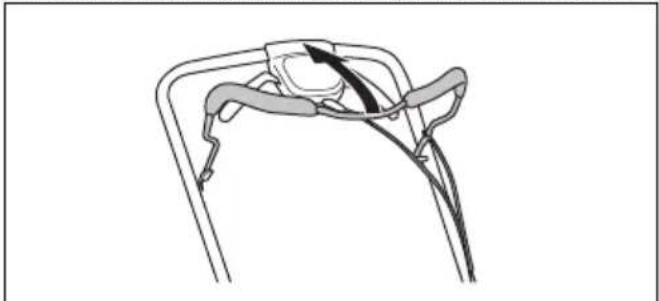

To start the product

1. Stay behind the product.
2. Hold the engine brake handle against the handlebar.

Diagram of a medical device with a central body and attached tubing, showing no text or symbols.

1. Hold the starter rope handle with your right hand.
2. Slowly pull out the starter rope until you feel some resistance.
3. Pull with force to start the engine.

WARNING: Do not twist the starter rope around your hand.

To use the drive on the wheels

- Pull the drive levers in the direction of the handlebar.

Line drawing of a person using a handheld device to adjust or install a mechanical component (no text or symbols present)

• Before you pull the product rearward, disengage the drive and push the product forward approximately 10cm.
• Release the drive levers to disengage the drive, for example when you go near an obstacle.

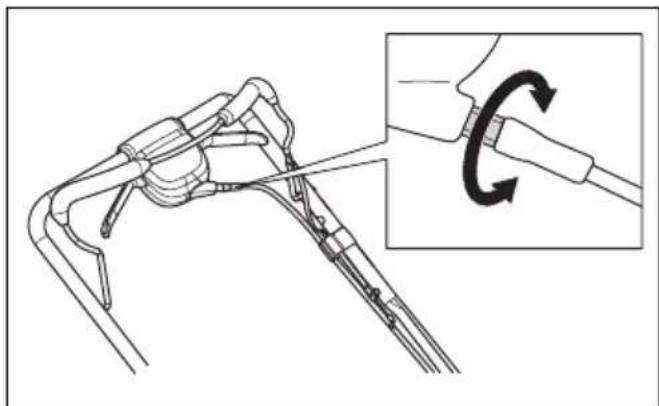

To adjust the drive control cable

- Use the adjuster screw to adjust the drive control cable.

Mechanical assembly diagram showing a lever mechanism with an inset illustrating rotational motion (no text or labels)

• Turn off the engine. Always disconnect the spark plug before you operate the movable parts.
• Turn the adjustment screw counterclockwise to tension the wire and increase the speed.
• Turn the adjustment screw clockwise to extend the wire and reduce speed.

To stop the product

• To stop the drive only, release the drive levers.

• To stop the engine, release the engine brake handle.

Illustration of hands using a handheld device to interact with a vehicle (no text or symbols visible)

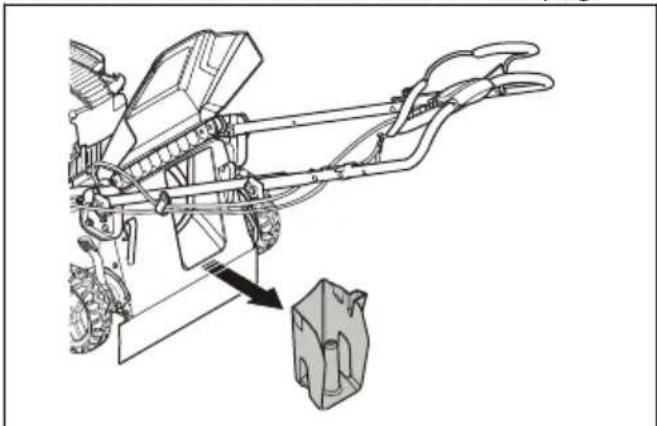

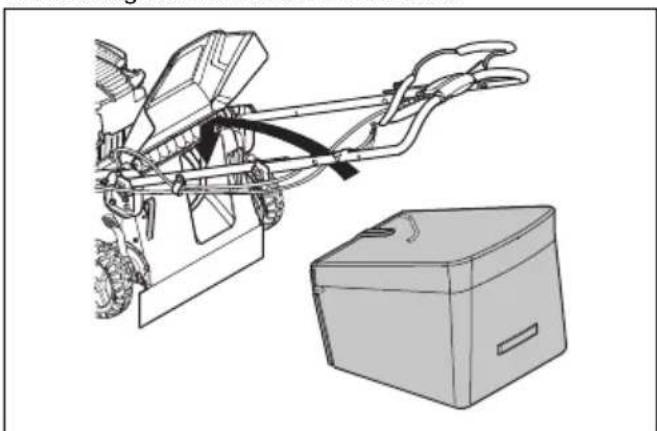

To use the product with the grass catcher

WARNING: Do not operate the product without a grass catcher installed or without the rear deflector closed. Objects can eject and cause injury to the operator.

1. Lift the rear deflector and remove the mulch plug.

Technical line drawing of a mechanical tiller with a moving part and housing component (no text or symbols)

1. Assemble the grass catcher, refer to To assemble the grass catcher on page 8.

2. Put the grass catcher on the bracket.

Technical line drawing of a manual tiller with a box beside it (no text or symbols)

1. Release the rear deflector and put it on top of the grass bag frame.

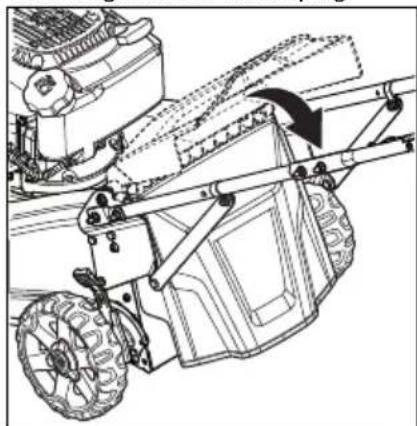

To change the product to mulching mode

The mulching mode of the product makes grass clippings smaller. The grass clippings then fall onto the lawn and scatter across the grass. Mulched grass biodegrades quickly to give nutrients for the lawn.

1. Lift the back shield and remove the grass bag, if it is installed.

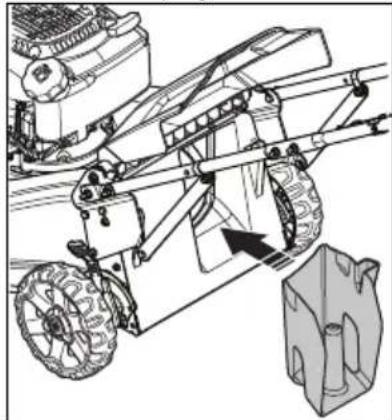

2. Put the mulch plug into the collector channel.

Technical line drawing of a mechanical trawler assembly with wheels and a housing (no text or symbols)

1. Let the back shield close and make sure it tightly closes against the mulch plug.

Technical line drawing of a grass lawn mower with visible wheel and blade assembly (no text or symbols)

To change the product to rear-side discharge mode

1. Lift the rear deflector and remove the mulch plug.

Technical line drawing of a mechanical tiller with a moving part, showing no text or symbols

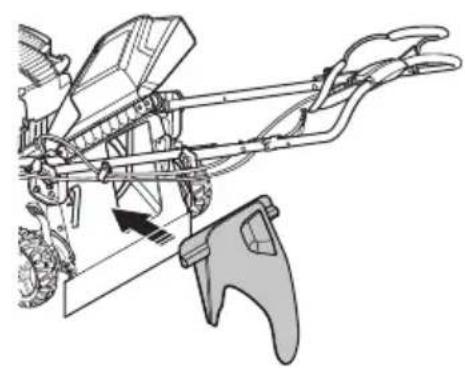

1. Install the discharge chute.

Technical line drawing of a mechanical agricultural harvester with blade and handle (no text or symbols)

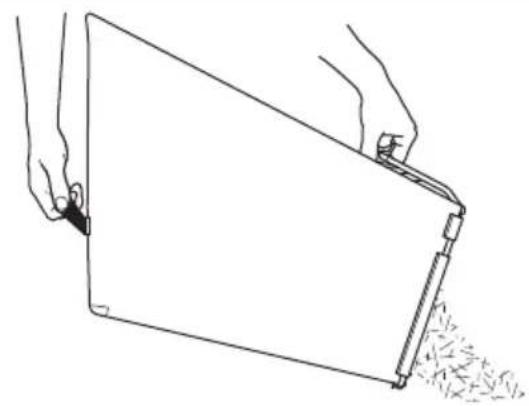

To empty the grass catcher

CAUTION: Do not drag the bag when you empty the grass catcher to prevent wear.

1. Lift the grass catcher with the frame handle.

Line drawing of hands holding a tablet device with a scroll wheel (no text or symbols)

1. Remove grass clippings from the grass catcher from below the handle.
2. Empty grass clippings from the bag with the frame handle and the bag handle.

To get a good result

• Always use a sharp blade. A blunt blade gives an irregular result and the cut surface of the grass becomes yellow. A sharp blade also uses less energy than a blunt blade.
- Do not cut more than 13 of the length of the grass. Cut first with the cutting height set high. Examine the result and lower the cutting height to an applicable level. If the grass is very long, drive slowly and cut 2 times if necessary.
- Cut in different directions each time to prevent stripes in the lawn.

Maintenance

Introduction

WARNING: Before you do maintenance, you must read and understand the safety chapter.

For all servicing and repair work on the product, special training is necessary. We guarantee the availability of professional repairs and servicing. If your dealer is not a service agent, speak to them for information about the nearest service agent.

Maintenance schedule

CAUTION: Make sure that the air filter is up and not against the ground when you tilt the product. Risk of engine damage.

The maintenance intervals are calculated from daily use of the product. The intervals change if the product is not used daily.

For maintenance identified with * refer to instructions in Safety devices on the product on page 5.

Maintenance Daily Weekly Monthly
Do a general inspection X
Examine the oil level X
Clean the product X
Examine the cutting equipment X
Examine the cutting cover * X
Examine the engine brake handle * X
Examine the blade brake control * X
Examine the muffler * X
Examine the spark plug X
Replace the oil (the first time after 5 h of use, then after each 50 h of use)			X
Clean or replace the air filter X
Examine the fuel system X

To do a general inspection

- Make sure that all nuts and screws on the product are tightened correctly.

To clean the product externally

• Use a brush to remove leaves, grass and dirt.
• Make sure that the air intake on the top of the engine is not blocked.
• Do not use a high pressure washer to clean the product.
• If you use water to clean the product, do not flush water directly on the engine.

To clean the inner surface of the cutting cover

1. Empty the fuel tank.
2. Put the product on its side with the muffler down.

CAUTION: If the product is put with the air filter down, the engine can become damaged.

1. Hose down the inner surface of the cutting cover with water.

To use the water hose connection

1. Move the product to an area of cut grass or a different hard surface.
2. Remove the grass catcher or mulch plug from the product.

3. Close the rear deflector.

4. Connect a water hose to the water hose connection.

Mechanical assembly diagram showing a tool interacting with a vehicle wheel (no text or symbols present)

1. Stop the water supply and examine the water hose connection for leaks.
2. If you do not see a leak, start the engine. Let the engine run until the product is clean below the housing.
3. Stop the engine.
4. Stop the water supply and remove the hose from the water hose connection.

Note: Do not remove the water hose from the water hose connection while the engine is in operation. Water in the engine can decrease the life of the engine.

1. Start the engine and let it run for a full minute to remove remaining water from the product.

To replace the engine oil

WARNING: Engine oil is very hot directly after the engine is stopped. Let the engine become cool before you drain the engine oil. If you spill engine oil on your skin, clean with soap and water.

1. Operate the product until the fuel tank is empty.

2. Remove the ignition cable from the spark plug.

3. Remove the oil tank cap.
4. Put a container below the product to collect the engine oil in.
5. Tilt the product to drain the engine oil from the oil tank.
6. Fill with new engine oil of the type recommended in Technical data on page 19.
7. Do a check of the oil level. Refer to To do a check of the oil level on page 6.

To examine the spark plug

CAUTION: Always use the recommended spark plug type. Incorrect spark plug type can cause damage to the product.

• Examine the spark plug if the engine is low on power, is not easy to start or does not operate correctly at idle speed.
  • To decrease the risk of unwanted material on the spark plug electrodes, obey these instructions:

a) Make sure that the idle speed is correctly adjusted.
b) Make sure that the fuel mixture is correct.
c) Make sure that the air filter is clean.

- If the spark plug is dirty, clean it and make sure that the electrode gap is correct, refer to Technical data on page 19.

Technical line drawing of a mechanical component with threaded end and shaft (no text or symbols)

- Replace the spark plug if it is necessary.

To clean the air filter

1. Remove the air filter cover and remove the filter.
2. Hit the filter against a flat surface to make the particles fall off.

CAUTION: Do not use solvent or compressed air to clean the air filter.

1. Put the air filter back. Make sure that the air filter fully seals against the air filter holder.
2. Put the air filter cover back.

Note: An air filter that is used for a long time cannot be fully cleaned. Replace the air filter at regular intervals. Always replace a damaged air filter.

To examine the cutting equipment

WARNING: To prevent accidental start remove the ignition cable from the spark plug.

WARNING: Use protective gloves when you do maintenance on the cutting equipment. The blade is very sharp and cuts can easily occur.

1. Examine the cutting equipment for damage or cracks. Always replace a damaged cutting equipment.
2. Look at the blade to see if it is damaged or blunt.

Note: It is necessary to balance the blade after it is sharpened. Let a service center sharpen, replace and balance the blade. If you hit an obstacle that causes the product to stop, replace the damaged blade. Let the service center estimate if the blade can be sharpened or must be replaced.

To assemble the blade

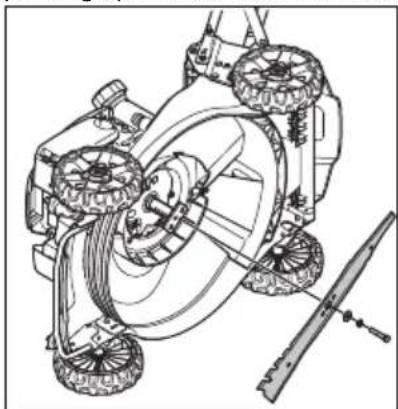

1. Put the blade adapter on the engine crankshaft. Make sure the key in the adapter and crankshaft keyway are aligned.

Diagram showing a curved structure above grass with arrows indicating direction (no text or symbols)

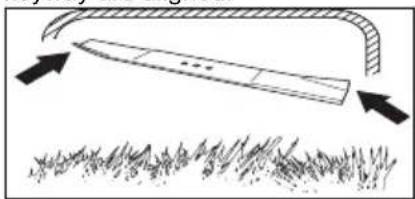

1. Always attach the blade with the angled ends pointing up in the direction of the engine.

Technical line drawing of a mechanical device with wheels and a rifle (no text or symbols)

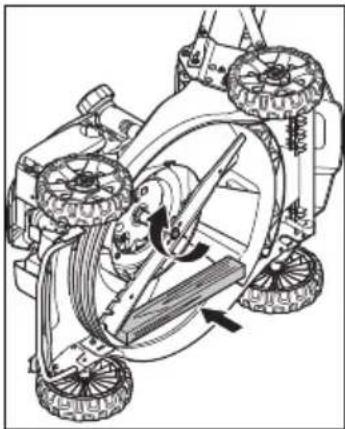

1. Use a block of wood between the blade and product housing. Tighten the blade bolt and turn it clockwise.
2. Always tighten the bolt with a torque of 35-40 ft lbs (47-54 Nm).

Mechanical diagram of a grass lawn mower with visible blades and wheel supports (no text or labels)

1. Make sure the spark plug cable is disconnected from the engine.

CAUTION: To prevent accidental start, always disconnect the spark plug cable and put the wire where it cannot touch the spark plug.

1. Pull the blade around by hand and make sure it rotates freely.

To replace the blade

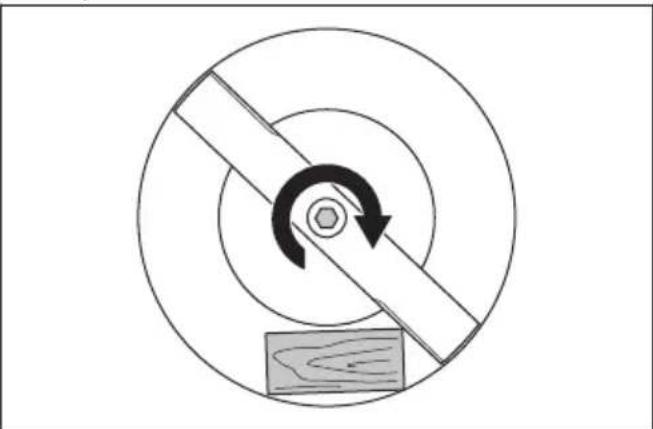

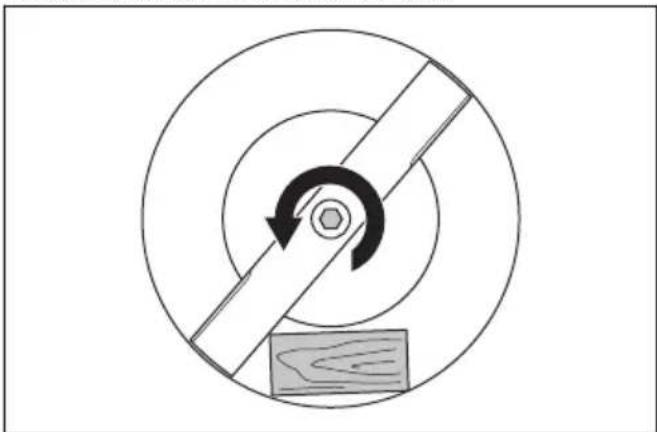

1. Lock the blade with a block of wood.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

1. Remove the blade bolt.

2. Remove the blade.

3. Examine the blade support and blade bolt to see if there are damages.

4. Examine the engine shaft to make sure that it is not bent.

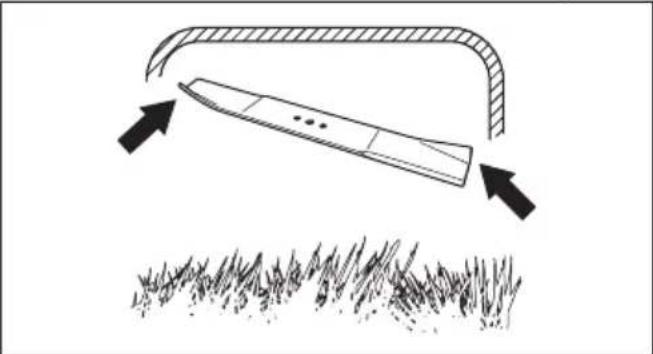

5. When you attach the new blade, point the angled ends of the blade in the direction of the cutting cover.

Diagram showing a blade cutting through a curved structure with arrows indicating direction, above grass (no text or symbols)

1. Make sure that the blade is aligned with the center of the engine shaft.
2. Lock the blade with a block of wood. Attach the spring washer and tighten the bolt and washer with a torque of 47-54 Nm.

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

1. Pull the blade around by hand and make sure that it turns freely.

WARNING: Use heavy duty gloves. The blade is very sharp and cuts can easily occur.

1. Start the product to do a test of the blade. If the blade is not correctly attached, there is vibration in the product or the cutting result is unsatisfactory.

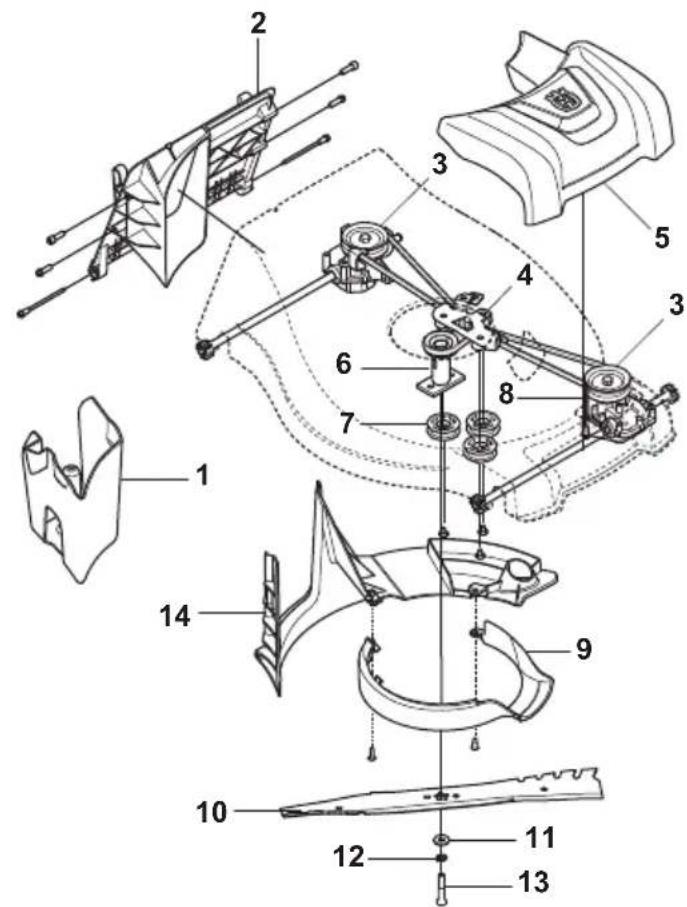

Transmission assembly overview

Technical diagram of a mechanical assembly with numbered components for identification

1. Mulch plug
2. Rear insert
3. Transmission pulley
4. Idler bracket
5. Transmission cover
6. Blade adapter
7. Idler pulley
8. Front belt keeper
9. Ring
10. Blade
11. Hard washer
12. Lock washer
13. Blade bolt

14. Belt cover

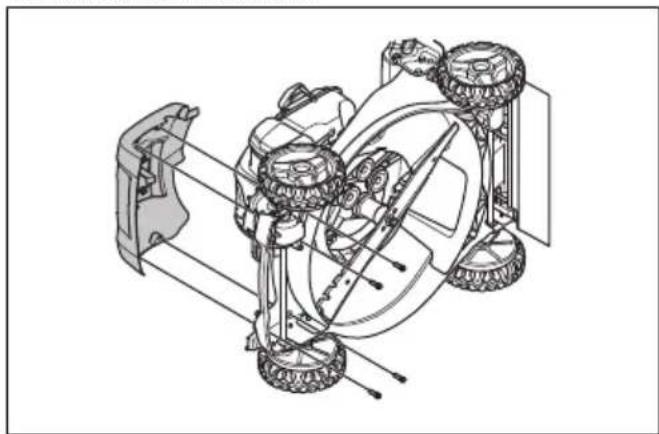

15. Remove the drive cover.

Technical line drawing of a vehicle chassis with wheels and suspension components (no text or symbols)

To remove the drive belt

1. Operate the product until the fuel tank is empty.
2. Remove the spark plug cap from the spark plug.
3. Put the product on its side with the muffler down.

CAUTION: If the product is put with the air filter down, the engine can become damaged.

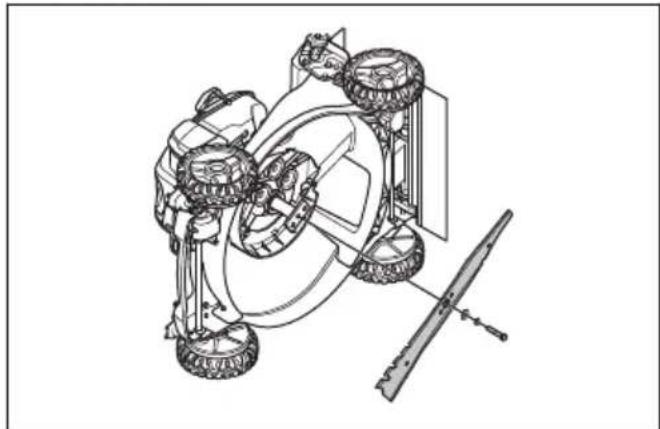

1. Remove the blade bolt, lock washer, hard washer and the blade.

Technical line drawing of a mechanical assembly with gears and a tool (no text or symbols)

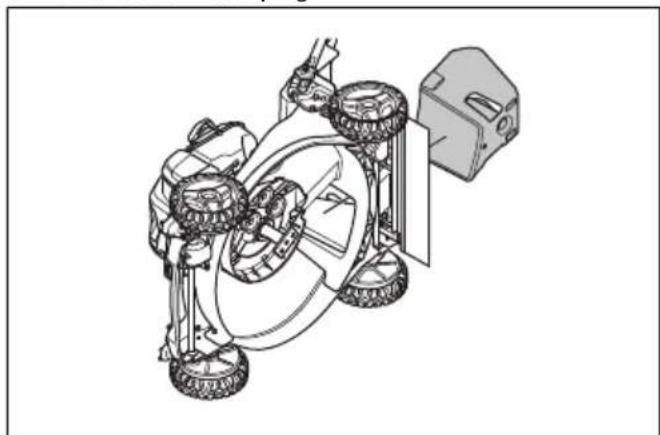

1. Remove the mulch plug.

Technical line drawing of a mechanical assembly with gears and a housing (no text or symbols)

1. Remove the rear insert.

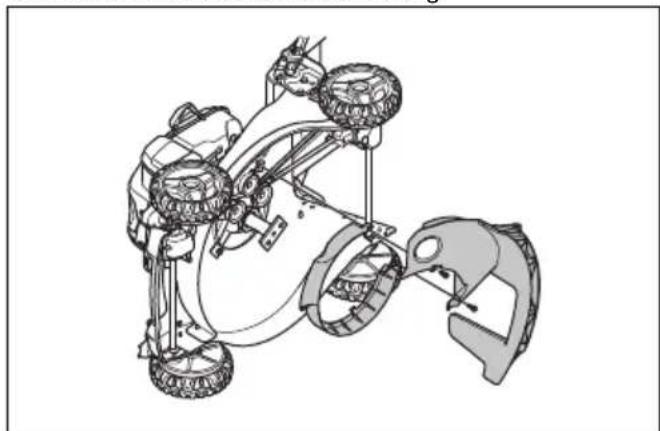

2. Remove the belt cover and the ring.

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

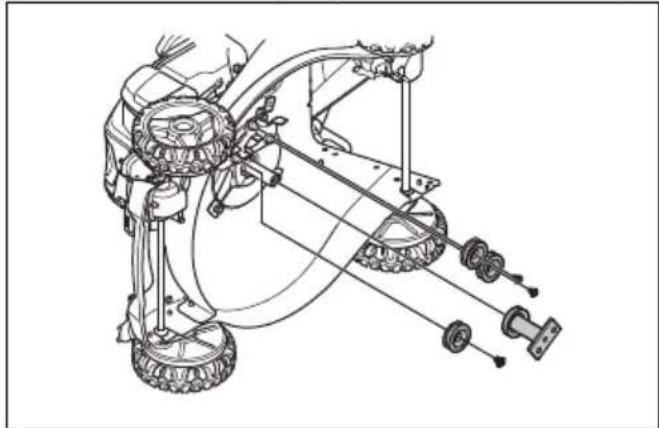

1. Disconnect the cable from the transmission and remove the idler pulley from the idler assembly.
2. Remove the front belt keeper.
3. Remove the drive belt from the transmission pulley.
4. Remove the 3 idler pulleys from the idler assembly.

Technical line drawing of a mechanical assembly with wheels, springs, and shafts (no text or symbols)

1. Remove the drive belt from blade adapter and the idler assembly.

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

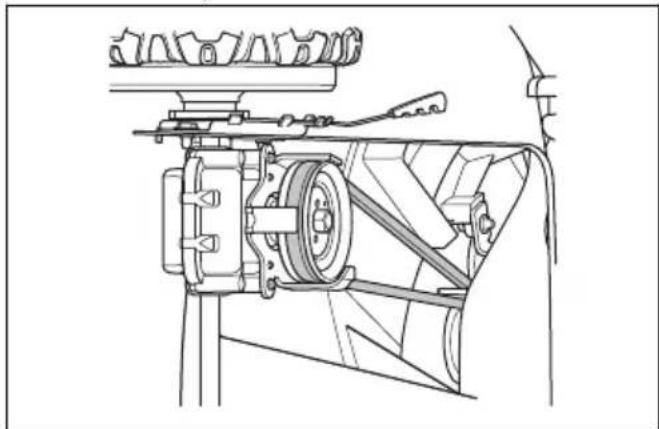

1. Attach locking pliers to the input shaft of the transmission. Loosen the engine pulley with a 9/16" box wrench to remove the transmission pulley.
2. Remove the drive belt.

Troubleshooting

Problem Possible cause Solution
The engine does not start. The ignition cable is not connected correctly.		Connect the ignition cable to the spark plug.
		Tank with correct fuel type.
		Clean the carburetor and/or fuel line.
		the electrode gap, clean or replace the spark plug.
The engine does not stop. The stop mechanism is defective. Disconnect the ignition cable from the spark plug. Let an approved service agent repair the product.
The engine does not operate smoothly.	The ignition cable is not connected correctly.	Connect the ignition cable to the spark plug.
	There is dirt in the fuel line or the fuel has expired.	Clean the fuel line. Fill the fuel tank with new fuel of the correct type.
	There is blockage in the fuel tank cap.	Clean the fuel tank cap.
	There is water or dirt in the fuel system.	Drain the fuel tank. Fill the fuel tank with new fuel of the correct type.
	The air filter is dirty. Clean the air filter.
	The carburetor must be adjusted.	Let a servicing dealer adjust the carburetor.
The engine becomes too hot. The engine oil level is too low. Fill engine oil.
There is misfire in the engine when it operates at high speed.	The electrode gap in the spark plug is too small.	Adjust the electrode gap.
The engine does not operate smoothly at idle speed.	The spark plug is dirty, defective or the electrode gap is too wide.	Adjust the electrode gap or replace the spark plug.
	The carburetor must be adjusted.	Adjust the carburetor.
	The air filter is dirty. Clean the air filter.
There is too much vibration in the handle.	A blade is loose or not balanced. Tighten the blade bolts. Replace the blades if there are damages.
	A blade is bent. Replace the blades if there are damages.
The grass is not cut into mulch. The	the grass is wet. Do not operate the p	product when the grass is wet. Wait until the grass is dry.
	The grass is too high. Cut first with	the cutting height set high. Low-er the cutting height and cut again.Cut only 1⁄2 of the cutting width at a time.
	One or more of the blades are not sufficiently sharp.	Sharpen or replace the blades.
The grass is cut irregularly. The wheels are not in correct position.		Set the cutting height at the same level for all 4 wheels.
		One or more of the blades are not sufficiently sharp.
The drive system does not operate correctly	The drive belt is not sufficiently tight or there is dirt on the pulleys or drive belt.	Let an approved service agent do maintenance on the drive system.

Transportation, storage and disposal

Transportation and storage

• For storage and transportation of the product and fuel, make sure that there are no leaks or fumes. Sparks or open flames, for example from electrical devices or boilers, can start a fire.
  • Always use approved containers for storage and transportation of fuel.
• Empty the fuel tank before you put the product in storage for a long period of time. Discard the fuel at an applicable disposal location
• Safely attach the product during transportation to prevent damage and accidents.
• Keep the product in a locked area to prevent access for children or persons that are not approved.
• Keep the product in a dry and frost free area.

Disposal

• Obey the local recycling requirements and applicable regulations.
• Discard all chemicals, such as engine oil or fuel, at a service center or at an applicable disposal location.
• When the product is no longer in use, send it to a Husqvarna dealer or discard it at a recycling location.

Technical data

Technical data

	L 321AH
Engine
Brand Briggs & Stratton
Displacement, cu.in/cm ^3	10.68/175
Speed, rpm 3000-3200
Nominal engine output, kW/hp @ rpm ^1	3.1/4.2 @ 3000-3200
Ignition system
Spark plug Brisk DR17YC
Electrode gap, in/mm 0.020/0.51
Fuel and lubrication system
Fuel, unleaded, minimum octane number 90 RON / 87 AKI
Fuel tank capacity, US gal I 0.27/1.02
Oil tank capacity, US gal/I 0.14/0.53
Engine oil ^2	SAE 30 / SAE 10W-30
Weight
With empty tanks, lb/kg 92/41.7
Noise emissions ^3
Sound power level, measured dB (A) 95
Sound power level, guaranteed LWA dB (A) 96
Sound levels ^4
Sound pressure level at the operator's ear, dB (A) 85
Vibration levels ^5
Handle, m/s ^2 with grass catcher/without grass catcher 7/7
Cutting equipment
Cutting height, in/mm 1.0-4.0/25.4-101.6
Cutting width, in/mm 21/530
Blade
Article number 586 85 96-02
Grass catcher capacity, ft ^3 /l 2.3/65
Drive
Speed, mph/km/h 0-3/0-4.8

Contenido

Introducción....21

Seguridad.... 23

Montaje....26

Technical diagram of a lawn mower with numbered parts and exploded view, including labeled parts and component annotations.

Illustration of a person using a handheld device to lift a vehicle (no text or symbols present)

Technical line drawing of a mechanical device with gears and wheels, showing rotational motion arrows (no text or symbols)

Diagram showing a lawn mower with labeled parts and directional arrows indicating motion or assembly steps.

Diagram showing a mechanical linkage with a circular arrow indicating rotational motion (no text or symbols)

Diagram of a mechanical linkage system with arrows indicating motion direction (no text or symbols)

1. Apriete la perilla T.

Diagram showing a mechanical assembly with rotating components and directional arrows (no text or symbols)

Technical diagram of a lawn mower with labeled parts and zoomed-in detail views

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram of a hand holding a rectangular device with directional arrows indicating rotation or movement (no text or symbols present)

Funcionamiento

Introducción

Mechanical component diagram showing a lever mechanism with an arrow indicating direction (no text or symbols present)

Diagram of a medical device with a central body and curved arm, no text or symbols present

Line drawing of a person using a handheld device to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a hand holding a cable or tool (no text or symbols present)

Illustration of a person using a handheld device to interact with another person (no text or symbols present)

Technical line drawing of a mechanical tiller with a moving part and directional arrow (no text or symbols)

Technical line drawing of a mechanical tiller with a box beside it (no text or symbols)

Technical line drawing of a mechanical agricultural machine with visible gears and a base component (no text or symbols)

Technical line drawing of a mechanical vehicle with wheels and a lever mechanism (no text or symbols)

Technical line drawing of a mechanical tiller with a moving part and directional arrow (no text or symbols)

Technical line drawing of a mechanical tiller with a tool handle and blade assembly (no text or symbols)

Line drawing of hands holding a tablet device with a scroll wheel, no text or symbols present

Mechanical assembly diagram showing a valve inserted into a gear with a central knob (no text or symbols present)

Technical line drawing of a spark plug with threaded end and shaft (no text or symbols)

Diagram showing a tool interacting with grass under an arch (no text or symbols)

Technical line drawing of a wheeled vehicle with wheels and a mounted gun (no text or symbols)

Mechanical diagram of a grass lawn tractor with visible blades, wheels, and motion arrows (no text or labels)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Simple circular diagram with concentric rings and a central arrow, no text or symbols present

Technical diagram of a mechanical assembly with numbered components for identification

Technical line drawing of a vehicle chassis with wheels and suspension components (no text or labels)

Technical line drawing of a mechanical assembly with gears and a rifle (no text or symbols)

Technical line drawing of a mechanical assembly with wheels and a component (no text or symbols)

Technical line drawing of a mechanical assembly with gears and wheels (no text or symbols)

Technical line drawing of a vehicle's suspension system with wheels and suspension components (no text or labels)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Technical diagram of a lawn mower with numbered parts and exploded view, including labeled parts 1 through 16.

Line drawing of a person using a handheld device to interact with another person (no text or symbols present)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Diagram showing a lawn mower with labeled parts and directional arrows indicating motion or assembly steps.

Diagram showing a mechanical linkage with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical linkage with arrows indicating motion direction (no text or symbols)

Diagram showing a mechanical assembly with a rotating arrow and gear mechanism (no text or symbols)

Technical diagram of a lawn mower with labeled parts and zoomed-in insets for mechanical assembly.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram of a hand holding a folded or mechanical device with directional arrows indicating motion (no text or symbols)

Fonctionnement

Introduction

Mechanical component diagram showing a lever mechanism with an arrow indicating motion (no text or symbols present)

Diagram of a medical device with a central mass and curved tubing (no text or labels)

Line drawing of a person using a handheld device to adjust or install a mechanical component (no text or symbols present)

Diagram of a mechanical device with an inset showing a rotating cable or switch mechanism (no text or symbols present)

Illustration of a hand holding a device with an arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical tiller with a moving part and directional arrow (no text or symbols)

Technical line drawing of a manual tiller with a box beside it (no text or symbols)

Technical line drawing of a mechanical trawler assembly with wheels and a housing (no text or symbols)

Technical line drawing of a mechanical vehicle with wheels and a lever mechanism (no text or symbols)

Technical line drawing of a mechanical tiller assembly with a bracket and guide pin (no text or symbols)

Technical line drawing of a manual tiller machine with a tool handle (no text or symbols)

Line drawing of hands holding a tablet device with granular material inside (no text or symbols)

Technical line drawing of a mechanical assembly with a valve and tire (no text or symbols)

Technical line drawing of a mechanical component with threaded end and shaft (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Technical line drawing of a mechanical robotic vehicle with wheels and a mounted tool (no text or symbols)

Mechanical diagram of a robotic arm with wheels and a gear mechanism (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Diagram showing a blade cutting through a curved channel with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical gear or wheel assembly with a rotating shaft and wooden base (no text or symbols)

Technical diagram of a mechanical assembly with numbered components for identification

Technical line drawing of a vehicle chassis with wheels and suspension components (no text or symbols)

Technical line drawing of a mechanical assembly with gears and a rifle (no text or symbols)

Technical line drawing of a mechanical assembly with wheels and a housing (no text or symbols)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Technical line drawing of a vehicle chassis with wheels and suspension components (no text or symbols)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)
