Product Type	Babyfoot (foosball table) with LED lighting and electronic score counter
Brand	Klarfit
Model	Arrowhead
Usage	Private, indoor use only
Electronic score counter	Yes, from 0 to 99 goals per team, with reset
LED lighting	Yes, with sound and light signal when a goal is scored
Number of rods	8 rods (2 rods with 3 players, 2 rods with 2 players, 2 rods with 5 players)
Number of players	22 players (11 per team)
Balls included	2 balls
Power supply	Included power adapter (100-240 V AC, 50/60 Hz)
Assembly	Required, assembly by adults
Cleaning the rods	With a soft cloth and glass cleaner, then lubrication
Lubrication of rods	Pure silicone oil, 1 to 2 drops per rod
Cleaning the playing field	With water only, or glass cleaner without additives
Safety	Flat and sturdy surface, check before use, do not use if damaged
Package contents	Assembly parts, adapter, balls, tools (Allen key)
Article numbers	10034212, 10035491
Compliance	European directives 2011/65/EU, 2014/30/EU, 2014/35/EU

Frequently Asked Questions - Arrowhead Klarfit

How to assemble the Arrowhead foosball table?

Assembly must be carried out by adults at the final location. Follow the 10 steps described in the manual using the included parts (screws, Allen key, etc.). First assemble the legs, then the tabletop and the rods. Screw all legs the same way before tightening them firmly.

How to connect the LED lighting and the score counter?

Plug the included power adapter into the room's power outlet. All lights turn on and the electronic score counter is ready. Press the ON button to activate the displays.

How to reset the score counter?

Press the RESET button on the electronic score counter. Both displays (players/teams) return to zero, allowing you to start a new game at any time.

How to clean the game rods?

Use a soft cloth with a little glass cleaner to wipe the rods. Then lubricate them with pure silicone oil (1 to 2 drops per rod) to ensure smooth sliding.

Which lubricant to use for the rods?

It is recommended to use pure silicone oil. Apply one or two drops to each rod and spread over the rod and bearings. Avoid excess oil that could drip onto the playing field and ball.

How to clean the playing field?

Use only water or a glass cleaner without special additives. Avoid harsh products. For greasy residues, glass cleaner is recommended.

Can I use the foosball table outdoors?

No, the Arrowhead foosball table is intended for private and indoor use only. Rain, snow and moisture would damage the materials. Prolonged exposure to sunlight is also not recommended.

What type of power adapter should I use?

Use exclusively the power adapter provided in the package contents. Plug it into a standard power outlet (100-240 V AC). Do not use with a damaged connector.

What to do if the score counter does not work?

First check that the power adapter is properly plugged in and that the outlet is powered. Press the ON button. If the problem persists, do not attempt to repair it yourself; contact customer service at the address mentioned in the manual.

Where to find spare parts?

The manual does not provide information on spare parts. Check the manufacturer's website Klarfit or contact customer service. The parts listed in the package contents (rods, players, screws, etc.) may be needed in case of loss or breakage.

USER MANUAL Arrowhead Klarfit

Illuminated Football Table

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENTS

Item 19

Safety Instructions 20

Scope of Supply 21

Assembly 23

Wiring 30

Function of LED Lights and electronic counter 31

Cleaning and Care 32

Disposal Considerations 33

Declaration of Conformity 33

ITEM

Item number 10034212, 10035491

SAFETY INSTRUCTIONS

• ASSEMBLY AND DISMANTLING MUST ONLY BE CARRIED OUT BY ADULTS. Once assembled your table is quite wide and may not fit through your doors. For this reason you should assemble it in the room you intend it to be used. Should you wish to move your table to another room, it might be necessary to remove its legs.
• This table football set is only designed for private use. For commercial use, the warranty loses its validity. Please use this game exclusively for its intended purpose.
• Your table has been manufactured for indoor playing: do not leave it outdoors. Rain, snow and high humidity may damage its materials. Prolonged exposure to the sun is to be avoided too, due to its ultraviolet effects which will ruin the colours.
• Clean your table periodically. It is sufficient to wipe its surfaces using a damp cloth. For a deeper cleaning you can use any household detergent which does not contain wax or abrasives. Should you wish to further improve bars smoothness, only employ a good quality silicone spray. Please be careful not to use any vegetal or any other type of grease or you run the risk of attracting dirt.
• Should you pass on the table football set to another person, please make sure that this person is aware of the assembly and user instructions.
• Always place the table football set on even and stable surfaces.
• Before each use, check that all parts are working correctly and do not use the table football set if that is not the case.
• Always place a protective layer (cardboard or carpet) under the table legs to protect your floors.
• CAUTION: To avoid any problems in the assembly or fastening of the table legs, first screw on all legs loosely at the same time and only tighten them later.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the appliance and its cord out of reach of children less than 8 years.
• Do not operate this or any other appliance with a damaged cord or plug or after the appliance malfunctions, has been damaged in any way, has been immersed in water or other liquid. Send the unit to the nearest authorized service centre for inspection, repair or adjustment. (ONLY qualified technicians must repair the unit).

SCOPE OF SUPPLY

#1 Side panel 2 pcs	#2 End Panel w/ Goal Box A 1 pc	#3 End Panel w/ Goal Box B 1 pc	#4 Playfield 1 pc
#5 Left Leg 2 pcs	#6 Right Leg 2 pcs	#7 Support Brace 3 pcs	#8 Leg Panel A 2 pcs
#9 Leg Panel B 4 pcs	#10 Bottom Board 1 pc	#11 1/4"*720mm Support Rod 3 pcs	#12 1/4" Nut 6 pcs
#13 Leg Leveler 4 pcs	#14 Allen Key 2 pcs	#15 Ball Entry Cup 2 pcs	#16 Rod Bumpers 16 pcs
#17 Plastic Rod Washer 16 pcs	#18 PLAYER 11+11 pcs	#19 Rod Handle 8 pcs	#20 Rod End Cap 8 pcs
#21 M4X28mm BOLT 26 pcs	#22 M4 NUT 26 pcs	#23 AC-DC ADAPTER 1 pc	#24 3-Hole Rod 4 pcs
#25 2-Hole ROD 2 pcs	#26 5-Hole ROD 2 pcs	#27 1/4" *1-1/2" Bolt 8 pcs	#28 1/4" Washer 8 pcs
#29 5/16" * 2-5/8" Bolt 16 pcs	#30 5/16" Washer 16 pcs	#31 T3.5X45mm SCREW 8 pcs	#32 T3.5X25mm SCREW 16 pcs
#33 T3.5X12mm SCREW 16 pcs	#34 Stop Ring 4 pcs	#35 Soccer Ball 2 pcs

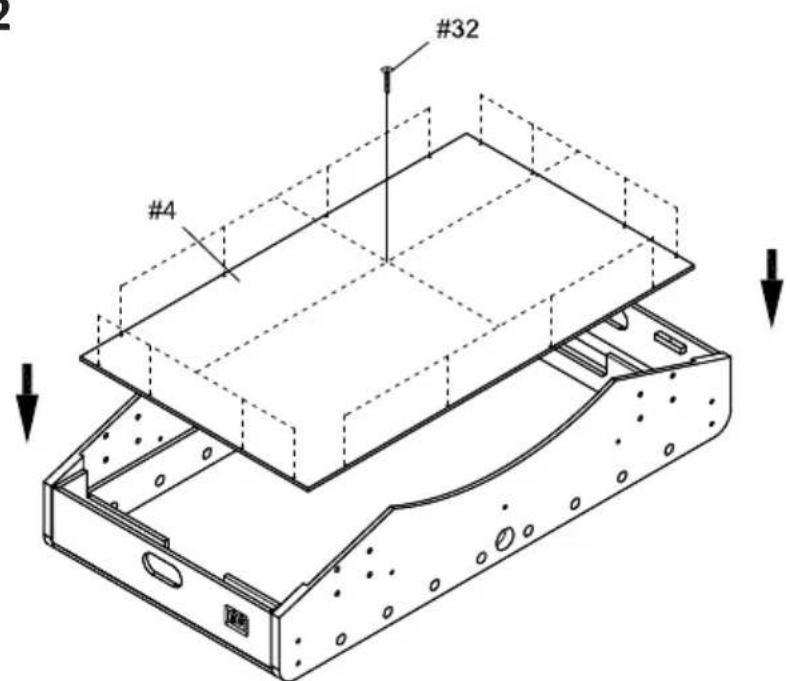

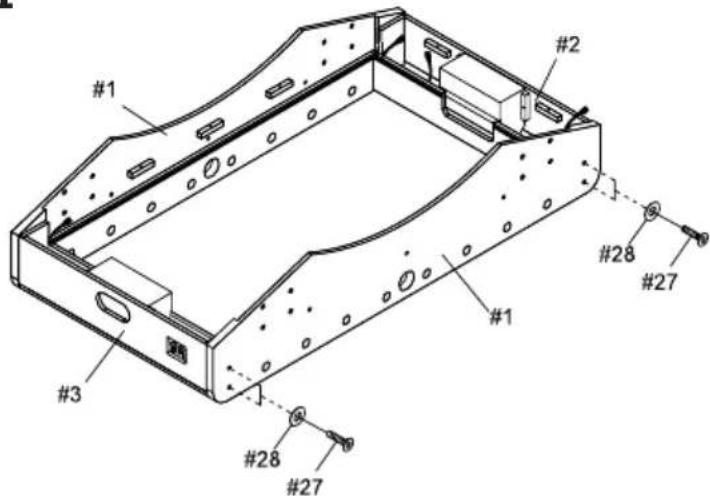

ASSEMBLY

Step 1

Step 2

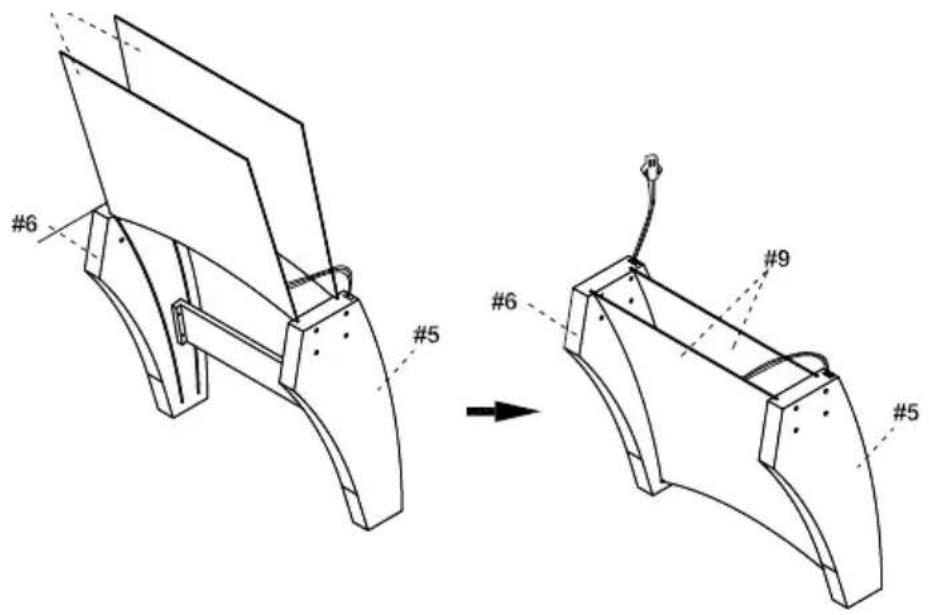

Step 3

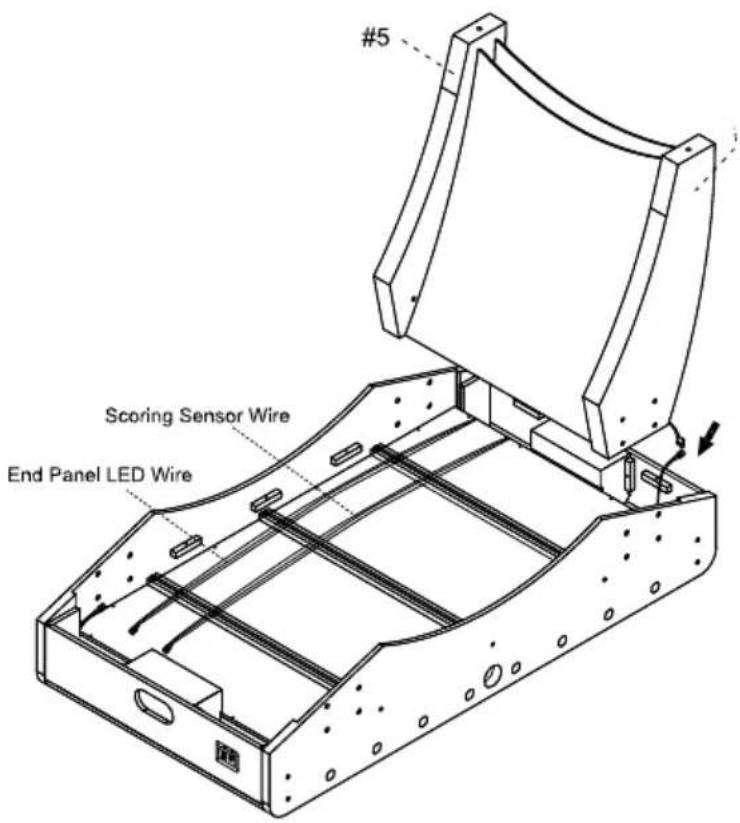

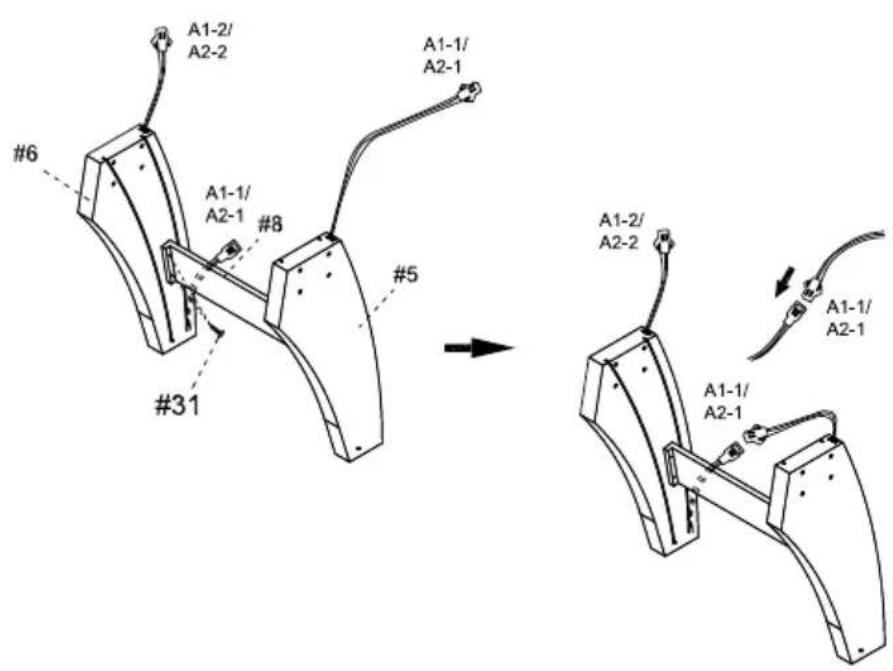

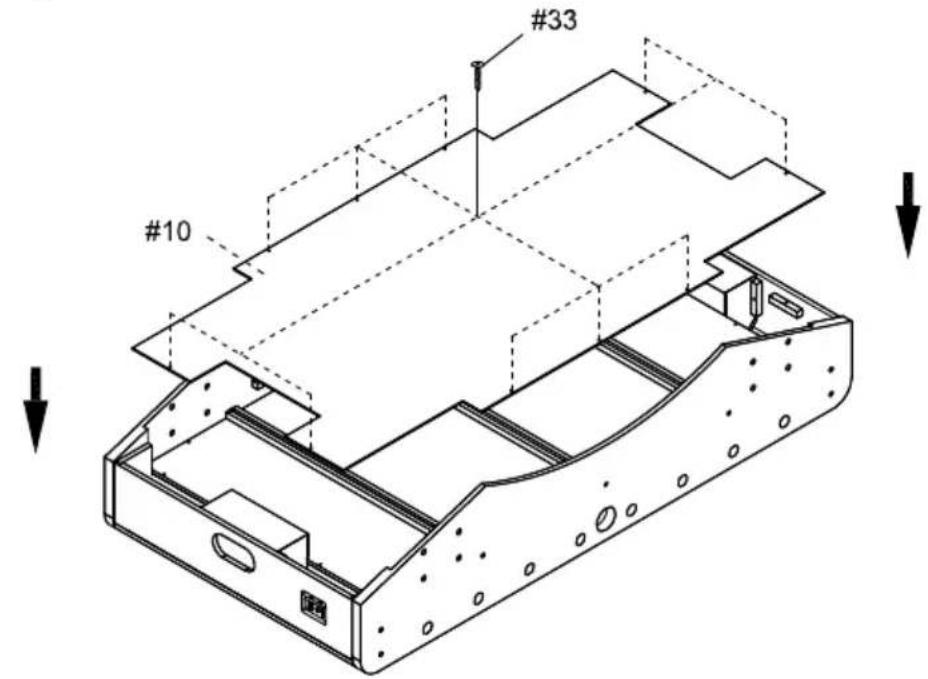

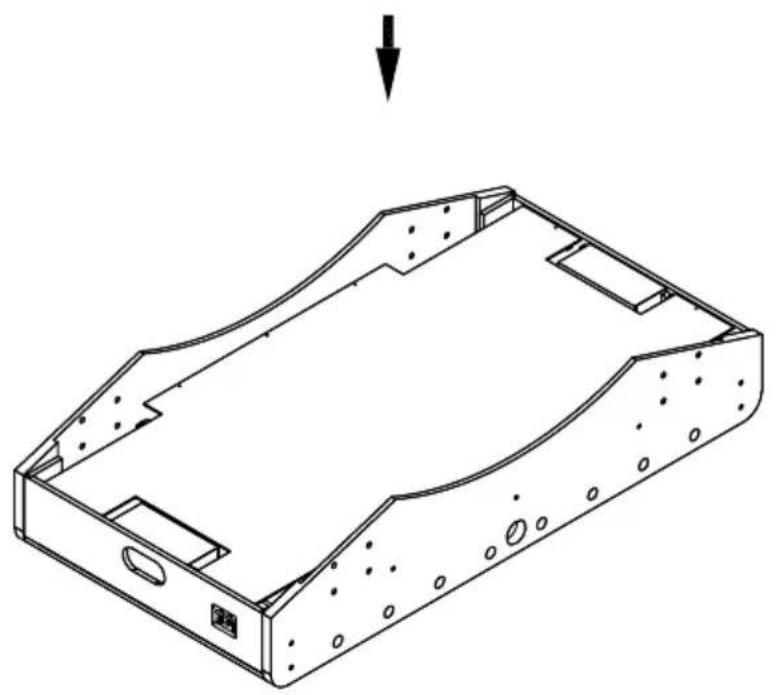

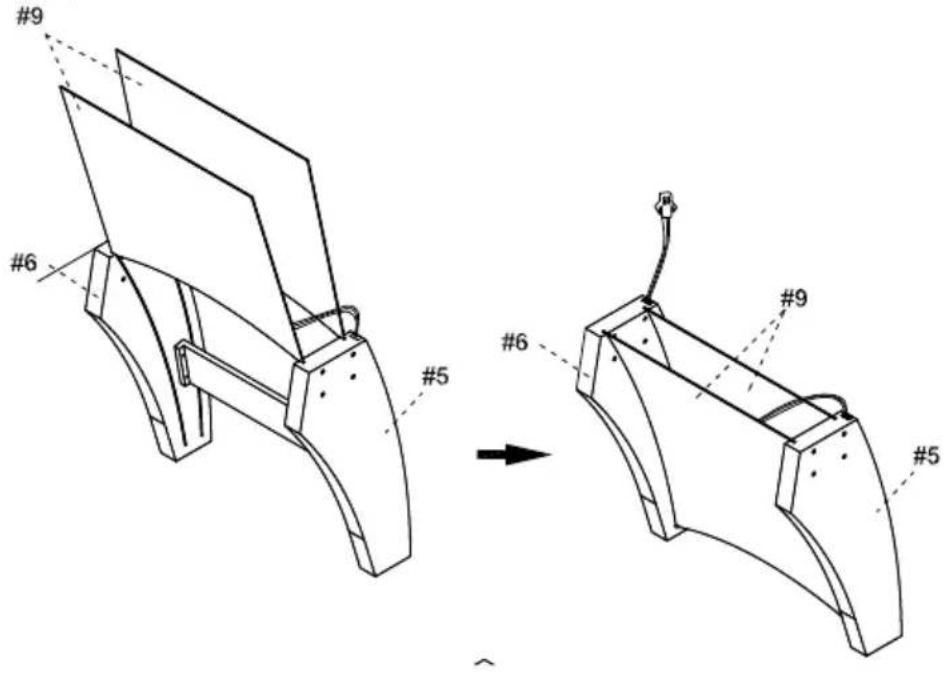

Step 4

Step 5

Step 6

Step 7

Step 8

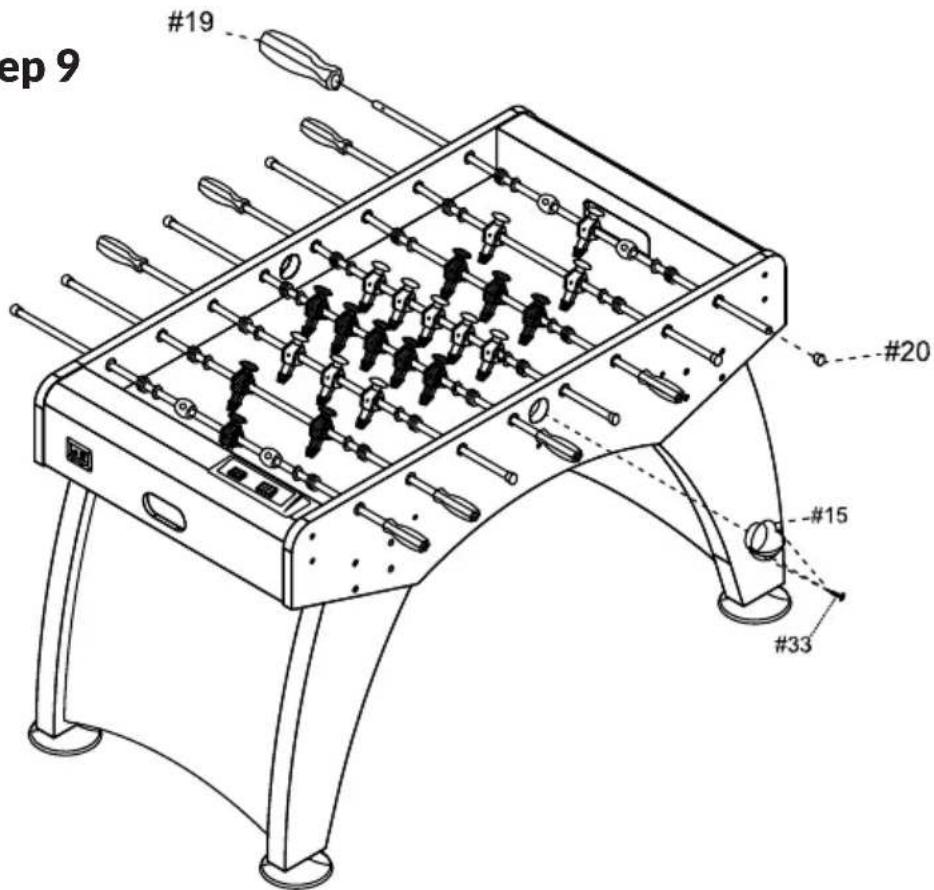

Step 9

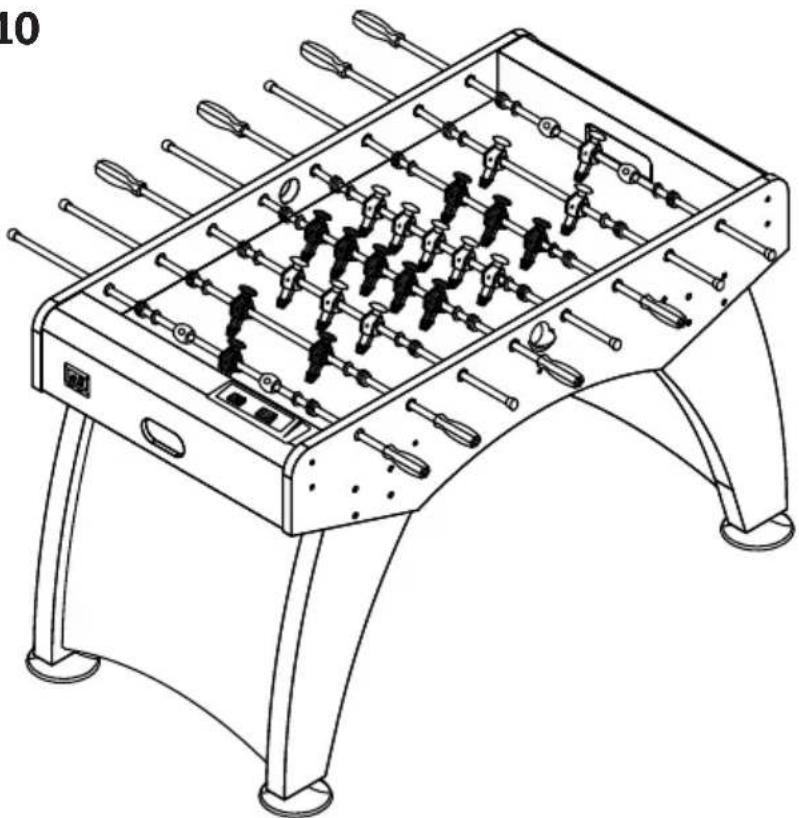

Step 10

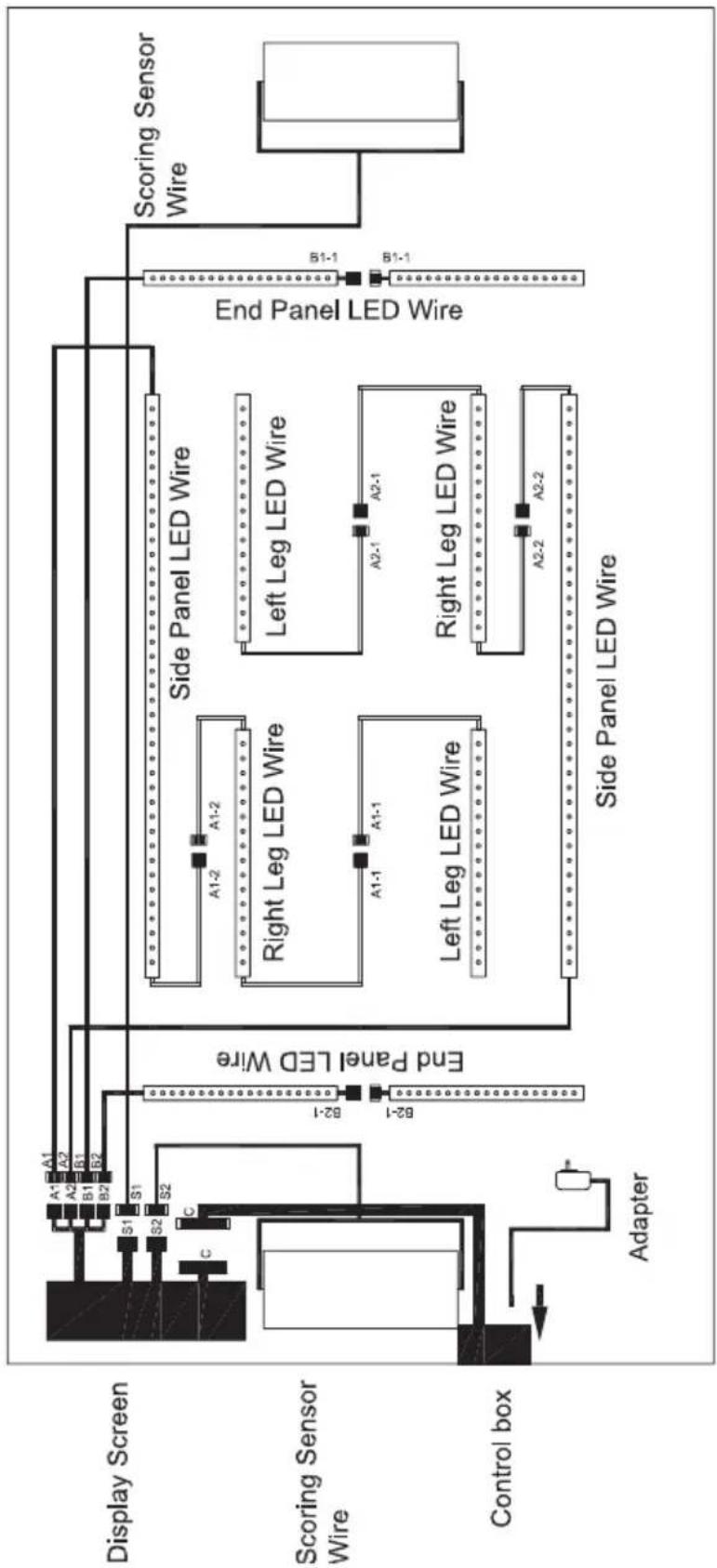

WIRING

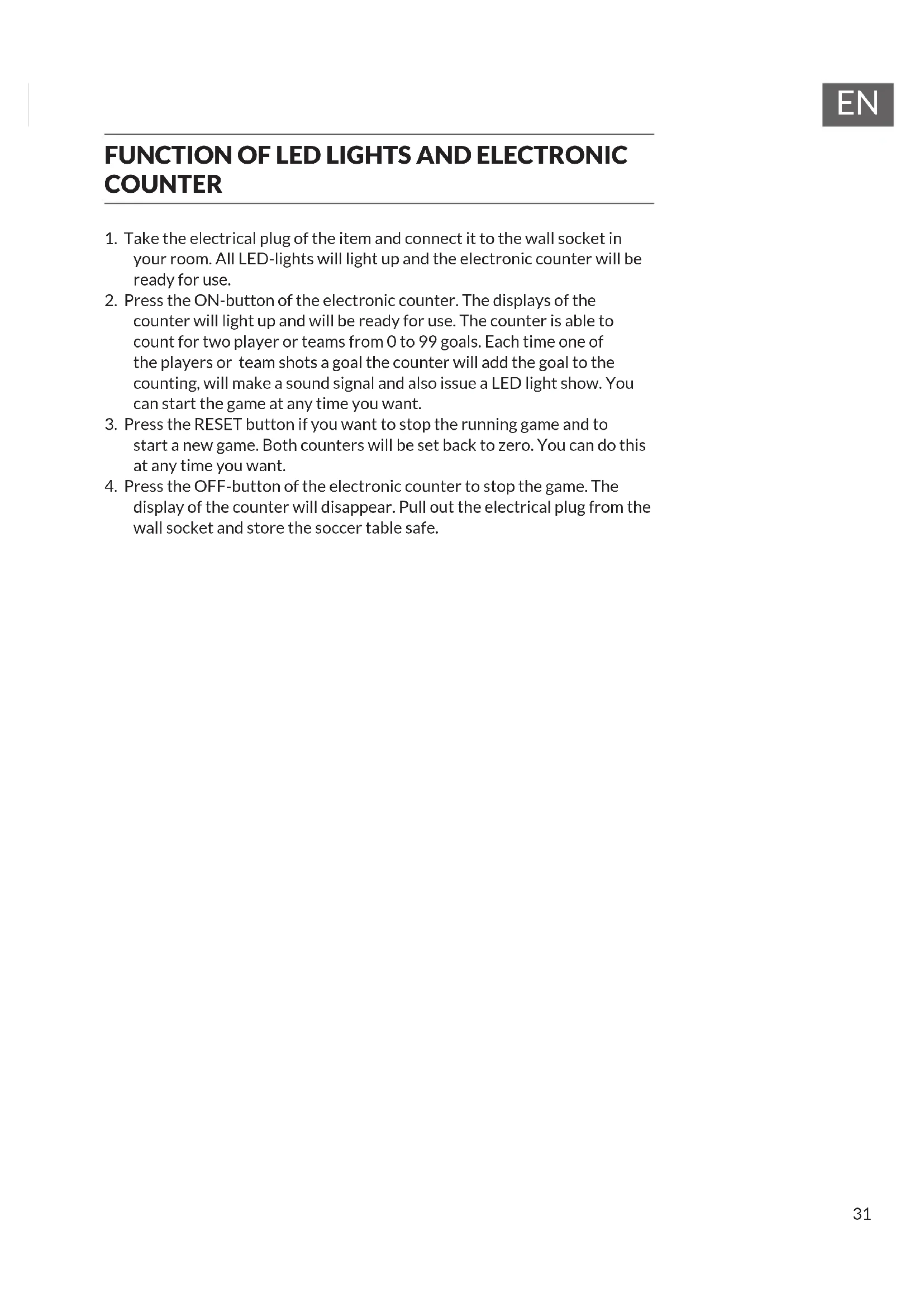

FUNCTION OF LED LIGHTS AND ELECTRONIC COUNTER

1. Take the electrical plug of the item and connect it to the wall socket in your room. All LED-lights will light up and the electronic counter will be ready for use.
2. Press the ON-button of the electronic counter. The displays of the counter will light up and will be ready for use. The counter is able to count for two players or teams from 0 to 99 goals. Each time one of the players or team shots a goal the counter will add the goal to the counting, will make a sound signal and also issue a LED light show. You can start the game at any time you want.
3. Press the RESET button if you want to stop the running game and to start a new game. Both counters will be set back to zero. You can do this at any time you want.
4. Press the OFF-button of the electronic counter to stop the game. The display of the counter will disappear. Pull out the electrical plug from the wall socket and store the soccer table safe.

CLEANING AND CARE

In order for a new table football table to retain its perfect playing characteristics, it must of course be properly cared for. The care of the kicker is mainly limited to lubricating the rods and cleaning the playing field.

Cleaning the Player Poles

To clean the poles, apply a little window cleaner to a soft cloth and clean the poles with it. You should also lubricate the poles so that they run smoothly.

Lubricating the rods

Pure silicone oil is a good lubricant. Do not apply more than one or two drops to each rod. Distribute these drops on the rod and in the bearings. If you apply too much silicone oil, it can drip and the pitch and kicker ball will become greasy.

Cleaning the pitch

Do not use aggressive detergents or cleaners that cannot be completely removed. It is therefore advisable to clean the table only with water.

If you have oily residues on the playing field, preferably use a window cleaner without special additives.

DISPOSAL CONSIDERATIONS

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

Producer:

This product is conform to the following European Directives:

2011/65/EU (RoHS)

2014/30/EU (EMV)

2014/35/EU (LVD)
