USER MANUAL PA410S1 TARGUS

notebook security DEFCON® SCL serialised combination cable lock

7Targus®

USER GUIDE

TABLE OF CONTENTS

GB - English

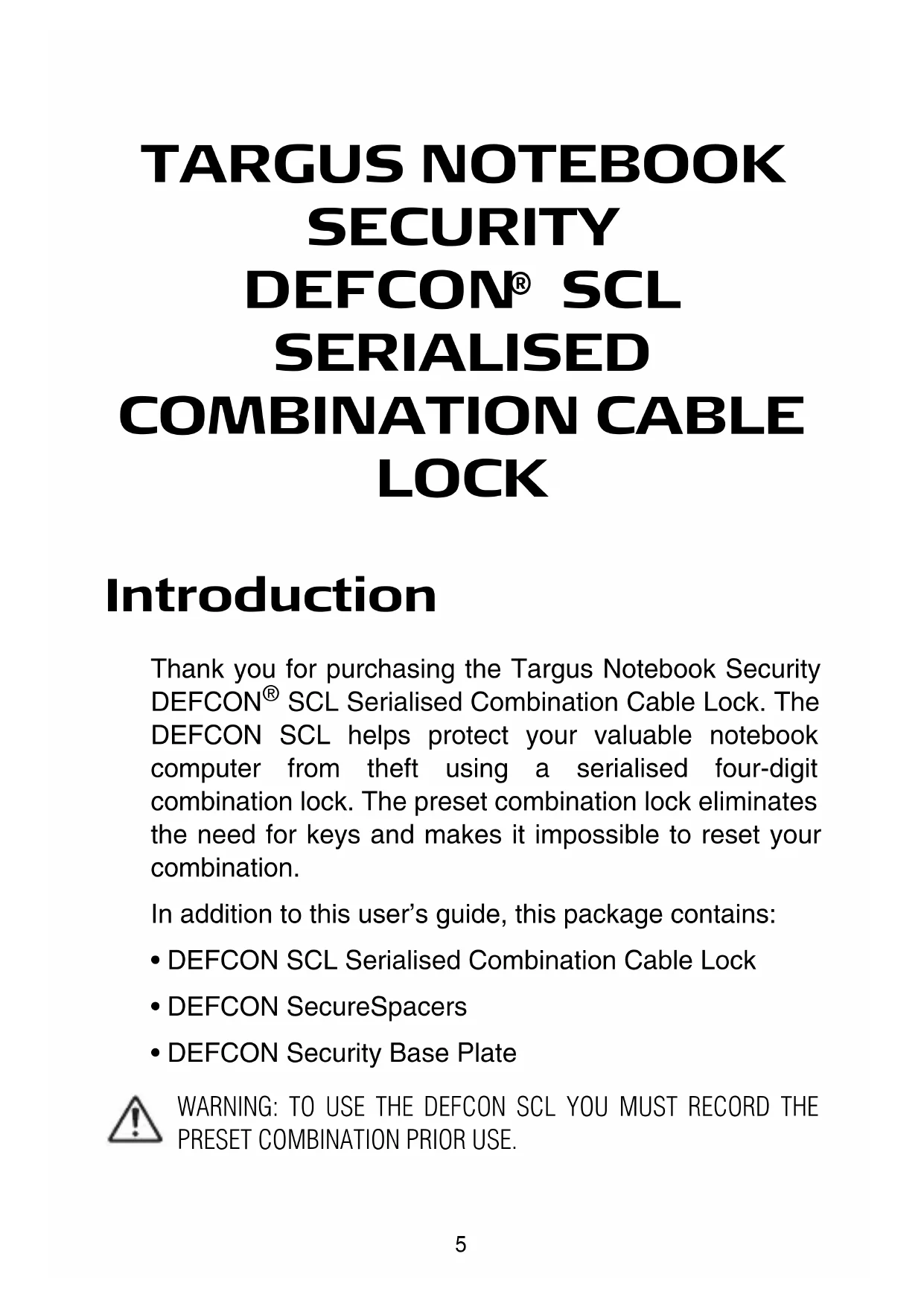

TARGUS NOTEBOOK SECURITY DEFCON® SCL SERIALISED COMBINATION CABLE LOCK 5

Thank you for purchasing the Targus Notebook Security DEFCON® SCL Serialised Combination Cable Lock. The DEFCON SCL helps protect your valuable notebook computer from theft using a serialised four-digit combination lock. The preset combination lock eliminates the need for keys and makes it impossible to reset your combination.

In addition to this user's guide, this package contains:

• DEFCON SCL Serialised Combination Cable Lock
  • DEFCON SecureSpacers
  • DEFCON Security Base Plate

WARNING: TO USE THE DEFCON SCL YOU MUST RECORD THE PRESET COMBINATION PRIOR USE.

Serialised combination

1 Locate the combination dials and windows on the lock.

Locking button Combination dials Combination windows

DEFCON SCL

2 The preset combination appears on a sticker that is attached at the back of this user guide.

NOTE: ALTERNATIVELY, YOU MAY RECORD THE COMBINATION IN ANOTHER SECURE, EASY-TO-FIND PLACE, AND KEEP IT AWAY FROM THE NOTEBOOK COMPUTER.

3 Turn the dials to disguise the combination.

Testing the Combination

Before attaching the lock to your notebook computer:

1 Turn the dials to return to the serialised combination.

2 Check that the locking button depresses completely.

Securing the DEFCON SCL

Select an object in the room to which you will secure your notebook computer with the DEFCON SCL. Choose a large, heavy piece of furniture such as a table or desk.

1 Take the looped end of the cable and wrap it around the selected object.

NOTE: WRAP THE CABLE AROUND A PART OF THE OBJECT THAT WILL DETER AN INTRUDER FROM SLIPPING THE CABLE OFF (FOR EXAMPLE, A TABLE OR DESK LEG WITH A CROSS BAR OR A DRAWER HANDLE).

2 Feed the lock through the looped end of the cable as shown.

Line drawings of two furniture compartments with ropes and handles, no text or symbols present

Securing the DEFCON SCL to an object

Locking the DEFCON SCL to your Notebook Computer

NOTE: HOLD THE DEFCON SCL WITH BOTH HANDS FOR ADDITIONAL STABILITY WHILE INSERTING OR REMOVING THE LOCK.

1 Using the dials, enter the correct combination. The combination appears in the windows.

SecureSpacer Locking teeth Locking button DEFCON SCL

2 Press and hold the locking button to align the locking teeth.

NOTE: FOR THE LOCKING BUTTON TO DEPRESS COMPLETELY YOU MUST ENTER THE CORRECT COMBINATION.

3 Insert the DEFCON SCL into your notebook computer's lock slot and release the locking button.

NOTE: DUE TO THE VARIATION IN THE SIZE OF THE SECURITY SLOTS ON VARIOUS NOTEBOOK MODELS, YOU MAY FIND THAT THERE IS SOME SLACK

BETWEEN THE LOCK AND THE COMPUTER. THE SUPPLIED DEFCON SECURESPACERS ARE THE BEST SOLUTION FOR OPTIMAL FIT AND SECURITY.

4 Turn the dials to conceal your combination.

Due to differences in the size of the security slots on various notebook computers, you may find that there is some slack between the DEFCON locking device and the computer. The DEFCON SecureSpacers provide optimal fit and security.

Using the DEFCON SecureSpacers

1 Insert your DEFCON locking device into the computer's lock slot.

Technical line drawing of a mechanical component with no visible text or symbols

2 Pull the DEFCON locking device away from the computer and check whether the gap is excessive.

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

3 If so, try each of the SecureSpacers to determine which one fits the gap. The SecureSpacers come in three sizes: 1.6 mm, 0.8 mm, and 0.4 mm.

NOTE: DO NOT REMOVE THE ADHESIVE STRIP FROM ANY OF THE SECURESPACERS UNTIL YOU DECIDE WHICH ONE TO USE.

4 Once you know which SecureSpacer you are going to use, remove the locking device from the computer. Then remove the adhesive strip from the back of the SecureSpacer and attach the spacer to the DEFCON lock.

Unlocking the DEFCON SCL

WARNING: DO NOT ATTEMPT TO REMOVE THE DEFCON SCL WITHOUT USING THE COMBINATION. TO DO SO WILL PHYSICALLY DAMAGE YOUR NOTEBOOK COMPUTER.

1 Using the dials, enter the correct combination.

2 The combination appears in the windows.

3 Press and hold the locking button to realign the locking teeth.

4 Remove the DEFCON SCL from your notebook computer's lock slot.

DEFCON Security Base Plate

Included with your DEFCON SCL Combo Cable Lock is the Security Base Plate for the security of desktop computers.

Using the DEFCON Security Base Plate

1 Choose a solid location to attach the DEFCON Security Base Plate: a piece of furniture, or metal cabinet. If you plan to use the two screws, you can use the base plate as a template to pre-drill the holes.

2 Use the abrasive pad, then the alcohol wipe to prepare the area when you will attach the DEFCON Security Base Plate.

Diagram illustrating three-step cleaning process: hand holding bricks, card being cleaned with a brush, and post-cleaning with a tool.

3 After the alcohol dries, remove the backing on the base plate to expose the adhesive and place it on the prepared location. If desired, secure the base with the two screws.

NOTE: WHEN USING THE ADHESIVE BACKING, APPLY AT ROOM TEMPERATURE -60°F (16°C), AND ALLOW IT TO BOND FOR MORE THAN 24 HOURS. NOT RECOMMENDED FOR USE OUTDOORS OR IN A HIGH HUMIDITY ENVIRONMENT. BONDING TO GLASS, CERAMIC TILE, WATER-ABSORBENT MATERIALS, COPPER, BRASS, OR PLASTICIZED VINYL WITHOUT PRIMER SURFACE ARE NOT RECOMMENDED. TARGUS RECOMMENDS USING BOTH ADHESIVE AND SCREWS TO PROVIDE MAXIMUM SECURITY. USING ONLY THE ADHESIVE PROVIDES MARGINAL SECURITY.

4 Place the DEFCON Security Base Plate cover as shown and slide it to the left or right to secure it in place.

5 Insert your DEFCON cable lock.

Specifications

General

Weight: 184.3 g

Locking device

Dimensions:31 x 54 x 24 mm

Colour: Black Nickel

Cable

Length: 2 m

Diameter: 4 mm

Material: Vinyl coated steel

DEFCON is a trademark of Targus Group International. All other trademarks are the property of their respective owners.
