USER MANUAL ASP01EU TARGUS

folding line 2 staples here (saddle stitching) Targus® Retractable Cable Travel Lock

ASP01EU/410-3292-003A

2 YEAR LIMITED WARRANTY: We pride ourselves on the quality of our products. For complete warranty details and a lot of our worldwide offices, please visit www.targus.com. Features and specifications are subject to change without notice. All trademarks and registered trademarks are the property of their respective owners. ©2016 Manufactured or imported by Targus Europe Ltd., Feltham, Middlesex. TW14 8HA, UK. All rights reserved.

User Guide

folding line

2 staples here (saddle stitching)

folding line 2 staples here (saddle stitching)

Targus Retractable Cable Travel Lock Targus Retractable Cable Travel Lock

Table of Contents

GB - English

Retractable cable travel lock 2

DE - Deutsch

GB - Lock slot adapter installation instructions

Lock slot adapter:

To install:

1. Pull out the lock shackle (as illustrated below). The lock hook is now at the "UNLOCK" position.

Lock Shackle Lock Housing Lock Hook Hole

2

folding line 2 staples here (saddle stitching)

folding line 2 staples here (saddle stitching)

Targus Retractable Cable Travel Lock Targus Retractable Cable Travel Lock

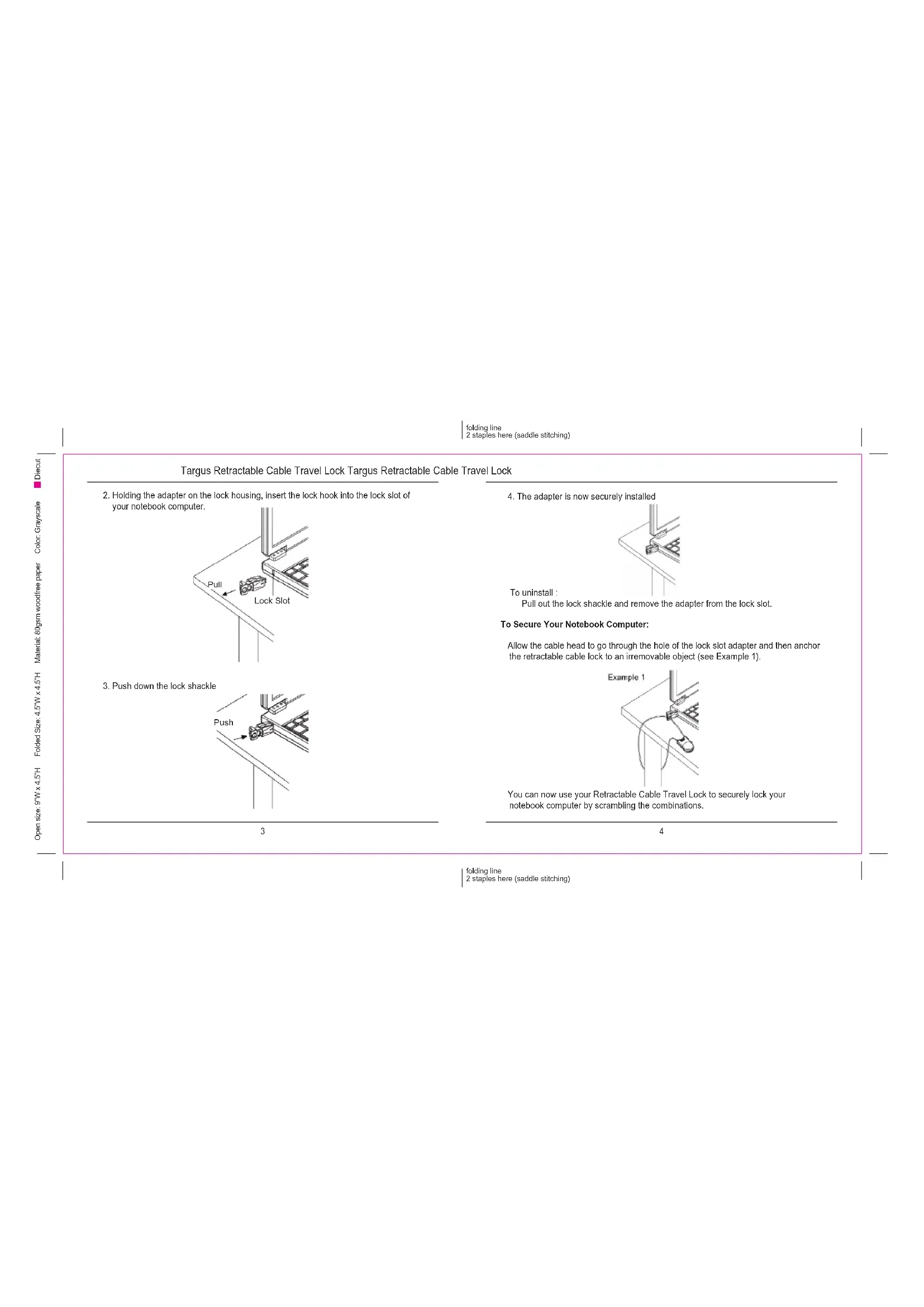

1. Holding the adapter on the lock housing, insert the lock hook into the lock slot of your notebook computer.

Pull Lock Slot

1. Push down the lock shackle

Push

3

1. The adapter is now securely installed

To uninstall : Pull out the lock shackle and remove the adapter from the lock slot.

To Secure Your Notebook Computer:

Allow the cable head to go through the hole of the lock slot adapter and then anchor the retractable cable lock to an irremovable object (see Example 1).

You can now use your Retractable Cable Travel Lock to securely lock your notebook computer by scrambling the combinations.

4

folding line 2 staples here (saddle stitching)

Targus Retractable Cable Travel Lock Targus Retractable Cable Travel Lock

Note: Always set the dials to the UNLOCK combination before attempting the following operations. The default UNLOCK combination is "000".

Cable Cable Head Locking Port Release Button Dials Cable Trigger

To Lock

Step1

To adjust cable length:

1. Press the cable trigger
2. Pull/ retract the cable to a desired length
3. Push the cable trigger to retract the cable

Step2

Insert the cable head into the locking port and press down until your hear a "Click".

The scramble the combination dials to lock.

To Unlock

1. Turn the dials to the unlock combination
2. Press the release button to unfasten the cable-head
3. Push the cable trigger to retract the cable

Caution: The cable return mechanism is spring-loaded. Gently hold the cable head while pulling / retracting the cable to avoid potential injury.

To Set / Rest Your Combination

Step 1

1. Make sure that the cable is completely retracted
2. Press and hold the cable trigger
3. Push the cable head down until you hear a "click"

1. Release the cable trigger

folding line 2 staples here (saddle stitching)

Targus Retractable Cable Travel Lock Targus Retractable Cable Travel Lock

Step 2

Turn the dials to set your personal combination

Step 3

1. Press and hold the cable trigger
2. Gently pull the cable head until you hear a "click"

1. Your personal combination is now set!

Keep your combination in a safe and accessible place for furture reference.

7

Technical Support

For technical questions, please visit:

Internet http://www.targus.com/support.asp

English http://www.targus.com/uk/support.asp

German http://www.targus.com/de/support.asp

Spanish http://www.targus.com/sp/support.asp

Italian http://www.targus.com/it/support.asp

Our knowledgeable staff is also available to answer your questions through one of the following telephone numbers.

Austria 01 795 676 42

Belgium 02-717-2451

Denmark 45 35-25-87 51

Finland 922948016

France 01-6453-9151

Germany 0211-6579-1151

Italy 02-4827-1151

Netherlands 02 0504 0671

Norway 022577729

Portugal [phone]

Spain 91 745 6221

Sweden 08-751-4058

Switzerland 01-212-0007

United Kingdom 020-7744-0330

Eastern Europe & others [phone]

8

folding line

2 staples here (saddle stitching)

folding line 2 staples here (saddle stitching)

Targus Retractable Cable Travel Lock Targus Retractable Cable Travel Lock

Product Registration

Targus recommends that you register your Targus accessory shortly after purchasing it. To register your Targus accessory, go to: http://www.targus.com/registration.asp

You will need to provide your full name, email address, phone number, and company information (if applicable).

Warranty

Targus warrants this product to be free from defects in materials and workmanship for one year. If your Targus accessory is found to be defective within that time, we will promptly repair or replace it. This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. Under no conditions is Targus liable for loss of, or damage to a computer; nor loss of, or damage to, programs, records, or data; nor any consequential or incidental damages, even if Targus has been informed of their possibility. This warranty does not affect your statutory rights.

9

Recording Your Combination

For your convenience, record your combination in the space provided. When recording the combination, read from left to right using the number closest to the locking button as the starting point.

Targus assumes no responsibility for lost, misplaced or forgotten combinations.

Cable Lock combination
