PTA66BT - Receiver Pyle - Free user manual and instructions

Product Type	6-Channel Desktop Stereo Receiver
Brand	Pyle
Model	PTA66BT
Output Power	600 watts MAX
Number of Channels	6 Channels
Speaker Impedance	4-8 Ohms
Frequency Response	20 Hz - 20 kHz
Signal-to-Noise Ratio	>81 dB
THD	< 0.3%
FM Radio	Yes, with 30 presets
Bluetooth	Version 4.0, range up to 12 m (40 ft)
Bluetooth Network Name	PYLEUSA
USB Reader	Yes, compatibility up to 32 GB
SD Card Reader	Yes, compatibility up to 32 GB
Supported Audio Formats	MP3, WAV
Microphone Inputs	2 x 6.35 mm (1/4") jacks
Auxiliary Input	3.5 mm jack
RCA Audio Inputs	1 pair (L/R)
Speaker Outputs	6 pairs of binding posts
Headphone Output	6.35 mm jack with dedicated volume
Line Out / Subwoofer Output	1 pair RCA (REC OUT + SUBWOOFER)
Power Supply	120/240 V AC switchable
Dimensions (W x D x H)	43 x 25 x 9 cm
Included Accessories	Remote control, FM antenna, CR2025 button battery

Frequently Asked Questions - PTA66BT Pyle

How to connect a Bluetooth device to the PTA66BT?

Press the MODE button to select Bluetooth mode. The screen displays 'BT Wireless'. On your Bluetooth device, search for devices and select 'PYLEUSA'. Once paired, the receiver beeps.

What audio file formats are supported via USB/SD?

The PTA66BT supports MP3 and WAV files on USB drive and SD card (up to 32 GB).

Can I use a microphone with this receiver?

Yes, it has two 1/4-inch (6.35 mm) microphone jacks. The TALK OVER button on MIC 1 automatically lowers the music volume when speaking.

How to access the FM radio?

Press the MODE button repeatedly until FM mode is reached. Use the PREV/NEXT buttons to change stations or press PLAY/PAUSE for automatic scanning and memorizing stations.

What is the maximum amplifier power?

The maximum power is 600 watts (peak power). Recommended speaker impedance is 4 to 8 Ohms.

How to adjust the equalizers (treble and bass)?

Turn the TREBLE and BASS knobs on the front panel to adjust frequencies for channels 1 to 4.

Can I connect a subwoofer?

Yes, use the SUBWOOFER output (RCA jack) on the back of the unit to connect an active subwoofer.

How to clean the receiver?

Unplug the unit and clean it with a dry cloth. Do not use liquid or abrasive products.

What to do if the remote control does not work?

Check the CR2025 button battery in the remote. Replace it if necessary. Make sure no obstacles block the receiver's infrared sensor.

Does the device heat up normally?

A slight heat is normal during operation. Do not place objects on top and ensure adequate ventilation. If heat is excessive, turn off the unit and check speaker connections.

USER MANUAL PTA66BT Pyle

6-Ch Desktop Stereo Receiver System with FM Radio, MP3/USB/SD/AUX Playback (600 Watt)

USER GUIDE

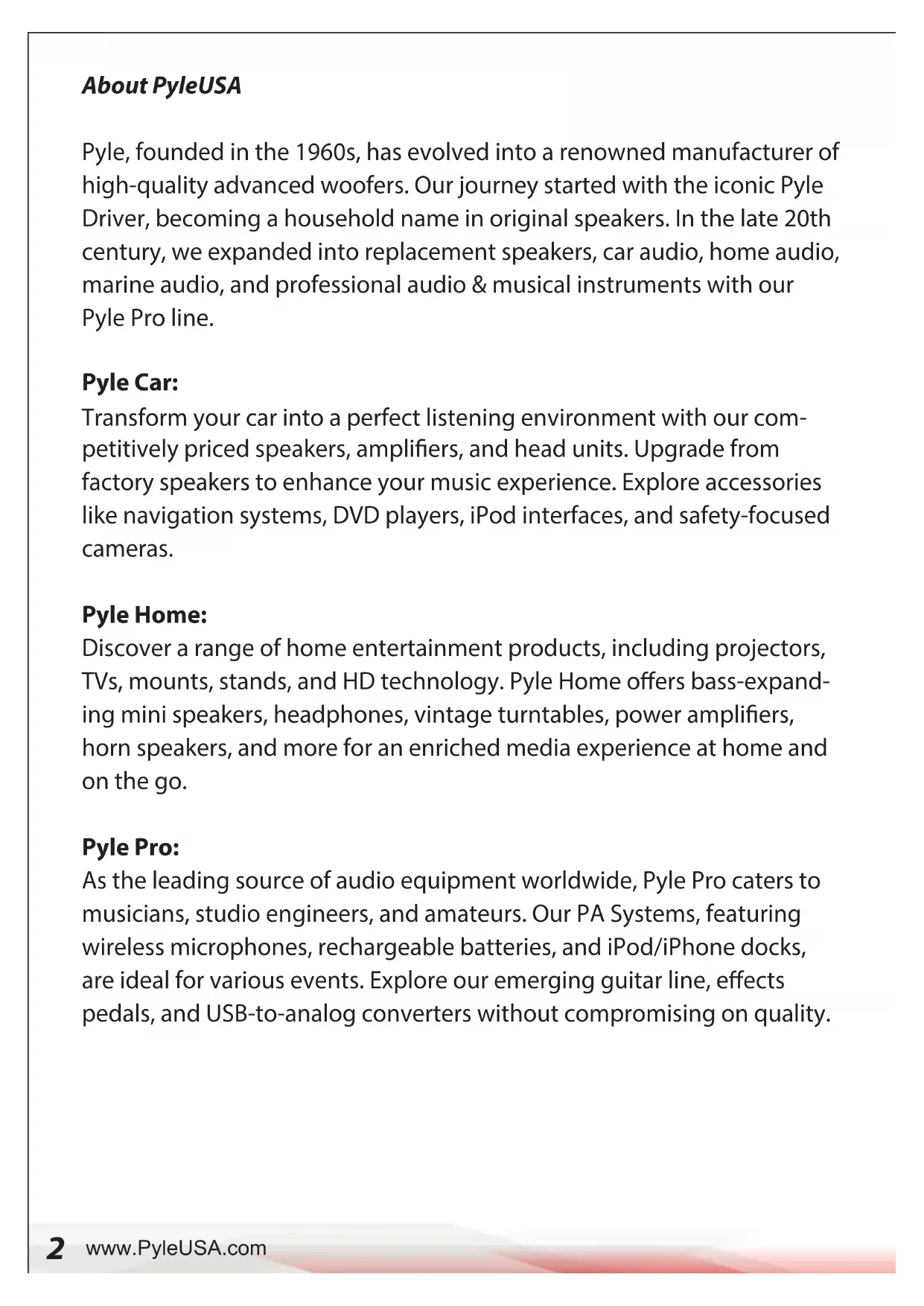

About PyleUSA

Pyle, founded in the 1960s, has evolved into a renowned manufacturer of high-quality advanced woofers. Our journey started with the iconic Pyle Driver, becoming a household name in original speakers. In the late 20th century, we expanded into replacement speakers, car audio, home audio, marine audio, and professional audio & musical instruments with our Pyle Pro line.

Pyle Car:

Transform your car into a perfect listening environment with our competitively priced speakers, amplifiers, and head units. Upgrade from factory speakers to enhance your music experience. Explore accessories like navigation systems, DVD players, iPod interfaces, and safety-focused cameras.

Pyle Home:

Discover a range of home entertainment products, including projectors, TVs, mounts, stands, and HD technology. Pyle Home offers bass-expanding mini speakers, headphones, vintage turntables, power amplifiers, horn speakers, and more for an enriched media experience at home and on the go.

Pyle Pro:

As the leading source of audio equipment worldwide, Pyle Pro caters to musicians, studio engineers, and amateurs. Our PA Systems, featuring wireless microphones, rechargeable batteries, and iPod/iPhone docks, are ideal for various events. Explore our emerging guitar line, effects pedals, and USB-to-analog converters without compromising on quality.

WARNING!

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OF THIS UNIT. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED TECHNICIAN.

The lighting flash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of “DANGEROUS” voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to humans. Users should exhibit extra safety when this symbol appears in this instruction manual and follow all precautions as they are stated.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in this manual.

1. Read these instructions thoroughly before using this item.
2. Keep these instructions for future reference.
3. Heed all warnings.
4. Follow all instructions.
5. WARNING: To prevent fire or electric shock, do not expose this equipment to rain or moisture. Do not store or operate this product near any liquids.
6. Clean only with a dry cloth.
7. Do not store or operate this product near any heat sources such as radiators, heat registers, stoves, or other apparatuses (including amplifiers) that produce heat.
8. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a round grounding prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit your outlet, consult an electrician for the replacement of the obsolete outlet.
9. Protect the all wires connected to this unit from being walked on or pinched, particularly plugs and the point where they exit from the unit. When removing the cord from the power outlet, remove it by holding the plug not by pulling the cord.
10. Unplug the unit during lighting storms or when unused for long periods of time.
11. When wiring this unit and all other equipment used in connection to this unit make sure that all of your equipment is turned OFF.
12. Once installation and wiring is complete power on all your equipment with the volume and level controls turned DOWN. Once all the equipment is ON slowly raise the volume or level controls to their proper positions.

13. When grounding this unit, be sure to do so correctly, so as not to defeat the built-in grounding in this unit.

14. Before placing, installing, rigging, or suspending any product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed, or non-load rated component could significantly reduce the strength of the installation, placement or array. Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated for the loading conditions of the installation and any possible short-term, unexpected overloading. Never exceed the rating of the hard ware or equipment.

15. Consult a licensed, professional engineer regarding physical equipment installation. Ensure that all local, state and national Regulations regarding the safety and operation of equipment are understood and adhered to.

16. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Introduction

To get the most from our PTA66BT, it is recommended that you review all of the information provided in the instruction manual before operating the equipment.

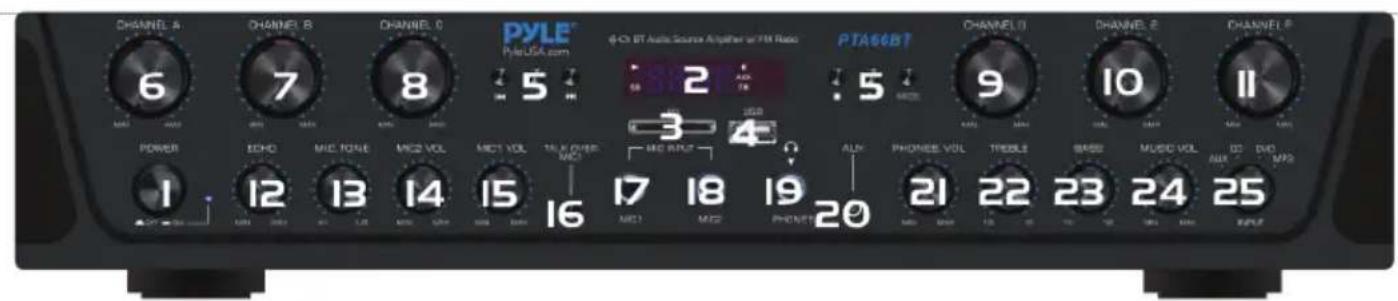

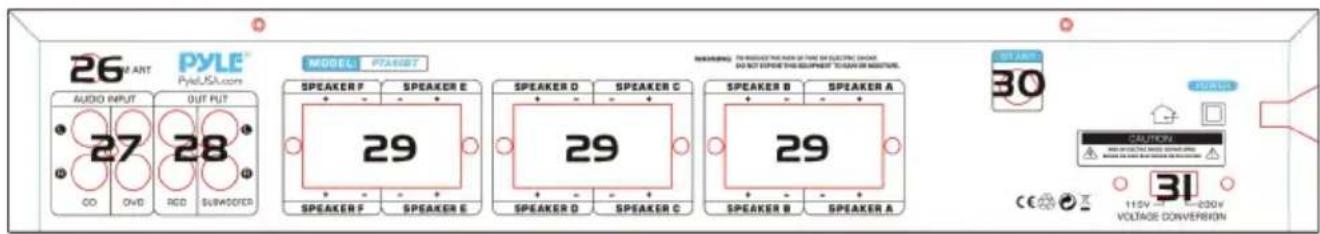

FRONT & BACK PANEL

CHANNEL A 6 CHANNEL B 7 CHANNEL C 8 PYLE® PyleUSA.com 4-02 BT Audio Source Amplifier at 75% Ratio PTA56BT 3 POWER 1 12 MHC FONE 13 MDC VOL 14 MCT VOL 15 16 17 MCC VOUT 18 MCC 19 PHONE 20 CHANNEL I 9 CHANNEL J 10 CHANNEL K 11 CHANNEL L 12 CHANNEL M 13 CHANNEL N 14 CHANNEL O 15 CHANNEL P 16 CHANNEL Q 17 CHANNEL R 18 CHANNEL S 19 CHANNEL T 20 CHANNEL U 21 CHANNEL VOL 22 CHANNEL W 23 CHANNEL X 24 CHANNEL Y 25

26 PYLE® Pyle/US.com AUDIO INPUT OUT PUT 27 28 CO OVD RED SUBWEDER MODEL PTABOT SPEAKER F SPEAKER E 29 SPEAKER D SPEAKER C 29 SPEAKER B SPEAKER A SPEAKER A BEARING TO REVEE THE RANK OF TIME OF ELECTRIC CHAPES. DO NOT EXPOSE THE EQUIPMENT THAN ON MOBILITY. BEARING 30 CAUTION 115V 11.00V 0.00V VOLTAGE CONVERSION 31

1. POWER ON/OFF SWITCH: Press this button to ON/OFF the unit.
2. LED DISPLAY SCREEN: To display the input sources and track time information
3. SD CARD SLOT: Insert your SD Card to play Mp3 files.
4. USB PORT: This is the USB port where you insert your USB mass storage device for playing Mp3 files.

NOTE: The USB input is ONLY mean to connect to a USB flash drive (thumb drive). Connecting an MP3 player or computer directly to the USB flash drive input will result in the unit failing to play the audio from those devices.

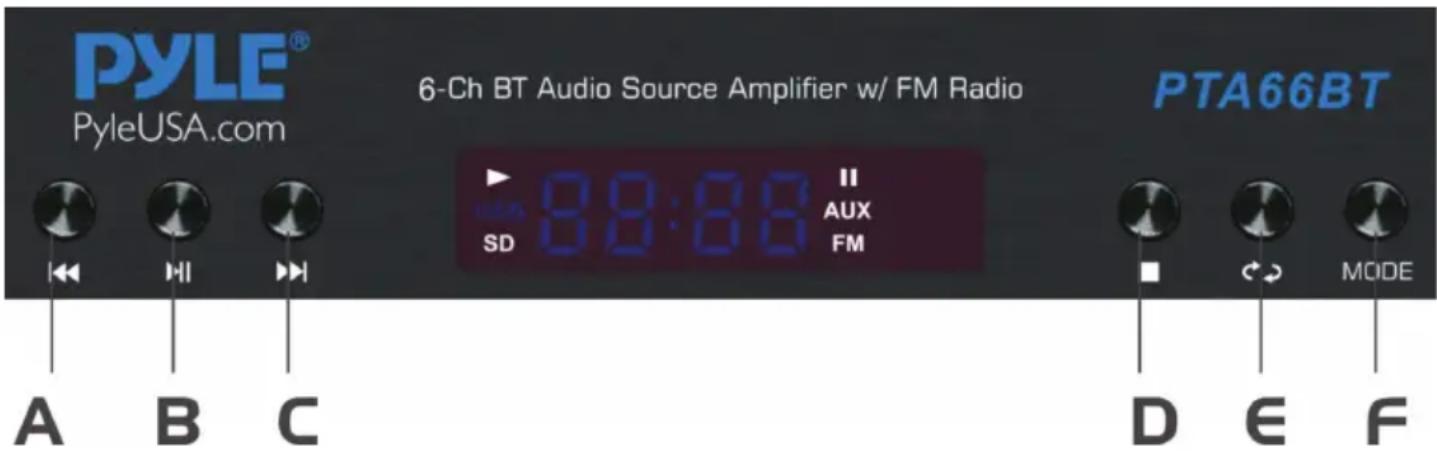

5. CONTROL BUTTONS

PYLE® PyleUSA.com 6-Ch BT Audio Source Amplifier w/ FM Radio PTA66BT USA 88:88 II AUX SD FM MODE A B C D E F

A. PREV BUTTON: Use this button to select each function depending on these three different modes as below.

• In USB/SD/WIRELESS BT mode, use to select previous track.
• In FM mode, use to select pervious channel.
• In FM/WIRELESS BT mode, hold this button will decrease the volume.

B. PLAY/PAUSE BUTTON: Each pressing of the PLAY/PAUSE BUTTON causes the operation to change from play to pause or from pause to play in the USB/SD mode or WIRELESS BT mode.

- Press the PLAY/PAUSE BUTTON one time to auto scan all frequencies from 87.5MHz to 108MHz in FM mode, the unit will auto store the channels.

C. NEXT BUTTON: Use this button to select each of function depending on these three different modes as below.

• In USB/SD/WIRELESS BT mode, use to select next track
• In FM, use to select next channel.
• In FM/WIRELESS BT hold this button will increase the volume.

D. STOP BUTTON: Use this button to stop the playing of music.

E. REPEAT BUTTON: This button allows you to play the music in repeat mode (All or Single mode)

ALL-- All tracks in the USB or SD CARD will be repeated in order without interruption.

SINGLE-- Repeat the track that was current playing.

F. MODE BUTTON: Press this button to select one of play mode with USB/SD mode, FM mode and Bluetooth mode, automatically set in USB/SD mode after turn on the unit, automatically play mp3 files after inserting a USB flash driver or SD card.

STEPS FOR CONNECTING WITH WIRELESS BT DEVICE

Once paired you can play music from your Wireless BT device. You can also use the control buttons on the unit to select the tracks from your Bluetooth device.

1. Press MODE button to choose Wireless BT mode, display WIRELESS BT on the screen.
2. Search on the Wireless BT device name from others Wireless BT device and you can find the Wireless BT name - PYLEUSA
3. Select the PYLEUSA Wireless BT name and wait for the device to pair.
4. The PTA66BT will emit a noise confirming that the devices have successfully paired

6. CHANNEL A VOLUME CONTROL KNOB

Turn this knob to adjust the volume of Channel A.

7. CHANNEL B VOLUME CONTROL KNOB

Turn this knob to adjust the volume of Channel B.

8. CHANNEL C VOLUME CONTROL KNOB

Turn this knob to adjust the volume of Channel C.

9. CHANNEL D VOLUME CONTROL KNOB

Turn this knob to adjust the volume of Channel D.

10. CHANNEL D VOLUME CONTROL KNOB

Turn this knob to adjust the volume of Channel E.

11. CHANNEL D VOLUME CONTROL KNOB

Turn this knob to adjust the volume of Channel F.

12. ECHO VOLUME CONTROL KNOB

Turn this knob to adjust the microphone echo volume level.

13. MICROPHONE TONE CONTROL KNOB

Turn this knob to adjust the tone of the microphone output

1. MICROPHON E 2 VOLUME KNOB - Turn this knob to adjust the volume of MIC2

2. MICROPHONE 1 VOLUME KNOB - Turn this knob to adjust the volume of MIC1.

16. TALK OVER for MIC 1 BUTTON

Press this button to lower the music when use the microphone 1 input.

1. MICROPHONE INPUT 1 JACK - MIC 1 Input Jack for connecting an unbalanced low impedance microphone with 1/4" TRS plug.

2. MICROPHONE INPUT 2 JACK - MIC 2 Input Jack for connecting an unbalanced low impedance microphone with 1/4" TRS plug.

19. PHONES OUTPUT

To allow you to enjoy the music through the headphone devices

1. AUX INPUT - Connects to a MP3 player or Ipod with 3.5mm Jack.

2. PHONES OUTPUT VOL CONTROL KNOB - Turn this knob to adjust the volume of the headphone output

3. TREBLE - Turn this knob to adjust the high frequencies of Channel 1/2/3/4

4. BASS - Turn this knob to adjust the low frequencies of Channel 1/2/3/4

5. MUSIC VOLUME CONTROL KNOB - Turn this knob to adjust the master music volume

6. INPUT SELECTOR - Turn this button to choose the favorable input

7. FM ANTENNA CONNECTOR - Connect for FM antennas.

8. AUDIO INPUT RCA CONNECTOR - Connect the audio output jacks of DVD/CD, to these jacks.

9. LINE OUTPUT - Connect the audio/Subwoofer input RCA jacks of other devices, to these RCA jacks

10. SPEAKER OUTPUT - There are 6 groups of speaker output

30. WIRELESS BT ANTENNA

Please pull the antenna out when using Wireless BT input

1. POWER SUPPLY - Connect to AC power socket. The unit is working with both AC-115V and AC-230V, make sure to choose the correct voltage before you turn on the unit.

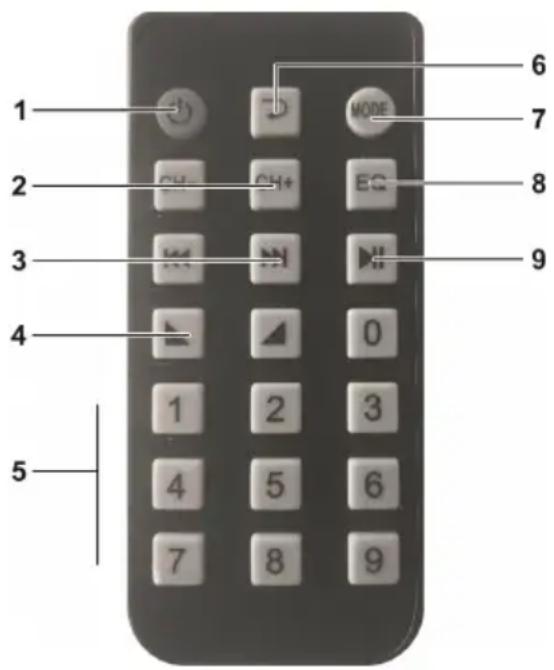

Remote Control

1. Press this button to turn ON or OFF the MP3

2. When in the FM mode, press this two buttons to select previous or next channel.

3. Press these two buttons to select the previous or next track in USB or SD or Wireless BT mode

4. Volume up or down

5. Press the numbers to select the tracks directly. The unit takes 1-2 seconds to response in USB or SD mode.

6. Press this button to repeat mode.

7. Press this button to select the playing mode, such as USB/SD/FM/WIRELESS BT

8. EQ function, if the mp3 with EQ

9. Play and Pause function for MP3

1 2 3 4 5 6 7 8 9 MODE CH+ CH+ EQ 0 1 2 3 4 5 6 7 8 9

PTA66BT

Wireless BT Streaming Audio Power Amplifier

6-Ch Desktop Stereo Receiver System with FM Radio, MP3/USB/SD/AUX Playback (600 Watt)

Features:

• 6-Channel Amplifier System
- Compact Desktop Audio Receiver Design
• Built-in Wireless BT for Audio Streaming
• FM Radio Tuner with Digital LED Display
- Front Panel Button Control Center
• Audio Source Input Mode Selector
- Connect & Playback Audio from External Devices
• MP3 Digital Audio File Support
• USB Flash Drive & SD Memory Card Readers
• (2) 1/4" Microphone Input Jacks
• Built-in Microphone Talk-Over Function (MIC1 Only)
- Push-Type Speaker Connectors
• Aux (3.5mm) Input Jack
• Audio Input RCA (L/R) Connectors
• REC + Subwoofer Output RCA (L/R) Connectors
• Headphone Jack with Independent Volume Control
- Short Circuit & Over Voltage Protection
- Convenient Audio Source Control for Home or Office Use

• Audio Configuration Settings: Treble, Bass, Master Volume, Echo, Mic Volume, Mic Tone

Wireless BT Connectivity:

• Simple & Hassle-Free Pairing
- Instant Wireless Audio Streaming Ability
- Works with All of Today's Latest BT Devices
(iPhone, Android, Smartphone, iPad Tablet PC, etc.)
- Wireless BT Network Name: PYLEUSA
- Wireless BT Version: 4.0
- Wireless Range: Up to 40'+ ft.

California Prop 65 Warning

! WARNING:

This product may expose you to chemicals, which is known to the state of California to cause cancer, birth defects and other reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov

What's in the Box

• Audio Amplifier
• Remote Control
• FM Antenna

Technical Specs:

• Power Output: 600 Watt MAX
• Amplifier Design: 6-Channel
- Impedance: 4-8 Ohms
• Frequency Response: 20Hz-20kHz
• Signal to Noise Ratio: >81dB
• T.H.D.: <0.3%
• Radio Station Memory:

30 Station Presets

• Digital File-type Compatibility: MP3, WAV
• Maximum USB/SD Flash Support: Up to 32GB
- Remote Control Battery: (1) x 'CR-2025' Button Cell (Included)
• Power Cable Length: 4.2' ft.
• Power Supply: 120/240V, Switchable
- Dimensions (L x W x H):
16.9" x 9.84" x 3.54" -inches / 43 x 25 x 9 -centimeter

Register Product

Thank you for choosing PyleUSA. By registering your product, you ensure that you receive the full benefits of our exclusive warranty and personalized customer support. Complete the form to access expert support and to keep your PyleUSA purchase in perfect condition.

Start Here

QR code image containing encoded data, no visible human-readable text

Model Number: PTA66BT
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

QR code image containing encoded data, no visible human-readable text

Questions? Comments?

We are here to help!

Phone: [phone]

PyleUSA.com/ContactUs

PYLE® PyleUSA.com 6-Ch BT Audio Source Amplifier w/ FM Radio PTA66BT U.S.A 88:88 II AUX SD FM MODE A B C D E F

To allow you to enjoy the music through the headphone devices

1. AUX INPUT - Connects to a MP3 player or Ipod with 3.5mm Jack.

2. PHONES OUTPUT VOL CONTROL KNOB - Turn this knob to adjust the volume of the headphone output

3. TREBLE - Turn this knob to adjust the high frequencies of Channel 1/2/3/4

4. BASS - Turn this knob to adjust the low frequencies of Channel 1/2/3/4

5. MUSIC VOLUME CONTROL KNOB - Turn this knob to adjust the master music volume

6. INPUT SELECTOR - Turn this button to choose the favorable input

7. FM ANTENNA CONNECTOR - Connect for FM antennas.

8. AUDIO INPUT RCA CONNECTOR - Connect the audio output jacks of DVD/CD, to these jacks.

9. LINE OUTPUT - Connect the audio/Subwoofer input RCA jacks of other devices, to these RCA jacks

10. SPEAKER OUTPUT - There are 6 groups of speaker output

30. WIRELESS BT ANTENNA

Please pull the antenna out when using Wireless BT input

1. POWER SUPPLY - Connect to AC power socket. The unit is working with both AC-115V and AC-230V, make sure to choose the correct voltage before you turn on the unit.

Remote Control

1. Press this button to turn ON or OFF the MP3

2. When in the FM mode, press this two buttons to select previous or next channel.

3. Press these two buttons to select the previous or next track in USB or SD or Wireless BT mode

4. Volume up or down

5. Press the numbers to select the tracks directly. The unit takes 1-2 seconds to response in USB or SD mode.

6. Press this button to repeat mode.

7. Press this button to select the playing mode, such as USB/SD/FM/WIRELESS BT

8. EQ function, if the mp3 with EQ

9. Play and Pause function for MP3

1 2 3 4 5 6 7 8 9 MODE CH+ CH+ EQ 0 1 2 3 4 5 6 7 8 9

PTA66BT

QR code image containing encoded data, no visible human-readable text

Model Number: PTA66BT
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

QR code image containing encoded data, no visible human-readable text

CHANNEL A CHANNEL B CHANNEL C PYMUS/Lum PYLE® Q-3 SF Audio Source Amplifier w/TV Cable PTA68BT CHANNEL D CHANNEL E CHANNEL F POWER SCHS MIC TONE MICR VOL MICI VOL TECK OVER MICR MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU

PYLE® PyleUSA.com 6-Ch BT Audio Source Amplifier w/ FM Radio PTA66BT U.S.A 88:88 II AUX SD FM MODE A B C D E F

QR code image containing encoded data, no visible human-readable text

Model Number: PTA66BT
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

QR code image containing encoded data, no visible human-readable text

PYLE® PyleUSA.com 6-Ch BT Audio Source Amplifier w/ FM Radio PTA66BT U.S.A 88:88 II AUX SD FM MODE A B C D E F

QR code image containing encoded data, no visible human-readable text

Model Number: PTA66BT
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

QR code image containing encoded data, no visible human-readable text

Domande o Commenti?

CHANNEL A CHANNEL B CHANNEL C PYLE PUMOALUM 4 GHz Auto Source Amplifier in FM Data PTAGBT CHANNEL D CHANNEL E CHANNEL F POWER SCHC MIC TONE MICR VOL MICF VOL TAUC OVER MOSI MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU MOU

QR code image containing encoded data, no visible human-readable text

Model Number: PTA66BT
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Model Number: PTA66BT
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

QR code image containing encoded data, no visible human-readable text

CHANNEL A CHANNEL B CHANNEL C PYLE PYLE & Ch BF Audio Source Amplifier w/TM Scale PYMGA.com PTA68BT CHANNEL D CHANNEL E CHANNEL F POWER SCH MIC TONE MICR VOL MICI VOL TELE OVER MHz DC USB MCWRFU MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz kHz

QR code image containing encoded data, no visible human-readable text

Model Number: PTA66BT
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

QR code image containing encoded data, no visible human-readable text
