PSS4 - Speaker Pyle - Free user manual and instructions

Product Type	4-Channel High-Power Stereo Speaker Selector
Brand	Pyle
Model	PSS4
Number of Zones/Speaker Pairs	Up to 4 pairs (A, B, C, D)
Maximum Power per Channel	100 Watts
Speaker Impedance	8 ohms (minimum)
Frequency Response	20 Hz - 20 KHz
Accepted Wire Gauge	Up to 14 AWG
Housing Material	Iron
Dimensions (L x W x H)	12 x 11.38 x 5 cm (4.72 x 7.48 x 1.97 inches)
Weight	Approximately 0.8 kg (not precisely specified)
Power	Passive (no external power required)
Key Features	Independent selection of 4 speaker pairs, on/off buttons, protection circuit
Protection	Protection circuit against damage to speakers and amplifier
Installation	Direct connection between amplifier and speakers; lever terminals
Amplifier Compatibility	Stereo amplifiers up to 50 W per channel (manufacturer recommendation)
Labeling Capability	Yes, area provided to identify each speaker pair
Package Contents	PSS4 selector, instruction manual
Maintenance and Cleaning	Wipe with a dry, soft cloth; do not use abrasive cleaners
Safety	Turn off the amplifier before any connection; do not connect multiple amplifiers; respect impedance requirements
Spare Parts and Repairability	Not user-serviceable; contact Pyle customer service if problems occur
General Information	Made for PyleUSA; California Prop 65 warning

Frequently Asked Questions - PSS4 Pyle

How many speaker pairs can I connect to the PSS4?

You can connect up to 4 speaker pairs, corresponding to zones A, B, C, and D.

What is the maximum power supported by the selector?

The PSS4 can handle up to 100 watts per channel. However, the manufacturer recommends using an amplifier of 50 watts maximum per channel for optimal safety.

Can I use 4-ohm speakers with the PSS4?

No, the minimum required impedance is 8 ohms. Using 4-ohm speakers could damage the amplifier or the selector.

How to install the speaker selector?

Turn off the amplifier. Connect the amplifier wires to the AMP terminals of the selector (observe + and - polarity). Then connect each speaker pair to the SPK A, B, C, or D terminals. Use 14-gauge or lower wire.

Can I connect multiple amplifiers to the PSS4?

No, connect only one amplifier to the selector. The AMP terminal is designed for a single receiver/amplifier.

How to activate or deactivate a speaker zone?

Press the corresponding button (A, B, C, or D) to turn on the zone. To turn off, press again to return it to the raised (off) position.

What if I hear no sound on a zone?

Check that the zone button is pressed (on), connections are tight, and the amplifier is on. Also ensure the total impedance is correct.

Does the selector require power?

No, the PSS4 is a passive device: it requires no external power. It simply distributes the audio signal from the amplifier.

Can I use 12-gauge wires?

Yes, the selector accepts wires up to 14 gauge. 12-gauge (thicker) wires are not recommended as they may not fit into the terminals. Use 14-gauge for optimal performance.

Where to find the complete user manual?

The manual is available for free download in PDF format on notice-facile.com or on the official Pyle website.

USER MANUAL PSS4 Pyle

4 Channel High Power Stereo Speaker Selector

Hub Distribution Box for Multi-Channel High Powered Stereo Amplifier A/B/C/D Switches,4 Pairs of Speakers (100 Watts)

USER GUIDE

About PyleUSA

Pyle, founded in the 1960s, has evolved into a renowned manufacturer of high-quality advanced woofers. Our journey started with the iconic Pyle Driver, becoming a household name in original speakers. In the late 20th century, we expanded into replacement speakers, car audio, home audio, marine audio, and professional audio & musical instruments with our Pyle Pro line.

Pyle Car:

Transform your car into a perfect listening environment with our competitively priced speakers, amplifiers, and head units. Upgrade from factory speakers to enhance your music experience. Explore accessories like navigation systems, DVD players, iPod interfaces, and safety-focused cameras.

Pyle Home:

Discover a range of home entertainment products, including projectors, TVs, mounts, stands, and HD technology. Pyle Home offers bass-expanding mini speakers, headphones, vintage turntables, power amplifiers, horn speakers, and more for an enriched media experience at home and on the go.

Pyle Pro:

As the leading source of audio equipment worldwide, Pyle Pro caters to musicians, studio engineers, and amateurs. Our PA Systems, featuring wireless microphones, rechargeable batteries, and iPod/iPhone docks, are ideal for various events. Explore our emerging guitar line, effects pedals, and USB-to-analog converters without compromising on quality.

PSS4 lets you connect up to four separate pairs of speakers to your stereo receiver/amplifier. The control center is especially convenient if you have speaker sets in different rooms and want to turn them ON and OFF independently. You can enjoy the convenience and flexibility of listening to multiple speaker pairs simultaneously.

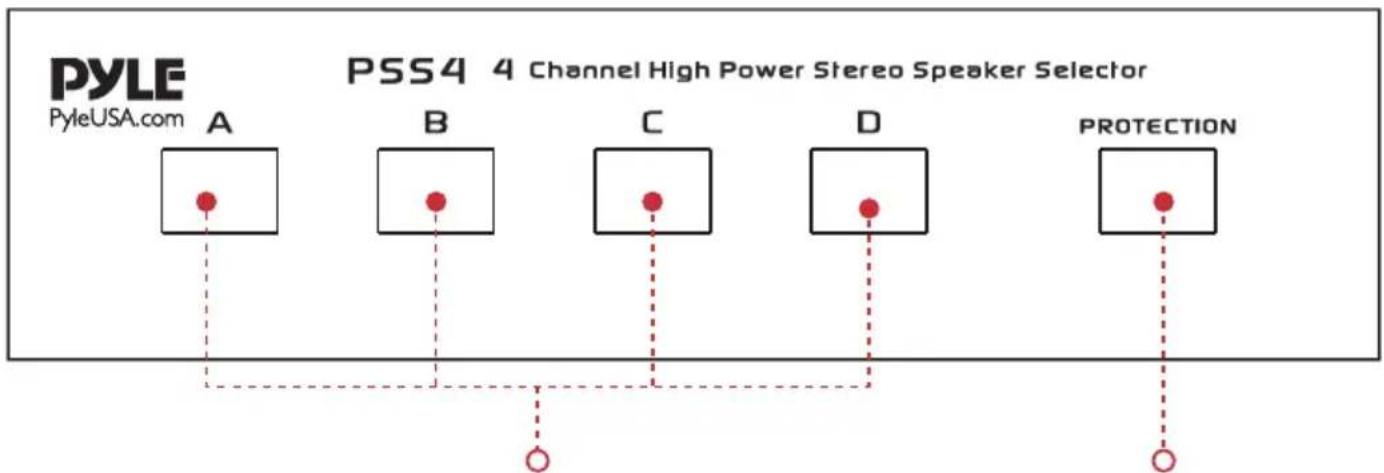

PYLE PyleUSA.com A B C D PROTECTION PSS4 4 Channel High Power Stereo Speaker Selector

Terminal Buttons Protection Buttons

The control center lets you use one to four sets of speakers at a time, and is designed to operate with a stereo receiver/amplifier that has a maximum of 50 watts per channel, and with speaker systems that have a minimum impedance of 8 ohms (see “Impedance Chart” on page 5)

PREPARATIONS

- Use the PYLE PRO Speaker Selectors only with amplifiers rated at 50 watts per channel or less.

- Your PYLE PRO Speaker Selector is designed to accept any size cable up to 14 gauge non-terminated speaker wire. If you're using non-terminated speaker wire, do not use any speaker wire that is larger than 14 gauge. The lower the gauge number, the larger the cable (e.g., 12 gauge is larger in actual physical size than 14 gauge).

- Do not hook the outputs of one selector into the inputs of another speaker selector together.

MAKING THE CONNECTIONS

The control center divides the power from your receiver/amplifier differently to its speaker terminals. (This is especially noticeable when you connect only one pair of speakers. If you connect more than one pair of speakers, see “Impedance Chart” on page 5 to selector the best terminals to connect.)

For the best performance, make the connections based on how frequently you use each set of speakers.

Cautions: To avoid damaging your speakers or receiver/amplifier:

• Be sure your receiver/amplifier's power is turned off before you make the connections.
• Never let the speaker wire's bare ends touch each other or the adjacent terminals on the control center.
• Do not connect more than one pair of speakers to each set of terminals.

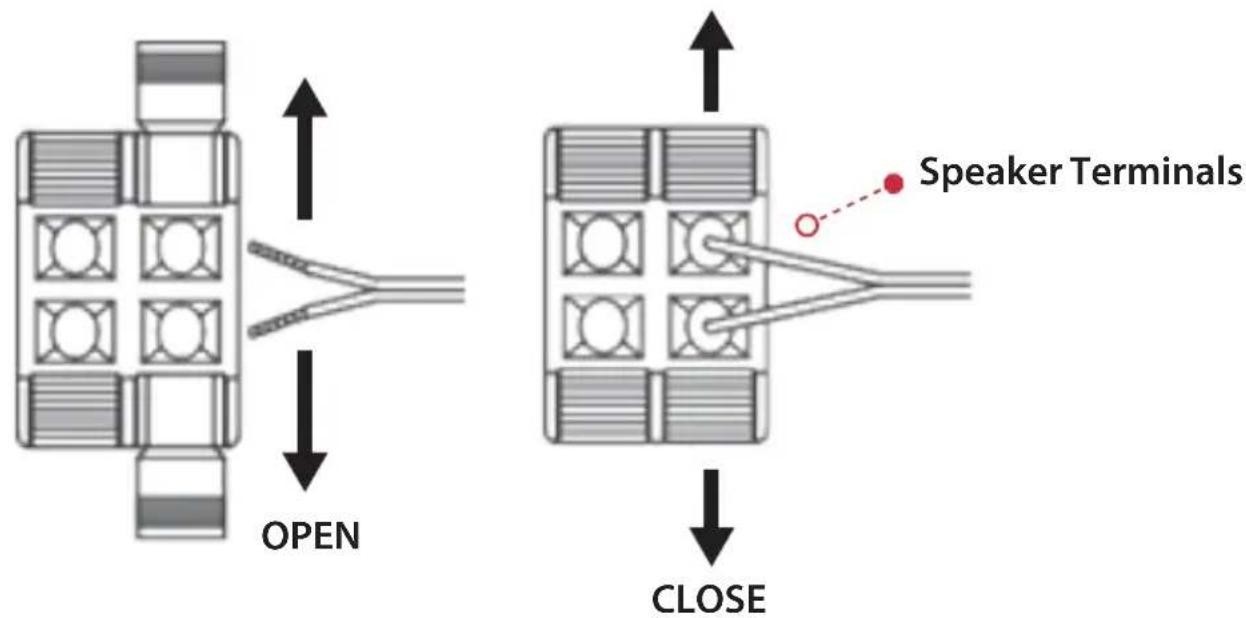

Press open the desired SPK terminals on the control center. Insert the speakers positive (+) wires in the positive (red) terminals, and negative (-) wires into the negative (black) terminals, according to the respective L (left) and R (right) terminals. Then press the tabs to close them.

OPEN CLOSE Speaker Terminals

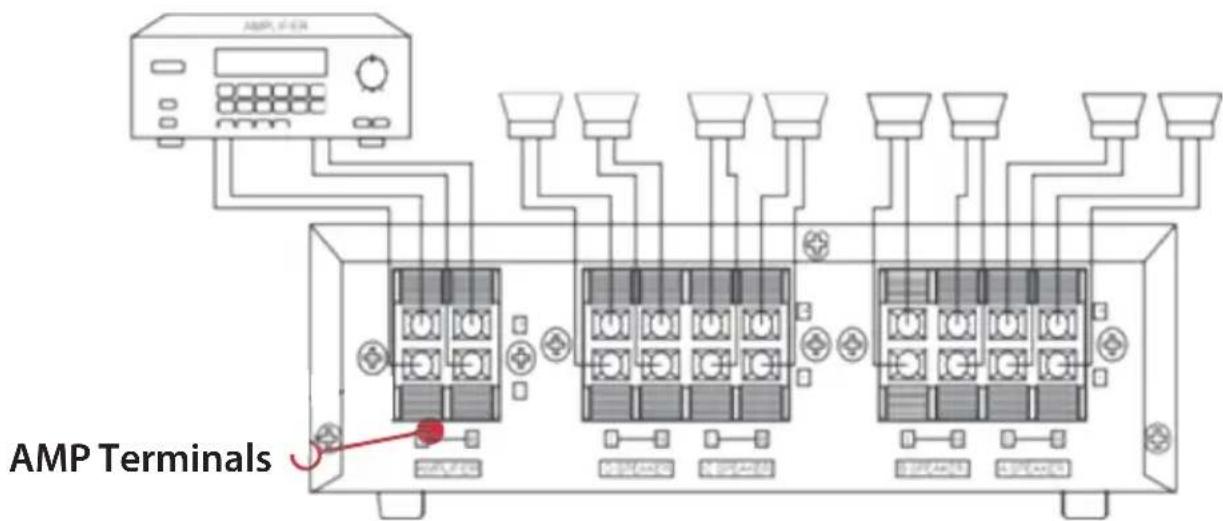

AMP Terminals

Press to open the AMP terminals on the control center, then insert your receiver/ amplifier's positive (+) wires into the positive (red) terminals, and negative (-) wires in the negative terminals then press the tabs to close them.

Notes:

• If your receiver/amplifier has more than one set of speaker terminal (A and B), connect only one or the other to the controlcenter.
• For the best results, we recommend 14-gauge, two conductor speaker wire (not supplied) for most connections. If you plan to locate the speakers further than 80 feet from the control center, use a heavier gauge of wire.

OPERATION

Caution: To avoid damaging your receiver/amplifier, set the volume to the lowest setting before changing the control center's settings.

To turn on a pair of speakers connected to the control center, simply press in the desired button. For example, to turn on the set of speakers connected to SPK A, press A.

To turn off a pair of speakers, press the button again so it is in the "out" position.

Note: if no speakers are connected to a set of terminals, do not press in the corresponding control button.

IMPEDANCE CHART

Impedance is a measurement of the load placed on your receiver/amplifier by the speakers. The load placed on your receiver/amplifier from the control center will vary depending on how many pairs of speakers you turn on at one time, and on which speakers you turned on. The chart below shows the impedance for all possible combinations of 8-ohm speakers.

Speaker Sets On	Impedance (Ω)
A, B, C or D 8
A+B, A+C, A+DB+C, B+D, C+D	4
A+B+C, A+B+DA+C+D, B+C+D	3.1
A+B+C+D 2.4

PSS4

4 Channel Stereo Speaker Selector

Hub Distribution Box for Multi-Channel High Powered Stereo Amplifier A/B/C/D Switches, 4 Pairs of Speakers (100 Watts)

Features:

• Hub Distribution Box for Multi-Channel High Powered Stereo Amplifier A/B/C/D Switches
• Premium New and Improved 4 Zone Channel Speaker Switch Selector
• Up to 4 Separate Speaker Pairs to Your Stereo System
• Accepts Speaker Wires up to 14-Gauge
• Handles 100Watts per Channel w/ Speaker Systems
• Protection Circuitry Keeps It Running Smoothly
  • Prevents Speaker Burn-out
• Allows to Play Audio Up to Eight Different Stereo Speaker Sets
  • Each Input has an ON/OFF Switch
• Good Idea to Add Labels on the Buttons for the Different Speakers

What's in the Box:

• Stereo Speaker Selector
• User Manual

Technical Specs:

• Power Supply: 100 Watts
• Construction Material: Iron
- Impedance: 8 ohms
• Frequency Response: 20Hz-20KHz
- Dimensions (L x W x H):

4.72" x 7.48" x 1.97" -inches / 12 x 11,38 x 5 -centímeter

California Prop 65 Warning

! WARNING:

This product may expose you to chemicals, which is known to the state of California to cause cancer, birth defects and other reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov
