USER MANUAL Hyper C Lavor

WARNING: read the instructions carefully before use.

X X A T T E N Z I O N E

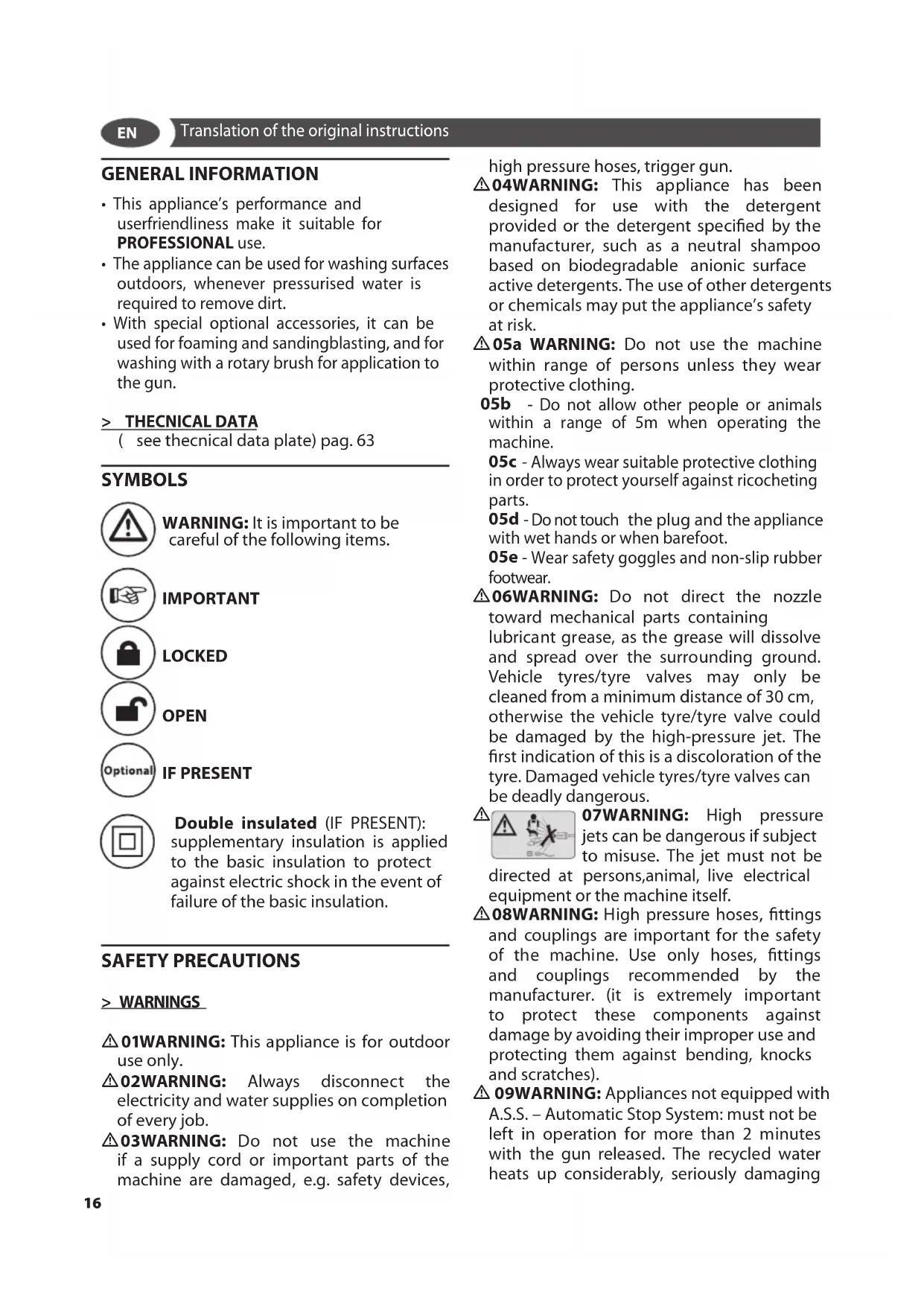

• This appliance’s performance and userfriendliness make it suitable for PROFESSIONAL use.

• The appliance can be used for washing surfaces outdoors, whenever pressurised water is required to remove dirt.

• With special optional accessories, it can be used for foaming and sandingblasting, and for washing with a rotary brush for application to the gun. > THECNICAL DATA (see thecnical data plate) pag. 63 SYMBOLS

WARNING: It is important to be

careful of the following items. IMPORTANT LOCKED OPEN IF PRESENT Double insulated (IF PRESENT): supplementary insulation is applied to the basic insulation to protect against electric shock in the event of failure of the basic insulation. SAFETY PRECAUTIONS > WARNINGS

• 01WARNING: This appliance is for outdoor use only.

• 02WARNING: Always disconnect the electricity and water supplies on completion of every job.

• 03WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devices, high pressure hoses, trigger gun.

• 04WARNING: This appliance has been designed for use with the detergent provided or the detergent specied by the manufacturer, such as a neutral shampoo based on biodegradable anionic surface active detergents. The use of other detergents or chemicals may put the appliance’s safety at risk.

• 05a WARNING: Do not use the machine within range of persons unless they wear protective clothing. 05b - Do not allow other people or animals within a range of 5m when operating the machine. 05c - Always wear suitable protective clothing in order to protect yourself against ricocheting parts. 05d - Do not touch the plug and the appliance with wet hands or when barefoot. 05e - Wear safety goggles and non-slip rubber footwear.

• 06WARNING: Do not direct the nozzle toward mechanical parts containing lubricant grease, as the grease will dissolve and spread over the surrounding ground. Vehicle tyres/tyre valves may only be cleaned from a minimum distance of 30 cm, otherwise the vehicle tyre/tyre valve could be damaged by the high-pressure jet. The rst indication of this is a discoloration of the tyre. Damaged vehicle tyres/tyre valves can be deadly dangerous.

07WARNING: High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons,animal, live electrical equipment or the machine itself.

• 08WARNING: High pressure hoses, ttings and couplings are important for the safety of the machine. Use only hoses, ttings and couplings recommended by the manufacturer. (it is extremely important to protect these components against damage by avoiding their improper use and protecting them against bending, knocks and scratches).

• 09WARNING: Appliances not equipped with A.S.S. – Automatic Stop System: must not be left in operation for more than 2 minutes with the gun released. The recycled water heats up considerably, seriously damaging Translation of the original instructions

10WARNING: Appliances equipped with A.S.S – Automatic Stop System: these appliances should not be left in standby for more than 5 minutes.

• 11WARNING: Switch the appliance o completely (master switch on (0)OFF) whenever it is left unattended.

• 12WARNING: Every machine is tested in its operating conditions, so it is normal for a few drops of water to be left inside it.

• 13WARNING: Take care not damage the electric cable. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard

• 14WARNING: Appliance with uid under pressure. Keep a rm hold on the gun and be prepared to take the kickback pressure. Only use the high pressure nozzle provided with the appliance.

• 16 WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• 17 WARNING: Children should be supervised to ensure that they do not play with the appliance.

• 18 WARNING: Never start the high-pressure cleaner without rst completely unwinding the high-pressure hose.

• 19 WARNING: When winding and unwinding the pipe take care not to cause the high- pressure cleaner to overturn.

• 2 0 WARNING: Before unwinding or winding the hose, switch the machine o and release the pressure in the hose itself (switching o).

• 21WARNING: Risk of explosion — Do not spray ammable liquids.

• 2 2 WARNING: To ensure machine safety, use only original spare parts from the manufacturer or approved by the manufacturer.

• 2 3 WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.

• 24WARNING: High pressure cleaners shall not be used by children or untrained personnel.

• W A R N I N G : Water that has own through backow preventers is considered to be non-potable.

• XX WARNING: the machine shall be disconnected from its power source, by removing the plug from the socket-outlet, during cleaning or maintenance and when replacing spare parts

• XJ WARNING: If an extension cord is used, the plug and socket must be of watertight construction.

• XY WARNING: Inadequate extension cords can be dangerous.

• WARNING: It is absolutely forbidden to use the machine in potentially explosive environments or areas.

• WARNING: the gun is tted with a safety catch. Whenever use of the machine is interrupted it is important to operate the safety catch to prevent accidental activation of the jet. - Safety features: gun equipped with safety locking device, appliance equipped with (Class I) overload cutout, pump equipped with by-pass valve or shutdown device. - The safety button on the gun is not there to lock the lever during operation, but to prevent its accidental operation.

• WARNING: The appliance is equipped with a motor protection device: in case of device intervention, wait some minutes or, in alternative, disconnect and re-connect the product to the electric system. In case this problem repeats again or if the product does not start again, take the product to the nearest After Sales Service Point > STABILITY

17• WARNING: The machine must be always kept on horizontal bases, in a safe and stable way. > WATER SUPPLY Water supply collection Water supply from the water main

• Connect a supply hose (not included) to the water inlet of the unit and to the water supply.

• Open the water supply.

WARNING: (symbol) machine not suitable

for connection to the potable water mains. The cleaner can only be connected to the wa- ter mains if the water mains is separated by a backow preventer. Make sure that the hose is at least Ø 13mm-1/2 inch and that it is rein- forced.

• WARNING: Water that has flown through backflow preventers is considered to be nonpotable. IMPORTANT: Only clean or filtered water should be used for intake. The delivery of the water intake tap should be equal to the double of the maximum pump range. - Minimum delivery rate: 30 l/ min. - Maximum intake water temperature: 40°C - Max inlet water pressure: 1Mpa Place the cleaner as close to the water supply system as possible. Water supply from an open container

• Unscrew the coupling part for the water inlet.

• Screw the suction hose with filter (not included) onto the water connection of the unit.

• Hang the filter in the container.

• Vent the unit before operation.

• Unscrew the high-pressure line at the high- pressure outlet of the unit.

• Switch on the unit and let it run until water free of bubbles emerges at the high-pressure outlet.

• Switch off the unit and screw on the high- pressure hose again. Failure to comply with the above conditions causes serious mechanical damage to the pump and the loss of warranty cover. > ELECTRICITY SUPPLY - The appliance’s electrical connection must comply with the IEC 60364-1 standard. IMPORTANT: Before connecting the appliance, make sure that the nameplate data are the same as those of the electrical mains and that the socket is protected by a dierential security breaker with tripping sensitivity below 0.03 A - 30 ms. - If the appliance’s plug is not compatible with the socket, have the socket replaced with another of suitable type by professionally qualied sta. - Never use the appliance in ambient temperatures below 0° C if it is equipped with a PVC (H VV-F) cable.

• XY WARNING: Inadequate extension cords can be dangerous.

• XJ WARNING: If an extension cord is used, the plug and socket must be of watertight construction. Information for supply may also be obtained from the plug manufacturer. 230-240V 400-415V 3G 2,5 mm2 4G 2,5 mm2 max 20 m max 30 m USAGE > UNPACKING (see g.

Take out the upper and the lower hooks, which x the cardboard box to the pallet, take the cardboard box o, put two wheels of the machine on ground and take the pallet o.

18(if tted) IMPORTANT: This water cleaner is equipped with the A.S.S. (Automatic Stop System), which stops the machine during the bypass phase. To start the water cleaner, it is therefore necessary to set the switch on position “ON”; after that press the pistol trigger: the Automatic Stop System will start the machine and will stop it automatically when the trigger is released. It is advisable to put on the safety of the pistol trigger whenever the machine is stopped, in order to avoid unintentional starting.

• Any automatic start of the machine without pressing the gun trigger is attributable to air bubbles in the water or other similar phenomena which do not imply the existence of any defects in the machine.

• Do not leave the appliance unattended during the standby for more than 5 minutes. Contrarily, for the safety of the appliance it is necessary to re-turn the switch into the OFF position.

• Please check that the coupling of the high pressure hose with the appliance and the gun supplied as standard equipments made correctly, that is to say without any water leak. If the appliance is equipped with a pressure regulator:

• when the pressure is set to minimum the A.S.S. may not trigger. Therefore, do not allow the appliance to function in by-pass for more than 1 minute.

• do not act on the gun lever too frequently (this may cause a malfunction).

> APPLIANCES PROVIDED WITH THERMAL

VALVE (OPTIONAL) This device enables the machine’s by-pass op- eration through automatic water discharge whenever it reaches a temperature of nearly 60°C and cooling working components.

CAUTION: appliances that are not provided with this disposal must not operate for more than 2 minutes with released gun. Recycled water raises its temperature remarkably causing great damages to the pump.

> INSTALLATION AND START-UP

FILLING UP WITH DETERGENT

the detergent tank with the suggested products, su- itable for the kind of washing to be carried out.

WARNING : Make use only of liquid detergent, do not absolutely use acid or too much alkaline products. We suggest you to make use of our products, which have been studied for the use with washer machines. > INSTALLATION

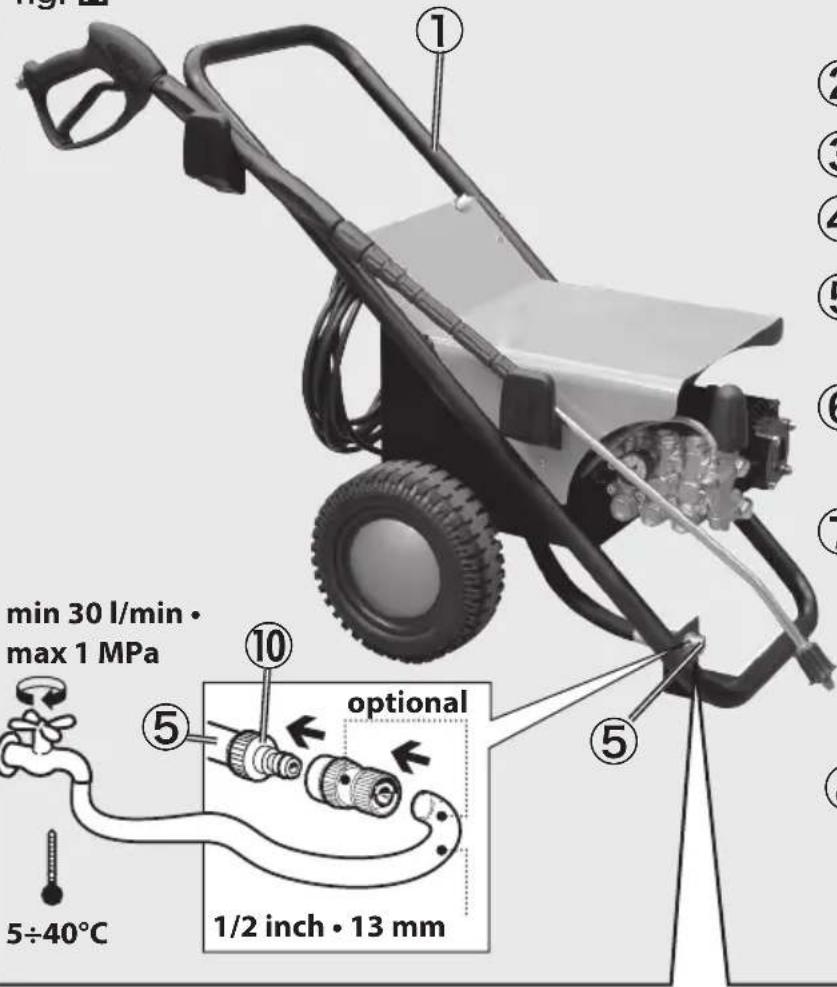

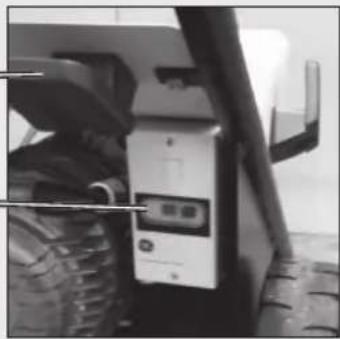

Check that the master switch is turned to “OFF” and that the water lter is tted into the pump’s inlet pipe.

• Screw the snap connection into place by hand, without the aid of tools.

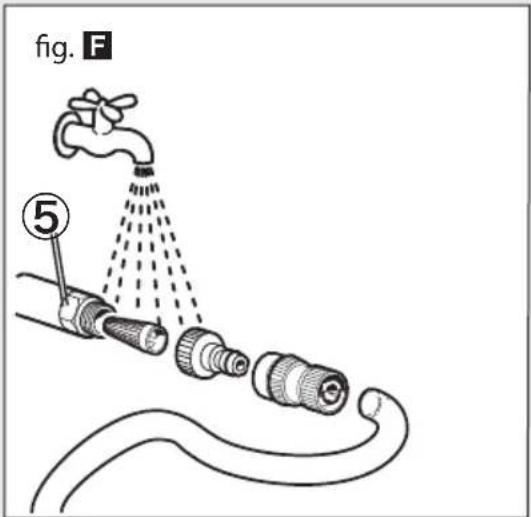

• Connect the water supply hose to the snap connection. The hose must have an inside diameter of at least 13 mm (1/2”).

• Connect the high pressure hose to the pump’s outlet pipe. Press the high pressure hose coupling fully down and then screw into place by hand without the aid of tools.

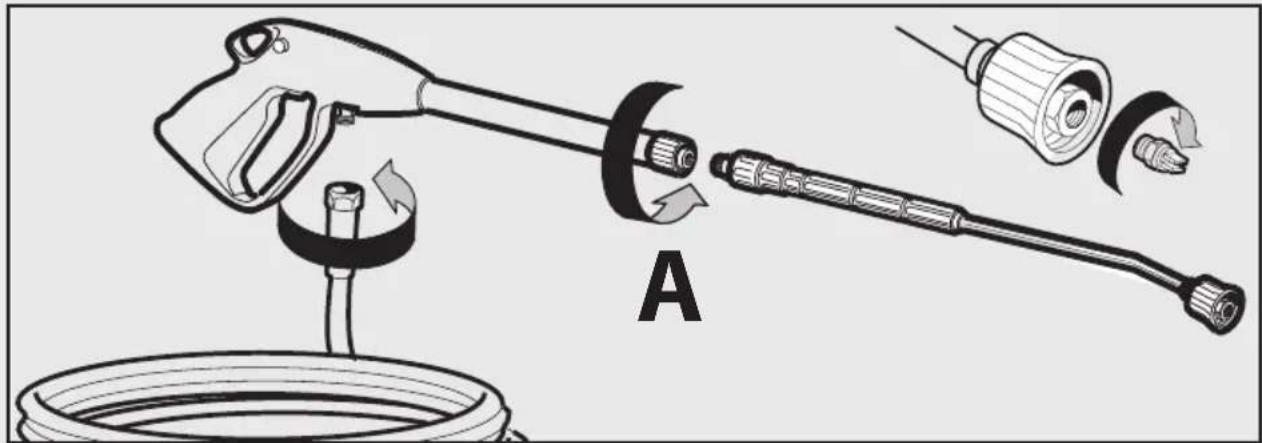

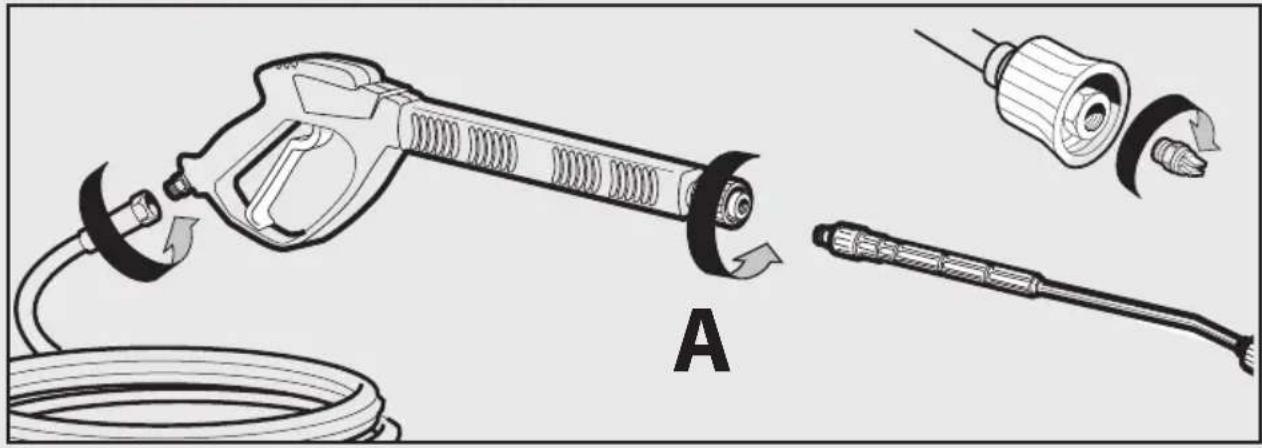

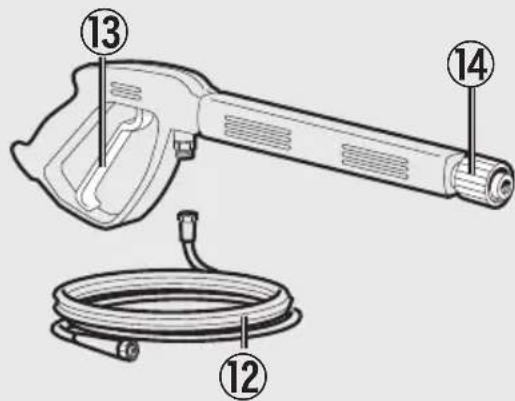

• Connect the high pressure hose to the gun. (g. B)

• Turn the water tap fully on. The water temperature absolutely must be below 40°C. IMPORTANT: The washer machine has to operate with clean water in order to avoid any damages to the washer machine itself.

• Release the gun safety catch and keep the trigger pressed, allowing the water to ow until all the air has been expelled.

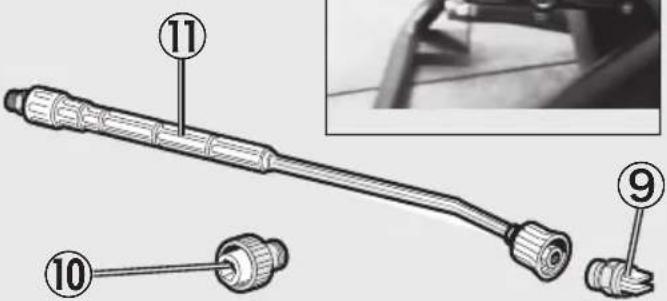

• Fit the lance into the gun.

• Fit the nozzle into the lance.

• Connect the plug to the power socket. > 1ST START-UP When starting up for the rst time or after a long pe- riod out of use, connect the intake line only for a few minutes so that any dirt is vented from the delivery outlet > START-UP

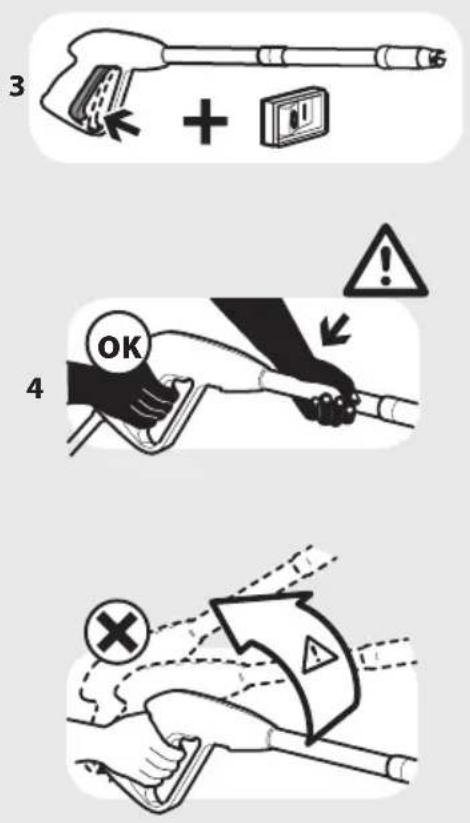

• Whenever using the high-pressure cleaner, users are urged to hold the gun in the correct position, with one

19hand on the grip and the other on the spray rod.

To start the machine, press the gun trigger and at the same time tur n the master switch to “ON”

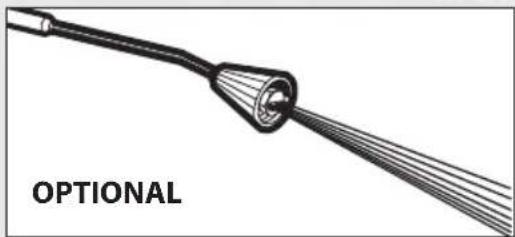

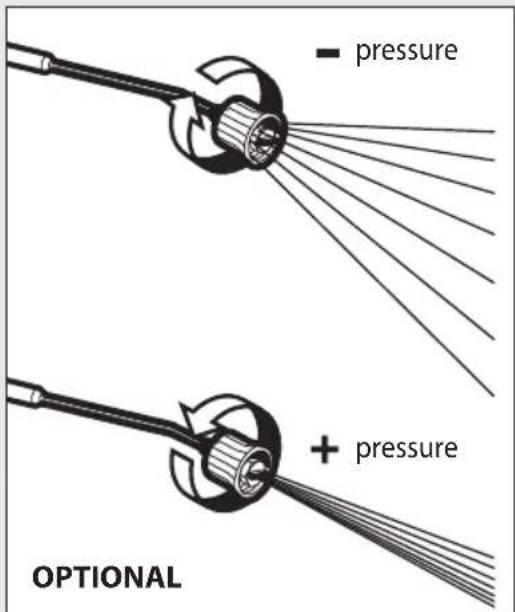

DETERGENT SUCTION NOZZLE at low pressure (if included) (see g.

CAUTION: Make use only of liquid detergent, do not absolutely use acid or too much alkaline products. We suggest you to make use of our products, which have been studied for the use with washer machines.

CARE AND MAINTENANCE

IMPORTANT: Before doing any work on the cleaner, discharge the pressure and disconnect the electricity and water supplies.

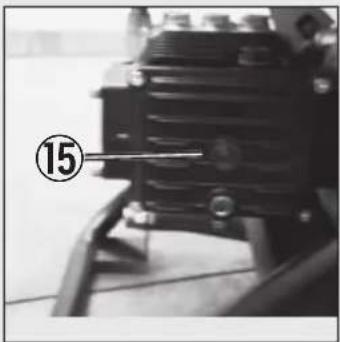

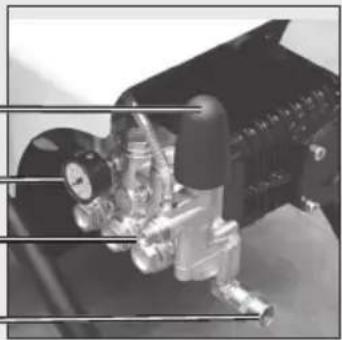

CHECKING THE PUMP OIL LEVEL

Check the oil level periodically. The oil must be changed for the rst time after 50 working hours, with subsequent changes every 500 hours. SAE 20/30 (750 gr) oil is recommended .

Inspect and clean the water intake lter on the inta- ke union periodically. This is important to prevent fouling which may impair operation of the pump.

CHECKING THE SPRAY ROD NOZZLE

Replace the nozzle when the pressure drops below the normal values. DESCALING The descaling procedure must be carried out periodically with specic products. The interval depends on the hard- ness of the water. Pour one litre of product for every 15 litres of water into a drum containing at least 30 litres of water. Disconnect the gun from the high pressure line and place its free end in the drum, in order to form a closed cir- cuit, and draw the solution into the machine for at least 10 minutes. The delivery end of the line should discharge into a canvas or mesh bag so that the scale removed is not re- turned to the circuit. Then restore the normal connection and rinse with plenty of cold water. This operation should be carried out by our after-sales service, since the descal- ing product may cause wear of components. Comply with the regulations in force when disposing of the descaling agent. ELECTRIC DIAGRAM See illustrations,

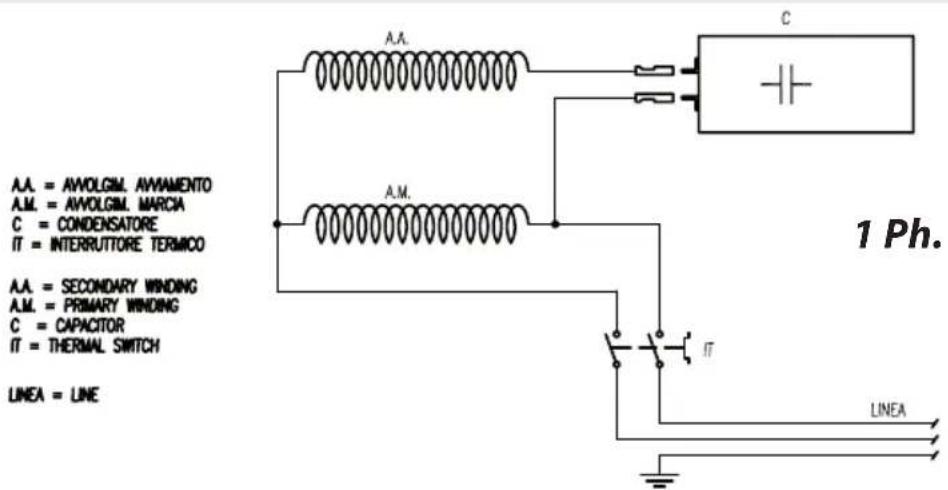

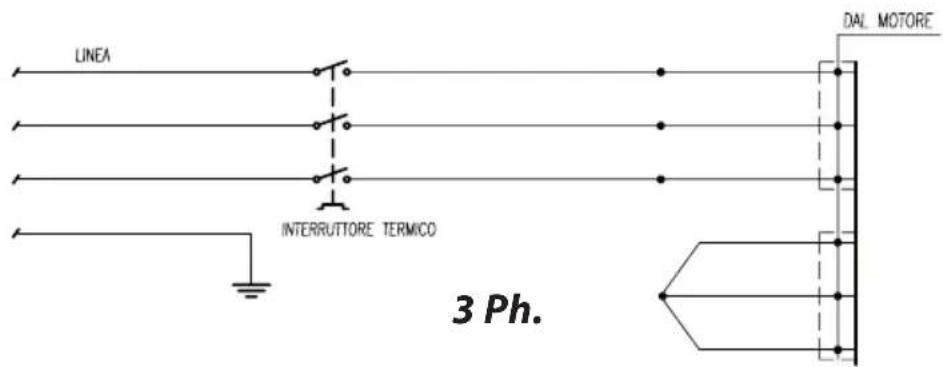

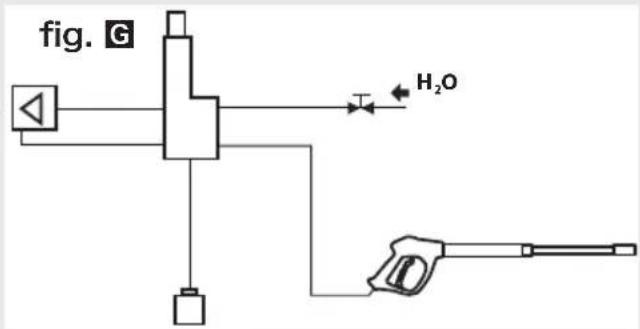

WATER DIAGRAM See illustrations,

TROUBLESHOOTING Before doing any work on the machine, disconnect the electricity and water supplies and discharge the pressu- re. Proceed systematically to identify Faults following the chart below; if you are still unable to eliminate the problem, call in the Authorized After-Sales Service. Fault When switch “ON” the ma- chine will not start work- ing Cause

• Plug not properly inserted in socket.

• Electric socket is faulty.

• The main voltage is insu- cient.

• Gauge of extension lead not sucient. Repair

• Fit plug in power socket cor- rectly.

• Have electrical socket checked.

• Have a check made on the suit- ability of the mains system.

• Turn switch to ON while keep- ing nozzle trigger pressed; if problem persists, contact an au- thorised service centre. Fault The motor stops suddenly Cause

• Thermic safety switch has tripped due to the overheating.

• Cable extension seems to be inadequate.

• Leave motor to cool for a few minutes. If the problem persists, contact an authorised service centre.. Fault The pump doesn’t reach the necessary pressure Cause

• Water inlet lter is clogged.

• Suction/delivery valves are clogged or worn out.

• Pressure regulator valve set on minimum.

• The nozzle is worn out. Repair

• Check that the delivery rate is 30% higher than the value stated on the appliance’s technical data plate.

• Remove and clean the lter.

• Contact an authorised service centre.

• Increase the pressure by screwing in the pressure regula- tor knob.

• Replace the nozzle. Fault Fluctuating pressure Cause

• The nozzle is either clogged or deformed.

• Suction/delivery valves are clogged or worn out.

• Pressure regulator valve gas- kets worn.

• The lter is dirty. Repair

• Dismantle the lance and clean the nozzle with the pin provided. Contact an authorised serv- ice centre. Contact an authorised serv- ice centre. Contact an authorised serv- ice centre. Remove and clean the lter. Fault Water leak from appliance Cause

• Water leaking from the pump.

• Leaks from hose reel (if present).

• Leaks from pressure regulator valve.

• Leaks from water unions. Repair

• Contact an authorised service centre.

• Tighten the unions; if the prob- lem persists, contact an author- ised service centre.

• Contact an authorised service centre.

• Tighten the unions; if the prob- lem persists, contact an author- ised service centre. Fault Abnormal noise Cause

• Suction/delivery valves are clogged or worn out.

• Extreme water temperature. Repair

• Contact an authorised service centre.

• Contact an authorised service centre.

• Remove and clean the lter.

• Bring the temperature under 50°. Fault Water is in the oil Cause

• O-rings (water and oil) are worn out. Repair

• Contact an authorised service centre. Fault The machine does not suck wax or detergent Cause

• Rod knob on high pressure po- sition.

• Disconnected pipe in deter- gent suction system.

• Replace oil with double fre- quency that is suggested.

• Turn it to the low pressure po- sition.

• Return it into position.

> REPAIRS - SPARE PARTS

For any problems not mentioned in this manual, or if the machine breaks down, you are urged to contact an Authorized After-Sales Service for the relative repair or for any replacement of components with original spare parts. Use exclusively original replace- ment parts. > WARRANTY CONDITIONS All our machines are subjected to strict tests and are covered against manufacturing de- fects in accordance with applicable regula- tions. The warranty is eective from the date of purchase. The following are not included in the war- ranty: - Parts subject to normal wear. - Rub- ber parts, charcoal, lters and the accessories and optional accessories. - Accidental damage, caused by transport, neglect or inadequate treatment, incorrect or improper use and in- stallation failing - The warranty shall not cover any cleaning operations to which the operative components may be subjected, such as clog- ged nozzles and lter blocked due to limesto- nes. > DISPOSAL As the owner of electrical or electronic equip- ment, the law (in accordance with the EU Directi- ve 2002/96/EC of 27 January 2003 on waste from electrical and electronic equipment and the na- tional laws of the EU Member States that have implemen- ted this Directive) prohibits you from disposing of this pro- duct or its electrical / electronic accessories as municipal solid waste and obliges you to make use of the appropriate waste collection facilities. The product can be disposed of by returning it to the distri- butor when a new product is purchased. The new product must be equivalent to that being disposed of. Disposing of the product in the environment can cause great harm to the environment itself and human health. The symbol in the gure indicates the urban waste con- tainers and it is strictly prohibited to dispose of the equi- pment in these containers. Non-compliance with the re- gulations stipulated in the Directive 2002/96/EC and the decrees implemented in the various EU Member States is administratively punishable.

CE DECLARATION OF CONFORMITY

MODEL- TYPE: PRODUIT:
