Product type	Patio heater
Brand	Blumfeldt
Model	Primal Heat 65
Height	65 cm
Power supply	220-240 V ~ 50/60 Hz
Power consumption	1200 W (1600 W max)
Protection rating	IP44
Heating technology	Infrared
Motion sensor	Detection up to 60 cm (extended range 3.5 m for reflective surfaces)
Ideal heating zone	Approximately 1.5 m around the device
Features	Heating with motion sensor, separate light switch
Body material	Metal
Use	Outdoor only
Safety distance (flammable materials)	At least 1.5 m
Maintenance	Clean with a soft cloth after complete cooling
Do not cover	Risk of overheating and fire
Spare parts	No user-serviceable parts
Warranty	Consult the manufacturer
Package contents	Body, base, screws, flat key, cable ties, brackets, etc.
Number of pages in the manual	44 pages

Frequently Asked Questions - Primal Heat 65 Blumfeldt

How to install the Primal Heat 65 heater?

Place the device upside down, slide the trim into the retaining clip, pass the power cable through the holes in the base cover and base, then attach the base with the provided screws. For more details, refer to the Assembly section of the manual.

What is the heating power of the Primal Heat 65?

The power consumption is 1200 W, with an option of 1600 W depending on the setting. The heater uses an infrared element to heat people and objects directly.

How to use the motion sensor?

Set the heater switch to position 'II' to activate the sensor. If a person or object is within a radius of about 60 cm, the sensor triggers the main heating. If the area is empty, the lower heating resumes after 5 seconds. The range can reach up to 3.5 m for reflective surfaces.

What safety precautions should I take?

Never leave the device unattended. Place it at least 1.5 m away from flammable materials. Do not cover the heater. Do not use it near water (bathtub, shower, pool). Unplug it before moving or cleaning.

Can I use the heater under an awning or pergola?

Yes, provided the location is outdoor and the device is not directly exposed to weather. It is protected with IP44 against water splashes, but should not be used in heavy rain or snow.

How to clean and maintain the device?

Wait for the device to cool completely and unplug it. Clean it with a soft, dry cloth. Do not use abrasive products or solvents. Never immerse the device in water.

What to do if the device does not heat?

First check that the device is properly plugged in and the switch is in position 'I' or 'II'. Ensure that the foam transport pads have been removed from the grilles. If the problem persists, contact customer service. Do not attempt to repair it yourself.

Can I use an extension cord?

It is better to avoid extension cords as they can overheat. If necessary, use an outdoor-rated extension cord with a built-in circuit breaker and make sure it is fully unrolled.

How to store the device in winter?

Unplug the device and let it cool completely. Clean it, then store it in a dry, frost-free place. Do not expose it to weather during storage.

Is the device suitable for commercial use?

No, this heater is intended for household use only. Commercial use may lead to fire hazards or malfunction.

USER MANUAL Primal Heat 65 Blumfeldt

Note: The device is only suitable for outdoor use.

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green leaf-like graphic design on beige background (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

INHALTSVERZEICHNIS

MONTAGE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

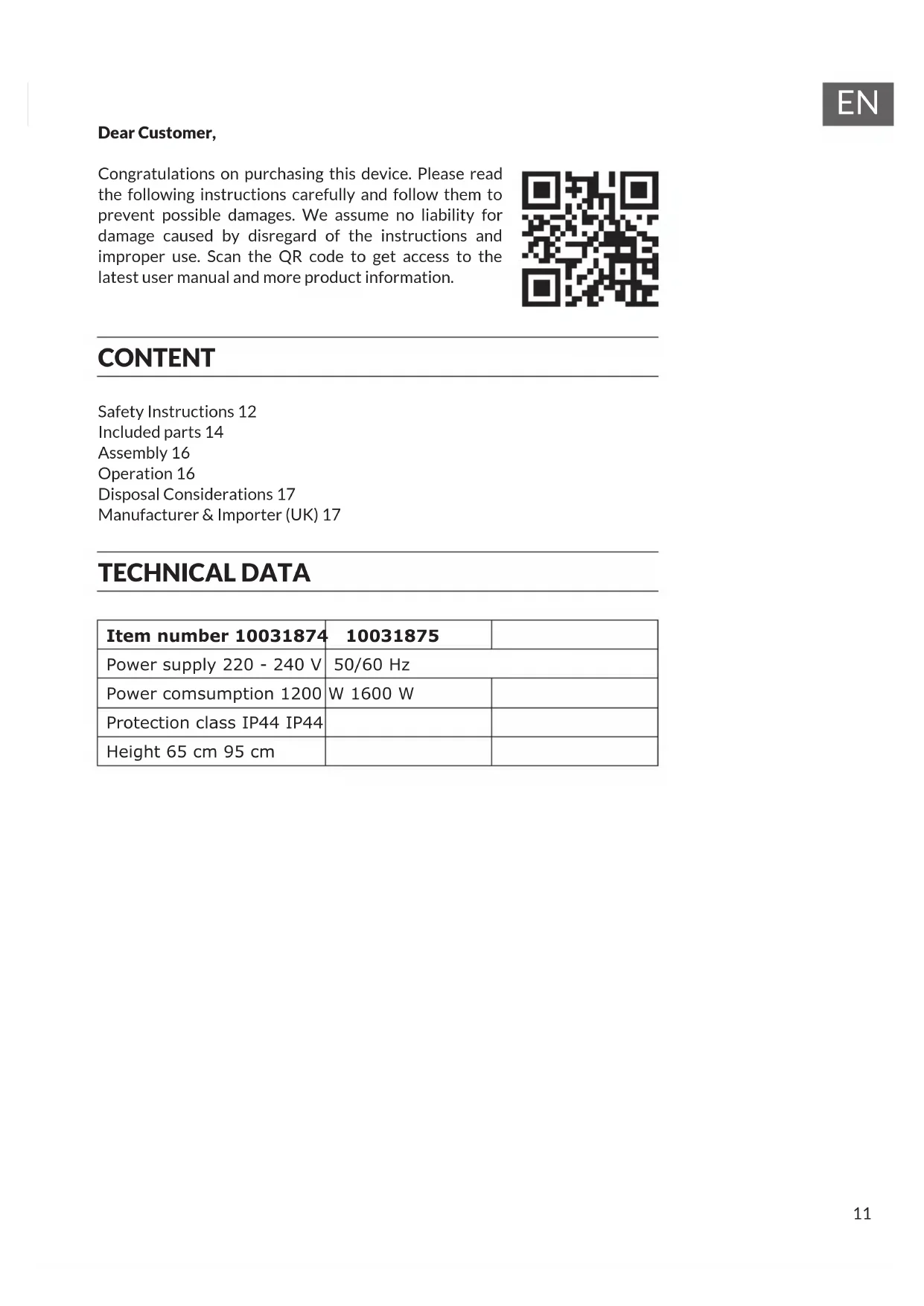

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 12

Included parts 14

Assembly 16

Operation 16

Disposal Considerations 17

Manufacturer & Importer (UK) 17

TECHNICAL DATA

Item number 10031874	10031875
Power supply 220 - 240 V	50/60 Hz
Power consumption 1200	W 1600 W
Protection class IP44 IP44
Height 65 cm 95 cm

SAFETY INSTRUCTIONS

• Do not leave this unit unattended when in use.
• This heater will get hot when in use. Do not touch hot surfaces.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given when children and vulnerable people are present.

• Do not move the unit when in use. Wait until the heater is completely cool before moving and check that it has been unplugged from the power supply.
• Position the unit at least 1.5 m away from highly combustible materials such as furniture, trees, leaves, dry grass and bushes.
• The heater must not face with the heating element pointing upwards towards a ceiling. The heater element must be facing the area it is to heat.

Note: In order to avoid overheating do not cover the heater. It is not for drying clothes.

• Keep children and pets at a safe distance from the unit.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not operate the heater if any signs of damage or malfunction manifest themselves.
• Do not attempt to repair or adjust any electrical or mechanical functions on this unit. The unit does not contain any user serviceable parts. Only a qualified electrician should perform servicing or repairs.
• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not handle the element with bare hands. If it is inadvertently touched, remove finger marks with a soft cloth and methylated spirits or alcohol, otherwise the marks will burn into the element causing premature heater failure.

• Do not replace or attempt to replace the element in this product.

• Do not use this heater in the immediate surroundings of a bath, shower or swimming pool.
• This product must not be left outdoors exposed to the elements for long periods of time.
• Do not touch the plug with wet or damp hands.
• Do not run the power cable under carpeting. Do not cover the power cable with rugs, runner, or similar coverings. Arrange the power cable away from foot traffic and where it will not be tripped over.
• Do not wind the power cable around the unit.
• Do not insert or allow foreign objects to enter any ventilation or opening on the heater, as this may result in electric shock, fire, or damage to the heater.
• To prevent a possible fire, do not block the air vents.
• A heater has hot and arcing or sparking parts inside. Do not use in areas where petrol, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.
• Where possible, avoid the use of an extension cable as this may overheat and cause a fire. However, if you have to use an extension cable, ensure it is suitable for the purpose, has been tested for outdoor use and preferably has an RCD device fitted or attached.
• Always ensure the heater is plugged into a suitable socket, one that is tested for outdoor use.
• Always unplug the unit and ensure the unit is completely cold before moving, cleaning or storing.
• This heater is intended for domestic use only and should not be used commercially for contract purposes. Any alternative use, not recommended by the manufacturer, may result in fire, electric shock, or injury to persons.
• The use of attachments on the heater is not recommended.
• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

Important note on transport safety

Transport safeguards made of foam are located between the grids of the heater. Completely remove the transport safeguards before operating the device, otherwise there will be a risk of fire.

INCLUDED PARTS

Included parts

No.Name

1 Screw M6*20

2 Washer

3 Base

4 Base Cover

5 Base Bracket

6 Deco. Board

7 Cord Clip

8 Plug

9 Screw M4*28

10 Alum. Fixture

11 Screw M4*6

12 Screw M8*6

13 L Bracket

14 Control Box

15 Screw M6*16

16 Heater Switch

17 IR Sensor indicator Light

18 LED Lighting Switch

Accessory pack check list

PartQty
Screw M6*20 2
Washer 2
Deco. Board 2
Screw M4*6 3
Screw M8*6 3
Screw M6*16 3
Allen Key 1
Cord Clip 1
Screw M4*28 2

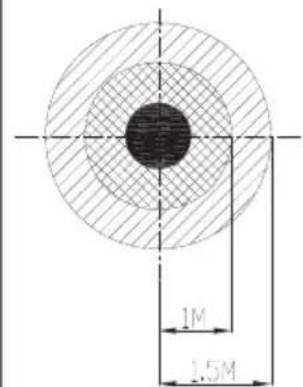

Fig.D

Heater Body

Ideal Warming Area

Nothing is allowed to put in this area

Fig.B

Fig.C

ASSEMBLY

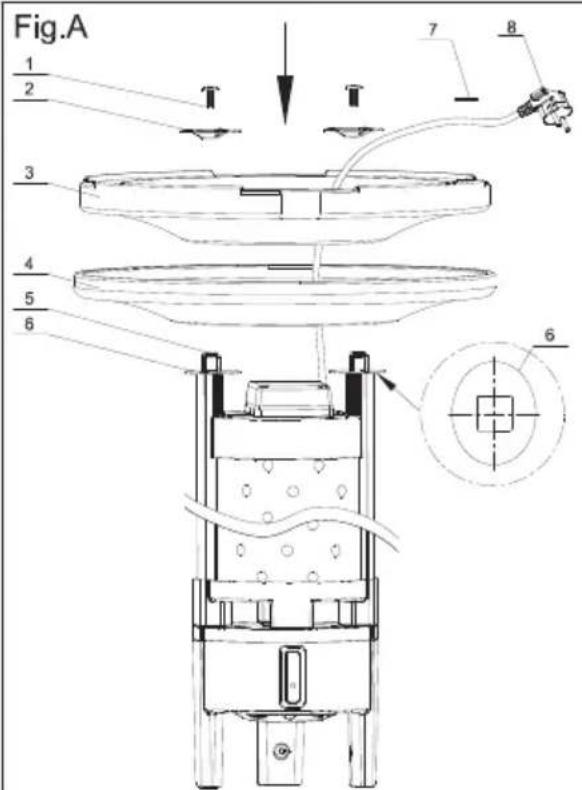

1. Put the main body up-side-down (Fig. A). Slide Deco. Board (#6) onto Base Bracket (#5). Put the plug (#8) and power supply cord (#7) through the holes on the center of Base Cover (#4) and Base (#3). Then slide Base Cover (#4), Base (#3) and Washer (#2) onto Base Bracket (#5) respectively.

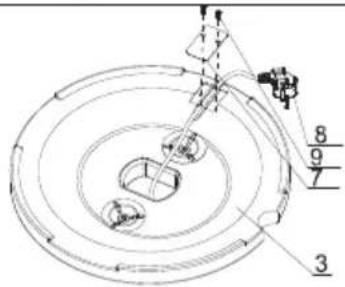

2. Fix Washer (#2), Base (#3), Base Cover (#4) and Base Bracket (#5) with Screw M6*20 (#1). Clip the power supply cord with Cord Clip (#7) and fix it onto Base (#3) with Screw (#9).

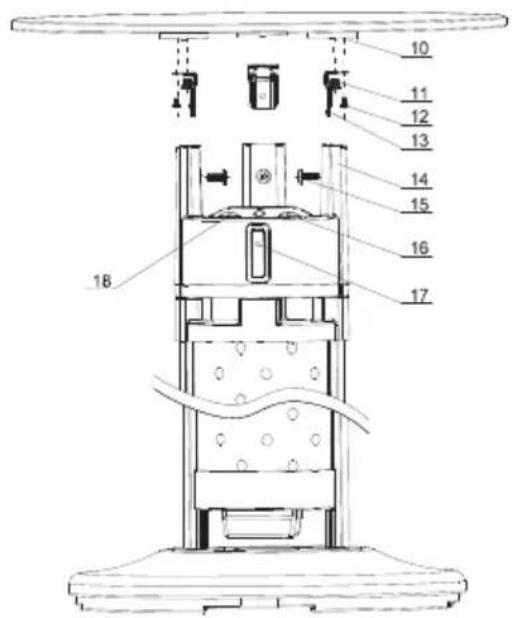

3. Stand the unit correctly (Fig. C). Fix L Bracket (#13) onto Alum. Fixtures (#10) with Screw M8*6 (#12) & M4*6 (#11) respectively. Then slide L Bracket (#13) into the holes of Control Box (#14).
4. Fix L Bracket (#13) onto Control Box (#14) with Screw M6*16 (#15).

OPERATION

1. Plug in the unit to a socket. Make sure the power supply is same as rated.
2. Press LED Lighting Switch(#18) to switch on or off the LED lighting.
3. Press Heater Switch(#16) to position “-” to switch on the heater directly. Press Heater Switch(#16) to position “=”, IR sensors are activated. Sub Heating Element is on immediately. IR Sensor indicator Light(#17) starts to flash. When people or other objects are inside the sensing area (within about 0.6M around the heater body), IR Sensor Indicator Light(#17) lights up, and the main heating element is switched on automatically, while the sub heating element is off automatically. When people or other objects leave the sensing area, the main heating element is switched off after 5 seconds, while the sub heating element is switched on again automatically. IR Sensor LED starts to flash again.

Note: IR sensing distance may differ from different material and colour. If there're some mirrored material around the unit, i.e. glass mirror, stainless steel mirror, aluminium mirror, etc, the sensing distance may extend to 3.5m

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom
