USER MANUAL Air Blumfeldt
Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

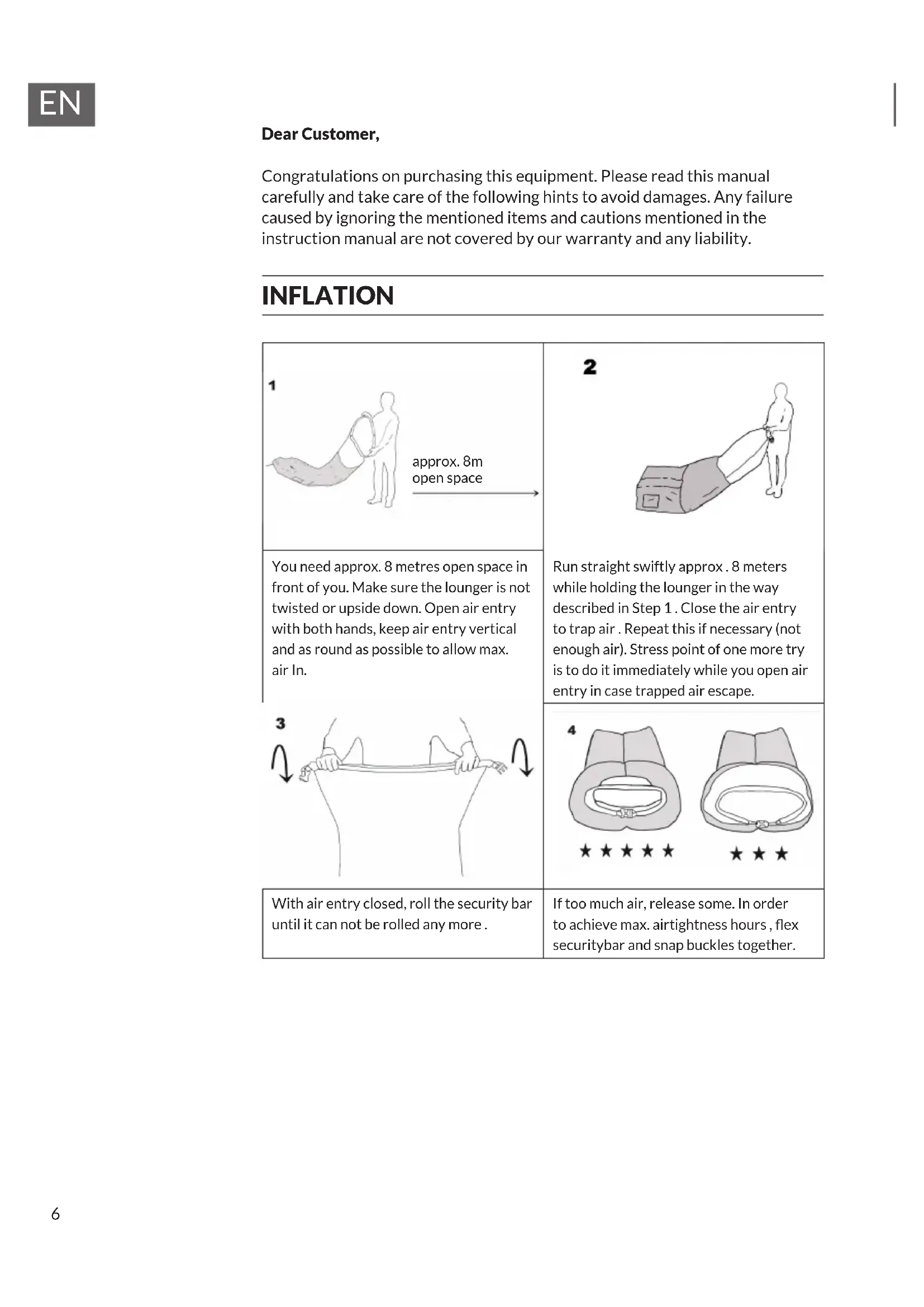

INFLATION
| 1 approx. 8m open space | 2 |
| You need approx. 8 metres open space in front of you. Make sure the lounger is not twisted or upside down. Open air entry with both hands, keep air entry vertical and as round as possible to allow max. air In. | Run straight swiftly approx. 8 meters while holding the lounger in the way described in Step 1. Close the air entry to trap air. Repeat this if necessary (not enough air). Stress point of one more try is to do it immediately while you open air entry in case trapped air escape. |
| 3 ↓ 4 ★★★★★ | 4 ★★★★★ ★★★ |
| With air entry closed, roll the security bar until it can not be rolled any more. | If too much air, release some. In order to achieve max. airtightness hours, flex securitybar and snap buckles together. |
5
It supposed to stand like, NOT upside down.
Risk of injury! Persons sitting together on the sofa must not weigh more than 200kg .
Risk of suffocation! Make sure that children do not climb into the shell.
FREQUently ASKED QUESTIONS
| Question Answer | |
| What if I don‘t have enough space to inflate? | Inflate as Instructed above, just do It 2 or 3 times In your limited space until you catch enough air. Step 2 above has Important Info on this. |
| How do I take off the shell to wash? The shell is fixed to liner by Velcro, just take off the shell from there. besides, take away the round plastic plate which Is on top of the backrest before you wash the shell. | |
| Anything to pay attention when I put on the shell after its washed? | Make sure the liner's 2 PE tubes are not twisted Inside when you put on the shell. after properly Installed, fill It up 1 or 2 times or shake It to make sure the end of liner comes to the end of the shell. |
| How do I adjust the firmness of the lounger? | One more roll or one less roll of the security bar helps you adjust the firmness. |
| What to do when 1 air chamber has less air than the other? | Inflate more air, mostly it will fix the problem. if not, loosen the cords on top of the backrest to Max. and fill it up, tighten up the cords, this is to make sure the end of liner comes to the end of the shell, and It will solve the problem. |
| How to achieve Max. airtightness hours? | Do the 5 star one of above Step 4.and make sure step 3 is strictly followed. |
| What to do when my lounger is punctured? | Take off the shell, locate the hole, or fill up the liner and locate the hole with soap water if necessary(bubbles come up from the hole). Use normal transparent tape to glue the hole on both sides of PE tube. then put on the shell when finished. |
PRODUCER
Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.
