USER MANUAL Picknickerchen Blumfeldt

Children's Picnic Table

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

Estimado cliente,

Chère cliente, cher client,

Gentile cliente,

LIEFERUMFANG

Technical line drawing of a structural frame with supports and beams (no text or symbols)

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

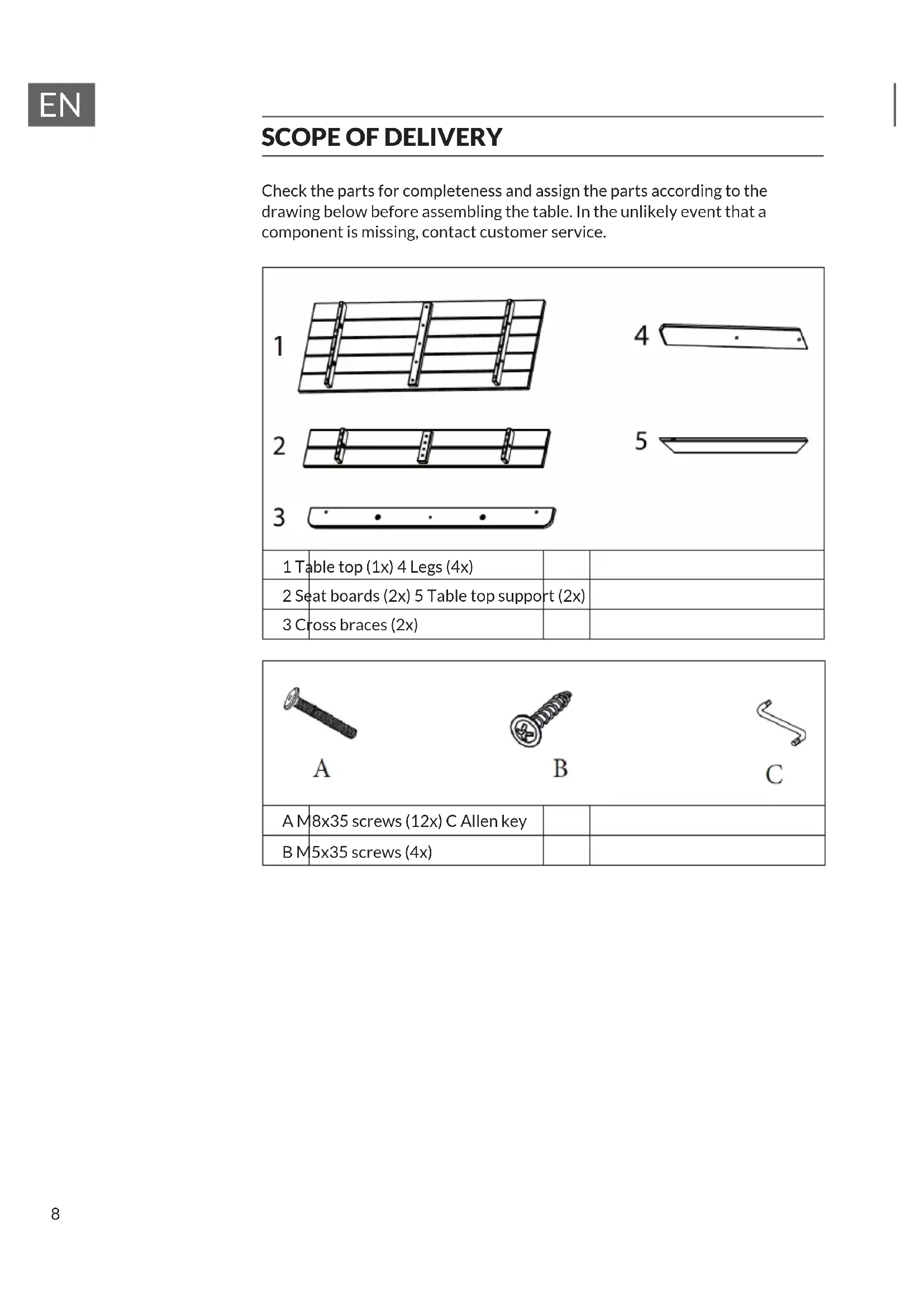

SCOPE OF DELIVERY

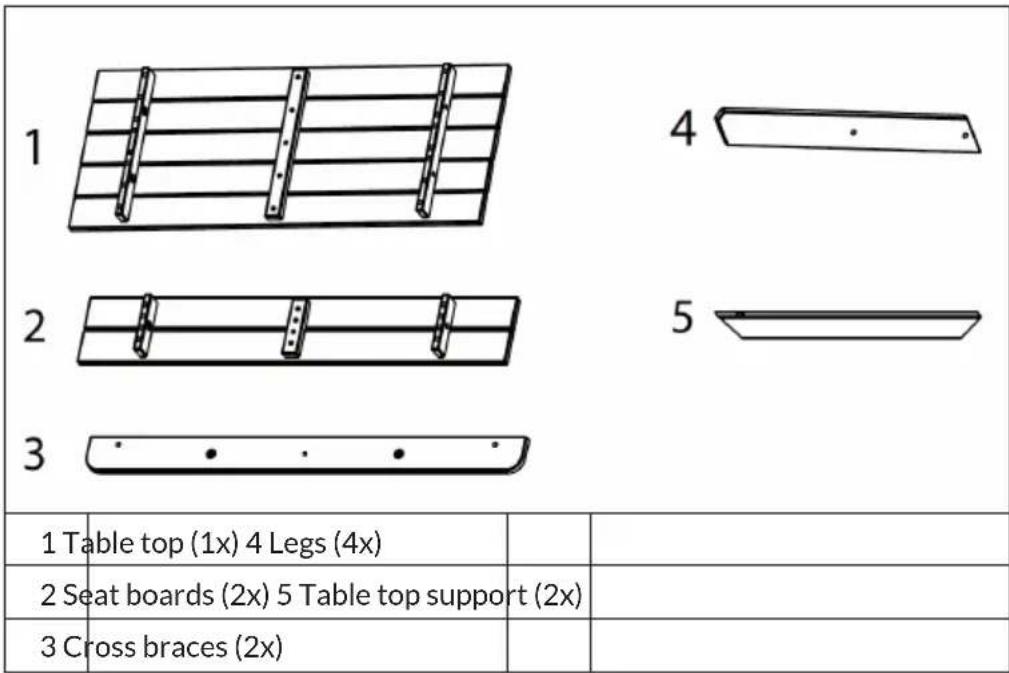

Check the parts for completeness and assign the parts according to the drawing below before assembling the table. In the unlikely event that a component is missing, contact customer service.

A	B	C
A M	8x35 screws (12x) C Allen key
B M	5x35 screws (4x)

ASSEMBLY

The picnic table and its parts are very heavy. Two people are required to assemble and move it. Always lift the table when you move it. Dragging across the floor can damage the legs.

The appearance and proportions of the table in the assembly instructions may differ from the actual product. The assembly steps remain the same.

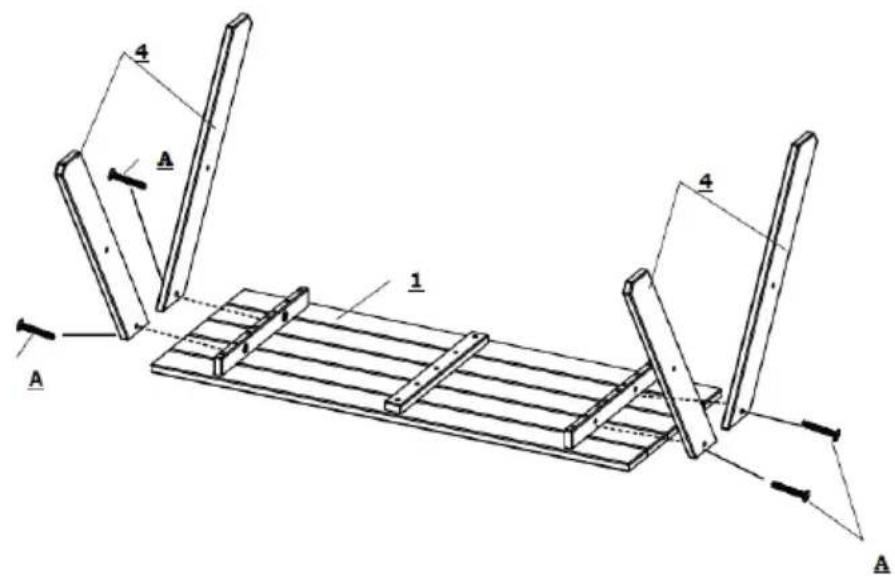

1. Attach the legs


Place the table top upside down on a smooth, flat surface. The box provided is ideal for this purpose. Secure the legs with 4 screws (A). Do not tighten the screws yet.

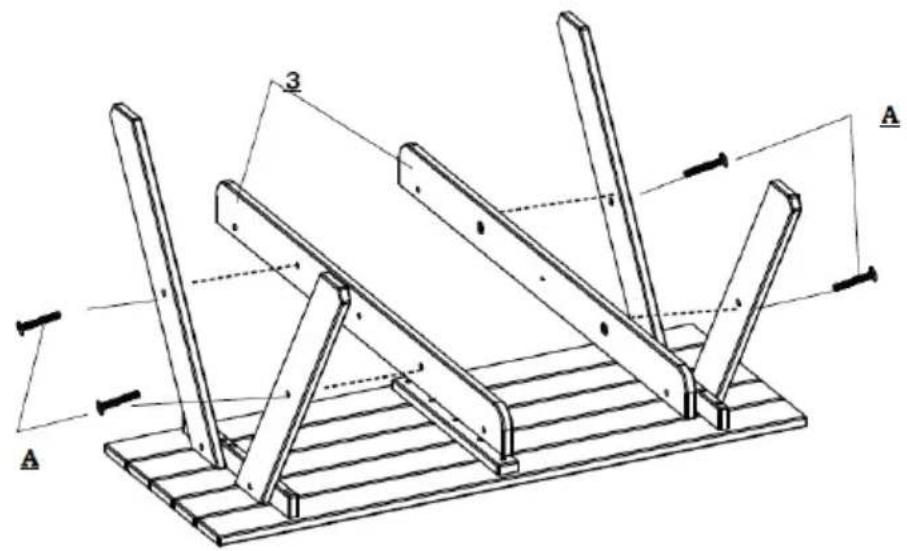

1. Attach cross braces


Attach the cross braces (3) to the legs. Use 4 screws for this (A). Do not tighten the screws yet.

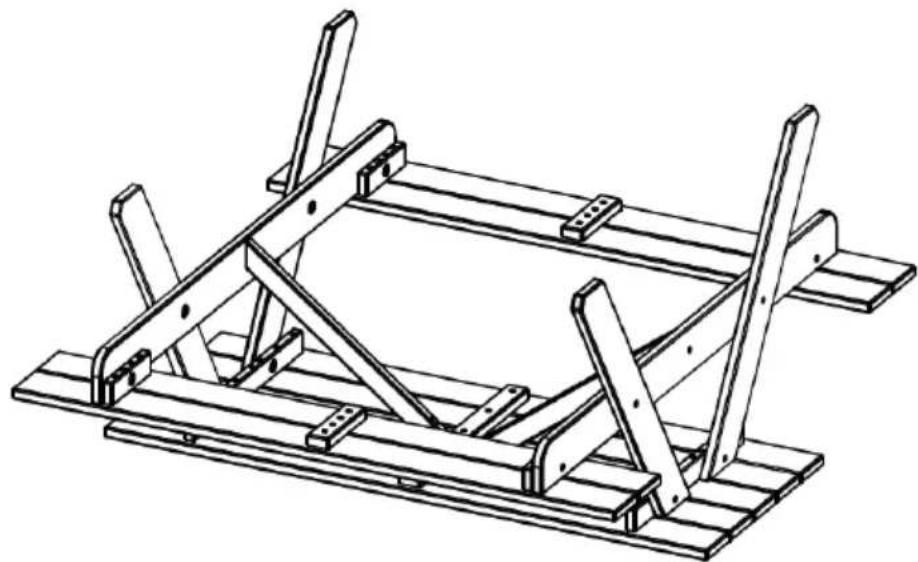

1. Attach both table top supports


Screw the two table top supports on with 4 screws (B). Do not tighten the screws yet.

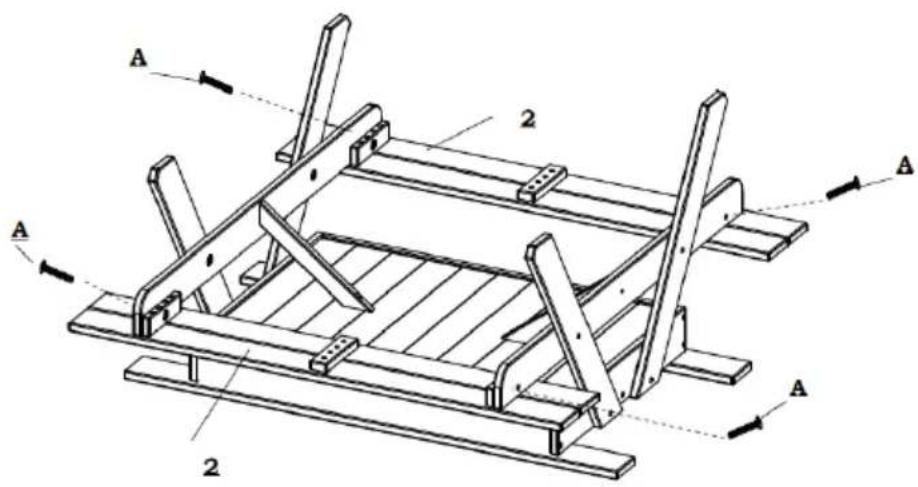

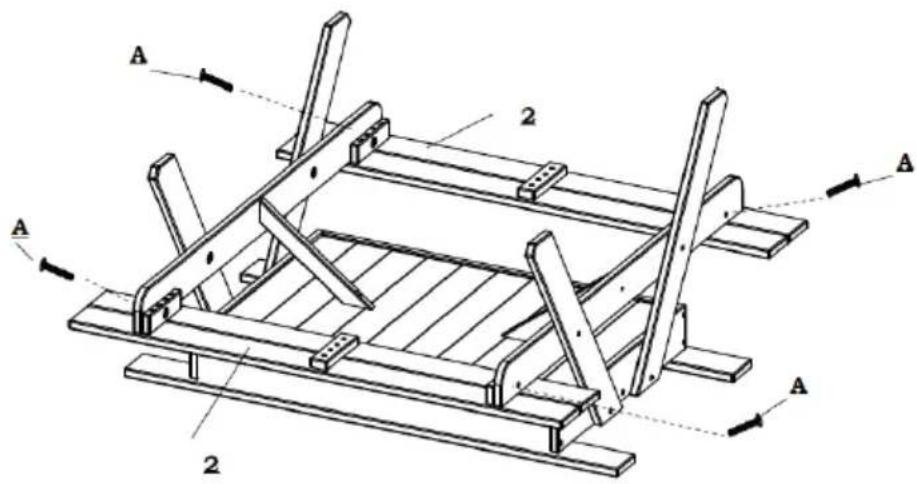

1. Fit seat boards


Fasten the seat boards to the cross struts with 4 screws (A).

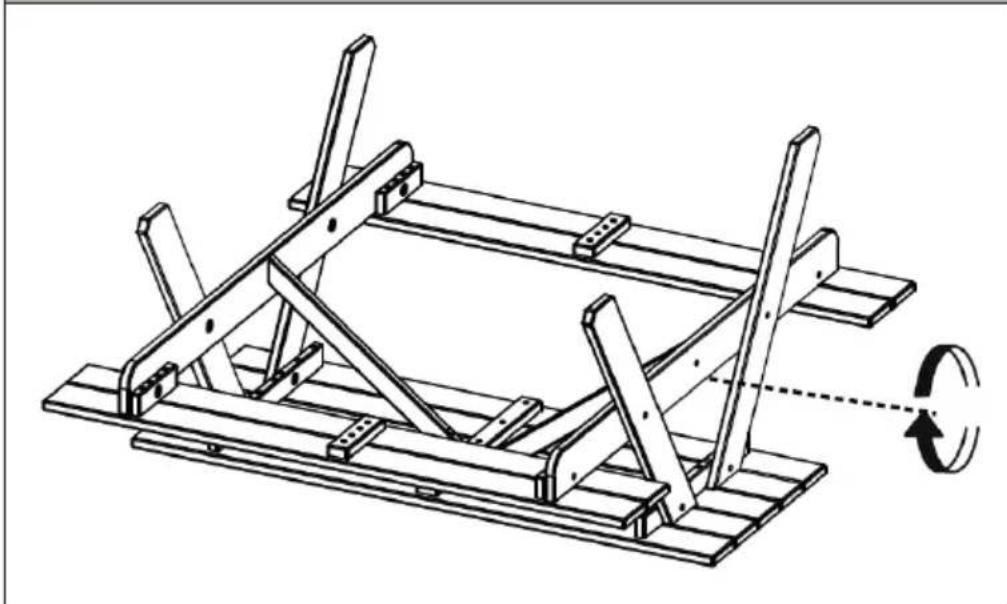

1. Tighten all screws


Technical line drawing of a structural frame with beams and supports (no text or symbols)

Tighten the screws clockwise. Use the enclosed hexagonal spanner for this purpose.

1. Set up the table


Technical line drawing of a mechanical frame structure with no visible text or symbols

Place the table upright. Pay attention to safety.

CLEANING AND CARE

• Treat the table every six months with a wood preservative to protect it from fungal attack and dark discolouration. Alternatively, you can use wood varnish.
• Clean the table with soapy water and a hard brush. Allow the table to dry completely before treating it with a wood preservative.
• More stubborn stains such as spills, bird droppings, mould and blackening of the wood can be sanded with medium-coarse sandpaper.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
