IAN 86106 - Electric scooter Playtive - Free user manual and instructions

Brand	Playtive
Model	IAN 86106
Product type	Children's scooter (non-electric)
Maximum user weight	50 kg
Recommended age	From 3 years
Adjustable handlebar height	3 levels (approx. 75 – 80 cm)
Wheel diameter	125 mm
Bearing type	ABEC 5
Folding mechanism	Yes, for transport
Brake	Foot brake on rear fender
Recommended protective gear	Helmet, wrist guards, elbow pads, knee pads
Intended use	Smooth, clean, dry surfaces; private use
Maintenance	Cleaning, drying, lubrication of bearings
Storage	In a dry place
Warranty	3 years
Package contents	1 scooter, 1 user manual
Spare parts	Available at www.delta-sport.com

Frequently Asked Questions - IAN 86106 Playtive

What is the minimum recommended age for this scooter?

The minimum recommended age is 3 years. It is not suitable for children under 36 months due to small parts.

What is the maximum user weight?

The maximum user weight is 50 kg.

How to fold the scooter for transport?

Loosen the handlebar quick release, press the stop button and push the handlebar all the way down. Then unlock the lower quick release, pull the lever up and fold the handlebar towards the footrest until it clicks. Lock the lower quick release.

Can the scooter be used on public roads?

No, the scooter is intended for private use and must not be used on public roads.

How to adjust the handlebar height?

Loosen the quick release on the handlebar, pull the handlebar up until the stop button engages in one of the three holes, then tighten the quick release.

What protective gear should I wear?

It is recommended to wear a helmet, wrist guards, elbow pads and knee pads.

How to replace the wheels?

Unscrew the axle screws with two hex keys (size 5), remove the screws and take off the wheel. Mount the new wheel and secure it with the screws. After a few minutes of use, check the tightness of the screws.

How to clean and maintain the scooter?

After use, clean and dry the scooter completely. Remove gravel from the wheels. Dry wet bearings with a clean cloth and grease the outside of the bearings with suitable grease to prevent rust.

What is the warranty period?

The warranty is 3 years from the date of purchase, valid for material and manufacturing defects.

Where can I find spare parts?

Spare parts are available at www.delta-sport.com, under Service - Lidl spare parts service.

USER MANUAL IAN 86106 Playtive

Black and white photo of a single scooter with wheels and handle (no text or symbols visible)

Exterior view of a modern scooter with wheels and a pull rod (no visible text or symbols)

ScOOTER

FR BE

TROTINETTE

Instructions for use

FR BE

Scope of delivery 14

Technical data 14

Intended use 14

Safety instructions 14

Fitting 15

Making the article ready for transport ..... 15

Use 15

Maintenance 15-16

Maintenance, storage 16

Notes for disposal 16

3 years warranty 16

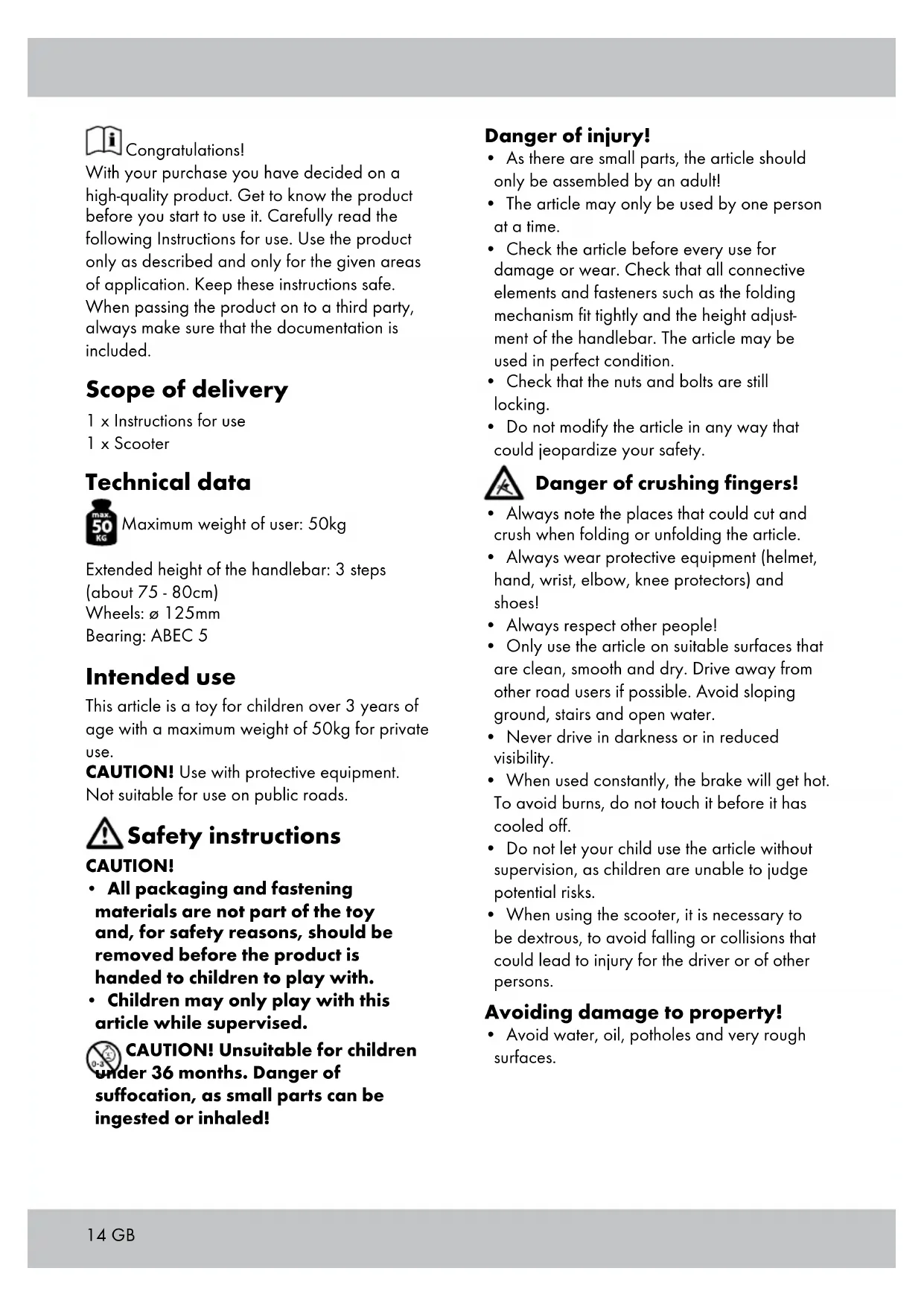

Félicitations !

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following Instructions for use. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Scope of delivery

1 x Instructions for use

1 x Scooter

Technical data

Maximum weight of user: 50kg

Extended height of the handlebar: 3 steps

(about 75 - 80cm)

Wheels: ∅ 125mm

Bearing: ABEC 5

Intended use

This article is a toy for children over 3 years of age with a maximum weight of 50kg for private use.

CAUTION! Use with protective equipment.

Not suitable for use on public roads.

Safety instructions

CAUTION!

• All packaging and fastening materials are not part of the toy and, for safety reasons, should be removed before the product is handed to children to play with.
  • Children may only play with this article while supervised.

CAUTION! Unsuitable for children der 36 months. Danger of focation, as small parts can be ested or inhaled!

Danger of injury!

• As there are small parts, the article should only be assembled by an adult!
• The article may only be used by one person at a time.
• Check the article before every use for damage or wear. Check that all connective elements and fasteners such as the folding mechanism fit tightly and the height adjustment of the handlebar. The article may be used in perfect condition.
• Check that the nuts and bolts are still locking.
• Do not modify the article in any way that could jeopardize your safety.

Danger of crushing fingers!

• Always note the places that could cut and crush when folding or unfolding the article.
• Always wear protective equipment (helmet, hand, wrist, elbow, knee protectors) and shoes!
• Always respect other people!
- Only use the article on suitable surfaces that are clean, smooth and dry. Drive away from other road users if possible. Avoid sloping ground, stairs and open water.
- Never drive in darkness or in reduced visibility.
- When used constantly, the brake will get hot. To avoid burns, do not touch it before it has cooled off.
- Do not let your child use the article without supervision, as children are unable to judge potential risks.
- When using the scooter, it is necessary to be dextrous, to avoid falling or collisions that could lead to injury for the driver or of other persons.

Avoiding damage to property!

- Avoid water, oil, potholes and very rough surfaces.

Fitting

For transport, the article is delivered folded up. To make the product ready for use, proceed as follows:

Unfolding (Fig. A)

1. Loosen the bottom quick fastener (1).
2. Pull the lever (2) upwards and push the handlebar (3) forward until it clicks in.
3. Secure the folding mechanism by locking the lower quick fastener.

Fitting the handles (Fig. B)

1. Loosen the handles (4) from the brackets (5).
2. Press the lock buttons (6) on the handles downwards and push the handles on the T-bar (7) of the handlebar. The lock buttons have to audibly lock into the drilled holes (8).

Adjusting the height of the handle bar (Fig. C)

The handle bar is adjustable to three different heights. The article may only be used when the lock button is clicked into one of the drilled holes provided and the handle bar is subsequently locked with the quick fastener!

1. Loosen the quick fastener (9) at the handle bar.
2. Pull the handle bar (10) upwards, until the lock button (11) clicks into one of the three drilled holes (12).
3. Secure the handle bar by locking the lower quick fastener.

Headset (Fig. D)

When the article is delivered, the headset is pre-adjusted. Should the handle bar be too loose or too stiff after a certain time, have the headset adjusted by a specialist dealer or a cycle shop.

Making the article ready for transport (Fig. E)

1. Loosen the quick fastener at the handlebar, press the lock button, push the handlebar in fully, lock the quick fastener.
2. Press the lock buttons of the handles, pull the handles out of the T-bar and fasten them on the brackets.
3. Loosen the quick fastener and pull the bar (2) upwards, push the handle bar direction deck, until it clicks in. Lock lower quick fastener.

Use

Driving, braking (Fig. F).

• Put one leg on the deck (13) and propel yourself forward by regularly pushing off with the other leg. The scooter can be steered by moving the handlebar, moving your weight and by a combination of both.
• For braking, step onto the brake plate (14).

Maintenance

Changing the wheels (Fig. G) Important!

Please observe the technical data. Wheels with a different diameter can change the handling characteristics and may lead to danger for the user. Never use wheels that cannot be fitted properly. Never fit larger wheels than the original wheels of the article.

The wheels wear. Wear is dependent on many factors, such as the ground, the height and width of the user, the weather conditions, the material of the wheels and their hardness. Therefore, it is necessary to change them from time to time.

• Loosen the axle bolts (15) using two Allen keys size 5.
  • Pull out the axle bolts and remove the roll.
• Insert a new roll (16) and fasten it, using the axle screws.

After the exchange:

Should the wheel rub on the side, do not use it! Ensure that all screws are still tight after a few minutes of driving and that nothing has loosened or come loose. Tighten the wheel again, to ensure, that it runs smoothly and that there are no bearing noises.

Swapping the ball bearings (Fig. H)

• Remove the roll as described.
• Press the bearing out by pressing onto the spacer (17) using an Allen key and remove the spacer.
• Press the other bearing (18) out by pressing with an Allen key.
• Press in a new bearing. Turn the wheel around, insert the distance pieces and press in a second new bearing.
• Fasten the wheels again.

Maintenance, storage

We recommend thorough cleaning and drying the article after use. Remove little stones or other objects that possibly have become stuck on your wheels. Dry wet or damp ball bearings with a clean cloth. Grease the bearings from the outside with a suitable bearing grease, to prevent rusting on the outside. Store the article in a dry place.

Notes for disposal

Dispose of the article and all its components using a certified disposal firm or your communal recycling facility. Please observe the current regulations. If in doubt, contact your communal recycling facility regarding environmentally friendly disposal.

Notes for disposal

Dispose of the article and all its components using a certified disposal firm or your communal recycling facility. Please observe the current regulations. If in doubt, contact your communal recycling facility regarding environmentally friendly disposal.

3 years warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 86106

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

You can also find spare parts for your product at: www.delta-sport.com, category Service - Lidl Spare Parts Service

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • D-22397 Hamburg

Version: 04/2013
