Sonic 2 TSA8087 - Toothbrush Teesa - Free user manual and instructions

Brand	Teesa
Model	Sonic 2 TSA8087
Category	Sonic electric toothbrush
Operating modes	5 modes: Clean, Sensitive (Delicate), Massage, White (Whitening), Polish (Polishing)
Movements per minute	38,400 oscillating-rotating movements
Protection rating	IPX7 (waterproof handle)
Automatic shut-off	After 2 minutes, reminder every 30 seconds
Battery	Lithium-ion 1200 mAh
Battery life	Up to 6 weeks (180 minutes of continuous operation)
Power supply	5 V / 1 A via USB cable
Bristle type	Medium
Noise level	≤ 60 dB
Charge indicator	Red blinking while charging, green when fully charged
Package contents	2 brush heads, travel case, USB cable
Maintenance	Rinse the head and handle under running water after each use; dry thoroughly
Head replacement	Every 3 months or if bristles are deformed
Spare parts	Replacement heads available at teesa.pl or rebellelectro.com
Repairability	Not user-repairable; contact an authorized service center
Safety	Do not use in the bathtub or shower; handle is waterproof but do not immerse

Frequently Asked Questions - Sonic 2 TSA8087 Teesa

How to charge the Sonic 2 TSA8087 toothbrush?

Connect the handle to a compatible charger using the supplied USB cable, then plug in the charger. The indicator blinks red while charging and turns green when the battery is full.

What is the battery life of the toothbrush?

A full charge provides up to 6 weeks of use (approximately 180 minutes of continuous operation).

What brushing modes are available?

The brush offers 5 modes: Clean, Sensitive (Delicate), Massage, White (Whitening), Polish (Polishing). Press the power button to cycle through them.

How to turn the brush on and off?

Press the power button to turn on the brush. Press again to cycle through modes; after 5 seconds, the brush stays in the selected mode. To turn off, continue pressing until it stops.

What is the recommended brushing technique?

Place the head at a 45° angle against the teeth and gums. Move the brush slowly without pressing hard; let the vibrations do the work. Brush each quadrant for 30 seconds (the brush pauses at each interval).

When should the brush head be replaced?

It is recommended to replace the head every 3 months or sooner if bristles are deformed. Use medium replacement heads available at teesa.pl or rebellelectro.com.

How to clean the toothbrush?

After each use, rinse the head and handle under running water. Dry all components thoroughly. Let the bristles air dry without pulling on them.

Is the toothbrush waterproof?

Yes, the handle is IPX7, meaning it can be used in the bathroom and withstands splashes. However, do not immerse it in water and do not use it in the shower or bathtub.

What to do if the brush does not turn on?

Check if the battery is charged. Plug it into the charger for at least 30 minutes; the red light should come on. If the problem persists, contact an authorized service center.

How to know when the battery is low?

The charge indicator blinks red when the battery level is low. Recharge the brush as soon as possible.

USER MANUAL Sonic 2 TSA8087 Teesa

CS DE EN FR GR
Hlava kartáčku Bürstenkopf Brush	head Tête de la brosse Kεφαλή Βούρτσας
Držák	Zahnbürsten-Griff Toothbrush	handle Poignée Λαβή οδοντόβουρτσας
Tlačitko napájení (zapnout / vypnout / volba režimu)	Netzschalter (Ein / Aus / Modus-Auswahl)	Power button (on/off/mode selection)	Touche d'alimentation (marche/arrêt/sélection du mode)	Κουμπί ενεργοποίησης - απενεργοποίησης (on/off/επιλογή λειτουργίας)
Indikátor režimu Čištění (Clean)	Anzeige Reinigungs-Arbeitsmodus	Clean working mode indicator	Indicateur de mode de travail propre	'Ενδειξη λειτουργίας καθαρισμού
Indikátor režimu Delikátní (Soft)	Anzeige Sensibel-Arbeitsmodus	Sensitive working mode indicator	Indicateur de mode de travail sensible	'Ενδειξη ευαισθητης λειτουργίας
Indikátor režimu Masáž (Massage)	Anzeige Massage-Arbeitsmodus	Massage working mode indicator	Indicateur du mode de fonctionnement du massage	'Ενδειξη λειτουργίας μασάζ
Indikátor režimu Bělení (White)	Anzeige Weiß-Arbeitsmodus	White working mode indicator	Indicateur de mode de fonctionnement blanc	'Ενδειξη λειτουργίας λεύκανσης
Indikátor režimu Leštění (Polish)	Anzeige Polier-Arbeitsmodus	Polish working mode indicator	Indicateur de mode de travail polonais	'Ενδειξη λειτουργίας στίλβωσης
Indikátor nabíjení Ladeanzeige	Charging indicator Indicateur de chargement Δείκτης φόρτισης
Nabíjecí port USB-C USB-C Ladebuchse USB-C charging socket Prise de chargement USB-C Υποδοχή φόρτισης USB-C

HU	NL	PL RO SK
Fogkefefej	Borstelkop	Główka szczoteczki	Cap de periaj	Čistiaca hlavica
Tartó	Handvat	Uchwyt	Maner periuta de dinti	Rukovat'
Kapcsológomb (be/ki/üzemmód választás)	Aan / uit-knop (aan / uit / modusselectie)	Przycisk zasilania (wł./wył./wybór trybu)	Butonul pornire (pornit/oprit/mod)	Hlavný vypínač (zap./vyp./výber režimu čistenia)
Tisztítás mód (Clean) jelzése	Indicator voor schone werkmodus	Wskaźnik trybu Czyszczenie (Clean)	Indicator lucru mod curatare	Indikátor režimu Čistenie (Clean)
Lágy mód (Soft) jelzése	Gevoelige werkmodusindicator	Wskaźnik trybu Delikatny (Sensitive)	Indicator lucru mod sensibil	Indikátor režimu Jemný (Sensitive)
Masszázs mód (Massage) jelzése	Indicator voor massagewerkmodus	Wskaźnik trybu Massage (Masaż)	Indicator lucru mod masaj	Indikátor režimu Masaż (Masaż)
Fehérítés mód (White) jelzése	Witte werkmodusindicator	Wskaźnik trybu Wybielanie (White)	Indicator lucru mod albire	Indikátor režimu Bielenie (White)
Polírozás mód (Polish) jelzése	Poolse werkmodusindicator	Wskaźnik trybu Polerowanie (Polish)	Indicator lucru mod lustruire	Indikátor režimu Leštenie (Polish)
Töltésjelző	Oplaadindicator	Wskaźnik ładowania	Indicator incarcare	Kontrolka nabíjania
USB-C töltöaljzat	USB-C-oplaadaansluiting	Gniazdo ładowania USB-C	Mufă încărcare USB-C	Nabijacia zásuvka USB-C

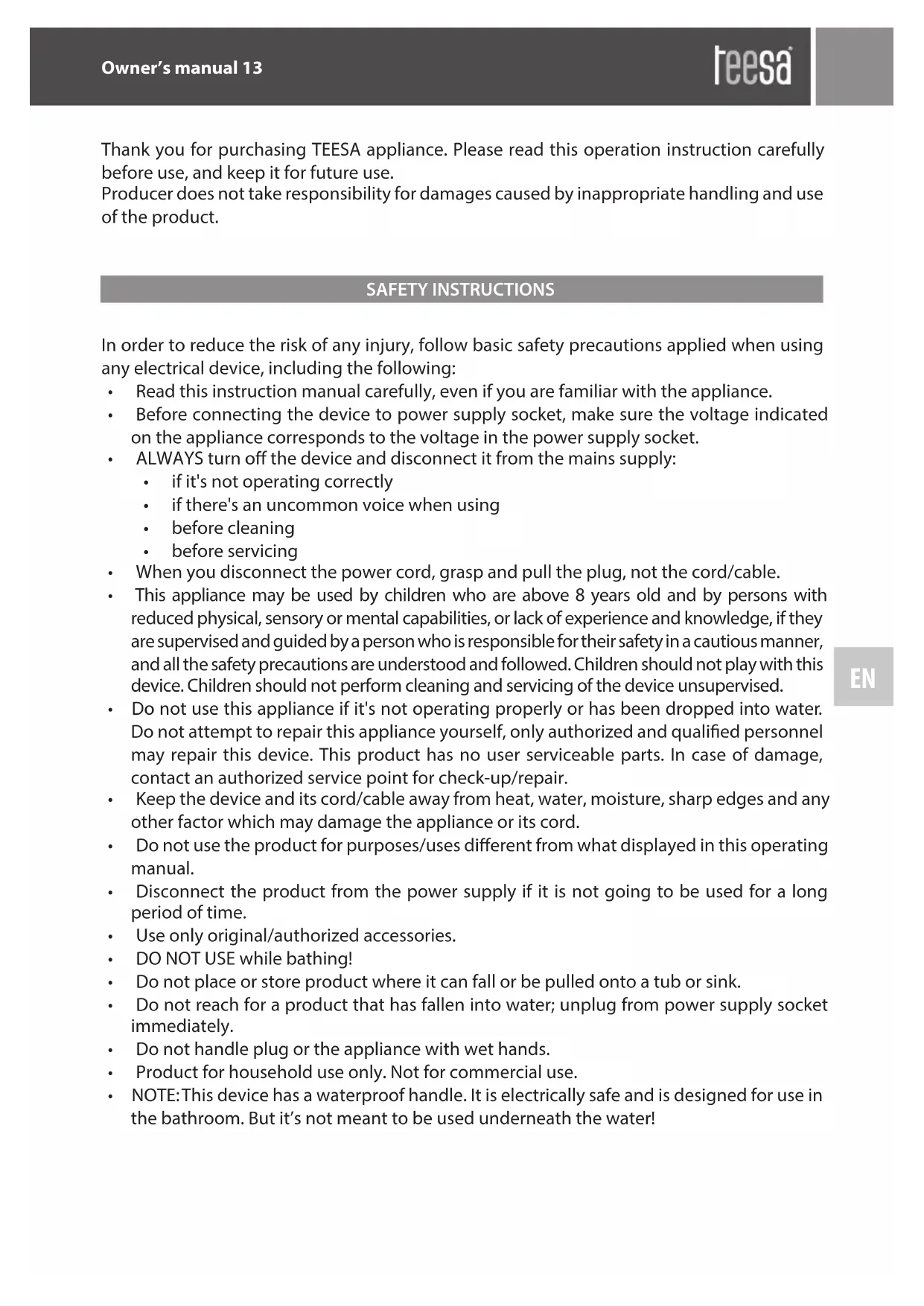

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future use.

Producer does not take responsibility for damages caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS

In order to reduce the risk of any injury, follow basic safety precautions applied when using any electrical device, including the following:

• Read this instruction manual carefully, even if you are familiar with the appliance.
• Before connecting the device to power supply socket, make sure the voltage indicated on the appliance corresponds to the voltage in the power supply socket.
  • ALWAYS turn off the device and disconnect it from the mains supply:

• if it's not operating correctly
• if there's an uncommon voice when using
- before cleaning
• before servicing

- When you disconnect the power cord, grasp and pull the plug, not the cord/cable. - This appliance may be used by children who are above 8 years old and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a cautious manner, and all the safety precautions are understood and followed. Children should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.

- Do not use this appliance if it's not operating properly or has been dropped into water. Do not attempt to repair this appliance yourself, only authorized and qualified personnel may repair this device. This product has no user serviceable parts. In case of damage, contact an authorized service point for check-up/repair.

- Keep the device and its cord/cable away from heat, water, moisture, sharp edges and any other factor which may damage the appliance or its cord.

- Do not use the product for purposes/uses different from what displayed in this operating manual.

- Disconnect the product from the power supply if it is not going to be used for a long period of time.

• Use only original/authorized accessories.

• DO NOT USE while bathing!

- Do not place or store product where it can fall or be pulled onto a tub or sink.

- Do not reach for a product that has fallen into water; unplug from power supply socket immediately.

• Do not handle plug or the appliance with wet hands.

• Product for household use only. Not for commercial use.

NOTE: This device has a waterproof handle. It is electrically safe and is designed for use in the bathroom. But it's not meant to be used underneath the water!

CHARGING

1. Make sure the battery is fully charged before first use.
2. Plug the charging unit into a power supply socket and put the toothbrush handle onto the charging unit.
3. The charging indicator will blink in red, meaning it is charging.
4. Once fully charged, the charging indicator turns green.

Notes:

• When battery level is low, the charging indicator blinks in red.
• If the device is not charged for a long time, the indicator light may not immediately light up during charging which is a normal situation. Generally, it needs to be pre-charged for 30 minutes before the indicator light can work properly.

OPERATION

1. Once the battery is fully charged, attach a brush head to the handle and apply toothbrush.

Note: there will be about 0.5 mm space between the brush head and the handle.

1. To avoid splashing, guide the brush-head to your teeth before switching the appliance on.
2. Place the bristles against the teeth at a slight angle towards the gum line.
3. Press the power button to turn it on. If you keep pressing the power button, the device will enter next mode (the sequence is: power on in clean mode, sensitive mode, massage mode, white mode, polish mode, power off).

Please note: this toothbrush has a memory function; it powers on in the last selected source. However, when powered on for the first time, by default it boots in clean mode. Later on, the device boots in mode it has been used lately.

TIMER

1. This device has been equipped with auto switch off function. This features helps the user to maintain proper oral health care habits. Once the 2 minutes are up, the toothbrush turns off automatically.
2. The toothbrush stops shortly every 30 seconds to remind user the passing time.

Tip: Use this feature to measure equal time for each tooth quadrant. This way you'll spend 30 seconds on each part.v

1. This device offers different brushing modes for varying oral care needs:

MODE

• Clean – removes tartar and bacteria on teeth, high frequency
• Sensitive – for sensitive teeth and gums, gentle frequency
• Massage – massages gums and teeth, gentle frequency
• White – whitens teeth, clean and polish modes switching alternately
• Polish – polishes and brightens teeth, high strength and frequency

To turn the toothbrush on, press the power button once. If you keep pressing the power button, the device will enter next mode. The sequence is:

• power on in clean mode
- sensitive mode
- massage mode
- white mode
- polish mode
- power off

Note:

• you will only be able to change mode within 5 seconds from the last time you pressed the button. Once the 5 seconds are up, the device stays in the chosen mode.
• the device enters Clean mode automatically when powered on for the first time. Later on, the device boots in mode it has been used lately.
  • according to selected work mode, one of the mode indicator will stay lit.

EN

BRUSHING TECHNIQUE

1. Guide the brush head slowly from tooth to tooth.
2. Hold the brush head in place for a few seconds before moving on to the next tooth.
3. Brush the gums as well as the teeth. Start with the outside of the teeth, then the insides, ending with the chewing surfaces.
4. Do not scrub or press hard, simply let the brush do all the work.

CLEANING

1. After brushing, rinse the brush head thoroughly under running water.
2. Remove the brush head from the handle and clean both parts separately under running water. Then wipe them dry completely.
3. Let the bristles air dry naturally (do not pull the bristles, which is easy to deform and fall off).

Brush head replacement

It is recommended to replace the brush head every three months and replace it when the bristles are bent or deformed.

Replacement brush heads (medium) are available for purchase online at www.teesa.pl or www.rebelelectro.com.

SPECIFICATION

• 5 work modes: Clean / Sensitive / Massage / White / Polish
• 38 400 strokes/min. (each mode)
• IP rating: IPX7
• 2 min. auto-off, 30 sec. timer (in each mode)
• Medium bristles
• Noise level:=<60 dB
- Charging indicator
• Usage on one charge: up to 40 days or 160 min. of continuous use
• Battery: 1200 mAh
• Power supply: 5 V / 1 A
• In set: 2x brush head, travel case, charging cable

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

1. L'appareil dispose de trois modes de travail :

2. Clean – removes tartar and bacteria on teeth, high frequency

3. Sensitive – for sensitive teeth and gums, gentle frequency
4. Massage – massages gums and teeth, gentle frequency
5. White – whitens teeth, clean and polish modes switching alternately
   • Polish – polishes and brightens teeth, high strength and frequency
