Brand	Duravit
Model	DCode 700095000000090
Product type	Built-in bathtub (alcove, corner, back-to-wall)
Material	Acrylic with plywood base
Dimensions (L x l x H)	1700 x 700 x 460 mm
Weight	Approximately 30 kg
Power supply	None (non-electric bathtub)
Main functions	Standard bath bathtub with drain and overflow (not included)
Included accessories	Support frame, adjustable feet, screws and washers
Optional accessories	Tile mounting flange (790112), wall supports (791224, 791212, etc.)
Installation	Professional installation required, compliant with local codes
Maintenance and cleaning	Clean with a soft cloth and non-abrasive cleaner; use alkoxy-based silicone for joints
Safety	Check that there are no electrical cables in the partitions before drilling
Spare parts and repairability	Parts available via Duravit; professional repair recommended
Warranty	Consult Duravit terms and conditions
Standards	UPC, National Plumbing Code of Canada, CSA B45.5-17/IAPMO Z124-2017

Frequently Asked Questions - DCode 700095000000090 Duravit

What type of bathtub is the Duravit DCode 700095?

It is a built-in bathtub designed for installation in an alcove, corner or back-to-wall, made of acrylic with a plywood base.

What are the dimensions of this bathtub?

Typical dimensions are: Length 1700 mm, Width 700 mm, Height 460 mm. Check the technical sheet on pro.duravit.us for exact dimensions.

Are the drain and overflow included?

No, the drain and overflow are not included and must be purchased separately. The connection is illustrated in the instructions.

Can I install the bathtub myself?

Installation must be done by a professional plumber in accordance with local codes. Knowledge of plumbing and construction is required.

How do I level the bathtub?

Use the supplied adjustable feet. Place the bathtub on its feet, check the level with a spirit level, adjust the feet and tighten the locknut.

What type of silicone to use for the joints?

Use alkoxy-based silicone. Acetic acid-based silicone can damage the acrylic. Apply the silicone after installation and let it dry for 24 hours before filling.

How to maintain the acrylic bathtub?

Clean with a soft cloth and a non-abrasive cleaner. Avoid rough sponges and harsh chemicals.

What safety precautions should I take?

Before drilling into partitions, make sure there are no electrical wires or heating behind them. Wear protective equipment.

Where can I find spare parts?

Spare parts are available through Duravit or authorized dealers. Optional accessories such as the tile mounting flange (790112) are listed in the instructions.

Is the bathtub compliant with standards?

Yes, it complies with the Uniform Plumbing Code (UPC), the National Plumbing Code of Canada and the CSA B45.5-17/IAPMO Z124-2017 standard.

USER MANUAL DCode 700095000000090 Duravit

Installation instructions

Tiled bathtub (alcove, corner, back-to-wall)

Notice de montage

About these instructions

The installation instructions come as part of the Duravit product and must be read carefully prior to installation.

Target readership and qualifications

This is a professional grade product. A working knowledge of construction techniques and code compliant plumbing installation are required for proper installation and user satisfaction. We recommend the product be installed by a licensed plumber.

Explanation of the key words and symbols

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

NOTICE

Is used to address practices not related to physical injury.

Inspection (e.g. for scratches)

Inspect for leaks and that all connections have a watertight seal

Indication of the length of time (e.g. 10 minutes)

Action required

Safety instructions

Product and / or property damage

The breach of local and country-specific regulations and standards can cause damage to the product and / or property damage.

Observe the local installation regulations and any country-specific standards at all times.

Prior to the installation

Please read the specifications sheets prior to the installation. Specification sheets are available for download at pro.duravit.us.

Products are in compliance with the following codes:

• Uniform Plumbing Code (UPC ^® )
• National Plumbing Code of Canada

Products are in compliance with the following standards:

• CSA B45.5-17/IAPMO Z124-2017

Collection of black-and-white icons representing different tools or components (no text or symbols)

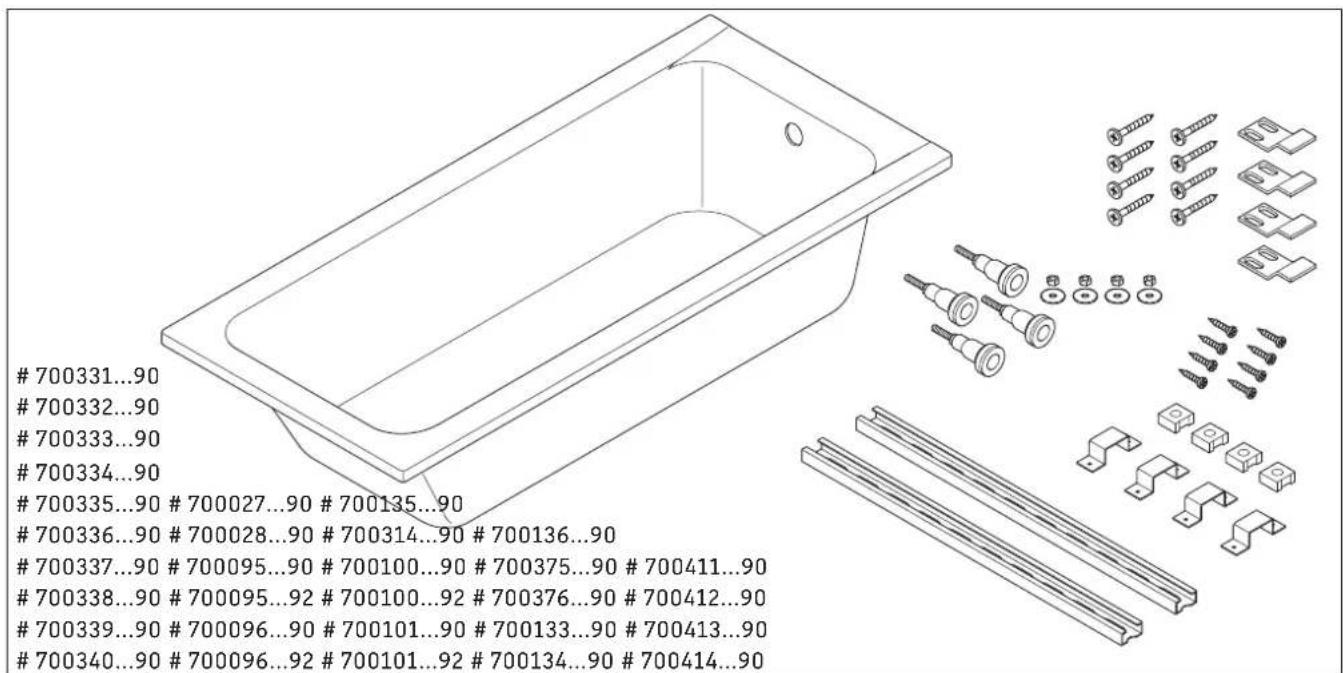

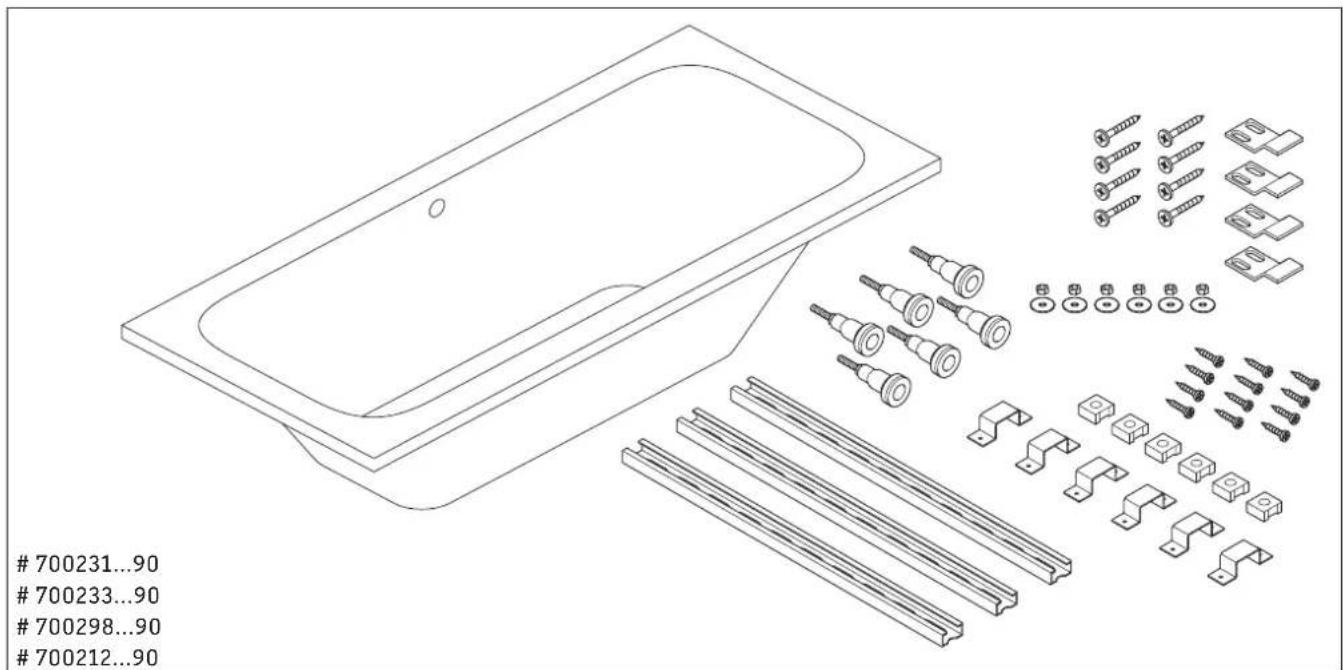

Delivery contents

Optional accessories (not included)

790112 (Tile Flange)

791224

791212

790252

790220

# 790219

791264

Technical line drawing of a vertical pipe fitting with attached components (no text or symbols)

791255

790250

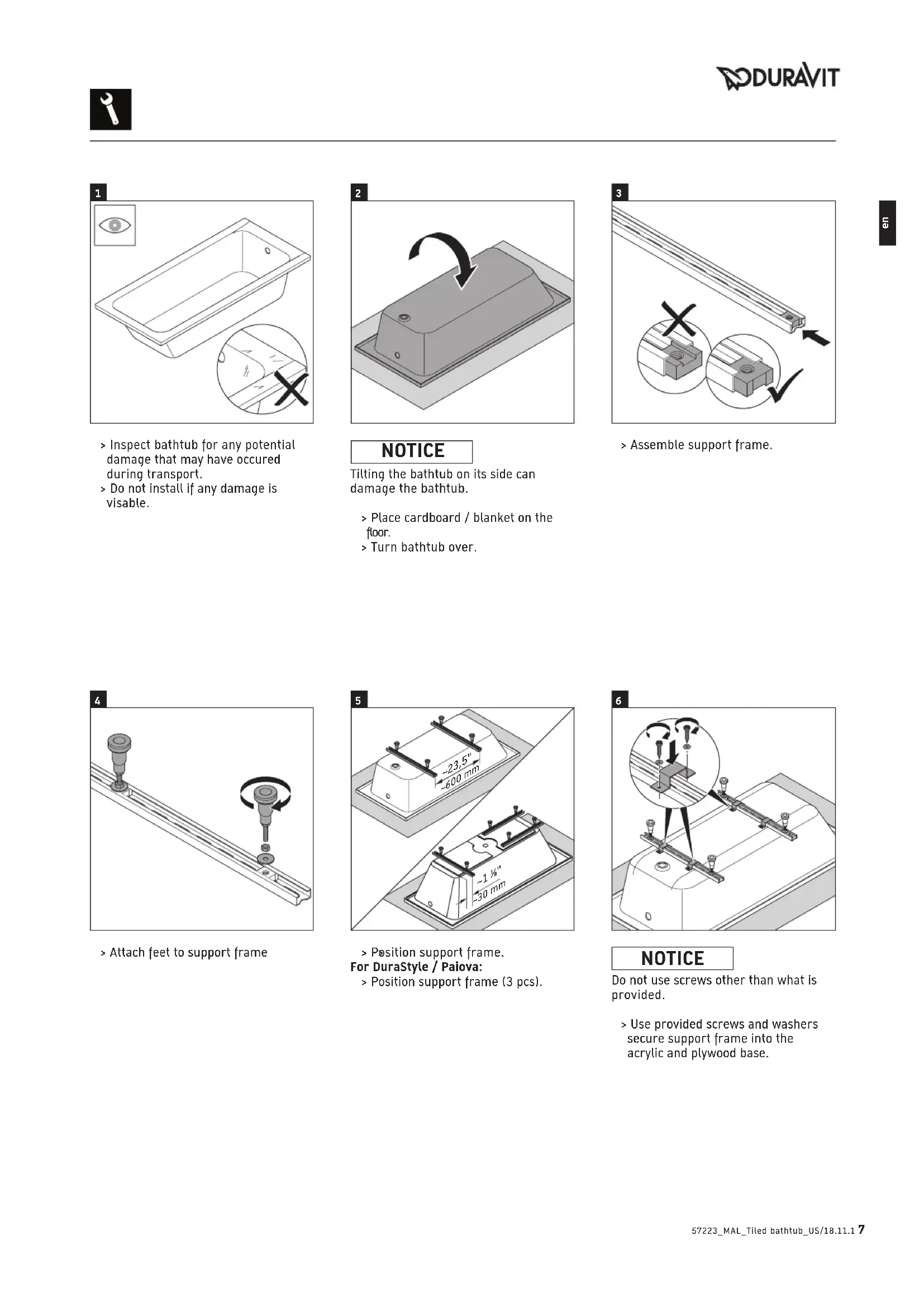

1

Line drawing of a rectangular basin with an eye icon and a magnified inset showing a cross symbol (no text or labels)

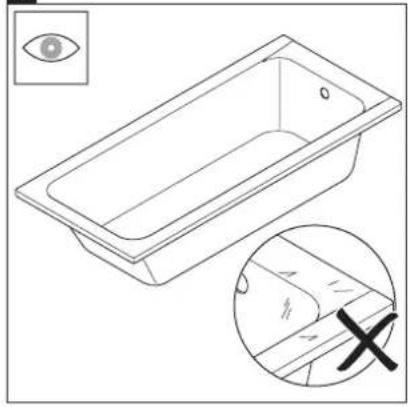

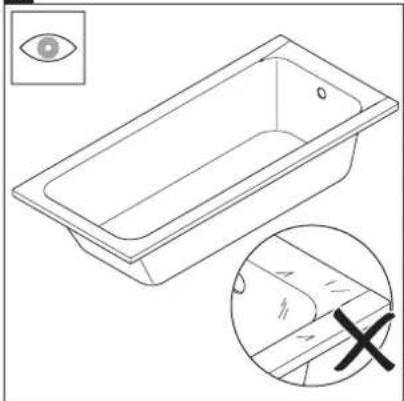

Inspect bathtub for any potential damage that may have occurred during transport.
Do not install if any damage is visible.

2

3D diagram of a mechanical component with a curved arrow indicating rotation (no text or symbols)

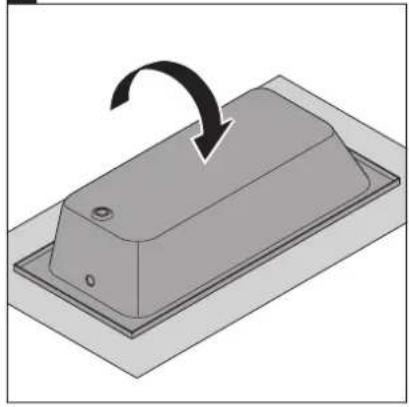

NOTICE

Tilting the bathtub on its side can damage the bathtub.

Place cardboard / blanket on the floor.
Turn bathtub over.

3

Technical illustration of a mechanical bracket with cross-sectional views showing internal components (no text or symbols)

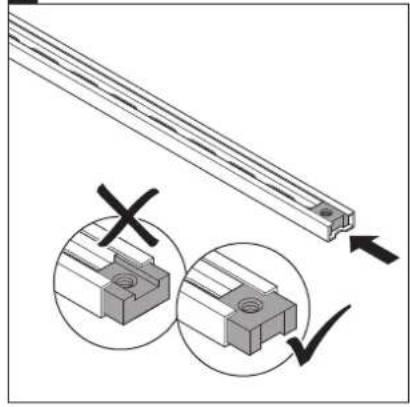

Assemble support frame.

4

Mechanical assembly diagram showing two components mounted on a rail with a rotating tool (no text or symbols)

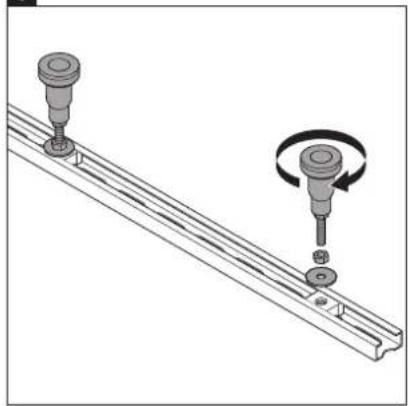

Attach feet to support frame

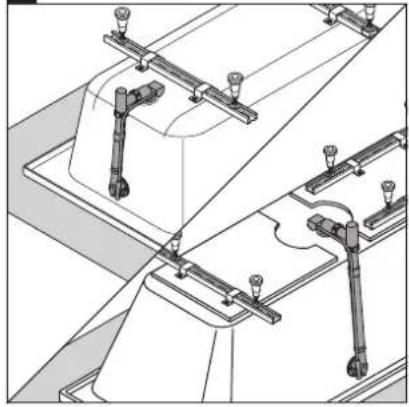

5

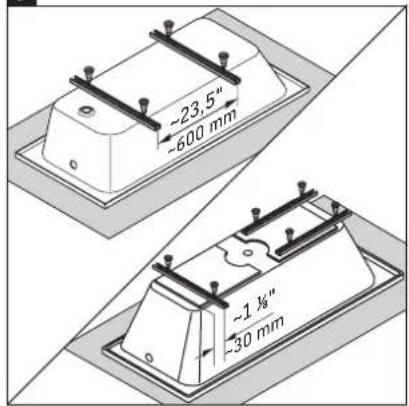

Position support frame.
For DuraStyle / Paiova:
Position support frame (3 pcs).

6

Technical diagram of a mechanical assembly with mounting brackets and a magnified inset showing internal components (no text or symbols)

NOTICE

Do not use screws other than what is provided.

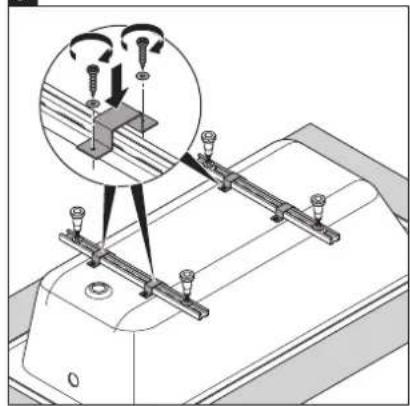

Use provided screws and washers secure support frame into the acrylic and plywood base.

7

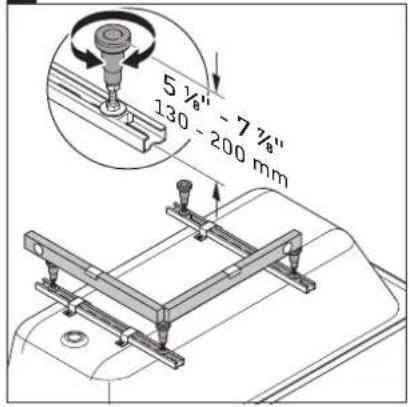

Level feet before setting the bathtub.

8

Technical line drawing of mechanical assembly with no visible text or symbols

Connect waste and overflow (not included).

9

Technical line drawing of a bathtub with an inset showing a mechanical component (no text or symbols)

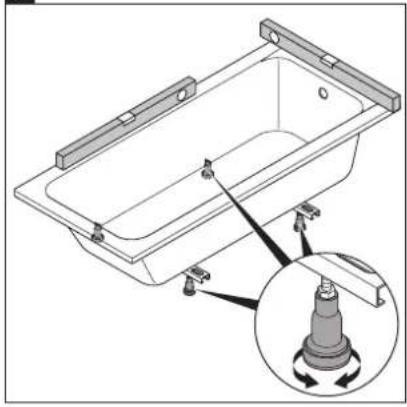

Place the bathtub on its feet.

Make sure the bathtub is level.

Adjust feet if necessary.

10

Technical line drawing of a mechanical clamp or bracket assembly with a cylindrical base and curved handle (no text or symbols)

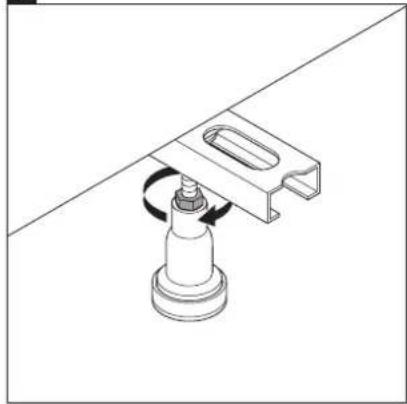

Tighten the lock nut to secure feet.

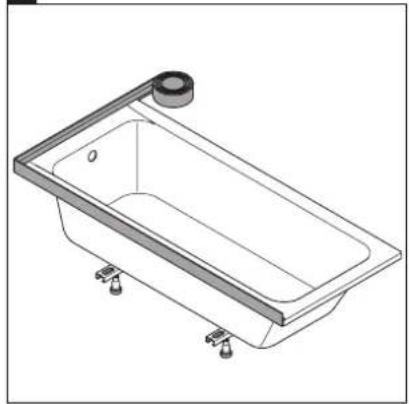

11

Isometric line drawing of a rectangular basin with mounting feet and a side-mounted outlet (no text or symbols)

Attach tile flange (not included).

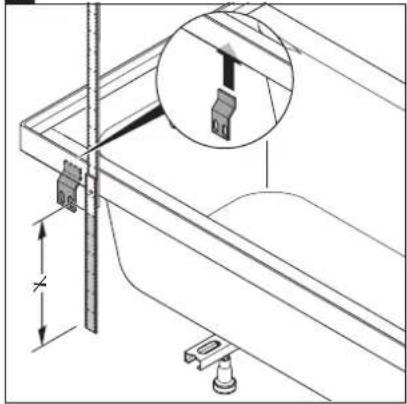

12

Technical line drawing of a mechanical assembly with dimension annotations (no readable text or symbols)

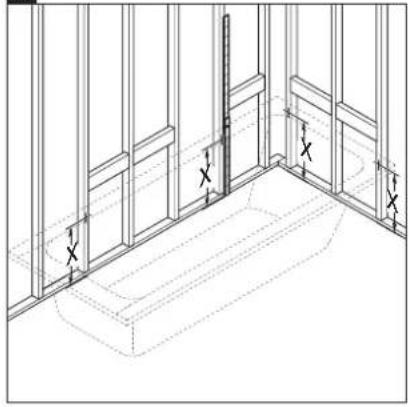

Measure height for brackets.

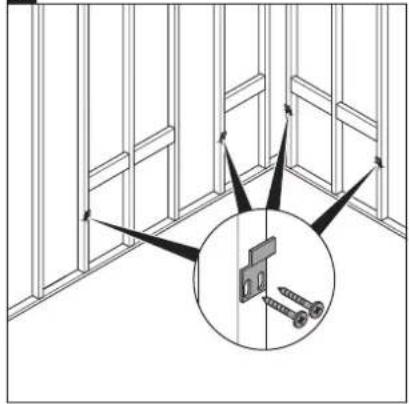

13

Isometric line drawing of a room corner with vertical supports and horizontal beams (no text or symbols)

Mark the holes for the brackets on the wall frame.

14

Interior view of a room with window panels and a close-up of a door panel, no text or symbols present.

WARNING

Fatal injury by electric shock! Contact with electrical wiring can lead to electrical shock.

Make sure that there are no electrical wires or heating running under wall or floor which could be affected by the installation.

Affix 4 brackets to the wall frame for side support of the bathtub.

15

Isometric view of a room with a broom and ceiling-mounted door, no text or symbols present

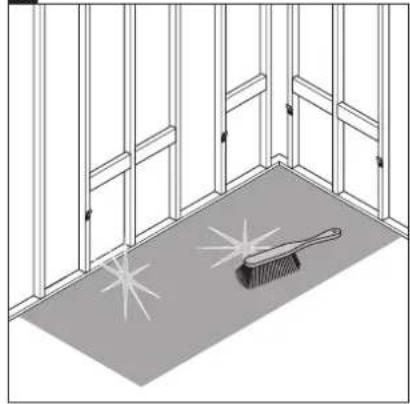

Clean area under bathtub.

16

Diagram of a bathtub with an arrow indicating compression or force, showing internal structure and a magnified inset (no text or symbols)

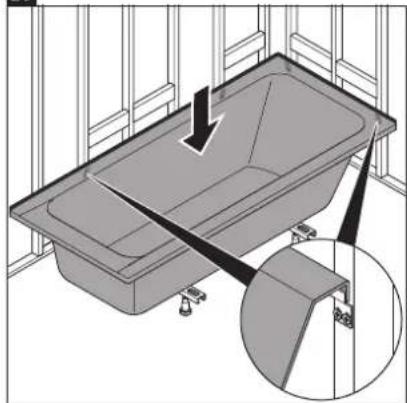

Set bathtub into designated frame area.

Secure bathtub by setting it onto the wall brackets.

17

Technical line drawing of a bathtub with adjustable legs and feet, no text or symbols present

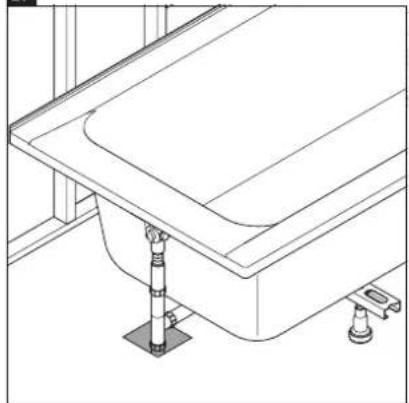

Connect waste and overflow to the drain system.

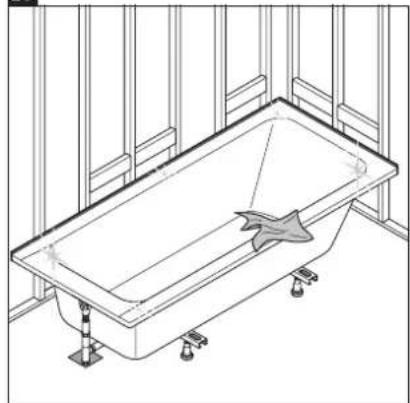

18

Line drawing of a bathtub with a star-shaped object on the side (no text or symbols)

Clean the bathtub.

19

Line drawing of a bathtub with a piping bag and a warning symbol (no text or labels)

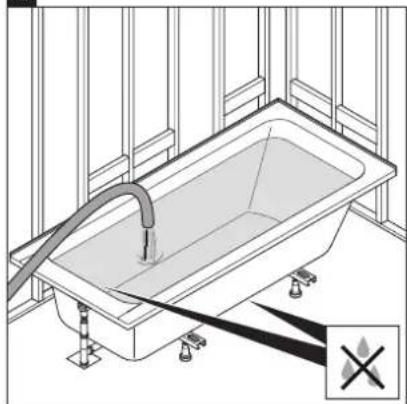

Fill the bathtub with water.
Inspect for potential leaks.

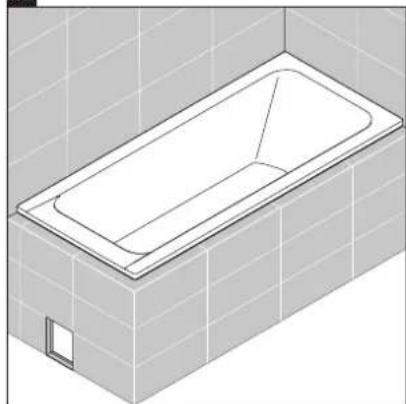

20

Isometric line drawing of a rectangular bathtub mounted on a tiled wall (no text or symbols)

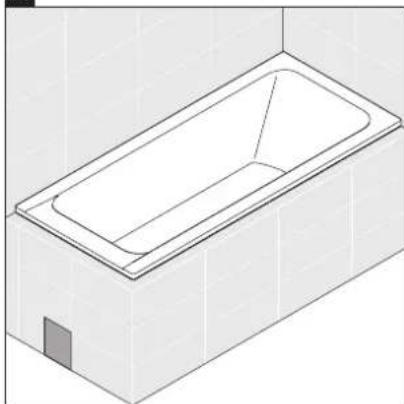

Finish wall and tiles.
Provide access panel 7% x 7% in (200 x 200 mm) in the area of the drain and overflow.

21

Isometric line drawing of a rectangular bathtub on a tiled wall (no text or symbols)

Close access panel.
Seal to avoid spray water.
Open only with a tool.

22

Isometric line drawing of a bathtub with a pipe inserted, no text or symbols present

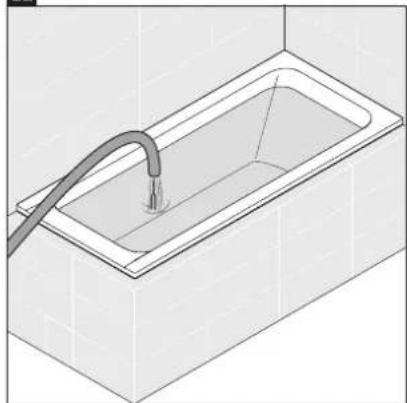

Fill the bathtub with water.

23

Isometric illustration of a bathtub with a tool and directional arrow indicating action (no text or symbols)

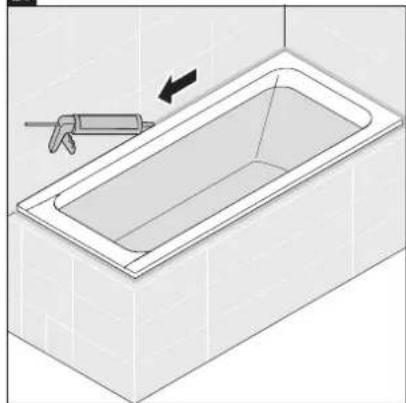

NOTICE

Silicone with acetic acid can damage the bathtub.

Use alkoxy based silicone.
Apply silicone as needed.

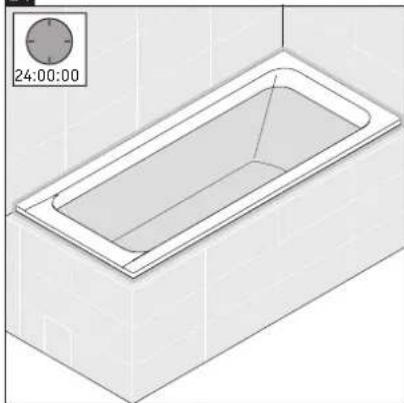

24

Isometric line drawing of a bathtub with a wall-mounted fixture, no text or symbols present

Let it sit for 24 h before draining.

Technical line drawing of a vertical pipe fitting with attached components (no text or symbols)

# 791255

790250

1

Line drawing of a bathtub with an eye icon and a magnified inset showing a cross symbol (no text or labels)

3D diagram of a mechanical component with a curved arrow indicating rotation (no text or symbols)

ATTENTION

Technical illustration of a mechanical bracket with cross-sectional views showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two circular components and a base mount (no text or symbols)

Technical diagram of a mechanical assembly with mounting brackets and a magnified inset showing a bracket detail (no text or symbols)

ATTENTION

Technical line drawing of mechanical assembly with mounting brackets and mounting holes (no text or symbols)

Mechanical assembly diagram showing a pin inserted into a bracket with a base mount (no text or symbols)

Isometric line drawing of a rectangular basin with mounting feet and a side-mounted fixture (no text or symbols)

Architectural floor plan showing wall-mounted fixtures and a central vertical structure (no text or symbols)

Isometric view of a room with walls, doors, and a broom on a floor (no text or symbols)

Interior view of a bathtub with an inset close-up showing the base and seat (no text or symbols)

Line drawing of a bathtub with adjustable legs and feet, no text or symbols present

Line drawing of a bathtub with legs and feet, placed in a room with vertical supports (no text or symbols)

Line drawing of a bathtub with a pipe and showerhead, no text or symbols present

Isometric line drawing of a rectangular bathtub on a tiled wall (no text or symbols)

Isometric line drawing of a rectangular bathtub on a tiled wall (no text or symbols)

Isometric illustration of a rectangular basin with a pipe inserted, showing water flow (no text or symbols)

Isometric illustration of a bathtub with a spray gun and directional arrow indicating action (no text or symbols)

ATTENTION

Isometric line drawing of a bathtub with a clock showing 24:00:00 (no text or symbols on the diagram itself)

Collection of black-and-white icons representing different tools or components (no text or symbols)

Technical line drawing of a vertical pipe fitting with attached components (no text or symbols)

791255

790250

1

Line drawing of a rectangular basin with an eye icon and a magnified inset showing a cross symbol (no text or labels)

3D diagram of a mechanical component with a curved arrow indicating rotation (no text or symbols)

AVISO

Technical illustration of a mechanical bracket with cross-sectional views showing alignment and adjustment (no text or symbols)

Mechanical assembly diagram showing two components mounted on a rail with a rotating knob (no text or symbols)

Technical diagram of a mechanical assembly with mounting brackets and a magnified inset showing internal components (no text or symbols)

AVISO

Technical line drawing of mechanical assembly with mounting brackets and mounting holes (no text or symbols)

Mechanical assembly diagram showing a rotating component mounted on a base plate (no text or symbols)

Isometric line drawing of a rectangular basin with a wall-mounted fixture and base feet (no text or symbols)

Isometric line drawing of a room corner with vertical supports and horizontal beams (no text or symbols)

Interior view of a room with window panels and a close-up of a door panel, no text or symbols present.

ADVERTENCIA

Isometric view of a room with a broom and ceiling-mounted door, no text or symbols present

Diagram of a bathtub with an arrow indicating compression or force, showing internal structure and a magnified inset (no text or symbols)

Technical line drawing of a bathtub with adjustable legs and feet, no text or symbols present

Line drawing of a bathtub with a star-shaped object on the side (no text or symbols)

Line drawing of a bathtub with a drain and pipe, no text or symbols present

Isometric line drawing of a rectangular bathtub on a tiled wall (no text or symbols)

Isometric line drawing of a rectangular bathtub on a tiled wall (no text or symbols)

Isometric line drawing of a bathtub with a pipe inserted, no text or symbols present

Isometric illustration of a bathtub with a spray gun and an arrow indicating direction (no text or symbols)

AVISO

Isometric line drawing of a bathtub with a wall-mounted fixture, shown in 3D perspective (no text or symbols)
