USER MANUAL Architec 700442000000090 Duravit

Installation instructions

Bathtub with integrated tile flange

Notice de montage

About these instructions

The installation instructions come as part of the Duravit product and must be read carefully prior to installation.

Target readership and qualifications

This is a professional grade product. A working knowledge of construction techniques and code compliant plumbing installation are required for proper installation and user satisfaction. We recommend the product be installed by a licensed plumber.

Explanation of the key words and symbols

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

NOTICE

Is used to address practices not related to physical injury.

Inspection (e.g. for scratches)

Inspect for leaks and that all connections have a watertight seal

Indication of the length of time (e.g. 10 minutes)

Action required

Safety instructions

Product and / or property damage

The breach of local and country-specific regulations and standards can cause damage to the product and / or property damage.

Observe the local installation regulations and any country-specific standards at all times.

Prior to the installation

Please read the specification sheets prior to the installation. Specification sheets are available for download at pro.duravit.us.

UPC C®

Products are in compliance with the following codes:

• Uniform Plumbing Code (UPC ^® )
• National Plumbing Code of Canada

C IAPMO TM C

Products are in compliance with the following standards:

• CSA B45.5-17/IAPMO Z124-2017

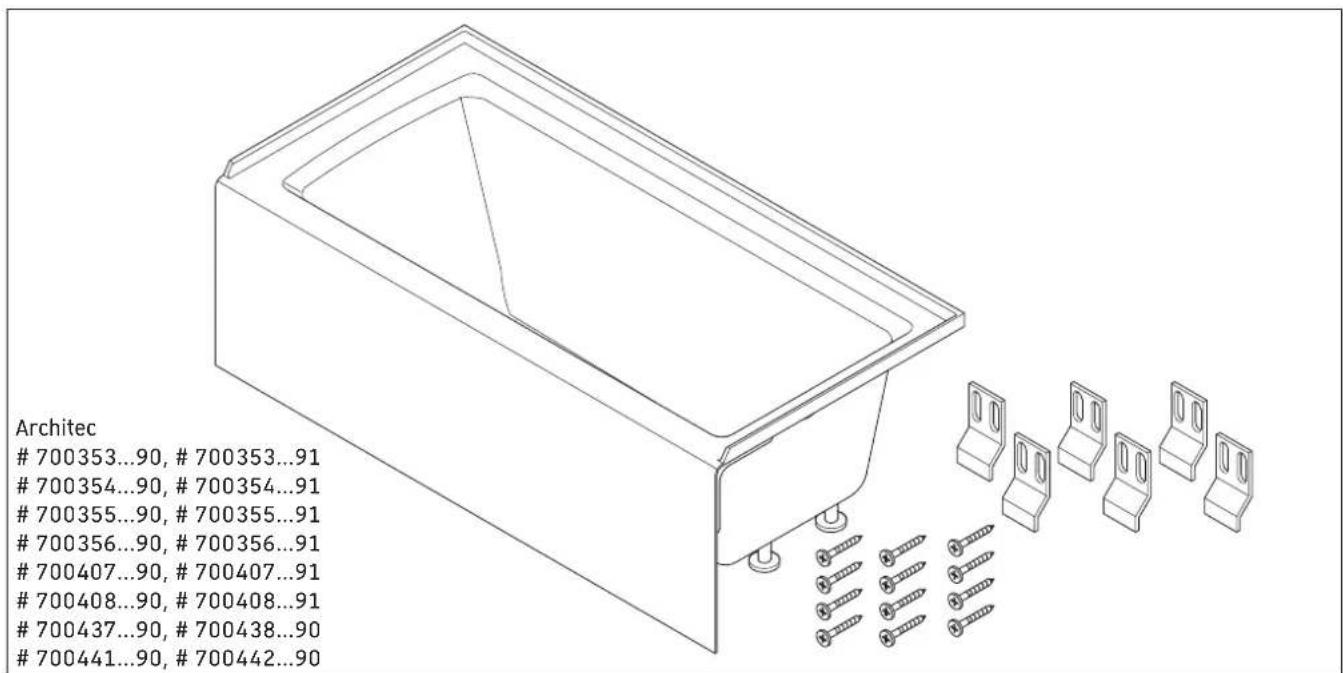

Delivery contents

Architec

700353...90, # 700353...91

700354...90, # 700354...91

700355...90, # 700355...91

700356...90, # 700356...91

700407...90, # 700407...91

700408...90, # 700408...91

700437...90, # 700438...90

700441...90, # 700442...90

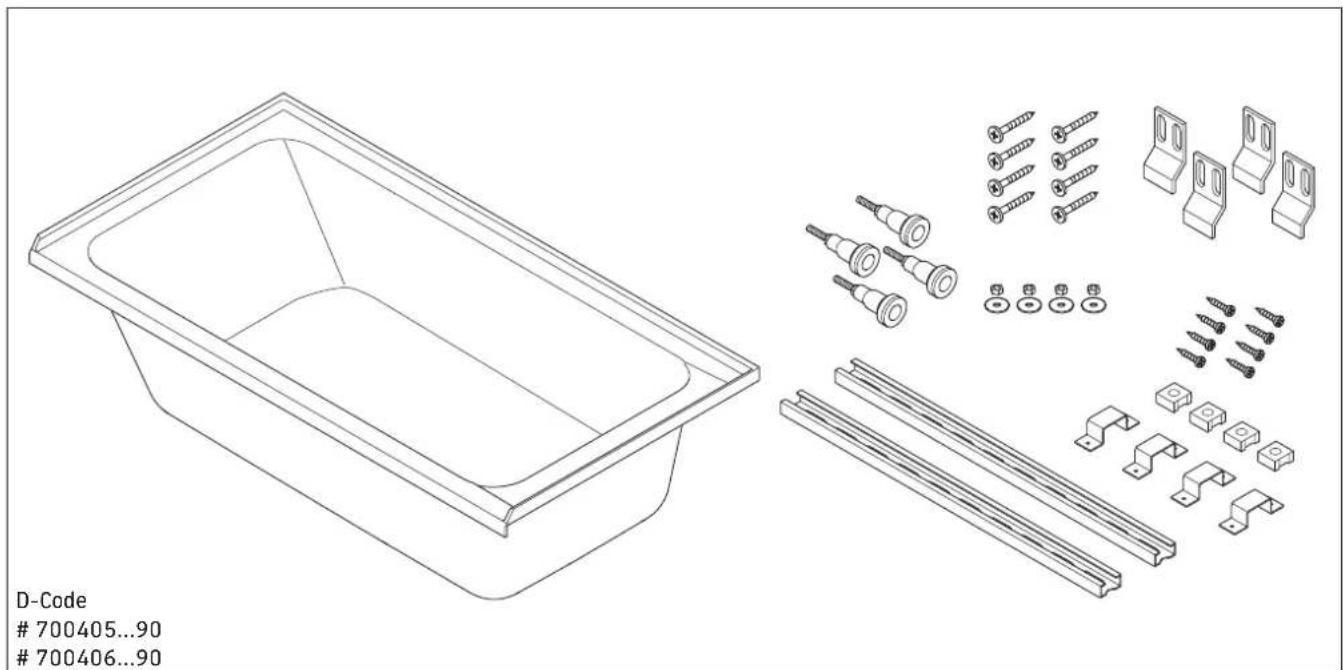

D-Code

700405...90

700406...90

Optional accessories (not included)

Technical line drawing of a mechanical suspension or clamp assembly (no text or symbols)

791224

790252

791255

1

Line drawing of a rectangular basin with an eye icon and a magnified inset showing a cross symbol (no text or labels)

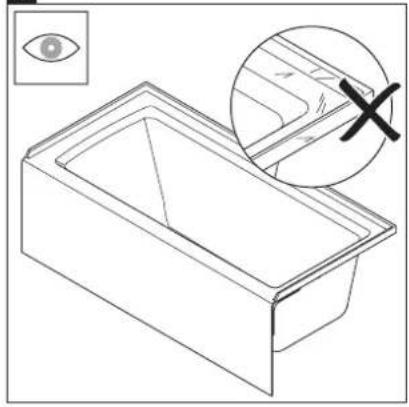

Inspect bathtub for any potential damage that may have occurred during transport.
Do not install if any damage is visible.

2

3D diagram of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols)

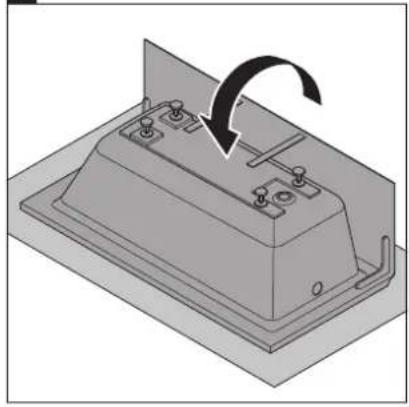

Place cardboard / blanket on the floor.
Turn bathtub over.

3

Mechanical assembly diagram showing a lever mechanism with a magnified inset of the pivot (no text or symbols)

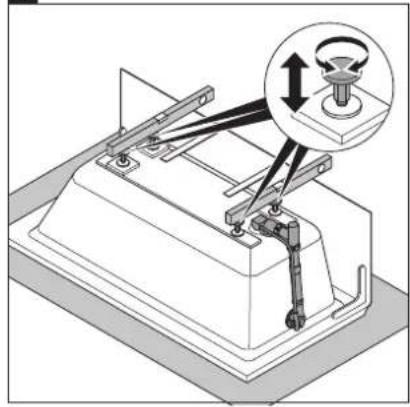

For Architec bathtubs:

Level feet before setting the bathtub.

4

Technical illustration of a wooden beam with two circular holes, showing cross-sectional views and directional arrows (no text or symbols)

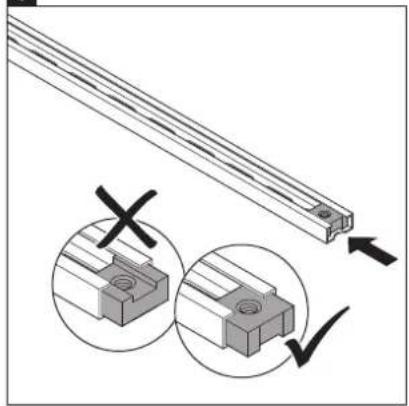

For D-Code bathtubs:

Assemble support frame.

5

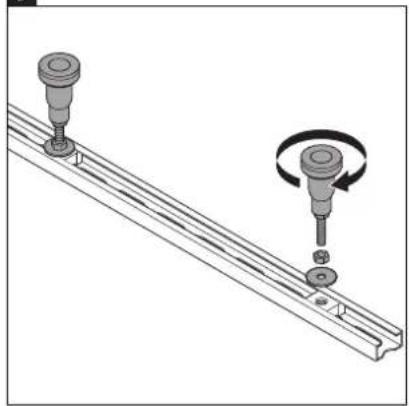

Mechanical assembly diagram showing two components mounted on a metal rail with a rotating knob (no text or symbols)

For D-Code bathtubs:

Attach feet to support frame.

6

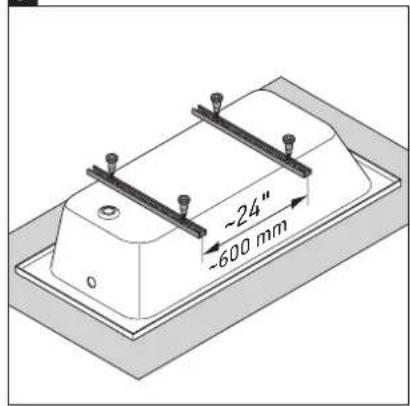

-24" -600 mm

For D-Code bathtubs:

Position support frame.

7

Technical diagram showing mechanical assembly with bracket and mounting points, no visible text or symbols

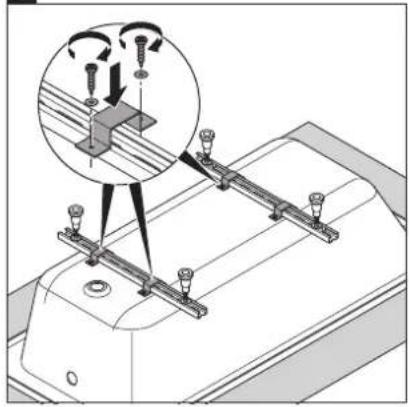

For D-Code bathtubs:

Use provided screws and washers secure support frame into the acrylic and plywood base.

NOTICE

Do not use screws other than what is provided.

8

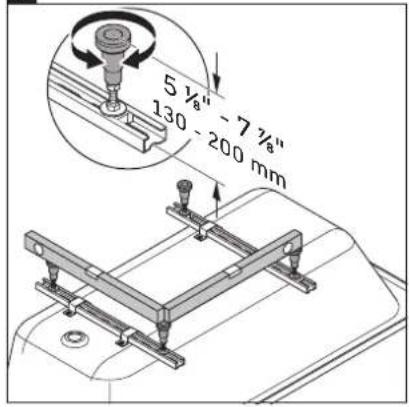

5 ½" - 7 ½" 130 - 200 mm

For D-Code bathtubs:

Level feet before setting the bathtub.

9

Isometric technical diagram of a mechanical assembly with mounting brackets and a central lever (no text or symbols)

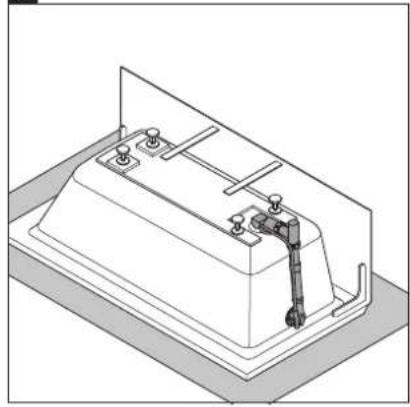

Connect waste and overflow (not included).

10

3D technical diagram of a rectangular enclosure with vertical supports and a central container, no visible text or symbols

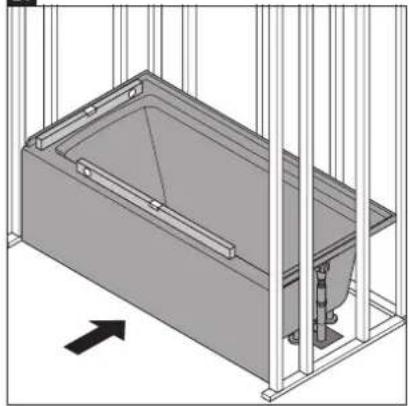

Set bathtub into designated frame area.

11

Technical diagram of a mechanical assembly with a magnified inset showing a circular component (no text or symbols)

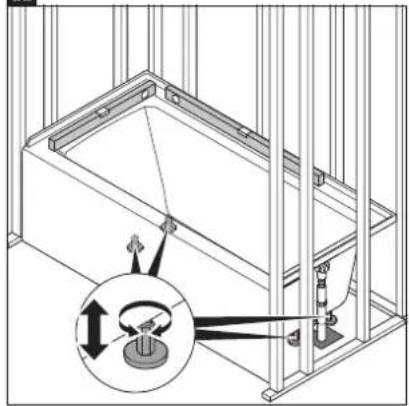

Make sure the bathtub is level. Adjust feet if necessary.

12

Technical line drawing of a mechanical assembly with a cylindrical component and rotating arm (no text or symbols)

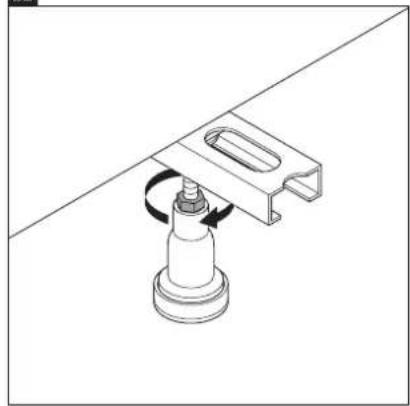

For D-Code bathtubs:

Tighten the lock-nut to secure feet.

13 6x

WARNING

Fatal injury by electric shock! Contact with electrical wiring can lead to electrical shock.

Make sure that there are no electrical wires or heating running under wall or floor which could be affected by the installation.

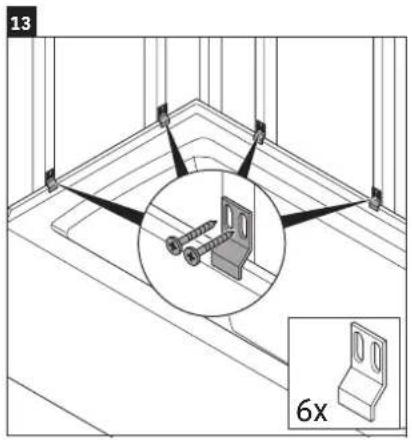

Affix 6 flange clips to the wall frame for side support of the bathtub.

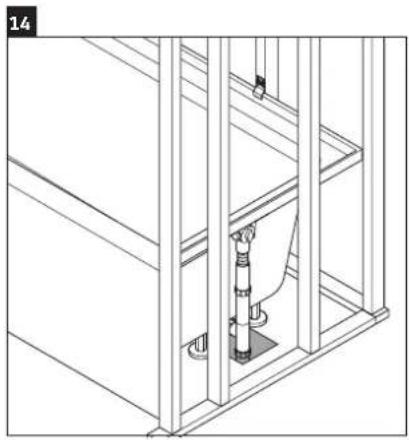

Technical line drawing of a mechanical assembly with vertical supports and a central component (no text or symbols)

Connect waste and overflow to the drain system.

Isometric line drawing of a bathtub with a star-shaped object inside, surrounded by vertical supports (no text or symbols)

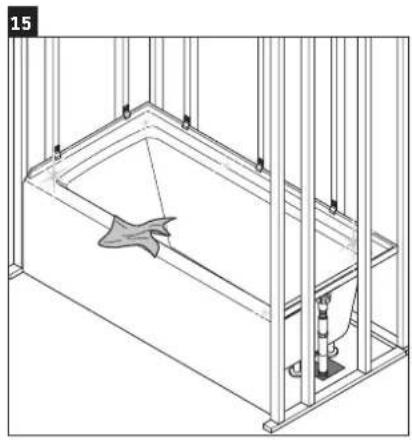

Clean the bathtub.

Line drawing of a bathtub with vertical supports and a showerhead, no text or symbols present

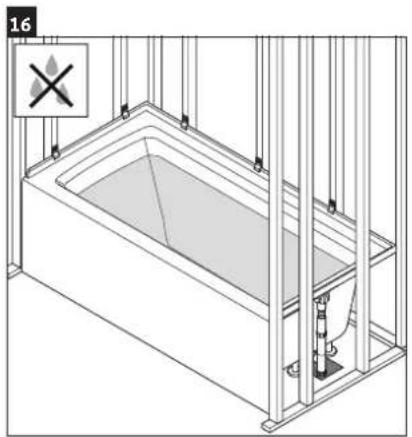

Fill the bathtub with water. Inspect for potential leaks.

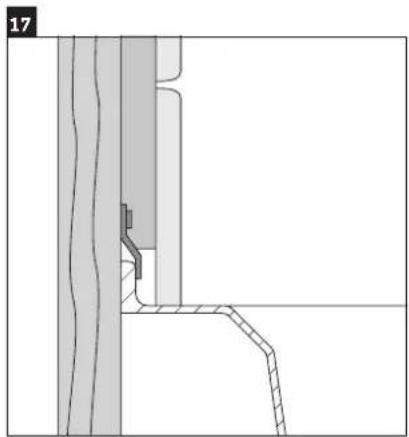

Architectural cross-section diagram showing structural components (no text or labels)

Finish wall and tiles. Make sure to install water-resistant wallboard.

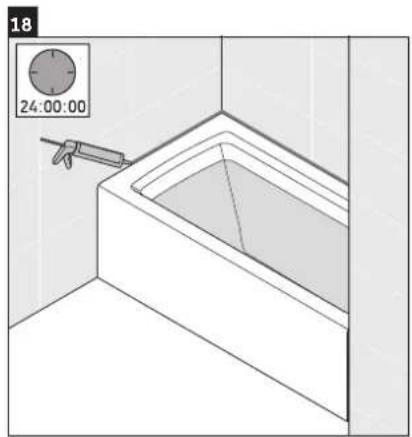

Interior view of a bathroom with a bathtub and a spray gun, no text or symbols present

NOTICE

Silicone with acetic acid can damage the bathtub.

Use alkoxy based silicone.

Fill the bathtub with water. Apply silicone as needed. Let it sit for 24 h before draining.

Collection of black-and-white icons representing different tools or components (no text or symbols)

Technical line drawing of a mechanical suspension or clamp assembly (no text or symbols)

791255

1

Line drawing of a rectangular basin with an eye icon and a magnified inset showing a cross symbol (no text or labels)

3D diagram of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a magnified inset of the pivot (no text or symbols)

Technical illustration of a wooden beam with two circular holes, showing cross-sectional views and directional arrows (no text or symbols)

Mechanical assembly diagram showing two components mounted on a metal rail with a rotating knob (no text or symbols)

Technical diagram showing mechanical assembly with bracket and mounting points, no visible text or symbols

Isometric technical drawing of a mechanical assembly with mounting base and support components (no text or symbols)

3D architectural rendering of a rectangular basin with vertical supports and a central structure, no visible text or symbols

Mechanical assembly diagram showing a rotating component mounted on a bracket (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component, labeled '6x' (no text or symbols on the diagram itself)

AVERTISSEMENT

Line drawing of a bathtub with a showerhead and a cross symbol, no text or labels present

Technical line drawing of a mechanical assembly with vertical supports and a central component (no text or symbols)

Technical line drawing of a rectangular basin with vertical supports and a star-shaped object inside (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Interior view of a bathroom with a bathtub and a shower, no visible text or symbols

ATTENTION

Collection of black-and-white icons representing different tools or components (no text or symbols)

Technical line drawing of a mechanical suspension or clamp assembly (no text or symbols)

791224

790252

791255

1

Line drawing of a rectangular basin with an eye icon and a magnified inset showing a cross symbol (no text or labels)

Isometric view of a mechanical switch or relay component with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing lever mechanism with a magnified inset of a rotating component (no text or symbols)

Technical illustration of a wooden beam with two circular holes, showing cross-sectional views and a checkmark indicating adjustment (no text or symbols present)

Para bañeras D-Code:

Mechanical assembly diagram showing two components mounted on a rail with a rotating knob (no text or symbols)

Para bañeras D-Code:

Para bañeras D-Code:

Technical diagram showing mechanical assembly with bracket and mounting points, no visible text or symbols

Para bañeras D-Code:

Para bañeras D-Code:

Isometric technical drawing of a mechanical assembly with mounting base and support components (no text or symbols)

3D architectural rendering of a rectangular basin with vertical supports and a central structure, no visible text or symbols

Mechanical assembly diagram showing a rotating component mounted on a bracket (no text or symbols)

Para bañeras D-Code:

Technical line drawing of a mechanical assembly with vertical supports and a central component (no text or symbols)

Isometric line drawing of a bathtub with a star-shaped object inside, enclosed by vertical supports (no text or symbols)

Isometric line drawing of a bathtub with a showerhead and safety symbols (no text or labels)

Architectural detail drawing showing wall and floor components (no text or symbols)

Interior view of a bathroom with a bathtub and a spray gun, no text or symbols present

AVISO
