USER MANUAL TBG02001U TOTO

• WARNINGS THANKS FOR CHOOSING TOTO! CARE & CLEANING The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice. Thanks for Choosing TOTO! p. 2
• Care And Cleaning p. 2
• Warnings p. 2
• Common Tools Needed p. 3
• Before Installation p. 3
• Included Parts p. 3
• Installation Procedure p. 4
• Warranty p. 5
• Rough-In Dimensions p. 18
• Your new tub spout is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty. For safe operation of the handshower,please observe the following:  ■Recommended operating pressure:    ・Minimumu pressure p. 20
• psi (138 kPa), dynamic    ・Maxmumu pressure psi (551kPa), static  ■It is suggested to use the temperature below 140°F(60°C)  ■Do not use steam for hot water supply.  ■Do not use the product at an ambient temperature below 32 °F (0 °C) .3 ENGLISH p. 80

• Actual product may vary in appearance depending on the model.

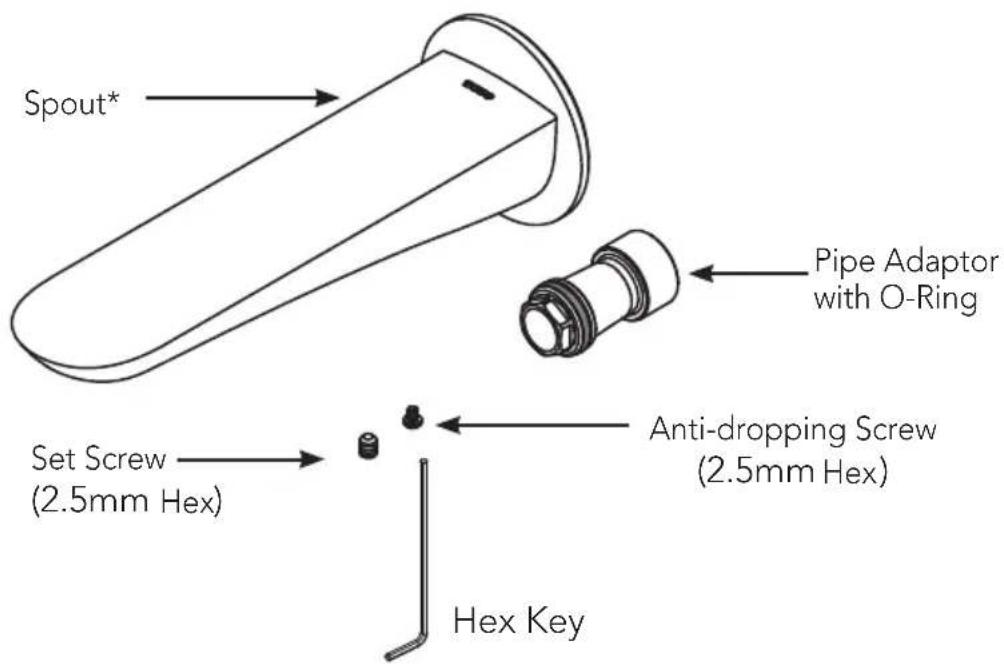

BEFORE INSTALLATION INCLUDED PARTS Adjustable Wrench Sealing Tape ■Observe all local plumbing codes. ■Make sure the water supply is shut off. ■Read these instructions carefully to ensure proper installation. ■TOTO reserves the right to update product design without notice. Spout* Set Screw (2.5mm Hex

Anti-dropping Screw (2.5mm Hex

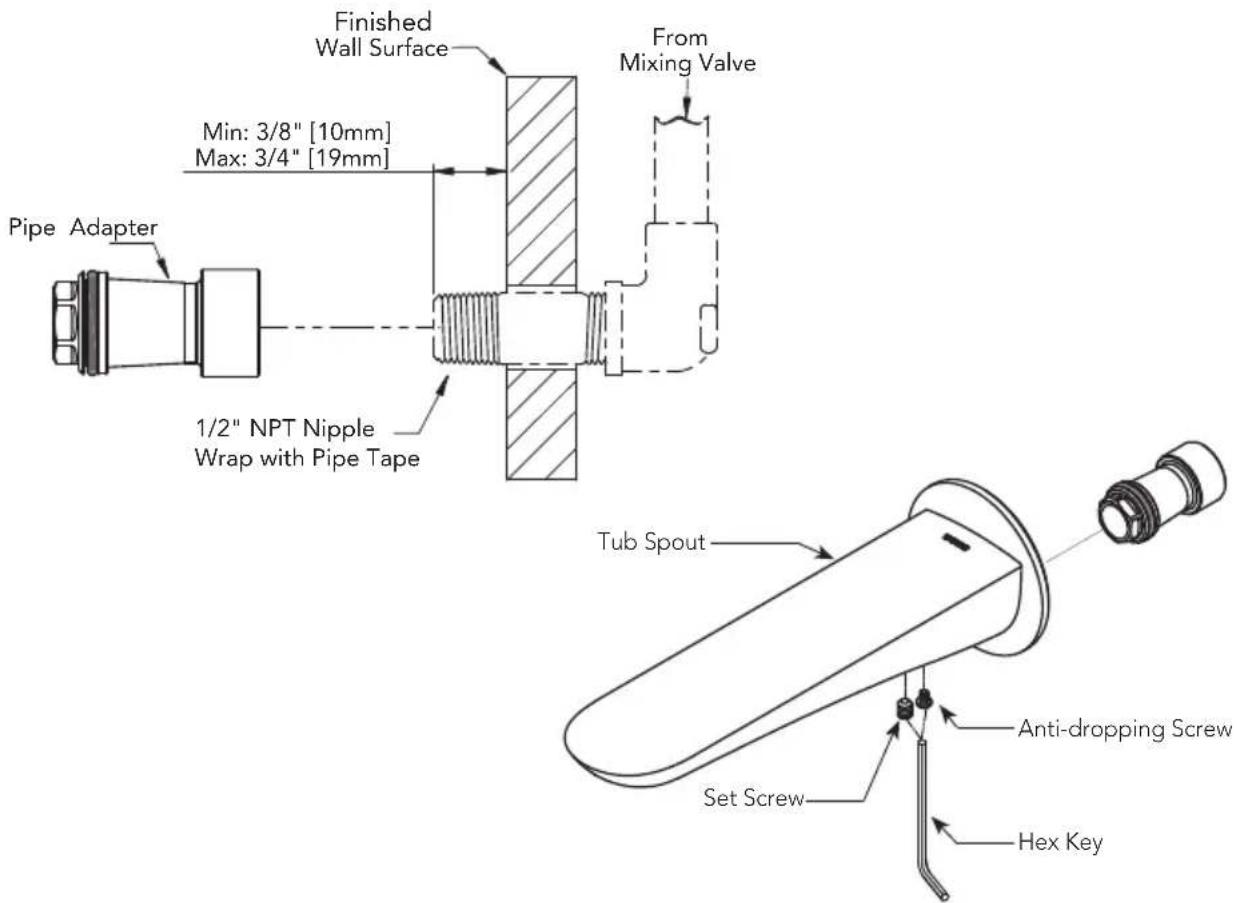

Pipe Adaptor with O-Ring Hex Key4 ENGLISH INSTALLATION PROCEDURE NOTE: Thoroughly flush the water supply line prior to installation. IMPORTANT! For proper installation, a nipple with a 1/2” NPT male thread extending between 3/8” (10mm) and 3/4”(19mm) beyond the finished wall is required. NOTE: The hole for the nipple should not be larger than 1” (25mm) in diameter.

1. Wrap pipe tape around the free end of the nipple, then thread the pipe

adapter onto the nipple, taking care not to damage the o-ring.

2. Apply silicone caulk around the nipple where it exits the wall.

3. Slide the spout onto the pipe adapter, taking care not to damage

4. Remove the fixing screws and anti-dropping screws and then install the

main body of the water outlet onto the fixed connector. Tighten sufficienly with the fixing screws and then lock tight the anti-dropping screws. (After applying some soap water, etc on the O-ring of the fixed connector, it wil be easier to assemble) Please make sure that lock fixing screws and anti-dropping screws are secured, otherwise the spout body is in danger of falling. Max: 3/4" [19mm]Min: 3/8" [10mm]1/2" NPT NippleWrap with Pipe Tape Pipe Adapter Finished Wall Surface From Mixing Valve Anti-dropping Screw Hex Key Tub Spout Set Screw5 ENGLISH WARRANTY

warrants its residential faucets and bathroom accessories (“Product") to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.

2. TOTO’s obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at

TOTO’s option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.

3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc. b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product. c. Damage or loss resulting from sediments or foreign matter contained in a water system. d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product. e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate. f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.

4. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty

registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

5. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants

the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.

6. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM

STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.

7. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a

TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser’s location or pay to transport the Product to a service facility. THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PROD-

UCT OR FOR OTHER INCIDEN

TAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO’S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANT- ABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLU-

SION MAY NOT APPLY TO YOU.6

MEMOTOTO U.S.A., Inc. 1155 Southern Road, Morrow, Georgia 30260 Tel: [phone] Fax: [phone] www.totousa.com 0GU4281 Rev A Warranty Registration and Inquiry For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con- tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260 [phone] or [phone] when calling from outside of U.S.A.
