USER MANUAL Baby Fit TERRAILLON

FR1 This product is not a toy Never use the appliance for any purpose other than its intended use Any other use must be considered dangerous and inappropriate Do not let children play with it Use under parental supervision For indoor use only WARNING: to avoid the risk of risk of suffocation, keep the packaging, screws and batteries out of reach of babies and young children 2 Clean the scale with a slightly damp cloth DO NOT immerse the scale in water or use chemical/abrasive cleaning agents 3 All plastics parts should be cleaned immediately after contact with fats, spices, vinegar and strongly flavored / colored foods Avoid contact with acids citrus juices 4 Always use the scale on a solid, flat surface 5 Do not knock, impact and drop products 6 This product is a precision instrument, please be careful

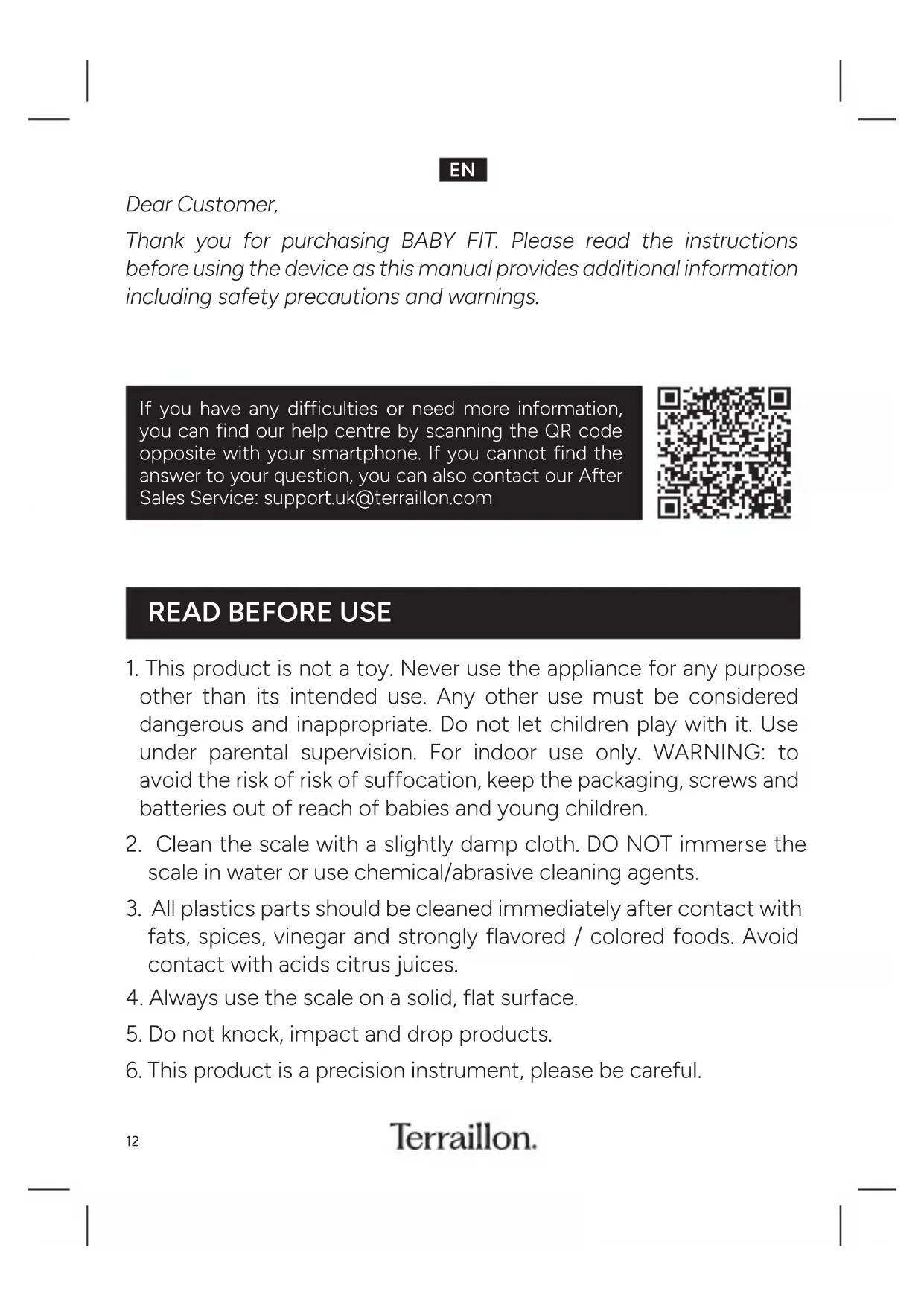

Dear Customer, Thank you for purchasing BABY FIT. Please read the instructions before using the device as this manual provides additional information including safety precautions and warnings. If you have any difficulties or need more information, you can find our help centre by scanning the QR code opposite with your smartphone If you cannot find the answer to your question, you can also contact our After Sales Service: supportuk@terrailloncom

EN• Powered by 3 x 15V (AAA) batteries (excluded)

• Use a screwdriver to remove the screw from the battery compartment cover, open the bat- tery cover and install the batteries, observing the correct polarity, as shown in the picture

• Remark: Please use corresponding battery

• Replace the cover and the screw

• Please remove battery if it’s not used for a long time (more than three months) BATTERY INSTALLATION PRODUCT OVERVIEW Lock screen mode Infant weight locked Comparison mark Infant weight unit Weight unit 7 Keep away from high temperature, store in a cool dry place 8 Check the batteries if the scale cannot be turned on

In this mode, the touch-sensitive keys are disabled during weighing Press and hold “padlock logo” to activate/deactivate this mode

• In infant weight locked status, short press to clear and lock reading again

• Long press : activates/deactivates screen lock mode Touchscreen keys are disabled while the child is being weighed

ENTRAY ASSEMBLING Screw location Weighing platform Screws (can be tighten with coin) Remark: please assemble the trays one by one Display

Loosen the screws with a coin to remove the tray, then replace the screws on the scale

ENINFANT WEIGHING 0 - 15 kg Place scale on flat surface and switch it on Infants are weighed using the tray Remark : to avoid infant touching the buttons, please select to lock screen mode before weighing infant Place infant on scale Weigh reading is stable and locked automatically If measurement result <25kg, the current weight flashes three times and the difference in weight compared with the last record is displayed Remark : only weight reading is recorded, no weight difference for first usage after battery installed Weighing is finished - Auto off

ENCHILD/ADULT WEIGHING 15 - 180 kg Place scale on flat surface Remark: when scale is placed in a new place, press firmly and briefly on the platform to switch on the scale, wait for it to display 00 and then switch off You can now weigh yourself Weighing finished If no operation or 10 seconds auto off Weighing over 15 kg should be performed without the cradle In this case, operation is as for a conventional scale Note that the display rotates 180° in relation to the baby scale mode

ENDispose of used batteries in a designed container so that they can be collected and recycled Do not mix different types of batteries Do not mix new and used batteries After life, dispose of this product at a designated waste recycling point GUARANTEE

PROTECT THE ENVIRONMENT

This product is guaranteed against defects in materials or manufacturing During the guarantee period, any such defects will be replaced free of charge (proof of purchase must be shown in the case of a complaint under guarantee) The guarantee does not cover damage resulting from improper use or negligence In the event of a claim, first contact the shop where you purchased the product
