USER MANUAL Comfortheat 99403 TREBS

V1.0 Mobile oil filled radiator with wheels Model: 99403

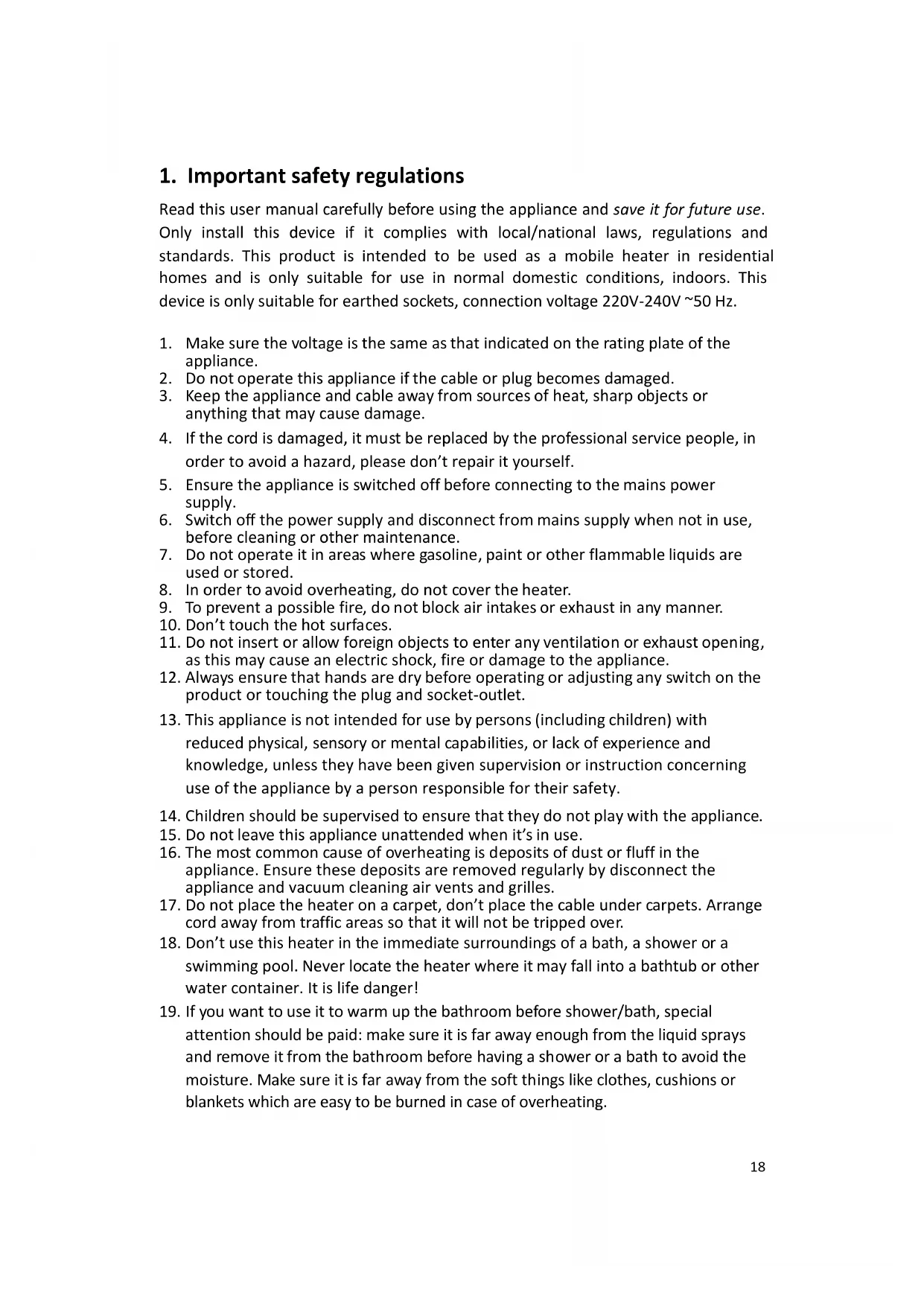

1. Important safety regulations

Read this user manual carefully before using the appliance and save it for future use. Only install this device if it complies with local/national laws, regulations and standards. This product is intended to be used as a mobile heater in residential homes and is only suitable for use in normal domestic conditions, indoors. This device is only suitable for earthed sockets, connection voltage 220V-240V ~50 Hz.

1. Make sure the voltage is the same as that indicated on the rating plate of the

2. Do not operate this appliance if the cable or plug becomes damaged.

3. Keep the appliance and cable away from sources of heat, sharp objects or

anything that may cause damage.

4. If the cord is damaged, it must be replaced by the professional service people, in

order to avoid a hazard, please don’t repair it yourself.

5. Ensure the appliance is switched off before connecting to the mains power

6. Switch off the power supply and disconnect from mains supply when not in use,

before cleaning or other maintenance.

7. Do not operate it in areas where gasoline, paint or other flammable liquids are

8. In order to avoid overheating, do not cover the heater.

9. To prevent a possible fire, do not block air intakes or exhaust in any manner.

10. Don’t touch the hot surfaces.

11. Do not insert or allow foreign objects to enter any ventilation or exhaust opening,

as this may cause an electric shock, fire or damage to the appliance.

12. Always ensure that hands are dry before operating or adjusting any switch on the

product or touching the plug and socket-outlet.

13. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

14. Children should be supervised to ensure that they do not play with the appliance.

15. Do not leave this appliance unattended when it’s in use.

16. The most common cause of overheating is deposits of dust or fluff in the

appliance. Ensure these deposits are removed regularly by disconnect the appliance and vacuum cleaning air vents and grilles.

17. Do not place the heater on a carpet, don’t place the cable under carpets. Arrange

cord away from traffic areas so that it will not be tripped over.

18. Don’t use this heater in the immediate surroundings of a bath, a shower or a

swimming pool. Never locate the heater where it may fall into a bathtub or other water container. It is life danger!

19. If you want to use it to warm up the bathroom before shower/bath, special

attention should be paid: make sure it is far away enough from the liquid sprays and remove it from the bathroom before having a shower or a bath to avoid the moisture. Make sure it is far away from the soft things like clothes, cushions or blankets which are easy to be burned in case of overheating.19

20. When heating up and cooling down the heater, you may hear a ticking sound. This

21. There may be a paint smell when using your heater for the first time. This will

disappear after several hours of using the heater.

22. Do not store away the heater until the heater is cool down. Store the heater in a

cool dry location when not in use.

23. When in use, keep the distance between window(wall) at least 50cm.

1. Place the radiator body upside-down on a scratch-free location, make sure it is

stable and will not fall.

2. Screw off the wing nuts from the U-shaped bolt provided, attach the U-shaped

bolt to the U-facing flange between first and second fins (near the front cover).

3. To attach the castor mounting plate to the radiator body, you should insert the

threaded ends of the U bolt in the holes on the castor mounting plate.

4. Screw the wing nuts back to the U bolt and fasten the wing nut properly.

Note: do not over tighten, which may cause the damage of radiator flange.

5. Screw off spherical nut from the castor, align the shaft to the hole of the castor

mounting plate, insert in and screw on the spherical nut.

6. Repeat 2, 3, 4 and 5 on the rear of the radiator for mounting of the rear castors.

Note: the rear castors must be fastened between the end two fins.20

1. Place the heater in an upright position on a flat, steady, stable, heat-resistant

surface. Make sure there is nothing flammable or heat sensitive within 1 meter (40 inches). Operating the heater in any other position could cause a hazard.

2. Insert the plug into a suitable wall outlet after turning the thermostat knob

counter-clockwise to the minimum position and setting the power switches to “O” OFF. The heater is suitable for operation on an A.C. power supply having the same voltage as that show on it’s rating label.

3. Press the power switch button to either “MIN”(Low heating) (I) or “MED”

(Medium heating) (II) or both “MAX” (High heating) (I+II).

4. Turn the thermostat knob clockwise to the maximum position. When the

temperature rises to with a comfortable level, slowly turn the thermostat counter-clockwise until the power indicator light goes out. To adjust the room temperature turn the thermostat clockwise to raise the temperature or counter-clockwise to lower it. Your unit will be automatically set an on-and-off cycle to maintain the current room temperature according to the thermostat setting. (Note: It normally requires approx. 15 minutes to reach the operating temperature.)

5. To turn off the heater, turn the power switch knob counter-clockwise to “O”OFF.

The power indicator light turns off.

6. Unplug the heater from the electrical outlet when it is left unattended or is not in

4. Maintenance and storing

1. Always disconnect the appliance and let it completely cool down before any

maintenance or storing.

2. Use a vacuum cleaner to remove dust on grilles.

3. Clean the outside of the unit with a damp cloth and then dry it with a dry cloth.

Never immerse the unit in water, nor let water drip into the unit. Avoid using detergents to clean the heater. Never let any water get inside cause this can be hazardous.

4. If you do not use the device for a long period, put back the unit and the

instruction manual to the original carton and store in a dry and ventilated place.

5. Do not place any heavy items on top of carton during storing as this may damage

5. Recycling (Disposal of the product at the end of its life)

Old electric and electronic devices often contain valuable materials. However, they also contain harmful substances that were necessary for their functionality and safety. If these are placed with the non-recyclable waste or disposed of incorrectly, they can be harmful to human health and the environment. Never place your device with the non-recyclable waste. Remark: Use the collection points available in your community and recycle old electric and electronic devices. Contact your town hall, the local waste disposal company or your dealer for more information. Make sure that your old device, until it’s picked up, is safely stored out of reach of children.

We provide a warranty of 24 months for this product. The warranty starts on the date of purchase and is intended for faults due to production or the used materials. Your statutory warranty rights in accordance with § 439 ff. BGB-E will remain unaffected by this. The warranty does not apply to damages as a result of improper handling or use, nor to malfunctions that only have a minor effect on the functionality or value of the product. Normal wear and tear, transport damage, to the extent that we are not responsible for this, as well as damages caused by repairs not performed by us, are also excluded from the warrant. This device is designed for household use and has the right performance levels. Any use in commercial situations is only covered by the warranty if the device is not put under a heavier strain that in a household situation. The device is not intended for additional commercial use. In the case of well-founded complaints, we will repair the defective device at our discretion or replace it with a device that shows no problems. All possible manufacturing faults must be reported within 14 days of delivery. All further claims are excluded. When invoking the warranty, please contact us first before sending us the product (you must always provide us with proof of purchase).

Rated Voltage 220V - 240V~ Rated Frequency 50 Hz Rated Power 2000W22

If you have any further questions regarding the product after having read the user’s manual, please contact the Trebs customer service on www.trebsshop.com

Products with the CE marking comply with the EMC Directive (2014/30/EU) and the Low Voltage Directive (2014/35/EU) issued by the Commission of the European Community. Hereby, Commaxx BV, Wiebachstraat 37, 6466 NG Kerkrade, The Netherlands, declares that this product is in compliance with the essential requirements. The declaration of conformity may be consulted on [e-mail]
