USER MANUAL Instant Compact IS3365 TEFAL

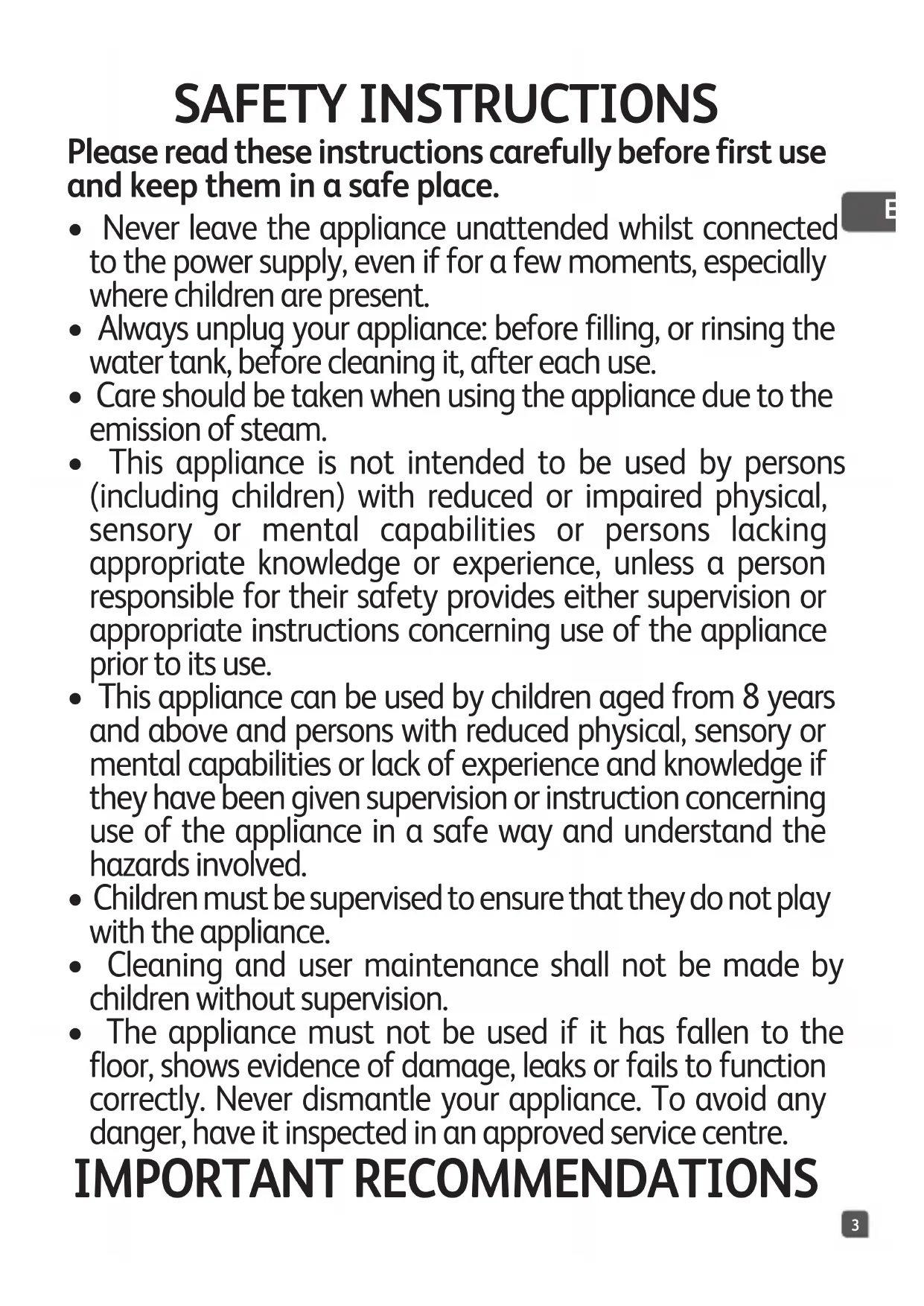

CLICK fig. 323 ENEN SAFETY INSTRUCTIONS Please read these instructions carefully before first use and keep them in a safe place.

• Never leave the appliance unattended whilst connected to the power supply, even if for a few moments, especially where children are present.

• Always unplug your appliance: before filling, or rinsing the water tank, before cleaning it, after each use.

• Care should be taken when using the appliance due to the emission of steam.

• This appliance is not intended to be used by persons (including children) with reduced or impaired physical, sensory or mental capabilities or persons lacking appropriate knowledge or experience, unless a person responsible for their safety provides either supervision or appropriate instructions concerning use of the appliance prior to its use.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children must be supervised to ensure that they do not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• The appliance must not be used if it has fallen to the floor, shows evidence of damage, leaks or fails to function correctly. Never dismantle your appliance. To avoid any danger, have it inspected in an approved service centre. IMPORTANT RECOMMENDATIONS4

• This product has been designed for domestic and indoor use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• This is a floor appliance, never carry it while in use.

• This appliance is designed to function on AC current only. Before using it for the first time, check that your mains supply voltage matches that indicated on the appliance data plate.

• Any connection error will invalidate your guarantee.

• Always plug the appliance into a socket outlet with an earth connection.

• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre.

• Always keep the hose and nozzle elevated above the water tank.

• For your safety, this appliance conforms to the applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, and Environmental Directives).

• The surfaces which are marked or close to with this sign are very hot during the use of the appliance. Do not touch these surfaces before the appliance has cooled down.

• To reduce the risk of contact with hot water or steam emitting from steam vents, check the appliance before each use by holding it away from your body and operating.

• Steam only in an up and down vertical motion. Never use the steam head in a horizontal position or tilt into a backward position, this may result in hot water discharge.

• To reduce the risk of electric shock, do not immerse the appliance or the steam head in water or any other liquids.

• The appliance should always be switched «OFF» before plugging or unplugging from socket outlet. Never pull the cord to disconnect it from the socket outlet, instead grasp the plug and pull to disconnect.

• Do not allow the cord to touch hot surfaces. After each use, unplug and let the appliance cool down completely before storing it away. Loop the cord loosely around the appliance when storing.

• Never place the appliance or its power cord near, or allow to come into contact with, sources of heat or sharp edges.

• “Before plugging your appliance, please ensure the full insert and locking of steam hose (by soft vertical pulling). During use, never unlock and never remove the steam hose as hot water and steam projection can occur.

• Do not attempt to hang up the unit using the hose.5 ENEN

• The use of accessory attachments other than those provided by Tefal is not recommended and may result in fire, electric shock or personal injury.

• Use caution when changing accessories or attachments, as they may contain hot water from condensation. Ensure that the attachments have cooled down to avoid contact with hot water.

• Burns could occur from touching hot parts, hot water or steam. Use care when you empty a steam appliance. There may be hot water in the tank or from the inside the appliance.

• Do not direct steam at people, animals or steam clothes while they are being worn.

• Do not cut or attempt to extend the steam hose.

• Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance.

• Unwind the power cord fully before use and inspect the appliance and power cord for signs of wear or damage prior to connecting to the power supply.

• Any intervention other than normal cleaning and maintenance by the customer must be performed by an Approved Service Centre.

• Never drop or insert any object into any opening or hose.

• The glove should be only used with this garment steamer (*depending on model). The manufacturer accepts no responsibility for any inappropriate use.

• Remove all packaging materials, stickers and accessories from inside and outside of the appliance.

• Inspect the appliance and power cord for signs of wear or damage prior to connecting to the power supply.

• Do not use your appliance if it does not operate correctly, if it has been damaged or if the power cord or plug is damaged. To maintain safety, these parts must be replaced by an Approved Service Centre.

• Any intervention other than normal cleaning and maintenance by the customer must be performed by an Approved Service Centre.

• This unit is for indoor use only.

• Unwind the power cord fully before use and inspect the appliance and power cord for signs of wear or damage prior to connecting to the power supply.

• The glove should only be used with this garment steamer, and not for other purposes. ENVIRONMENT PROTECTION FIRST! i Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point.

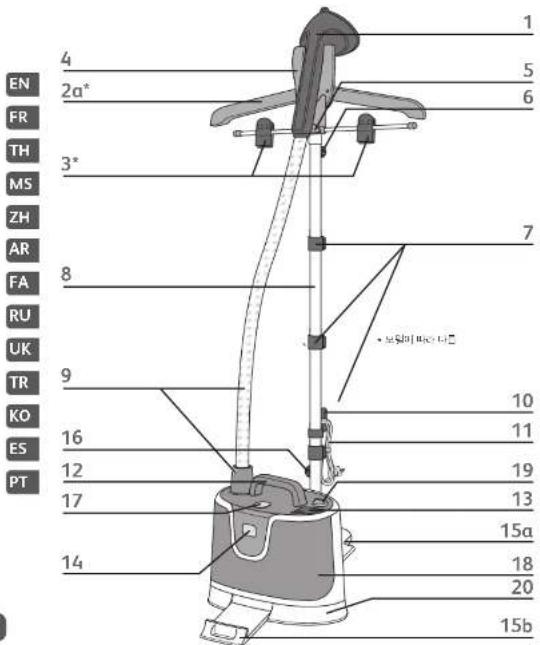

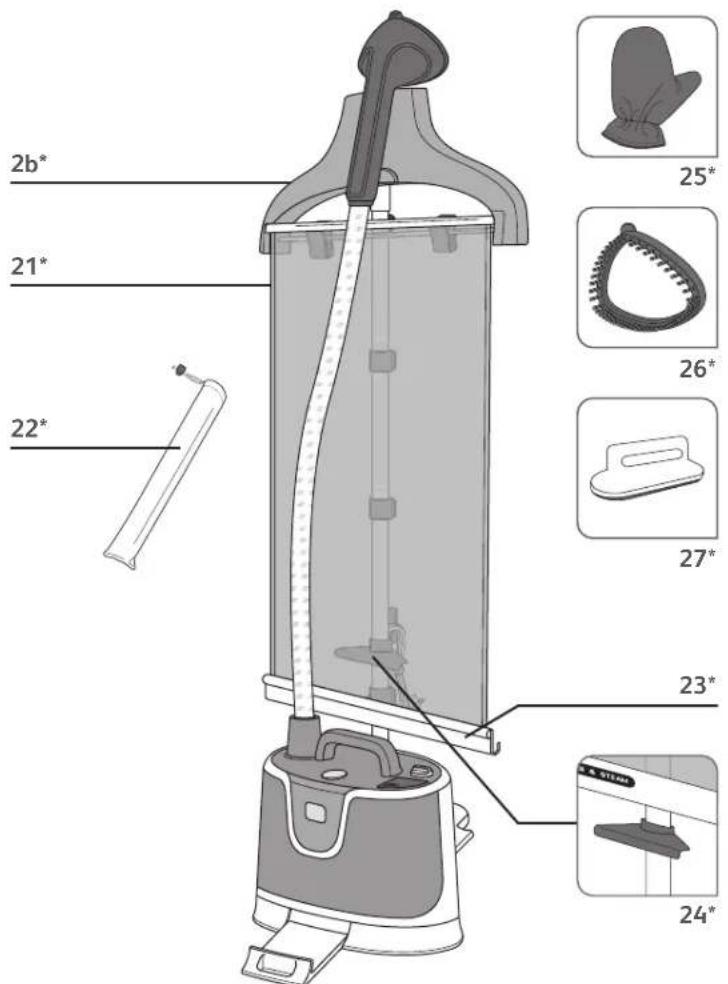

2. Integrated hanger

2a* Integrated collapsible hanger 2b* Integrated hanger

6. Hanger fastening screw

9. Steam hose plus hose exit and locker

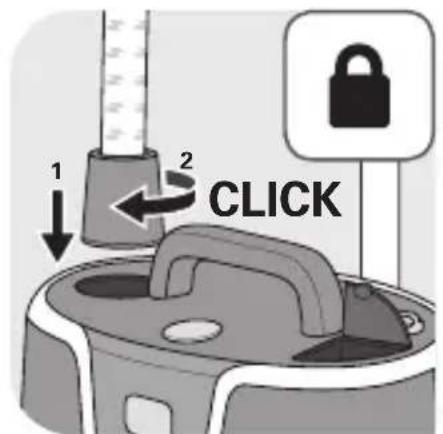

1. Insert and then lock it by turning anti-clockwise (fig. 3)

2. Ensure that the hose is properly locked by gently pulling vertically.

1. Completely pull out the 2 stability legs from the base. (fig. 1, 2)

2. Unscrew the pole fastening screw on the base of the pole.

3. Hold the pole such that the electrical cord hook is at the back. Check that the 3 pole locking

clips are unlocked. (fig. 5). Adjust the pole to its maximum height by sliding it upwards. Make sure the 4 segments of the pole are fully extended then lock the 3 pole locking clips.

4. Insert the pole on the base by pressing downwards until the holes of the pole and base are

at the same level, so that you can put the screw back. If the holes are not aligned, check that the pole is fully extended. (fig.6) Integrated Hanger assembly

1. Unscrew the hanger fastening screw at the bottom of the hanger.

2. Hold the hanger such that the hanger holder is on the same side as the appliance control

3. Insert vertically the hanger on the top of the pole. The holes at the bottom of the hanger

and in the pole should be at the same level. (fig. 9)

4. Put the screw back and screw in as far as it will go so that the hanger is firmly fixed to the

5. Install the steam head on top of the integrated hanger.

• depending on model7 ENEN 2 • Filling the water tank Dear Customer, Before delivery we undertake a quality control check on garment steamer. This garment steamer has been checked so a small residue of water may be left in the water tank. This garment steamer has passed the quality control check. IMPORTANT: Your product is designed to operate using untreated tap water. If your water is very hard (check with your local water authority) it is possible to mix untreated tap water with store-bought distilled water in the following proportions 50% untreated tap water with 50% distilled water. Heat concentrates the elements contained in water during evaporation. The types of water listed below may contain organic waste, mineral or chemical elements that can cause spitting, brown staining or premature wear of the appliance: water from clothes dryers, scented or softened water, water from refrigerators, batteries, air conditioners, rain water, boiled, filtered or bottled water. These types of water should not be used. Only use store bought distilled water as advised above.

• Ensure that the appliance is unplugged. Open the water tank filling inlet, fill it with water and close it. (fig. 10, 11 & 12) 1 • Setting up The flexible hose and the end of the steam head can become extremely hot during use. This is perfectly normal. Be careful and avoid any prolonged contact.

• Only operate the appliance on a floor clear of any materials which may obstruct the base of the steamer (flat and horizontal surface). Do not obstruct the openings on the lower part of the appliance. This appliance should not be used on very thick carpets or rugs.

• Undo the tie and completely unwind the electrical cord.

• Plug in to power socket. (fig.13)

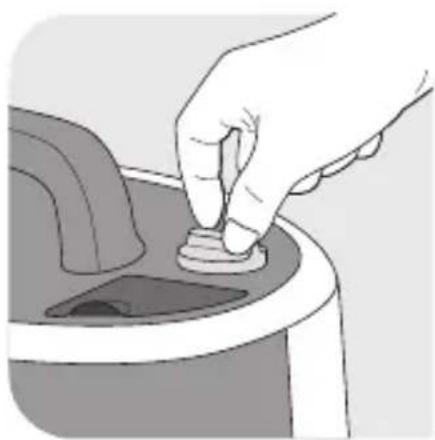

• Switch on by pressing the ON/OFF button located on top of the appliance. (fig.14)

• The appliance will begin producing steam after approximately 60 seconds. 2 • Using the appliance

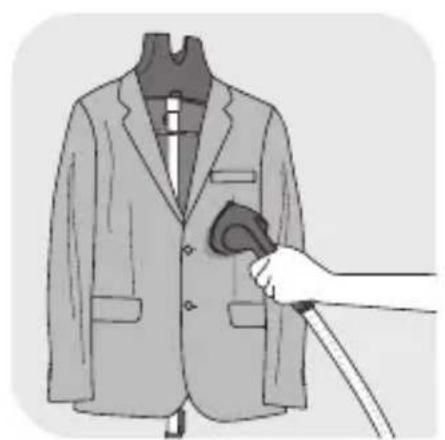

• Hang the garments on the integrated hanger or on separated hanger which may be suspended on the hanger holder.

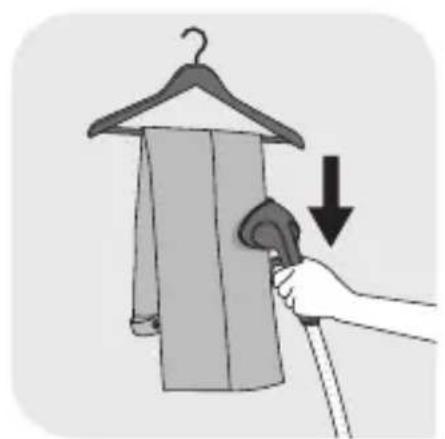

• To steam trousers, we recommend that you also use the support with clips*.

• Hold the steam head with the steam vents pointing away from you.

• Start steaming garment lightly following the grain of the garment fabric.

• Start at the top of the garment and gradually move downward.

• Always use the steam head in a vertical position. Always be careful not to touch the hot steam. USE

Warning: Never steam a garment while it is being worn.

• Always hang the steam head in an upright position on the steam head hook when not in use.

• During use, the hose may make a gurgling noise. This is a normal occurrence due to condensation. If the appliance begins to gurgle, rest the steam head on its support for a few moments in order to direct back the condensation into the appliance. Maintain the steam head vertically extending the hose at the same time.

• During use, some water drips may appear on the telescopic pole. This is also a normal occurrence due to condensation. Steam setting* Your appliance is fitted with 2 steam settings that you can set according to the fabric you are steaming, from delicate to thick ones.

• Models with 2 settings: set by successively pressing the steam setting button on the appliance’s control panel. Be sure the appliance is unplugged and completely cool before attaching accessories. Before using an accessory, check the manufacturer recommendations. 1 • Press & Steam vertical support* The Press & Steam system support in the hanger provides a vertical support while steaming, to help remove “creases” more easily and efficiently. Tips for better results with your garment steamer

• We recommend checking the garment care label for manufacturer recommendations before steaming. We also recommend testing the garment and effect on the garment on an unobtrusive area such as an inner seam.

• Button up the shirt’s collar to prevent them slipping on the hanger during steaming.

• Gently press steamer brush into fabric while making slow passes.

• Avoid direct contact between the steam head and silk or velvet.

• Some garments are smoothed more easily on the reverse side.

• Heavy fabrics may need to be steamed for longer.

• If you have to use the steam head near the floor, raise the hose frequently to a vertical position in order to avoid condensation. A gurgling noise may be heard if the flexible hose is pinched.

• If no steam is produced, if a gurgling sound is heard or if water is dripping through the holes of the steam head, raise the steam hose occasionally to remove condensation inside the hose.

• Remove the Press & Steam vertical support from its pouch. (fig. 15)

• Make sure the telescopic pole is fully extended.

• Hold the Press & Steam vertical support so that the handle is located downward and its “Press & Steam” logo is in front.

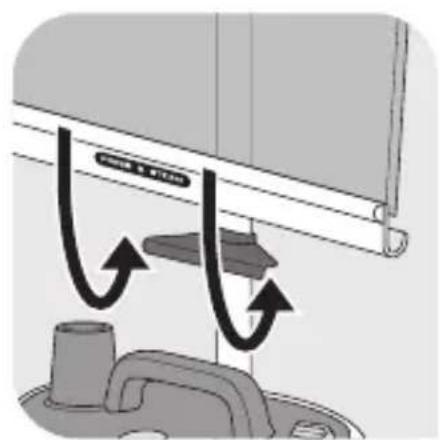

• Insert the upper part inside the integrated hanger, then pull down slightly until hooking the handle on the Press & Steam vertical support hook located on the pole. (fig. 16-17)

• The Press & Steam vertical support helps keep the garment in place while steaming.

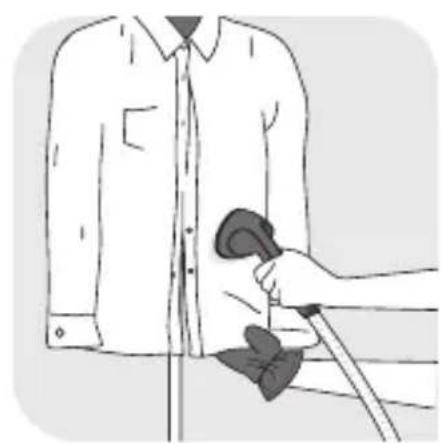

• When steaming a shirt, begin with steaming the sleeves. Take hold of one sleeve and cross it over the garment using the Press & Steam for vertical support. 2 • Fabric brush* The fabric brush opens the weave of the fabrics for better steam penetration.

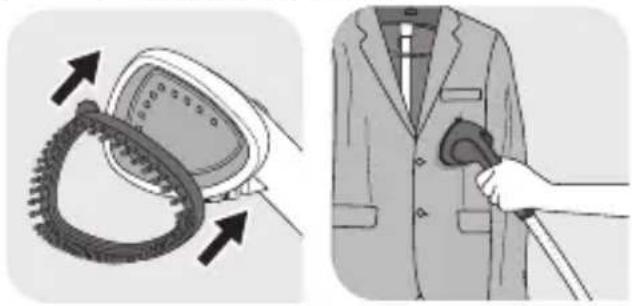

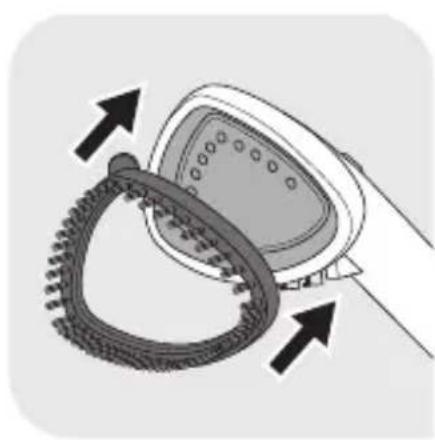

• Attach the fabric brush to the steam head, on cold appliance by lining up the bottom of the brush with the bottom of the steam head. Gently push the top of the brush onto the steam head until it clicks into place. (fig. 18)

• Gently brush the area to be steamed following the grain or nap of the fabric. (fig. 19)

• Remove the fabric brush once unit is unplugged and completely cool. Remove it by pressing on the release tab on top of brush while pulling it forward. 3 • Lint pad* The lint pad removes hair, lint and animal fur for a professional finish.

• To use the lint pad, slowly brush the clothing with the grain or nap of the fabric. (fig. 21)

• The pad can be cleaned by brushing it in the opposite direction. We recommend cleaning the pad on an old cloth that can be discarded.

• We recommend to use the lint pad before steaming your clothes for perfect results. 4 • Glove*

• The glove protects your free hand from the steam during use.

• To use the glove, put it on the hand you use to hold or pull the garment. (fig. 20) The glove should be only used with this garment steamer and not for other purpose. Do not wash or iron the glove. The lint pad is a separate accessory and cannot be attached to the steam head.You can use the lint pad independently from the appliance.

• depending on model10

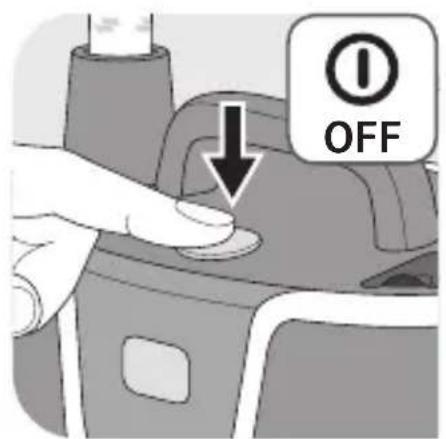

• Switch off the appliance by pressing the ON/OFF button. (fig. 23)

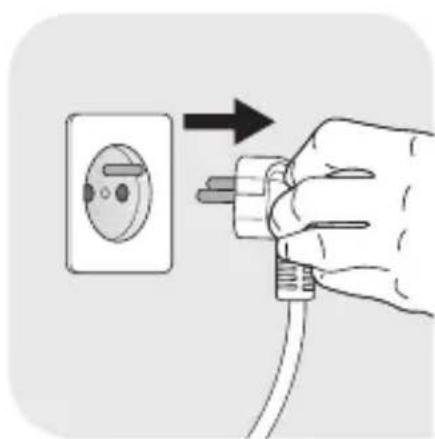

• Unplug the appliance.(fig. 24)

• Do not drain the water tank immediately right after use. Please wait one hour before draining.

• Hang the steam head in an upright position on the hook steam head.

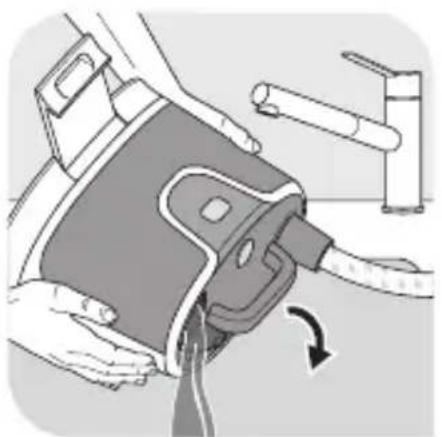

• Empty the water tank each time before storage in order to flush out any scale particles. (fig. 25)

• Loosely wind up the electrical cord with the tie, then hang it on the cord hook on the pole. (fig. 28) 1 • Transport

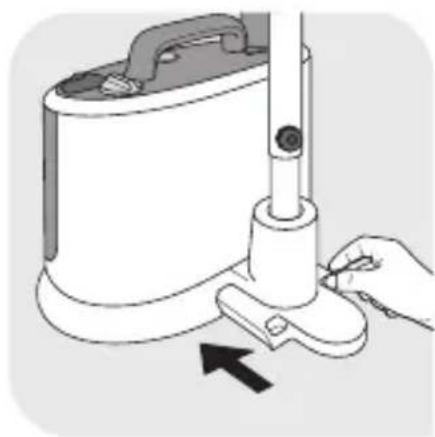

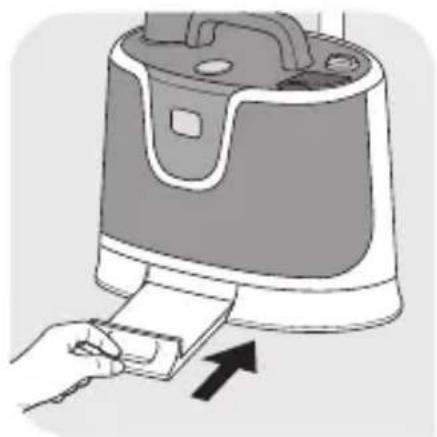

• Push back the 2 stability legs. (fig. 26-27)

• You can transport your appliance by lifting it up both by the telescopic pole and by the appliance’s handle. 2 • Maintenance and cleaning Easy descaling This process should be made every 6 months or as soon as you feel that the performance of the appliance (steam output) is decreasing.

• Unplug the appliance.

• Wait an hour so that the appliance has completely cooled down.

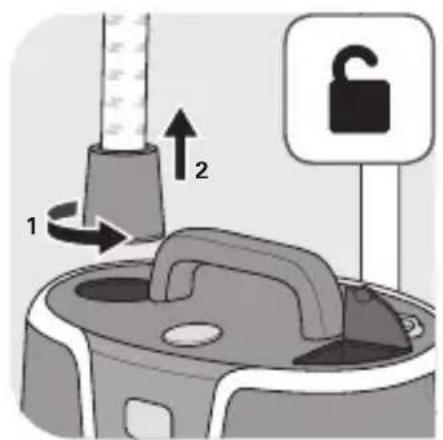

• Remove the hose from the housing: Unlock it by turning anti-clockwise and then pull up to remove the hose.

• Remove the anti-calc cap by unscrewing. (fig 30).

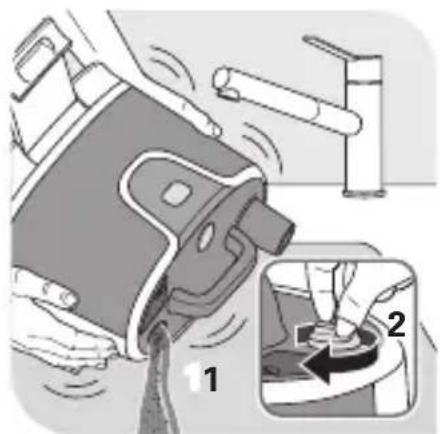

• Rinse the appliance with cold water (cold appliance). - Pour 500 ml of water into the anti-calc opening - Pour 500 ml of water into the hole connection - Gently shake the appliance - Vertically tilt the appliance to empty the water into the sink (fig 25).

• Descale the appliance with a preparation of white vinegar / water (cold appliance). - In a bottle, mix by adding 500 ml of white vinegar and 500 ml of water - Pour half of the bottle into the anti-calc entry - Pour the other half into the hole connection - Leave the product containing the solution over night - Gently shake the appliance - Vertically tilt the appliance to empty the water into the sink (fig 31). AFTER USE

Warning: never remove the Press & Steam accessory for storage before it has completely

dried. Always roll the Press & Steam vertical support for storage. Do not crease it.

Warning: Never touch the steam head until it has cooled down completely.

Do not attempt to lift up or transport the appliance holding the integrated hanger.

• depending on model11 ENEN

• Rinse appliance with cold water. - Pour 500 ml of water into the anti-calc opening - Pour 500 ml of water into the hole connection - Gently shake the appliance - Vertically tilt the appliance to empty the water into the sink

• Re-assemble the hose and ensure it is completely locked in place by turning clockwise (until you hear it click). (fig 32).

• Re-assemble the anti-calc cap by screwing it in completely to ensure that it is watertight but do not overtighten it. (fig 30).

• Fill up the water tank with 1 litre of tap water.

• Plug in the appliance and allow it to steam until no water is left in the tank.

• Your appliance is now ready to use. CAUTION:

• Do not attempt to fill the boiler through the steam head holes.

• Never immerse the steam head in water or any other liquids.

• Never add any liquid into the boiler when appliance is hot.

• Only use white vinegar as solution for descaling your product. Cleaning

• Clean the main unit with a damp cloth.

• Clean the Press & Steam fabric with a damp cloth or non abrasive sponge. Do not use any cleaning products such as soap or detergents. TROUBLESHOOTING

• depending on model Problems Possible causes Solutions There is no steam. The appliance has not been switched on. Check that the appliance has been plugged in correctly. Press the On/Off button. The appliance will begin producing steam after approximately 60 seconds. The hose has been obstructed. Check that the hose is not bent or twisted. Check that the steam head is not laying down on the floor. There is no water left in the water tank. Switch off the appliance and fill the water tank. The steam flow is low. Your steamer has a build- up of scale because it has not been rinsed out regularly or descaled. Follow the «easy descaling» process. The hose has been obstructed. Check that the hose is not bent or twisted.12

• depending on model If you have any further problems or queries please contact the Customer Relations Helpline - see details at the end of this leaflet. Problems Possible causes Solutions Water runs through the holes of the steam head. There is condensation in the hose. Never use the steamer in the horizontal position. Hold the hose vertically outstretched and wait for the condensed water to return to the steamer. The steamer takes a long time to heat and/or ejects white particles. Your steamer has a build- up of scale because it has not been descaled regularly. Follow the «easy descaling» process The Press & Steam accessory is crooked. The Press & Steam accessory has not been assembled properly. Reassemble the Press & Steam accessory inside the integrated hanger. Make sure it is properly hooked in place by following the instructions. The Press & Steam accessory has not been rolled properly. Make sure the Press & Steam accessory is always dry then rolled with care when stored. Do not crease it for storage. The Press & Steam accessory detaches while in use. The Press & Steam accessory was not locked correctly in the hook. Make sure the Press & Steam accessory handle is firmly locked in the hook. It should not be moving horizontally or vertically. Make sure the 4 segments of the pole are fully extended and that the 3 clips are firmly locked. The hose makes a gurgling noise. You are using the steam head in a position close to the ground and some condensation occurs in the hose. Raise the hose frequently during use and adjust the pole to its maximum height in order to avoid the formation of condensation. Water is overflowing from water tank. You are using the steam head in a position close to the ground and some condensation occurs in the hose. Raise the hose frequently during use and adjust the pole to its maximum height in order to avoid the formation of condensation.13 FRFR
