IR7000 - Radio Soundmaster - Free user manual and instructions

Brand	Soundmaster
Model	IR7000
Product type	Digital clock radio with Internet, DAB+, FM, Bluetooth
Power supply	Mains adapter (included)
Main functions	Internet radio, DAB+, FM, Bluetooth, USB playback, AUX input, Dual alarm, Sleep timer, Equalizer, Software update
Care and cleaning	Clean with a dry cloth only. Do not use detergents or abrasive cloths.
Safety	Do not open the device (risk of electric shock). Use only indoors in a dry place. Do not expose to moisture, heat or naked flames. Disconnect during thunderstorms.
Repairability	Repair by an approved service center only. Opening by the user voids the warranty.
Supplied accessories	Mains adapter, remote control (AAA batteries not included), instruction manual
Connectivity	Wi-Fi (WEP/WPA/WPA2), Bluetooth, USB 2.0, AUX input 3.5 mm, headphone output 3.5 mm
Reception	Telescopic antenna for DAB+ and FM
Display	Screen with adjustable backlight (bright, medium, dark) and colour themes
Presets	Up to 30 stations per source (Internet, DAB+, FM)
Alarm	Dual alarm with source selection (Internet, DAB, FM, Buzzer), repeat (daily, once, weekend, weekdays) and snooze function
Sleep timer	Adjustable (SLEEP)
Equalizer	Presets: Normal, Jazz, Rock, Classic, Pop, and custom equalizer (My EQ with treble and bass)
Menu languages	French available (selectable during setup)
Software update	Automatic or manual via Internet
Compatibility	Works with OKTIV app (iOS/Android) for remote control
Dimensions (approx.)	Not specified in the manual

Frequently Asked Questions - IR7000 Soundmaster

How to set the alarm?

Press MENU, select Alarm, then choose alarm 1 or 2. Set the interval (Daily, Once, Weekend, Weekdays), time, source (Internet Radio, DAB, FM or Buzzer), programme (Last listened or preset) and volume (0-32). Confirm with Save.

How to connect the radio to WiFi?

During first startup, the setup wizard guides you. If you need to restart it, go to MENU > Network > Network wizard. Select your network, enter the WEP/WPA/WPA2 password using the navigation dial, then confirm with OK. You can also use the WPS function (push button or PIN code).

How to search for DAB stations?

In DAB mode, press MENU and select Search or Full scan. The radio scans the band and lists available stations. Use TU+/TU- to navigate and OK to select.

How to save a station as a preset?

Listen to the desired station, then press and hold the PRESET button (or one of the 1-4 buttons on the device) until the display shows storage. Turn the dial to choose the location (1-30) and press OK. You can also use the 0-9 keys on the remote control with a long press.

How to use Bluetooth?

Select Bluetooth mode by pressing MODE until Bluetooth is displayed. The BT icon flashes. On your smartphone, enable Bluetooth and search for IR7000. Pair the devices. Once connected, the BT icon becomes steady. You can play music from your phone and control playback (pause, next/previous track) with the radio or remote control buttons.

What to do if the radio finds no DAB stations?

Check that the telescopic antenna is extended and that you are in a covered area. Perform a full scan via MENU > Search. If the problem persists, move the radio near a window or try again later. Make sure DAB signal is available in your area.

How to reset the radio to factory settings?

Go to MENU > System settings > Factory reset. Confirm with OK. Note: this erases your settings (time, network, presets). Internet favorites are kept if you are registered on the portal.

Why is there no sound?

Check that the volume is not turned down (VOLUME knob turned). Make sure no headphones are plugged in (they mute the speakers). If the device is in auto standby (15 min without music), press MODE to wake it. Also check that the selected source is playing (try another station or source).

How to update the software?

By default, the radio checks for updates automatically. For a manual check, go to MENU > System settings > Software update. Select Check now. If an update is available, follow the on-screen instructions. Important: do not disconnect the power during the update.

How to clean the radio?

Use a dry, soft cloth. Never use detergents, abrasive products or solvents. Ensure no liquid enters the device. Always disconnect the mains adapter before cleaning.

USER MANUAL IR7000 Soundmaster

1 2 3 4 FREE Soundmaster ELTE/ Internet radio 14:18 HIT RADIO FFH Able Forder & Lasso Thompson Test, Max Music - Love Run Repeat HOT RADIO FFH Able Forder & Lasso Thompson Test, Max Music - Love Run Repeat HOT RADIO FFH Able Forder & Lasso Thompson Test, Max Music - Love Run Repeat HOT RADIO FFH Able Forder & Lasso Thompson Test, Max Music - Love Run Repeat HOT RADIO FFH Able Forder & Lasso Thompson Test, Max music - Love Run Repeat HOT RADIO FFH Able Forder & Lasso Thompson Test, Max music - Love Run Repeat HOT RADIO FFH Able Forder & Lasso Thompson Test, Max music - Love Run Repeat HOT RADIO FFH Able Forder & Lasso Thompson Test, Max music - Love Run Repeat HOT RADIO FFH Able Forder & Lasso Thompson Test, Max music - Love Run Repeat HOT RADIO FFH Able Forder & Lavo Thompson Test, Max music - Love Run Repeat HOT RADIO FFH Able Forder & Lavo Thompson Test, Max music - Love Run Repeat HOT RADIO FFH Able Forder & Lavo Thompson Test, Max music - Love Run Repeat HOT RADIO FFH Able Forder & Lavo Thompson Test, Max music - Love Run Repeat HOT RADIO FFHU Able Forder & Lavo Thompson Test, Max music - Love Run Repeat HOT RADIO FFHU Able Forder & Lavo Thompson Test, Max music - Love Run Repeat HOT RADIO FFHU Able Forder & Lavo Thompson Test, Max music - Love Run Repeat

DEUTSCH

ENGLISH

FRANÇAIS

NEDERLANDS

ITALIANO

ČEŠTINA

SLOVAK

POLSKA

Hersteller

SOFTWARE UPDATE....8

Setup wizard Start now? YES NO

Schlüssel: 0 1 2 3 4 5 6 7 8 9 . _ - @ , a b c d e f g h i j k l m n o p q r s B K S P O K C A N C E L

Please wait Connecting..\

Setup wizard completed

Press SELECT to exit

QUALITÄT AUDIOSTREAM

Network settings Keep network connected? YES NO*

SPRACHE

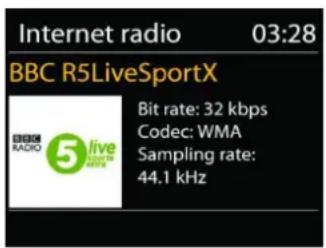

Internet radio Last listened > Station list > System settings > Main menu >

- Stations Liste

Stations Location > Genre > Search stations > Popular stations > New stations >

- Favoriten

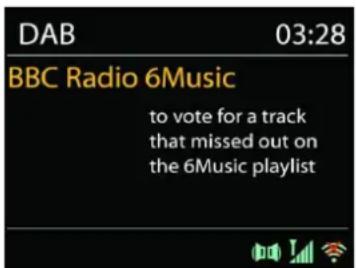

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist

DAB Stations: 15 Scanning /

FM 03:28 Alice 97.3 Best Music in the world

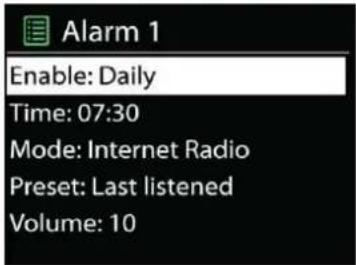

Alarm 1 Enable: Daily Time: 07:30 Mode: Internet Radio Preset: Last listened Volume: 10

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are recyclable according to their labeling. By reusing materials or other forms of recycling old devices and packaging, you are making an important contribution to protecting our environment. If necessary, remove batteries and personal data before disposal free of charge and ask your local authority about the responsible disposal point.

WARNING

Risk of electric shock Do not open!

Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling – no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind. Only return fully discharged batteries ^* marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

To prevent possible hearing damage, do not listen at high volume levels for long periods

• Use the device in dry indoor environments only.
• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.

Safety, Environmental and Setup Instructions

• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.

- Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.

- A damaged mains cable or plug must immediately be replaced by an authorized service center.

- In case of lightning, immediately disconnect the device from the mains supply.

- Children should be supervised by parents when using the device.

- Clean the device with a dry cloth only.

- Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!

• Do not expose the device to direct sunlight or other heat sources.
• Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!

- Install the device at a safe and vibration-free location.

- Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed. - Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.

- No naked flame sources, such as lighted candles, should be placed on the unit.

- When you are necessary to ship the unit store it in its original package. Save the package for this purpose.

- In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.

- If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

TABLE OF CONTENT

LOCATIONS OF CONTROLS ....2

REMOTE CONTROL ....3

STREAMING AUDIO QUALITY....6

EQUALISER....6

NETWORK......6

TIME/DATE 7

INACTIVE STANDBY ....7

LANGUAGE....7

FACTORY RESET ....7

SOFTWARE UPDATE....7

SETUP WIZARD ....7

INFO....7

BACKLIGHT 8

COLOR THEME......8

INTERNET RADIO/PODCASTS 8

DAB....9

FM 10

USB....11

BLUETOOTH ^® 12

AUDIO IN 12

SLEEP....12

ALARM....12

OKTIV 13

HEADPHONE....13

TROUBLESHOOTING....13

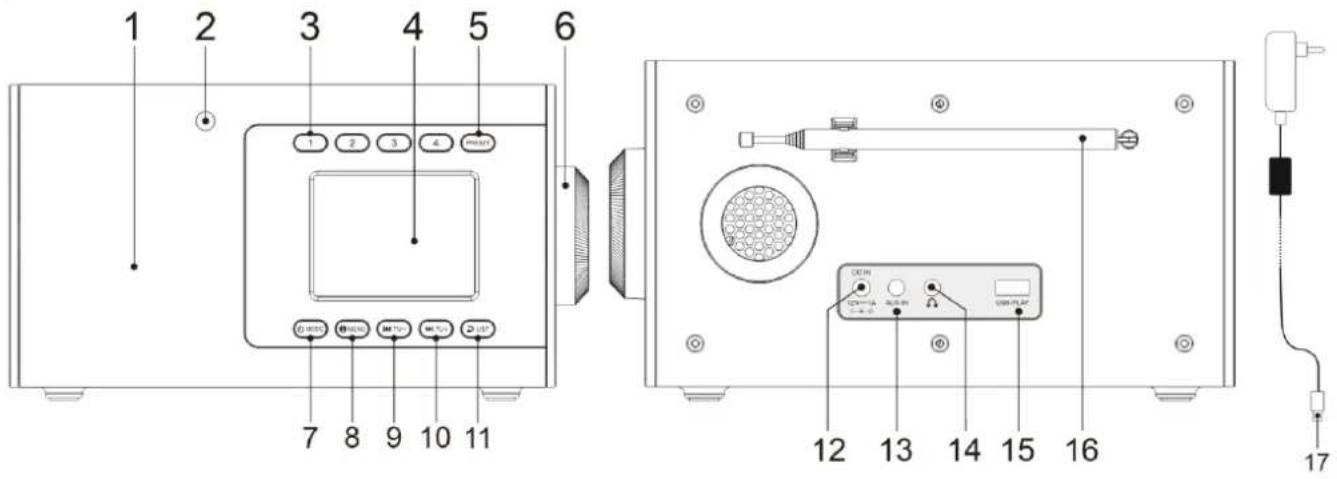

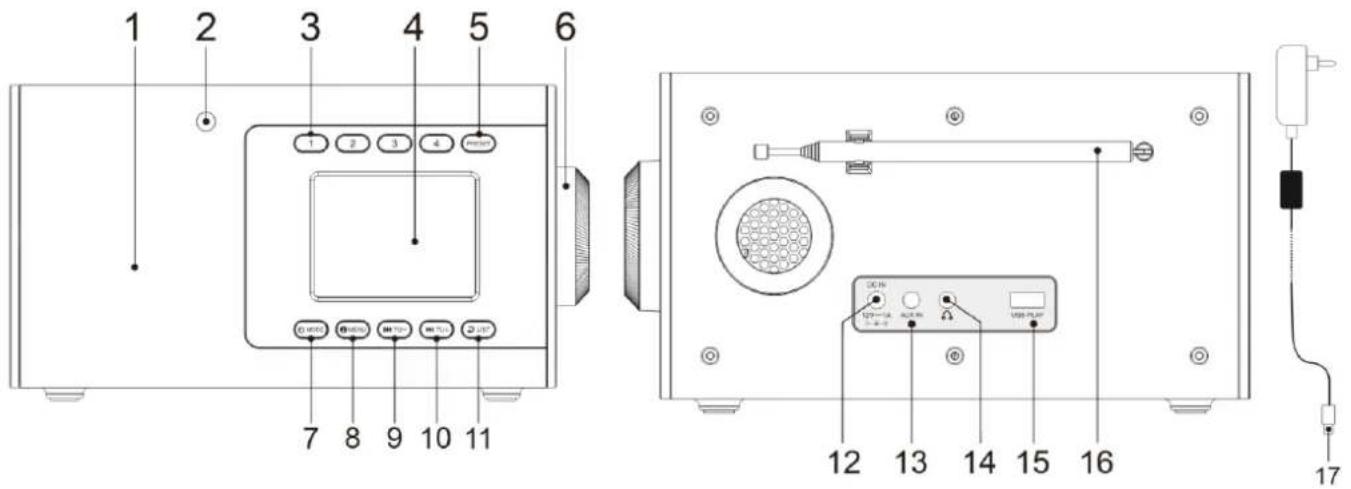

LOCATIONS OF CONTROLS

1 2 3 4 5 6 7 8 9 10 11 DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN

1 Speaker
2 Remote sensor
3 Preset 1 - 4

Long press save station to preset

Short press recall station from preset

4 Display
5 PRESET

Long press opens preset list for save

Short press opens preset list for recall

6 VOLUME +/- NAVIGATE OK /▶II

Rotate for volume and menu navigation
Press for OK, enter Menu and play pause
7 / MODE

Short press for switch ON or select sources.

Long press to switch OFF

8 / MENU

Short press to show station and title information's

Long press to open main menu

9 TU-

DAB short press to go to previous station

FM short press to tune 50 kHz down

FM long press to start auto search downwards

USB select previous song

10 TU+

DAB short press to go to next station

FM short press to tune 50 kHz up

FM long press to start auto search upwards

USB select next song

11 ↩ / LIST

Press to go in menu one step back

Open DAB and internet radio station list.

Switch NAVIGATE to FM manual tuning

12 Power adaptor jack
13 3.5 mm Aux In jack
14 3.5 mm Headphone jack
15 USB port
16 Telescope antenna
17 Power adaptor

REMOTE CONTROL

⏻	Switch ON / OFF the radioAlarm off
SNOOZE	Press repeatedly to set the snooze period
◀/▶	FM mode: Manual tuneDAB mode: Previous/next stationMusic Player/Bluetooth mode: Previous/next track
▶	Music Player/Bluetooth mode: Play/Pause
■	Music Player mode: Stop playback
○	Music Player mode: Repeat playback
×	Music Player mode: Shuffle playback
⊂	Press repeatedly to set the Sleep timer
	Alarm 1, Alarm 2 setupStandby mode: Activation/ Deactivation of alarm function
INFO	Changes the contents shown in the station information (genre / artist / information)
BACK	Opens the Internet radio station search / DAB station listToggles between volume and manual tune setting (FM mode only)Back to the previous menu
EQ	Sound adjustment
MODE	Repeated pressing toggles between operating modes
⚙	Opens the Settings menu for the currently active mode
^/∨	Move up/ down in current menuManual tune (FM), press and hold for FM auto searchOpens the station list (DAB)
VOL+/-	Increases / reduces the volumePrevious / Next in current menu
OK	Confirmation button for opening the menu or functioncurrently highlightedToggling between the presentation forms available (full screen / split screen)
P+/-	Select the preset station up and down
0 ~ 9	Short press: Access favourite storage space 1...30 for current playback modeLong button press: Save the current station to favourite storage space 1...9
PRESET	Short press: Calls up the favourites list to select favouritesLong press: Calls up the favourites list to save the selected station

1. Press and slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure the (+) and (-) ends of the batteries match the (+) and (-) ends indicated in the battery compartment.
3. Close the battery compartment cover.

CONTENT OF DELIVERY

▶ Main unit
Instruction Manual

Power supply
Remote control

GETTING STARTED / SET UP

Connect the unit to a suitable power source using the power supply provided. After showing a starting screen, it will enter the last used listening mode. When the unit is started for the first time, the setup wizard will be launched automatically.

GET THE NETWORK ENVIRONMENT READY

Make sure you have setup the wireless network and you have the WEP, WPA or WPA2 security password to activate the connection.

You may also use the WPS (WiFi Protected Setup) function for easy pairing between the network device and IR7000. Check if the light indicators on the network device are in appropriate status.

SYSTEM SETTINGS

At the first time operation, system asks if you want to start the Setup Wizard. The Setup wizard guides you through the basic setup parameters for Time/Date and Network connection. To change any settings later all setting functions are accessible from the Settings Menu.

Note: If the setup wizard is terminated prematurely without a network setup, the device generates its own WiFi access so that the device can be configured using the OCTIV app.

Setup wizard Start now? YES NO

Network connection indicator:

Wire = Network connection established.
※ = Network connection not established.

1. Language

Select the desired menu language.

2. Product privacy policy

So that the installation can continue, please confirm the privacy policy with the "NAVIGATE / OK" button.

Further information are available under www.frontiersmart.com/privacy

3. Setup wizard

Select the "YES" option to continue with the setup. If you select the "NO" option, the next display asks you whether the setup wizard should be started the next time the device is switched on.

4. Time/Date Display format

Select 12 or 24 as the time format.

5. Auto update

The time and date can be updated manually or automatically from DAB, FM or network. Auto update works with data sent over DAB, FM or the Internet. The clock is only updated when it is in a corresponding mode, so it is suggested to select a mode you use regularly. DAB and FM use time signals broadcast with radio transmissions. Network uses a time signal sent from the Internet radio portal when in any network connected mode.

6. Time zone/daylight

Set your time zone. If your country uses daylight saving and it is in effect, turn on the Daylight saving option. (only available when Auto update from Internet is selected)

Manual update

If you set No update, the wizard prompts you to set the time and date manually. The date and time are displayed as dd-mm-yyyy and hh:mm.

The active value appears as flashing. Adjust each value with the "NAVIGATE" knob. Once the value is set, press the knob to continue setting with next value.

7. Network

Keep Network connected

Select this option when the unit should the network connection in standby keep, when the function is confirmed, the unit wills faster connecting the internet and it is possible to switch on the unit with the "OKTIV" app. The standby power consumption is slightly increased with this function.

WLAN region

Select the WLAN region to obtain the optimal WLAN connectivity: Europe.

Scanning for the network

IR7000 is compatible with all common network protocols and encryption methods. It searches for the available networks and list them out for you. If the device is connected to the network with a LAN cable, select the item "Cable" in the selection.

For the wireless connection, you will be asked for input the encryption in the next step (WiFi only!). To enter the network's key, use the "NAVIGATE" knob to move the cursor through the characters and press "OK" to confirm. As each character is selected, the key is built up near the top of the display.

There are three options accessible by tuning the navigate reel back before the first characters – Backspace, OK and Cancel.

Key: 0 1 2 3 4 5 6 7 8 9 . _ - @ , a b c d e f g h i j k l m n o p q r s B K S P O K C A N C E L

WPS encrypted network

WPS encrypted networks are identified by WPS at the start of the network name when the IR7000 searches the available AP. Use one of the following methods of connection: There is the shortcut WPS key on the unit.

Push button

IR7000 prompts you to press the connect button on the router. It then scans for a ready Push Button Connect network and connects.

WPS Setup ! Push WPS button at the other end Press SELECT to continue

Pin

IR7000 generates an 8-digit code number which you enter into the wireless router, access point, or an external registrar.

WPS Setup Enter PIN 98467583 at the other end Press SELECT to continue

Skip WPS

Enter key as for a standard encrypted network.

For more information on setting up a WPS encrypted network, see your WPS router's instructions.

Completion

IR7000 attempts to connect to the selected network. It will show connected if the setup is successful. If connecting fails, IR7000 returns to a previous screen to try again.

Network settings

Please wait Connecting .. \

Press "OK" to quit the setup wizard.

Setup wizard

Setup wizard completed

Press SELECT to exit

STREAMING AUDIO QUALITY

You can select the streaming audio quality in low norm and high.

EQUALISER

Several preset EQ modes are available: Normal, Jazz, Rock, Classic, Pop and My EQ.

In the My EQ settings, you can create your own EQ with custom bass and treble settings.

Equaliser Normal Jazz Rock Classic Pop

NETWORK

- Network wizard

Enter to search AP SSID, then input the WEP / WPA key or choose Push Button/Pin/Skip WPS to connect to the wireless network.

- PBC Wlan setup

Push Button Configuration, it is to connect the AP that supports WPS (Wi-Fi Protected Setup).

- View settings

View the information of current connected network: Active connection, MAC address, WLAN region, DHCP, SSID, IP address, Subnet mask, Gateway address, Primary DNS and Secondary DNS.

- Manual settings

Choose wireless network connection and enable or disable DHCP (Dynamic Host Configuration Protocol).

• Network profile

IR7000 remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. From here you can see the list of registered networks. You can delete unwanted networks by turning and pressing then choosing YES to confirm delete.

- Clear Network setting

Clears the network settings

- Keep network connected

If you choose to keep network connected, the WiFi will not disconnect even you are in standby mode. Otherwise, the connection will only available in internet radio modes.

This option allows IR7000 to weak it up from standby with OKTIV app.

When keep network connected is selected the standby power consumption is raised.

Network settings Keep network connected? YES NO*

TIME/DATE

Set the time manually or automatically update, time format, time zone and daylight.

INACTIVE STANDBY

This function is switching the unit into standby when for the set time is no button is pressed.

LANGUAGE

Change it as your preference.

FACTORY RESET

A factory reset resets all user settings to default values, so that time and date, network configuration and presets are lost. However, the IR7000 's current software version is maintained, as is registration with the Internet radio portal. Internet radio favourites therefore remain unless you re-register your IR7000 with another account on the portal website.

SOFTWARE UPDATE

From time to time, software upgrades may be created with bug fixes and/or additional features. You can either check manually or set IR7000 to check periodically automatically (this is the default). If newer available software is detected, you will be asked if you want to go ahead with an update. If you agree, the new software is then downloaded and installed. After a software upgrade, all user settings are maintained.

NOTE: Before starting a software upgrade, ensure that IR7000 is plugged into a stable main power connection. Disconnecting power during an upgrade may permanently damage the unit.

SETUP WIZARD

Starts the setup wizard.

INFO

View the firmware version and the radio ID.

BACKLIGHT

You may change the backlight of each environment (Normal or DIM) to High, Medium High, Medium, Medium Low, Low or Off.

You can adjust the timeout when the dim mode should become active.

COLOR THEME

You can select one of four installed color themes.

INTERNET RADIO/PODCASTS

IR7000 can play thousands of radio stations and podcasts from around the world though a broadband Internet connection.

When you select Internet radio, IR7000 directly contacts the Airable portal to get a list of stations.

Internet radio 03:28 BBC R5LiveSportX BIT rate: 32 kbps Codec: WMA Sampling rate: 44.1 kHz

The portal also enables multiple lists of favorite stations that you can personalize.

If you are already listening to an Internet radio station, you can press "BACK" button to quickly return to the last visited branch of the menu tree, rather than "MENU" to go to the first menu of Internet radio mode.

- Last listened

When Internet radio mode restarts, the last-listened station is selected. To select another recently used station, enter here to select the listed station. Most recent stations appear at the top of the list.

Internet radio Last listened > Station list > System settings > Main menu >

- Station list

Browse Internet broadcasts that organized into different categories, Location, Genre, Popular and New. You can also find the station with search by keyword.

Stations Location > Genre > Search stations > Popular stations > New stations >

- Favorites

Favorites are stored with the Internet radio portal, and are available through all Internet radios registered on the same account. Before favorites can be used, the radio has to be registered with the Internet radio portal.

- My added stations

Even though the Internet radio portal contains thousands of stations, you may want to listen to stations not listed. You can add your own via the portal.

To register your IR7000, choose Station list > Favorites or My added stations you will get a code which you have to insert in http://airable.fm/devises webpage.

If this is your first visit to the portal, register for a new account, entering the following information:

• access code
• your e-mail address
• password
• radio model

If you already have an account and wish to add an additional radio, log in to your account and select My preferences > Add another Wi-Fi radio.

Once your radio is registered with the portal, you can immediately use the Internet radio favorites and added stations features.

- Presets

To store an Internet radio podcast preset, press and hold the "PRESET" key until the display shows the "Save preset" screen. Select one of the 30 presets to save the current station and press "OK" to confirm.

To select a preset, press briefly "PRESET" then select one of the listed preset stations and press "OK" to confirm or press 0 to 9 on the Remote Control to directly recall the presets.

• Now playing information

While the stream is playing, the screen shows its name and description. To view further information, press "INFO" button on the radio or Remote Control. Each time you press "INFO" button, another set of information is displayed, cycle through name/description, genre/location, reliability, codec/sampling rate, playback buffer and today's date.

DAB

DAB mode receives DAB or DAB plus digital radio signal and displays information about the station, streaming audio and the program details.

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist

- Scanning for stations

The first time you select DAB radio mode, or if the station list is empty, IR7000 automatically performs a full scan to see what stations are available. You may also need to start a scan manually to update the list of stations for one of the following reasons:

• Available stations change from time to time.
- If reception was not good for the original scan, this may result in an empty or incomplete list of available stations.
- If you have poor reception of some stations (burbling), you may wish to list only stations with good signal strength.

DAB Stations: 15 Scanning /

To start a scan manually, choose Full scan.

Once the scan is complete, the radio shows a list of available stations.

To remove stations that are listed but not unavailable, choose Prune invalid.

- Presets

To store an DAB radio preset, press and hold the "PRESET" on Remote Control until the display shows the "Save preset" screen. Select one of the 30 presets to save the current station and press "OK" to confirm. Or press 0 to 9 on the Remote Control to store the current playing station into the preset directly.

To select a preset, press briefly the "PRESET", then select one of the listed preset stations and press "OK" to confirm. Or press 0 to 9 on the Remote Control to directly recall the presets.

Now playing information

While the stream is playing, the screen shows its name and DLS (Dynamic Label Segment) information broadcast by the station giving real-time information such as program name, track title and contact details. Stereo broadcasts are indicated with an icon at the bottom of the screen. To view further information, press "INFO" button on the radio.

Each time you press "INFO" button on the radio, another set of information is displayed, cycling through DLS text, program type, ensemble name/frequency, signal strength/error rate, bite rate/codec/channels and today's date.

- Settings

Dynamic range compression (DRC)

If you are listening to music with a high dynamic range in a noisy environment, you may wish to compress the audio dynamic range. This makes quiet sounds louder, and loud sounds quieter. You can change DRC as off, low or high.

FM

FM radio mode receives analogue radio from the FM band and displays RDS (Radio Data System) information about the station and where broadcast.

FM 03:28 Alice 97.3 Best Music in the world

To full scan and store the found stations to the presets, press and hold "SCAN" or choose Auto presetting. The frequency display starts to run and scans the FM full band and store the found station to the presets.

To fine tune press the “◀◀” or “▶◀” remote key. The unit search in 0.05 MHz steps.

To start FM auto tuning press and hold "◄◄ or "". ►►

- Preset

To store an FM radio preset, press and hold the "PRESET" button on remote control until the display shows the "Save preset" screen. Select one of the 30 presets to save the current station and press "OK" to confirm. Or press 0 to 9 on the Remote Control to store the current playing station into the preset directly.

To select a preset, press briefly the "PRESET" then select one of the listed preset stations and press "OK" to confirm. Or press 0 to 9 on the Remote Control to directly recall the presets.

• Now playing information

While the stream is playing, the screen shows its frequency, or if RDS signal is available, station name and any further RDS information such as program name, title and other details. Stereo broadcasts are indicated with an icon at the bottom of the screen. To view further information, press Info button on the radio.

Each time you press "INFO" button on the radio, another set of information is displayed, cycling through Radio text, program type, frequency and today's date.

- Settings

Scan settings

Choose FM at first, it will go to a specific station playing. Then press "MENU" on the radio to get above table.

By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations. To change the scan settings to stop only at stations with good signal strength, select "Yes" after choosing Strong station only.

Audio settings

All stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss). To play weak stations in mono, select FM weak reception: Listen in mono only and then YES.

USB

Connect a USB mass storage to this unit to enjoy the device's stored music through the powerful speakers of this unit.

USB playing

1. Insert the USB device into the USB port at the rear side of the unit.
2. Press "MODE" button repeatedly until "Music player" is displayed to select the USB function.
3. Select the wanted title and start play back with "▶"

Skip search and search

• Press the “◀◀” button once or more to skip backward one or more tracks.
• Press the “▶▶” button once or more to skip forward one or more tracks.
• Press and hold the “◀◀” button to search backward for the track position, release the button for playback.
• Press and hold the “▶▶” button to search forward for the track position; release the button for playback.

My Playlist

In stop mode while browsing your USB you can save more as 50 songs to your favorite playlist by press and hold of "OK."

The you can play these songs when you choose My playlist.

REPEAT AND SHUFLLE PLAY

Press “” or “” choose function form USB menu to repeat the song or play the songs in shuffle mode.

BLUETOOTH®

When you select the Bluetooth mode, the device is entering to pairing and the BT icon at the bottom of the screen will flash.

Turn on your smartphone, tablet or other Bluetooth devices to search for the device. The Bluetooth pairing name is "IR7000".

When pairing is successful, the Bluetooth indicator will light up and stop flashing.

To release BT pairing, turn off or unpair your smartphone, table or other Bluetooth devices.

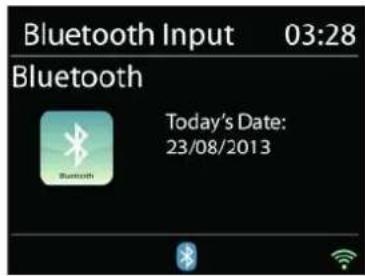

Bluetooth Input 03:28 Bluetooth Today's Date: 23/08/2013

Press “▶” on the radio or Remote Control to start or pause the playback. You can press “◀◀” or “▶◀◀” on the radio or Remote Control to play the previous or next track.

AUDIO IN

Connecting DVD player / Set-Top Box / TV outputs to analogue inputs from the sound board. Use a RCA audio cable to connect the DVD player/TV outputs with the AUX (L/R) input socket from the sound board.

SLEEP

To set the sleep timer, choose "SLEEP" in the main menu or press "C".

Choose from Sleep OFF, 15mins, 30mins, 45mins or 60mins.

Once you select a sleep period, the system returns to the "Now playing" screen.

If you go under Main Menu to Sleep press "MENU" on the unit or Remote Control to return to the "Now playing" screen.

ALARM

There are two versatile wake-up alarms with snooze facility, and a sleep function to turn the system off after a set period. Each alarm can be set to start in a particular mode.

Select Alarm under Main menu or press "for set or change an alarm.

Alarm 1 Enable: Daily Time: 07:30 Mode: Internet Radio Preset: Last listened Volume: 10

Select the alarm number (1 or 2) then configure the following parameters:

• Enable: on/off, Frequency: Daily, Once, Weekends or Weekdays,
• Time
  • Mode: Buzzer, Internet Radio, DAB or FM
• Preset: Last listened, 1 - 30,
  • Volume: 0 - 32

To activate the new settings, scroll down and select Save.

The screen shows active alarms with an icon at the bottom left.

OKTIV

The IR7000 supports remote control from Apple iPhone, iPad and Android using the OKTIV app. The apps are available in Apple's app store and Google's android play.

The UNDOK app allows you to:

• Control all the modes of the IR7000, including Internet Radio, Media Player, USB playback, DAB, FM, Bluetooth and AUX-In
• Setting EQ for various audio presets
• Setting Sleep timer
• Editing the displayed name of the radio.

HEADPHONE

To listen to music privately, use headphones with a 3.5 stereo jack plug and connect it to the headphones socket. The speakers will then be muted.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

TROUBLESHOOTING

Error	Remedy
The device does not switch on.	Check it the power adaptor is connected properly.
Switch automatically off	Due to ErP2 requirements and environmental protection, the unit automatically switches to standby mode when no music is played for more than 15 minutes.
No sound.	1. Turn on the sound as it may be muted2. Increase the volume.3. Pull any connected headphone or speaker from the connector jack.
No network connection can be established.	1. Try to set an IP address at the device.3. Activate the DHCP function on the router and make the connection again at the device.4. A firewall is activated on the network – set the respective program in such a way that access is possible.5. Reboot the router
WiFi connection cannot be established.	1. Check the availability of WLAN network on the router.2. Place the device closer to the router.3. Make sure the password is correct.
No station is found.	1. Check the network as well as the access point and firewall.2. The station may not be available currently, try it again later or select another station.3. The link of the station is changed or the station no longer transmits – ask the provider for information.4. The link of manual added station is not correct, make sure it is correct and re-enter.
Hiss in FM mode	Check/move the FM antenna or move the radio
No stations available / burbling / intermittent in DAB mode.	1. Move the radio.2. Rescan local stations only (high-strength).3. Check the local DAB coverage.
Alarm does not work.	1. Switch on the alarm.2. Due to the volume setting, refer to the solutions of “No sound”.3. The source of alarm was set to be station but there is no network connection. Change the source of alarm or reconfigure the connection.
USB driver or MP3 player is not detected.	1. Check if the USB driver or MP3 player is plugged properly.2. Some USB hard disks need external power supply, make sure it is connected to the power.3. Not all MP3 players can be read directly on the device – use an USB drive instead.
NetRemote does not show or connect to IR7000	1. Reopen the App.2. If you have several streaming from several devices at the same time, it may cause crash, reboot IR3500 and/or your device.
All other undetermined cases.	IR7000 may process large amount of data after a period of operation, no matter in which mode, it will cause the system freeze or malfunction. Reboot IR7000 if necessary.
	The normal function of the product may be disturbed by strong Electro-MagneticInterference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.
	The device may malfunction when used in areas with strong radio interference. The device will work properly again once there is no more interference.
	Under the environment with Conducted Immunity disturbance, the sample may malfunction. It will automatically recover to normal when the Conducted Immunity disturbance stopped.

The current instruction manual can be downloaded from www.soundmaster.de

Technical changes and misprints reserved

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Duplication only with the permission of Woerlein GmbH.

CE

PROTECTION DE L'ENVIRONNEMENT

QUALITÉ DU STREAMING AUDIO....6

EQUALISER....6

RÉSEAU....7

HEURE/DATE 7

VEILLE EN CAS D'INACTIVITÉ....7

LANGUE 7

RÉINITIALISER AUX PARAMÈTRES D'USINE....8

MISE À JOUR LOGICIELLE....8

ASSISTANT DE CONFIGURATION....8

INFO....8

ÉCLAIRAGE D'AFFICHAGE 8

THÈME DE COULEURS....8

RADIO INTERNET/PODCASTS 8

DAB....9

FM 11

USB....12

BLUETOOTH ^® 12

AUDIO IN 12

SOMMEIL....12

ALARME 13

OKTIV 13

CASQUE DE MUSIQUE....13

DÉPANNAGE....13

EMPLACEMENT DES COMMANDES

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

Setup wizard Start now? YES NO

QUALITÉ DU STREAMING AUDIO

Network settings Keep network connected? YES NO*

HEURE/DATE

Internet radio Last listened > Station list > System settings > Main menu >

Stations Location > Genre > Search stations > Popular stations > New stations >

- Favoris

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist

DAB Stations: 15 Scanning /

FM 03:28 Alice 97.3 Best Music in the world

Alarm 1 Enable: Daily Time: 07:30 Mode: Internet Radio Preset: Last listened Volume: 10

LEVERINGSOMVANG....3

PROBLEEMOPLOSSEN ....13

Please wait Connecting .. \

Setup wizard completed

Press SELECT to exit

AUDIOKWALITEIT STREAMEN

Network settings Keep network connected? YES NO*

TIJD/DATUM

Internet radio Last listened > Station list > System settings > Main menu >

- Zenderlijst

Stations Location > Genre > Search stations > Popular stations > New stations >

- Favorieten

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist

DAB Stations: 15 Scanning /

FM 03:28 Alice 97.3 Best Music in the world

Alarm 1 Enable: Daily Time: 07:30 Mode: Internet Radio Preset: Last listened Volume: 10

QUALITÀ DELLO STREAMING AUDIO....6

EQUALIZZATORE 6

RETE....6

TEMPO/DATA....7

STANDBY INATTIVO ....7

LINGUAGGIO 7

RIPRISTINA LE IMPOSTAZIONI DI FABBRICA....7

INGRESSO AUDIO....12

DORMIRE....12

SVEGLIA....12

OKTIV 13

CUFFIA 13

Setup wizard Start now? YES NO

Network settings Please wait Connecting...\

Setup wizard ✓ Setup wizard completed Press SELECT to exit

QUALITÀ DELLO STREAMING AUDIO

Network settings Keep network connected? YES NO*

TEMPO/DATA

Internet radio Last listened > Station list > System settings > Main menu >

Stations Location > Genre > Search stations > Popular stations > New stations >

- Preferiti

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist

DAB Stations: 15 Scanning /

FM 03:28 Alice 97.3 Best Music in the world

Alarm 1 Enable: Daily Time: 07:30 Mode: Internet Radio Preset: Last listened Volume: 10

Setup wizard Start now? YES NO

Schlüssel: 0 1 2 3 4 5 6 7 8 9 . _ - @ , a b c d e f g h i j k l m n o p q r s B K S P O K C A N C E L

Setup wizard ✓ Setup wizard completed Press SELECT to exit

Dokončení

Network settings Please wait Connecting .. \

Network settings Keep network connected? YES NO*

ČAS/DATUM

Internet radio Last listened > Station list > System settings > Main menu >

- Seznam stanic

Stations Location > Genre > Search stations > Popular stations > New stations >

- Oblíbené

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist

• Hledání stanic

DAB Stations: 15 Scanning /

FM 03:28 3 Alice 97.3 Best Music in the world

Alarm 1 Enable: Daily Time: 07:30 Mode: Internet Radio Preset: Last listened Volume: 10

Setup wizard Start now? YES NO

Schlüssel: 0 1 2 3 4 5 6 7 8 9 . _ - @ , a b c d e f g h i j k l m n o p q r s B K S P O K C A N C E L

Šifrovaná siet' „WPS“

Please wait Connecting .. \

Setup wizard completed

Press SELECT to exit

KVALITA VYSIELANÉHO ZVUKU

Network settings Keep network connected? YES NO*

ČAS/DÁTUM

Internet radio Last listened > Station list > System settings > Main menu >

• Zoznam staníc

Stations Location > Genre > Search stations > Popular stations > New stations >

- Obl'úbené

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist

DAB Stations: 15 Scanning /

Ak chcete spustit' vyhl'adávanie, vyberte možnost' „Úplné vyhl'adávanie“.

FM 03:28 Alice 97.3 Best Music in the world

Alarm 1 Enable: Daily Time: 07:30 Mode: Internet Radio Preset: Last listened Volume: 10

1 2 3 4 5 6 7 8 9 10 11 DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN DC IN

Setup wizard Start now? YES NO

WPS Setup Push WPS button at the other end Press SELECT to continue

PIN

Enter PIN 98467583 at the other end

Press SELECT to continue

Pomiń WPS

Please wait Connecting..\

Setup wizard completed

Press SELECT to exit

JAKOŚĆ DŻWIĘKU PRZESYŁANEGO STRUMIENIOWO

Network settings Keep network connected? YES NO*

DATA/GODZINA

Internet radio Last listened > Station list > System settings > Main menu >

- Lista stacji

Stations Location > Genre > Search stations > Popular stations > New stations >

- Ulubione

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist

DAB Stations: 15 Scanning /

FM 03:28 Alice 97.3 Best Music in the world

Alarm 1 Enable: Daily Time: 07:30 Mode: Internet Radio Preset: Last listened Volume: 10

OKTIV (OKTIV) APLIKACJA MOBILNA

D 90556 Cadolzburg, Germany

Hereby, Wörlein GmbH declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

A copy of the declaration of conformity can be obtained from the above address.
