USER MANUAL WBSBSWID576DB Wisberg

1.2 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

1.1 BEDOELD GEBRUIK EN TE VERWACHTEN ONBEDOELD GEBRUIK

WAARSCHUWING! GEVAAR!

3. Dispenser water tray

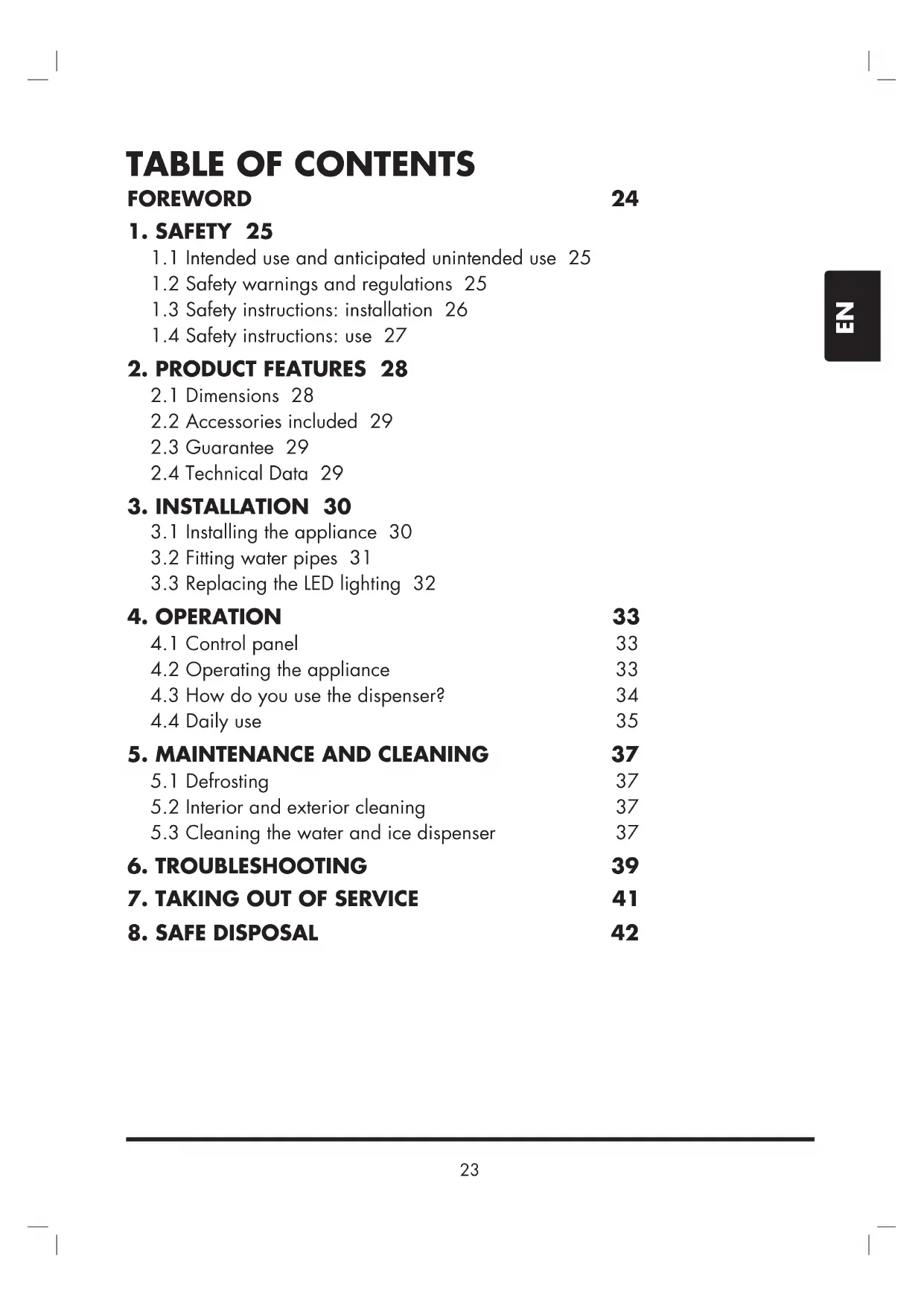

1.1 Intended use and anticipated unintended use 25

1.2 Safety warnings and regulations 25

1.3 Safety instructions: installation 26

1.4 Safety instructions: use 27

2. PRODUCT FEATURES 28

2.2 Accessories included 29

3.2 Fitting water pipes 31

3.3 Replacing the LED lighting 32

4.2 Operating the appliance 33

4.3 How do you use the dispenser? 34

5.2 Interior and exterior cleaning 37

5.3 Cleaning the water and ice dispenser 37

• This manual contains all information for the correct, efcient and safe use of the appliance.

• This manual is intended for the end user and/or buyer of this appliance.

• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.

• Wisepick Productions B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.

• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.

• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual. Original instructions This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading. Symbols used SYMBOL DESCRIPTION Fire hazard and/or ammable materials Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others. Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others. Indicates a situation related to material damage. Indicates useful additional information. You can also nd the latest version of this manual online, at wisberghome.com if you search for the article number. DANGER! CAUTION! ATTENTION! WARNING! NOTE NOTE Copyright The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Wisepick Productions B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Wisepick Productions B.V. and/or the third party to whom the data belong. Wisberg contact details Customer service can be reached at: wisberghome.com Wisepick Productions B.V. Weena 664 3012 CN Rotterdam The Netherlands Made in China25

• This appliance is only intended for use indoors.

• This appliance is not intended for use as a built-in appliance.

• This appliance is intended for domestic use and similar applications such as: - staff kitchens in shops, ofces and other work environments; - farms and guests in hotels, motels, B&B and other residential environments; - catering and similar non-retail applications.

• This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

• Any use of the appliance other than as described in this manual is considered to be unintended use and may result in property and immaterial damage to you or to others, the appliance, your other property or other people’s property and the expiry of the warranty.

• Keep the vents in the appliance housing open.

• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your freezer.

• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance.

• Do not place electrical appliances in the food storage compartments of the freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.

• Never open the appliance and do not perform any repairs to the appliance that are not described in this manual. The appliance may only be opened for maintenance by an authorised service technician.

• It is dangerous to change the characteristics or specications of the appliance or to try to modify this product in any way.

• Do not use this appliance with extension leads or power strips.

• Never use a timer, inverter or a separate remote control that automatically turns the appliance on or off. Do not connect the appliance to an earthed power socket that is regularly switched on or off.

• Do not twist or kink the power cable or roll the cable up. Do not clamp the power cable between the surface and the appliance. This can damage the cable’s insulation.

• Never pull on the power cable to move the appliance or to unplug it from the earthed socket.

• Keep the power cable away from heat, oil, sharp edges or moving parts.

1.2 SAFETY WARNINGS AND REGULATIONS

1.3 SAFETY INSTRUCTIONS: INSTALLATION

• Never leave the power cable in such a way that someone could trip over it or accidentally pull it.

• Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

• Use only the original accessories provided for the installation.

• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.

• Never clean the appliance with aggressive or abrasive cleaners, or sharp objects.

• Cleaning and user maintenance must not be carried out by children without supervision.

• Never drop the appliance and avoid bumping. Dropping or bumping the appliance may affect the proper operation of the appliance. Do not use the appliance if it has been dropped.

• Make sure that the power cable of the installed appliance is always easily accessible.

• Ensure that air can circulate around the appliance.

• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).

• The correct operation of the appliance can only be guaranteed if the specied temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance will function correctly, but energy consumption may increase slightly. CAUTION!

• Do not use the appliance if the power cable is damaged. Never replace the power cable yourself. The power cable may only be replaced by an authorised service technician.

• Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V~50Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.

• Do not store containers containing ammable materials, propellant or explosive substances such as aerosols, rell cartridges for re extinguishers, etc. in the appliance.

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT

• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.

• Always place the appliance on a moisture-resistant and dry surface.

• Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.

• Do not touch the appliance or power cable with wet hands. ATTENTION!27

SN From +10°C to +32°C N From +16°C to +32°C ST From +16°C to +38°C T From +16°C to +43°C

• Do not install the appliance near radiators, stoves, ovens or hobs.

• Do not install the appliance in direct sunlight.

• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of refrigerant used.

• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8 g/m3. The amount of refrigerant contained in the appliance can be found on the type plate.

• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the “Climate Range” table. Climate Range The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct). This type of refrigerator has climate range SN, N, ST.

1.4 SAFETY INSTRUCTIONS: USE

• Do not place carbonated or sparkling drinks in the freezer compartment.

• Do not remove objects from the freezer compartment if your hands are wet/damp as this may cause grazes or frostbite.

• Food storage times recommended by the food manufacturer must be observed.

• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.

• Clean surfaces that may come into contact with food and accessible drainage systems regularly.

• Store raw meat and sh airtight in suitable containers or freezer bags in the appliance so that they do not come into contact with or drip on other foods.

• If the appliance remains empty for a long time, switch it off, clean and dry it and leave the door open to prevent mould forming in the appliance.28

• Figure 1. Front view • Figure 2. Top viewFreezer shelvesIce makerIce storageRefrigerator shelvesVegetables boxVariable temp zoneWater pipe connectorFreezer drawersDoor compartmentDoor compartments

This appliance comes with a guarantee period of three years after purchase. For more information on guarantee conditions, please visit www.coolblue.nl/klantenservice. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee. If you place the appliance in an ambient temperature that is colder than the minimum temperature, the guarantee lapses. Spare parts Spare parts for this appliance are available. To order or nd out more, visit www.coolblue.nl/en/customer-service.

Does not contain freon The freon-free freezerrant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming. Technical data and energy label The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to nd the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance. See link www.theenergylabel.eu for detailed information on the energy label.

2.2 ACCESSORIES INCLUDED

1. Water hose with connectors

Connects the dispenser to the water pipe.

The water lter prevents your water and ice cubes from becoming cloudy or smelling or tasting like chlorine.

3. Dispenser water tray

This container catches the water coming out of the dispenser.

Before installing the appliance, carefully review the safety information (chapter 1).

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

• The location where you place your appliance should be well ventilated.

• Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

• Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so as to guarantee the cooling effect and save on energy consumption.

• Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.

• Do not use the appliance outdoors. This appliance is only intended for use indoors.

3. Installation of the appliance

• This appliance is not intended for use as a built-in appliance.

• Use only the original accessories provided for the installation.

• To reverse the direction in which the door opens, go to section 3.2.

• During operation, the appliance emits heat to the environment. Therefore there must be at least 5 cm clearance on the top, at least 5 cm on both sides and at least 5 cm on the back of the appliance (see also section 2.1).

• Use the front adjusting legs to level the appliance. If the appliance is not level, it is possible that the door may not close properly, reducing the cooling performance of the appliance. If the appliance is not level, this can also lead to malfunctions.

• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.

• It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.

• Always place the appliance on a moisture-resistant and dry surface.

• Place the appliance on a rm and at surface (oor) so that it is stable, otherwise vibrations and noise may occur. When placing the appliance on oor coverings such as carpets, straw mats or polyvinyl chloride (PVC), place a solid sheet or cover under the appliance to prevent colour change due to heat dissipation.

Before putting the appliance into use, clean the interior and all associated accessories with lukewarm water and neutral soap. Dry everything carefully. Do not use solvents or abrasive powders; these may damage the coating.

On rst installation (or after turning the door) wait at least four hours before plugging in the appliance. This allows the oil to ow back into the compressor.

Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. Only connect the appliance to an earthed power socket. After one hour, open the door of the appliance. If the temperature in the appliance is noticeably lower, this indicates that the cooling system is operating normally.

7. Mounting accessories: door compartments and shelves

To store food of different sizes, the door compartments can be set to different heights. Proceed as follows: gradually pull the compartment in the direction of the arrows until it comes loose and put it in the desired position. The walls of the refrigerator are equipped with a series of guide proles so that the shelves can be inserted if desired. To remove the shelf, lift it rst and then pull it out. To put the shelf back in place, push it into place before lowering. For the two-piece shelf, rst push back the rst part and then pull out the second part. Raise the rear edge of the shelf to prevent food coming into contact with the wall lining. Hold the shelf rmly when removing or replacing it and take care to avoid damage.

Water source Connect tube Filter Basin To use the water and ice dispenser, you must rst install the water pipe. You do this in the following steps:

1. Before installing the lter, rinse it for ve minutes or until 5 litres of

water have passed through to remove any toner.

2. Open the fridge door and take out the fresh food drawers.32

Water box Anti-slip clips Water lter parts Connect the water pipes of water box with lter Water pipes Connectors Rubber plugs Water lter (Water flow direction) (Water flow direction) Water source Waterleiding Waterpipe Take of the rubber plug

3.3 REPLACING THE LED LIGHTING

Replacement or maintenance of the LED lighting must be carried out by the manufacturer, its maintenance representative or an equivalent qualied person.

3. Remove the rubber plugs on both

sides of the water box.

4. Remove the water lter from

the accessory bag, insert the connectors on both sides of the lter, then connect the water pipe and clamp it into the anti-slip clips (note the direction of the arrow on the lter). Connect the water pipe and clamp it into the anti-slip clips (note the direction of the arrow on the lter).

5. Mount the water lter parts with the

mounting bracket above the water box and connect the water pipes from the water box to the water lter.

6. Remove the rubber plug. Connect the water pipe section with the connector to the main valve on the compressor

cover and remember to t the anti-slip clips, then connect the end of the water pipe to the water source with the nut. How to use the dispenser can be found in chapter 4.4: “How to use the dispenser?”.33

Carefully review the safety information (Section 1) before you start using the appliance.

Locking or unlocking controls Press and hold the ‘lock’ button (C) for three seconds to activate or deactivate the lock function. Setting the temperature Use button A to select the desired zone to adjust, choosing between refrigerator, freezer and convertible zone. Use button B to adjust the temperature of the selected zone. Setting the refrigerator temperature Press button A to select the refrigerator zone. And then press button B to set the temperature of the refrigerator. With each press of button B, the temperature changes by 1 degree Celsius. The minimum refrigerator temperature to be set is 2 degrees Celsius, the maximum temperature to be set is 8 degrees Celsius. The recommended refrigerator temperature is 4 degrees Celsius. Setting the freezer temperature

Select compartment Setting the temperature of the refrigerator, freezer and convertible zone Mode: Super Freezing / Vacation / Eco mode Ice maker Ice cubes Finely crushed ice Chilled water ID FUNCTION

Super Freezing. The freezer compartment switches to the lowest setting. After 50 hours, it automatically returns to the default set temperature. Vacation mode. Eco mode. The refrigerator and freezer cool on the most energy-efcient setting. Lock. This symbol lights up when the display is locked. Freezer compartment temperature. Refrigerator compartment temperature. ICE OFF. This symbol lights up when you touch the button to close the ice maker. This means the refrigerator stops making ice. Water lter replacement. This symbol comes on when the water lter has been used for six months to remind you to change the water lter. It stays on until you change the lter and press and hold the button for three seconds.

Press button A to select the freezer zone. And then press button B to set the temperature of the freezer. With each press of button B, the temperature changes by -1 degree Celsius. The minimum freezer temperature to be set is -24 degrees Celsius, the maximum adjustable temperature to be set is -16 degrees Celsius. The recommended freezer temperature is -18 degrees Celsius. Setting the temperature of the convertible zone Press button A to select the convertible zone. This is a zone that can be set as both a refrigerator and a freezer. And then press button B to set the temperature of the convertible zone. With each press of button B, the temperature changes by 1 degree Celsius. The minimum convertible zone temperature to be set is -3 degrees Celsius, the maximum temperature to be set is 5 degrees Celsius. Mode With button C (mode) you can choose between 3 additional programmes: Super Freeze, Vacation and Eco. Mode - Super Freeze When this function is selected, the freezer is additionally cooled; the temperature is temporarily reduced to -25 degrees. This function can be used if many products are placed in the freezer at the same time. Press button C (mode) to select the ‘Super Freeze’ mode. After the Super Freeze symbol ashes for 5 seconds, the Super Freeze mode is on and the ‘Super Freeze’ symbol appears on the display. The ‘Super Freeze’ mode switches off automatically after 50 hours. To deactivate the ‘Super Freeze’ mode yourself, press button C, the ‘Super Freeze’ symbol on the display disappears. The freezer automatically returns to the last set temperature. Mode - Vacation Press button C (mode) to select vacation mode. After the vacation symbol ashes for 5 seconds, the vacation mode is on and the ‘Vacation’ symbol appears on the display. This function can be used during long-term absence. When vacation mode is enabled, the refrigerator’s cooling is set to 17 degrees. To deactivate the vacation mode, unlock the display rst. Then press button C (mode) to manually deactivate vacation mode. The ‘Vacation’ symbol on the display disappears. Mode - ECO Press button C (mode) to select ECO mode. After the ECO symbol ashes for 5 seconds, ECO mode is on and the ‘ECO’ symbol appears on the display. This function can be used to use the most energy-efcient setting. Refrigerator and freezer temperatures are set automatically and as energy-efciently as possible. To deactivate the ECO mode, unlock the display rst. Then press button C (mode) to manually deactivate the ECO mode. The ‘ECO’ symbol on the display disappears. Door alarm If the refrigerator door remains open for more than one minute, the door alarm goes off. You can turn this off by closing the door.

4.3 HOW DO YOU USE THE DISPENSER?

You can get ice cubes, crushed ice and chilled water by pressing the selector switch that appears when the control panel is displayed. Attention! If pressed continuously for more than three minutes, the dispenser stops working to protect the electrical components. If you need more chilled water or ice, you can release and press the dispenser again. Getting chilled water Select the chilled water mode, place the cup in the centre of the dispenser. Press the dispenser to receive water and stop pressing after you have taken the right amount of water. The water automatically stops owing.35

• Wait two seconds before removing the cup to prevent the water from splashing out.

• If you need cooler water, ll the glass with ice before taking it;

• If more than 800 ml of water is taken at once, higher-temperature water can come out. In this case, it is recommended to wait half an hour for a cold drink. Taking ice Select the ice cube or crushed ice mode to obtain the desired type of ice. Place the cup in the centre of the dispenser and press to receive ice. Stop pressing when you have enough ice. ATTENTION!

• Wait two seconds before removing the cup to prevent the water from splashing out.

• Place the cup as close as possible to the dispenser outlet to prevent ice from falling out.

• While taking ice, the internal motor runs to churn and break ice, which may produce some noise.

• Use the ice as soon as possible to avoid melting ice.

• Due to the circulation of cold air in the appliance, the temperature in each part of the appliance is different. Therefore, different types of food should be placed in different places.

• Do not place the food close together as this hinders air circulation. Divide food into several compartments according to the table below:

REFRIGERATOR COMPARTMENTS TYPE OF FOOD

Door compartments in the refrigerator compartment Food with natural preservatives such as jam, juice, drink, spices. Do not store any products with a limited shelf life here. Crisper drawer Place fruit, herbs and vegetables separately in the crisper drawer. Do not put bananas, onions, potatoes or garlic in the refrigerator. Refrigerator shelf - centre Dairy products, eggs. Refrigerator shelf - top Food that does not require preparation such as ready meals, cold cuts, leftovers. Freezer drawer(s)/shelf Food for long storage. Bottom drawer for raw meat, poultry, sh. Middle drawer for frozen vegetables, fries. Top drawer for ice cream, frozen fruit, deep frozen pastries. Cooling food

• Always refer to the expiry date of the products to know how long they can be stored.

• Pack food in resealable plastic bags, especially if it has a strong taste, and place on the glass shelves above the crisper drawer. Store food only one or at most two days in this way.

• Store raw meat and sh in appropriate food containers in the refrigerator so that it does not leak or come into contact with other foods.

• Do not place hot food or hot plastic parts in the appliance. Make sure it has cooled to room temperature before putting it in the appliance.

• Cooked food that has cooled sufciently must be covered and can then be placed on any shelf.

• Do not place foods containing a lot of water too close to the back wall of the refrigerator to prevent them from freezing to the inner wall.

• It is best to clean and dry food before storing it in the appliance. It is advisable to store food in sealed packaging in the appliance. This prevents evaporation of water, which keeps fruit and vegetables fresh and also prevents odours. Freezing food36

• The freezer compartment is suitable for freezing fresh food and storing frozen food for a long time.

• The maximum amount of food that can be frozen in 24 hours for this refrigerator is: 13 kg.

• The freezing process takes 24 hours. Do not add any other food to freeze during this period.

• Only freeze fresh and thoroughly cleaned foods.

• Prepare the food in small portions so that it is soon completely frozen and can then be thawed in the desired amount.

• Pack the food in aluminium foil or freezer bags and make sure the packets are airtight.

• Do not allow fresh, non-frozen food to come into contact with food that has already been frozen, and prevent the temperature of the food that has already been frozen from rising.

• Lean foods are better and more durable than fatty foods; salt shortens the shelf life of food.

• Ice lollies, if eaten directly from the freezer, can cause frostbite.

• It is advisable to indicate the freezing date on each individual package in order to keep track of the shelf life.

• It is advisable to keep the time between buying the food and putting it in the freezer as short as possible. Storing frozen food On rst use or after a long period of downtime: run the appliance for at least two hours at the higher settings before putting products in the freezer compartment. The most efcient use of energy is ensured in the conguration with the drawers in the lower part of the appliance and with the shelves evenly distributed. The position of the door trays does not affect energy consumption. Tips for buying frozen goods

• When you buy frozen products, read the storage guidelines on the packaging. You can store any frozen product for the period indicated by the star rating. This usually corresponds to the period stated as “best before” on the front of the package.

• Ensure that frozen food packaging is in perfect condition.

• Always buy frozen products at the end of your shopping trip or visit to the supermarket.

• Try to keep frozen food together while shopping and on the way home as this helps to keep food cooler.

• Only buy frozen food if you can freeze it immediately. In most shops, you can buy special insulating bags. These keep frozen food cold for longer.

• Use good quality food and handle it as little as possible. When food is frozen in small quantities, it takes less time to freeze or thaw it.

• Estimate the amount of food to be frozen. When freezing large quantities of fresh food, set the temperature control button to low mode, this sets the freezer temperature lower. This allows you to freeze the food quickly, keeping it fresh. Saving energy

• Do not open the door more often, or leave it open for longer, than strictly necessary.

• Do not set the temperature too high to save energy unless the characteristics of the food require it.

• If the ambient temperature is high, the temperature control is set to a low temperature and the appliance is fully lled, the compressor can be on continuously, causing ice to form on the evaporator. In this case, set the temperature control to a higher temperature to defrost the evaporator and thus save energy.

• Ensure proper ventilation. Do not cover the vents or holes.

• Place frozen food in the fresh food compartment to defrost: the low temperature of the frozen food helps to cool the fresh food and thus saves energy.

• Replace the door seal in good time to prevent poor door closing.37

Before cleaning the appliance, carefully review the safety information (Section 1).• Always remove the plug from the earthed socket before cleaning the appliance. • Cleaning and user maintenance must not be carried out by children without supervision. • Never touch the plug with wet or moist hands because of the risk of electric shocks and injury. • Do not remove objects from the freezer compartment if your hands are wet/damp as this • may cause grazes or frostbite. • Do not put your hands unprotected in the bottom of the appliance as the sharp metal corners can cause scratches.• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your appliance. • Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.

• Clean surfaces that may come into contact with food and accessible drainage systems regularly. • Never open the appliance. The appliance may only be opened for maintenance by an authorised service technician. • Do not spill water directly onto the appliance to prevent rust, leakage and accidents. • Do not use water jets and steam to clean the appliance. • To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts etc. • The electrical parts of the appliance may only be cleaned with a dry cloth. Once in use, it is best to use the appliance continuously. Under normal circumstances it is best not to interrupt its use in order not to affect the lifetime of the appliance.

This appliance has a No-Frost freezer. This means that defrosting is automatic. If ice does form in the freezer, please contact our customer service as this should not happen.

5.2 INTERIOR AND EXTERIOR CLEANING

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly. • Remove all drawers, shelves, door compartments etc. and clean with a soft cloth or sponge moistened with warm water or a neutral detergent. • If you are using cleaning agents, clean with a soft cloth or sponge, and wipe dry.
• Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this (no water).
• If the appliance will not be used for several months, switch it off, unplug it from the socket, clean and dry it and leave the door open to prevent mould forming in the appliance. For more information on switching off and storage, see Section 7.

5.3 CLEANING THE WATER AND ICE DISPENSER

Use a soft towel to clean the fridge and make sure you turn off the power before cleaning. When cleaning, use clean water and a little washing-up liquid. Do not spray detergent directly on the screen, or the text on the screen may fall off.1. Regularly remove the water container from the dispenser. Pour out the water and wipe the container clean.2. Clean the ice storage cabinet regularly. If the freezer is not used for an extended period or the door is frequently opened, the ice in the storage cabinet may melt and refreeze, causing a blockage in the distributor outlet. The ice has to be removed manually. When cleaning the ice tray, switch off the ice maker to prevent the ice from falling into the fridge or onto the oor. CAUTION! ATTENTION! NOTE38

3. Assembling and disassembling the ice compartment.

Hold the ice maker by the buckle with both hands, lift it approximately 10 mm with some force, then pull it out of the xed buckle. After removing the ice storage cabinet, carefully take out the internal ice by hand and rinse it with clean water. After cleaning, install the ice storage cabinet using the reverse process. ATTENTION!

• Do not use acid, chemical solvents (alcohol, washing-up liquid) or other abrasives;

• After cleaning, dry the icebox thoroughly before placing it in the fridge to prevent the ice from freezing;

• Use a clean towel to clean the ice outlet, do not press too hard on the internal structure to avoid damaging the internal mechanism;

• Do not place anything else in the ice outlet to avoid blocking the ice outlet;

• Do not let children climb on the fridge, otherwise it may fall down and injure people.

• Do not insert ngers, hands or other inappropriate objects into the icebox or ice bucket. This may cause personal injury or material damage.39

You can solve some problems easily yourself using the table below. If the following descriptions do not solve your problem, please contact our customer service: wisberghome.com Only an authorised service technician may solve the malfunctions that are not listed in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

PROBLEM POSSIBLE CAUSE SOLUTIONS

The appliance does not cool at all. - The control knob for the temperature is wrong. - The plug is not inserted properly. - There is no voltage on the socket.

- The fuse is blown or defective. - The appliance is installed in a place where the ambient temperature is less than 10°C, such as a balcony, garage or storage room. - The power has failed.

- The holiday mode is switched on. - Set the thermostat to another position. - Insert the plug properly. - Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician. - Check the fuse and replace if necessary. - Install the appliance in a protected location where the ambient temperature is higher than 10°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly. - Try to open the door of the appliance as little as possible to keep the food safe and fresh for hours. If you know about the power failure beforehand: Set the thermostat button in the high mode an hour in advance, so that the food is frozen completely. (Do not add any other food to freeze during this period!) Set the temperature mode back to the original setting in good time when the power supply is restored. - Turn off the holiday mode, refer to section

4.2 for the instructions.

The temperature in the appliance is too low/high. - The temperature is not set correctly. - The door is not closed properly. - The temperature of the food is too high. - Many products are stored at the same time. - The door has been opened too often. - The ‘Super Cool’ or ‘Super Freeze’ function is enabled. - Set a higher/lower temperature. - Find the cause of the door not closing properly, remove or move possible obstacles. - Allow the food to cool to room temperature before preserving. - Preserve fewer products at the same time. - Only open the door if necessary. - Turn off the ‘Super Cool’ and/or ‘Super Freeze’, refer to section 4.2 for the instructions. Strange smell in the appliance. - There is spoiled food in the appliance. - The appliance is not clean. - Food with a strong smell is present in the appliance. - Throw away spoiled food. - Clean the appliance. - Pack food with a strong smell.40

PROBLEM POSSIBLE CAUSE SOLUTIONS

The door does not open easily. - You tried to open the door immediately after closing. - Wait a few seconds between closing and re-opening the door. The compressor works continuously. - Too many products are stored at the same time. - The room temperature is too high. - The food placed in the appliance was too hot. - The door is not closed properly. - Wait a few hours and then check the temperature again. - Please refer to Section 4. - Allow food to cool to room temperature before storing. - See the next section. The side panels are hot. - This is normal. The heat exchanger components are on the side of the appliance. Immediately after installation, the sides become hot, after the fridge reaches its internal temperature, the temperature of the side panels will decrease. Abnormal noise - The appliance is not stable/level. - The appliance is making contact with the wall or other objects. - ‘Super Freeze’ mode has been turned on. - Readjust the appliance’s adjusting legs. - Move the appliance slightly. - This is normal. ‘Super Freeze’ mode uses the maximum power of the appliance. The temperature cannot be set. - ‘Super Cool’ or ‘Super Freeze’ mode has been turned on. - The control panel is locked. - See Section 4 ‘Use’ to deactivate ‘Super Freeze’ and set the temperature. - Turn off the control lock, refer to section 4.2 for the instructions. The appliance freezes too much. - The temperature of the appliance is set too high. - ‘Super Freeze’ mode has been turned on. - See Section 4 for information on how to set the temperature.The recommended temperature setting for this appliance is -18°C. - See Section 4.3 for information on how to turn off ‘Super Freeze’ mode. The alarm goes off. - The door is open. - The temperature in the appliance is too high. - Close the door and make sure that the - door remains properly closed. Remove any blockages. The alarm goes off when the door is closed.41

Switching off and storage

• If the appliance will not be used for several months, rst switch it off and then pull the plug out of the socket.

• Make sure the appliance is completely thawed.

• Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.

• Clean the door gasket groove with soap and water and wipe everything dry with a soft cloth.

• Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.

• Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.

• The appliance in storage must not be accessible to children playing. Waste processing

• Refrigerants and the cyclopentane foam used for the appliance are ammable. When the appliance is disposed of, it must therefore be kept away from sources of re and collected or returned to a qualied waste processing company.

• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.

• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance. The materials used in this appliance marked with this symbol are recyclable. This marking indicates that, throughout the EU, this product must not be disposed of with the household waste. This symbol indicates that the device must not be disposed of with other household waste within the EU. By disposing of the device properly, you help to prevent possible dangers to the environment and human health. The recycling of materials contributes to the conservation of natural resources. Therefore, do not dispose of discarded electronic devices with household waste. When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of electronic equipment. You can also contact Wisepick Productions B.V. if you no longer wish to use the device or to return the device.

• The refrigerants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.

• Avoid damaging the cooling unit, especially the heat exchanger. DANGER! ATTENTION! Wisberg contact details Customer service can be reached at: wisberghome.com Wisepick Productions B.V. Weena 664 3012 CN Rotterdam The Netherlands Made in China42

PROBLÈME CAUSE POSSIBLE SOLUTIONS

PROBLÈME CAUSE POSSIBLE SOLUTIONS
