USER MANUAL WBKK185FZDW Wisberg

1.2 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

1.1 BEDOELD GEBRUIK EN TE VERWACHTEN ONBEDOELD GEBRUIK

WAARSCHUWING! GEVAAR!

1.1. Intended use and anticipated unintended use 25 1.2. Safety warnings and regulations 25 1.3. Safety instructions: installation 26 1.4. Safety instructions: use 27

2. Product features 28

3.3 Replacing the LED lighting 34

5. Maintenance and cleaning 37

6. Troubleshooting 38

7. Taking out of service 39

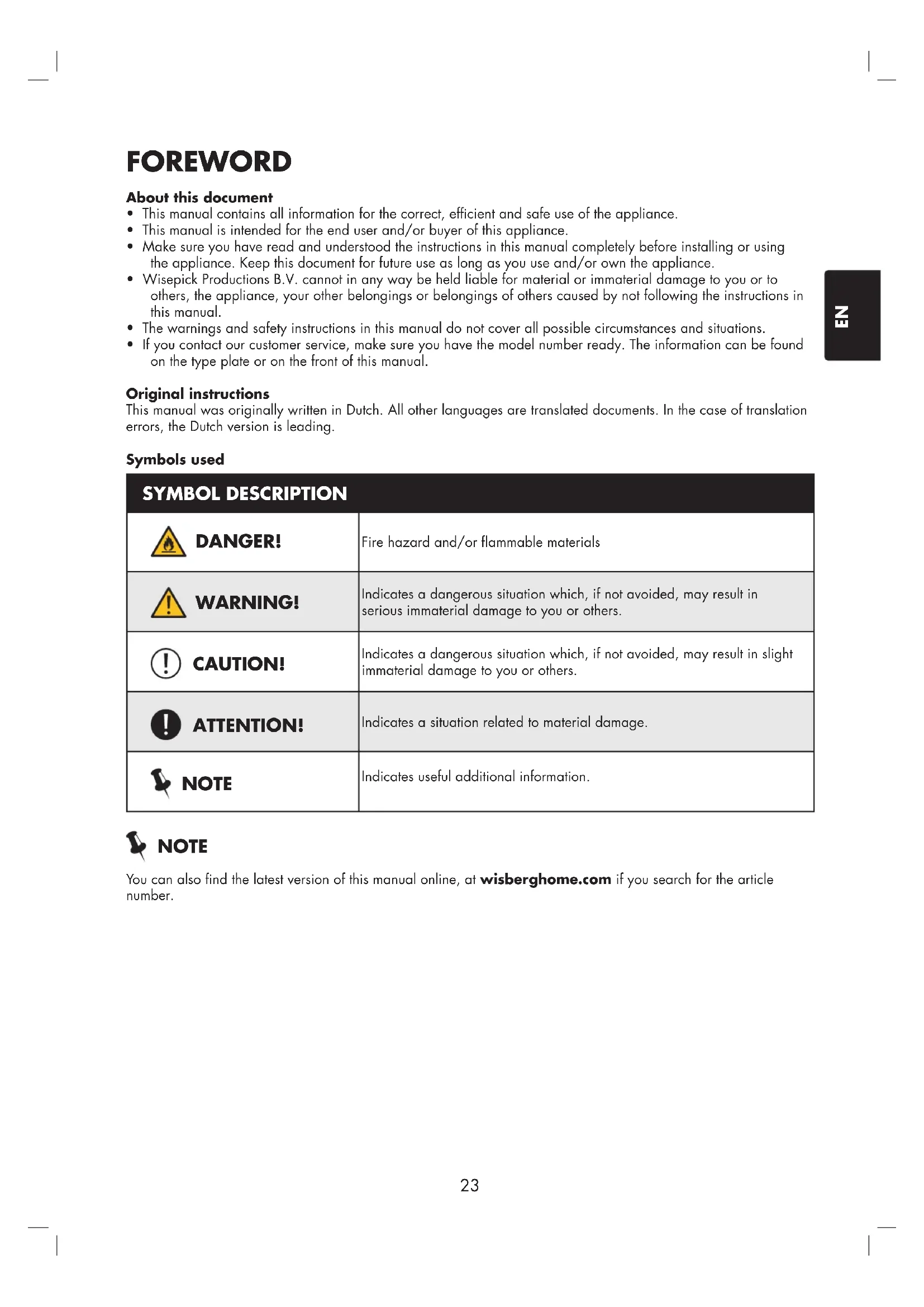

• This manual contains all information for the correct, efcient and safe use of the appliance.

• This manual is intended for the end user and/or buyer of this appliance.

• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.

• Wisepick Productions B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.

• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.

• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual. Original instructions This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading. Symbols used SYMBOL DESCRIPTION Fire hazard and/or ammable materials Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others. Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others. Indicates a situation related to material damage. Indicates useful additional information. You can also nd the latest version of this manual online, at wisberghome.com if you search for the article number. DANGER! CAUTION! ATTENTION! WARNING! NOTE NOTE24

Copyright The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Wisepick Productions B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Wisepick Productions B.V. and/or the third party to whom the data belong. Wisberg contact details Customer service can be reached at: wisberghome.com Wisepick Productions B.V. Weena 664 3012 CN Rotterdam The Netherlands Made in China25

• This appliance is only intended for use indoors.

• This appliance is not intended for use as a built-in appliance.

• This appliance is intended for domestic use and similar applications such as: - staff kitchens in shops, ofces and other work environments; - farms and guests in hotels, motels, B&B and other residential environments; - catering and similar non-retail applications.

• This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

• Any use of the appliance other than as described in this manual is considered to be unintended use and may result in property and immaterial damage to you or to others, the appliance, your other property or other people’s property and the expiry of the warranty.

• Keep the vents in the appliance housing open.

• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance.

• Never open the appliance and do not perform any repairs to the appliance that are not described in this manual. The appliance may only be opened for maintenance by an authorised service technician.

• It is dangerous to change the characteristics or specications of the appliance or to try to modify this product in any way.

• Do not use this appliance with extension leads or power strips.

• Never use a timer, inverter or a separate remote control that automatically turns the appliance on or off. Do not connect the appliance to an earthed power socket that is regularly switched on or off.

• Do not twist or kink the power cable or roll the cable up. Do not clamp the power cable between the surface and the appliance. This can damage the cable’s insulation.

• Never pull on the power cable to move the appliance or to unplug it from the earthed socket.

• Keep the power cable away from heat, oil, sharp edges or moving parts.

• Do not use the appliance if the power cable is damaged. Never replace the power cable yourself. The power cable may only be replaced by an authorised service technician.

• Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V~ 50Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.

• Never leave the power cable in such a way that someone could trip over it or accidentally pull it.

• Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

• Use only the original accessories provided for the installation.

• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.

• Never clean the appliance with aggressive or abrasive cleaners, or sharp objects.

• Cleaning and user maintenance must not be carried out by children without supervision.

• Never drop the appliance and avoid bumping. Dropping or bumping the appliance may affect the proper operation of the appliance. Do not use the appliance if it has been dropped.

• Make sure that the power cable of the installed appliance is always easily accessible.

• Ensure that air can circulate around the appliance.

• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).

• The correct operation of the appliance can only be guaranteed if the specied temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance will function correctly, but energy consumption may increase slightly.

• Do not install the appliance near radiators, stoves, ovens or hobs.

• Do not install the appliance in direct sunlight.

• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of refrigerant used. CAUTION!

• Do not store containers containing ammable materials, propellant or explosive substances such as aerosols, rell cartridges for re extinguishers, etc. in the appliance.

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT

• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.

• Always place the appliance on a moisture-resistant and dry surface.

• Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.

• Do not touch the appliance or power cable with wet hands. ATTENTION!27

SN From +10°C to +32°C N From +16°C to +32°C ST From +16°C to +38°C T From +16°C to +43°C

• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8 g/m3. The amount of refrigerant contained in the appliance can be found on the type plate.

• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the “Climate Range” table. Climate Range The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct). This type of refrigerator has climate range SN, N, ST.

• Food storage times recommended by the food manufacturer must be observed.

• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.

• Clean surfaces that may come into contact with food and accessible drainage systems regularly.

• Store raw meat and sh airtight in suitable containers or freezer bags in the appliance so that they do not come into contact with or drip on other foods.

• If the appliance remains empty for a long time, switch it off, clean and dry it and leave the door open to prevent mould forming in the appliance.28

• Figure 1. Front view• Figure 2. Top view*Figures 1 and 2 illustrate the space required for the appliance.

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

• The location where you place your appliance should be well ventilated.

• Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

• Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so as to guarantee the cooling effect and save on energy consumption.

• Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.

• Do not use the appliance outdoors. This appliance is only intended for use indoors.

3. Installation of the appliance

• This appliance is not intended for use as a built-in appliance.

• Use only the original accessories provided for the installation.

• To reverse the direction in which the door opens, go to section 3.2.

• During operation, the appliance emits heat to the environment. Therefore there must be at least 5 cm clearance on the top, at least 10 cm on both sides and at least 5 cm on the back of the appliance (see also section 2.1).

• Use the front adjusting legs to level the appliance. If the appliance is not level, it is possible that the door may not close properly, reducing the cooling performance of the appliance. If the appliance is not level, this can also lead to malfunctions.

• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.

• It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation. Before installing the appliance, carefully review the safety information (chapter 1).

2.2. GUARANTEE This appliance comes with a guarantee period of three years after purchase. For more information on guarantee conditions, please visit wisberghome.com. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee. If you place the appliance in an ambient temperature that is colder than the minimum temperature, the guarantee lapses. Spare parts Spare parts for this appliance are available. To order or nd out more, visit wisberghome.com. 2.3. TECHNICAL DATA Does not contain freon The freon-free freezerrant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming. Technical data and energy label The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to nd the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance. See link www.theenergylabel.eu for detailed information on the energy label.

• Always place the appliance on a moisture-resistant and dry surface.

• Place the appliance on a rm and at surface (oor) so that it is stable, otherwise vibrations and noise may occur. When placing the appliance on oor coverings such as carpets, straw mats or polyvinyl chloride (PVC), place a solid sheet or cover under the appliance to prevent colour change due to heat dissipation.

Before putting the appliance into use, clean the interior and all associated accessories with lukewarm water and neutral soap. Dry everything carefully. Do not use solvents or abrasive powders; these may damage the coating.

On rst installation (or after turning the door) wait at least four hours before plugging in the appliance. This allows the oil to ow back into the compressor.

Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. Only connect the appliance to an earthed power socket. After one hour, open the door of the appliance. If the temperature in the appliance is noticeably lower, this indicates that the cooling system is operating normally.

7. Mounting accessories

- Adjustable shelves The walls of the appliance are equipped with a series of guide proles so that the shelves can be inserted if desired. - Installing the door compartments To store food of different sizes, the door compartments can be set to different heights. Proceed as follows: gradually pull the compartment in the direction of the arrows until it comes loose and put it in the desired position.

• To remove the door, the appliance must be tilted backwards. We recommend doing this with two people. Rest the appliance on a rm surface so that it does not slip away as you reverse the door.

• Keep all removed parts to remount the door later.

• Do not lay the appliance down at. This can damage the cooling system. If the appliance does have to be placed on its back or side for some time during this process, it must be able to stand upright for four hours before connecting it to prevent damage to the internal components.

• Crosshead screwdriver

• Flat head screwdriver

• Adjustable spanner Necessary tools: Handle 1x Left hinge cover 1xLeft closure guide 1x Handle cover 2x Screws 2x Parts included:

2. Remove the wiring covers at the

3. Unscrew the cover top right

and disconnect the door switch connector and the display.

and take the left safety closure included with the accessories supplied and install it on the left side.

the adjustable foot from the left to the right.

and move it from the right to the left. Now install the lower hinge on the left side of the appliance.

move it from the bottom to the top. Remove the door switch from the right hinge cover and install it in the left hinge cover included in the accessories supplied.

9. Unscrew the top cover on the

left, move it and install it on the right.

10. Remove the refrigerator and

freezer door gaskets, then rotate and reattach them.

11. Install the door and move the

connecting wires from the right to the left.

adjust the top hinge slightly during installation to ensure that the door seal is properly sealed.34

14. Install the wiring cover caps.

1. Remove the covers from the

2. The handle is in a freezer

drawer. Screw the handle to the door using the screws supplied.

3. Place the handle covers over the

This product contains a LED light source of energy efciency class G. Replacement or maintenance of the LED lighting must be carried out by the manufacturer, its maintenance representative or an equivalent qualied person.35

Carefully review the safety information (Section 1) before you start using the appliance.

1. FRIDGE: Temperature control of the appliance

2. SUPER: Switch ‘Super mode’ on or off

3. ALARM/VACATION: Switch door open alarm on or off,

‘Vacation-mode’ on or off.

4. LOCK: Lock and unlock the control panel.

*The buttons only work when the appliance is unlocked. The buttons emit a beep when touched.

2. Temperature setting

The temperature of the refrigerator can be set by pressing the ‘FRIDGE’ button. After the last setting, the display continues to ash for 5 seconds. After this, the desired temperature is set and this is shown on the display. (5). The following settings are possible: 2 to 8 degrees and ‘Super mode’. The recommended setting is 4. Before rst use, the control panel must be unlocked. You do this by pressing the ‘lock’ button (4) for three seconds. ATTENTION!

3. Enable ‘Supermode’

When the ‘Supermode’ function is enabled, the temperature in the box will be cooled quickly, which helps prevent any loss of the food’s nutritional value and preserve its freshness. Press the ‘Super’ button (2) to select ‘Supermode’. After the ‘Supermode’ indicator has blinked for ve seconds, ‘Supermode’ is enabled. When ‘Supermode’ is selected, the ‘Supermode’ indicator will illuminate and display 2°C. When ‘Supermode’ is enabled, the temperature of the appliance cannot be changed. In this case, the ‘Supermode’ indicator ashes three times. If the temperature needs to be changed, rst switch off ‘Supermode’. To switch off ‘Supermode’:

• Press the ‘Super’ button to switch off ‘Supermode’.

• Once ‘Supermode’ is switched on, and the appliance is not reset, ‘Supermode’ will automatically switch off after 3 hours. The appliance returns to the last set temperature setting. *In ‘Supermode’ the appliance will consume more energy than normal. The most energy-efcient mode for this appliance is 4°C. In ‘Supermode’ the appliance may emit slightly more noise.

This function can be used during long-term absence. When the vacation mode is switched on, the fridge cooling is switched off completely. To activate the vacation mode, press the ‘ALARM/VACATION’ (3) button for three seconds. The ‘Vacation’ symbol (7) on the display will light up. To deactivate holiday mode, press the ‘ALARM/VACATION’ (3) button for three seconds. The ‘Vacation’ symbol (7) on the display will go out. The appliance will return to the last set fridge.

If the door remains open for more than 90 seconds, the door alarm goes off. You can disable it by closing the door properly or by pressing the ‘ALARM/VACATION’ button.36

• The manufacturer’s storage recommendations must be strictly followed. Please refer to the respective instructions.

• Do not keep the door open for too long; this can cause a sharp increase in temperature in the compartments of the appliance.

Press the ‘Lock’ button for 3 seconds to lock the control panel. The display shows the lock and unlock symbol. When the lock is on, the device settings cannot be changed. In this case, the ‘Lock’ indicator ashes 3 times on the display. If the device needs to be set, rst deactivate the lock by pressing and holding the ‘Lock’ button for 3 seconds. If the control is unlocked, all buttons are available. If no operation takes place within 25 seconds no operation takes place, the control panel is automatically locked.

This refrigerator also includes a cooling drawer (above the vegetable drawers). The temperature of the cooling drawer can be set between -3ºC and 3ºC to cool food for a short period, such as raw meat, sh, seafood, drinks, beer, red wine, and delicacies.

• Always refer to the expiry date of the products to know how long they can be stored.

• Pack food in resealable plastic bags, especially if it has a strong taste, and place on the glass shelves above the crisper drawer. Store food only one or at most two days in this way.

• Store raw meat and sh in appropriate food containers in the refrigerator so that it does not leak or come into contact with other foods.

• Do not place hot food or hot plastic parts in the appliance. Make sure it has cooled to room temperature before putting it in the appliance.

• Cooked food that has cooled sufciently must be covered and can then be placed on any shelf.

• Do not place foods containing a lot of water too close to the back wall of the refrigerator to prevent them from freezing to the inner wall.

• It is best to clean and dry food before storing it in the appliance. It is advisable to store food in sealed packaging in the appliance. This prevents evaporation of water, which keeps fruit and vegetables fresh and also prevents odours. 4.3. SAVING ENERGY

• The most efcient use of energy is ensured in the conguration with the drawers in the lower part of the appliance and with the shelves evenly distributed. The position of the door trays does not affect energy consumption.

• Do not open the door or leave it open more often than necessary.

• Do not set the temperature too high to save energy unless the characteristics of the food require it.

• If the ambient temperature is high, the temperature control is set to a low temperature and the appliance is fully lled, the compressor can be on continuously, causing ice to form on the evaporator. In this case, set the temperature control to a higher temperature to enable automatic defrosting to save energy.

• Ensure proper ventilation. Do not cover the vents or holes.

• Replace the door gasket in good time to prevent poor door closing.37

Before cleaning the appliance, carefully review the safety information (Section 1).

• Always remove the plug from the earthed socket before cleaning the appliance.

• Cleaning and user maintenance must not be carried out by children without supervision.

• Never touch the plug with wet or moist hands because of the risk of electric shocks and injury.

• Do not put your hands unprotected in the bottom of the appliance as the sharp metal corners can cause scratches.

• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.

• Clean surfaces that may come into contact with food and accessible drainage systems regularly.

• Never open the appliance. The appliance may only be opened for maintenance by an authorised service technician.

• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.

• Do not use water jets and steam to clean the appliance.

• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts etc.

• The electrical parts of the appliance may only be cleaned with a dry cloth.

Once in use, it is best to use the appliance continuously. Under normal circumstances it is best not to interrupt its use in order not to affect the lifetime of the appliance.

INTERIOR AND EXTERIOR CLEANING

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly.

• Remove all drawers, shelves, door compartments etc. and clean with a soft cloth or sponge moistened with warm water or a neutral detergent.

• If you are using cleaning agents, clean with a soft cloth or sponge, and wipe dry.

• Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this (no water).

• If the appliance will not be used for several months, switch it off, unplug it from the socket, clean and dry it and leave the door open to prevent mould forming in the appliance. For more information on switching off and storage, see Section 7. CAUTION! ATTENTION! NOTE38

PROBLEM POSSIBLE CAUSE SOLUTIONS

The appliance does not cool at all. - The control knob for the temperature is wrong. - The plug is not inserted properly. - There is no voltage on the socket.

- The fuse is blown or defective. - The appliance is installed in a place where the ambient temperature is less than 10°C, such as a balcony, garage or storage room.

- The power has failed. - Set the thermostat to another position. - Insert the plug properly. - Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician. - Check the fuse and replace if necessary. - Install the appliance in a protected location where the ambient temperature is higher than 10°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly. - Try to open the door of the appliance as little as possible to keep the food safe and fresh for hours. The temperature in the appliance is too low/high. - The temperature is not set correctly. - The door is not closed properly. - The temperature of the food is too high. - Many products are stored at the same time. - The door has been opened too often. - Set a higher/lower temperature. - Find the cause of the door not closing properly, remove or move possible obstacles. - Allow the food to cool to room temperature before preserving. - Preserve fewer products at the same time. - Only open the door if necessary. Strange smell in the appliance. - There is spoiled food in the appliance. - The appliance is not clean. - Food with a strong smell is present in the appliance. - Throw away spoiled food. - Clean the appliance. - Pack food with a strong smell. The door does not open easily. - You tried to open the door immediately after closing. - Wait a few seconds between closing and re-opening the door. The compressor works continuously. - Too many products are stored at the same time. - The room temperature is too high. - The food placed in the appliance was too hot. - The door is not closed properly. - Wait a few hours and then check the temperature again. - Please refer to Section 4. - Allow food to cool to room temperature before storing. - See the next section. You can solve some problems easily yourself using the table below. If the following descriptions do not solve your problem, please contact our customer service: wisberghome.com. Only an authorised service technician may solve the malfunctions that are not listed in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.39

PROBLEM POSSIBLE CAUSE SOLUTIONS

The alarm goes off. - The door is open. - Make sure the door is completely closed and stays closed. Press the ‘Alarm/Eco’ button The side panels are hot. - This is normal. The heat exchanger components are on the side of the appliance.Immediately after installation, the sides become hot, after the fridge reaches its internal temperature, the temperature of the side panels will decrease. Abnormal noise - The appliance is not stable/level. - The appliance is making contact with the wall or other objects. - ‘Super mode’ is enabled. - Readjust the appliance’s adjusting legs. - Move the appliance slightly. - This is normal. ‘Super mode’ uses the maximum power of the appliance. The temperature cannot be set. - ‘Super mode’ is enabled. - The control panel is locked. - Go to Chapter 4 ‘Use’ to switch off the function and set the temperature. Check the symbol on the display to turn off the corresponding function. The lamp is broken. - The lamp is broken. - Contact customer service. Switching off and storage

• If the appliance will not be used for several months, rst switch it off and then pull the plug out of the socket.

• Make sure the appliance is completely thawed.

• Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.

• Clean the door gasket groove with soap and water and wipe everything dry with a soft cloth.

• Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.

• Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.

• The appliance in storage must not be accessible to children playing.

• Refrigerants and the cyclopentane foam used for the appliance are ammable. When the appliance is disposed of, it must therefore be kept away from sources of re and collected or returned to a qualied waste processing company.

• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.

• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance. The materials used in this appliance marked with this symbol are recyclable. This marking indicates that, throughout the EU, this product must not be disposed of with the household waste. This symbol indicates that the device must not be disposed of with other household waste within the EU. By disposing of the device properly, you help to prevent possible dangers to the environment and human health. The recycling of materials contributes to the conservation of natural resources. Therefore, do not dispose of discarded electronic devices with household waste. When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of electronic equipment. You can also contact Wisepick Productions B.V. if you no longer wish to use the device or to return the device.

• The refrigerants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.

• Avoid damaging the cooling unit, especially the heat exchanger. Wisberg contact details Customer service can be reached at: wisberghome.com Wisepick Productions B.V. Weena 664 3012 CN Rotterdam The Netherlands Made in China DANGER! ATTENTION!41
