USER MANUAL Bubble WECAUAOA KRAMPOUZ

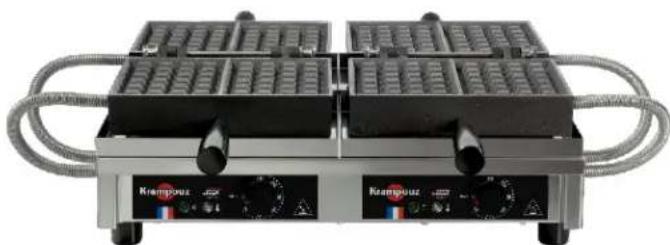

4 x 5 Liège WECAFC 1400 W WECAFA 1400 W WECBFA 1400 W WECAFB 2800 W

WECALA 1400 W WECBLA 1400 W WECALB 2800 W

Attention, surface chaude

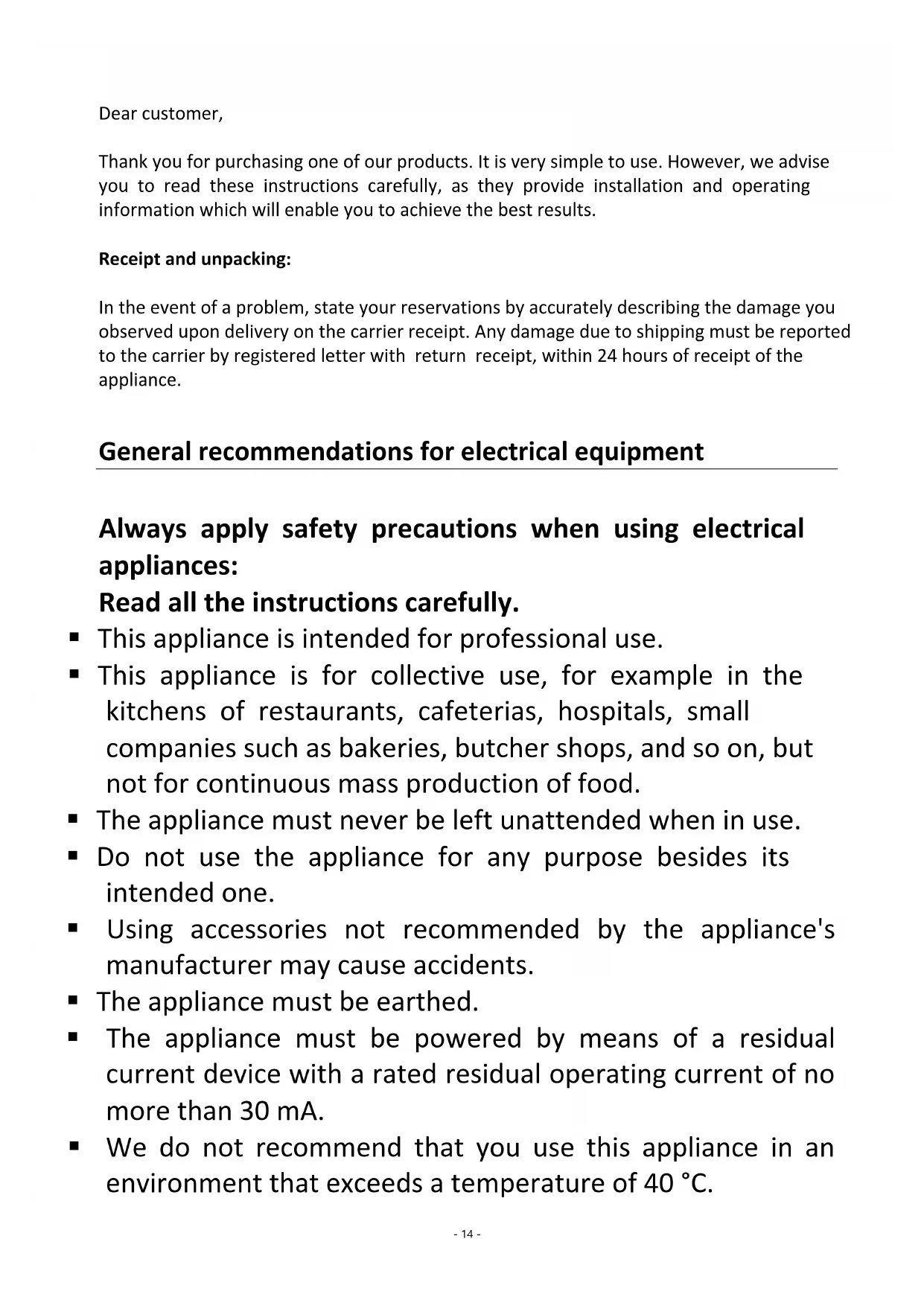

• This appliance is intended for professional use.

• This appliance is for collective use, for example in the kitchens of restaurants, cafeterias, hospitals, small companies such as bakeries, butcher shops, and so on, but not for continuous mass production of food.

• The appliance must never be left unattended when in use.

• Do not use the appliance for any purpose besides its intended one.

• Using accessories not recommended by the appliance's manufacturer may cause accidents.

• The appliance must be earthed.

• The appliance must be powered by means of a residual current device with a rated residual operating current of no more than 30 mA.

• We do not recommend that you use this appliance in an environment that exceeds a temperature of 40 °C.- 15 -

• We recommend that you inspect the power lead regularly for any sign of damage.

• Do not connect or use an appliance with a damaged lead or plug. If the power supply cable becomes damaged, it must be replaced by the distributor, its after-sales service or qualified individuals in order to avoid any danger.

• If the appliance has been damaged, return it to your local approved repairer or to your point of sale for inspection and repair.

• The appliance is not intended to be operated using an external timer or separate remote control system.

• When using an extension cord, it must be unwound fully to prevent the cable from overheating.

• Always connect and disconnect the power lead, with the setting on the lowest temperature.

• To prevent electric shock, do not immerse the lead, plug or body of the appliance in water or any other liquid. Do not handle them with wet hands.

• Do not leave the lead hanging from a table or counter.

• Do not place the appliance and its lead on or near a surface which is likely to become hot (cooking plate, gas burner, oven, etc.).

• Disconnect the plug when the appliance is not in use or before cleaning it.

• When cleaning, never immerse the appliance or use a high or low pressure water spray or a steam cleaner.

• Do not use chlorinated products to clean stainless steel.

• Do not handle the appliance when hot.

• Do not touch hot surfaces.- 16 -

• Leave the appliance to cool down before handling or cleaning it.

• This appliance is not suitable for outdoor use.

• Caution: Do not obstruct the ventilation zone.

• Place the appliance on a stable and dry surface, slightly away from the edge and further than 20 cm away from any wall and heat-sensitive element.

• You may notice a few marks or stains on the products. This is due to various stages of the production process. This is normal and does not affect the operation of the appliance (scratches, impacts, colour changes, etc.).

• Warning : Do not use this appliance with charcoal or any other power source than the one for which it is intended (electrical power).

• The rotating waffle iron must be used on its base.

• We recommend that you keep the original packaging for storing the appliance.

KEEP THESE INSTRUCTIONS- 17 -

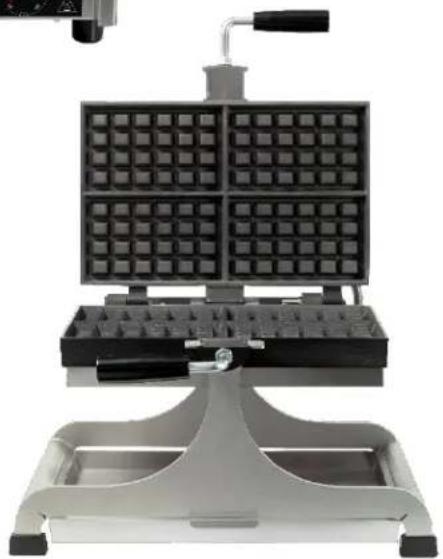

Technical description “Easy Clean” electric waffle irons are convenient and easy to use and maintain thanks to their adjustable thermostat, which can reach 300 °C. They come with cast iron grids called irons. Patented Heating Element Pack technology ensures uniform heat diffusion, allowing for perfectly cooked waffles.

• Stainless steel frame

• Cast iron plates certified for contact with food

• Removable drip trays

• Thermostat with a dial marked from 50 °C to 300 °C

• On/off switch built into the control button

• Single-phase 230-240 V power supply Key for symbols used on the appliance:

Caution, hot surface

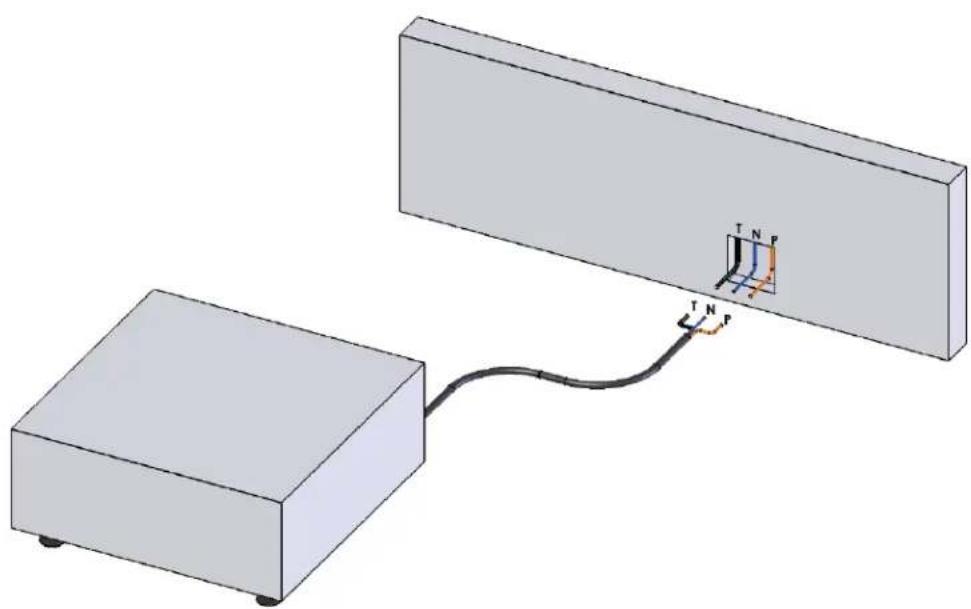

Installation Work surface Choose a clean work surface on which to place the appliance. A minimum distance of 20 cm should be kept between this and non-heat-resistant surfaces. For optimum user comfort, the top of the irons must be located between 85 and 95 cm from the ground. If this appliance must be placed in close proximity to a wall, partition, kitchen furniture, decorative borders, etc.,they should be of non-flammable material. If not, they should be covered by appropriate heat insulating, non-combustible material, with particular attention paid to fire prevention regulations. When placing the waffle iron, position it so as not to crush the hoses of the device.- 18 - Electrical connection The appliances must be connected to a single-phase 240 V power supply, a two-pin socket + an earth contact of 16 amps. It is shipped with a HO7RNF-type power cable with three conductors (phase + neutral + earth) with a 1.5 mm² section. Appliances delivered without a plug must be connected to the system with a power cord including the 3 wires (earth in green and yellow, neutral in blue and the live wire in another colour), with a 1.5 mm² section, according to the instructions in the diagram opposite. One disconnection method must be planned in the fixed lines in keeping with installation rules for the country where the appliance is installed. This setup must be performed by an authorised professional. Use Seasoning the Irons Before first use, the waffle iron should be seasoned. Season with edible oil that contains no other ingredients. Good seasoning means a chestnut (dark brown) colour and the look of a varnish. We advise you to follow these steps:

• Plug in the waffle iron, set it to its open position and adjust the thermostat to 270 °C.

• Let it heat for about 30 minutes.

• Leave the waffle iron at this temperature (270 °C) throughout the procedures below.

• Using a food-safe brush, carefully apply a thin layer of oil across all the nooks and crannies of the grids. Don’t leave extra oil in the depressions; spread around using a dry brush if needed.

• Let this first layer cook for 10 minutes.

• Apply a second layer of oil in the same way.

• Let that cook for 10 more minutes, then turn off the waffle iron.- 19 - Necessary material: Here are the recommended accessories for making perfect waffles:

• The Krampouz waffle iron set (Ref. ASG2) comes with a soft brush, fork and stainless steel brush.

• Edible oil to grease the iron plates

• A container for the batter

• A ladle or jug Recipes Belgian Waffles Ingredients: 250 g of flour, ½ litre of semi-skimmed milk, 3 eggs, 60 g of sugar, 60 g of oil, 1 packet of baking powder. Preparation: Mix the flour, sugar, oil and baking powder. Add the 3 egg yolks and mix. Gradually incorporate the milk to avoid lumps. Beat the egg whites into stiff peaks, and blend them into the batter. Let rest at least 1 hour. Before using, lightly mix the batter to make it uniform. Cooking time: 3-4 min. – Temperature: 210 – 220 °C Liège Waffles Ingredients: 500 g of flour, 300 g of butter, 300 g of pearl sugar, 2 tablespoons of sugar, 2 eggs, 1 packet of vanilla sugar, 2 packets of baker’s yeast, 10 cl of warm water, 20 cl of milk, 1 pinch of salt. Preparation: Mix the yeast and warm water. Let rest for 15 min. Mix the flour, sugar, vanilla sugar, salt and yeast together in a bowl. Add the eggs and melted butter. Let rest for 1 hr. (the batter must double in volume). Add the pearl sugar by mixing in delicately. Let rest for 10 min. Form balls of around 70 g, flouring them. Cooking time: 3-4 min. – Temperature: 180 °C Sweet churros waffles For 64 churros – In a container, mix 250 g of flour, 60 g of sugar, 1 packet of baking powder, then gradually add 2 eggs, 100 g of melted butter and 35 cl of semi-skimmed milk, until you get a uniform batter without lumps. Cooking time: 2-3 min. – Temperature: 220 °C- 20 - Savoury churro waffles – pizza-flavoured For 64 churros – In a container, mix 250 g of flour, 60 g of Parmesan cheese, then 5 g of pizza seasoning mix, 2 g of salt, 1 packet of baking powder, then 2 eggs. Gradually mix in 100 g of melted butter and 400 g of semi-skimmed milk. Cooking time: 2-3 min. – Temperature: 220 °C Bubble waffle recipe Ingredients (4 waffles): 160 g all-purpose flour, 40 g cornflour, 1 sachet of baking powder, 1 sachet of vanilla sugar, 130 g sugar, 30 g vegetable oil, 1 pinch of salt, 2 eggs, 130 g milk Preparation: In a bowl, mix together the flour, the cornflour and the baking powder. In another bowl, mix the milk, the salt, the vanilla sugar, the vegetable oil, the eggs and the sugar. Add this preparation in the first bowl then mix well until smooth and homogeneous preparation. Leave to rest in the fridge for 1 hour. Cooking: Pour the batter into the iron. Use a spatula to lift away the waffle and let cool down before rolling it into a cone shape. Cooking time: 2 min 45 sec. – Temperature: 210 °C Brussels waffle pops recipe Ingredients (for 10 waffles): 250 g flour, 1 sachet of baking powder, 60 g sugar, 80 g melted butter, 1 pinch of salt, 3 eggs, 35 cl milk Preparation: Mix the flour, sugar and the baking powder. Add 3 egg yolks. Incorporate the milk gradually and then the melted butter. Whip the egg whites stiffly and fold into the batter. Cooking: Spread 1 ladle of batter evenly into each waffle mould without overfilling. After 1 minute of cooking time, insert the stick halfway along its length. Cooking time: 2 min 45 sec. – Temperature: 210 °C Liège waffle pops recipe Ingredients (for 12 waffles): 500 g flour, 75 g brown sugar, 225 g pearl sugar, 300 g softened butter, 2 eggs, 2 sachets baker’s yeast (or 20 g fresh baker’s yeast), 1 sachet of vanilla sugar, 1 pinch of salt, 20 cl semi-skimmed milk Preparation: With a planetary mixer, mix the milk, at room temperature, and the yeast. Add the flour, the eggs, the brown sugar, the vanilla sugar, a pinch of salt and knead to obtain an elastic dough. Add the butter and knead gently until a homogeneous mixture is obtained. Cover the dough with a clingfilm and leave to rest 1 hour. Add the pearl sugar, folding it in gently. Shape into balls weighing about 120 g and leave to stand for 10 min. Cooking: Place 1 dough ball into each waffle mould. After a few seconds, insert the stick halfway along its length. Cooking time: 2 min 30 sec. – Temperature: 180 °C- 21 - Galette Parisienne Ingredients: 450 g flour, 1 sachet baking powder, 4 eggs, 300 g granulated sugar, 250 g softened butter, 1 sachet vanilla sugar, pinch of salt Preparation: Break the softened butter into small chunks and add into a mixing bowl together with the sugar, vanilla sugar and salt, then combine. Add the eggs one at a time and beat the mixture well for 2 to 3 minutes until you obtain a nice smooth batter. Use a spoon to ladle 4 to 6 portions of batter into the waffle iron. Cooking time: 1 min 45 sec. – Temperature: 180 °C Savoury version: Ingredients: 125 g wheat flour, 125 g buckwheat flour, 50 g butter, 3 eggs, 1 sachet baking powder, pinch of salt, 150 g grated cheese Preparation: Combine both types of flour with the baking powder, salt and egg yolks. Incorporate the melted butter, then add the milk. Blend well to obtain a smooth batter. Beat the egg whites into stiff peaks and fold into the batter. Cooking time: 1 min 45 sec. – Temperature: 180 °C Variation: swap the cheese for a grated carrot and a grated courgette Mini Brussels Waffles 4*3 Ingredients: 250 g flour, 60 g sugar, 80 g butter (melted), 3 eggs, 30 cl milk, 1 sachet baking powder Preparation: Combine the flour, sugar, vanilla sugar and baking powder. Add the egg yolks, then add the melted butter and the milk. Beat the egg whites into stiff peaks and fold into the batter. Variation: 250 g flour, 50 g sugar, 60 g butter (melted), 3 eggs, 15 g baker’s yeast, 25 cl milk Preparation: Combine the flour, sugar, vanilla sugar, baker’s yeast, eggs, melted butter and warm milk. Leave to stand for 1 hr in a warm room. Cooking time: 2 min. – Temperature: 200 °C Cooking recommendations :

• Place the appliance on a flat, rigid surface. Do not use it on a heat-sensitive support.

• With the irons previously seasoned (see the section Seasoning the Irons), start heating the appliance – set the thermostat to 200 °C – with the irons closed.

• Wait for about 15 minutes for the irons to reach 200 °C.

• Set the irons to the open position.

• Using a food-safe brush, oil all parts of the irons.

• For Belgian waffles, use a ladle or jug to fill the irons on one side until the tops of the grid outlines are covered.

• For Liège waffles, place the batter pieces in the iron.

• Close the irons immediately and tightly together using the handles. Rotate the irons to cook the liquid batter (except for waffle irons that open to 90°).

• Let cook in this position for 3-4 minutes, according to the type of waffle, the texture of the batter and your irons’ temperature (adjust the time after a few tests).

• Delicately lift the top plate and remove the waffles using a waffle pick.

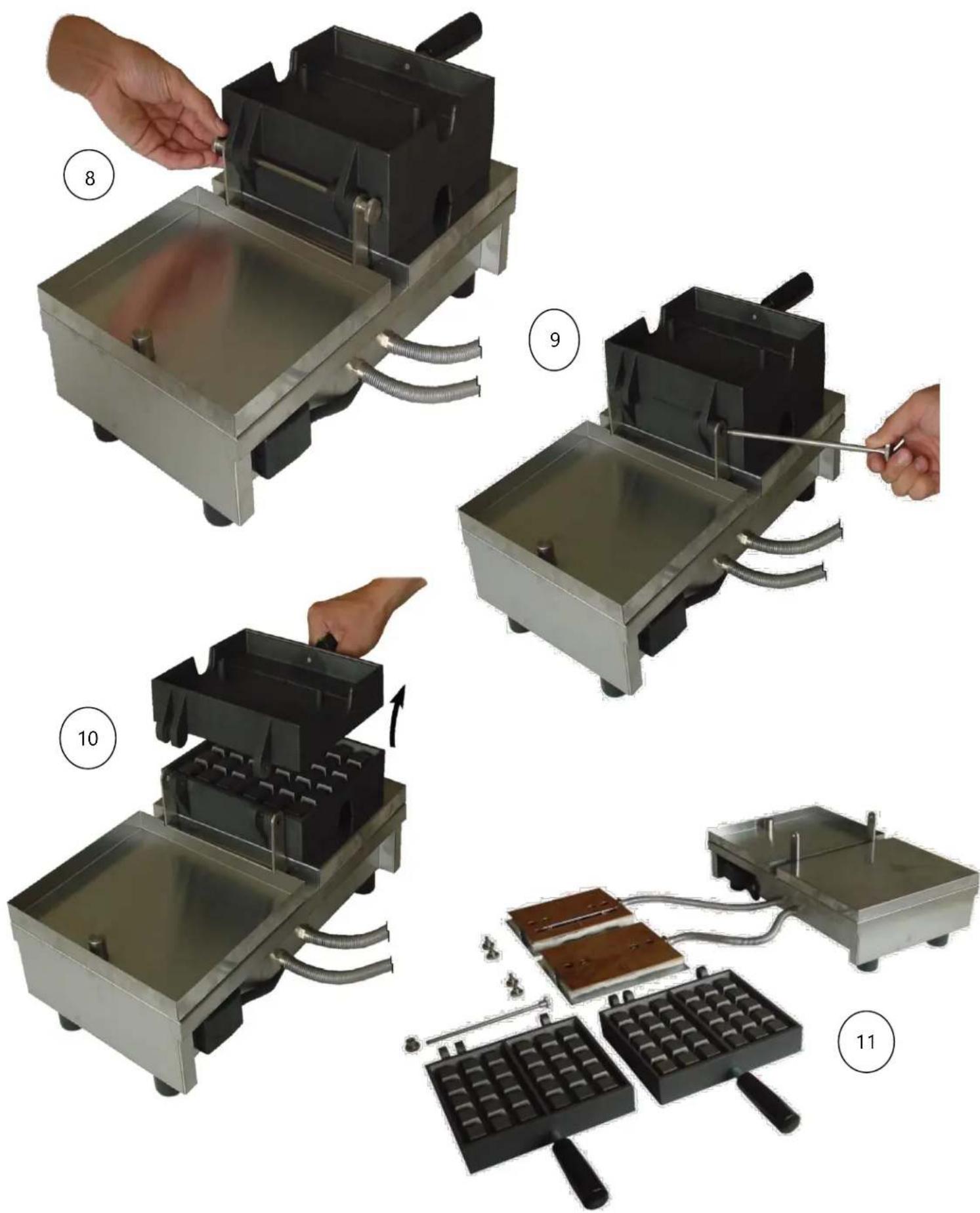

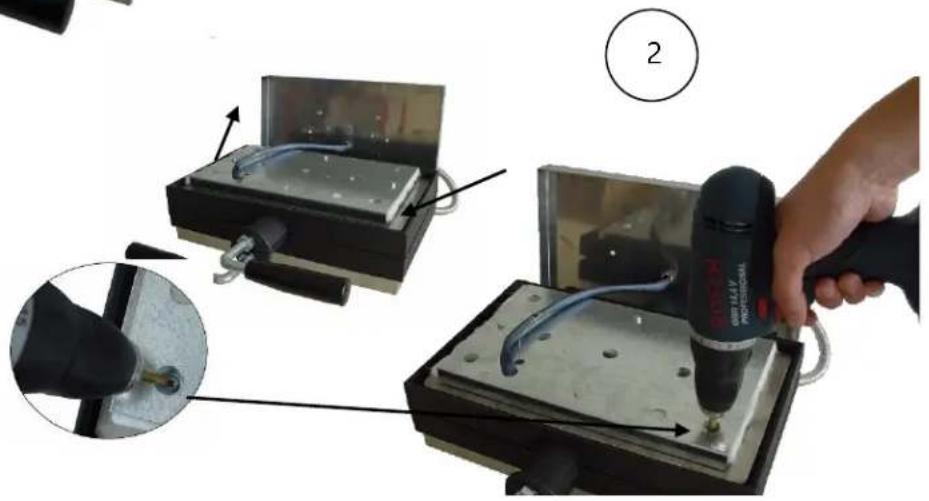

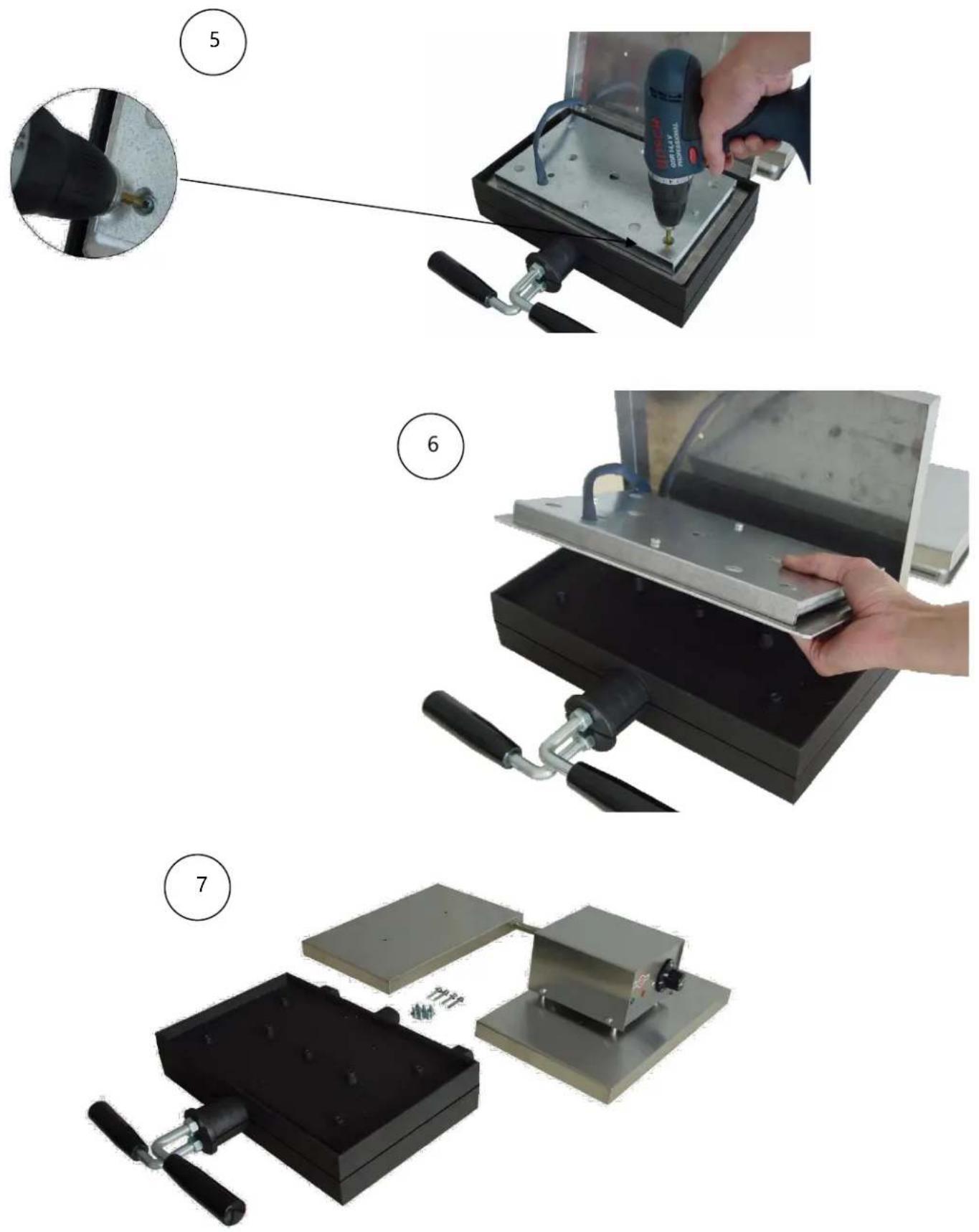

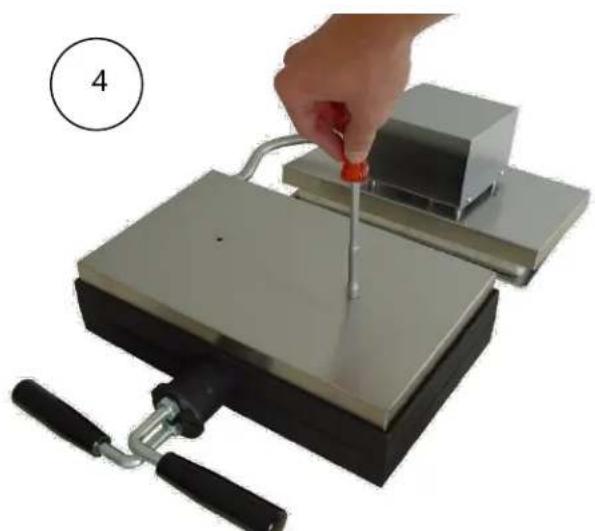

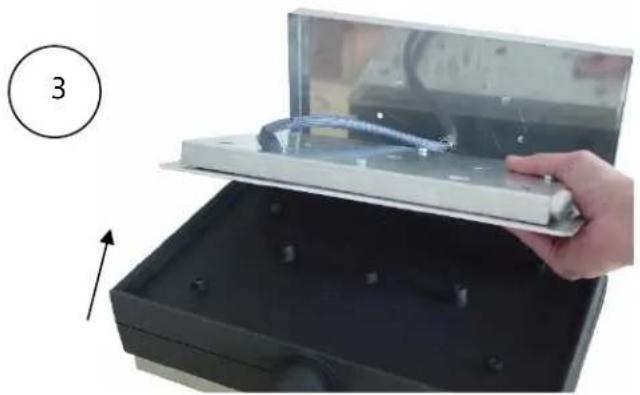

• Place the waffles on a grill so they don’t get soft.- 22 - Maintenance and cleaning The frame Before cleaning the appliance, unplug it and let the irons cool. Clean the frame and the removable plates with a sponge dipped in warm water and liquid detergent. Any stubborn stains can be removed by using a special industrial product. Never use abrasive products or metallic brushes. Do not clean the appliance by immersing in water, spraying it, or by using a steam cleaner. Iron plate covers The covers should be cleaned the same way as the frame. Due to this unit’s operating temperature (over 300 °C), it is normal for the covers to darken over time. Iron plates Cooking waffles requires fat on the wafflemaker’s iron plates: - Greasing the irons before use with a food-safe brush - Fat in the batter depending on the recipe. These fats will gradually add to the initial seasoning. It is important that the seasoning does not become too thick because: - It acts as an insulator and disrupts the cooking process, - It detaches or flakes off giving the impression that the metal is disintegrating. Cleaning with water (disassembling heating element packs and irons) and brushing regularly will prevent this phenomenon (do not be afraid of scratching the metal). Also consider cleaning the axle pin regularly, so that it doesn’t get clogged up. It can be placed in the dishwasher. (Caution: risk of damaging the seasoning.) If this crust becomes too thick, making any cleaning or brushing ineffective, the iron plates can be stripped by sanding or pyrolysis. After these procedures, it is necessary to repeat the seasoning, just like for new irons. Special case for Liège waffles : - The use of sugar mixed with the batter causes burned caramel on the wafflemaker’s plates. To remove the caramel, disassemble the heating element packs, free the irons, and soak them in hot water. The caramel will dissolve and a simple wipe with a sponge will remove it. Note: Never abruptly cool irons that are hotter than 100 °C (for example, by immersing in water) – the thermal shock could break your appliance. Disassembly procedures to clean iron plates: see diagrams on pp. 44-48. REMEMBER: Let the plates cool before disassembling.- 23 - Guarantee and After-sales service This appliance comes with one year’s warranty for spare parts. We do our very best to ensure that our appliances reach you in perfect operating condition. If you find a fault when unpacking, please tell the store within 48 hours. If, during this period, you notice a malfunction, refer to your retailer. The following are excluded from the guarantee:

4- Normal wear of the product not impairing the operation of the appliance (scratches,

the beginnings of superficial corrosion, black spots, impacts, colour changes, etc.)

5- Damage resulting from an abnormal event or misuse, product modification or failure

to observe the indications contained in the operating instructions.

6- Damage resulting from a fall or knock.

Please send us your suggestions. The crossed out bin symbol, affixed to the product or its packaging, indicates that the product must not be treated as household waste. It must be taken to a collection point suitable for recycling electric and electronic equipment:

• at distribution points if you purchased suitable equipment,
