Product Type	Outdoor Gas Cooker
Brand	Orbegozo
Model	PHE 86
Dimensions (H x W x D)	1360 x 880 x 460 mm
Gas Supply	Butane gas (28-30 mbar) or propane (37 mbar)
Maximum Consumption	782 g/h
Power	5 - 10 kW
Ignition Type	Integrated Piezoelectric
Temperature Adjustment	Positions OFF, PILOT, LO (minimum), HI (maximum)
Main Material	Steel with protective grid
Usage	Outdoor only, well-ventilated area
Safety Distance	100 cm above and on the sides of combustible materials
Safety	Thermocouple (gas cut-off), anti-tip strap
Compatible Gas Type	Butane (28-30 mbar) or Propane (37 mbar)
Injector	Diameter 1,6 mm
Recommended Hose Length	Less than 0,5 m
Mounting	Base with wheels (mobile) or floor anchoring (fixed)
Assembly	Requires assembly: base, burner, grid, gas cylinder
Warranty	Legal warranty, after-sales service via Orbegozo
Maintenance	Clean with soft cloth, no corrosive products
Spare Parts	Injector, thermocouple, igniter available
Repairability	Repair by approved center (troubleshooting included)

Frequently Asked Questions - PHE 86 Orbegozo

How to light the PHE 86 cooker?

Open the gas supply at the bottle regulator. Press and turn the control knob to PILOT. Press the button fully and hold it for 60 seconds. Press the piezo ignition button until you hear a regular click. The pilot light ignites. Release the button after ignition, then turn to HI and hold for 5 minutes before adjusting the desired temperature.

How to turn off the appliance?

Turn the control knob to PILOT, then press and turn to the OFF position. Close the gas supply at the bottle regulator.

What types of gas can I use?

Use only butane (pressure 28-30 mbar) or propane (pressure 37 mbar). Propane is recommended for cold temperatures. Use the appropriate regulator for the pressure.

Is it safe to use indoors?

No, this appliance is designed for outdoor use only. Using it in an enclosed space can cause carbon monoxide poisoning or fire. Ensure adequate ventilation.

What should I do if I smell gas?

Immediately turn off the appliance and close the gas cylinder. Extinguish any flame or ignition source. Ventilate the room. If the smell persists, contact technical support.

How to clean and maintain the appliance?

Dust the surfaces with a soft cloth. Do not use corrosive or flammable cleaning products. Regularly check the hose and connections for leaks. Store the appliance covered when not in use.

The pilot light does not light, what should I do?

Check that the gas valve is open, the bottle is not empty, and the opening is not blocked. Purge air from the lines by holding the button in PILOT position for one minute. Check connections and clean the pilot tube if necessary.

The burner does not light, why?

Possible causes: empty bottle (replace), blocked opening (clean), control not in ON position (set to HI), defective thermocouple (replace), or pilot light mispositioned (adjust). Consult the troubleshooting table.

Can I use the appliance in strong wind?

Yes, but take precautions to avoid tipping. Secure the base to the ground with screws or use the stabilization wheels. Do not use if the wind could extinguish the flame.

Where can I get spare parts or repair?

Contact Orbegozo technical service via https://orbegozo.com/asistencia-tecnica/ or by email. Keep your receipt for warranty. Parts such as the injector, thermocouple, or igniter can be replaced.

USER MANUAL PHE 86 Orbegozo

Black outdoor heater with a transparent dome and control panel (no visible text or symbols)

PHE 86

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

- ESTUFA:

PASO 1

PASO 2

Technical line drawing of a cylindrical industrial or electrical enclosure with mounting base and internal components (no text or symbols)

PASO 3

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

PASO 4

Technical line drawing of a portable air conditioner unit with grid cover and cooling fins (no text or symbols)

PASO 5

Line drawing of a cylindrical device with internal components and no visible text or symbols

LIMPIEZA Y MANTENIMIENTO

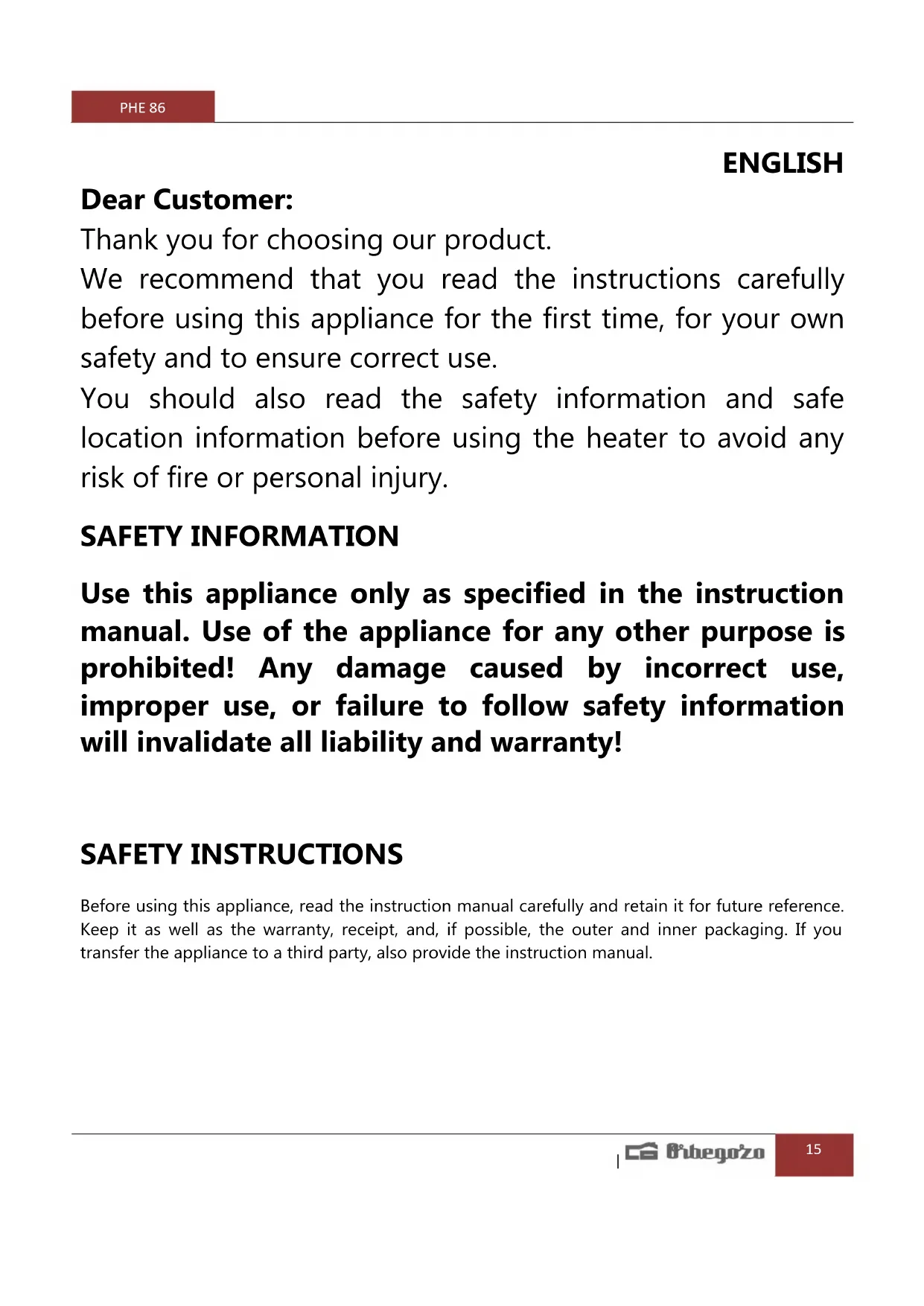

Thank you for choosing our product.

We recommend that you read the instructions carefully before using this appliance for the first time, for your own safety and to ensure correct use.

You should also read the safety information and safe location information before using the heater to avoid any risk of fire or personal injury.

SAFETY INFORMATION

Use this appliance only as specified in the instruction manual. Use of the appliance for any other purpose is prohibited! Any damage caused by incorrect use, improper use, or failure to follow safety information will invalidate all liability and warranty!

SAFETY INSTRUCTIONS

Before using this appliance, read the instruction manual carefully and retain it for future reference. Keep it as well as the warranty, receipt, and, if possible, the outer and inner packaging. If you transfer the appliance to a third party, also provide the instruction manual.

General

1. This appliance can be used by children aged 8 years and over and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or training concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Children should be supervised to ensure that they do not play with this appliance.
3. CAUTION: For the safety of your children, do not leave packaging material (plastic bags, cardboard, polyethylene, etc.) within their reach.
4. Do not immerse the appliance in water or any other liquid.
5. If you need a copy of the instruction manual, you can find it at www.orbegozo.com.
6. WARNING: In case of misuse, there is a risk of possible injury.

Specific

WARNING: DO NOT COVER THE APPLIANCE. To avoid overheating, never cover the heater.

• Do not place the appliance near furniture, fabric, curtains, bedding, or other flammable materials, as this may cause a fire.
• The appliance must not be used in basements, bathrooms or bedrooms of residential buildings.
• The protective grille on this appliance is intended to prevent fire or burn hazards, and no part should be permanently removed. IT DOES NOT COMPLETELY PROTECT CHILDREN OR DISABLED PERSONS.
• This appliance must be connected using a regulator and a flexible hose. Consult your supplier.
  – Use only in well-ventilated areas.
• Do not use in vehicles such as caravans or motorhomes.
• Bottles should be replaced according to the instructions supplied.
• After use, turn off the appliance by closing the bottle valve.
• In the event of a leak, the gas supply to the appliance must be cut off using the gas cylinder valve.

- The flexible tube should be checked regularly and replaced if necessary.

- Do not use the appliance in flammable environments (e.g., near combustible gases or sprays). Risk of explosion and fire!

- Important! Do not insert any objects into the stove openings.

- Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this appliance.

- Do not store unused cylinders near this appliance.

- Turn off the cylinder regulator valve before moving the appliance.

- The rubber tube of the cylinder must be changed according to the marking and corresponding current legislation.

- Use only the type of gas and cylinder type specified by the manufacturer.

- The LPG cylinder used in your patio heater must meet the following specifications: Cylinder with a maximum diameter of 30.5 ~cm , a maximum height of 57.1 ~cm , and a maximum weight of 23 ~kg . - In strong winds, take precautions to prevent the heater from tipping over or falling.

- The use of this device in enclosed spaces may be dangerous and is prohibited.

• The general gas system, hose, regulator, fitting, connections and burner must be inspected for leaks or damage before use, and at least before each season of use.
• Check that the regulator and rubber tube are properly installed with the clamps.
• Turn off the gas supply to the cylinder when the stove is not in use.

• If you smell gas:

• Turn off the stove and close the gas cylinder.

• Extinguish any flames or ignition sources and ventilate the room.
• If the odor persists, contact technical support.

This instruction manual belongs to the appliance and should be kept in a safe place. These instructions must be passed on to the new owner in the event of a change of ownership.

POSITION AND LOCATION

This heater is for outdoor use only and is covered. Make sure it has sufficient ventilation.

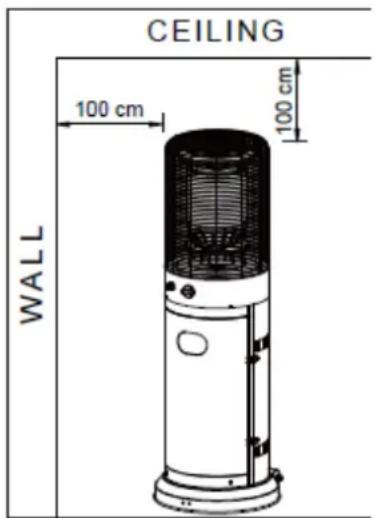

Maintain a safe distance between the stove and combustible materials. Recommended: 100 cm (top) and 100 cm (side) minimum. The stove should be placed on firm, level ground.

To protect the stove from strong winds, secure the base to the ground with screws.

GAS CHARACTERISTICS

Use only butane or propane. We strongly recommend using propane, as it has a lower freezing point, making it suitable for outdoor appliances. The regulator and rubber hose with clamps must comply with the current

regulations of each country. Installation must comply with local regulations. In the absence of these regulations, it must be carried out in accordance with the standard for storage and use of Liquefied Petroleum Gases. A cracked, rusted, or damaged cylinder can be dangerous and should be checked by the manufacturer or supplier. Never use a cylinder with a damaged valve.

LEAK TEST

The stove's gas connections have been pre-tested by the manufacturer prior to shipment. A safety check must be performed during installation at the place of use to prevent loosening of parts due to shipping. Make a soapy solution of one part water and one part soap. The soapy solution can be applied with a spray bottle, a brush, or a rag. Soap bubbles will appear in the event of a leak. The stove must be tested with a full cylinder. Ensure the control is in the off position. Turn on the gas supply to the regulator. In the event of a leak, turn off the gas supply to the regulator. Tighten the connections with the appropriate clamps. Turn the gas supply back on to check again. Repeat until the leak disappears. Do not smoke during the leak test.

USE OF THE STOVE

1. START-UP

1. Open the gas supply to the cylinder regulator.
2. Press and turn the control knob to the PILOT position (90° counterclockwise).
3. Push the control knob all the way in and hold for 60 seconds. Press the ignition button while holding it down until you hear a steady click. Repeat until the pilot light ignites. Note: If you have just changed the cylinder, hold the control knob in the PILOT position for at least one minute to bleed air from the gas lines. The control knob can be released after the pilot light is lit.

If the pilot light does not light or goes out, repeat step 3.

1. After lighting the pilot light, turn the control knob to the maximum position and hold for 5 minutes or more before turning the control knob to the desired temperature position.

2. TURN OFF THE STOVE

1. Turn the control knob to the PILOT position.
2. Press and turn the control knob to the off position.

Off: Off.

3. CLOSE THE GAS PASSAGE OF THE CYLINDER REGULATOR.

PARTS OF THE STOVE:

- PANEL:

Piezoelectric (Igniter) and Pilot (Ignition)

Lo: Minimum temperature (low flame)

Hi: Maximum temperature (high flame)

Off: Off

Igniter

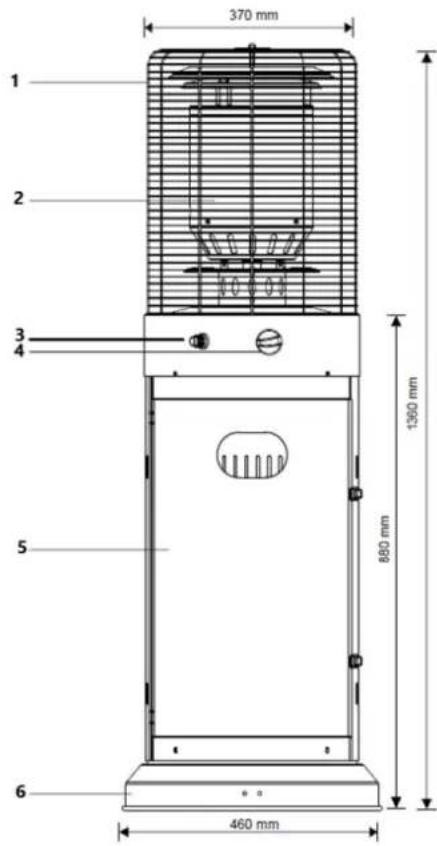

- STOVE:

1. Flame protection grid
2. Mounted burner
3. Power button
4. Control command
5. Tank for the gas cylinder
6. Base

SPECS

Use butane or propane. Maximum power: 10kW. Minimum power: 5kW. Maximum consumption: 782 gr/h.

Use the corresponding regulator according to the output pressure in the following table:

DEVICE CATEGORY:	I3+(28-30/37)
TYPES OF GAS: Butane Propane
GAS PRESSURE:	28-30 mbar	37 mbar
REGULATOR PRESSURE: 30mbar 37 mbar

INJECTOR TABLE

DEVICE CATEGORY:	I 3+(28-30/37)
TYPES OF GAS:	Butane	Propane
GAS PRESSURE:	28-30 mbar	37 mbar
TOTAL HEATING POWER 10 KW (782 g/h)
INJECTOR SIZE: 1.6 mm

• The rubber tube and regulator must comply with local regulations.
• The regulator's outlet pressure must correspond to the appliance category mentioned in the specifications.
• The device requires a rubber tube less than 0.5 meters.

ASSEMBLY PROCEDURE

ASSEMBLY PARTS

8× M5

A

6× M6

B

2× M8

C

1×

D

3×

E

Simple line drawing of a curved tool or bracket with a straight handle (no text or symbols)

3×

F

STEP 1

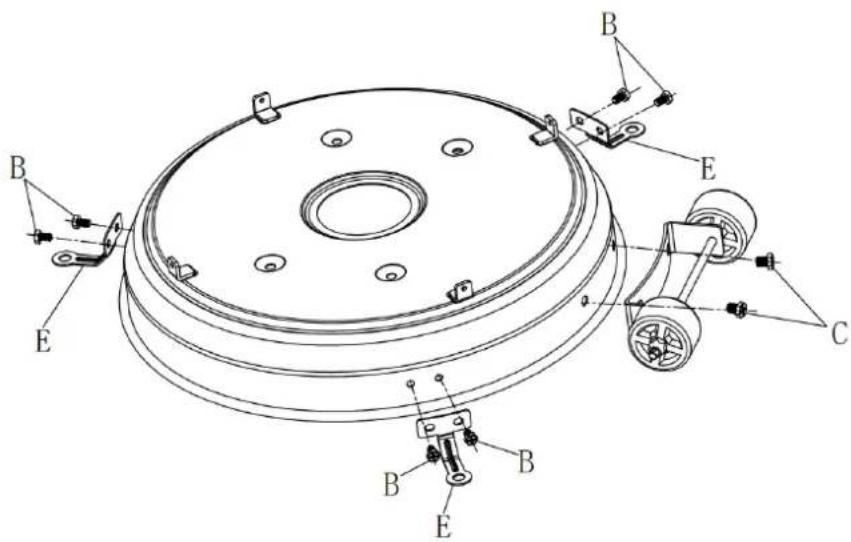

There are two types of mounting options for the base of the appliance: one for fixed installation, which consists of the three E parts and the B screws, which can then be anchored to the floor (on a soft surface) using the three F parts; and another type of tool and anchors for a hard surface. There is also a mobile mounting option, which consists of wheels and C screws.

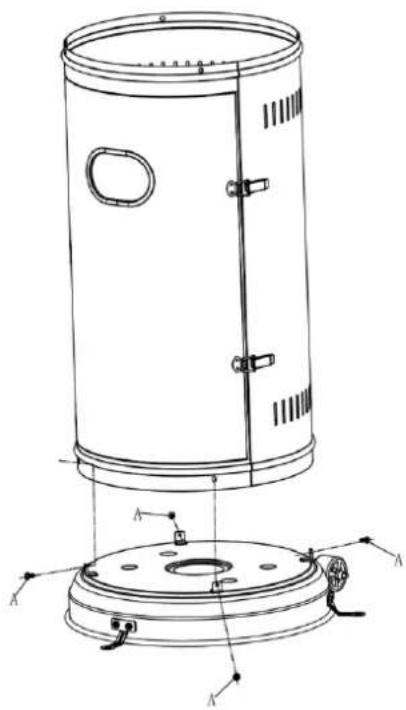

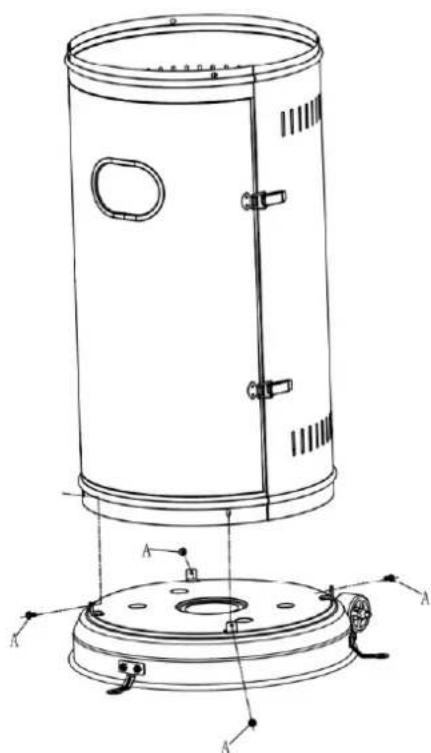

STEP 2

Use 4 screws A to screw the cylindrical housing to the base.

Technical line drawing of a cylindrical industrial device with internal components and mounting base (no text or symbols)

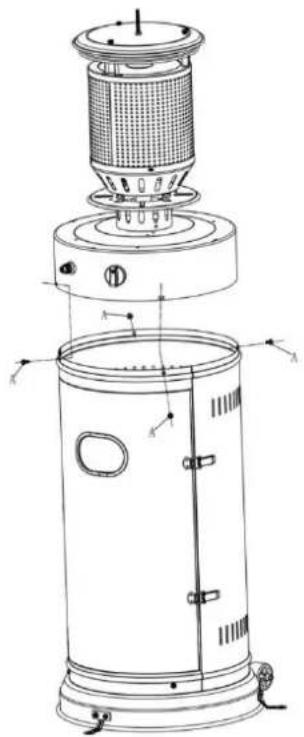

STEP 3

Use 4 screws A to mount the burner to the cylindrical housing.

Technical line drawing of a cylindrical device with internal components and labeled parts (no text or symbols present)

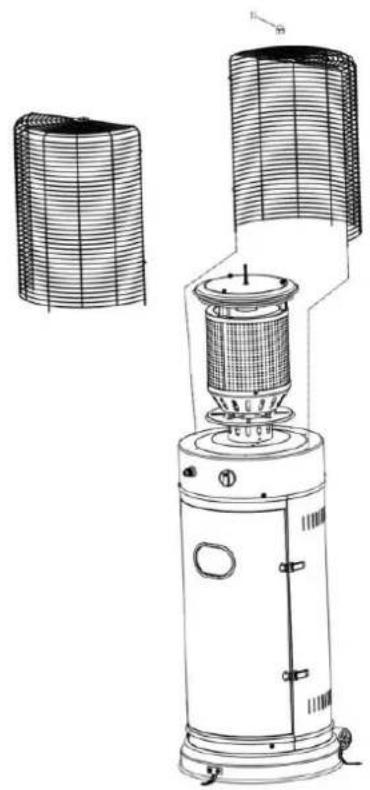

STEP 4

Place the guards on the burner. Use the cap nut D to secure them in position.

Technical line drawing of a portable air conditioner unit with grid-patterned casing and cooling tower (no text or symbols)

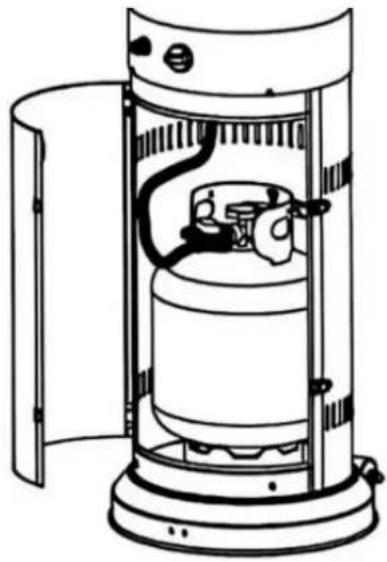

STEP 5

Place the cylinder inside the cylindrical housing and connect the gas regulator. Secure the cylinder with the strap inside the housing to prevent it from tipping over.

Technical line drawing of a cylindrical device with internal components and no visible text or symbols

CLEANING AND MAINTENANCE

Clean dust from surfaces with a mild cloth. Do not use corrosive or flammable cleaning products. Cover the stove with an optional cover when the stove is not in use.

TROUBLESHOOTING

PROBLEM	PROBABLE CAUSE	SOLUTION
The pilot light does not light	Gas valve closedEmpty cylinderOpening blockedAir in the ductsLoose connections	Turn on the gasChange the cylinderClean or open the openingPurge the airCheck connections
The pilot light does not stay lit	Impurities in pilot tubeLoose connectionsFaulty thermocoupleGas leakLow gas pressure	Cleanse impuritiesCheck the connectionsReplace the thermocoupleCheck the connectionsCheck that there is gas in the cylinder
The burner does not light	Low pressureOpening blockedControl not in ON positionFaulty thermocouplePilot light bent or in incorrect position	Empty cylinder. Replace.Clean and open aperturePut the control in the ON positionReplacing the thermocouplePlace the pilot in the correct position and try again.

WARRANTY

This appliance is covered by the legal warranty in accordance with current legislation from the date of purchase. Please retain the purchase receipt to claim your warranty claim. To find the service center nearest to you, please contact us via the following web link: https://orbegozo.com/asistencia-tecnica/

For any questions, concerns, or incidents, you can contact us via our email address on the main page of this manual or through our technical support service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable components or those that have deteriorated due to improper use. It also accepts no liability if the owner has technically modified the appliance. See the legal terms on our website.
