USER MANUAL FRD505WDBK D SABA

Specifications techniques 37

Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

TABLE OF CONTENTS

Safety Instructions 3
Product Introduction. 7
Installation. 10
Operation 12
Coldest zone in the refrigerator. 15
Maintenance. 26
Troubleshooting 30
Technical specifications. 31
Disposal of the appliance 33

SAFETY INSTRUCTIONS

• IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

-WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of bstruction.

-WARNING: Do not use mechanical devices or other means to accelerate the defrosting process,other than those recommended by the manufacturer.

-WARNING: Do not damage the refrigerant circuit. If the refrigerant circuit is damaged:
-Avoid naked flames and sources of ignition.
Thoroughly ventilate the room in which the appliance is situated.
-WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

-WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
-WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
-WARNING: To avoid a hazard due to instability of the appliance, it must be xed in accordance with the instructions.
-Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Gas warning

WARNING: risk of fire/flammable materials

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

• Store raw meat and sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

One-, two- and three-star compartments are not suitable for the freezing of fresh food.

If the refrigerating appliance is left empty for long periods, switch o, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. -WARNINGS

If you are discarding an old freezer or refrigerator with a lock I catch tted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.

• As old refrigeration equipment may contain CFC's which will damage the ozone layer, when disposing of any refrigeration equipment please contact your local waste disposal department for advice on the correct method of disposal.

• Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.

• Replaceable (LED only) light source by a professional.

• This product contains two light sources of energy efficiency class F.

• Do not insert oversized food as this could cause incorrect operation.

• Extreme caution must be used when moving an appliance.
  To turn the appliance o, turn the the rmostat knob fully anticlockwise to OFF, then remove the plug from the mains socket.
• Do not give children ice-cream and water ices direct from the freezer as the low temperature may cause 'freeze burns' on the lips.
  The appliance must be installed on the ground, on a flat, horizontal surface, making sure that the ventilation openings are completely clear.
• Never try to replace or repair any part or component of the appliance yourself; seek the assistance of professional, qualified personnel, if need be.
• This refrigerating appliance is not intended to be used as a built-in appliance.
• Regarding the information pertaining to the installation, handling, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.
• The refrigerating gas contained in the circuit of this appliance is isobutane (R600a); it causes a low level of pollution but is inflammable. Please contact your local disposal department for advice on the correct method of disposal.
• Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.

WARNING: Fill with potable water only.

Product Introduction

Product features

Energy saving and noise reduction

I corlains super freeze,energy soving, noise reduction.

optimal refrigerat on systom to achieve.

Precise temperature control

Microcomputer control system separate to set,control and display

the R temperaure and F temperaturermore precise control.

Automatis defrosina

Special program to reduce the temperature fluctuation at the ridgecut's for keeping food fresh.

LED display and touch button

Contro board resepectively displays refrigerator and freezer chamber temperature selling and functional status touch button operation is convenient.

Tempered glass safe and reliable

Temped glass, safe and reliable, easy clean and durable.

Easy clean and removable door seal

Door seal is easy clean and removable, and long service life.

List of accessories for the product	Instruction manual (1)
	Energy label (1)
	Egg tray (2)
	Ice tray (1)

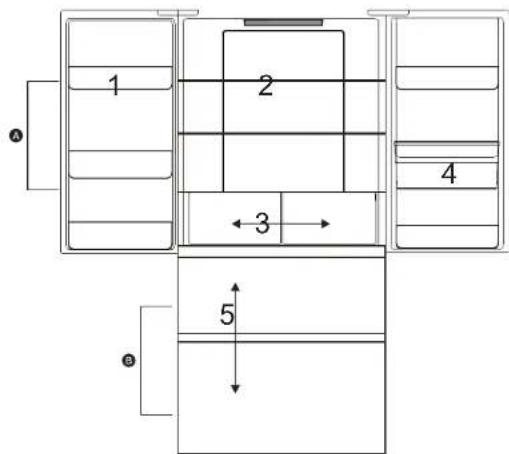

Product components

All figures in this manual are schematic some features and devices may not be consistent fully with your refrigerator and the specific structure and configuration shall be subject to the actual product.

The appearance and specifications of the actual product may differ depending on the mode.

A: Refrigerator compartment

1 Refrigerator door tray
2 Refrigerator glass shelves
3 Refrigerator drawer
4. Water tank

B: Freezer compartment

5 Freezer Drawon

Installation dimension

Select a good loci on to place your appliance where it is flat and easy to use. Avoid placing the unit near heat sources, direct sunlight or moisture.

The figure above is schematic for installation only, not representing the actual product. The specific dimension shall be subject to the product that you have bought.

To ensure proper air circulation around the fridge, please maintain sufficient space. Install the top panel or closet, please maintain sufficient space to move when necessary.

Installation

Transport

Do not carry the refrigerator horizontally or reversely.

Do not carry the refrigerator by holding the door or handle; the refrigerator shall be carried by lifting the bottom.

Place environment

The refrigerator must be placed on a hard, flat ground; it cushioning is needed, stable, hard, nonflammable cushion blocks shall be used, rather than the foam backing of refrigerator.

The refrigerator shall be kept away from damp locations where water is easy to splash; water or dirt shall be removed with soft cloth timely to prevent rusting which may have an effect on the electrical characteristics.

Place the refrigerator in a well-ventilated place, reserve a certain space around and behind the refrigerator, and do not cover or block the air grille on the rear cover plate of compressor at the back of refrigerator. Keep the refrigerator away from heat source or direct sunlight.

Adjust plastic feet

when the refrigerator slags in the packing box, plastic feel are in lightened slate. After carrying it out from the packing box for placement, please make sure to adjust two front plastic feet until the height is suitable; just adjust two plastic foot with a wrench or directly by hand.

Plastic feet and floor rollers must touch the ground to prevent the refrigerator from movement, vibration or noise. When moving the refrigerator, adjust plastic feel counterclockwise to keep them off the ground, and then push the refrigerator gently to move it.

Installation

Instructions for child lock lever

Pross the child's lock over with your thumb as the direction as below. ① and the water lever ② will be locked and effectively reduced the water look by children:

Press in the opposite direction to unlock and take water

Instructions for water tank assembly

GBG

I hold both sides of the tank with hands and pull the tank assembly off the door slightly in the direction indicated as below. Notes:The transparent silicone parts of the sealed water valve could be brought out meantime when removing the water tank. If so, remove them and re-install them according to the following steps.

1-1Align the sealed part with the hole in the door and place it in it. 1-2It will be completed when the step at sealed part can be filled to the step in the hole.2Rotate counterclockwise to remove the water valve assembly from the water tank for cleaning.

1. Rotate counterclockwise to remove the water valve assembly from the water tank for clean ng.

3.Pinch the flange of the water tank cover slightly upwards, and the water tank cover can be separated from the water tank. Remove the other side with the same method.

The Iank and its cover can be cleaned after disassembly.

1. Install the water valve by rotating it clockwise after cleaning. When installing the tank cover, install the one side at first (do not press it all the way), then install the other side. Press firmly on edges of the tank cover to fit the tank. Re install the entire water tank assembly at 45 to the door. Press the outer edge of the water tank slightly downwards to make it fit into the door.

Fill the tank with pure drink water

1. Open the inlet cover of water tank ① . Slowly fill the tank with pure drinking water up to the maximum fill line marked with "2L". Then, close the inlet cover ① .
2. To prevent any spills, please use a narrow-bore container to charge v

Only direct drinking water or mineral water can be stored in the water tank.

Operation

Before Using

Remove all packages, including the foam backing of the bottom of refrigerator and the lopes fixing accessories in the box.

Place the refrigerator to a proper position, and adjust the feel to level. It is better to clear the refrigerator before use.

Place the refrigerator and adjust to level, clean it, let the refrigerator stand for above 2-6 hours, and then power on to ensure that the refrigerator can operate normally.

Starting and function setting

Connect the power cord, and turn on the power switch.

Upon startup for the first time, the screen will display respective set temperature values (the temperature of the image section is set to 5^ , the temperature of the freezer is set to -18^ ).

The default mode is energy saving upon startup: The screen displays for 20s and then goes off. This mode to save energy and prolong the service life of LED lights.

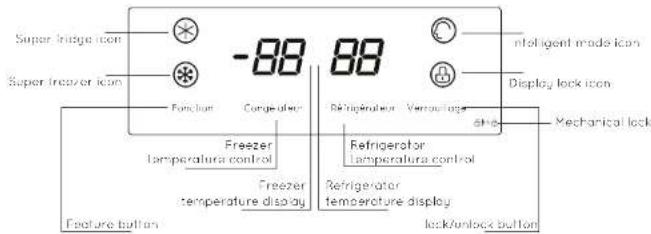

Control panel

Operation

Feature selection

Each press of the "Function" button will cycle through the operating modes.

Intelligent Mode the refrigerator will run at 6^ while the freezer will operate at 15^ .

Super freezer mode - When the super freezer mode is selected, the compressor will operate continuously to freeze foods faster, and keep them fresh. The super freezer mode will automatically turn off either after 24h of operation, or when the freezer reaches 28^ . The super freezer icon will turn off, and the freezer will continue to operate at the normal set temperature.

Super fridge mode - when the super fridge mode is selected, the fridge compartment reaches the set temperature in the shortest period in order to keep the food as fresh as possible under this mode. The set temperature of the fridge compartment locks on 0^ . The program runs 150 mins maximally then exits automatically, the super fridge icon goes out, which represent the super fridge function is disable, the set temperature returns to the last one before the super fridge mode operates.

Freezer compartment settings

The temperature of the freezer room is -18^ by default. Press the [Cong@lateur] button to adjust and set the temperature.

CAUTION: Do not put fresh foods directly on the frozen foods.

Refrigerator compartment settings

The temperature of the fridge room is 5^ by default. Press the Refrigererseal button to adjust and set the temperature.

Set Temperature

Lock/unlock button

Verrouillage

Press the "Vorrouillage" button will enable lock mode and the lock icon will be visible.

While the refrigerator is in this mode the other buttons on the control panel will not function, when the buttons are touched a chrome will sound and the lock icon will flash.

To exit lock mode press and hold the lock button for 3 seconds until the icon is no longer displayed.

Open door alarm

When the refrigerator door is open for above 1 min, the buzzer will alarm to remind users to close the door.

After the door is closed, the alarm sound will stop automatically.

Fridge compartment switch off/on

Long press "Réfrigerateur" button for 5 or 10 seconds to set fridge compartment on/off, when fridge compartment is switched off (the fridge temperature digital display will go off; under the fridge compartment switch off state, long press "Réfrigerateur" button for 5 or 10 seconds to restart fridge function).

Coldest zone in the refrigerator

This symbol indicates the location of the coldest zone of the refrigerator. The area is near the fan, and above by the symbol or the rock positioned at the same height.

To ensure the temperatures in this area do not change the positioning of the shelf.

TEMPERATURE INDICATOR SETTING

a help you sell your refrigerator well, it is equipped with a temperature indicator that will monitor the average temperature in the coldest zone.
WARNING: This indicator is intended to work only with your refrigerator, do not use it in another refrigerator (in fact, the coldest zone is not the same), or for any other use.

CHECKING THE TEMPERATURE IN THE COLDEST ZONE

With the temperature indicator you can check regularly that the temperature of the coldest zone is correct. Indeed, the internal temperature of the refrigerator depends on several factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. Take these factors into consideration when setting the device. When the indicator shows OX , this means that your thermostat is well adjusted and the internal temperature correct.

If the indicator of temperature turns WHITE, this means that the temperature is too high. In this case, increase the refrigerator temperature control selling and wait for 12 hours before performing a new visual inspection of the indicator. When fresh food has been introduced or the door has been left open it is possible for the indicator of temperature to turn WHITE after a while.

Refrigerator chamber

The refrigerator chamber is mainly used to store foods that are preserved for a short time.

The refrigerator chamber is suitable for storing and other foods that will be eaten recently. It is suggested to seal and then put them into the refrigerator. Suggested sections of refrigerator chamber for various foods and variety names:

1.Toptrau:duiruyproducts,edorowfeedselsi

2.Glass shelve: wheolen foods, milk, etc.
3.Drawer: fruits, vegetables, etc.
4.Water tank:Only direct drinking water or mineral water can be stored in the water tank.

Bottle Shelf

Disassembly: Hold both sides of the bottle shelf with both hands. Push it from the side without the boss and push it inward as the direction of the arrow. When pushing hard, please note that the buckle on the edge of bottle shelf is separated from the groove of the liner. Then bottle shelf can be removed. Installation: Hold both sides of the bottle shelf with both hands. Install the buckle of the boss side at first. Then push the other side inward slightly, the buckle can be fixed.

Freezing chamber

The freezing chamber is used to freeze foods, store deeply frozen foods and make ice cubes. It can preserve foods for a long time.

The freezing chamber is suitable for retaining the freshness of foods for a long time. When storing meat, it is suggested to cut the meat into pieces which are easy to take out, and mark the freezing date to prevent foods from exceeding the time limit.

1.Drwer:packaged frozen foods,etc.

CAUTION

The food especially the oily food which stored in refrigerator, please avoid the direct contact with the liner.

When the interior stained with oil or oily food soup stains,should be cleaned immediately to avoid the long contact with the liner which may lead to the liner corrosion and cracking.

Storage of foods

With this part instruction you can have the right way to storage your food. The glass shelves and crisper can be removed to store food if needed. Note: Food is not allowed to touch directly all surfaces inside the appliance. It has to be wrapped separately in aluminum sheet or in cellophane sheet or in airtight plastic boxes.

Storing food in the refrigerator compartment

The fridge freezer compartment helps to extend the storage times of fresh perishable foods. Fresh food care for best results:

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer. Vegetables and fruit need not be wrapped if they are stored in the vegetable container of the fridge compartment.
  Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.
  Cool hot foods down before placing them in the fridge compartment.

Storage of foods

Dairy foods and eggs

Most pre-packed dairy foods have a recommended use by /best before/best by/ date stamped on them. Store them in the fridge compartment and use within the recommended time.
Butter can become tainted by strong smelling food so it is best stored in a sealed container.
- Eggs should be stored in the fridge compartment.

Red meat

• Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil.
  -Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

Poultry

• Fresh whole birds should be rinsed inside and out with cold running water, dried and placed on a plate. Cover loosely with plastic wrap or foil.
• Poultry pieces should also be stored this way. Whole poultry should never be stuffed until just before cooking, otherwise food poisoning may result.

Storage of foods

Fish and seafood

Whole fish and fillets should be used on the day of purchase. Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil.
- If storing overnight or longer, take particular care to select very fresh fish.

Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag.
- Keep shellfish chilled at all times. Use within 1-2 days.

Precooked foods and leftovers

These should be stored in suitable covered containers so that the food will not dry out.
- Keep for only 1-2 days.
- Reheat leftovers only once and until steaming hot.

Vegetable container

The vegetable container is the optimum storage location for fresh fruit and vegetables.
Take care not to store the following at temperatures of less than 7^ for long periods: Citrus fruit, melons, aborigines, pineapple, papaya, curettes, passion fruit, cucumber, peppers, tomatoes.

Storage of foods

Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.
- Do not refrigerate avocados (until they are ripe), bananas and mangoes.

Food Location
Butter, cheese Upper	door rack
Eggs Door rack
Fruit, vegetables, salad	Crisper
Meat, sausage, cheese, milk	Lower area (lowest shelf / risper cover)
Dairy products, canned food, cans	Upper area or door rack
Drinks, bottles, tubes	Door rack

Freezing and storing food in the freezer compartment

• To store deep-frozen food.
  To make ice cubes.
• To freeze food.

Note: Ensure that the freezer compartment door has been closed properly.

Storage of foods

Purchasing frozen food

• Packaging must not be damaged.
• Use by the 'use by /best before/best by/' date.
• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

Storing frozen food

Store at -18^ or colder. Avoid opening the freezer compartment door unnecessarily.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

• The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, hairdryer and dessert.

Storage of foods

• The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavor or drying out, place food in airtight packaging.
1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing. Suitable packaging: Plastic film, tubula film made of polyethylene, aluminum foil. These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer compartment

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at - 18^ ).

Storage of foods

Food	Storage time
Bacon, casseroles, milk	1 months
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops,poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw),whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods with a 'use by /best before/best by/' date, you must freeze them before this date expires.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be re-frozen.
  -Once defrosted, food should be consumed quickly.

Energy saving tips

Make sure to keep the refrigerator away from heat source and direct sunlight.

Before storing hot foods, cool them to room temperature and then put into refrigerator.

Close the door timely, reduce the opening frequency, and shorten the opening time.

When unfreezing frozen foods, you can put them into the refrigerating chamber, which will assist in refrigeration of the refrigerating chamber.

Make sure that the temperature sensor is not covered or blocked by foods, and keep proper distance with foods.

The arrangement of drawers, crippers, shelves indicated in the description drawing of the product is optimized to save energy efficiently.

Changing it may affect the consumption of energy."

Maintenance

Defrosting

This production has automatic defrosting function, without manual operation.

Cleaning

Precautions for internal and external cleaning of refrigerator:

• Before cleaning, always turn off the power switch, disconnect the power plug.
• During cleaning, make sure that no water will enter the switch, control panel, door lamp and top control box.
• Remove dirt from the outside of refrigerator with mild cleaner, then wipe with clean soft cloth, and let the refrigerator dry naturally.
• When cleaning door sealing strip, always use clean water, wipe with dry cloth and let it dry naturally. Wet soft cloth with warm water or neutral cleaner to wipe the refrigerator body except the door sealing strip.

• It is forbidden to flush the refrigerator directly with water, which will affect electrical insulation properties, etc.

• It is forbidden to clean the refrigerator with metal wipers, ware brushes, coarse abrasive cleaners, strong alkaline detergents, or flammable or toxic cleaning fluids.

After cleaning, connect the power plug of refrigerator, and connected with the refrigerator.

General information

On vacation

When you want to leave for vacation, you had better to make the refrigerator operate continuously and leave foods that can be stored for a short time. If you want to stop the refrigerator, remove all foods, disconnect the power plug, clean the inside of refrigerator fully, and open the door to avoid producing abnormal odors.

At power failure

Generally, short-term power failure will not affect the temperature of the refrigerator sharply. However, if power failure lasts for a longtime, you shall reduce the opening frequency of refrigerator, and shall not put fresh foods into the refrigerator (prevent rise in the temperature of refrigerator from speeding up).

If you know power failure is coming, you can turn on the "Super Freezer" function in advance to keep the temperature of refrigerator to the lowest value.

Shutdown

Generally, it is not suggested to stop refrigerator or turn off the power switch; otherwise, the life of refrigerator may be affected.

Normal phenomena

You should purchase pressurizer of more than
1000w when the crea of the applonce installation,hot's

Low voltage:he compressor can't start
better toprotect your fridge.
Long time to start
when the ambient temperature too high, it will take long time to start the appliance.
Middie beams feel hot
Middle beams feel hot after a period of time of the appliance.
rurl belongs to the normal phenomenon.
Dew drops
When external air flows into the cool inner surface of the fridge dew drops can be formed.
1 The humidity of the installed location is high or during the rainy season, dew drops can form on the
outer side of the fridge.This is a natural phenomenon that occurs during the normal weather.Wipe the water drops with a dry cloth.
- Noise
When you operate the fridge for the first time, the fridge will operate at high speed to cool fast and the sound consensam louder. When the internal temperature falls below a certain value, the noise will subside.
When the operation of the compressor is starting or ending various parts expanding/contracting or various control devices operating or temperature change within the fridge, you will hear the sounds, these are normal sounds.
Compressor hol
When working the temperature of the compressor outer is more than 80 C, please do not touch the compressor, may cause serious injury.
- Compressor long time running
When the ambient temperature too high or put too much fresh foods into the fridge, will take long time to cool down until the appliance runs at the selling temperature.

Trouble shooting

This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

Fault Possible Remedial action

No display on the display panel	The mains plug of the appliance is not in the socel properly.The fuse for the cometalc supply is switched off.	Check whether the power is onthe fuse must be switched on.
Alarm sound	Door is slightly open or not close more than 1 minute.	Close the door completely.
The compressor do not work	It's under defrosting mode. Power is not connected well.	It's normal for defoasting: Check whether the power is connected well.
Compressor runs too long	The fridge has recently been disconnected for a period of time;Put too much fresh or hot food.Doors are opened too frequently or too long.	It takes some hours for the fridge to cool down completely and food will cause the fridge to run longer until the desired temperature is reached; Warm air entering the fridge cause it to run longer,Open the door less often.
Vibrating noise	Floor is uneven or weak; Items placed on the top of the fridge are vibrating; fridge is touching wall or cabinets.	Be sure floor is level and solid and can adequately support fridge; Remove items; Move fridge so that does n touch the wall or cabinets;

Flash the QR code on the energy label or below to access its main information.

Model	Website	QR Code
FRD505WDIL D	https://eprel.ec.europa.eu/qr/2262205
FRD505WDBK D	https://eprel.ec.europa.eu/qr/2262228

Reference:	FRD505WDIL D/FRD505WDBK D
Rated voltage:	220-240V~
Ampere:	1 A
Rated frequency	50Hz
Climate class:	SN,N,ST,T
Refrigerant:	R600a(75g)
Protection against electrical shock:	I
Insulation foam:	CYCLOPENTANE

Climate class:
Extended temperate (SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^ Temperate (N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 32^ Subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 38^ Tropical (T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 43^

Customer service

We decline liability for any damage or accident derived from any use of this appliance which is not in conformity with the instructions contained in this manual.

Duration of availability of spare parts: 10 years.
In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

This instruction book is also available on our website:

www.conforama.fr
If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances:
http://sav-client.conforama.fr/
or call:0969320505 from Monday to Saturday, 8:30 to 19:00 price of a local call.

Disposal of the appliance

European directive 2012/97/FJ on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbols is affixed to all the products to remind you of the obligations of separated collection.

G8

SABA is a German brand born in 1923 in the heart of the black forest.

Pioneers in electrical equipment, it continues its search for quality by offering smart products that will accompany you on a daily life.

This product has been manufactured and sold under the responsibility of CONFORAMA FRANCE.

SABA, and the SABA logo are trademarks used under license by CONFORAMA FRANCE - further information at www.saba-brand.com.

All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.
