MAF20P0BPK - Deep fryer MIDEA - Free user manual and instructions

Product Type	Air Fryer
Brand	Midea
Model	MAF20P0BPK
Voltage	220-240 V~
Frequency	50/60 Hz
Power	1150 W
Capacity	2.0 L (estimated)
Temperature Range	80 °C to 200 °C
Timer	0 to 60 minutes (estimated)
Preset Programs	Defrost, frozen fries, chicken wings, drumsticks, fish, shrimp, vegetables, sweet potato, meat, pizza, cake, egg tart
Basket Material	Non-stick coating
Cleaning of basket and pot	Dishwasher safe
Cleaning of main unit	Wipe with a soft, clean, non-damp cloth
Safety	Micro-switch preventing operation if container is not fully inserted
Maintenance	Clean after each use to avoid grease buildup

Frequently Asked Questions - MAF20P0BPK MIDEA

Why won't the air fryer turn on?

Check that the appliance is plugged into a grounded wall outlet. Make sure the timer is set to a cooking time (turn the knob past the OFF position). Also check that the container is fully inserted into the appliance, as the micro-switch must be engaged.

Why is white smoke coming out of the appliance?

White smoke may appear if you are cooking fatty ingredients (hot oil produces smoke) or if the pot contains grease residue from previous use. Clean the pot thoroughly after each use. On first use, a small amount of white smoke is normal during the 10-minute dry burn.

Ingredients are not cooking evenly, what should I do?

Some foods (like fries) need to be shaken halfway through cooking for even cooking. Be careful not to overfill the basket. Use the recommended temperature and time settings in the settings table.

How to get crispy fries?

Use fresh potatoes, rinse them to remove starch, and dry them well before adding a little oil. Cut the sticks into smaller pieces for more crispiness. You can also use frozen fries suitable for air fryers.

Can I use the fryer without the pot or basket?

No, the fryer must operate with the pot + basket assembly correctly inserted. Using the appliance without these accessories may damage the appliance and pose a safety risk.

How to clean the basket and pot?

The basket and pot are dishwasher safe. Use a neutral detergent or clean water. Avoid hard and sharp objects (metal sponges, blades) to avoid scratching the non-stick coating.

The appliance no longer heats up, what should I check?

Make sure the timer is set (turn past the OFF position). Check that the container is properly inserted. If the problem persists, unplug the appliance and contact Midea after-sales service.

What is the power of the MAF20P0BPK air fryer?

The power is 1150 W at 220-240 V~, 50/60 Hz.

Can I leave the appliance plugged in after use?

It is recommended to unplug the appliance after use and allow it to cool completely before moving or cleaning it.

Can children use this appliance?

The appliance can be used by children aged 8 and older under supervision. Children must not play with the appliance. Cleaning and maintenance must not be performed by children under 8 without supervision.

USER MANUAL MAF20P0BPK MIDEA

DE German
IT Italian
EN English
FR France
SP Spanish

VIELEN DANK

Email: [e-mail]

Midea Electronics Netherlands B.V.

Barbara Strozzilaan 101, 1083 HN Amsterdam, the Netherlands

LETTERA DI RINGRAZIAMENO

Email: [e-mail]

Midea Electronics Netherlands B.V.

Barbara Strozzilaan 101, 1083 HN Amsterdam, the Netherlands

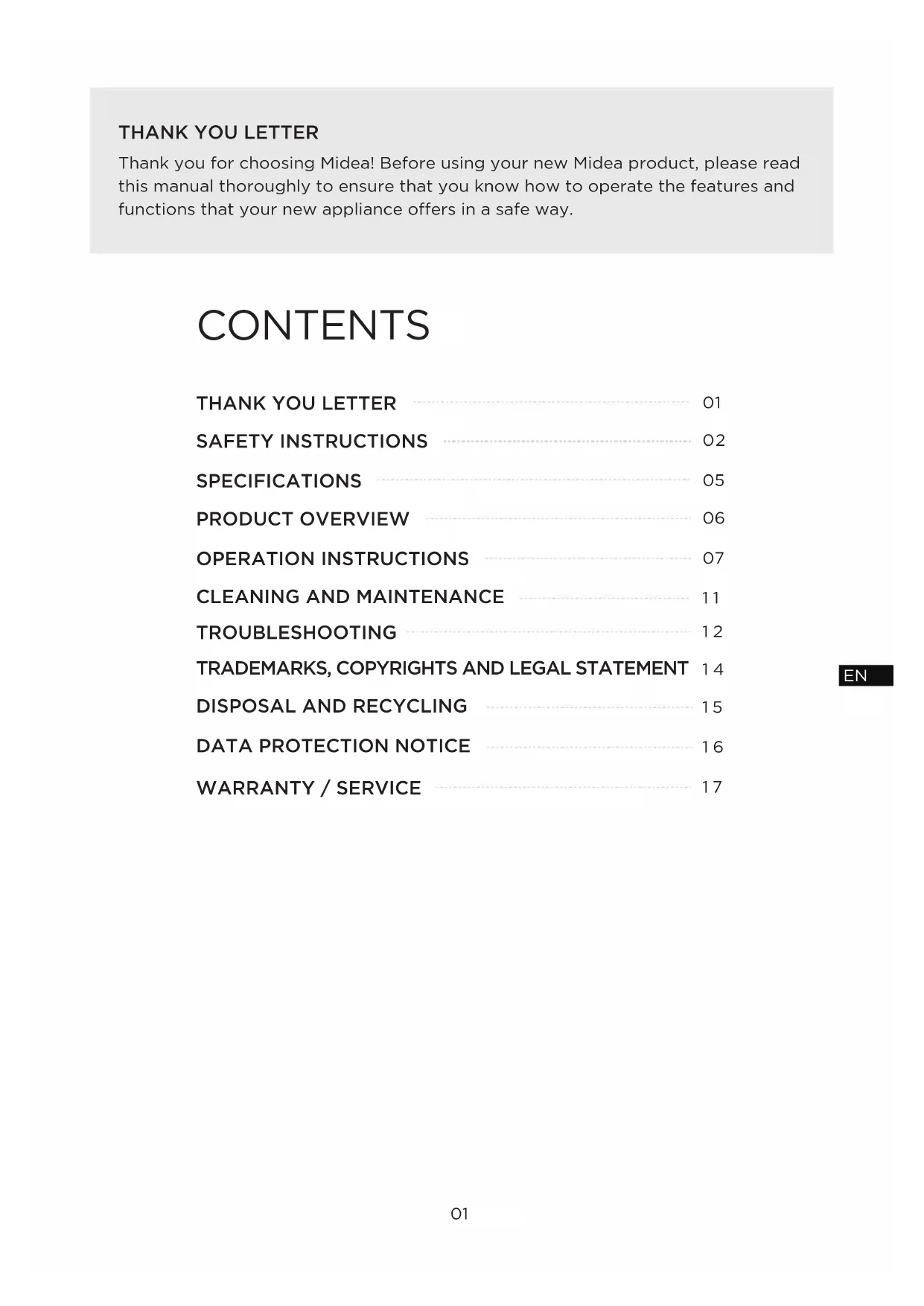

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SAFETYINSTRUCTIONS 02

SPECIFICATIONS 05

PRODUCT OVERVIEW 06

OPERATION INSTRUCTIONS 07

CLEANING AND MAINTENANCE 11

TROUBLESHOOTING 12

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT 14

DISPOSAL AND RECYCLING 15

DATA PROTECTION NOTICE 16

WARRANTY / SERVICE 17

SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

EN	Danger This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.
	Warning of electrical voltage This symbol indicates that there is a danger to life and health of persons due to voltage.
	Warning The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
	Caution The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
	Attention The signal word indicates important information (e.g. damage to property), but not danger.
	Observe instructions This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

IMPORTANT SAFEGUARDS

Safety Instructions

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not immerse any part of the appliance in water or other liquid.
• Warning: Avoid spillage on the connector.
• Do not use outdoors.

• This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, office and other working environments;
  -farm houses;

• by clients in hotels, motels and other residential type environments;

• In bed and breakfast type environments.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Children should be supervised to ensure that they do not play with the appliance. Keep the appliance and its cord out of reach of children.

• Warning: Misuse may cause potential injury.

• Appliances are not intended to be operated by means of an external timer or separate remote-control system.

• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• Always put the ingredients to be fried in the basket, to prevent it from coming into contact with the heating elements.
• Do not cover the air inlet and the air outlet openings while the appliance is operating.
• Do not fill the pan with oil as this may cause a fire hazard.
• Never touch the inside of the appliance while it is operating.
• During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings.

EN

Also be careful of hot steam and air when you remove the pan from the appliance.

• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.
  The surface are liable to get hot during use.

SPECIFICATIONS

	MAF20POBPKModel
Voltage	220-240V~
Frequency	50/60Hz
Power 1150W

PRODUCT OVERVIEW

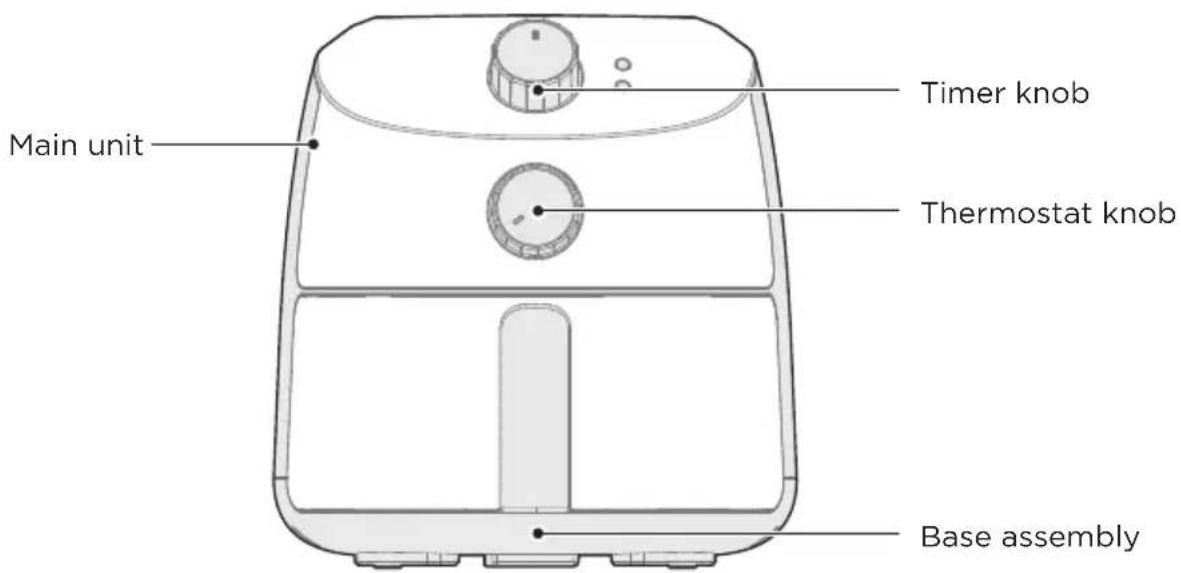

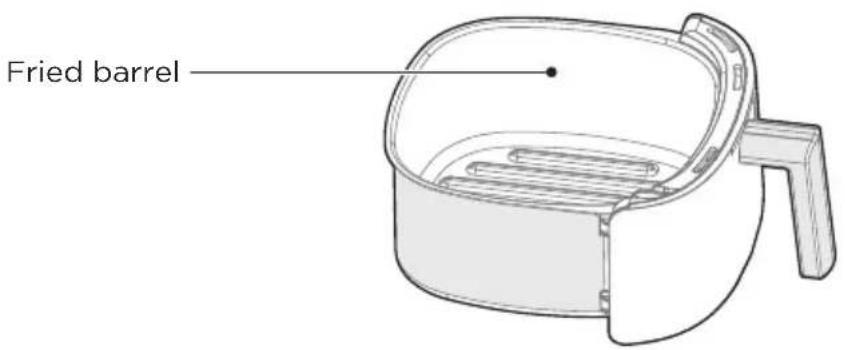

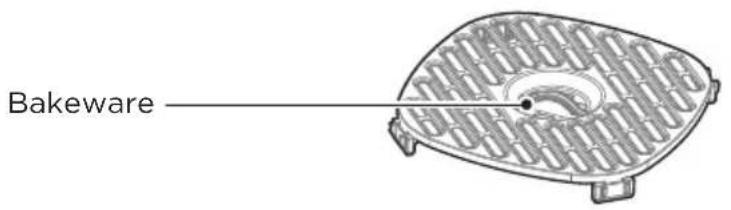

Parts Name

The product is subject to the actual product and configuration.

EN

NOTE

ll the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject. The product is subject to the actual product and configuration.

OPERATION INSTRUCTIONS

Instructions for Use

Preparation

1. The product should be stably placed on a flat table (Figure 1), so that the power cord has a sufficient length to be plugged into the socket, and the air around the product should be kept in circulation, and should not be close to flammable items.

Figure 1

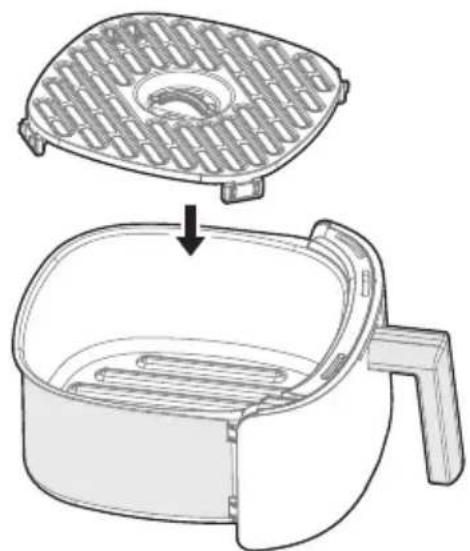

1. Put the bakeware in the fried barrel (Figure 2), then push it into the Main unit (Figure 3).

Figure 2

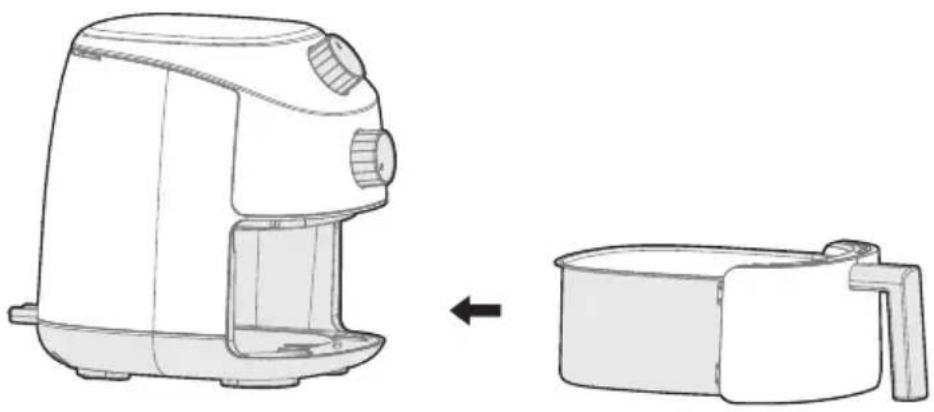

Tips For Fried barrel

When assembling fried barrel, the sound of metal duckles proves that the assembly is in place.

Figure 3

Instructions

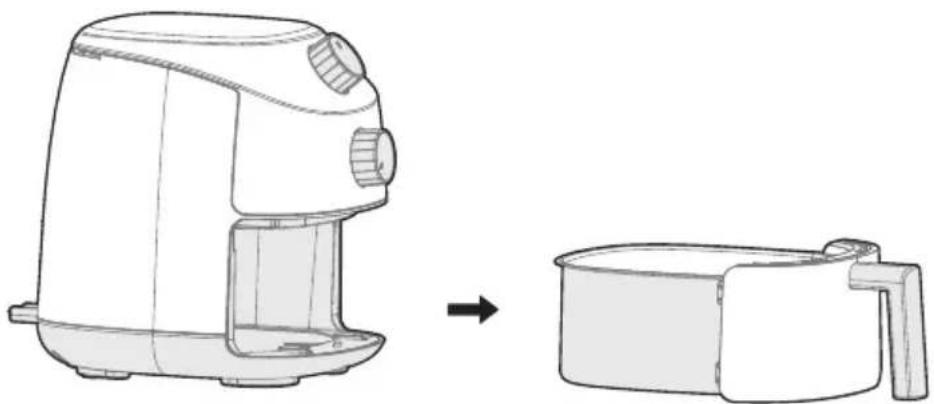

1. Hold the top of the machine with one hand, and pull the barrel out by holding the handle of the barrel with the other hand. The barrel must be placed on a stable table.
2. Put the ingredients on the bakware in the fried barrel.
3. Push the fryer into the machine, select the corresponding cooking temperature and time by the knob, and cook and heat the ingredients.

NOTE

When the drum is not fully advanced, the micro-switch is not triggered, the machine is in the state of power off the barrel, and it will not work. At this time, you only need to fully push the drum.

1. After the timer "ding", the heating is completed. When the food is ready, unplug it. Take out the fryer carefully, lay it flat on the table, and then use the auxiliary tools (such as chopsticks) to remove the cooked food.

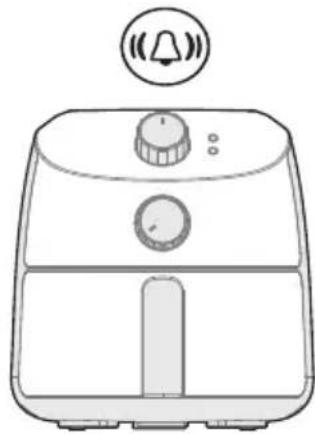

Tips For Timer

If you set the scale within 30 degrees (about 10 mins) from the OFF position, roll to more than 30 degrees and then adjust to the required scale.

Handle with care and remember to lay it flat on the table to avoid being burned by steam or dumping the fryer, or burned by oil or hot food. In the process of removing food, it is recommended to use auxiliary tools (such as chopsticks) to assist.

NOTE

Keep in mind that these settings are indications. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients. Tips: the best effect is to turn the food halfway, and the best food effect weight of Frozen fries is 200g.

EN

Warm Reminder

• The first use requires 10 minutes of dry burning. A small amount of white smoke or odor may appear during the dry burning process, which is normal. Do not panic.
  Before the product works, please check whether the bakeware is in place to avoid malfunction.
  If you find that the product is malfunctioning, please stop using it and contact our service department immediately.
• Please use the bakeware and fried barrel together in the whole machine, and avoid using them separately.
  After using, unplug the power plug and allow the air fryer to cool completely before moving.

Settings

This table below helps you to select the basic settings for the ingredients you want to prepare.

Menu	Temperature (℃)	Time (Min)
	80DEFROST	12-14
FROZEN FRIES	200	17-19
CHICKEN WING	200	16-18
DRUMSTICKS	200	20-22
FISH	180	12-14
SHRIMP	180	10-12
VEGETABLES	160	10-12
SWEET POTATO	200	38-40
MEAT	200	10-12
PIZZA	160	8-10
CAKE	160	10-12
EGG TART	160	12-14

CLEANING AND MAINTENANCE

• Please clean the air fryer to prevent it from being burned.
• After using, please clean the bakeware and fried barrel in time to avoid the damage of the coating due to the erosion of food residue oil.
• Do not use strong abrasive cleaners to prevent damage to the machine and your health.
• Use a soft, clean cloth to wipe the air fryer. Please do not use an over-wet cloth to clean the air fryer, to prevent water from entering the air fryer, which may cause short circuit and fire.
• Please do not use other cleaning equipment such as a dishwasher to clean the air fryer, otherwise it may cause damage and affect the use.
• Use neutral detergent or clean water to clean the frying pans and drums.
• Please do not use hard and sharp items (such as wire balls, blades, etc.) to clean the bakeware and fried barrel to prevent scratching.

EN

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center.

	Cause
The air fryer does not work	·The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	·You have not set the timer.	Turn the timer knob to the required preparation time to switch on the appliance.
	·The pan is not put into the appliance properly.	Slide the pan into the appliance properly.
EN The ingredients fried with the air fryer are not done.	·The amount of ingredients in the basket is too big.	Put smaller batches of ingredients in the basket.Smaller batches are fried more evenly.
	·The set temperature is too low.	Turn the temperature control key to the required temperature setting (see section 'settings' in chapter 'Using the appliance').
	·The preparation time is too short.	Turn the timer key to the required preparation time (see section 'Settings' in chapter 'Using the appliance').
The ingredients are fried unevenly in the air fryer.	·Certain types of ingredients need to be shaken halfway through the preparation time.	Ingredients that lie on top of or across each other (e.g.fries) need to be shaken halfway through the preparation time. See section 'Settings' in chapter 'Using the appliance'.
Fried snacks are not crispy when they come out of the air fryer.	·You used a type of snacks meant to be prepared in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crispier result.
I cannot slide the pan into the appliance properly.	·There are too much ingredients in the basket.	DO NOT fill the basket beyond in full, refer to the "Setting" table above.
	·The basket is not placed, in the pan correctly.	Push the basket down into the pan until you hear a click.
White smoke comes out of the appliance.	·You are preparing greasy ingredients.	When you fry greasy ingredients in the air fryer, a large amount of oil will leak into the pan. The oil produces white smoke and the pan may heat up more than usual. This does not affect the appliance or the end result.
	·The pan still contains grease residues from previous use.	White smoke is caused by grease heating up in·the pan. Make sure you clean the pan properly after each use.
Fresh fries are fried unevenly in the air fryer.	·You did not use the right potato type.	Use fresh potatoes and make sure they stay firm, during frying.
	·You did not rinse the potato sticks properly before you fried them.	Rinse the potato sticks properly to remove starch from the outside of the sticks.
Fresh fries are not crispy when they come out of the air fryer.	·The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure you dry the potato sticks properly before you add the oil.
		Cut the potato sticks smaller for a crispier result.
		Add slightly more oil for a crispier result.

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions there of are valuable assets of Midea Group and/or its affiliates ("Midea"), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

DISPOSAL AND RECYCLING

Important instructions for environment

Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

EN

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer,

we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal data being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

WARRANTY / SERVICE

We congratulate you to your new device and are convinced that you will be satisfied and have your joy with this modern appliance.

If you have any question or concerns, please email us

Email: [e-mail]

In case of a technical fault, enter your exact address, telephone number, sales contract number and Device type (from the type plate of the device).

A precise fault description saves you time and money. For special questions, please contact the customer service center.

Before calling for service:

Please check whether there is an operating error or a cause that has nothing to do with the function of your device.

Please observe the note in the user manual and check whether:

• The power plug is connected
• The power plug may be damaged
  Electricity is available

Warranty terms

This device has been manufactured and tested according to the most modern methods. The seller warrants for faultless material and proper manufacture for a period of 24 months from the date of sale to the end user. The unit is not suitable for commercial use.

EN

The claim under guarantee lapses in the event of intervention by the Buyer or by a third party. Damage caused as a result of improper handling or operation, incorrect installation or storage, improper connection or installation as well as an act [...] of God or other external factors shall not be covered by this warranty.

When claims are submitted, the manufacturer reserves the right to make improvements to defective parts or to replace or exchange the device.

Only if it is not possible to achieve the intended use of the device by repairing or replacing the device, the buyer can demand a reduction of the purchase price or the cancellation of the purchase contract within 6 months from the date of purchase.

Claims for damages, including consequential damages, are excluded unless they are based on intent or gross negligence.

The guarantee claim exists only with submission of the product and the purchase receipt.

Midea Electrics Netherlands B.V.

Barbara Strozzilaan 101, 1083 HN Amsterdam, the Netherlands
