Product Type	Hitch-mounted bike rack
Brand	Saris
Model	Grand Slam
Maximum capacity (3-bike version)	105 lbs (48 kg)
Maximum capacity (4-bike version)	140 lbs (63 kg)
Maximum weight per bike	35 lbs (16 kg)
Hitch compatibility	1.25 in and 2 in (with adapter included)
Main material	Steel
Main features	Tilting arm, tilt-down for trunk access, individual tie-down straps, head-to-tail loading
Folding / Storage	Arms fold up to vertical position
Care and cleaning	Clean with water and mild soap; lubricate locks and threads (wet lube, not WD-40); check straps and bolts
Safety	Do not exceed maximum load; secure bikes with straps; remove detachable accessories; do not use off-road or above 70 mph (113 km/h)
Spare parts and repairability	Available from Saris dealers or at 1-800-783-7257
Warranty	Limited lifetime warranty for original purchaser (North America)
Additional information	Preferably use with Bike Beam for bikes with sloping top tube or suspension; adjust driving (turns, braking)

Frequently Asked Questions - Grand Slam Saris

What is the maximum load capacity of the Saris Grand Slam bike rack?

The maximum capacity depends on the version: 105 lbs (48 kg) for the 3-bike model and 140 lbs (63 kg) for the 4-bike model. Each bike must not exceed 35 lbs (16 kg).

Is the bike rack compatible with my 2-inch hitch?

Yes, an adapter block (part J) is provided to mount the rack on a 2-inch receiver. Make sure to install it correctly so that the bolt threads engage.

How do I install the bike rack on my vehicle?

Follow steps 1-9 in the manual: assemble the vertical tubes and arms, insert the receiver tube into the hitch, then tighten with the 3/4-inch wrench and secure with the cotter pin.

Can I tilt the bike rack with bikes loaded?

No, never tilt the rack when loaded. To access the trunk, remove the bikes, then tilt the empty rack and reinsert the safety pin.

How do I load the bikes correctly?

Place the heaviest bike against the car. Bikes should be oriented head-to-tail to avoid handlebar conflicts. Secure the wheels with the provided straps and wrap the loop strap around the vertical tube and frame.

What if my bike has a sloping frame or suspension?

You must use a Bike Beam accessory to keep the wheels parallel to the ground. This accessory is mandatory if the wheels are 12 inches or less from the ground once installed.

What is the recommended maximum speed with the bike rack?

Do not exceed 113 km/h (70 mph). Slow down to 5-10 mph over speed bumps. Adjust your driving: increased braking distance, sensitivity to crosswinds.

How do I maintain my Saris Grand Slam bike rack?

Clean it with water and mild soap. Lubricate the locks with a wet lube (not WD-40). Regularly check the condition of straps, bolts, and paint. Replace worn straps.

Is the bike rack covered by a warranty?

Yes, a limited lifetime warranty is offered to the original purchaser (valid in North America). It covers defects in materials and workmanship. Damage from misuse or normal wear and tear is not covered.

Can I use the bike rack on a trailer or RV?

No, the bike rack is designed only for direct installation into a vehicle hitch. Do not install on trailers or Class B motorhomes.

USER MANUAL Grand Slam Saris

TELL US WHAT YOU THINK

SARIS.COM/FEEDBACK

REGISTER YOUR PRODUCT FOR UPDATES

SARIS.COM/REGISTRATION

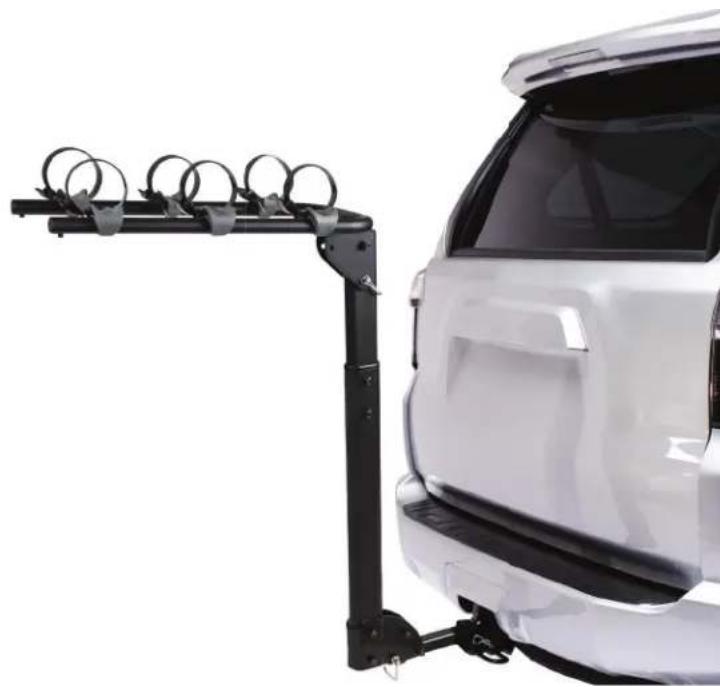

LONGFORTHERIDE

Just as no garage is complete without a bicycle, at Saris, we believe no car is complete without a bike rack.

Since setting off on this journey nearly 30 years ago, Saris racks have freed millions of bike-lovers to explore new territory and terrain, take part in group rides, bike pool to races, and commute to and from work.

And we continue to do so in style.

As the all-time #1 best-selling bike rack, Saris Bones® continues to set the standard for excellence in design. Today all Saris bicycle racks are intuitive to load and secure, and guaranteed for life.

Built by cyclists for cyclists in Madison, Wisconsin, we strive to create the world's best bike racks.

Because cycling is what we live for.

Specifications: Grand Slam

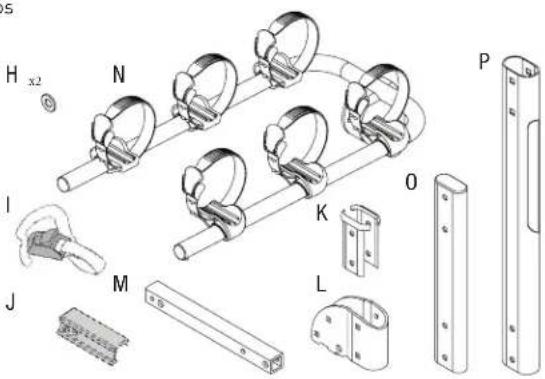

Items Included: Tools Needed:

Articulos inclusos
elements inclus

3/4" wrench
Llave de 3/4"
Cle 3/4 po

9/16" wrench
Llave de 1/2"
Cle 1/2 po

Optional Accessories:

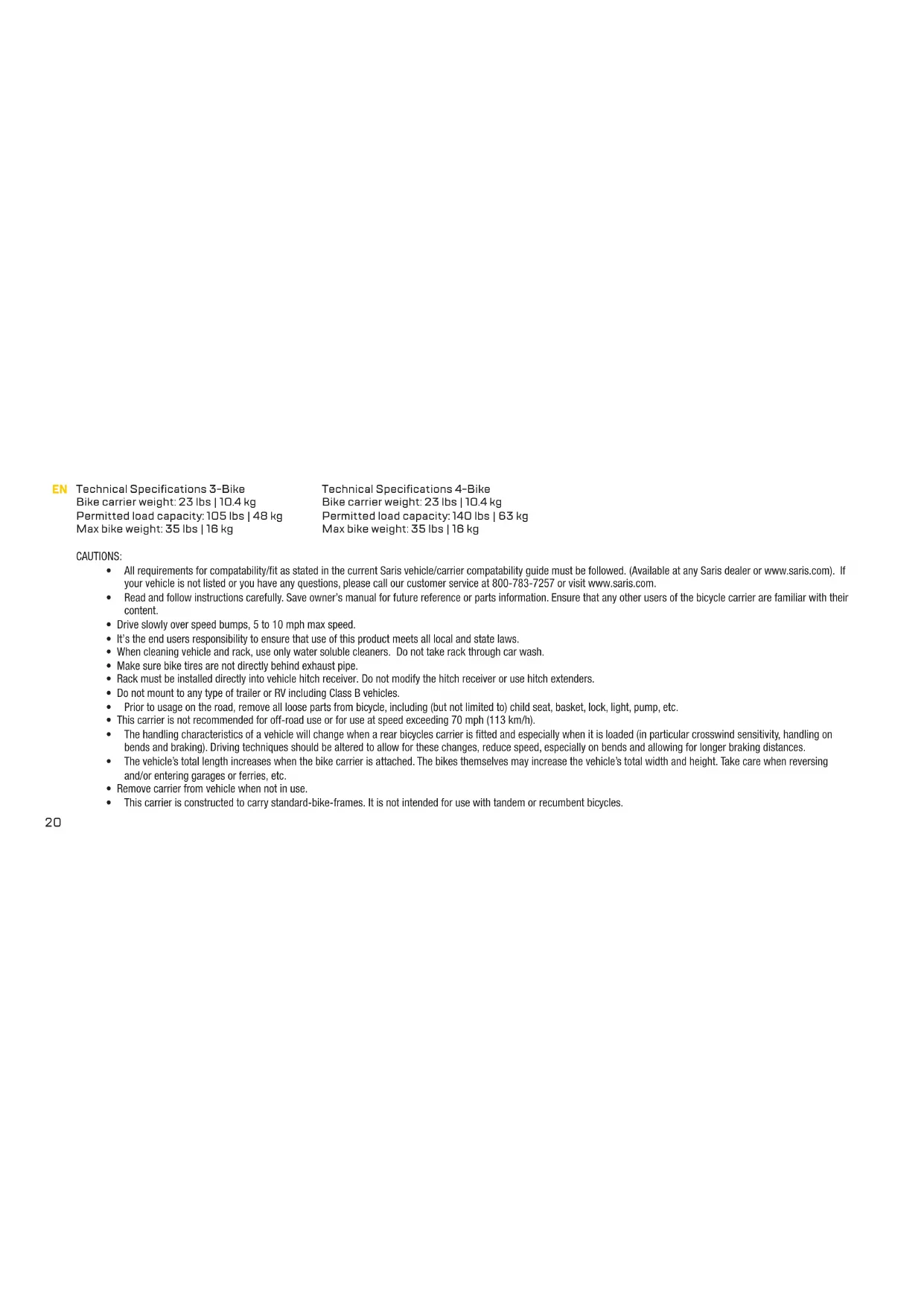

EN Technical Specifications 3-Bike
Bike carrier weight: 23 lbs | 10.4 kg
Permitted load capacity: 105 lbs | 48 kg
Max bike weight: 35 lbs | 16 kg

Technical Specifications 4-Bike
Bike carrier weight: 23 lbs | 10.4 kg
Permitted load capacity: 140 lbs | 63 kg
Max bike weight: 35 lbs | 16 kg

CAUTIONS:

All requirements for compatability/fit as stated in the current Saris vehicle/carrier compatability guide must be followed. (Available at any Saris dealer or www.saris.com). If your vehicle is not listed or you have any questions, please call our customer service at 800-783-7257 or visit www.saris.com.
- Read and follow instructions carefully. Save owner's manual for future reference or parts information. Ensure that any other users of the bicycle carrier are familiar with their content.
- Drive slowly over speed bumps, 5 to 10 mph max speed.
It's the end users responsibility to ensure that use of this product meets all local and state laws.
- When cleaning vehicle and rack, use only water soluble cleaners. Do not take rack through car wash.
- Make sure bike tires are not directly behind exhaust pipe.
- Rack must be installed directly into vehicle hitch receiver. Do not modify the hitch receiver or use hitch extenders.
- Do not mount to any type of trailer or RV including Class B vehicles.
Prior to usage on the road, remove all loose parts from bicycle, including (but not limited to) child seat, basket, lock, light, pump, etc.
- This carrier is not recommended for off-road use or for use at speed exceeding 70 mph (113 km/h).
The handling characteristics of a vehicle will change when a rear bicycles carrier is fitted and especially when it is loaded (in particular crosswind sensitivity, handling on bends and braking). Driving techniques should be altered to allow for these changes, reduce speed, especially on bends and allowing for longer braking distances.
The vehicle's total length increases when the bike carier is attached. The bikes themselves may increase the vehicle's total width and height. Take care when reversing and/or entering garages or ferries, etc.
- Remove carrier from vehicle when not in use.
This carrier is constructed to carry standard-bike-frames. It is not intended for use with tandem or recumbent bicycles.

• Replace any mounting strap at the first sign of wear. Replacement parts are available through your local Saris dealer or call 1-800-783-7257.
• Tighten straps regularly during the journey.
• Vehicle should be in good condition in the area at which the hitch is located.
  Do not exceed maximum load capacity of carrier (190 lbs max or 60 lbs max per bike!) Secure properly and adjust for even load distribution, loading the heaviest/biggest bike first and closest to the vehicle.
  Sar is absolves itself of responsibility for any personal injuries or consequential damage to property or wealth caused by incorrect fitting or use.

Recommended Rack Maintenance & Care Instructions

Each use:

Wipe down trunk rack feet
- Avoid ground contact with trunk rack feet
- Check straps for signs of wear
- Check bike cradles and wheel scoops
- Check for loose bolts

Every 90 days actions:

• Clean with water and mild soap
• Lubricate locks if applicable (use wet, oil-based lubricant; NO WD-40)
  Grease hitch bolt threads
• Check for scratches in paint.

Official Warranty Terms: Saris Racks

Saris Cycling Group, Inc (SCG), parent company of Saris Racks, warrants our products to the original consumer to be free from defects in materials and workmanship. Your purchase includes the following warranty which is in lieu of all other express warranties. This warranty is extended only to the initial consumer purchaser. This warranty gives you specific legal rights. You may have other legal rights which vary from state to state. Please retain your sales slip for your records, as proof of purchase will be required.

Warranty Term

Car Racks Limited Lifetime*

Home Storage/Bike Storage Limited Lifetime*

Kool Rack

Parking Racks 1 Year

Year

*Warranty only valid for original purchaser. Limited lifetime warranty available in North America only.

Manufacturing defects are most likely to be identified on new products or early in the product's lifespan. Each warranty claim is unique, and it is solely up to SCG to determine if a product can be covered by the limited lifetime warranty due to defects, or if the product has suffered wear and tear.

Any product or part thereof found to be defective within the term as set forth above will be replaced without charge provided that: (1) its failure resulted from a defect in material or workmanship and not from normal wear and tear expected in the use of the product; (2) the product was not abused, misused, improperly assembled, improperly maintained or damaged by accident or installation of parts or accessories not originally intended or compatible with the racks as originally sold.; (3) there was no failure to follow instructions or warnings in Owner's Manual; (4) no alterations or modifications were made; and (5) the product or part is delivered, freight prepaid, to Saris Cycling Group or an authorized service center. Please call 1-800-783-7257 to obtain return authorization prior to return. Any other claims not included in the statements above are void and will not be honored. SCG reserves the right to inspect any product before issuing a replacement. SCG's only obligation shall be to replace such products or parts that it determines are defective.

Limitations

THE FOREGOING WARRANTY ARE THE ONLY WARRANTYES MADE BY SCG. THERE ARE NO OTHER WARRANTY. ANY WARRANTY THAT MIGHT OTHERWISE BE IMplied BY LAW INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED STRICTLY TO THE APPLICABLE LENGTH OF THIS LIMITED WARRANTY.

SCG shall not be liable for incidental or consequential losses, damages, or expenses in connection with its products. SCG's liability hereunder is expressly limited to the replacement of goods not complying with this warranty or, at SCG's election, to the repayment of an amount of the purchase price of the product in question.

Exclusions

If consumer does not comply with all warnings, cautions, or instructions listed in Instruction Manual, damage is not covered under warranty
- Impact/collision damage is not covered under warranty
- Cradles and strap damage due to improper arm placement are not covered under warranty
- Carrying anything other than a bicycle is not covered under warranty
- Paint damage - chipping, cracking, or fading is not covered under warranty
- Rust is wear and tear and is preventable with rack maintenance
- Weather impact (UV, salt air/water)
- Damage to mounting surface
- Damage or loss resulting from failure to replace/maintain consumable items not covered.
Not following Recommended Rack Maintenance
- Consumable items not covered by warranty. Including but not limited to.

• Arm and wheel tray adjustment knobs
• Frame and wheel straps
• Vehicle attachment straps
• Molded wheel trays
• Frame cradles
• Threaded assemblies
  Ratcheting assemblies

ES

Technical Specifications 3-Bike

Peso del portabicicletas: 23 lbs | 10.4 kg

Specifications techniques: 3-Bike

Poids du porte-velo: 23 lbs | 10.4 kg

Specifications techniques: 4-Bike

Poids du porte-velo: 23 lbs | 10.4 kg
