Product Type	Bike Rack
Brand	Saris
Model	Guardian 3
Capacity	3 bikes
Maximum weight per bike	16 kg
Bike rack weight (estimate)	5 kg
Materials	Coated steel, protective foam
Color	Black
Dimensions (unfolded, estimate)	120 × 60 × 30 cm
Power source	None (manual)
Main function	Transporting bikes on the trunk
Installation	On the trunk using straps and hooks
Attachment	Adjustable straps with S hooks or Upper hooks
Cleaning	Clean the foam sleeves before installation
Maintenance	Check and tighten straps regularly, replace if worn
Safety	Do not open the trunk once installed, check compatibility
Warranty	Lifetime for the first owner (manufacturing defects)
Spare parts	Available through Saris distributor

Frequently Asked Questions - Guardian 3 Saris

How to install the Saris Guardian 3 bike rack?

Refer to the instructions for the arm positions according to your vehicle. Attach the inner and outer straps to the trunk hinges and edges, then tighten the straps evenly.

What is the maximum weight per bike?

The maximum weight per bike is 16 kg (35 lb).

Can I use the Guardian 3 with a hatchback vehicle?

Yes, the Guardian 3 fits sedans, hatchbacks, and minivans. Refer to the Saris compatibility guide for specific arm positions.

How to secure the bikes on the support arms?

Place the bikes alternately, top tube in the cradles. For step-through frames, use the optional upright (ref. 3037) or secure under the frame's 'V'.

Can the bike rack be used with an external spare tire?

The Guardian 3 is not designed for use with an external spare tire. Check the compatibility guide for exceptions.

How to clean and maintain the bike rack?

Clean the foam sleeves before each installation to avoid scratching paint. Check the straps regularly and replace them at the first sign of wear.

What is the warranty of the Saris Guardian 3?

The bike rack comes with a lifetime warranty for the first owner against manufacturing defects. Keep your receipt.

Can I transport an electric bike or tandem?

No, this bike rack is not designed for tandems, recumbent bikes, or motorized bikes. The maximum weight per bike is 16 kg.

How do I know if my vehicle is compatible?

Consult the latest Saris Compatibility Guide at www.sarisproducts.com. Compatibility depends on the vehicle's standard equipment.

Can I open the trunk with the bike rack installed?

No, never open the trunk when the bike rack is installed. You could damage the vehicle or the bike rack.

USER MANUAL Guardian 3 Saris

S CYCLE RACKS SARIS

SIMPLY DESIGNED TO LAST, GUARANTEED."

FINALLY – A COMPANY THAT LOVES BIKES AS MUCH AS YOU DO.

Chances are, your bikes are just like ours - your most valued possessions. And if it has the Saris name on it, nothing we build goes out the door unless it's worth putting those possessions on. Call it obsessive. Call it eccentric. We just chalk it up to caring a hell of a lot about creating the last rack you'll ever need

THE GUARDIAN SERIES

INSTALLATION MANUAL

Please READ and FOLLOW all instructions carefully.

Check Fit Guide for compatibility.

Side view of a silver car front-mounted anti-fartricycle rack (no text or symbols visible)

1045P-Guardian 2 bike

Side view of a car front-mounted air lift rack (no text or symbols visible)

1047P-Guardian 3 bike

Note: Before installing carrier, clean all surfaces of vehicle which may come in contact with the carrier or its straps. Make sure foam pads are free of debris as it could scratch vehicle's finish.

ADJUST CARRIER TO VEHICLE:

1

GUARDIAN 2-

Following the illustration below that most resembles your vehicle, adjust the top leg such that the lower leg rests on or above liscense plate and the rack assumes the position that most resembles the illustration.

Lower leg must rest on or above license plate (not on bumper).

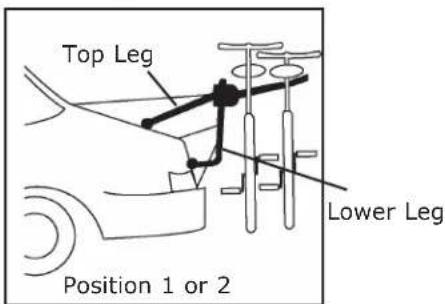

Top Leg Lower Leg Position 1 or 2

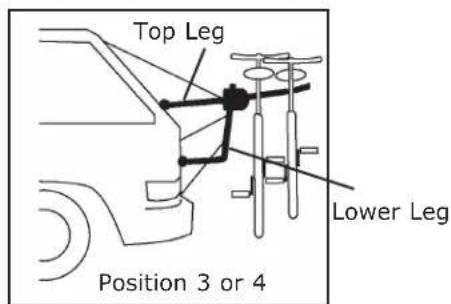

Top Leg Lower Leg Position 3 or 4

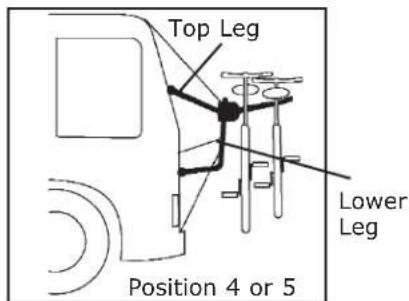

Top Leg Lower Leg Position 4 or 5

1

GUARDIAN 3-

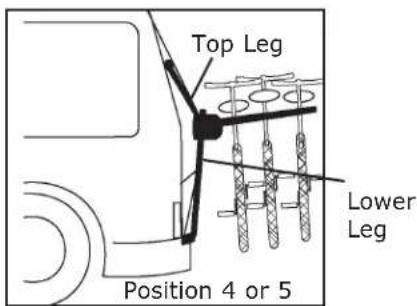

Following the illustration below that most resembles your vehicle, adjust the top leg such that the lower leg rests on the bumper and is positioned vertically. Lower leg must rest on bumper.

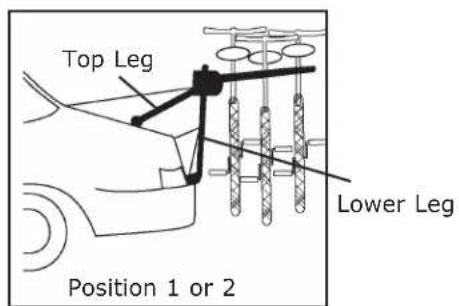

Top Leg Lower Leg Position 1 or 2

Top Leg Lower Leg Position 3 or 4

Top Leg Lower Leg Position 4 or 5

ADJUST CARRIER TO VEHICLE CONTINUED:

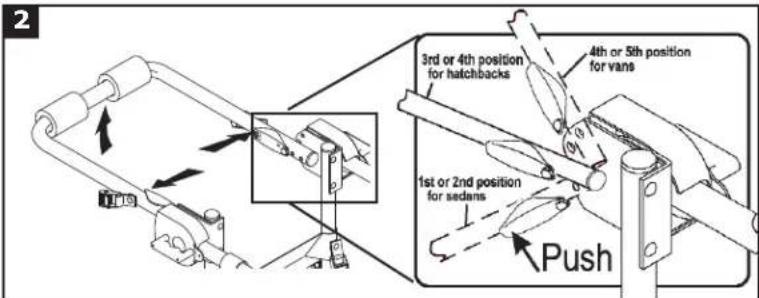

2 3rd or 4th position for hatchbacks 4th or 5th position for vans 1st or 2nd position for sedans Push

Press in on adjusting levers simultaneously and raise rear leg, then release levers allowing pins to snap into place (Fig. 2).

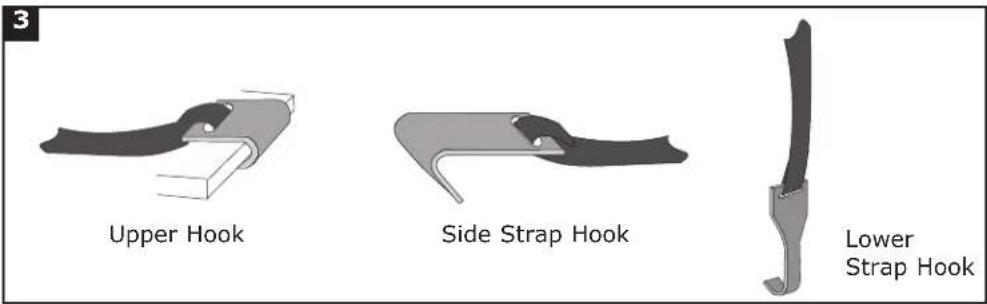

3 Upper Hook Side Strap Hook Lower Strap Hook

ATTACH STRAPS:

Attach Upper-hook straps to top hinge line of vehicle as shown in Fig.'s 3 & 4. Always place strap between car surface and hook.

Note: Hook attachment must be to a supported hinge line - NEVER attach to glass, unsupported plastic, or roof rack.

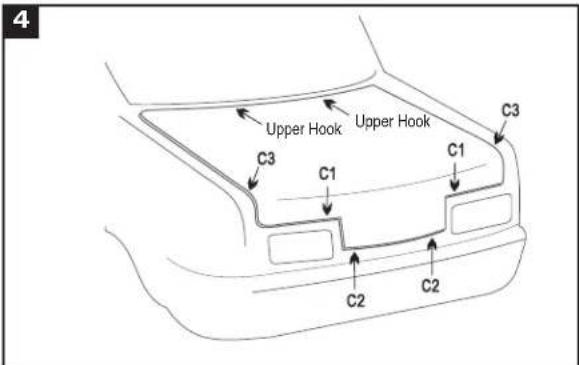

4 Upper Hook Upper Hook C3 C3 C1 C1 C2 C2 C2

Unless otherwise specified in current fit chart, www.saris.com attach inside strap hooks (Fig. 6) to bottom edge of trunk at position C1 (ideally) or C2 (Fig. 5). Attach outside strap hooks above bend in trunk at position C3. (marked on hook)

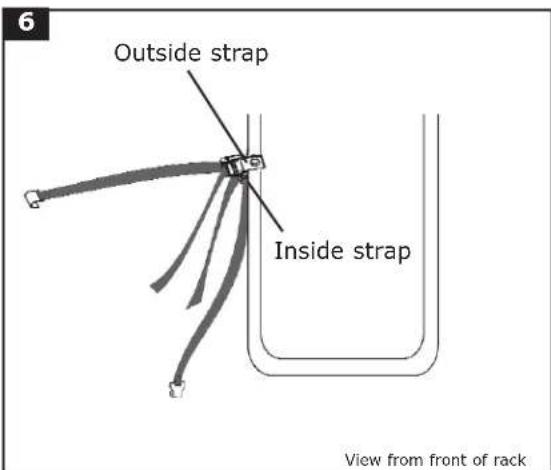

6 Outside strap Inside strap View from front of rack

Line drawing of a car rear bumper with visible seams and straps (no text or symbols)

Inside Strap Hook and Hatch Hugger special application:

ONLY IF SPECIFIED IN CURRENT FIT CHART

(available at www.saris.com)

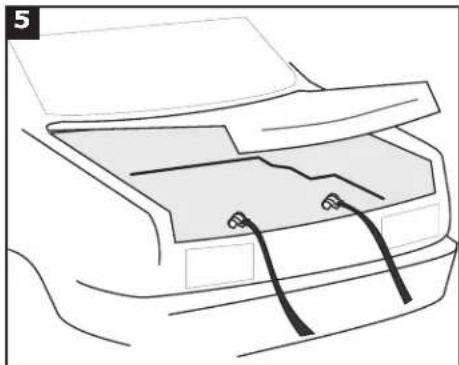

Some vehicles require placing the Inside Strap Hooks in the trunk. To do so: Loosen straps, place hooks inside trunk, close trunk, pull straps until hooks brace against trunk wall, and tighten as usual (Fig. 5).

Tighten all straps evenly, removing any slack. When straps are taut, shake carrier to check for movement. Retighten if necessary.

LOAD AND SECURE BIKES:

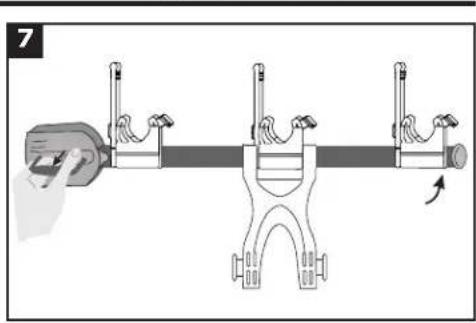

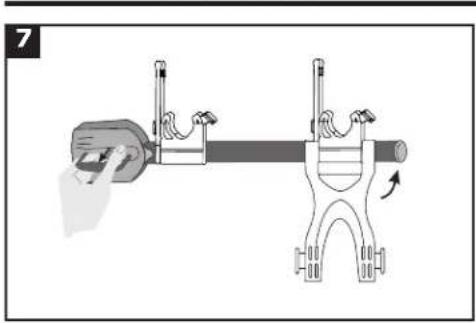

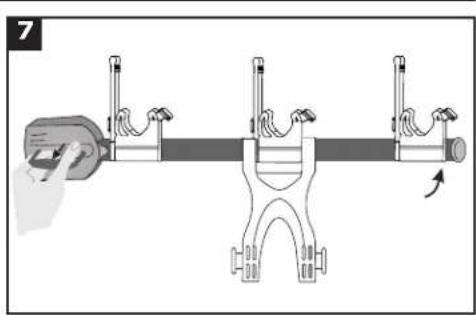

With thumb braced against arm cover, pull out on arm adjustment handle. Raise carrier arm slightly above horizontal (never below horizontal) and release handle allowing pins to click into place. It may be necessary to wiggle arm gently for pins to engage (Fig. 7).

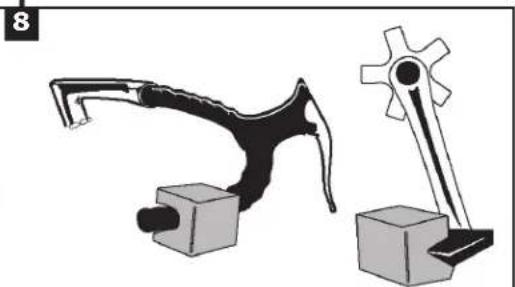

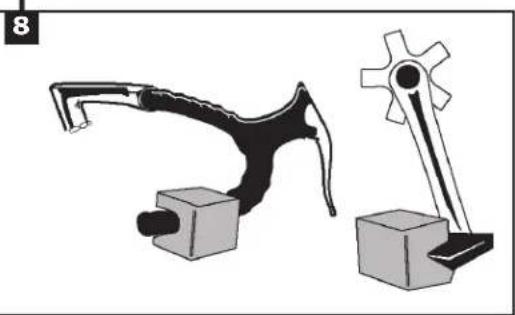

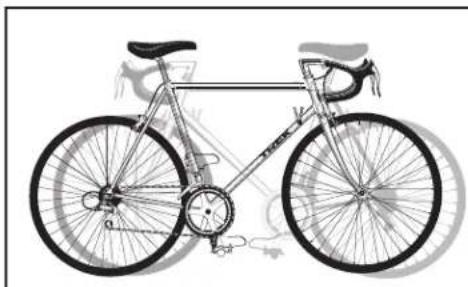

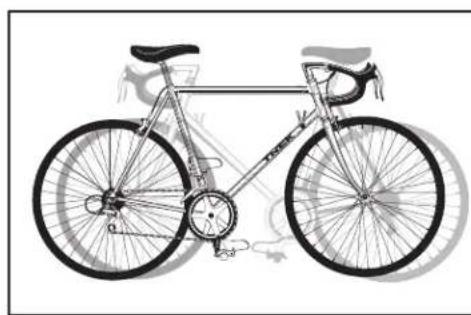

Place bikes on carrier arms, alternating direction of handlebars (Fig. 8). Rest the bicycle's top tube in hold-down saddles. Cover inner pedal of first bike to avoid scratching vehicle finish (Fig. 8). The purchase of Saris Protect-O-Pads (#2060) is recommended to protect potential contact areas. Make sure foam pads are free of debris as it could scratch vehicle's finish.

Guardian 2 bike

Diagram of a mechanical device with a hand operating a tool, showing internal components and motion direction (no text or symbols)

Guardian 3 bike

Diagram of a mechanical clamp or clamp device with spring and lever mechanism (no text or symbols)

Illustration of a bicycle with front wheel, rear wheel, and side seat (no text or symbols)

Illustration of a robotic arm and a mechanical lever assembly (no text or symbols)

9 7

9 12"

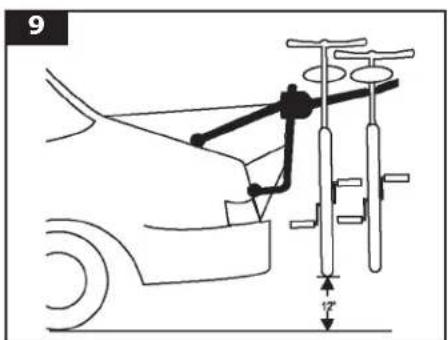

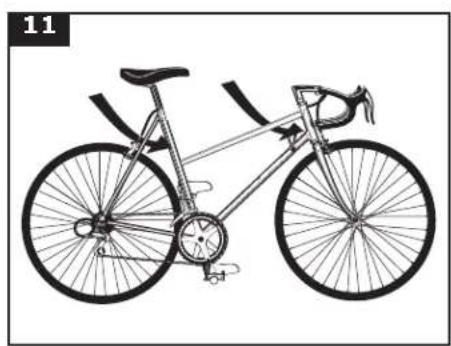

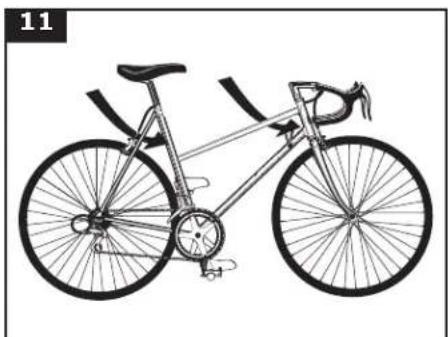

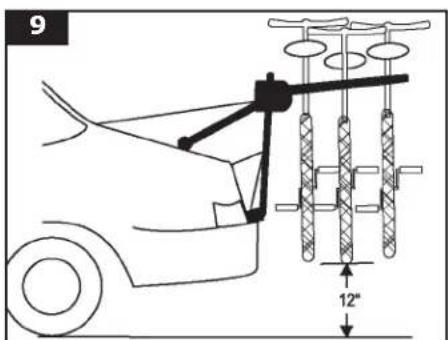

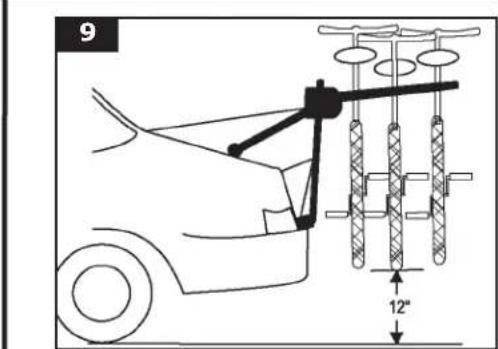

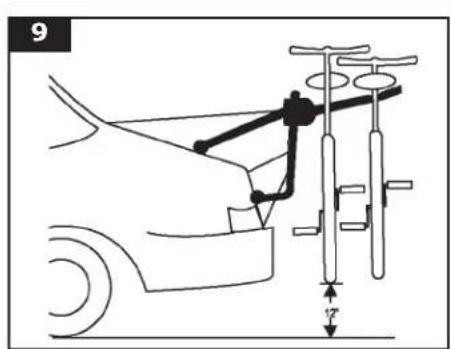

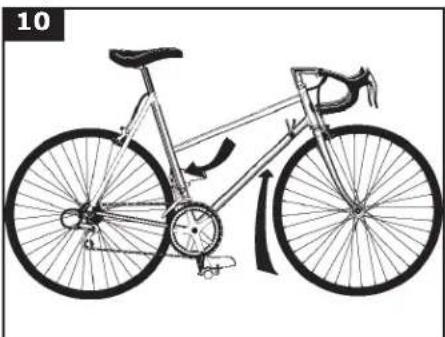

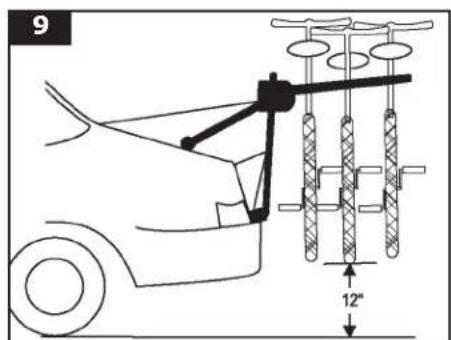

Check clearance. Carrier must rest high enough to allow bike tires at least 12" of ground clearance (Fig. 9). For women's bikes or for additional ground clearance mount bicycles under the "V" in the frame (Fig 10). For women's bikes, keep the weight of the crank centered on the rack (Fig 11). Women's children's and unique frame bikes may also be mounted with the aid of the Bike Beam #3037, available at your Saris dealer.

Illustration of a bicycle with a curved arrow indicating rotational motion (no text or symbols)

Line drawing of a bicycle with front wheel, rear wheel, and side arm (no text or symbols)

Illustration of a mechanical device with a bow and handle (no text or symbols)

Secure bike with hold down straps and pull tight.

Retighten straps and tie off (Fig 12).

CHECK CARRIER STRAPS & STABILITY:

While in use, recheck your installation

▶ During first use (break-in period) check after 30 minutes or 30 miles
▶ Thereafter check every 200 miles
▶ Check more frequently on bumpy roads
▶ If bicycles shift or move, check IMMEDIATELY

Be sure all straps are taut and knotted firmly against buckles.

CAUTIONS:

1) All requirements for compatibility/ fit as stated in the current Saris® Fit Guide must be followed.
2) Read and follow instructions carefully. Save owner's manual for future reference or parts information.
3) The rack is not intended for use with tandem, recumbent, or motorized bicycles.
4) Replace any mounting strap at the first sign of wear. Replacement parts are available for purchase through your local Saris dealer or call 1-800-783-7257.
5) S-hook straps must be in line with rear leg to prevent shifting.
6) Make sure bike tires are not directly behind exhaust pipe.
7) Never use rack with a bicycle that weighs more than 35lbs.
8) Never place more than 2 bikes on a 2-bike rack or more than 3 bikes on a 3-bike rack.
9) Do not mount to any type of trailer.
10) No part of carrier, including straps, should ever come in contact with vehicle's spoiler.
11) Do not open trunk with carrier installed.
12) Carrier not intended for off road use.
13) It's the end user's responsibility to ensure that use of this product meets all local and state laws.

WARNING AND DISCLAIMER:

This carrier has been designed to carry bicycles on specific vehicles. Before installation, user must read and follow current Saris Fit Guide recommendations (available through Saris dealer or web site www.sarisproducts.com) and enclosed instructions. Fit recommendations are based on vehicle's standard features; optional features may affect the fit recommendations. User must attach carrier correctly to the vehicle, check its attachment before each use, and inspect carrier parts for wear. Carrier's attachment to the vehicle is critical and beyond the control of the manufacturer. Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or loss, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use, inadequate maintenance, or neglect of this carrier.

WARRANTY:

Saris Cycling Group, Inc. ("Saris") warrants that your Saris product will be free from defects in materials and workmanship for as long as you own the product. (Please retain your sales slip for your records.) This warranty only extends to the original consumer buyer. This warranty does not apply to parts that have worn out through normal use or been damaged through misuse, abuse, neglect, accident or unauthorized modifications. ANY IMPLIED WARRANTIES WHICH THE BUYER MAY HAVE ARE LIMITED IN DURATION TO THE TIME THAT THE ORIGINAL CONSUMER BUYER OWNS THE PRODUCT. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. At its option, Saris will repair or replace, or refund the purchase price of, any Saris product which is defective or fails to conform with this warranty under normal use and service. To obtain service under this warranty, return the defective Saris Product or part, freight prepaid, to Saris at the address below. Please contact our customer service department prior to return to get a return authorization number. Repair or replacement of a defective Saris product or refund of the purchase price, shall be the sole remedy of the buyer under this warranty, and in no event shall Saris be liable for incidental or consequential damages, losses or expenses. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
