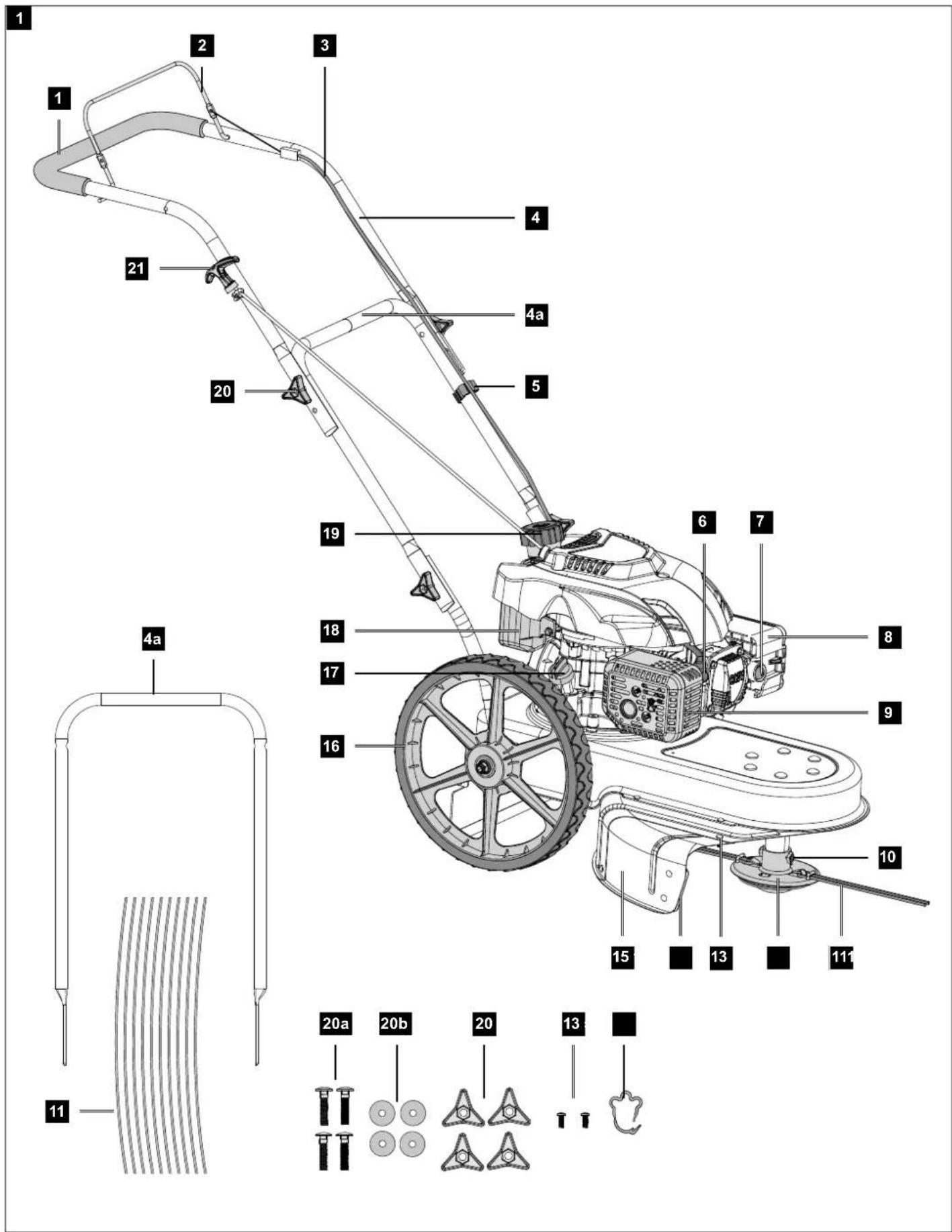

USER MANUAL HMP16156B SCHEPPACH

Meadow mower Translation of original instruction manual

• Gabelschlüssel SW 10 mm*

• Gabelschlüssel SW 13 mm*

Explanation of the symbols on the product Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper acci- dent prevention measures. Observe all safety instructions before use! Read and understand all text in the operating instructions before start up. Do not mow uphill or downhill. For safety reasons, slopes steeper than 15 degrees may not be mowed with the meadow mower. Make sure that other persons maintain a su󰀩cient safety distance. (min. 15m) Danger due to parts ying o󰀨 while the engine is running. Danger of poisoning! Only use the product outdoors and never in closed or poorly ventilated rooms. Do not refuel while the engine is hot or running. Remove the spark plug connector prior to all maintenance work. Keep your hands and feet away from the rotating blades. Important. The exhaust gases are toxic. Do not operate the engine in areas that are not ventilated. Attention: hot surface - risk of burns! Use hearing and eye protection! Wear safety shoes. ATTENTION! Operating materials are ammable and explosive - danger of burning. Do not refuel while the engine is hot or running. Never attach metallic cutting elements! Primer button for cold startwww.scheppach.com

Cutting diameter 56 cm Tank contents Check the oil level Specication of the guaranteed sound power level L

in dB. The product complies with the applicable European directives.www.scheppach.com

Table of contents: Page:

3. Scope of delivery

The meadow mower is suitable for private use in do- mestic and hobby gardens. Meadow mowers for pri- vate domestic and hobby gardens are considered to be those whose annual use does not generally ex- ceed 50 hours and which are primarily used for the maintenance of grass or meadow areas, but not in public areas, parks, sports facilities or in agriculture and forestry. The product may only be used in the intended man- ner. Any use beyond this is improper. The user/opera- tor, not the manufacturer, is responsible for damages or injuries of any type resulting from this. An element of the intended use is also the obser- vance of the safety instructions, as well as the as- sembly instructions and operating information in the operating manual. Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

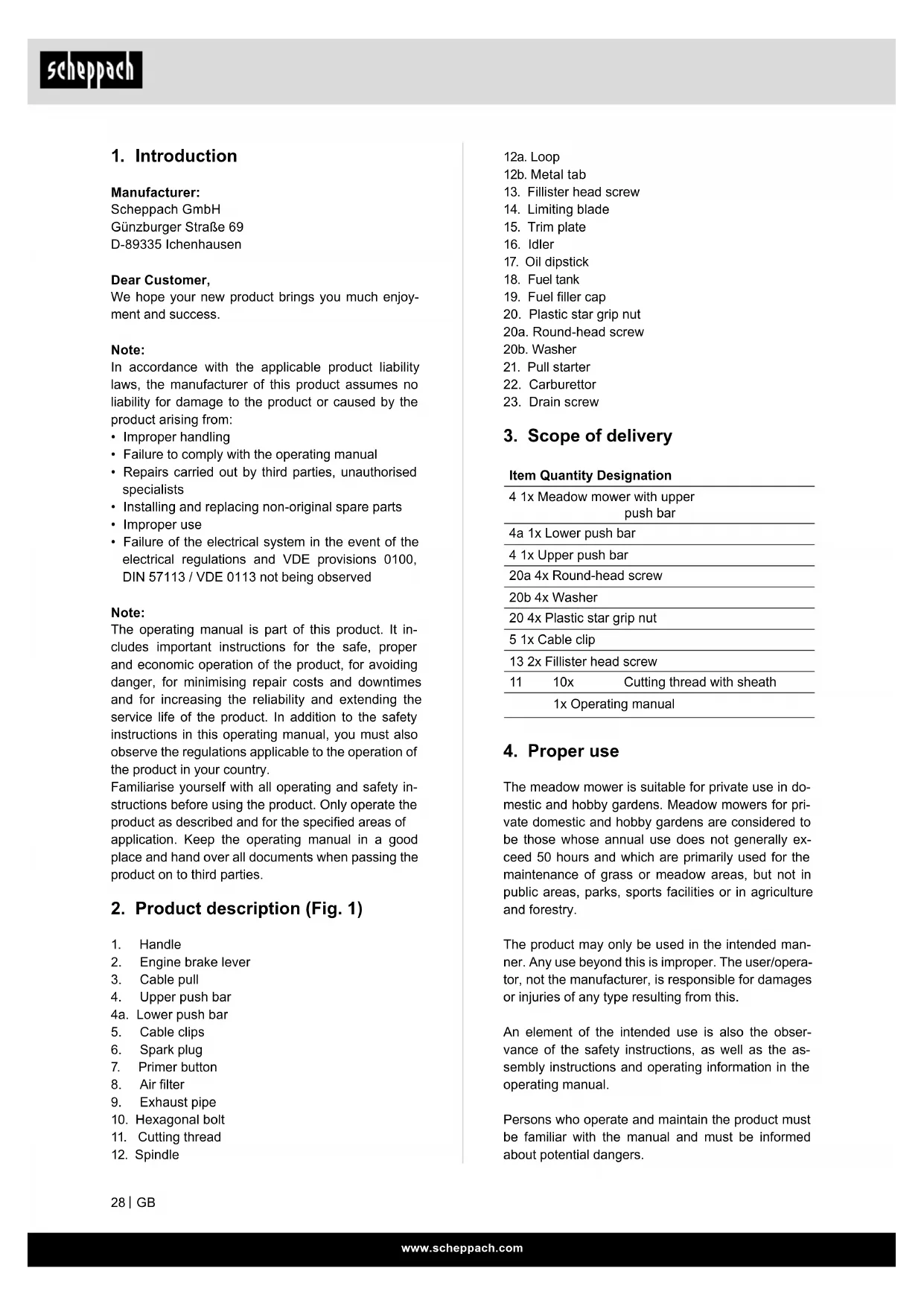

Manufacturer: Scheppach GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear Customer, We hope your new product brings you much enjoy- ment and success. Note: In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Failure to comply with the operating manual

• Repairs carried out by third parties, unauthorised specialists

• Installing and replacing non-original spare parts

• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed Note: The operating manual is part of this product. It in- cludes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country. Familiarise yourself with all operating and safety in- structions before using the product. Only operate the product as described and for the specied areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

ATTENTION Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

5. General safety instructions

Keep all safety information and instructions for future reference! m WARNING Read all safety information and instructions, il- lustrations and technical data provided with this product . Failure to follow all instructions listed below may re- sult in electric shock, re and/or serious injury. Who is not permitted to use the product:

• Children and other people who do are not familiar with the usage instructions (local stipulations may specify a minimum age for users).

• People under the inuence of alcohol, drugs and medication, as well as those who are tired or ill.

5.1 Safety instructions for hand-held meadow

• Read the usage instructions with due care. Famil- iarise yourself with the settings and proper opera- tion of the product.

• Never allow children or other persons who do not know the operating instructions to use the lawn mower. Contact your local governmental agency for information regarding minimum age require- ments for operating the lawnmower.

• Never mow while people, especially children or an- imals are nearby. Always keep in mind that the op- erator is responsible for accidents involving other persons and/or their property.

• Only mow when visibility is good. It is necessary to keep third parties away.

• If you hand over the product to another person, please also hand over these operating instructions.

• Always wear sturdy, non-slip footwear and long trousers when mowing. Never mow barefoot or in sandals.

• Check the terrain on which the product will be used and remove all objects that could be caught up and violently ung out of the chute (like stones, toys, sticks and wires etc.).

• Switch o󰀨 the engine, wait for it to stop and discon- nect the spark plug connector if - you are leaving the product. - You are removing blockages or obstructions. - the product has been in contact with foreign ob- jects. The liability of the manufacturer and resulting dam- ages are excluded in the event of modications of the product. The product may only be operated with original parts and original accessories from the manufacturer. The safety, operating and maintenance specications of the manufacturer, as well as the dimensions speci- ed in the technical data, must be observed. Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work. Due to physical danger to the user the meadow mower must not be used for the follow- ing work (incomplete list):

• for trimming bushes, hedges and shrubs,

• for cutting climbing plants,

• for lawn care on roof plantings and in

• for chipping and shredding tree and hedge cuttings,

• for cleaning pavements (vacuuming, blowing away),

• for levelling ground elevations such as

• Molehills. m WARNING For your own safety, please thoroughly read this manual and the general safety instructions before turning the product on. If you give the product to third parties, always include these usage instructions. Explanation of the signal words in the operating manual m DANGER Signal word to indicate an imminently hazard- ous situation which, if not avoided, will result in death or serious injury. m WARNING Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury. m CAUTION Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.www.scheppach.com

• The following applies to wheeled products: Always mow across hills i.e. never straight up or straight down. Take particular care when changing direc- tion on a slope.

• Do not mow on excessively steep slopes and near- by rubbish tips, ditches and dykes. Take particular care when reversing the product or pulling it to- wards you.

• Stop the blade if the meadow mower has to be tilt- ed, when transporting over areas other than grass and when moving the meadow mower to and from the area to be mowed. m WARNING The meadow mower must not be used without the trim plate and other protective devices in place.

• Never use the meadow mower with damaged guards or protective grids or without attached protective devices, e.g. ba󰀪e plates and/or grass catchers.

• Do not adjust and overclock the engine speed set- tings.

• Release the engine brake and disengage all cutting tools and drives before starting the engine.

• Start the engine with care, in accordance with the manufacturers instructions. Ensure that your feet are far enough away from the blade.

• The meadow mower must not be tilted when start- ing the engine, unless the meadow mower has to be lifted during the process. In this case, only tilt as far as absolutely required and only lift the side away from the operator.

• Do not start the engine if you are standing in front of the ejector chute.

• Never put hands and feet on or under rotating parts. Always keep clear of the ejection opening.

• Never lift or carry a mower with the engine running.

• Stop the engine and make sure that all moving parts have come to a standstill and that the ignition key, if present, is removed: - Before you dislodge any blockages or clogs in the ejector chute. - Before checking or cleaning the product, or per- forming work on it. - If it came into contact with a foreign object. Search for damage to the product and carry out the necessary repairs before restarting and working with the product. If the product begins to experience exceptionally strong vibrations, switch it o󰀨 immediately and check it. - Any time you leave the product. - Before you refuel.

• When the engine runs out, close the throttle valve. If the engine has a petrol shut-o󰀨 valve, close it af- ter use. - malfunctions and unusual vibrations occur on the product. m WARNING Fuel is highly ammable.

• Only store fuel in containers (canisters) intended for this purpose.

• Refuel outdoors only and do not smoke while re- fuelling.

• Fuel must be lled before starting the engine. While the engine is running or immediately after switching o󰀨 the product, do not open the fuel ller cap or add fuel.

• If fuel overows, no attempts should be made to start the engine. Instead, the product must be re- moved from the area contaminated with fuel. Do not try to start the engine until the fuel vapours have evaporated.

• For safety reasons, the fuel tanks and other fuel caps must be replaced if damaged.

• Never store fuel near a source of sparks. Always use a tested canister. Keep fuel away from children.

• Replace defective silencers.

• Prior to use. always perform a visual inspection to check whether the blade and fastening bolts are worn out or damaged. To prevent an imbalance, worn out or damaged blades and bolts may only be replaced in sets.

• Make sure that all nuts, bolts and screws are se- curely tightened so that the product is kept in a safe working condition.

• Never store the product with fuel in the tank inside a building in which fuel vapours may come into con- tact with naked ames or sparks.

• Allow the engine to cool down before parking the product in enclosed spaces.

• In order to avoid re hazards, keep the engine, ex- haust pipe and the area around the fuel tank free of grass, leaves and leaking grease (oil).

• Regularly check the catch basket for signs of wear and loss of functionality.

• For safety reasons, replace worn or damaged parts.

• If the fuel tank has to be drained, you must do this outdoors.

• Do not run the combustion engine in closed rooms in which hazardous carbon monoxide can collect.

• Only mow in daylight or with good articial lighting.

• Avoid using the product on wet grass as far as pos- sible.

• Do not use the product in a thunderstorm - risk of lightning strike!

• Observe the maintenance and safety instructions in the operating instructions.

6.1 Residual risks and accident protective measures

Neglect of ergonomic principles Negligent use of personal protective equipment (PPE) Careless use or omission of personal protective equipment may result in serious injury. - Wear prescribed protective equipment. Human behaviour, misconduct - Always concentrate fully on all work. m Residual risk - Can never be ruled out. Danger from noise Hearing damage Prolonged unprotected work with the device may cause hearing damage. - Always wear hearing protection as a matter of principle. Behaviour in an emergency In the event of an accident, initiate the necessary rst aid measures and seek medical assistance as quickly as possible. m WARNING In case of extended working periods, the operating personnel may su󰀨er circulatory disturbances in their hands (vibration white nger) due to vibrations. Raynaud's syndrome is a vascular disease that causes the small blood vessels on the ngers and toes to cramp in spasms. The a󰀨ected areas are no longer supplied with su󰀩cient blood and therefore appear extremely pale. The frequent use of vibrating devices can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics). If you notice unusual adverse e󰀨ects, stop working immediately and seek medical advice. Observe the following information to reduce hazards:

• Keep your body and especially your hands warm in cold weather.

• Take regular breaks and move your hands to pro- mote circulation.

• Ensure as little vibration as possible at the de- vice via regular maintenance and stable parts on the machine. If there is increased noise and vibra- tion from the mower, it must be switched o󰀨 and checked immediately.

• Operating the product at excessive speed can in- crease the risk of accidents.

• Be careful when adjusting the product and avoid trapping ngers between the moving blade and rig- id parts of the device.

• Be particularly careful when mowing on yielding ground, nearby rubbish tips, ditches and dykes.

• Avoid mowing in places where the wheels have trou- ble gripping or mowing is unsafe in any other way.

• Watch out for tra󰀩c near a road. m DANGER Risk of tripping! Exercise particular caution when moving back- wards and pulling the product. Before reversing, make sure there are no small children behind you.

• The user must be adequately trained in the use, adjustment and operation of the machine (including prohibited operations).

• Check the product regularly and make sure that all start locks and push buttons are working properly before each use.

• Please note that improper maintenance, the use of non-compliant spare parts, or the removal or mod- ication of safety devices can result in damage to the product and serious injury to the person work- ing with it.

• Please note that the product’s safety systems or equipment must not be tampered with or deactivat- ed. Never remove any safety-related parts.

• Please note that the user must not change or ma- nipulate any sealed engine speed control settings.

• Use only blades and accessories recommended by the manufacturer. The use of other insert tools and other accessories may pose a risk of injury to the user.

• Always keep the product in good operating condition.

• It is necessary to take su󰀩cient breaks to reduce the noise and vibration load.

The product has been built according to state-of- the-art and the recognised technical safety rules. However, individual residual risks can arise dur- ing operation.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still re- main.

• Residual risks can be minimised if the “Safety In- structions” and the “Intended Use” together with the operating manual as a whole are observed.

• Prevent the product being unintentionally started up.

• Keep your hands away from the working area when the product is in operation.www.scheppach.com

m WARNING The product and the packaging material are not children's toys! Do not let children play with plastic bags, lms or small parts! There is a dan- ger of choking or su󰀨ocating!

• Open the packaging and carefully remove the prod- uct.

• Remove the packaging material, as well as the packaging and transport safety devices (if present).

• Check whether the scope of delivery is complete.

• Check the product and accessory parts for trans- port damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.

• If possible, keep the packaging until the expiry of the warranty period.

• Familiarise yourself with the product by means of the operating manual before using for the rst time.

• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.

• When ordering please provide our article number as well as type and year of manufacture for the product.

m WARNING Risk of injury due to rotating cutting thread. Only work on the product when the cutting thread is switched o󰀨 and stationary! ATTENTION Ensure that the throttle cable is not squeezed when mounting the push bars. Assembly (Fig. 2-7)

1. Remove the product and all attachments from the

packaging and check that all parts are present.

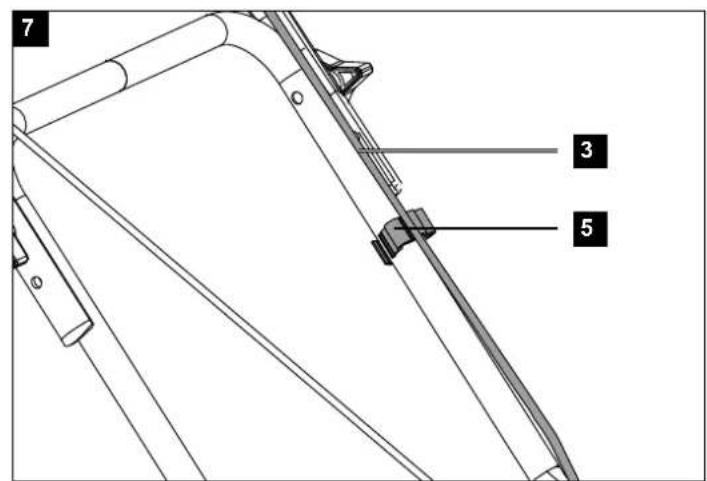

2. Screw the lower push bar (4a) to both sides of the

mower using a round-head screw (20a), a washer (20b) and a plastic star nut (20). Make sure that the cable pull (3), which will be attached later, is not in the way (Fig. 2).

4. Hang the handle of the pull-cord starter (21) on

the hook provided, as shown in Fig. 4.

Type of motor 4-Stroke engine / air cooled Displacement 161 cm

Rotation speed 3000 RPM Fuel Regular grade petrol/lead- free max. 10% bioethanol Tank capacity / petrol 1.3 l Engine oil SAE 30 / 10W30 / 10W40 Oil tank capacity 0.4 l Cutting height adjustment 40-95 mm Cutting thread Ø4 x 445 mm Cutting width 56 cm Weight 26 kg Power 4,1 PS / 3,0 KW Subject to technical changes! Noise and vibration m WARNING Noise can have serious e󰀨ects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for yourself and an- yone in the vicinity. Information about noise level measured in accord- ance with applicable standards: Sound pressure L

= 88 dB Measurement uncertainty K

= 3 dB Sound power L

= 102 dB Measurement uncertainty K

= 3 dB Wear hearing protection. Excessive noise can result in a loss of hearing. Vibration A

(left/right) = 6.812 m/s

Keep the noise level and vibration to a minimum!

• Only use faultless products.

• Maintain and clean the product at regular intervals.

• Adapt your working methods to the product.

• Do not overload the product.

• Have the product checked if necessary.

• Switch the product o󰀨 if it is not in use.

10.1 Filling up with engine oil (Fig. 14)

ATTENTION The product is delivered without engine oil. There- fore, ensure that you add oil before starting it up. Use multigrade oil (SAE 30, 10W-30 or 10W-40). Check the oil level regularly before commissioning. An oil level that is too low can damage the motor.

1. Unscrew the oil dipstick (17).

2. Fill the tank with engine oil using a funnel. Note

the max. lling capacity of 0.4 l. Fill the oil up to the lower edge of the lling nozzle carefully.

3. Wipe the oil dipstick (17) with a clean, lint-free cloth.

4. Re-insert the oil dipstick (17) and pull it out again.

Check the oil level without screwing the oil dip- stick (17) back in.

5. The oil level must be within the middle mark on

the oil dipstick (17).

6. If the oil level is too low, add the recommended

amount of oil (max. 0.4 l).

7. Then screw the oil dipstick (17) back in.

10.2 Filling up with fuel (Fig. 1)

m DANGER Risk of re and explosion! When lling, fuel may ignite and even explode. This can lead to severe burns or death.

• Switch o󰀨 the motor and allow it to cool down

• Keep heat, ames and sparks away.

• Only ll up with fuel outdoors.

• Wear protective gloves.

• Avoid contact with skin and eyes.

• Start the product at a distance of at least 3 m from the fuel lling point.

• Watch out for leaks. If fuel is leaking, do not start the engine. ATTENTION The product is delivered without fuel. It is therefore essential to ll with fuel before commissioning. Use Super E10 petrol for this.

1. Clean the area surrounding the lling area. Impu-

rities in the fuel tank (18) lead to operational faults.

2. Carefully open the tank cover (19) so that any pos-

sible overpressure can be relieved.

3. Fill the fuel tank (18) with petrol using a funnel.

Note the max. lling capacity of 1.2 l. Fill the petrol up to the lower edge of the lling nozzle carefully.

4. Close the tank cover (19) again. Ensure that the

fuel cap is tightly sealed.

5. Clean the tank cover (19) and the surroundings.

6. Turn the trim plate (15) outwards into position (Fig. 5)

7. Fasten the trim plate (15) with two pan-head

screws (13) (Fig. 6).

10. Before commissioning

ATTENTION Always assemble the product completely be- fore commissioning! m WARNING Health hazard! Inhalation of fuel / lubricating oil vapours and ex- haust gases can cause serious damage to health, unconsciousness and in extreme cases death. - Do not inhale fuel/lubricating oil vapours and exhaust fumes. - Operate the product outdoors only. ATTENTION Product damage! Using the product without or with too little engine and gear oil can result in engine damage. - Fill with fuel and oil before commissioning. The product is supplied without engine and gear- box oil. ATTENTION Environmental damage! Spilled oil can pollute the environment permanent- ly. The liquid is highly toxic and can quickly lead to water pollution. - Fill/empty oil only on level, paved surfaces. - Use a lling nozzle or funnel. - Collect drained oil in a suitable container. - Wipe up spilled oil carefully immediately and dis- pose of the cloth according to local regulations. - Dispose of oil as per local regulations. ATTENTION Risk of damage! If incorrectly stored or undrained fuel is used, the carburettor may become clogged or engine opera- tion may be a󰀨ected. - Put unused fuel in an airtight vessel and store it in a dark, cool room. Place the product on a level, even surface. Tool required: (not necessarily included in the scope of delivery!) - Measuring cup 1 litre (oil/fuel resistant) - Funnel - Lappenwww.scheppach.com

• Make sure that the spark plug connector is at- tached to the spark plug.

• Look for signs of damage.

• Check that all protective covers are in place and that all screws, nuts and bolts are tightened.

12.1 Starting the engine (Fig. 10)

NOTE The cutting thread rotates when the motor is started.

1. Check the fuel and engine oil level before every

start (see 10.1 and 10.2). Make sure that the spark plug connector is connected to the spark plug (6).

2. In colder temperatures, press the fuel pump

“primer” (7) three times. This makes it easier to start the product (Fig. 10).

3. Stand behind the product. One hand pushes the

engine brake lever (2) towards the handle (1), the other hand should be on the pull-wire starter (21).

4. Start the engine with the pull starter (21). To do

this, pull the handle out approx. 10-15 cm (until resistance is felt). And then pull hard with a jerk. If the engine does not start, pull on the pull start- er (21) again.

5. Due to protective coating on the engine, a small

amount of smoke may be present during the ini- tial use of the product and should be considered normal. This is a normal process. NOTE Only use the fuel pump “primer” when the en- gine is cold! ATTENTION - Do not let the pull starter whip back in. This can result in damage. - Only use the fuel pump “primer” when the en- gine is cold!

12.2 Switch o󰀨 the motor

m WARNING Danger of injury! After switching o󰀨 the motor, the cutting line contin- ues to run for a few seconds. If you touch the rotat- ing parts, you may cut yourself. - Wait until the cutting thread comes to a standstill - Do not brake the cutting line by hand. - Wear protective gloves. - Keep the cutting line away from your feet.

1. To switch o󰀨 the engine, release the engine

NOTE Some noise pollution from this product is un- avoidable. Postpone noisy work to approved and designated times. If necessary, adhere to rest periods and limit the duration of work to the bare minimum. For your personal pro- tection and the protection of nearby persons, wear suitable hearing protection. m Attention! Always make sure the product is fully assembled before commissioning!

11.1 Setting the cutting height (Fig. 8-9)

ATTENTION Adjust the cutting height only when the engine is switched o󰀨 and the plug boot has been pulled.

1. In dense, tall grass, set the highest cutting level

and mow more slowly. Adjust the cutting height so that the product is not overloaded.

2. The cutting height adjustment is innitely variable.

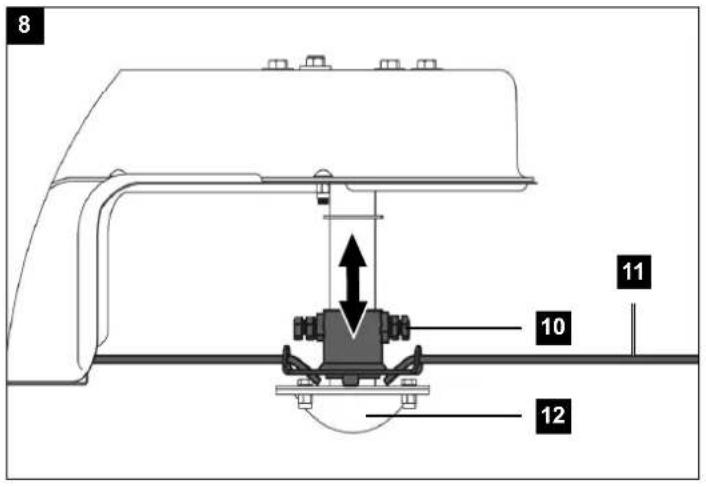

To adjust the cutting height, loosen the hexagon head screws (10) on the side of the spindle shaft (Fig. 8).

3. Slide the spindle (12) to the desired position, be-

tween 40 mm and 95 mm cutting height (Fig. 9).

4. Tighten the screws (10) again.

11.2 Engine brake lever (2) (Fig. 10)

You must check the spindle stop device before each start-up. Start the engine as described under 12.1.

1. Release the engine brake lever (2). The motor

switches o󰀨 and the spindle shaft is braked.

2. The cutting thread (11) must stop within 7 seconds.

The product is powered by a powerful, air-cooled 4-stroke engine. It is equipped with innitely variable cutting height ad- justment and a folding push handle. Please refer to the following descriptions for the function of the controls. Check before operation

• Check all sides of the engine for oil or fuel leaks.

• Check the engine oil level.

• Check the fuel level – the fuel tank should be at least half-full.

• Check the condition of the air lter.

14.1 Cleaning the product

Never clean the mower with a water jet or high pres- sure cleaner. The motor should remain dry. Do not use aggressive cleaning products such as cold clean- ers or white spirit. The mower should be thoroughly cleaned after each use. In particular, the underside and the spindle. Keep protective devices, air vents and motor hous- ings as free of dust and dirt as possible. NOTE Before tipping the product, empty the fuel tank com- pletely using a petrol suction pump (not included in the scope of delivery). The product must not be tilted more than 90 degrees.

• It is best to tilt the mower backwards. Make abso- lutely sure that the spark plug (6) is pointing up- wards. If the spark plug (6) is pointing downwards, oil can leak out and cause major damage to the engine and carburettor.

• Alternatively, you can tilt the appliance on its side, but you must ensure that the air lter (8) is on the upper side.

• Clean the underside of the product with a spatu- la and hand brush. The spatula helps to remove coarse and larger plant residues from the cutting line area. Cleaning the underbody is easier and more thorough immediately after use. Then dirt and plant residues are still fresh and can be loosened more easily. Grass residues and dirt that have dried on can impair mowing.

• Rub the product clean with a clean cloth or blow it o󰀨 with compressed air at low pressure.

• Clean the product at regular intervals using a damp cloth. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the interior of the product.

2. Wait until the cutting thread (11) comes to a

3. Remove the spark plug cap from the spark plug

(6) to prevent the engine from starting uninten- tionally (Fig. 16)

13. Working instructions

• Only mow with perfect, undamaged cutting line.

• To achieve a clean cut, guide the product in as straight a path as possible. These strips should always over- lap by a few centimetres so that no patches remain.

• Keep the underside of the mower housing clean and be sure to remove grass debris. Deposits impede the start-up process and impair the cutting quality.

• On slopes, the cutting path should be made perpen- dicular to the slope. Sliding of the meadow mower can be prevented by tilting it upwards. For safety reasons, slopes steeper than 15 degrees may not be mowed with the meadow mower. (Fig. 18, Fig. 19)

• Always allow the motor to cool down before park- ing the product in a closed room. Remove grass, leaves, grease, and oil before storage. Do not place any other objects on the product.

• Check all screws and nuts before the next use. Tighten up loose screws.

• Please also refer to chapter 17.

m WARNING Danger of injury and burning! The product can start unexpectedly and cause in- juries. - Switch o󰀨 the motor before carrying out any cleaning or maintenance work. - Allow the motor to cool down. - Disconnect the spark plug connector from the spark plug. m WARNING Health hazard! Inhalation of fuel/lubricating oil vapours and ex- haust fumes can cause serious damage to health, unconsciousness and, in extreme cases, death. - Do not breathe fuel / lubricating oil vapours and exhaust gases. - Operate the product outdoors only. Tool required: (not necessarily included in the scope of delivery)

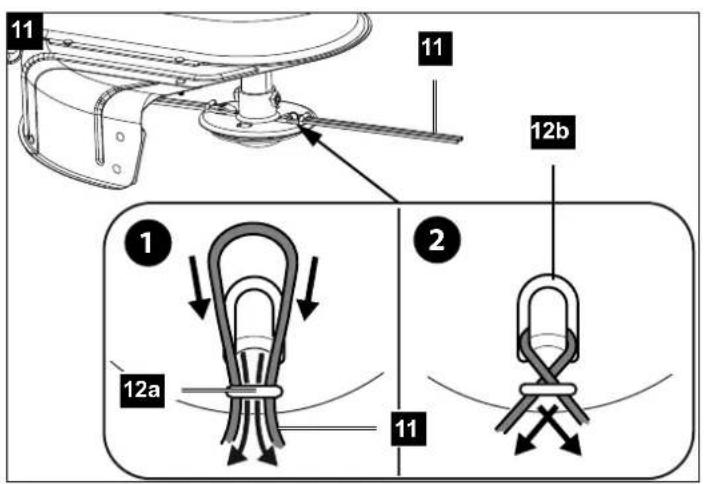

15.1 Changing the cutting thread (Fig. 11)

m WARNING There is a risk of injury when working with a damaged cutting thread. - Wear protective gloves! - Only original spare parts may be used when replacing the cutting thread.

1. Empty the fuel tank before removing the cutting

line (11) (see 15.5.).

2. Remove the cutting thread (11) by pushing both

ends of the thread through the loop (12a) so that the cutting thread (11) comes out from under the metal tab (12b). The cutting thread (11) can then simply be pulled out.

3. Fold the cutting thread (11) in half and feed both ends

through the loop (12a) on the edge of the spindle.

4. Pull the ends of the cutting thread (11) through the

loop (12a) until the cutting thread sits securely un- der the metal tab (12b).

5. Cross the thread ends and pull them tight to se-

The limiting blade (14) can become blunt over time.

1. If you notice this, loosen the screws that secure

the limiting blade (14) to the trim plate (15).

2. Secure the limiting blade (14) in a vice.

3. Grind the cutting edge of the limiting blade (14)

with a at le, taking care to maintain the angle of the cutting edge.

end of each mowing season or as required.

15.3 Checking the oil level (Fig. 14)

m WARNING Health hazard. Inhalation of fuel/lubricating oil vapours and ex- haust fumes can lead to serious damage to health, unconsciousness and, in extreme cases, death. - Do not inhale fuel/lubricating oil vapours and exhaust fumes. - Operate the product outdoors only.

m WARNING Have repair and maintenance work that is not described in these operating instructions car- ried out by a specialised workshop. Use only original spare parts. There is a risk of accident! Carry out maintenance and cleaning work should always be carried out with the engine switched o󰀨. There is a danger of injury! Let the Product cool down be- fore all maintenance and cleaning tasks. Ele- ments of the engine are hot. There is a danger of injury and burning! The product can start unexpectedly and cause in- juries. - Switch o󰀨 the motor before carrying out any cleaning or maintenance work. - Disconnect the spark plug connector from the spark plug. - Allow the motor to cool down.

• Regular, careful servicing is required to guarantee the safety level and performance of the product.

• Ensure that all nuts, pins and screws are securely tightened so that the product is in a safe working condition.

• For safety reasons, replace worn or damaged parts.

• Check that the rear wheels are securely fastened.

• To ensure that the wheels run smoothly, we rec- ommend cleaning and lightly oiling the wheel axles and wheel hubs at least once a season (Fig. 12).

• Work not described in these operating instructions should only be carried out by an authorised spe- cialist workshop.

• Place the product on a level, even surface. Tool required:

• Fuel extraction pump*

• Phillips screwdriver

• Oil collecting tray, at (for oil change)*

• = may not be included in the scope of delivery!www.scheppach.com

To do this, place a collecting container under the carburettor (22) and open the drain plug (23) us- ing a 10 mm open-end spanner (Fig. 21).

15.6 Maintenance of the air lter (8) (Fig. 15)

m DANGER Risk of re and explosion! If not cleaned correctly, fuel may ignite and even explode. This can lead to severe burns or death. - Clean the air lter only by knocking it out. - Never clean the air lter with petrol or amma- ble solvents. ATTENTION Risk of damage! Operating the engine without a lter element or with a damaged lter element can cause engine damage. - Never run the engine without or with a dam- aged air lter element. This would allow dirt into the engine, which would result in severe damage to the engine. Contaminated air lters (8) diminish the engine output due to reduced air supply to the carburettor. Regular inspection is therefore essential. The air lter (8) should be checked every 25 operat- ing hours and cleaned as required. The air lter (8) must be checked more often if the air is very dusty.

1. Remove the air lter cover and remove the air

2. Clean the air lter (8) only by tapping it.

3. Replace a faulty air lter (8) with a new one.

Check the spark plug (6) for the rst time after 10 operating hours for soiling and clean these with a copper wire brush if necessary. Then maintain the spark plug (6) every 50 operating hours.

1. Remove the spark plug connector with a twist.

2. Remove the spark plug (6) with a spark plug

3. Use a feeler gauge to set the gap to 0.75 mm(

0.030”). Ret the spark plug (6) and take care not to overtighten it.

15.8 Engine brake lever (2) (Fig. 1)

The engine is equipped with a mechanical brake which has to be checked regularly. When the motor brake lever (2) is released, the cutting line (11) must come to a standstill within 7 seconds. ATTENTION Product damage! If the product is operated without or with too little engine and gear oil, this can lead to engine damage. - Fill with fuel and oil before commissioning. The product is supplied without engine and gear- box oil. - Only use engine oil SAE 30, 10W-30 or 10W-40. ATTENTION Environmental damage! Spilled oil can pollute the environment permanent- ly. The liquid is highly toxic and can quickly lead to water pollution. - Fill/empty oil only on level, paved surfaces. - Use a lling nozzle or funnel. - Collect drained oil in a suitable container. - Wipe up spilled oil carefully immediately and dis- pose of the cloth according to local regulations. - Dispose of oil as per local regulations.

1. Turn the oil dipstick (17) anticlockwise to unscrew

it and wipe it with a clean, lint-free cloth.

2. Reinsert the oil dipstick (17) and check the oil lev-

el without screwing the oil dipstick (17) tight again.

3. Pull the oil dipstick (17) out and read the oil level

in the horizontal position. The oil level must be positioned between the max. and min. of the oil dipstick (17).

4. Then screw the oil dipstick (17) in again.

The engine oil should be changed annually before the start of the season. must be carried out with the engine at operating tem- perature and switched o󰀨. Only use engine oil (SAE30, 10W-30 or 10W-40).

1. Unscrew the oil dipstick (17) by turning it anti-

2. Suck out the engine oil through the ller neck us-

ing an oil pump (with hose).

3. Fill up with fresh engine oil and check the oil level

15.5 Drain fuel with a fuel suction pump (Fig. 21)

1. Hold a collection bucket under the hose on the

fuel extraction pump.

2. Unscrew and remove the fuel ller cap (19).

3. Push the hose of the petrol extraction pump into

the fuel tank and drain out the fuel completely using the petrol extraction pump.

4. Screw the fuel ller cap (19) tight again

5. To ensure that no fuel remains in the carburet-

tor, the remaining fuel must be drained out of the carburettor.www.scheppach.com

• Never store the product with fuel in the tank inside a building in which fuel vapours may come into contact with naked ames or sparks.

• Allow the engine to cool down before parking the product in enclosed spaces.

• In the event of prolonged storage, empty the fuel tank with a fuel extraction pump (not included in the scope of delivery).

• In order to avoid re hazards, keep the engine, exhaust pipe and the area around the fuel tank free of grass, leaves and leaking grease (oil).

17.1 Preparing the product for storage

m WARNING Do not remove the fuel in enclosed spaces, near re or when smoking. Petrol fumes can cause ex- plosions and re.

1. Clean and maintain the product before storage.

2. Empty the fuel tank using a petrol extraction

3. Carry out an oil change (see 15.4)

4. Remove the spark plug (6) from the cylinder head.

5. Pull the pull starter (21) slowly so that the oil

protects the inside of the cylinder.

6. Screw the spark plug (6) back in.

7. Clean the cooling ns of the cylinder and the

8. Be sure to clean the entire product to protect the

9. Store the product in a well-ventilated place or area.

18. Repair & ordering spare parts

After repairs or maintenance, make sure that all safe- ty-related parts are installed and are in perfect con- dition. All parts which may cause injury must be kept where they are inaccessible to children or others. ATTENTION According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts. Such work should be performed by a customer ser- vice centre or an authorised specialist. The same applies to accessories Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page. A running cutting thread (11) produces clearly audible wind noises. The running of the cutting thread (11) is signalled by the wind noise generated and can thus be checked. The cable pulls must be oiled more often and checked for ease of movement (Fig. 12). NOTE If you notice that the motor brake is not working cor- rectly, please contact customer service or a special- ist workshop. Ensure that the product is in perfect condition throughout its service life. Improper maintenance may lead to life-threatening injuries.

m WARNING Risk of injury and burn! The product can start unexpectedly and cause in- juries. - Switch o󰀨 the motor before carrying out any cleaning or maintenance work. - Allow the motor to cool down. - Disconnect the spark plug connector from the spark plug.

1. Empty the fuel tank using a petrol extraction

pump (not included in the scope of delivery) into a collection container.

2. Drain the motor oil of the warm motor.

3. Clean the cooling ns of the cylinder and the

5. Wrap a few layers of corrugated cardboard be-

tween the upper push bar (4), the lower push bar (4a) and the motor to prevent chang (Fig. 20).

6. The product must be secured against tipping and

slipping during transport in vehicles in order to prevent damage and injuries.

ATTENTION Clean and maintain the product before storage. Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature lies between 5 and 30 ˚C. Store the product in its original packaging. Cover the product to protect it from dust or moisture. Store the operating manual with the product.www.scheppach.com

19. Disposal and recycling

Notes for packaging The packaging materials are recycla- ble. Please dispose of packaging in an environmentally friendly manner. You can nd out how to dispose of the disused de- vice from your local authority or city administration. Fuels and oils

• Before disposing of the device, the fuel tank and the motor oil tank must be emptied!

• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!

• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner. NOTE Important note in the case of repairs When returning the product for repair, for safety rea- sons, ensure that it is free of oil and fuel when it is sent to the service centre.

With this product, it is necessary to note that the fol- lowing parts are subject to natural or usage-related wear, or that the following parts are required as con- sumables. Wearing parts*: Cutting thread, V-belt, engine oil, spark plug, air lter, wheels

• may not be included in the scope of delivery!

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop. Fault Possible cause Remedy Unsteady running, strong vibration of the device

• Cutting line, cutting height adjustment loose

• Cutting threads of unequal length

• Check cutting height adjustment

• Check cutting threads Engine does not run

• Engine brake lever not pressed

• Spark plug is defective

• Press engine brake lever

• Empty the fuel tank and ll with clean fuel

• Press the primer button

• Contact authorised customer service Engine runs unsteadily

21. Declaration of conformity
